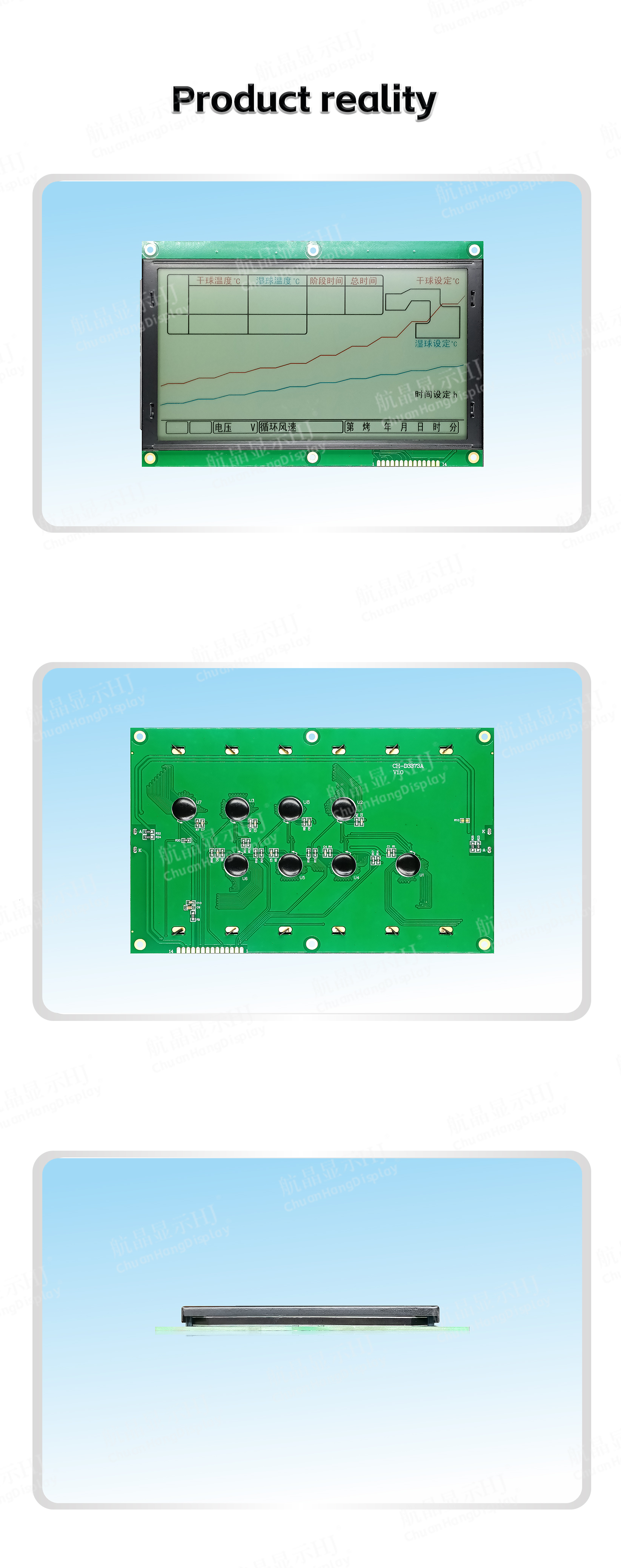

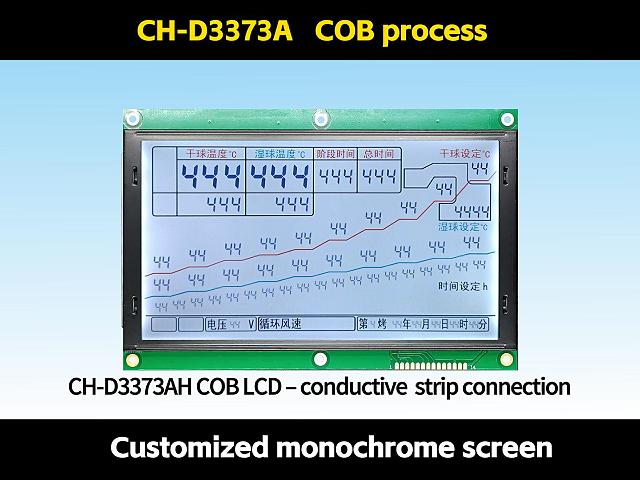

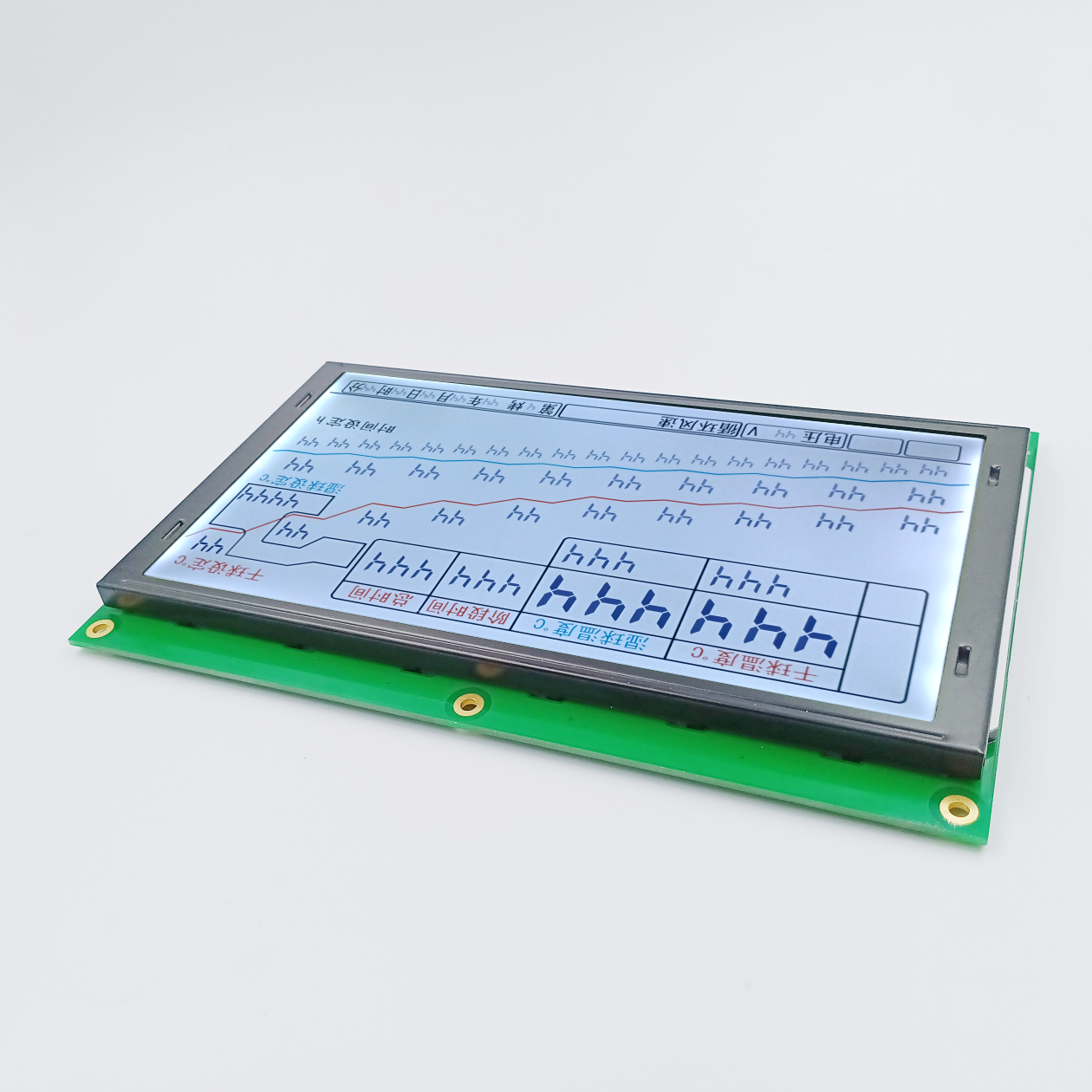

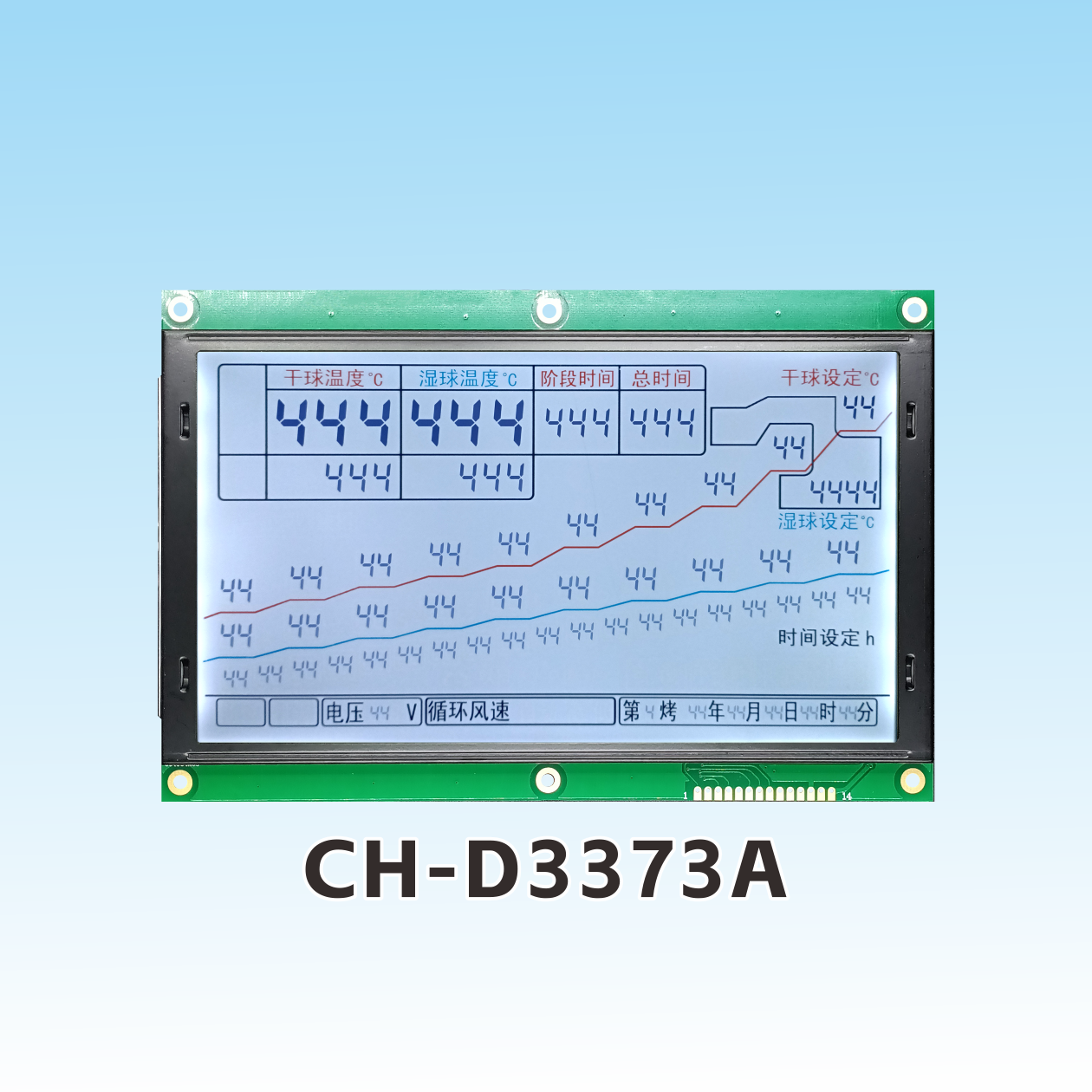

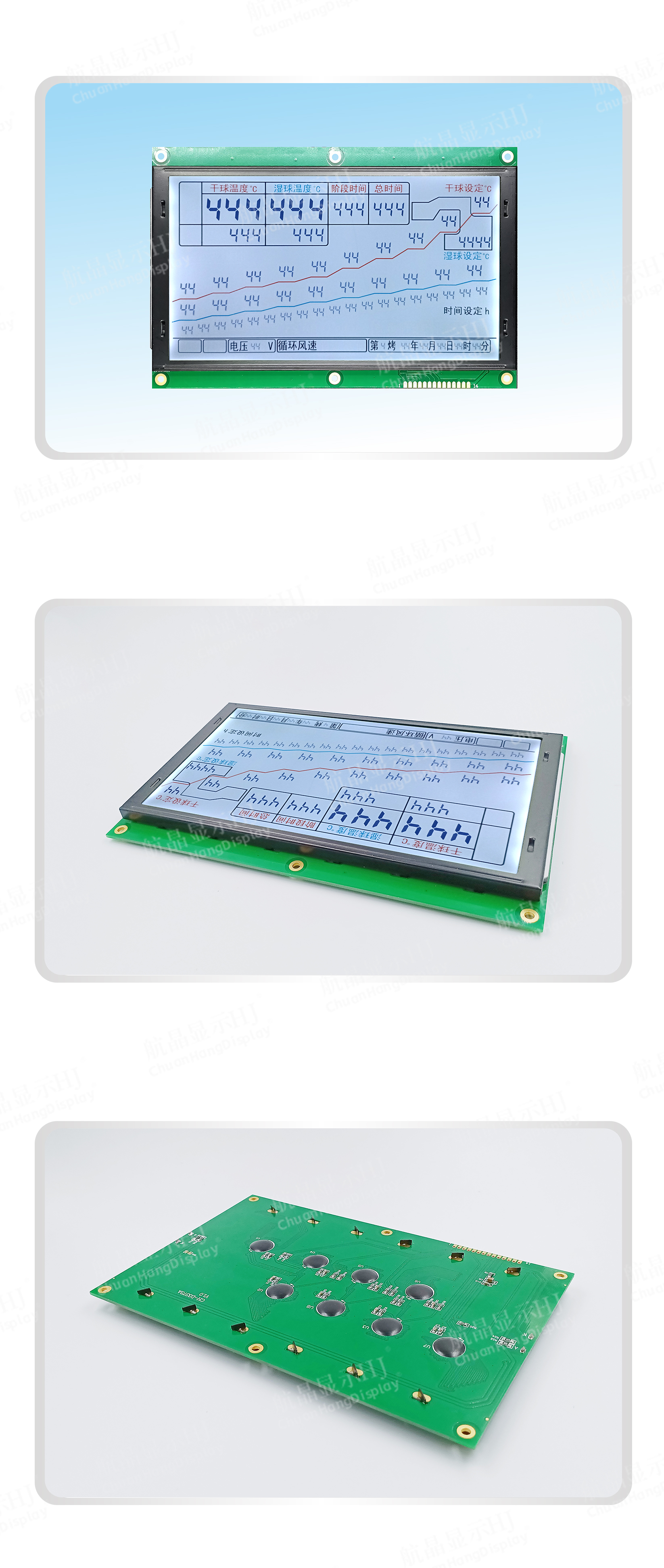

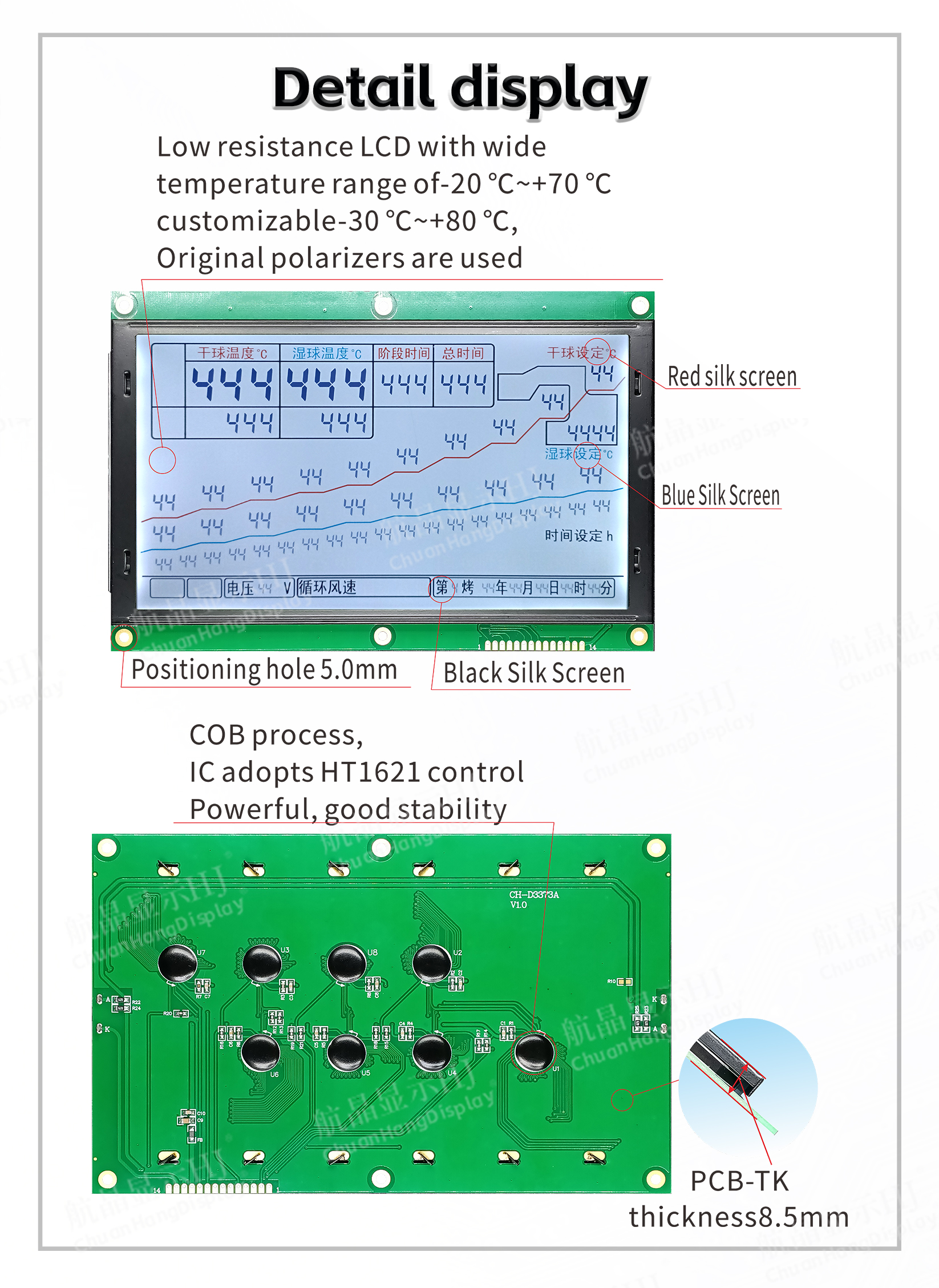

CH-D3373A

Product Description

LCD Material: HTN LCD
Display Mode: Positive Display
Polarizer Type: Grey film/full penetration

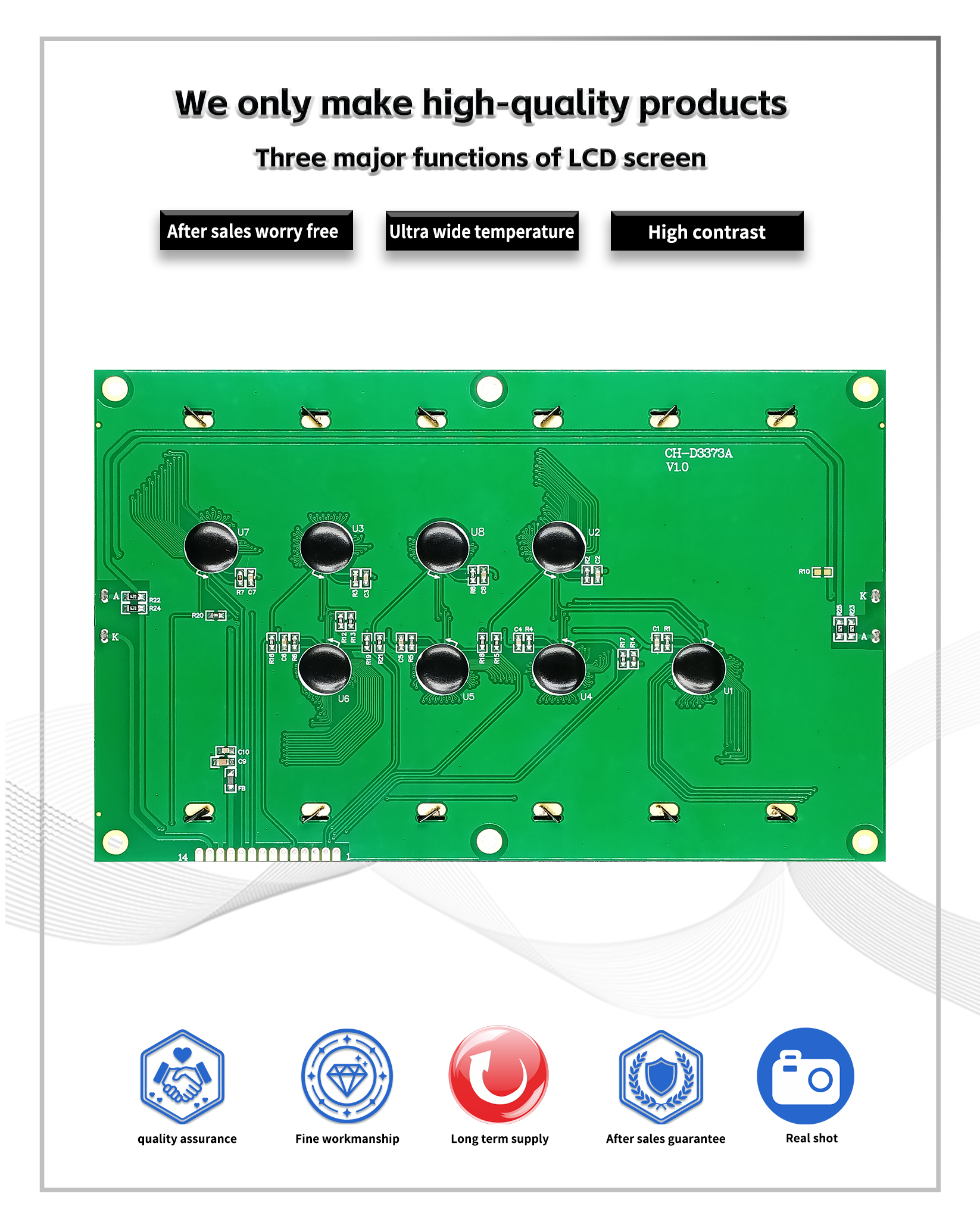

Process Type: COB
View Direction: 6 O'CLOCK
IC:HT1621
Working Voltage: 5.0V
Operating Temperature: -20~70℃
Connection Method: Conductive strip
Backlight ：White LED
Application industry: Tobacco curing machine

PDF Download Demo code

Video Presentation

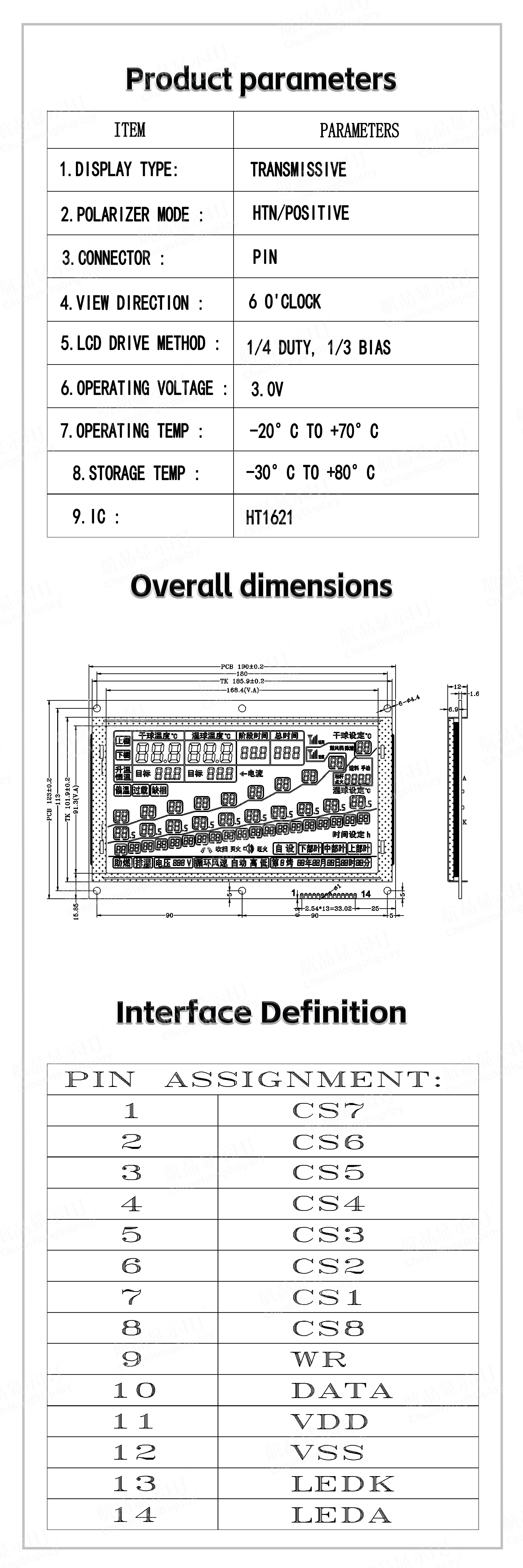

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH-D3373A
Display Mode	Positive Display	Display Size	Customized

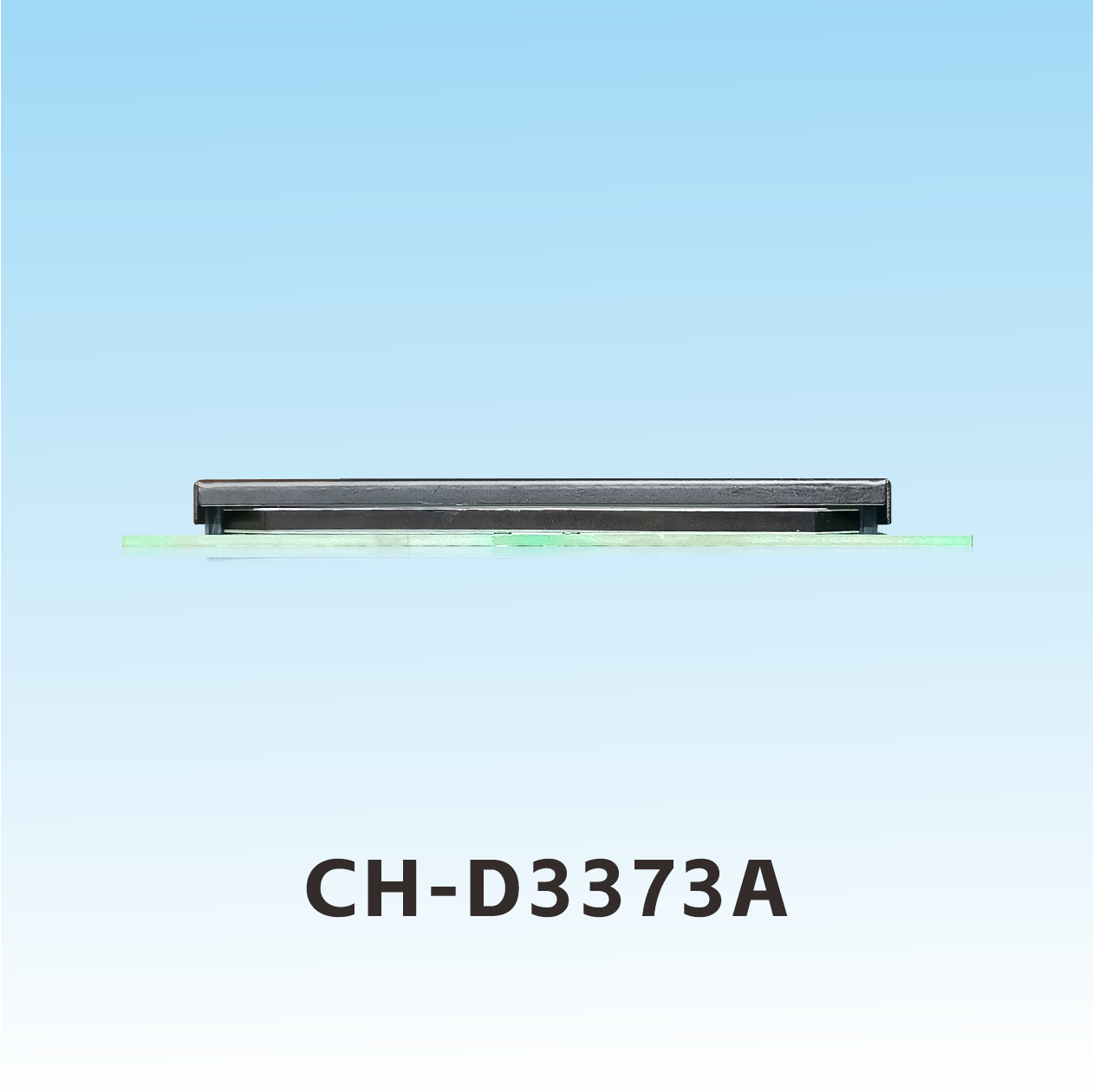

Outline Dimension(LWH)	190.00x123.00x12.0mm	Visible Area(L*W)	/
Active Area(L*W)	168.4x91.3mm	Character Size(L*W)	/
Type	COB	Connection Method	Conductive strip
Supply Voltage	3.3V	Interface Type	SPI
Viewing Direction	6 O'CLOCK	Driving Method	/
Display Type	HTN	Driver IC	HT1621
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight	White LED	Production Capacity	Self-produced

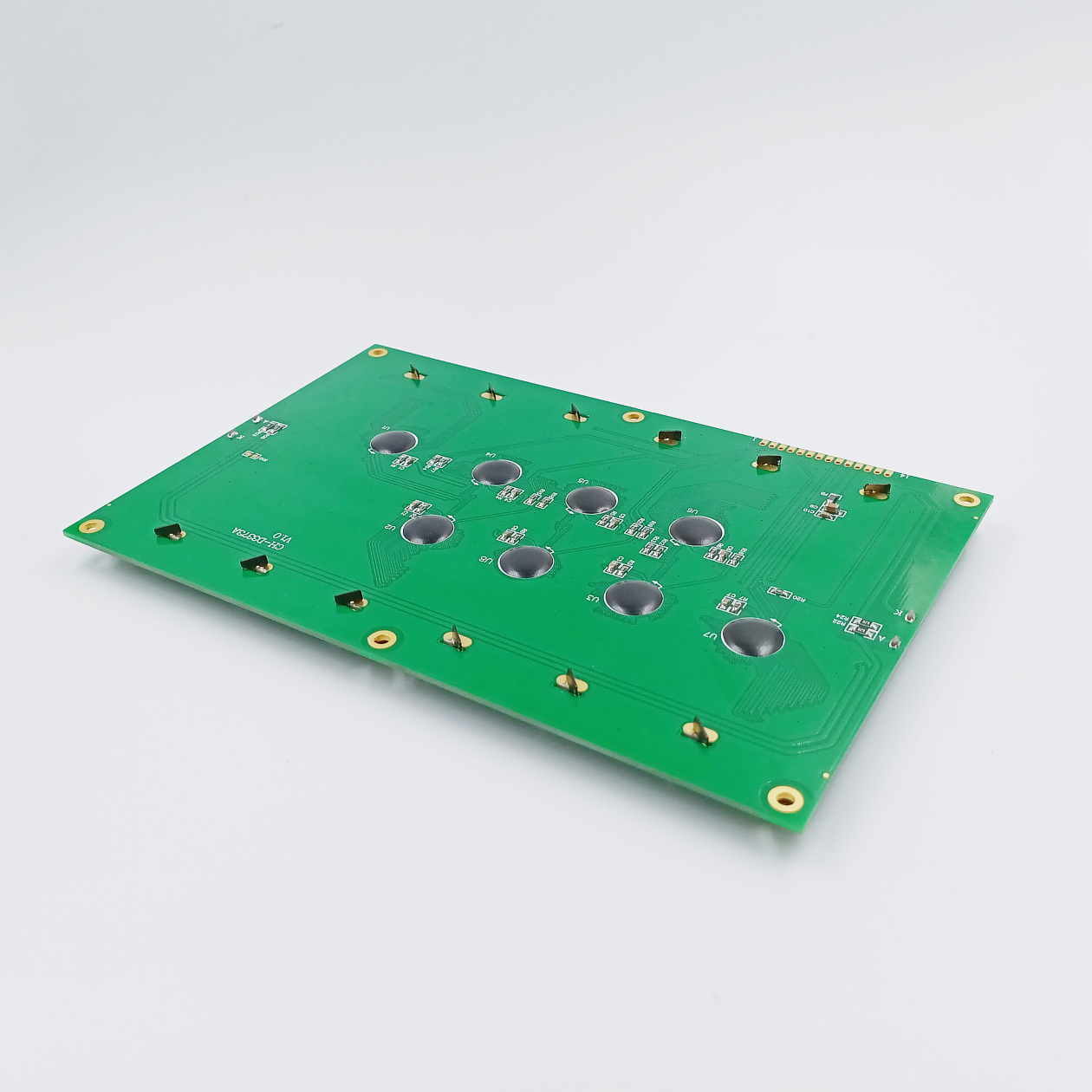

Character libraries	/	Whether to bring PCB	YES
