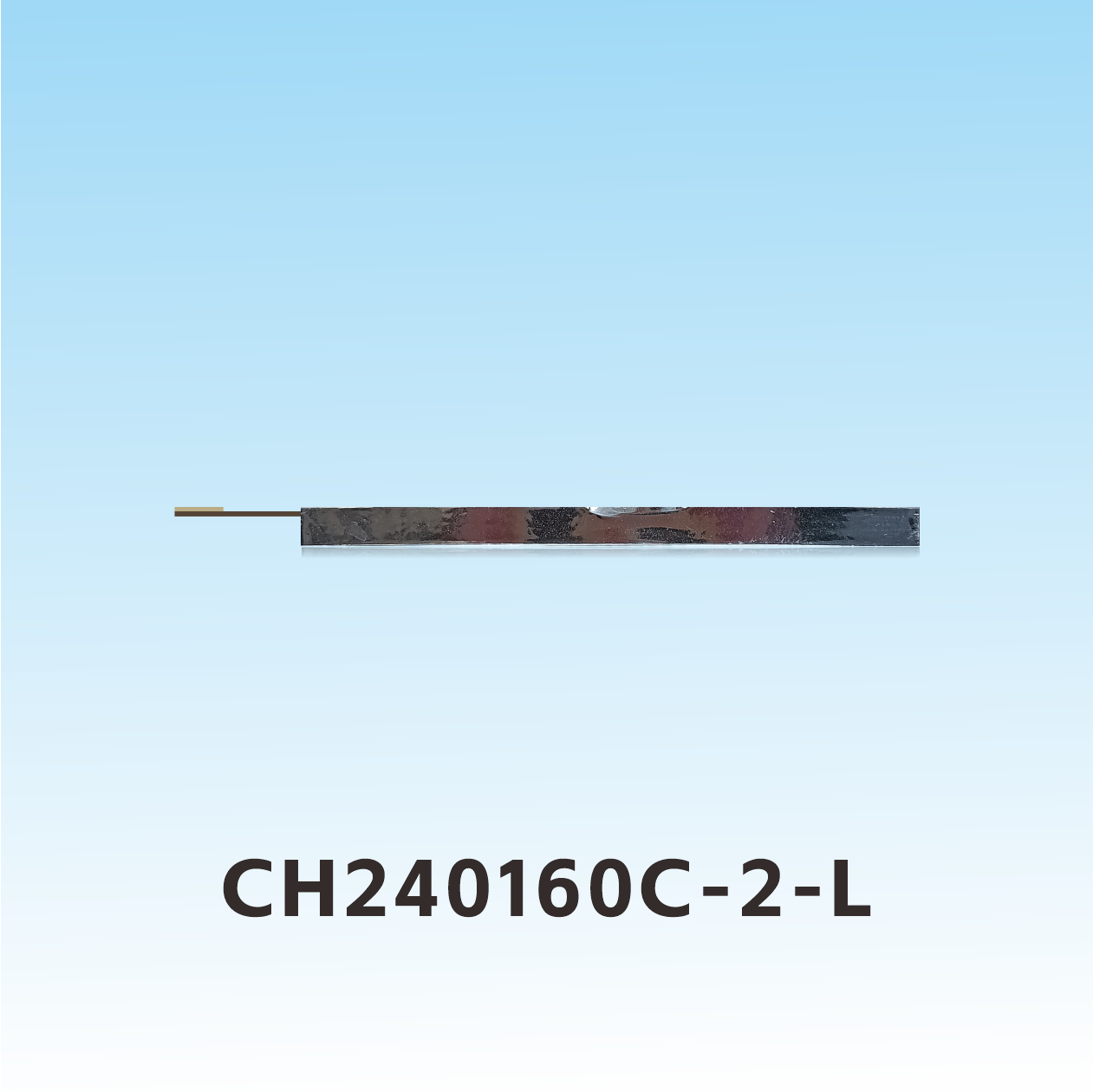

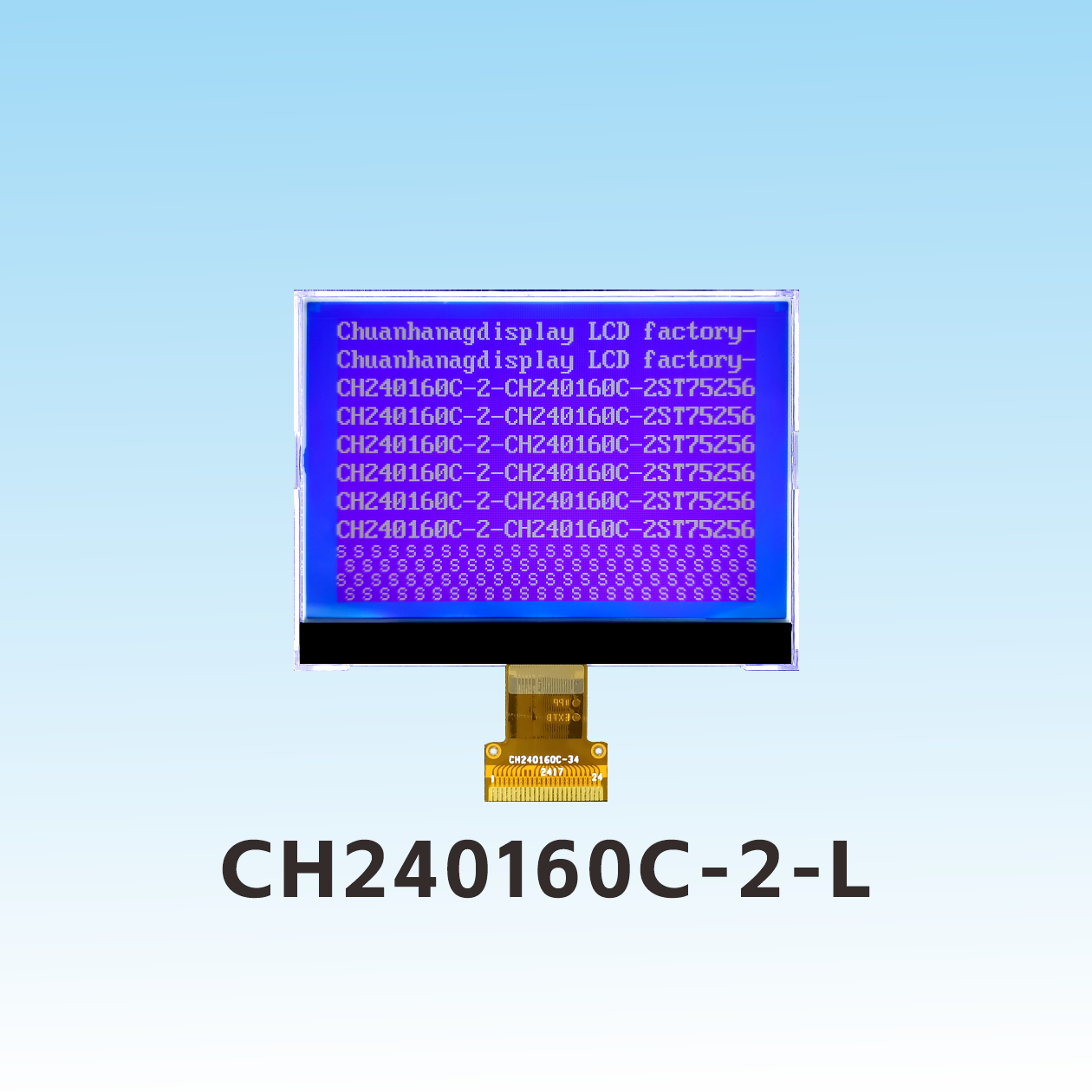

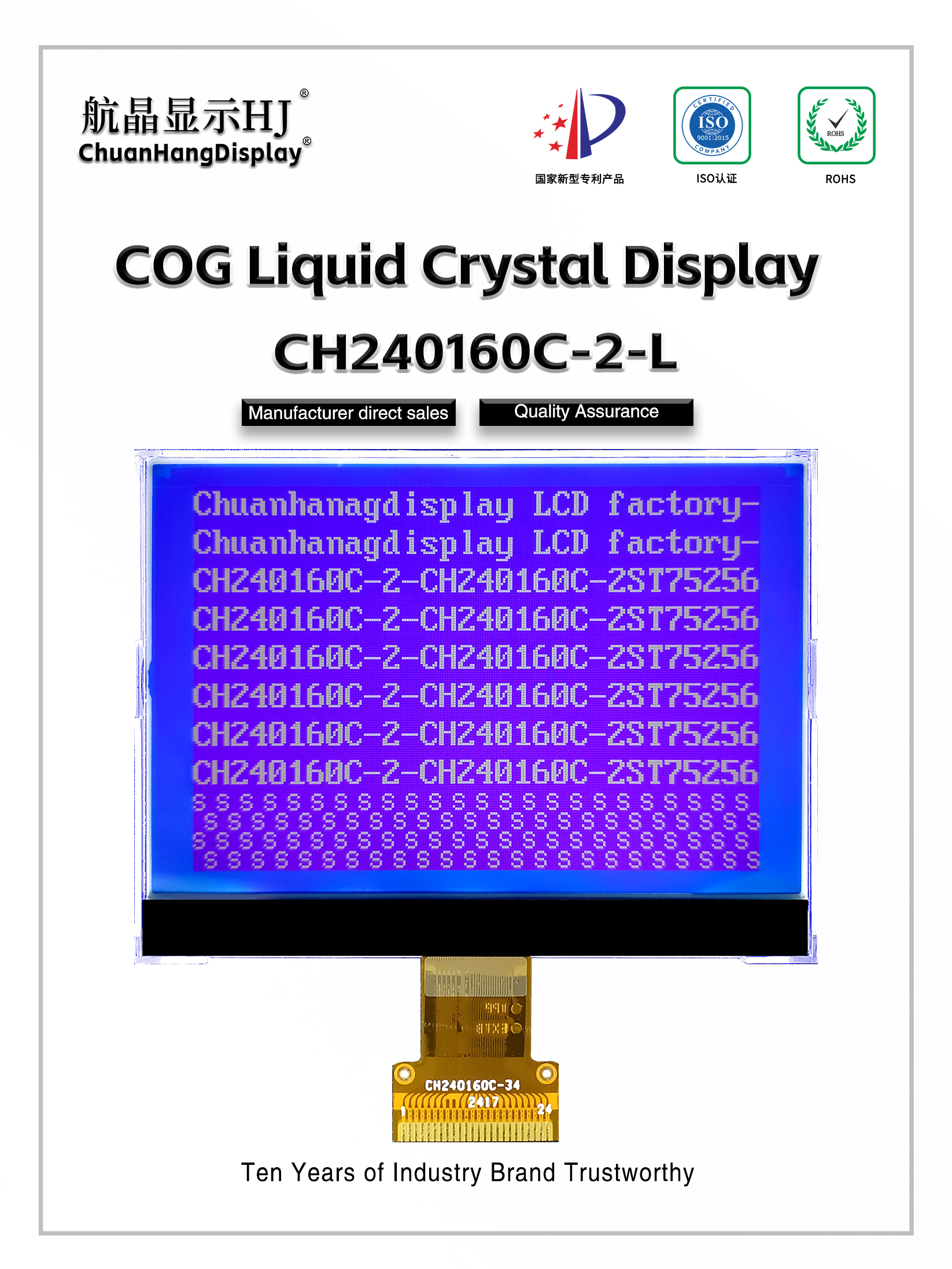

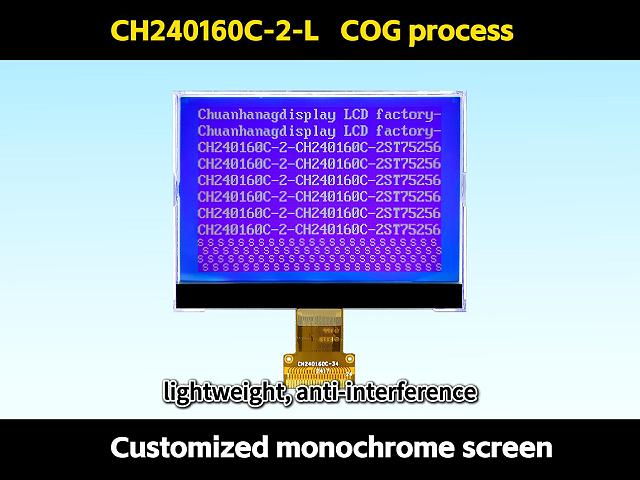

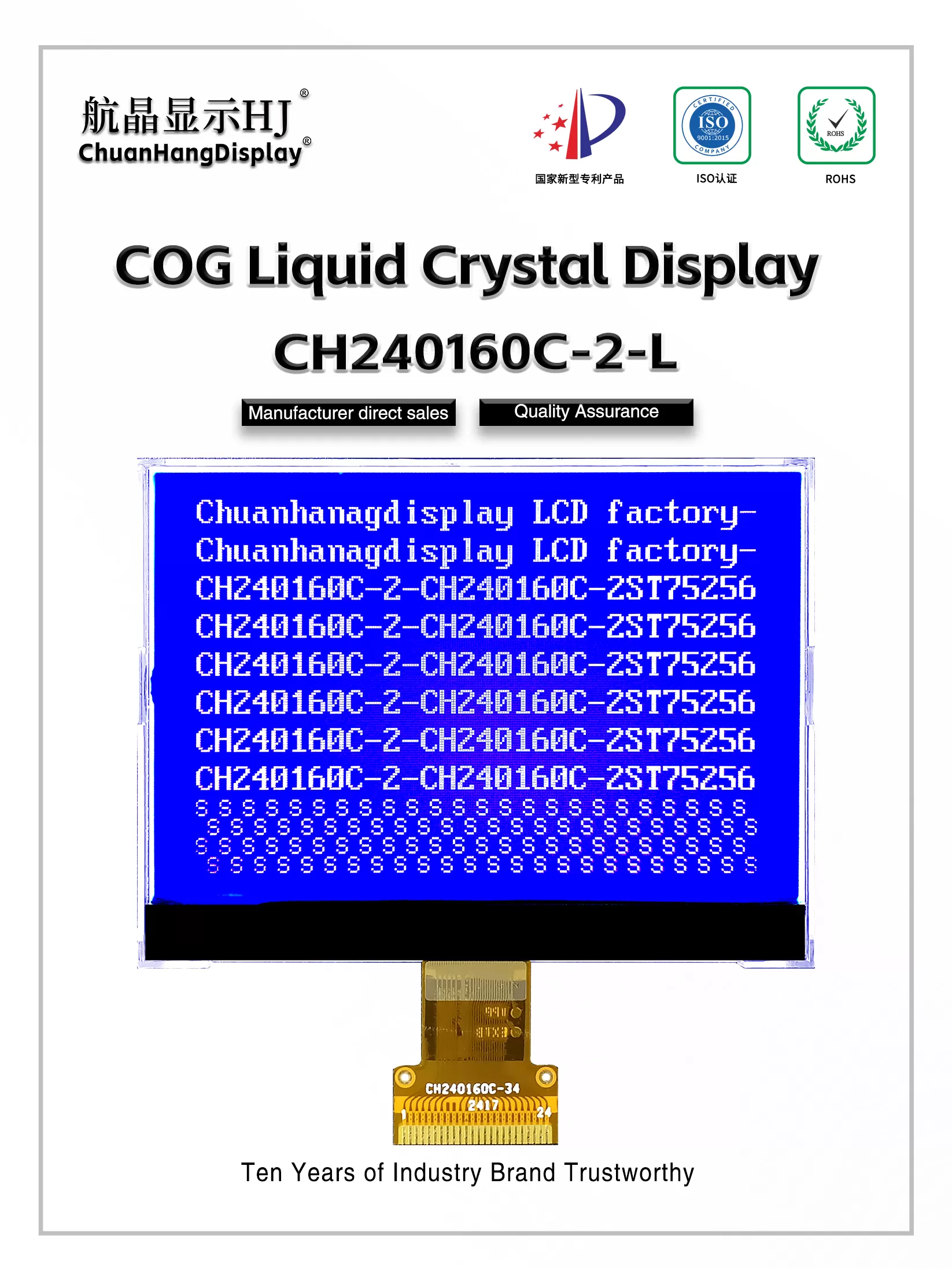

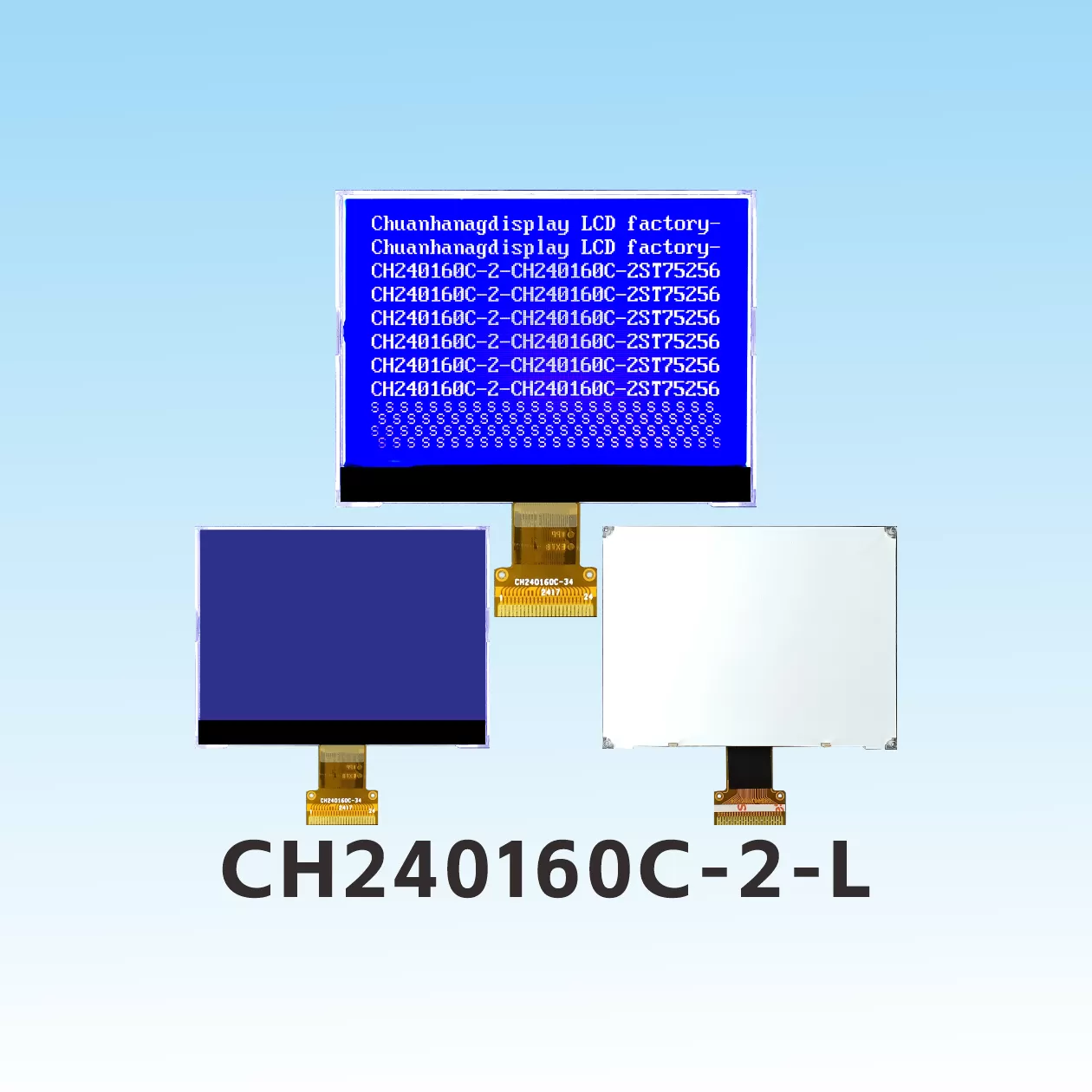

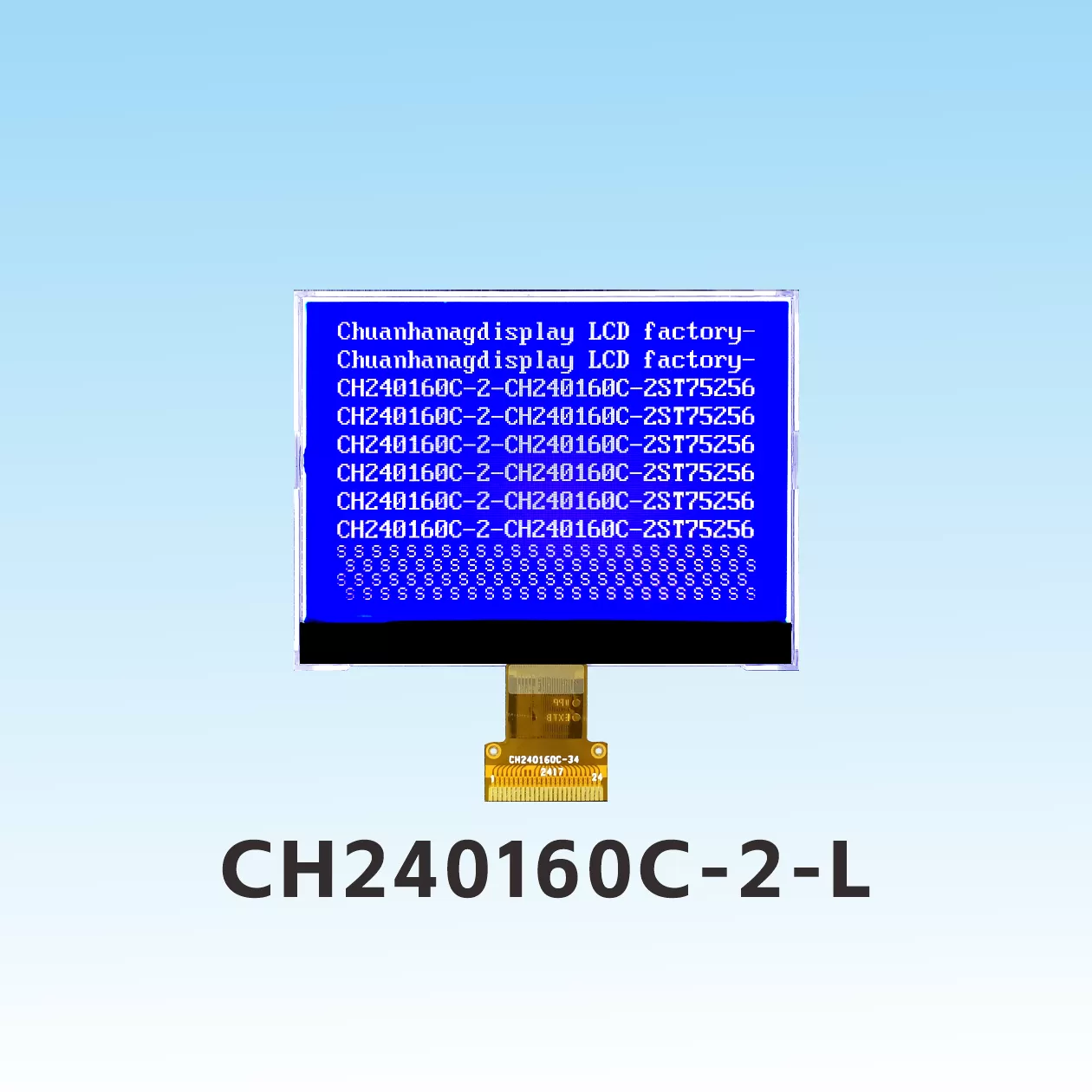

CH240160C-2-L

Product Description

PDF Download Demo code

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH240160C-2-L
Resolution	240x160	screen size
Outline Dimension(LWH)	86.70x64.60x8.20mm	Visible Area(L*W)	77.58x51.60mm
Active Area(L*W)	71.98x47.98mm	Dot Size (mm)	0.28(L)x0.28(W)
Type	COG	Connection Method	FPC
Supply Voltage	3.3V	Interface Type	MCU/SPI
Viewing Direction	12 O'CLOCK	Driving Method	1/160Duty,1/14Bias
Display Type	FSTN	Driver IC	ST75256
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO

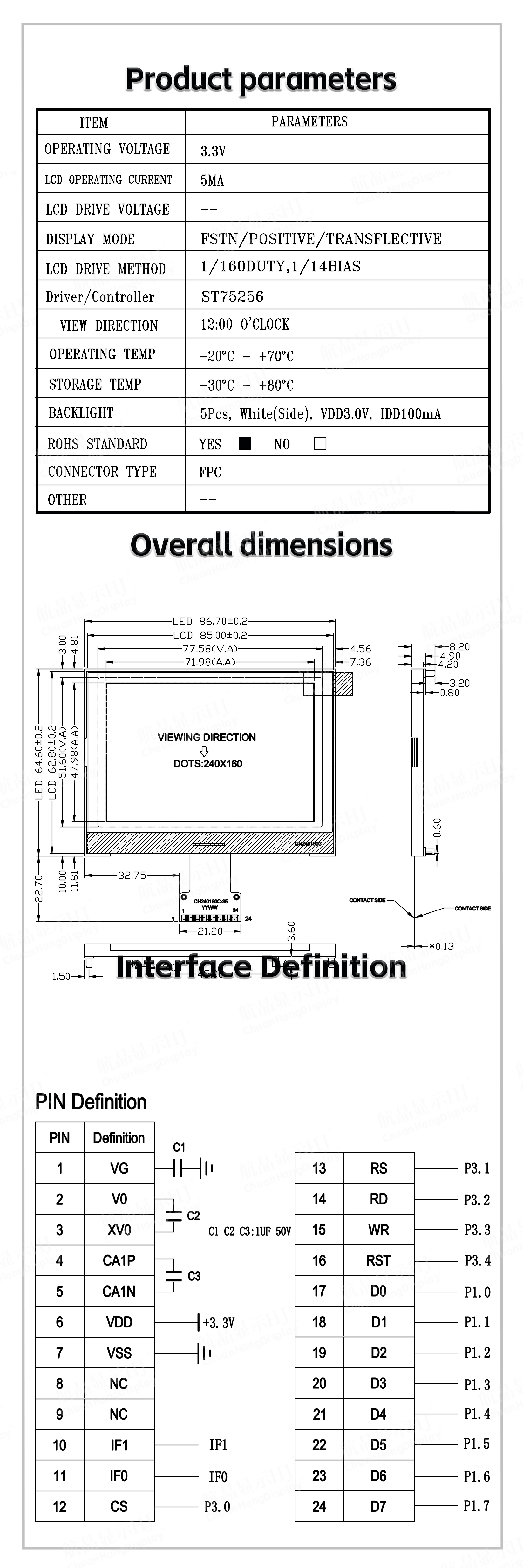

Product Datasheet

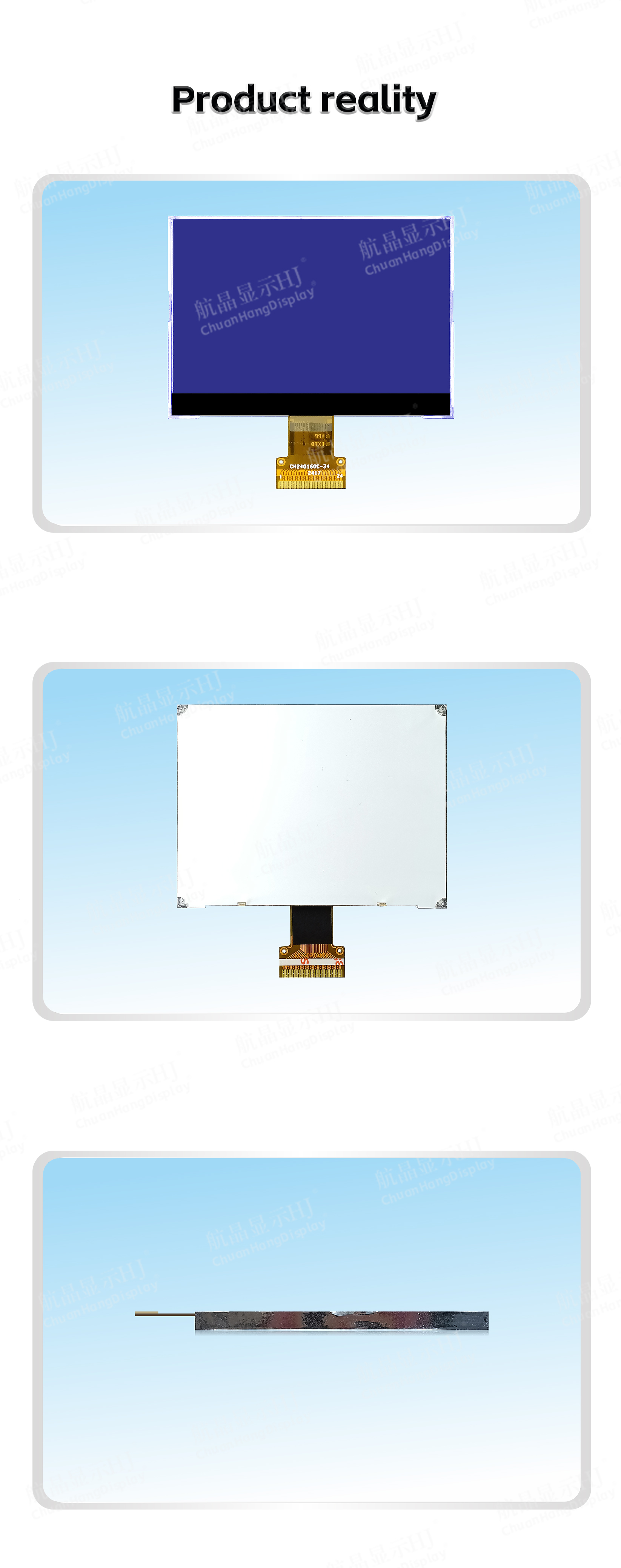

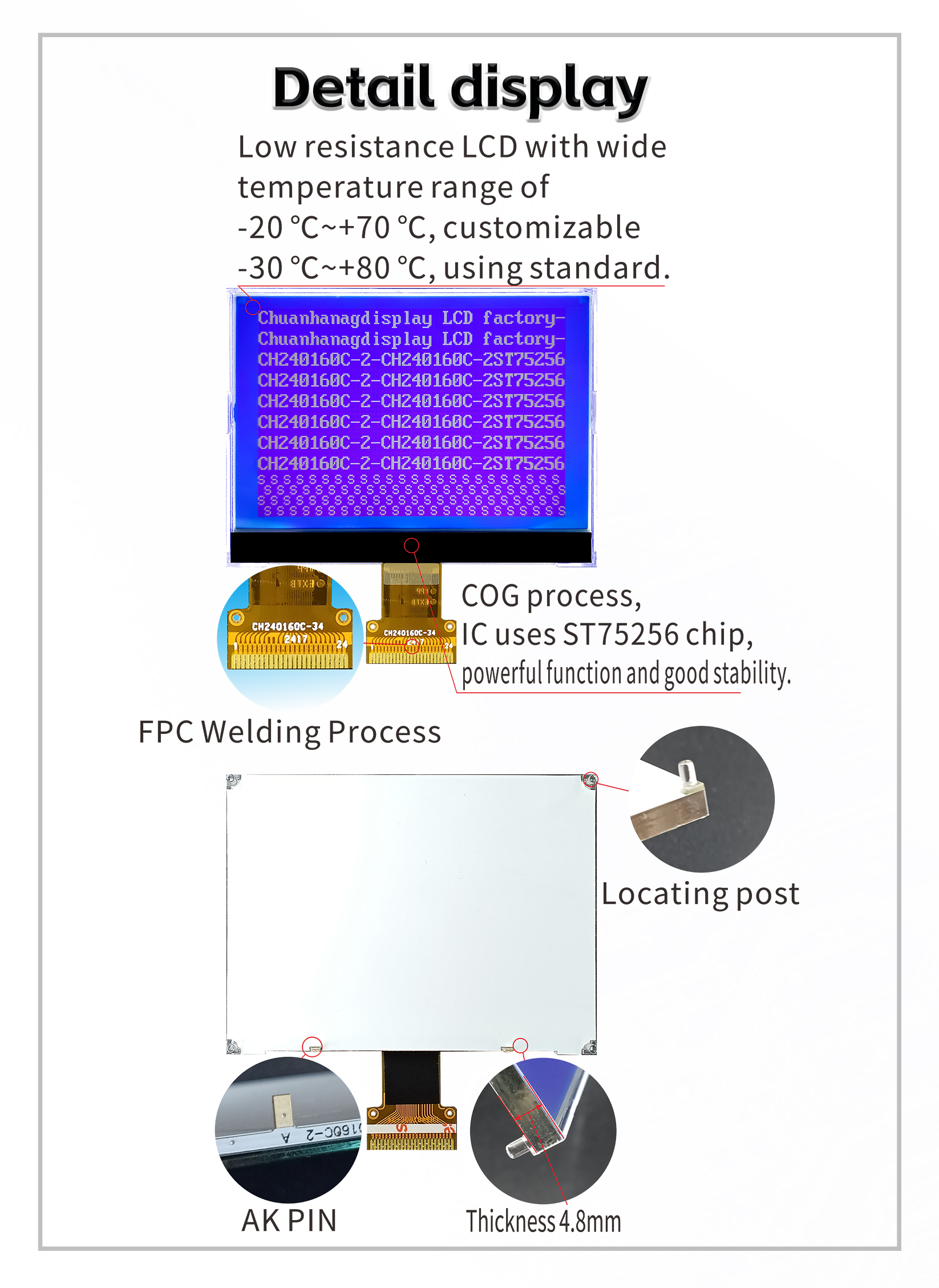

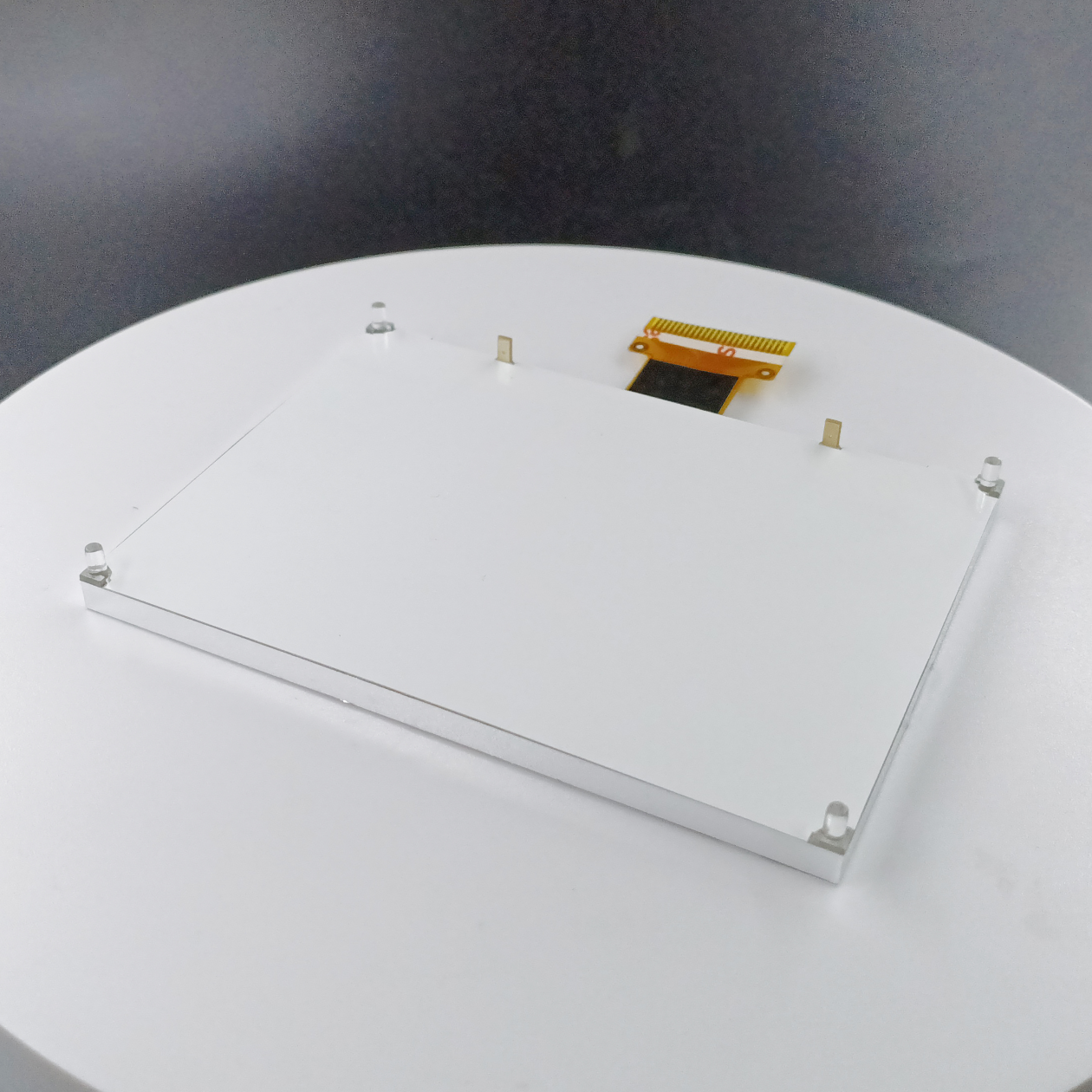

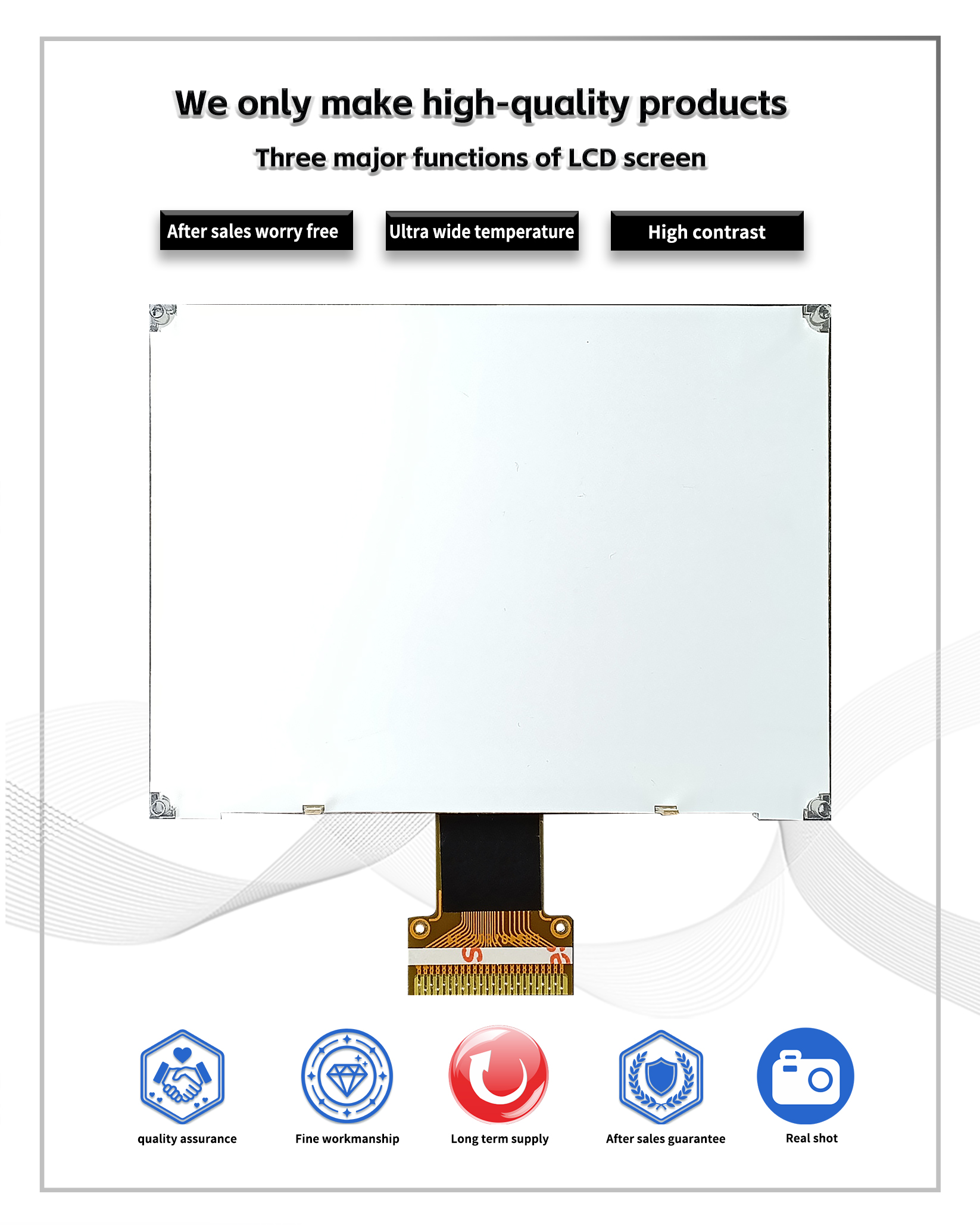

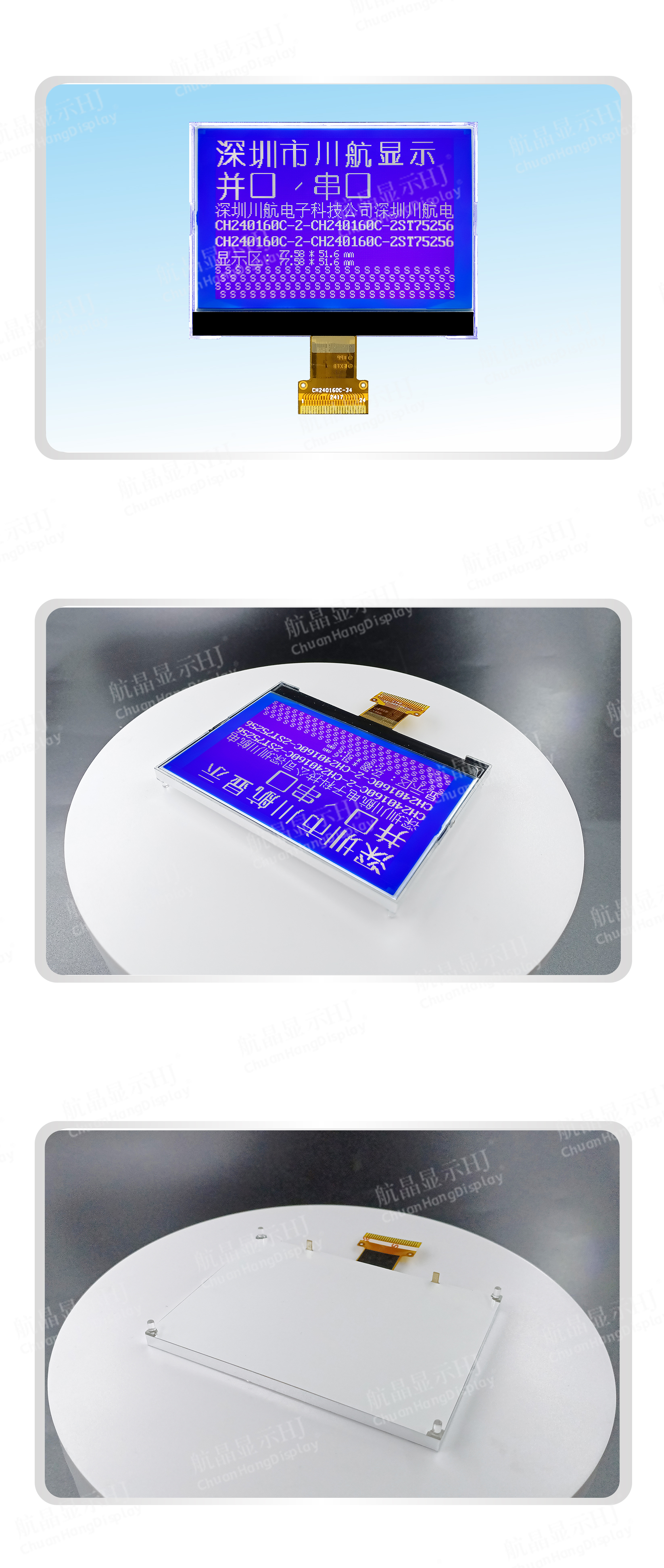

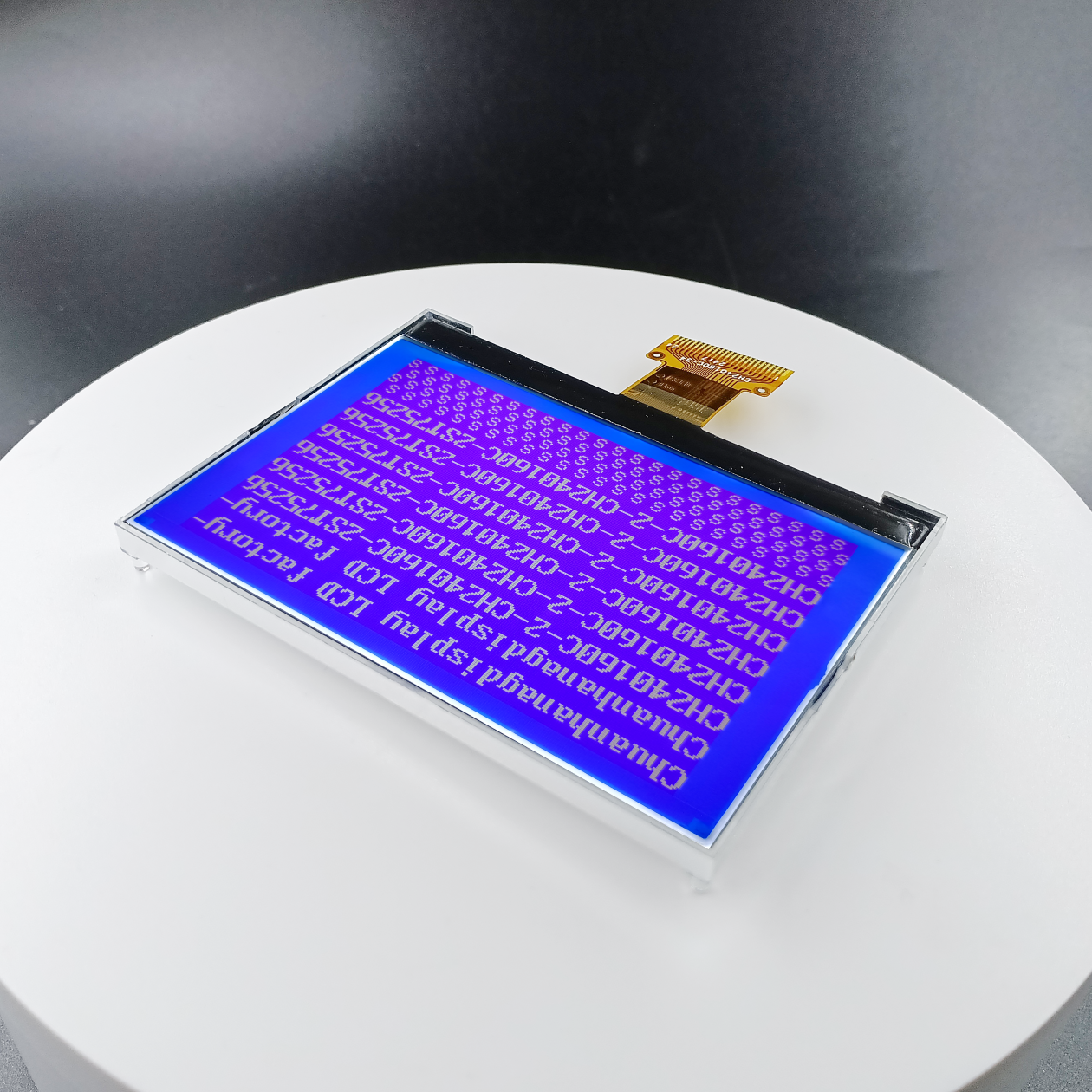

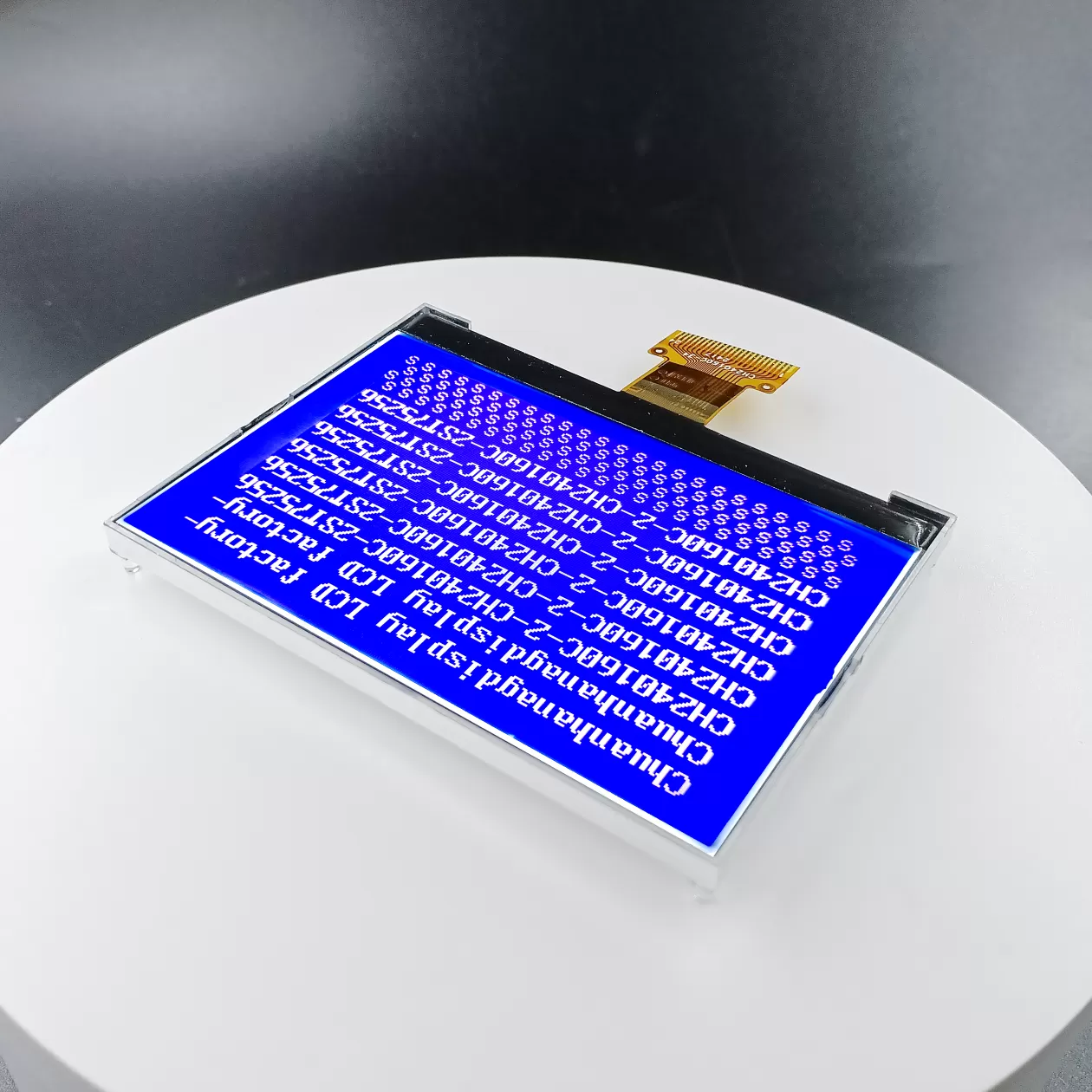

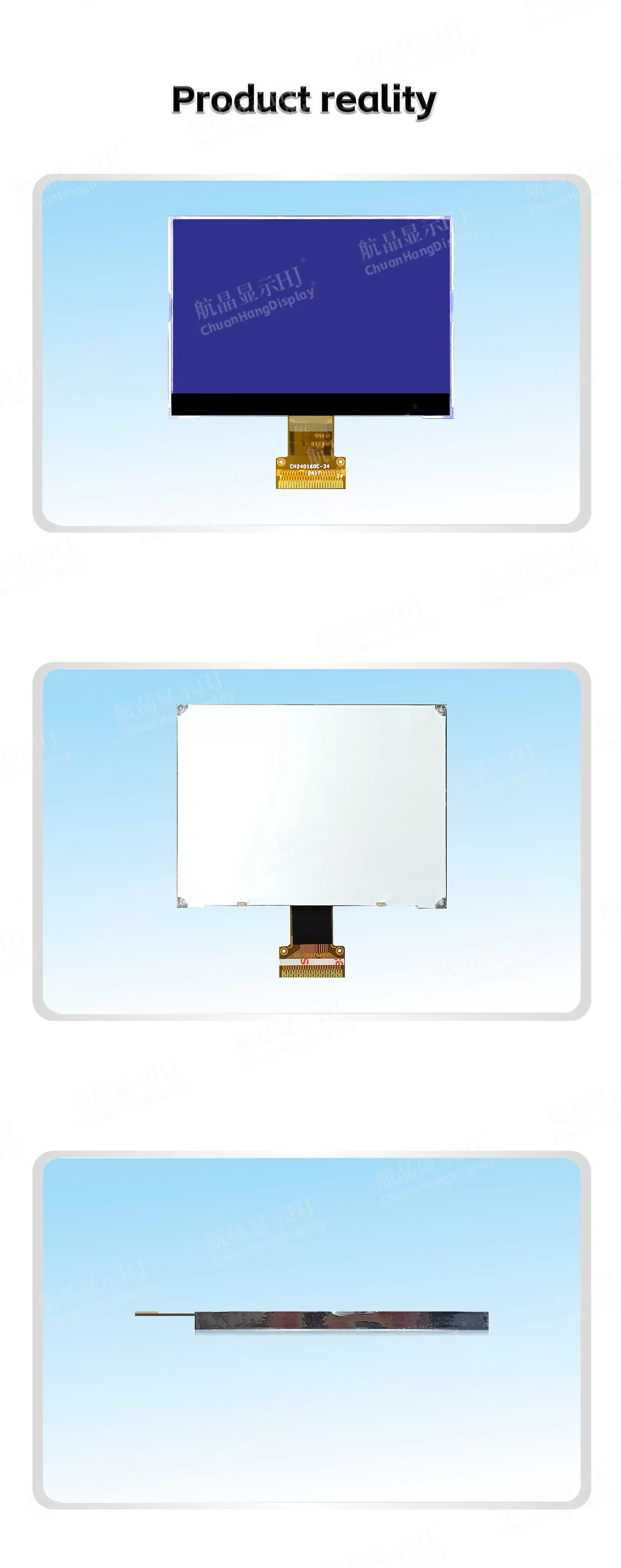

Product Display
