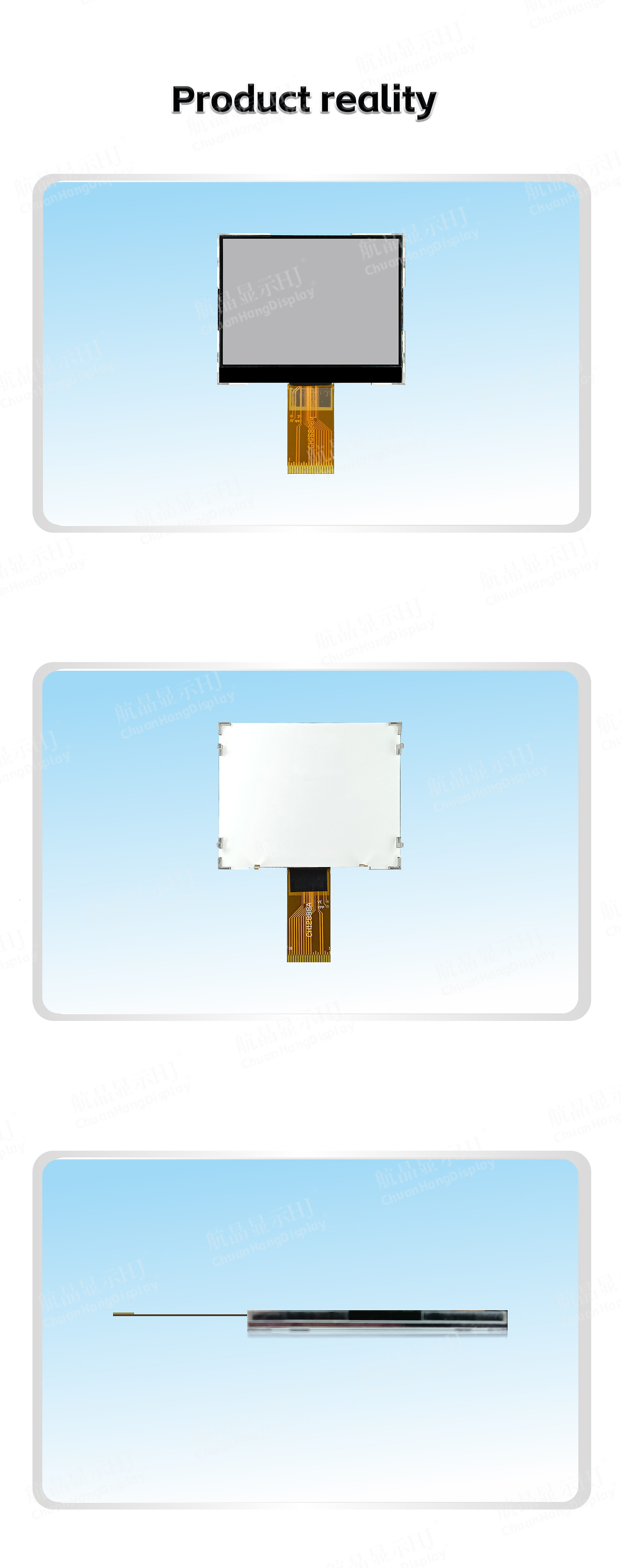

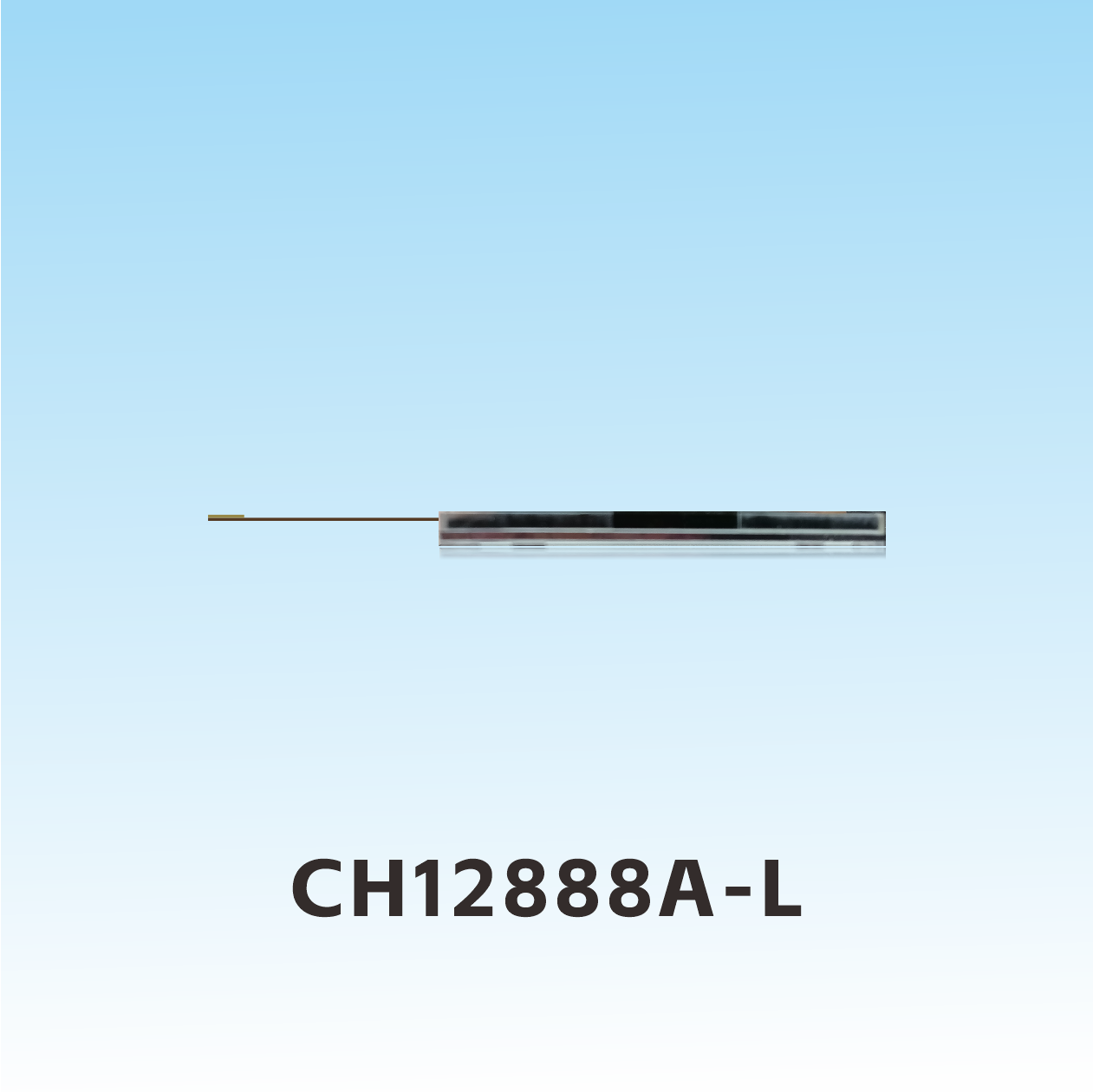

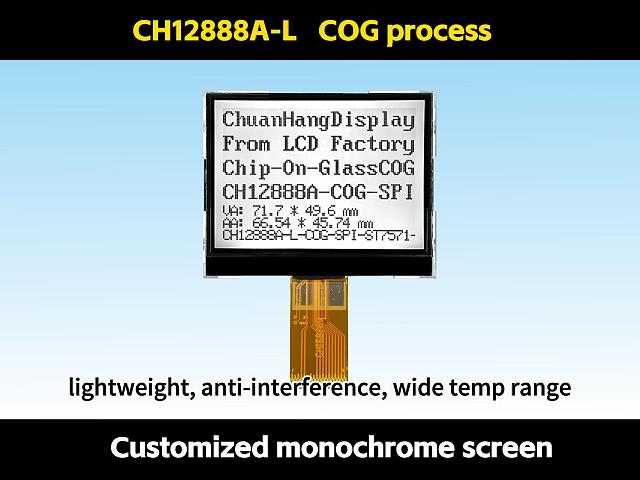

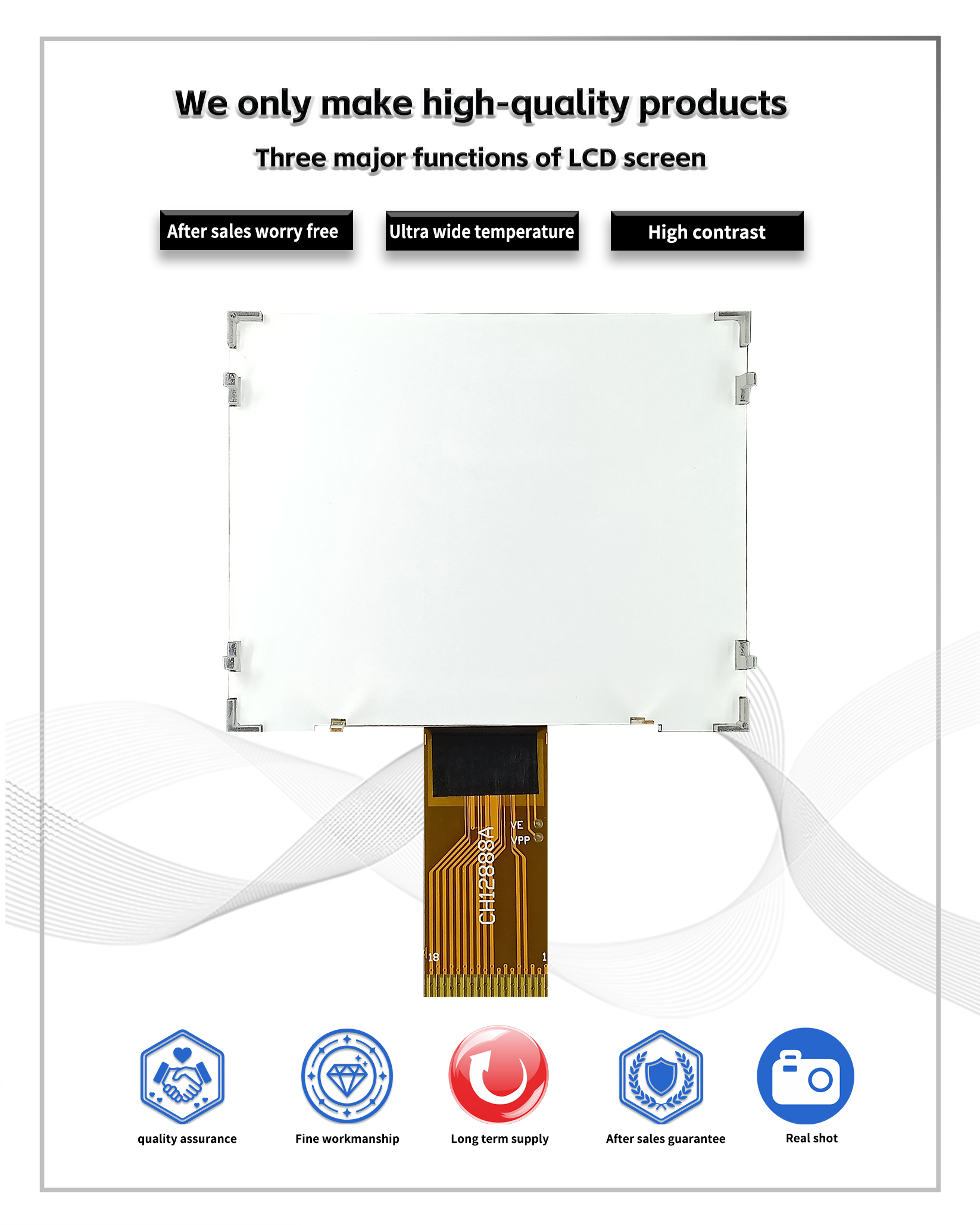

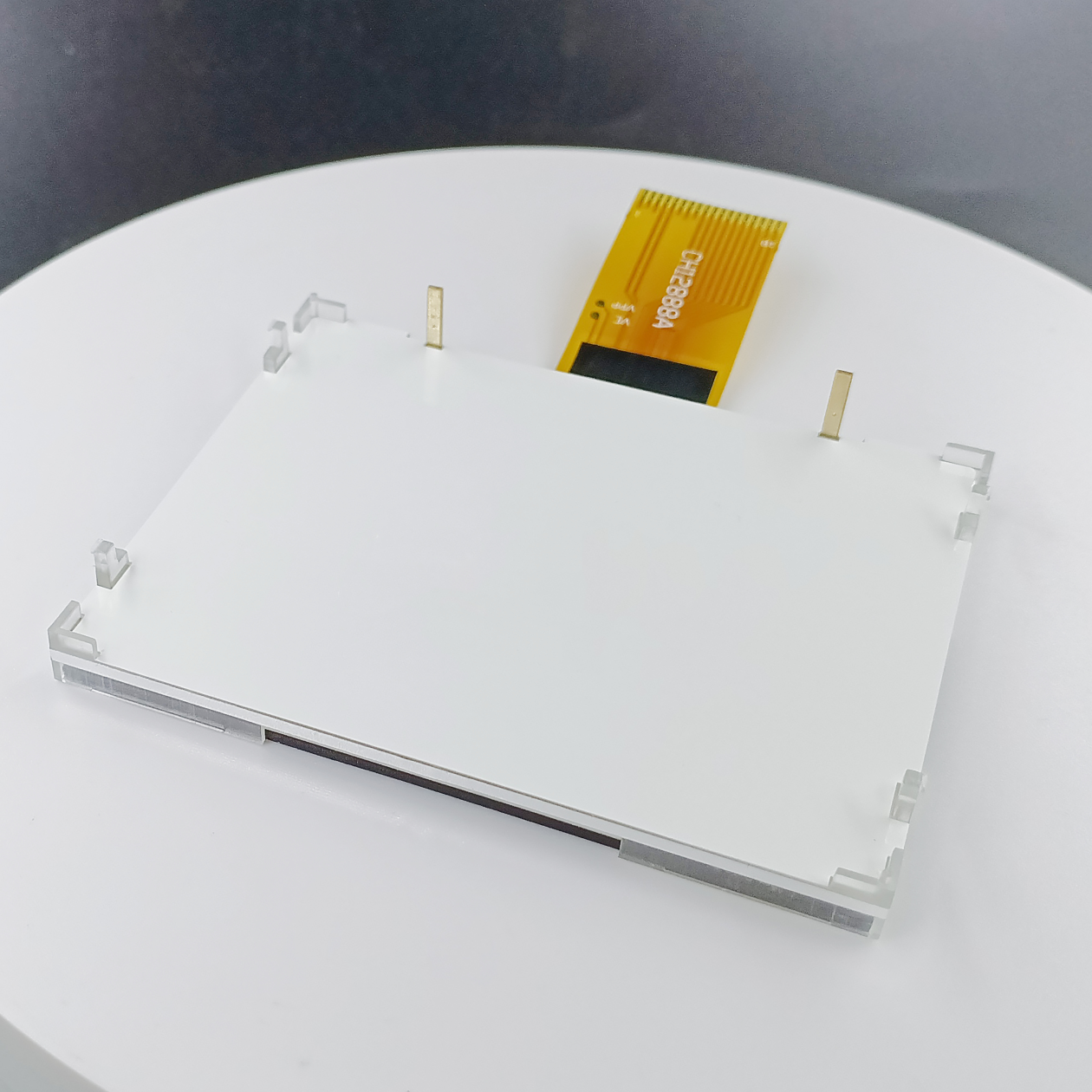

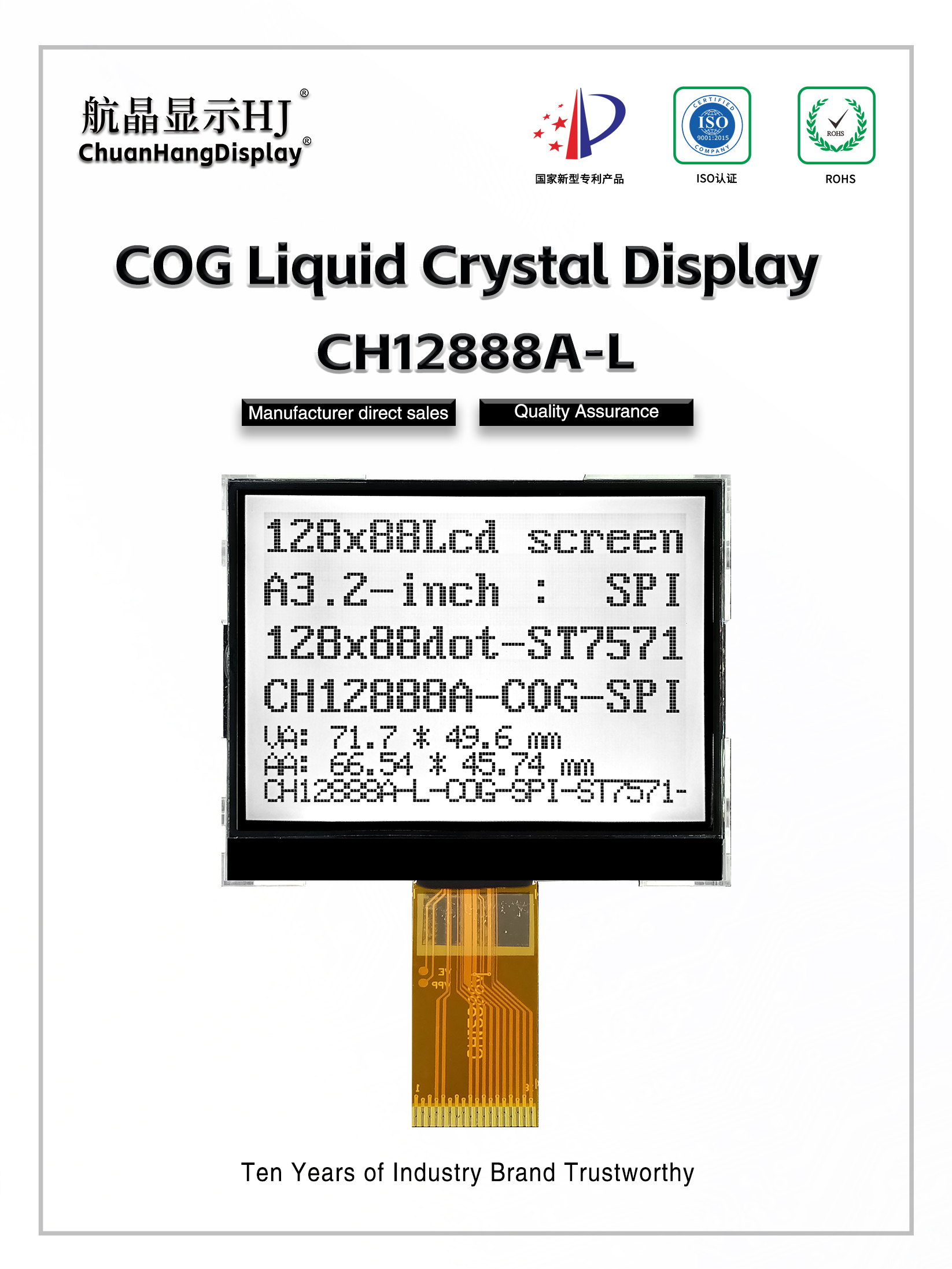

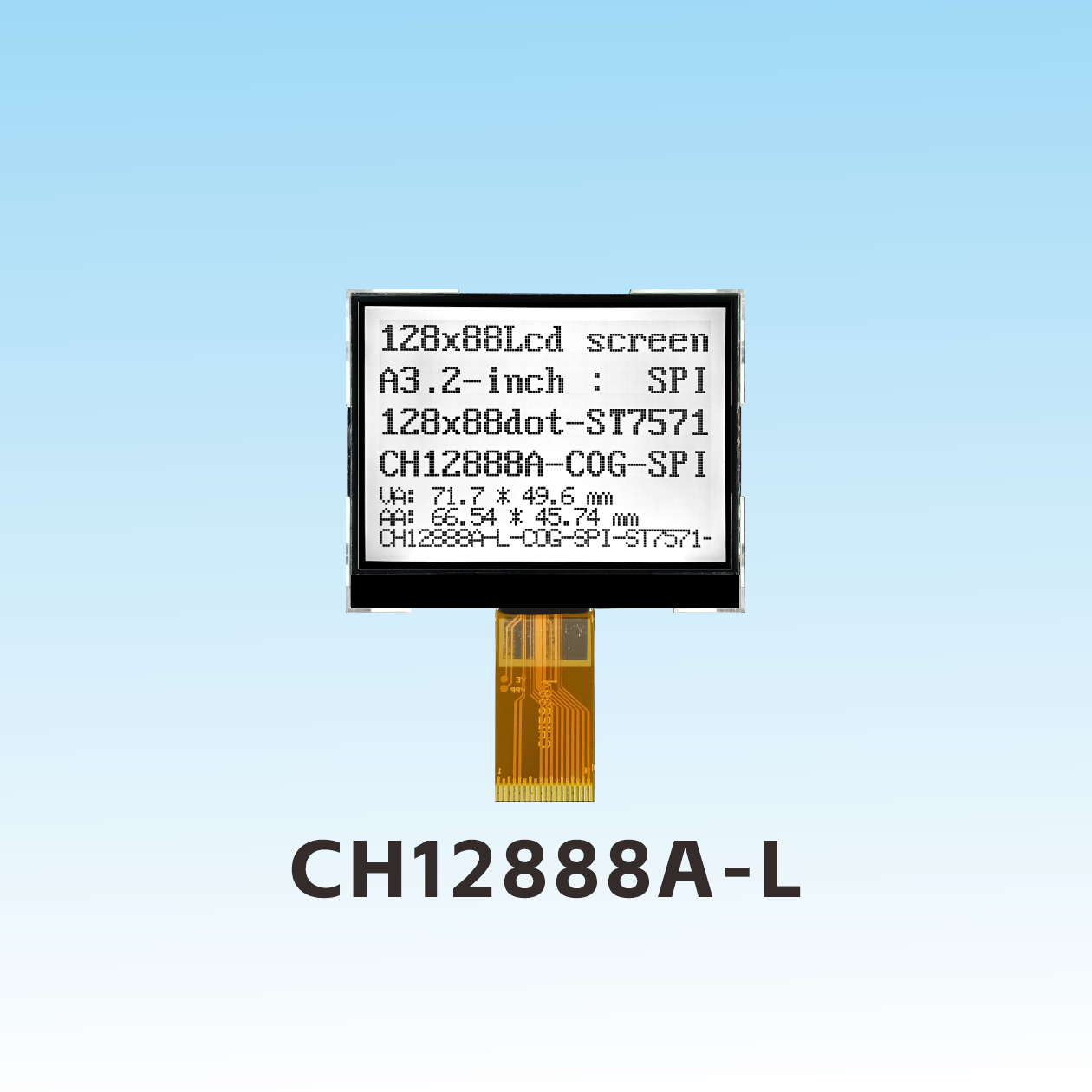

CH12888A-L
Product Description

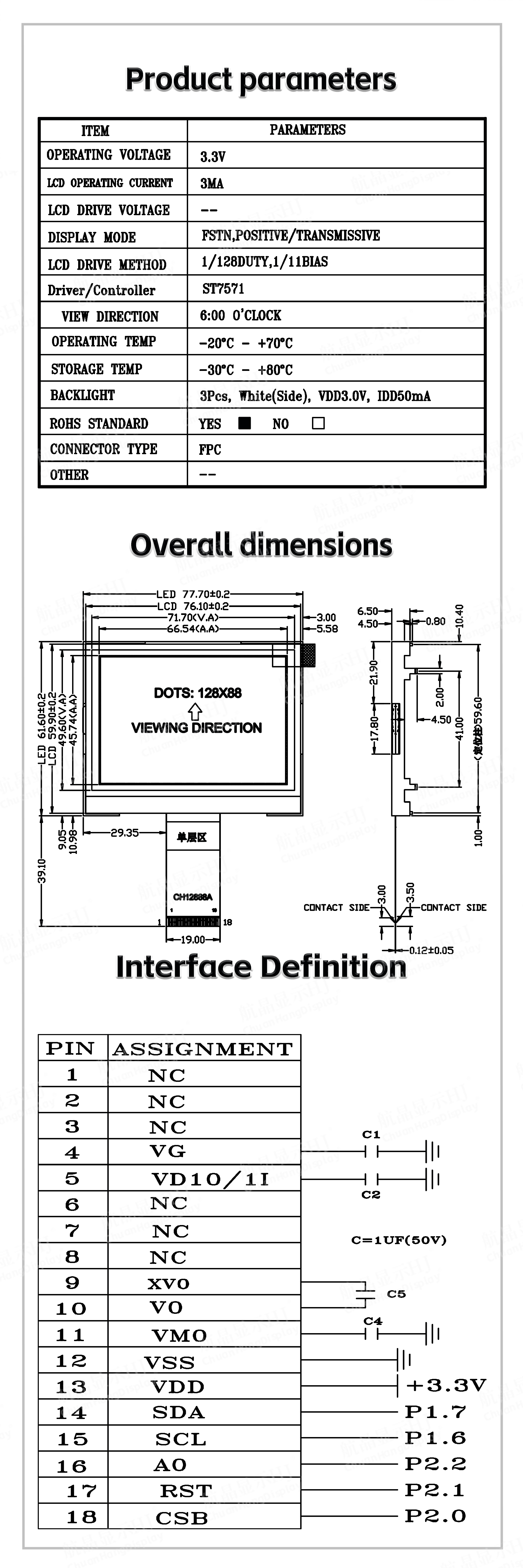

| Product Brand | ChuanHangDisplay | Product Model | CH12888A-L |
| Resolution | 128x88 | screen size | |
| Outline Dimension(L*W*H) | 77.70x61.60x6.50mm | Visible Area(L*W) | 71.70x49.60mm |
| Active Area(L*W) | 66.54x45.74mm | Dot Size (mm) | 0.50(L)x0.50(W) |
| Type | COG | Connection Method | FPC |
| Supply Voltage | 3.3V | Interface Type | SPI |
| Viewing Direction | 6 O'CLOCK | Driving Method | 1/128Duty,1/11Bias |
| Display Type | FSTN | Driver IC | ST7571 |
| Operating Temperature | -20℃~+70℃ | Storage Temperature | -30℃~+80℃ |
| Backlight parameters | 3.3V | production capacity | Self-produced |
| Character libraries | Whether to bring PCB | NO |
