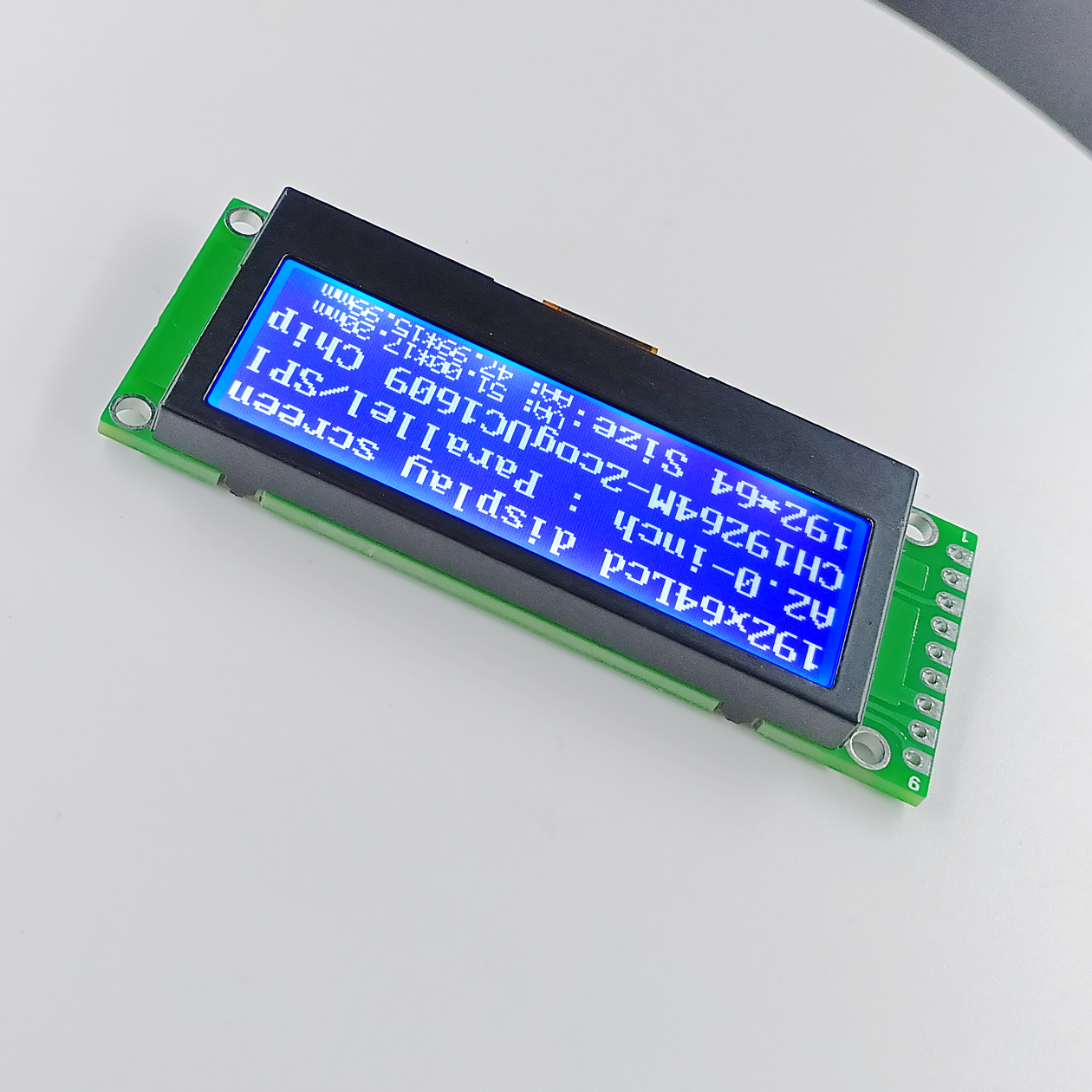

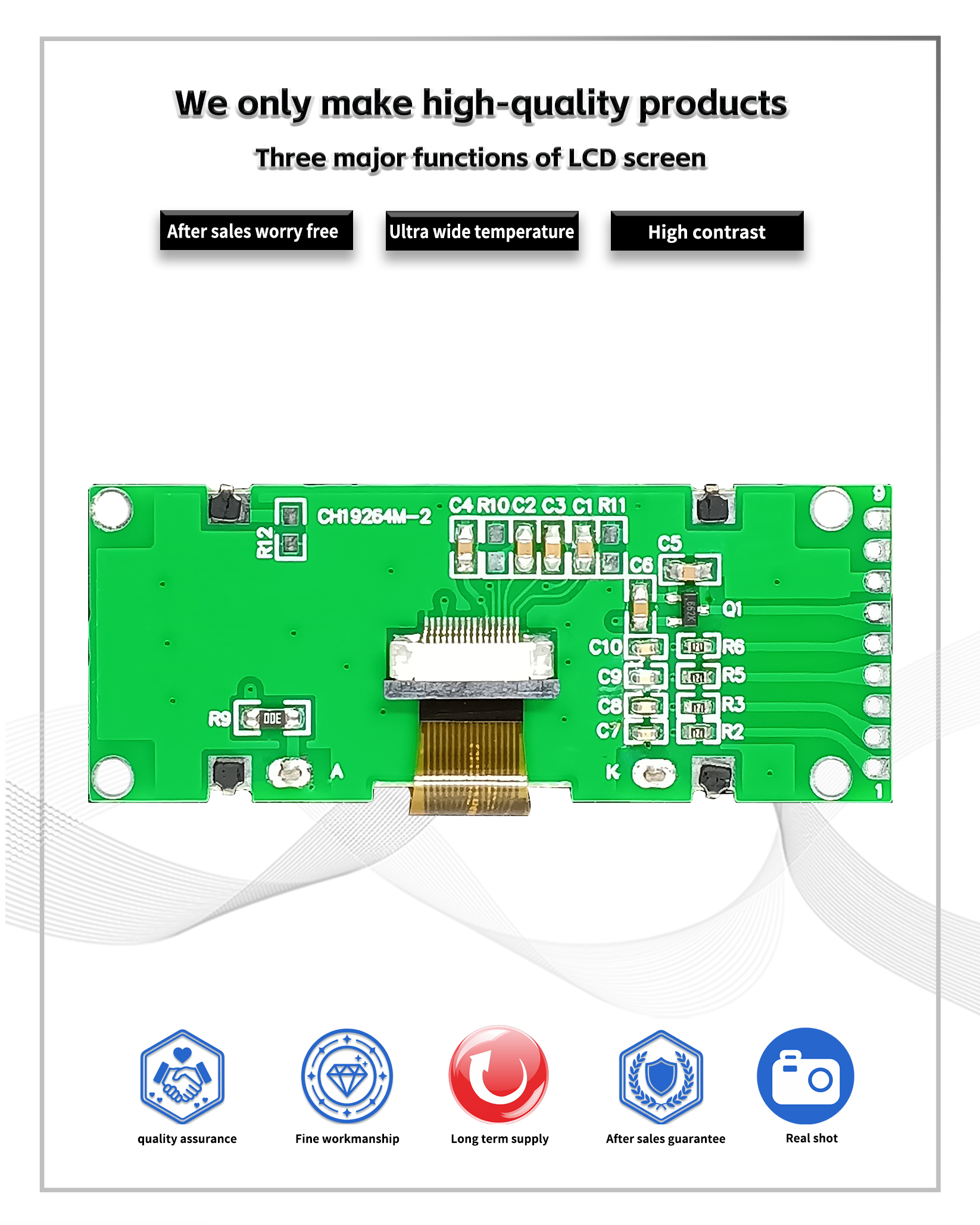

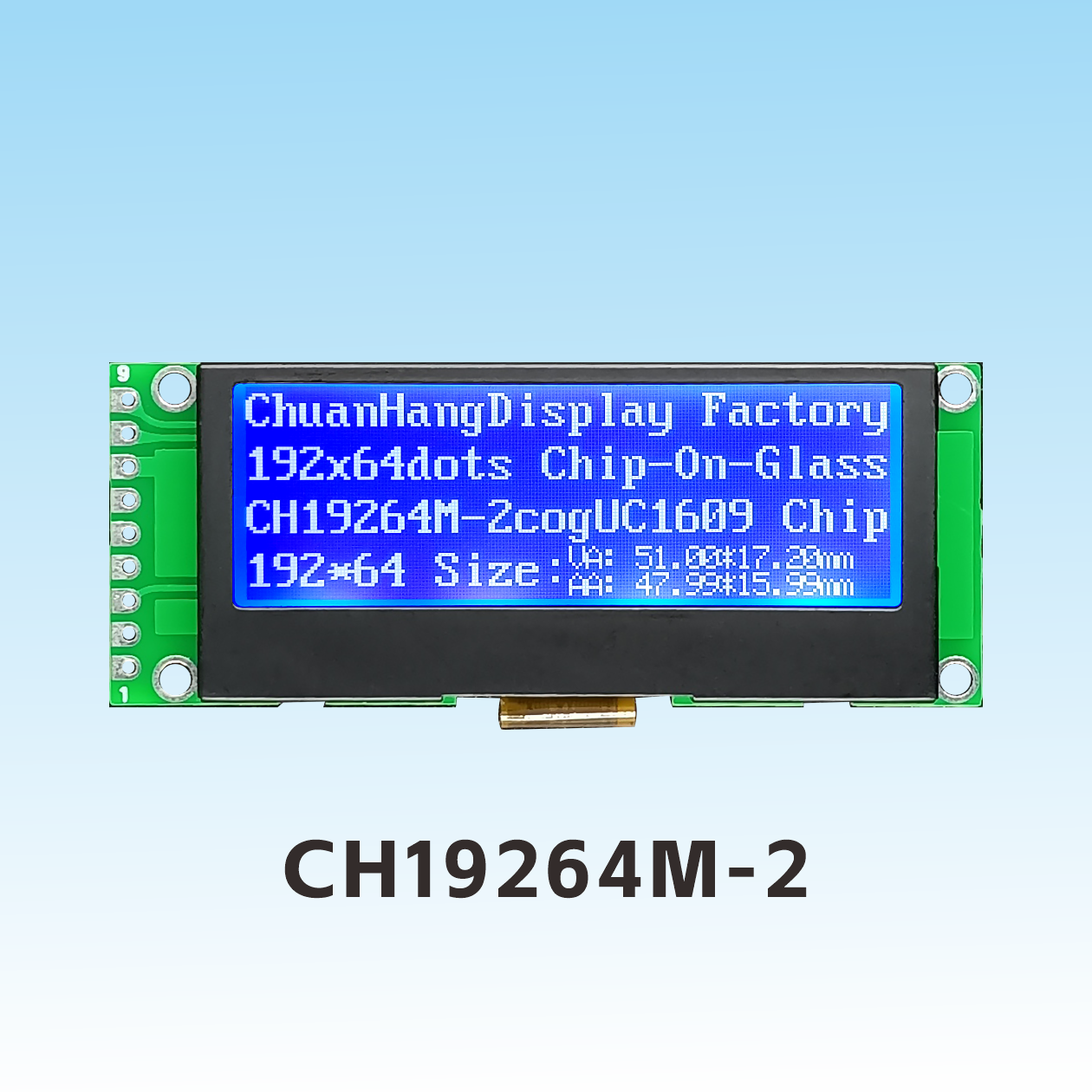

CH19264M-2

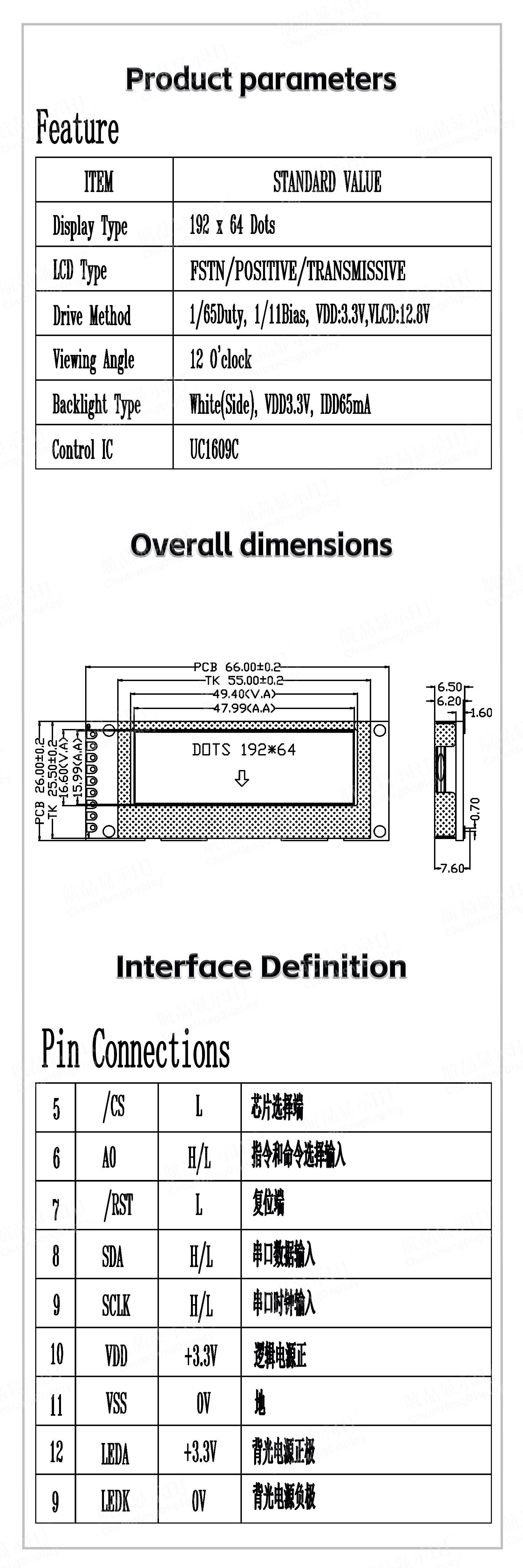

Product Description
| Product Brand | ChuanHangDisplay | Product Model | CH19264M |
| Resolution | 192x64 | screen size | |

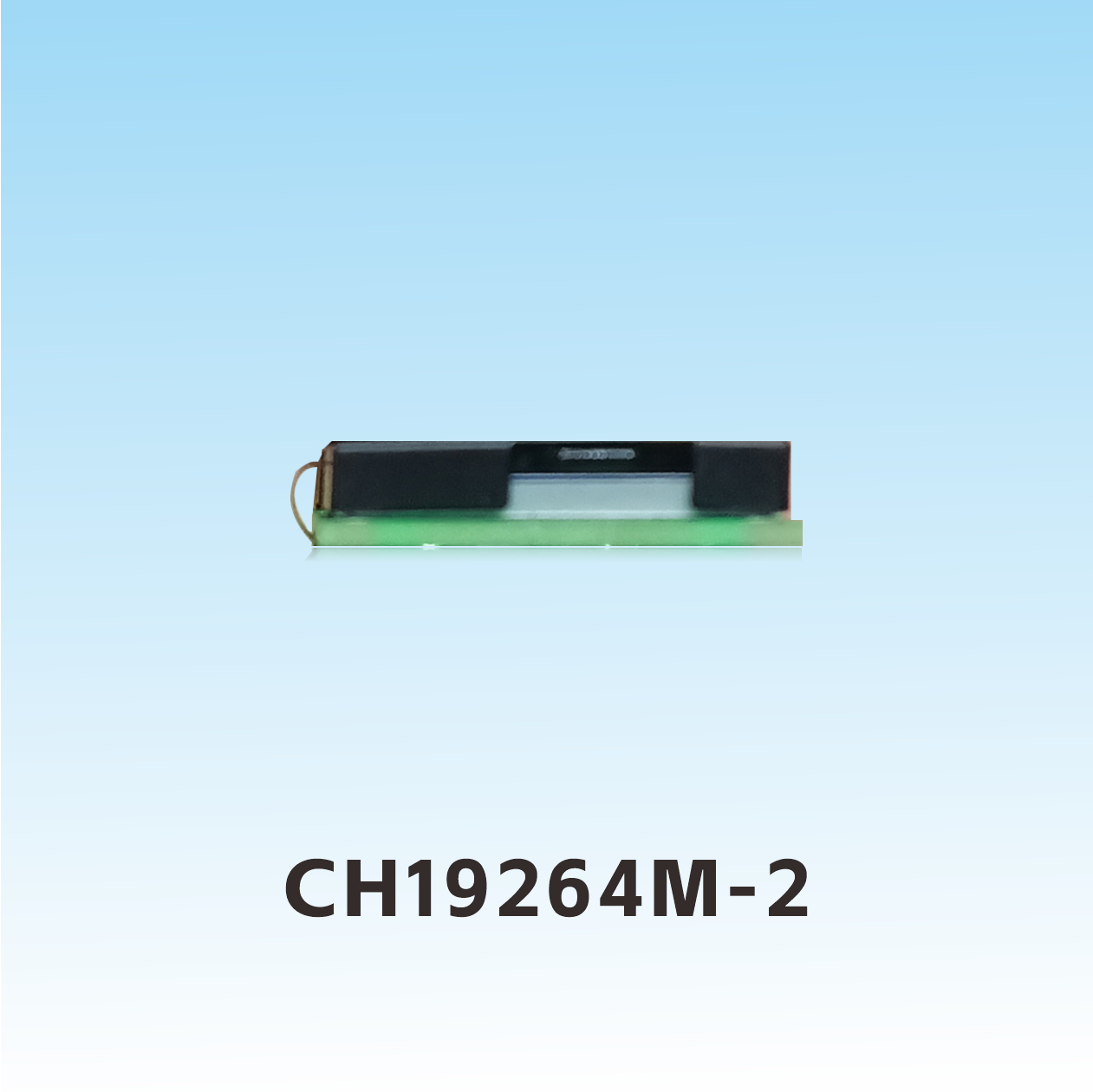

| Outline Dimension(L*W*H) | 66.0x26.0x6.5 mm | Visible Area(L*W) | 49.4x16.6 mm |
| Active Area(L*W) | 47.99x15.99 mm | Dot Size (mm) | 0.32(L)x0.36(W) |

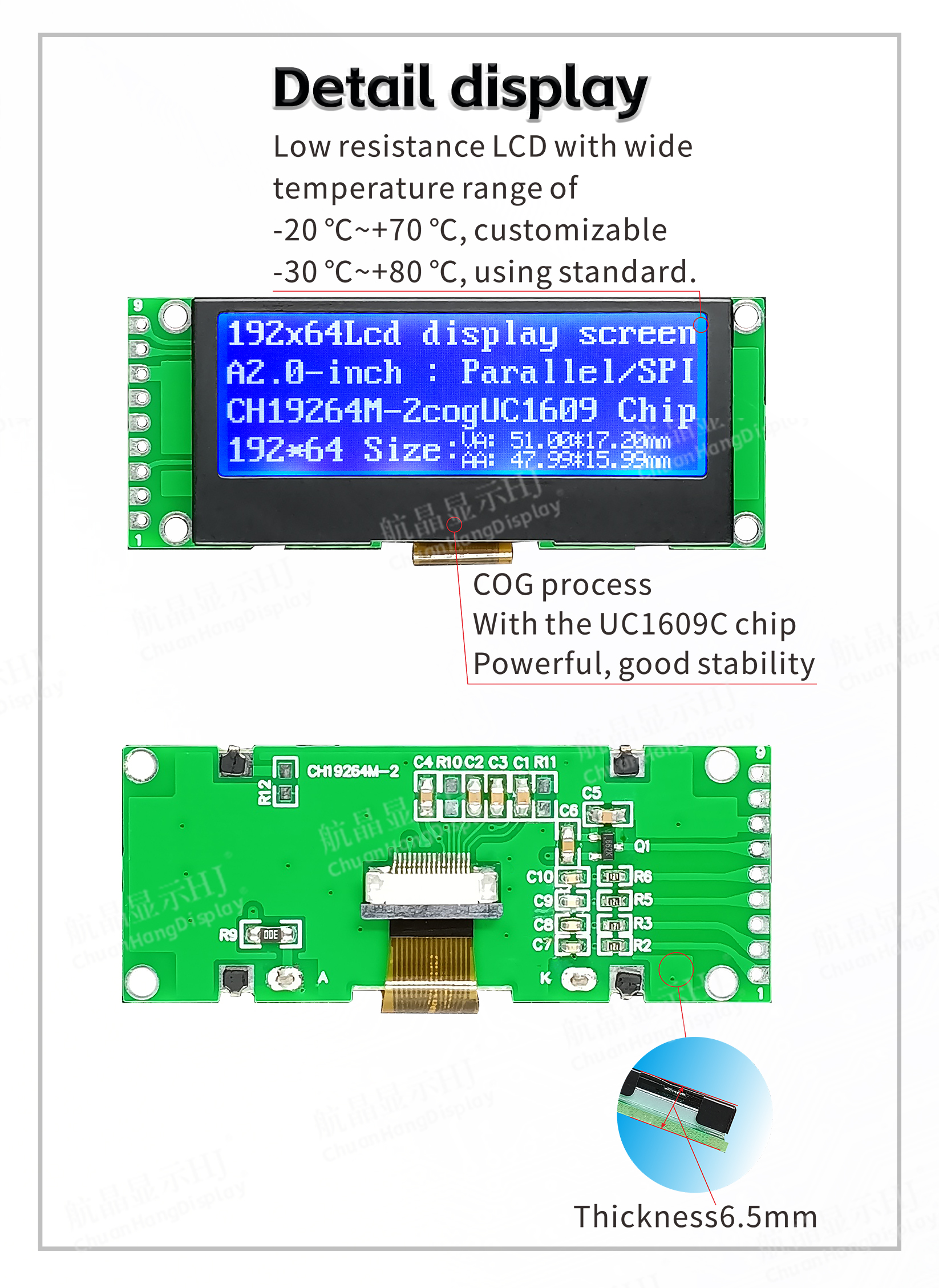

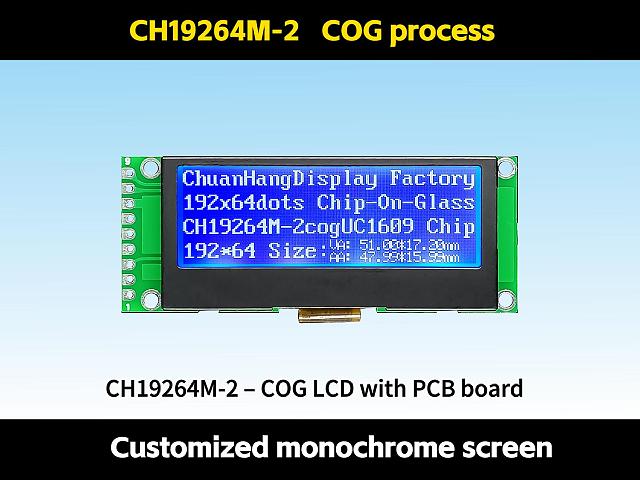

| Type | COG | Connection Method | FPC |
| Supply Voltage | 3.3V | Interface Type | SPI |
| Viewing Direction | 12 O'CLOCK | Driving Method | 1/65Duty,1/11Bias |
| Display Type | FSTN | Driver IC | UC1609C |
| Operating Temperature | -20℃~+70℃ | Storage Temperature | -30℃~+80℃ |
| Backlight parameters | 3.3V | production capacity | Self-produced |

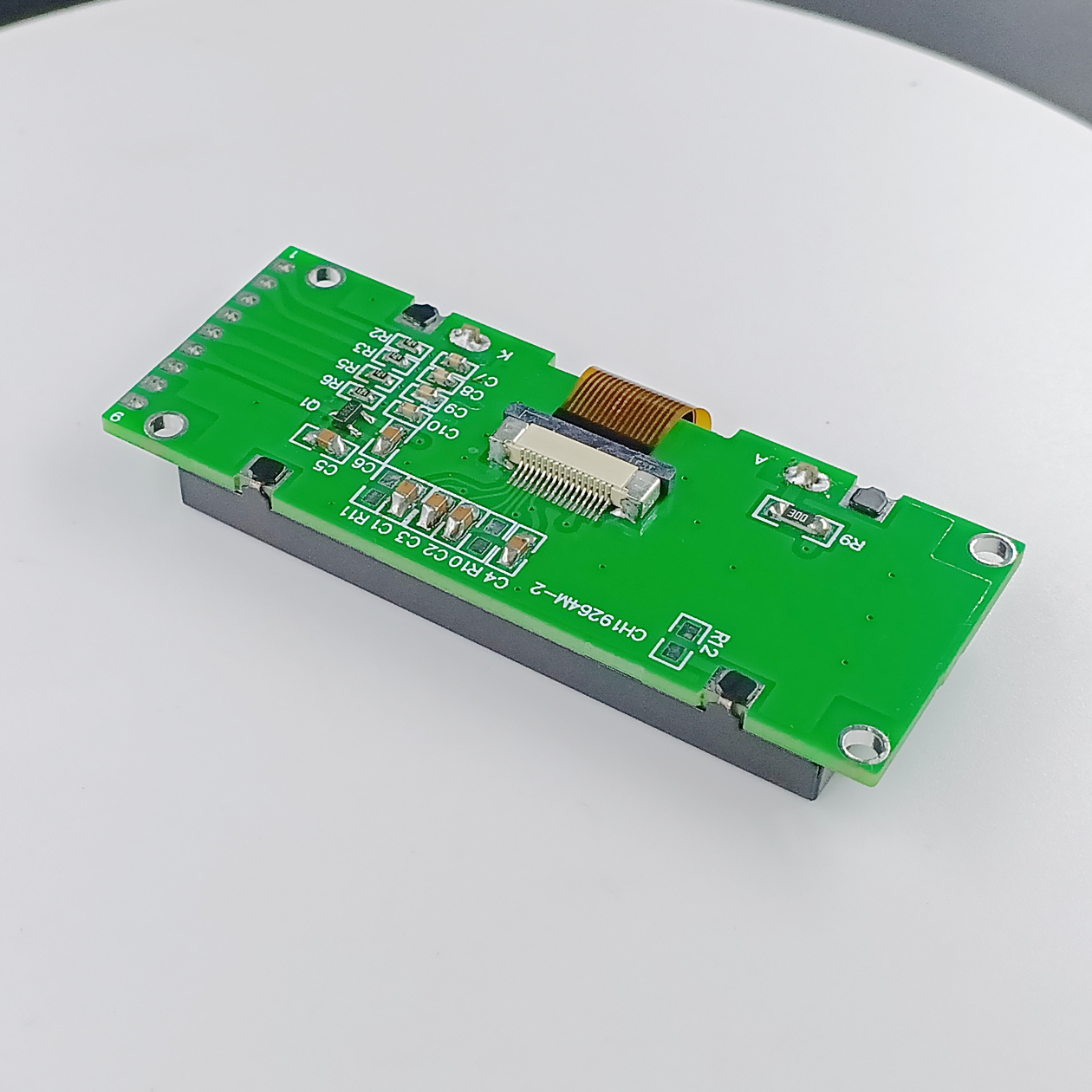

| Character libraries | Whether to bring PCB | Yes |
