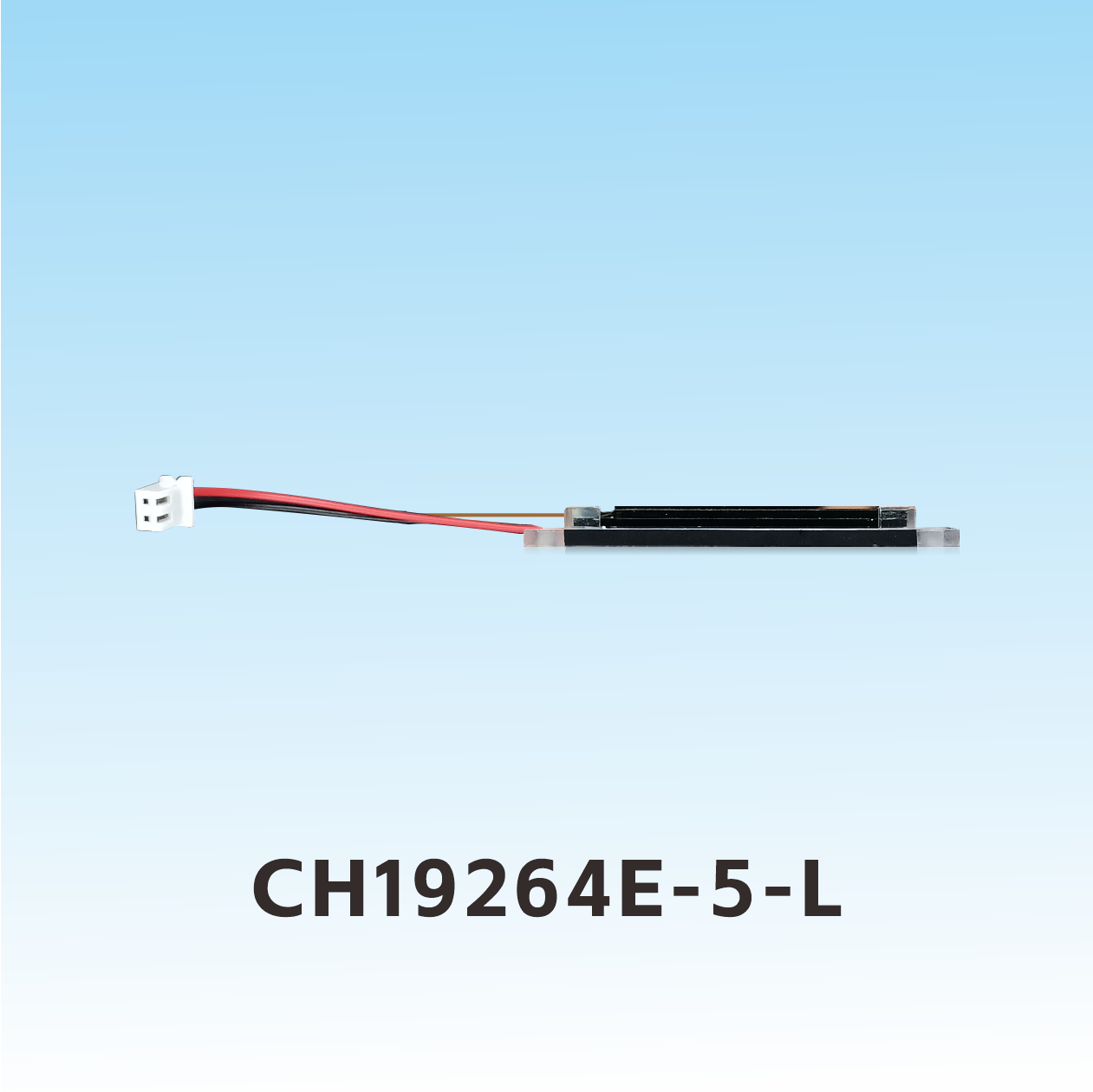

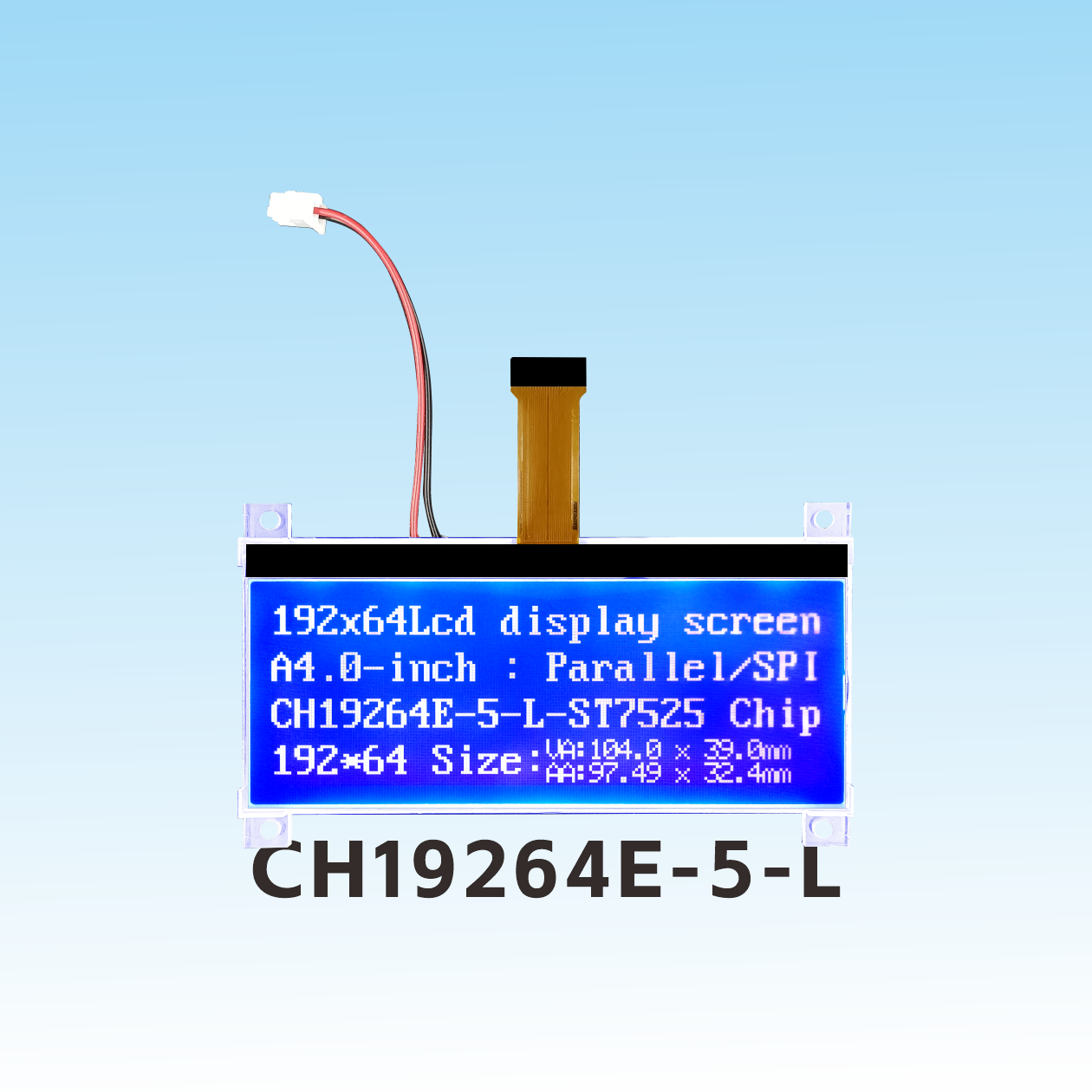

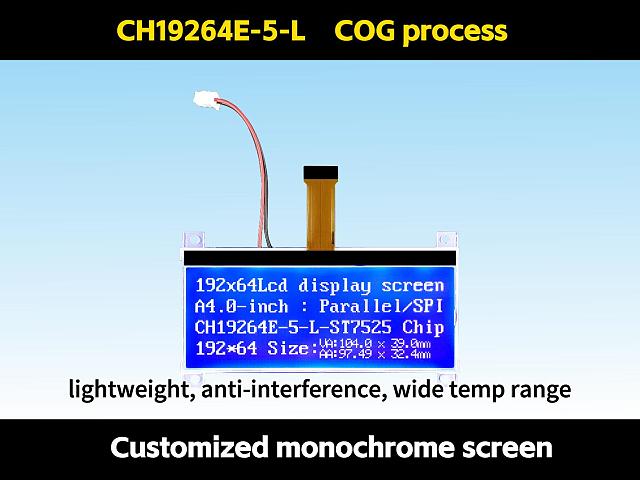

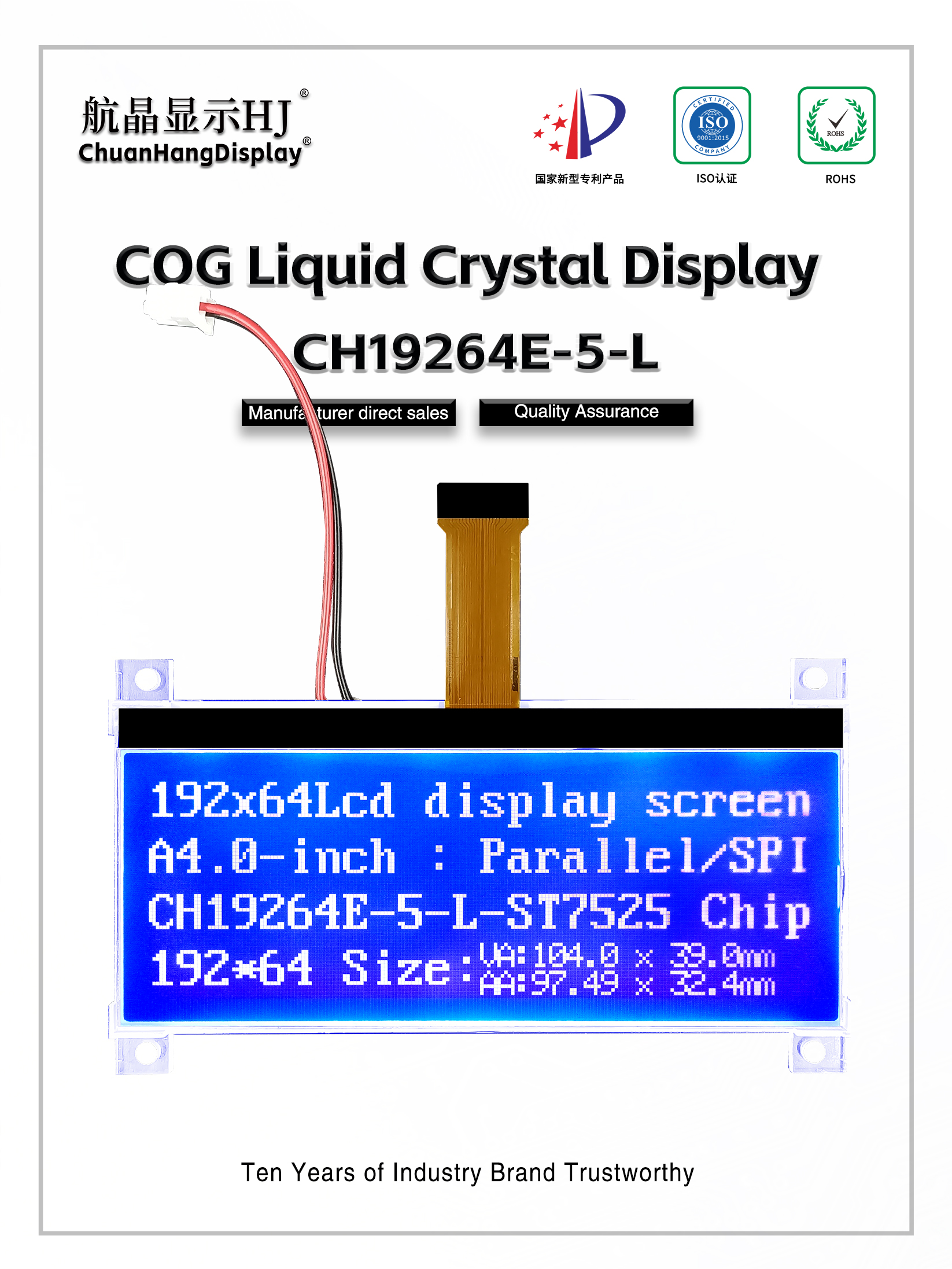

CH19264E-5-L

Product Description

PDF Download Demo code

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH19264E-5-L
Resolution	192x64	screen size
Outline Dimension(LWH)	109.00x61.00x5.8 mm	Visible Area(L*W)	104.00x39.00 mm
Active Area(L*W)	97.49x32.46 mm	Dot Size (mm)	0.458(L)x0.458(W)
Type	COG	Connection Method	FPC
Supply Voltage	3.3V	Interface Type	MCU/SPI
Viewing Direction	6 O'CLOCK	Driving Method	1/64Duty,1/9Bias
Display Type	STN	Driver IC	ST7525
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO

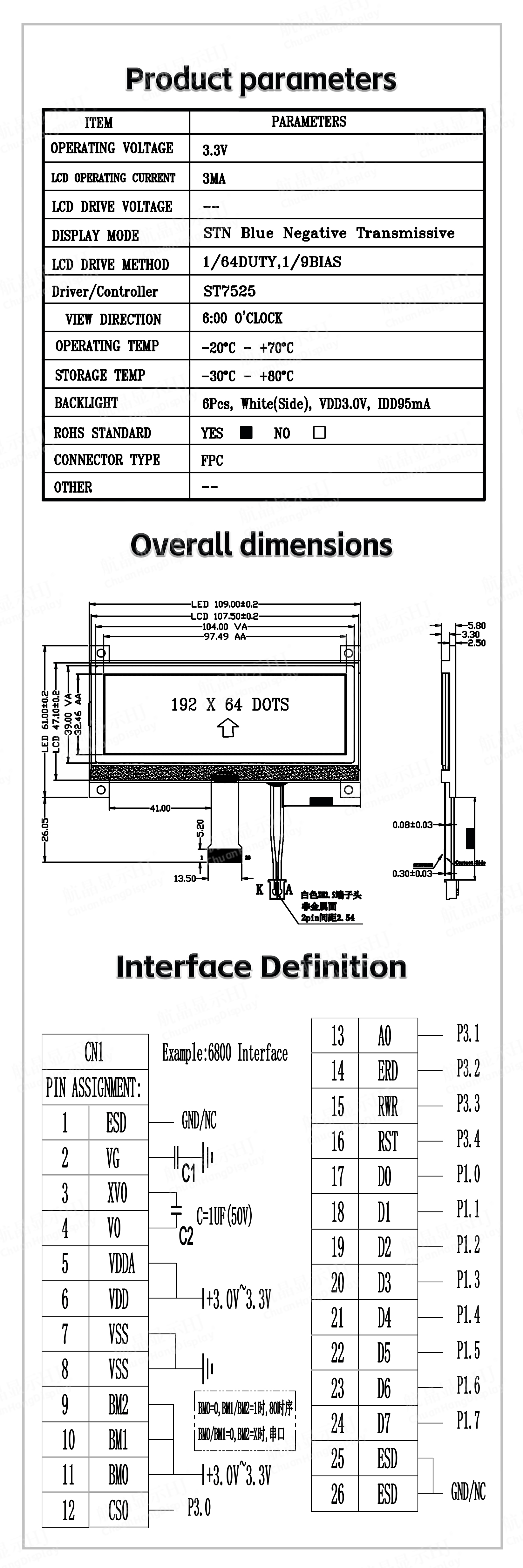

Product Datasheet

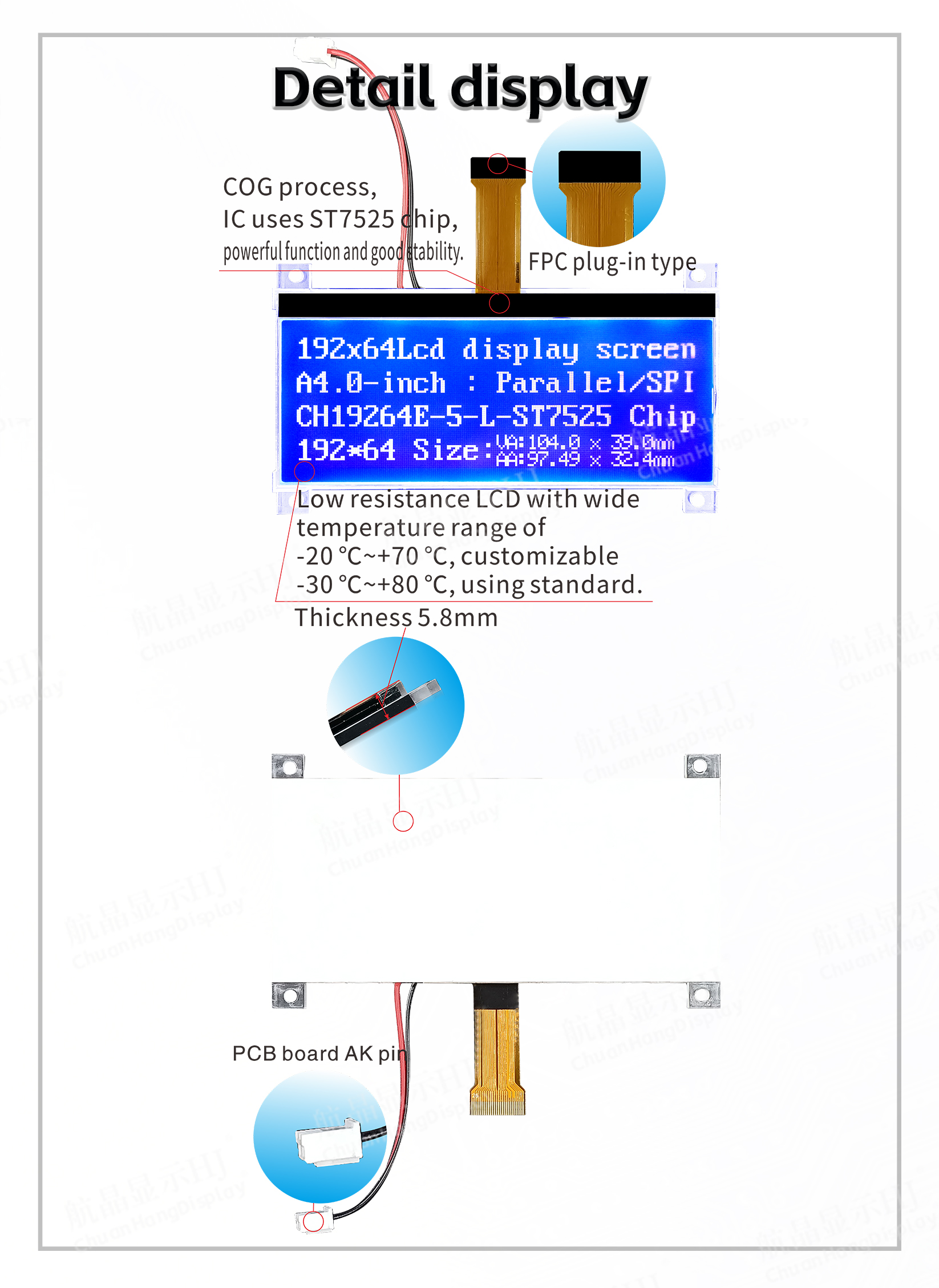

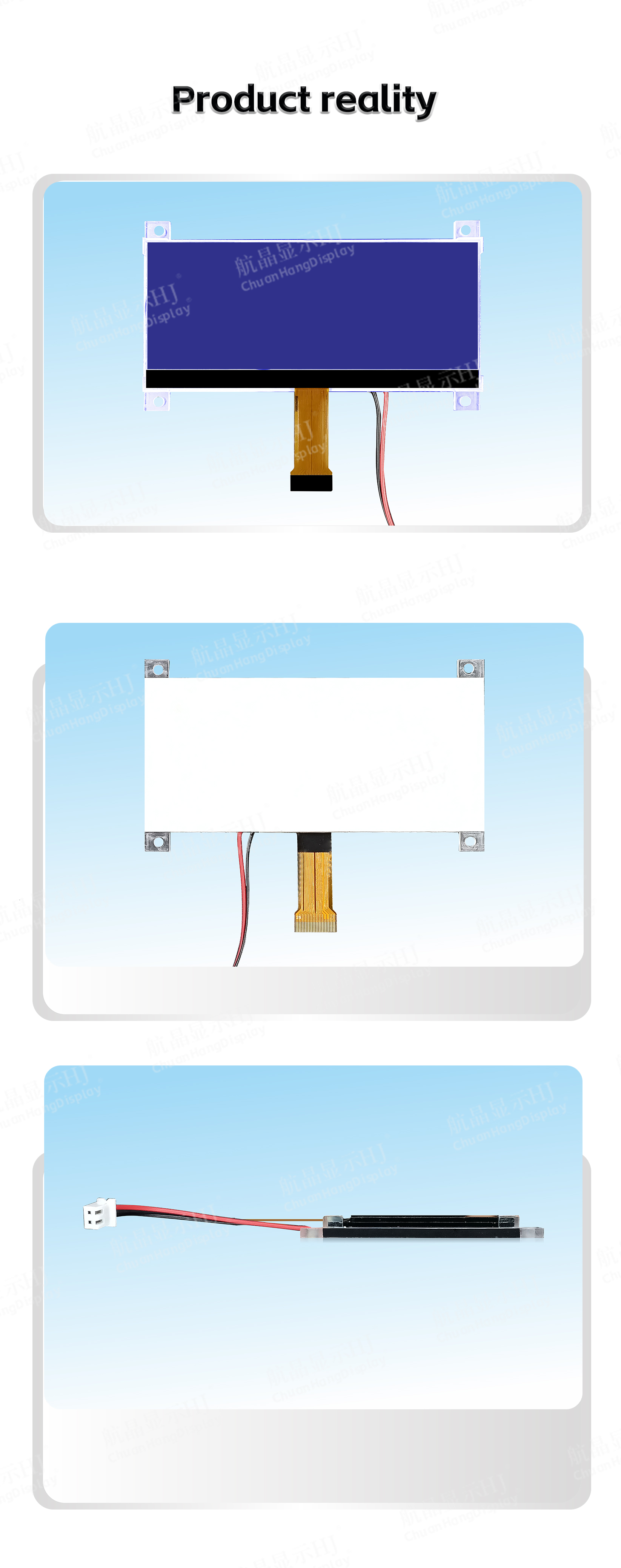

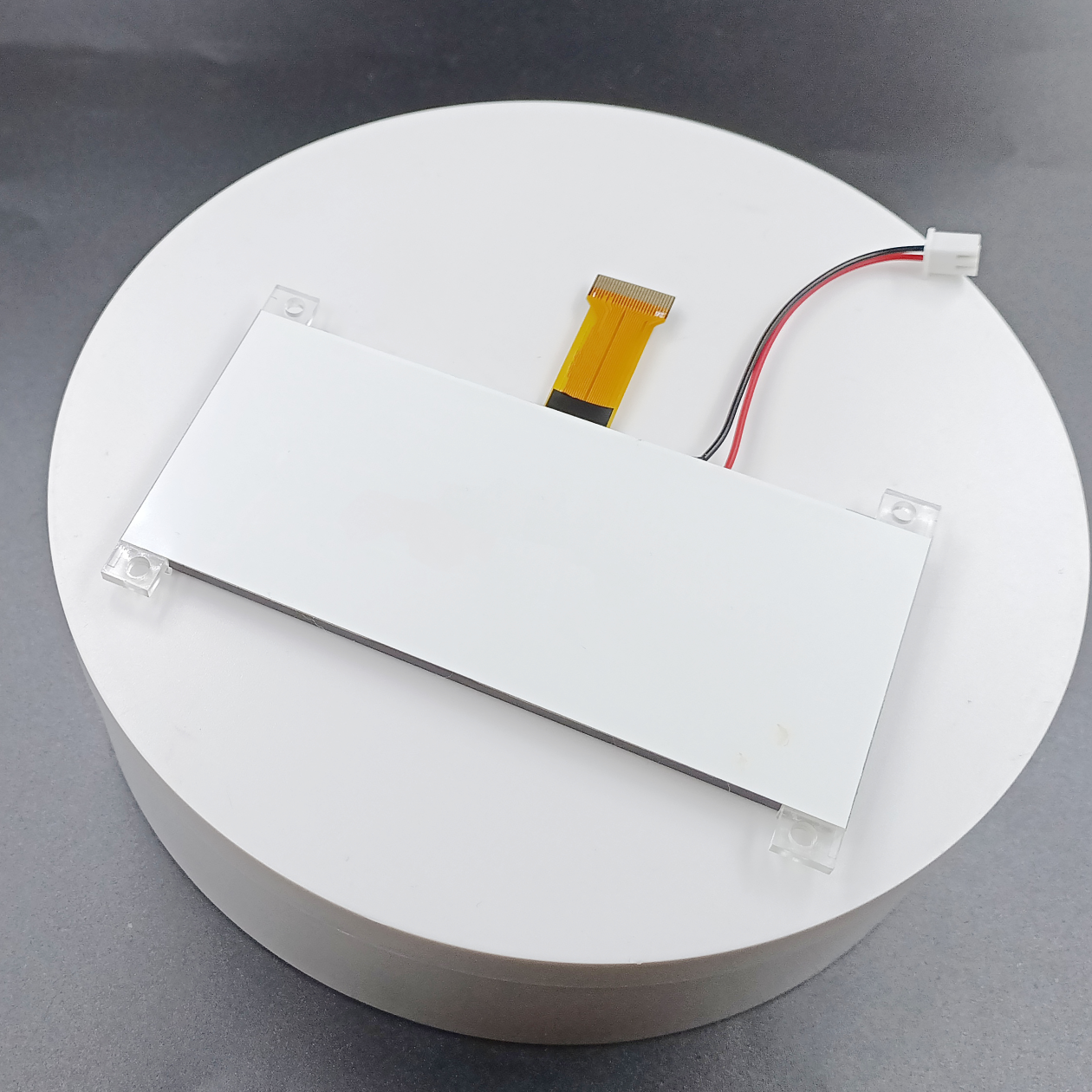

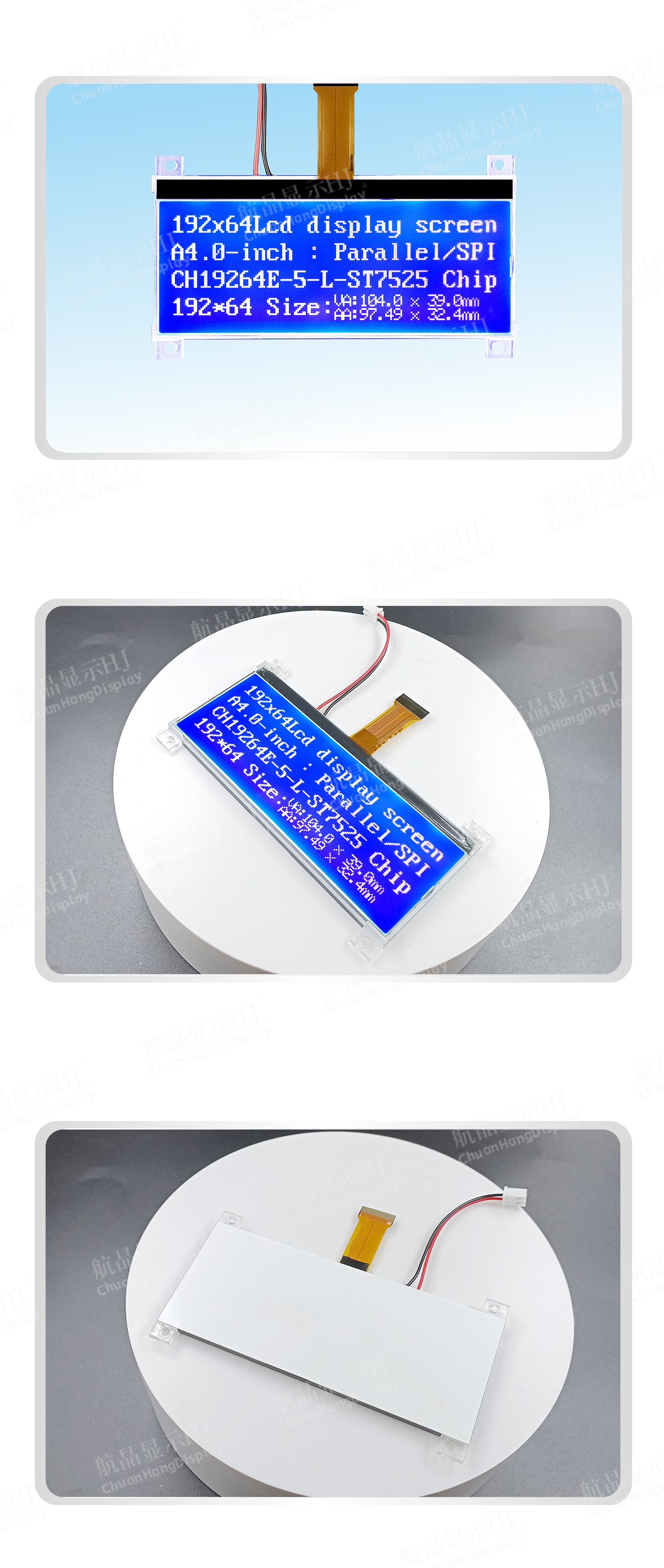

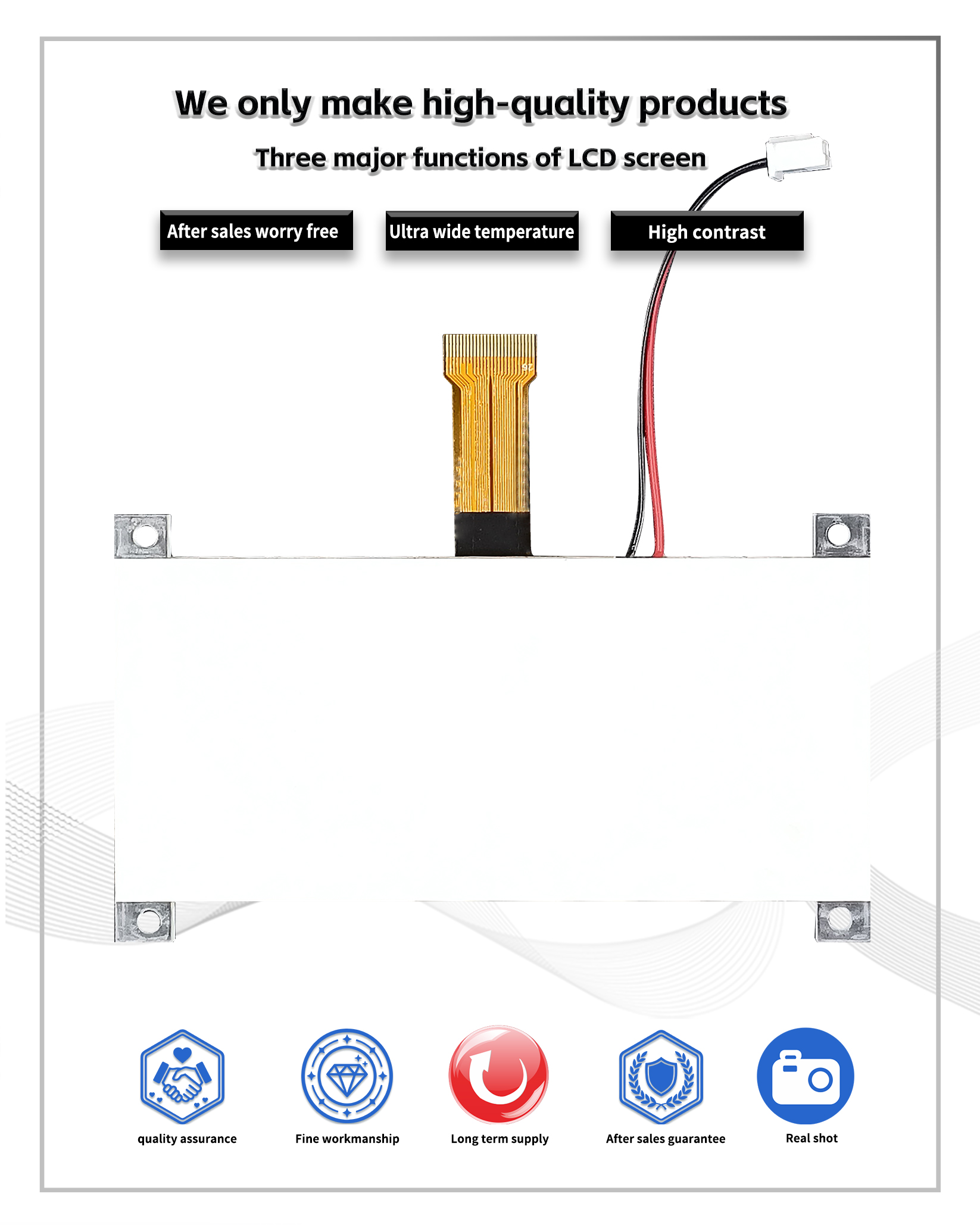

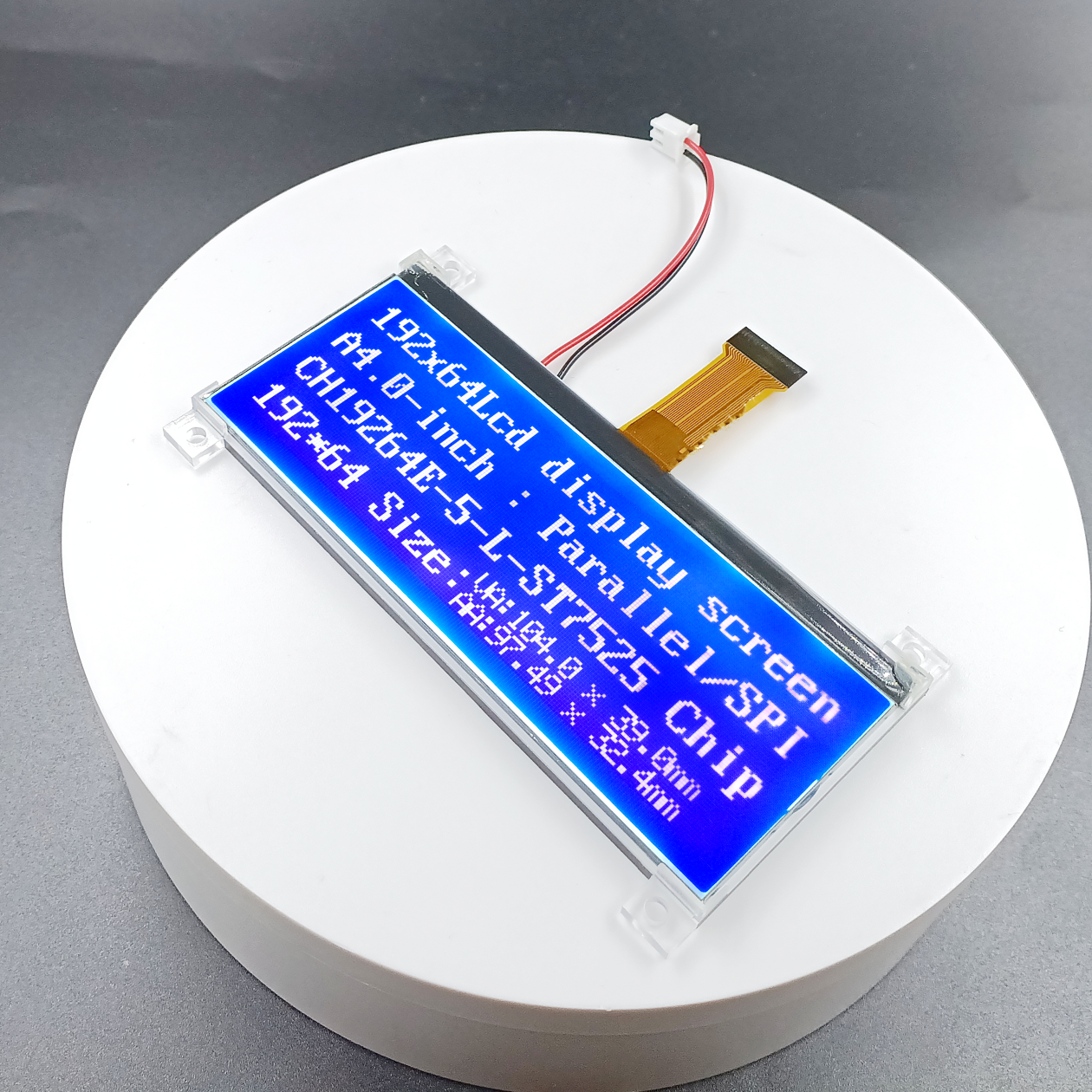

Product Display

Previous：

CH19264M-2

Next：

CH19264E-3-L
