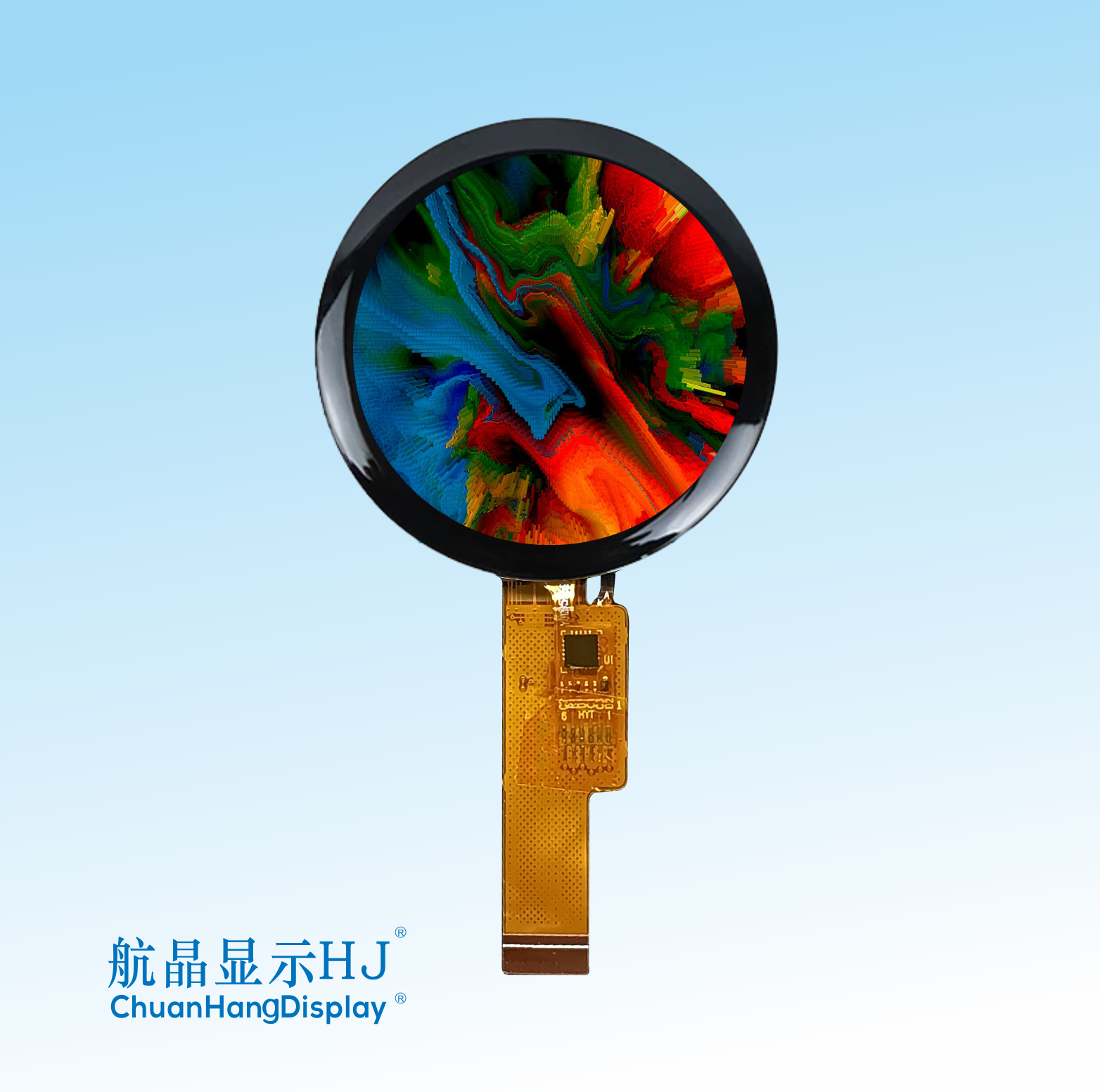

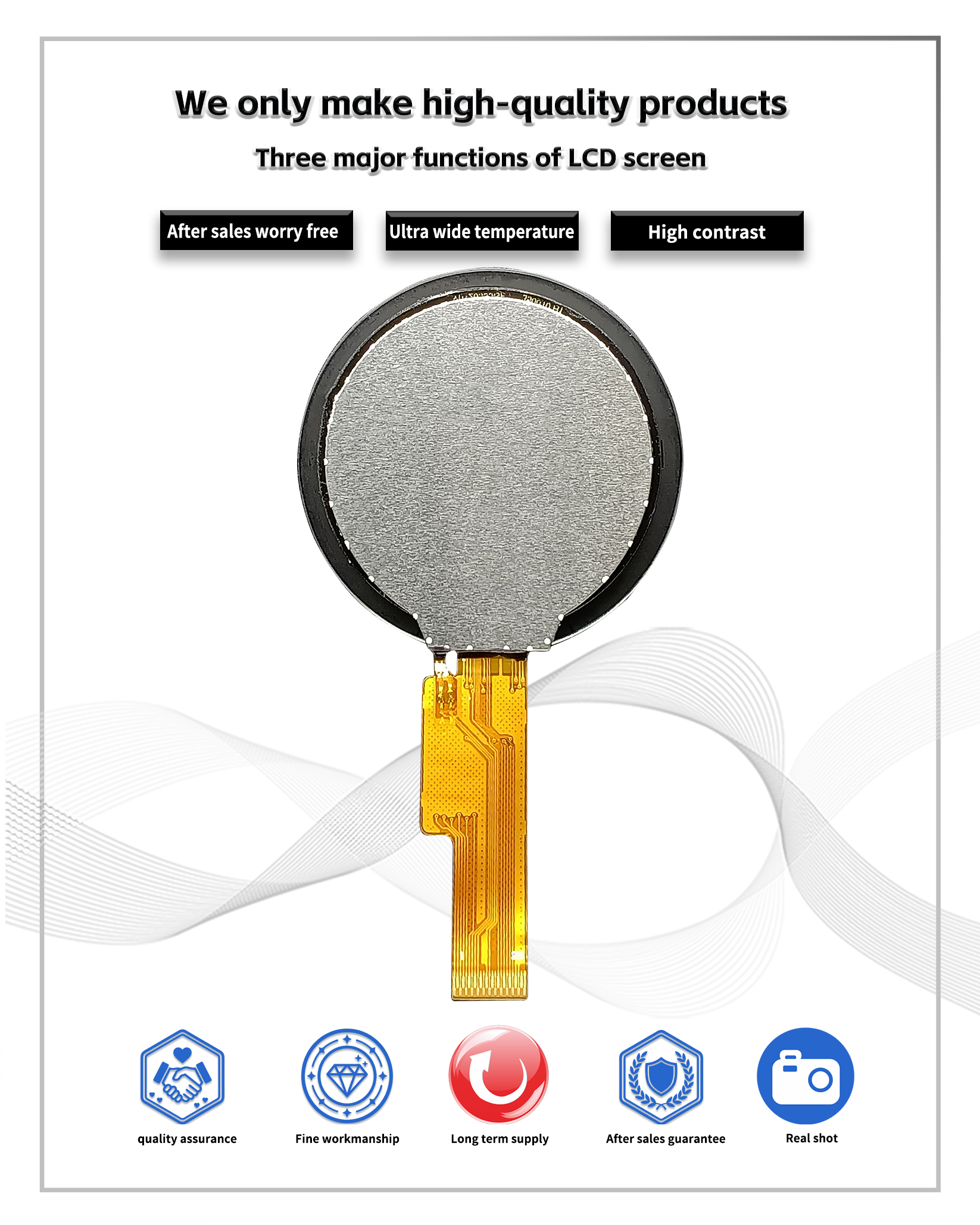

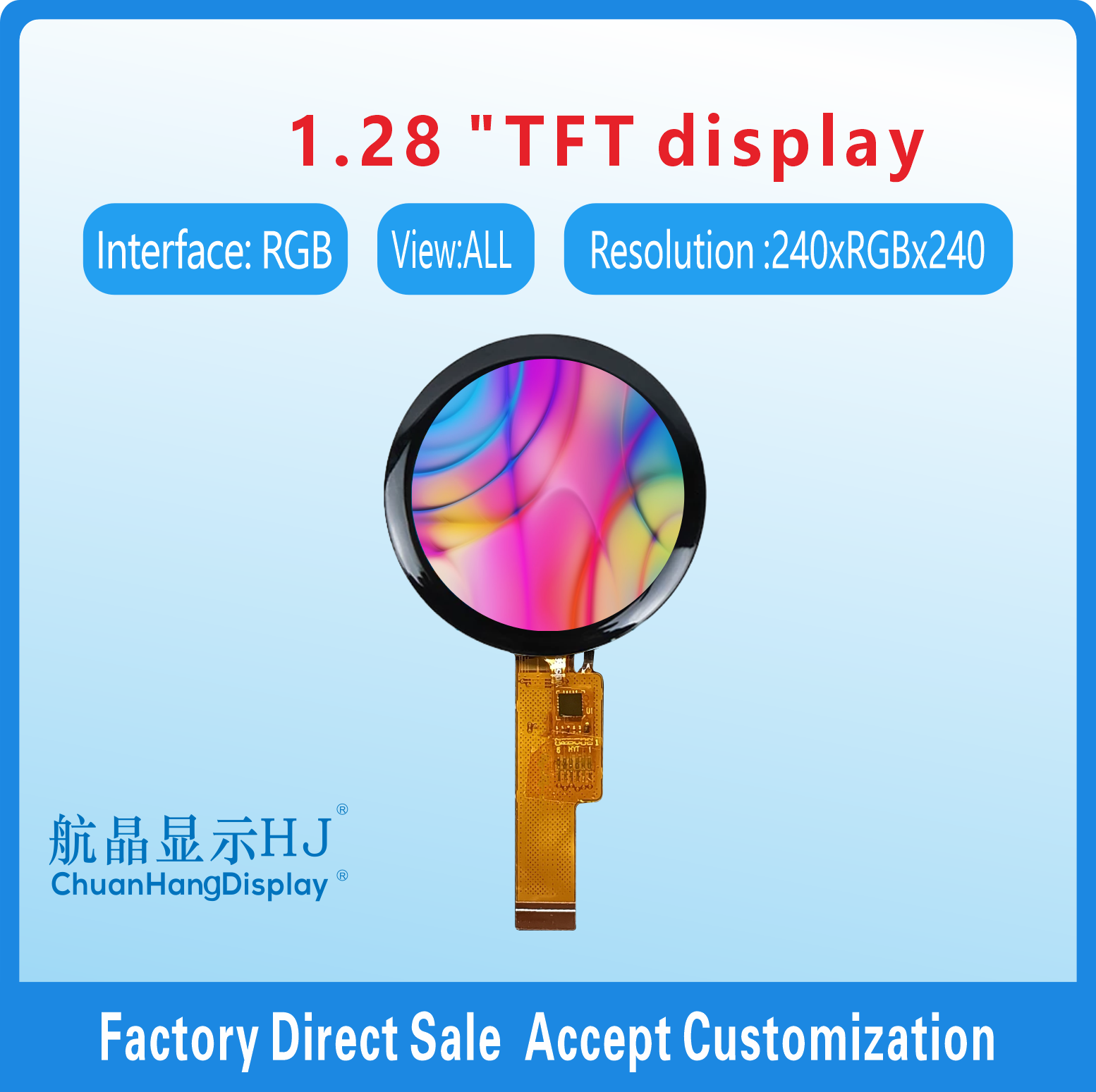

1.28"TFT display

Product Description

Product size: 1.28 inches
Resolution: 240xRGBx2400
Viewing angle: IPS full viewing angle
Driver chip: GC9A01
Interface type:SPI

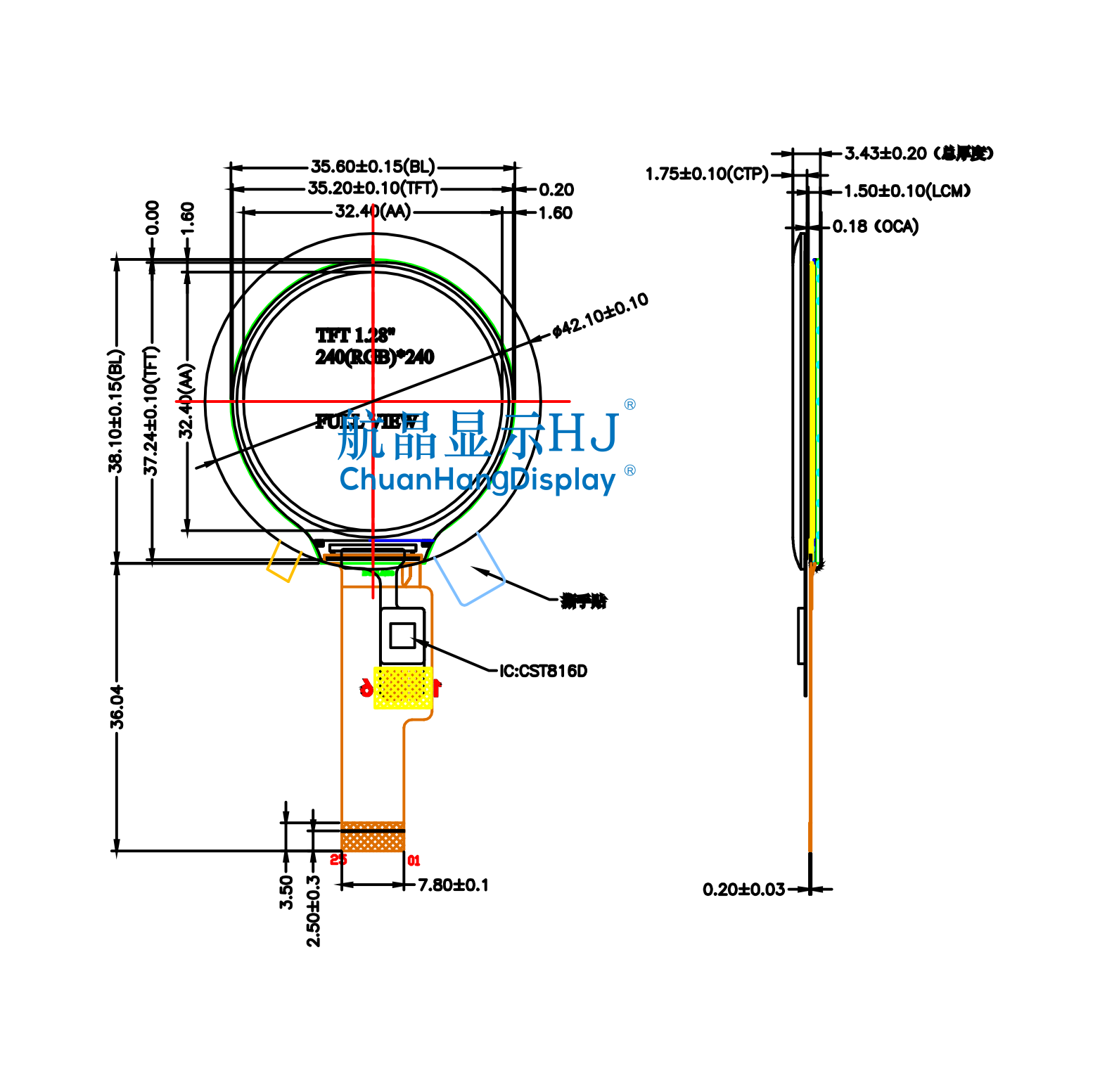

Module size:35.6x38.1x3.43 mm
Active area: 32.4x32.4mm
Cable interface: 25PIN
Operating voltage: 2.8V
Operating temperature: -20℃ -70℃
Display color: TFT

PDF Download Demo code

Video Presentation

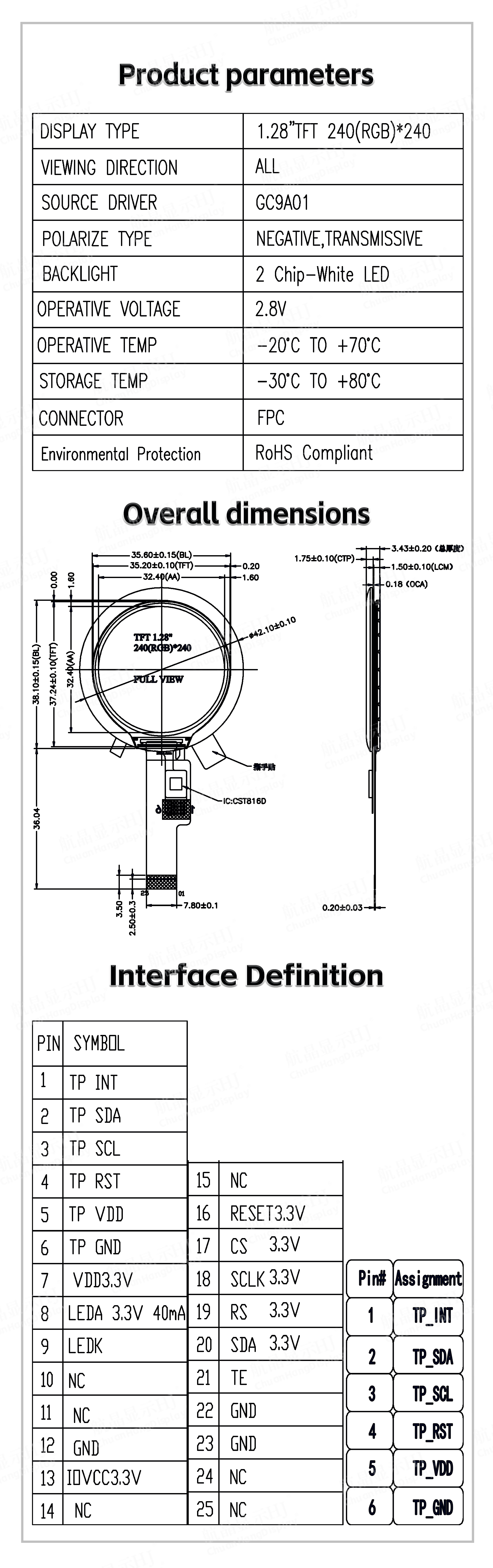

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH0128A01
Resolution	240xRGBx240	Screen size	1.28”
Outline Dimension(LWH)	35.6x38.1x3.43mm	Active Area(L*W)	32.4x32.4mm
Type	COG	Communication interface	SPI
Operating Voltage	2.8V	Interface Type	25PIN
Viewing Direction	IPS full viewing angle	Display Color	TFT
Driver IC	GC9A01	Operating Temperature	-20℃ --70℃
Storage Temperature	-30℃ --80℃	Production capacity	Self-produced
Whether to bring PCB	NO	Connection Method	FPC

Product Datasheet

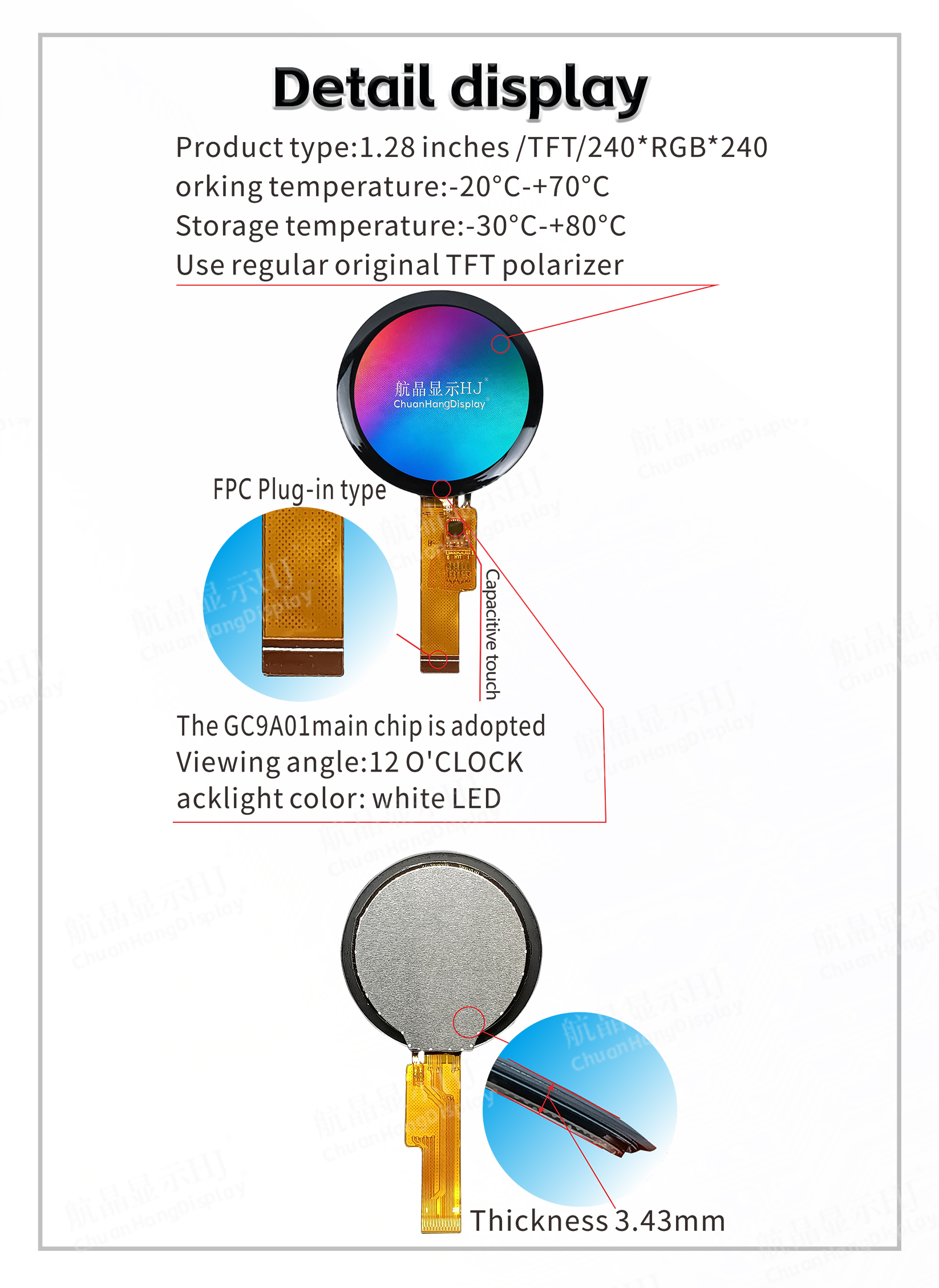

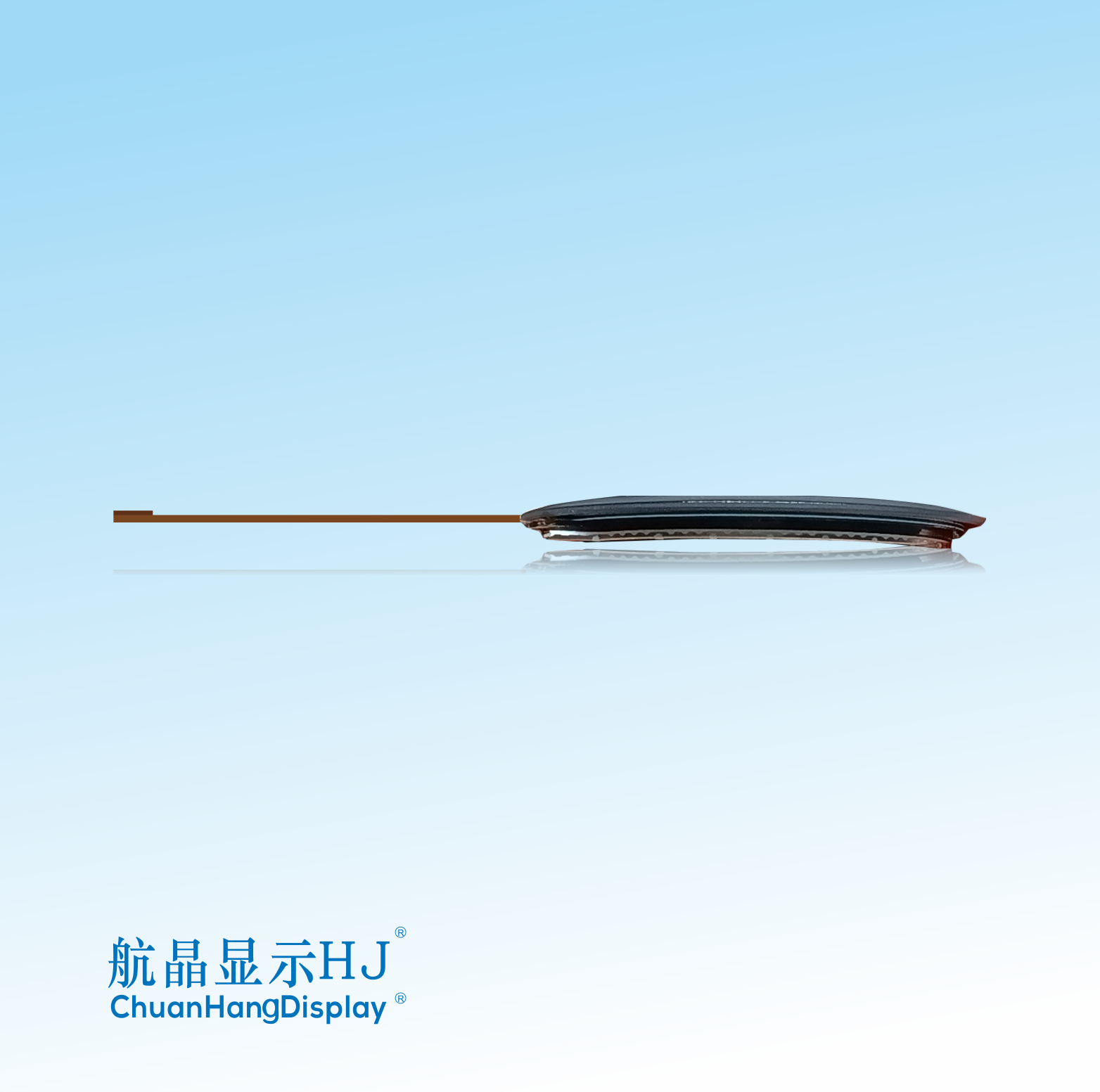

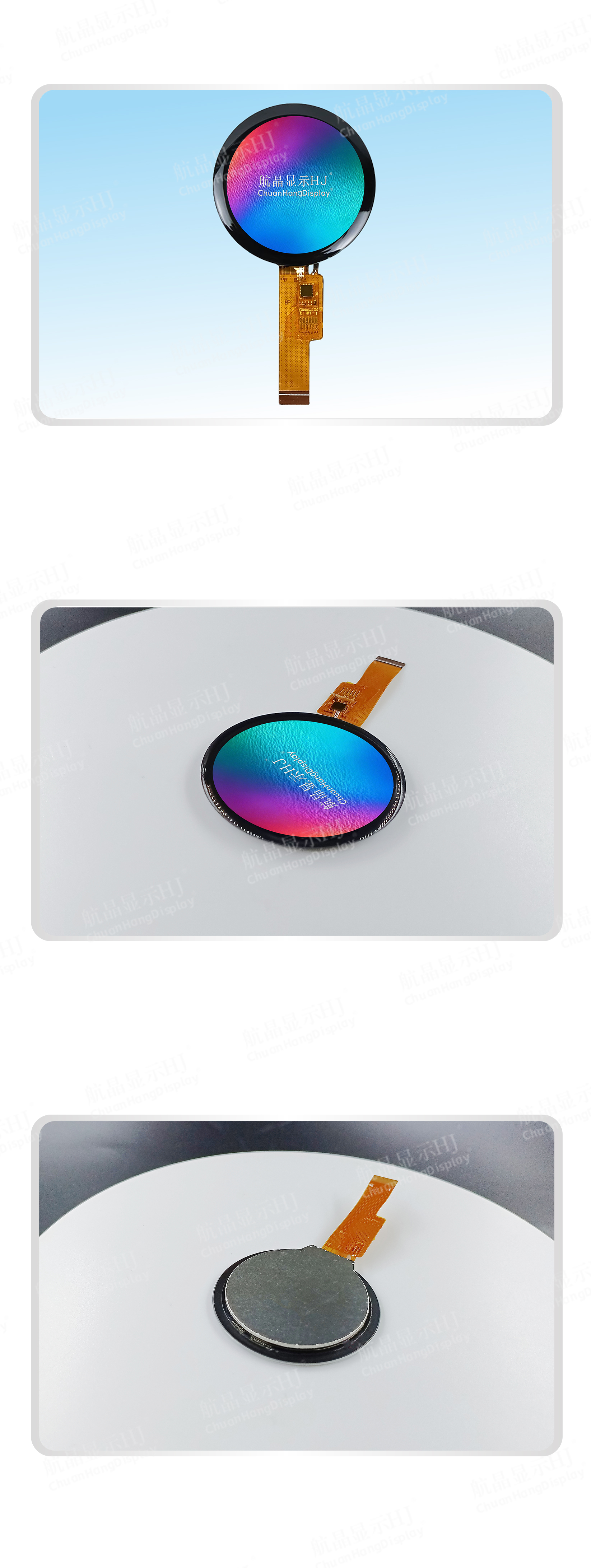

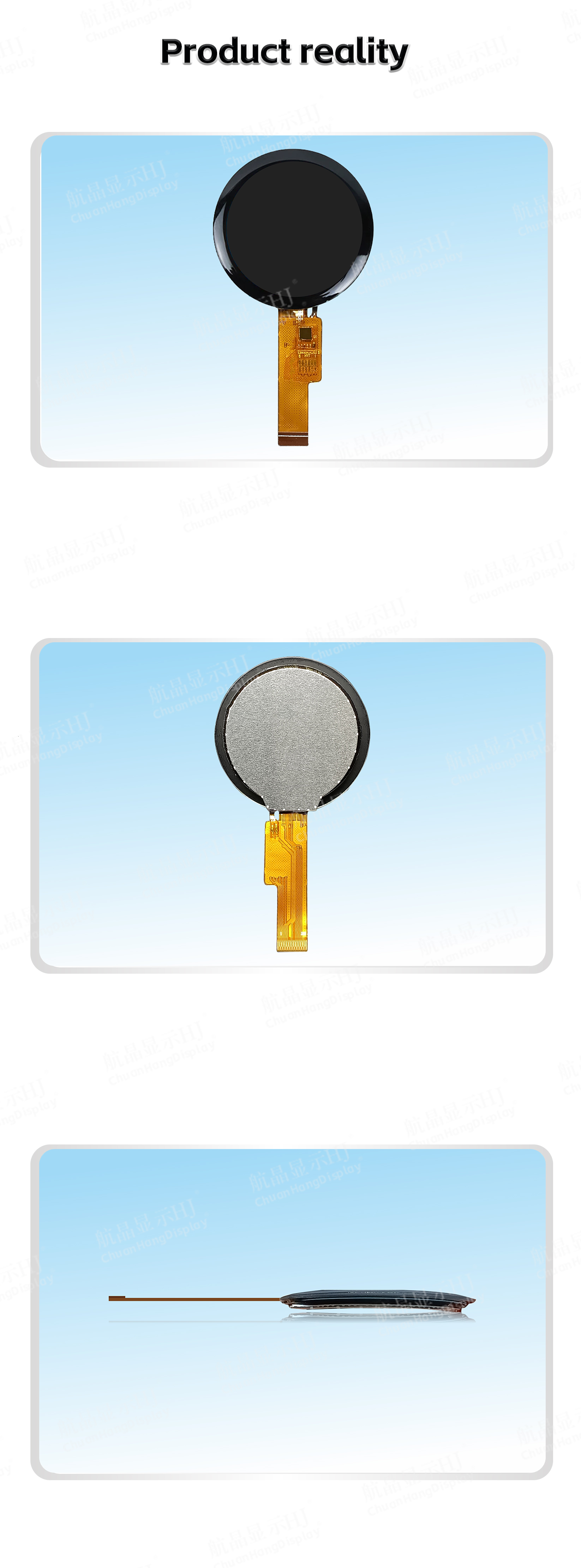

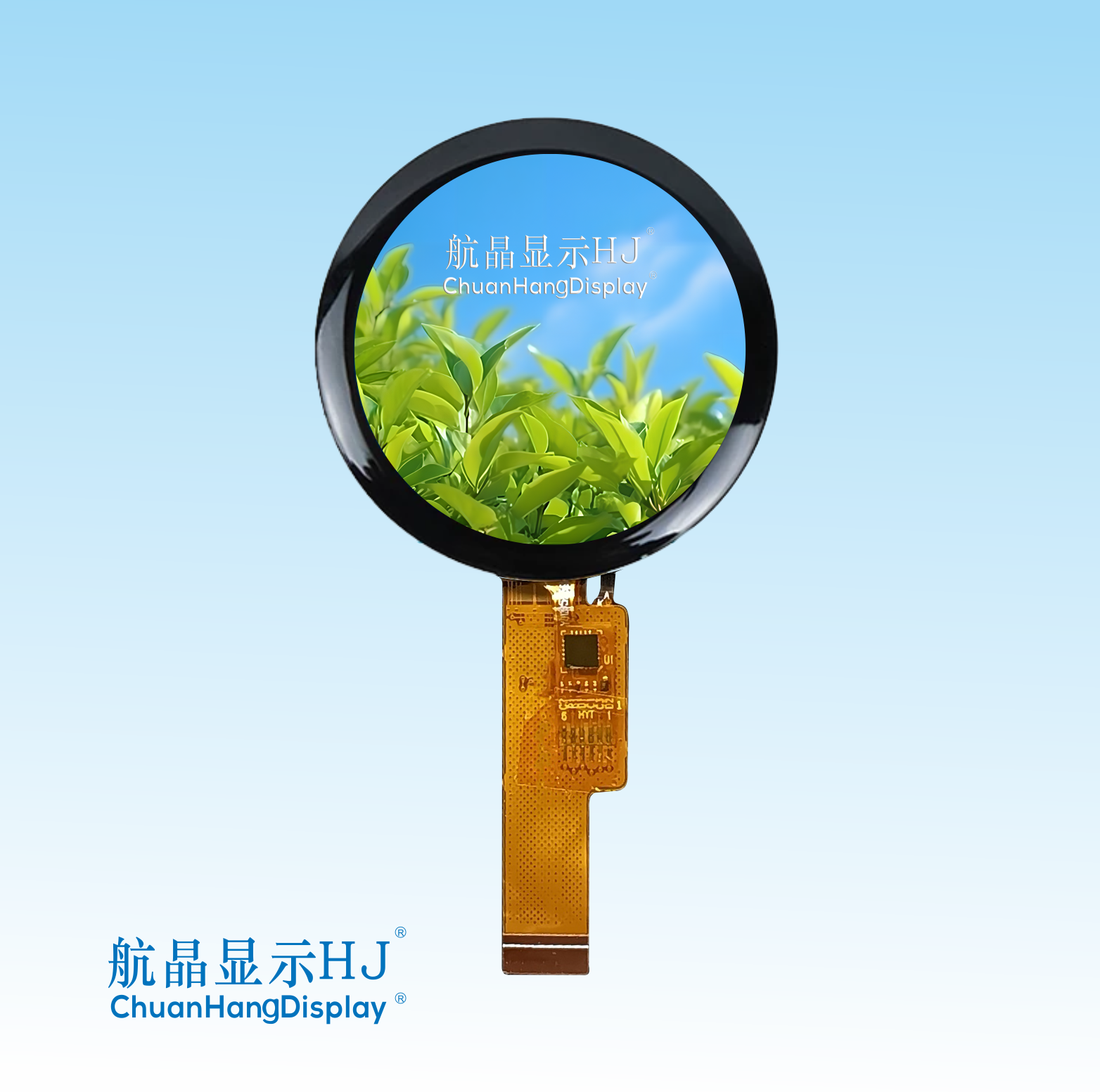

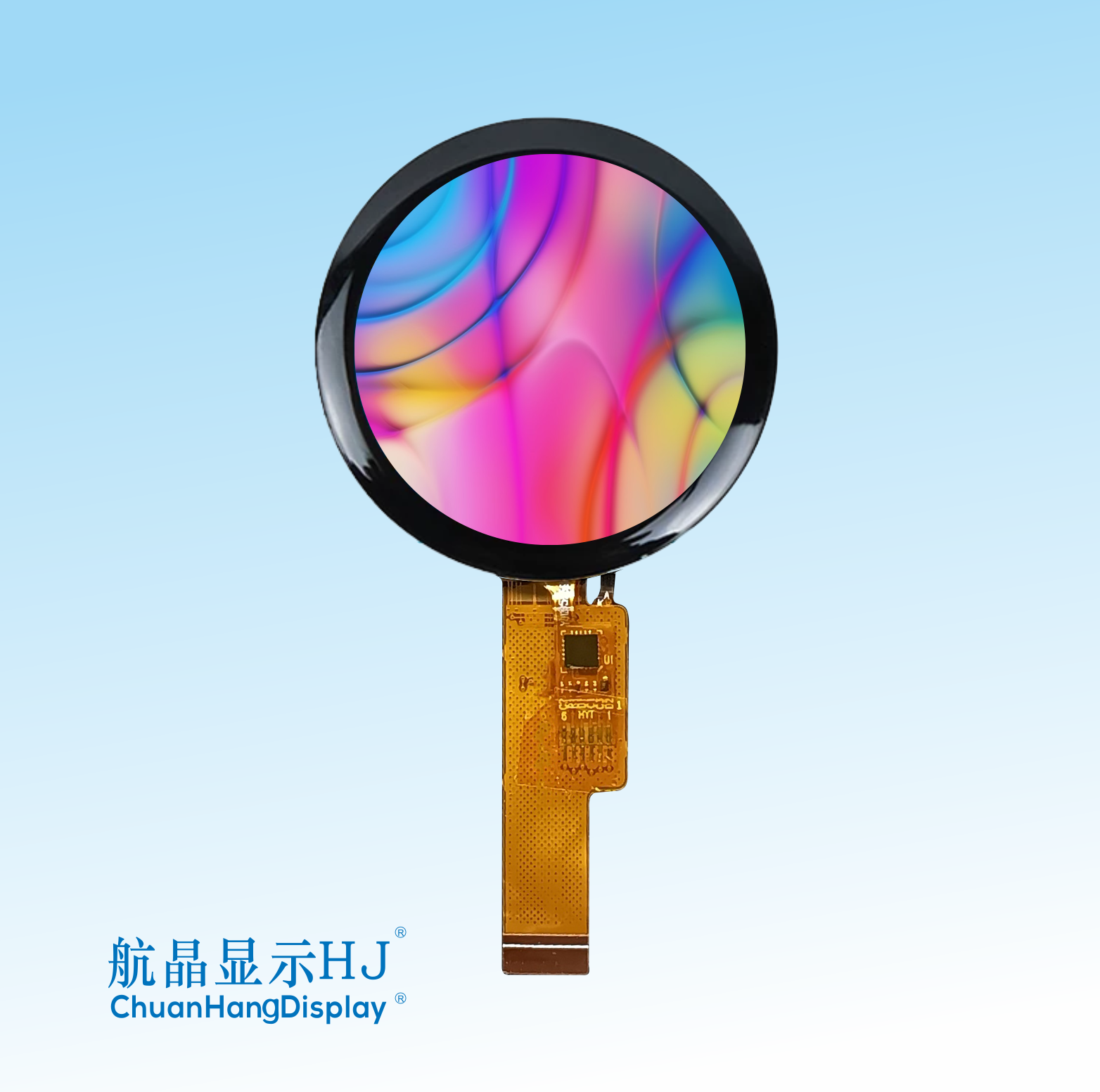

Product Display

Shenzhen ChuanHang Electronic Technology Co., Ltd.

PRODUCTS CENTER

1.28"TFT display

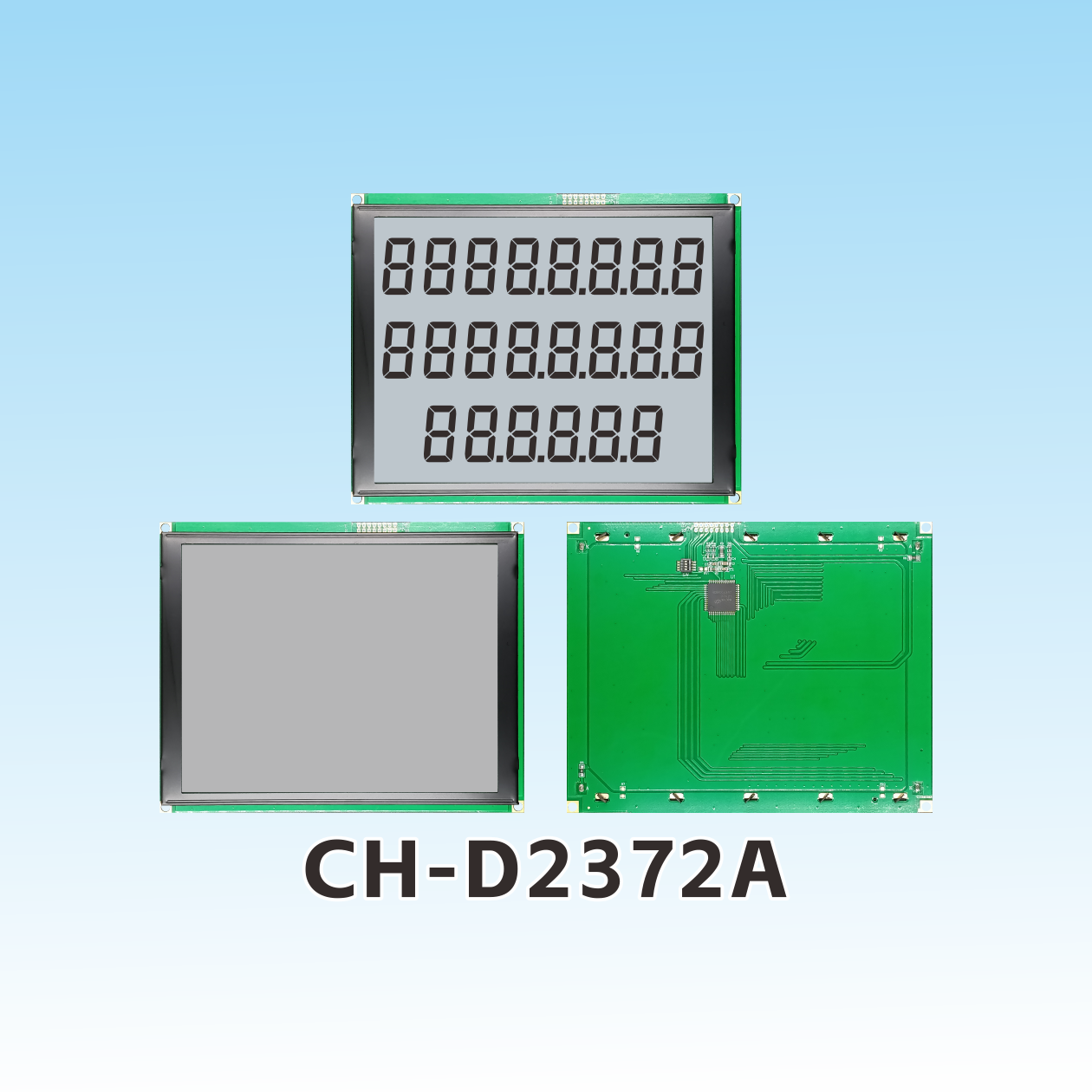

CH-D2372A the seven segment display
