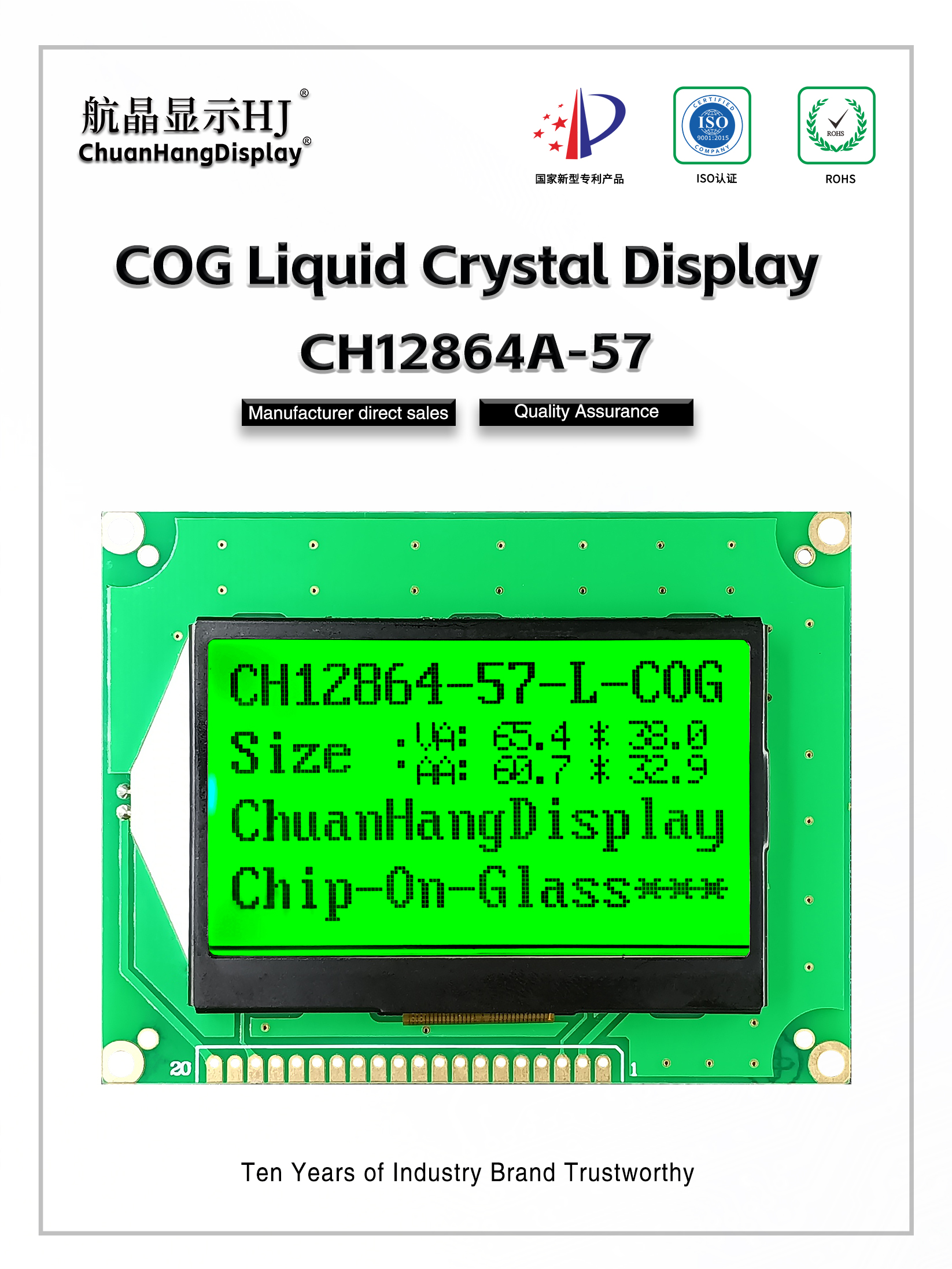

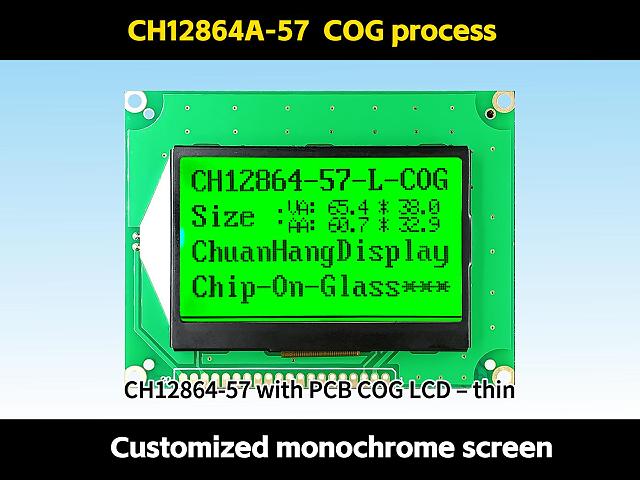

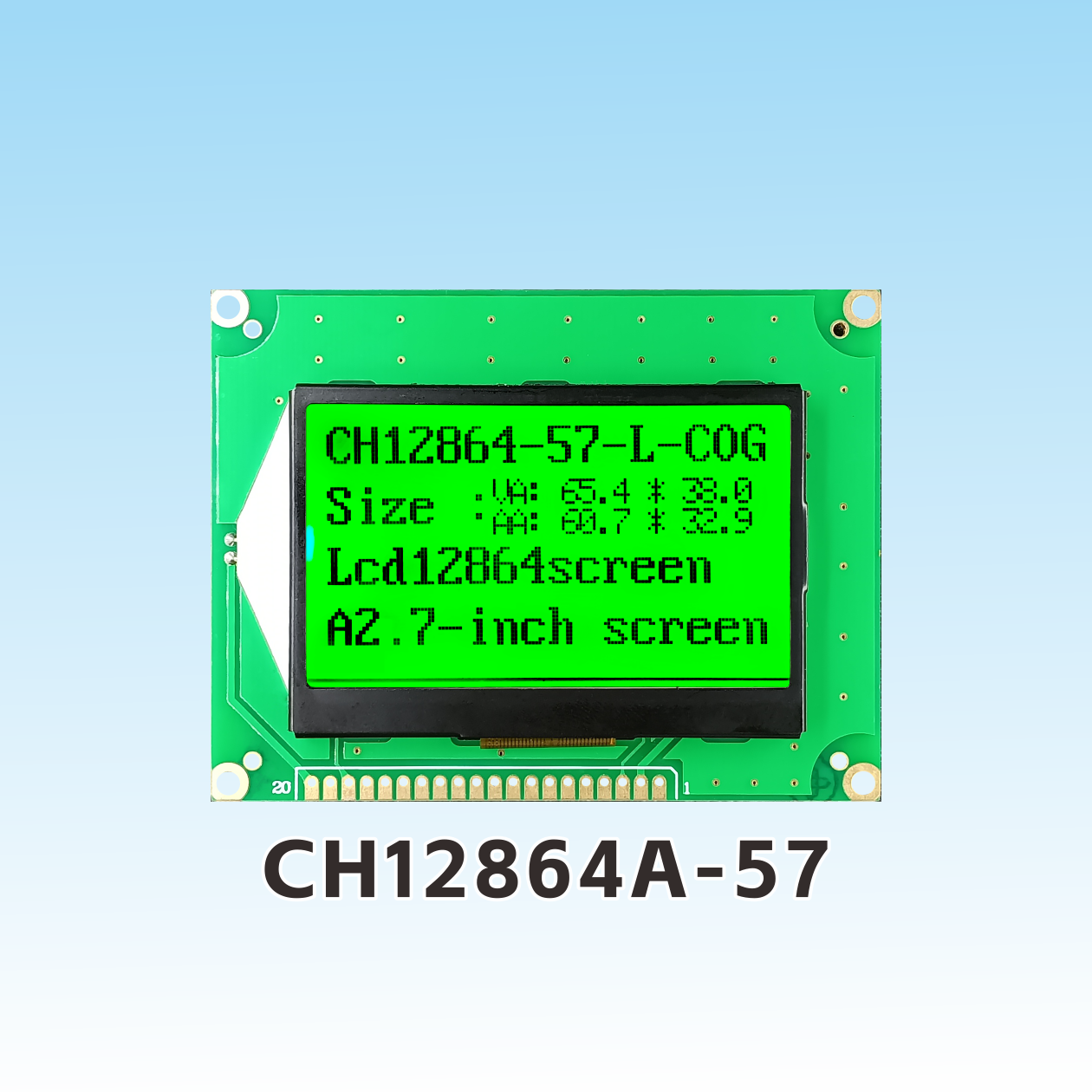

CH12864A-57

Product Description

PDF Download Demo code

Video Presentation

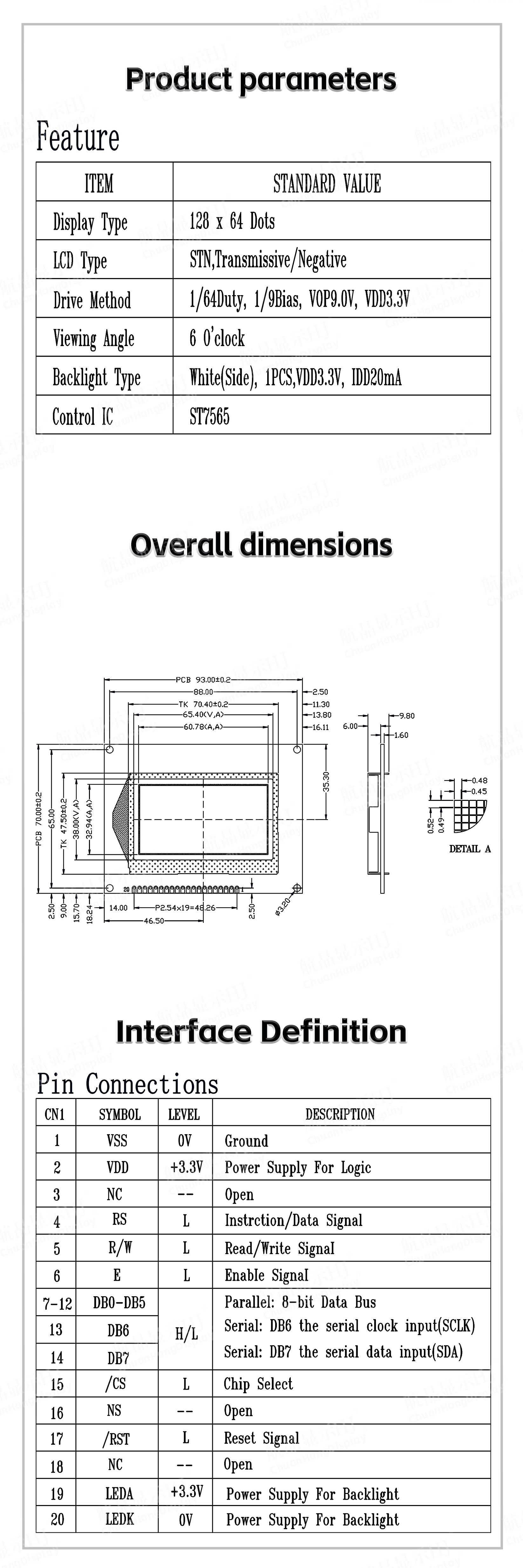

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH12864A-57
Resolution	128x64	screen size
Outline Dimension(LWH)	93.00x70.00x9.80mm	Visible Area(L*W)	65.40x38.00mm
Active Area(L*W)	60.78x32.94mm	Dot Size (mm)	0.45(L)x0.49(W)
Type	COG	Connection Method	FPC
Supply Voltage	3.3V	Interface Type	SPI
Viewing Direction	6 O'CLOCK	Driving Method	1/64Duty,1/9Bias
Display Type	STN	Driver IC	ST7565
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	YES

Product Datasheet

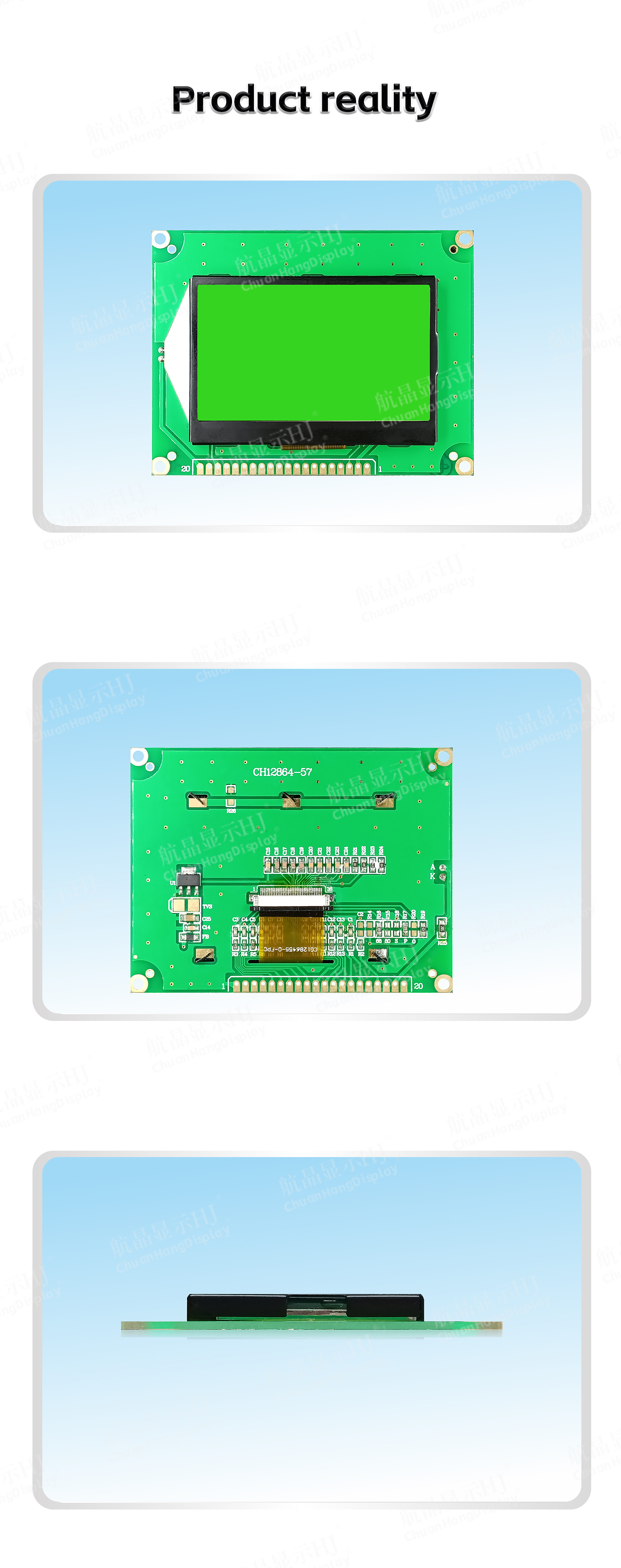

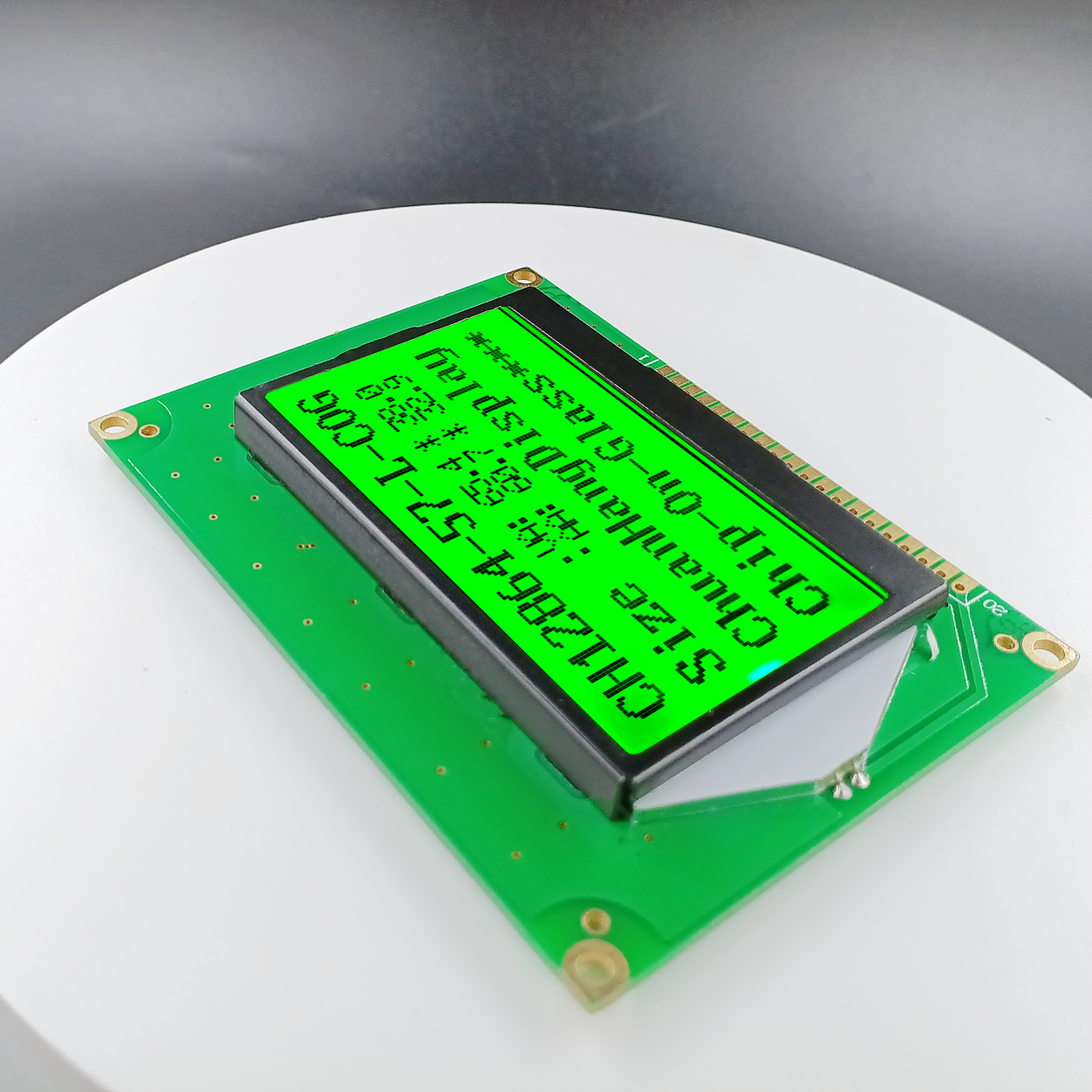

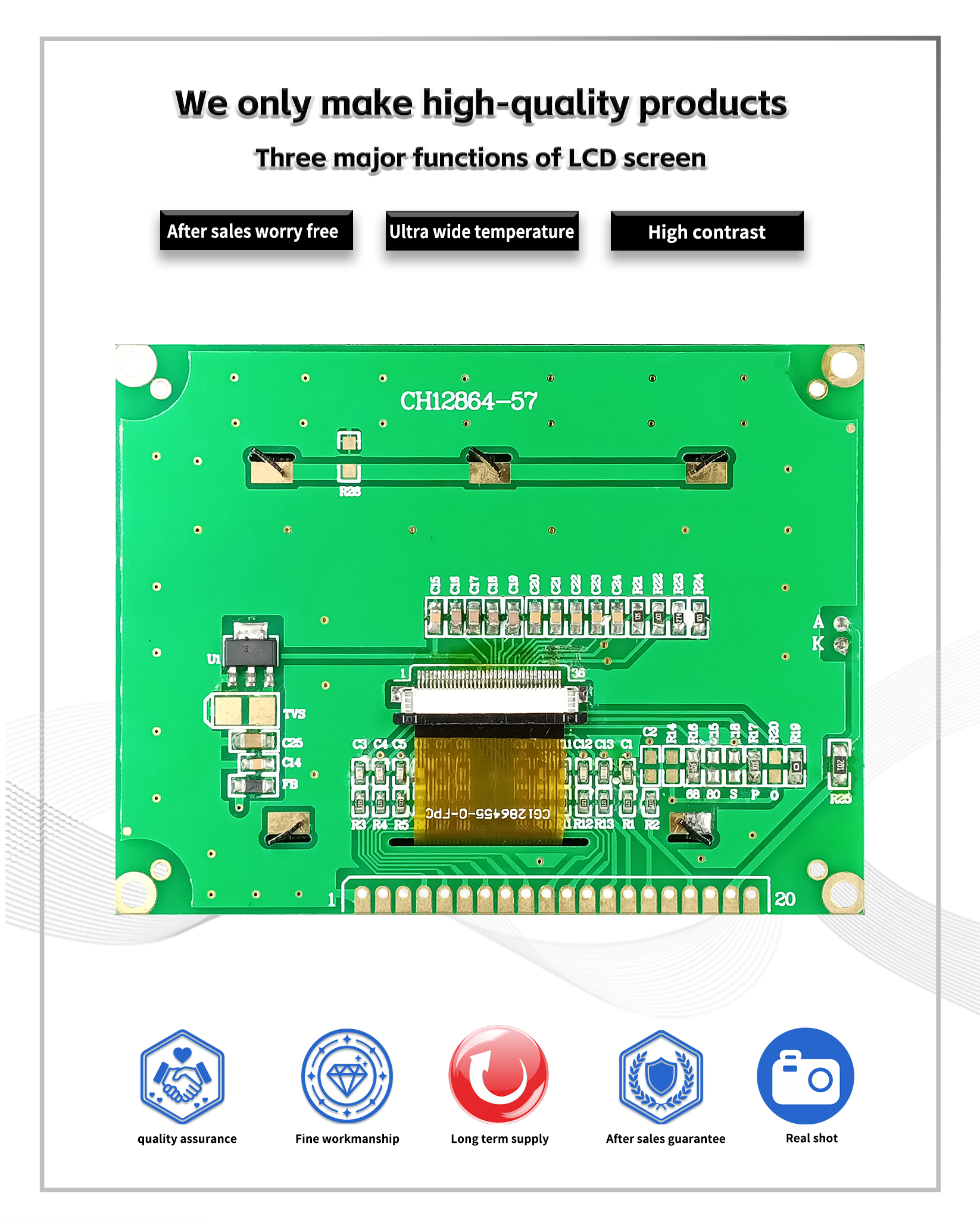

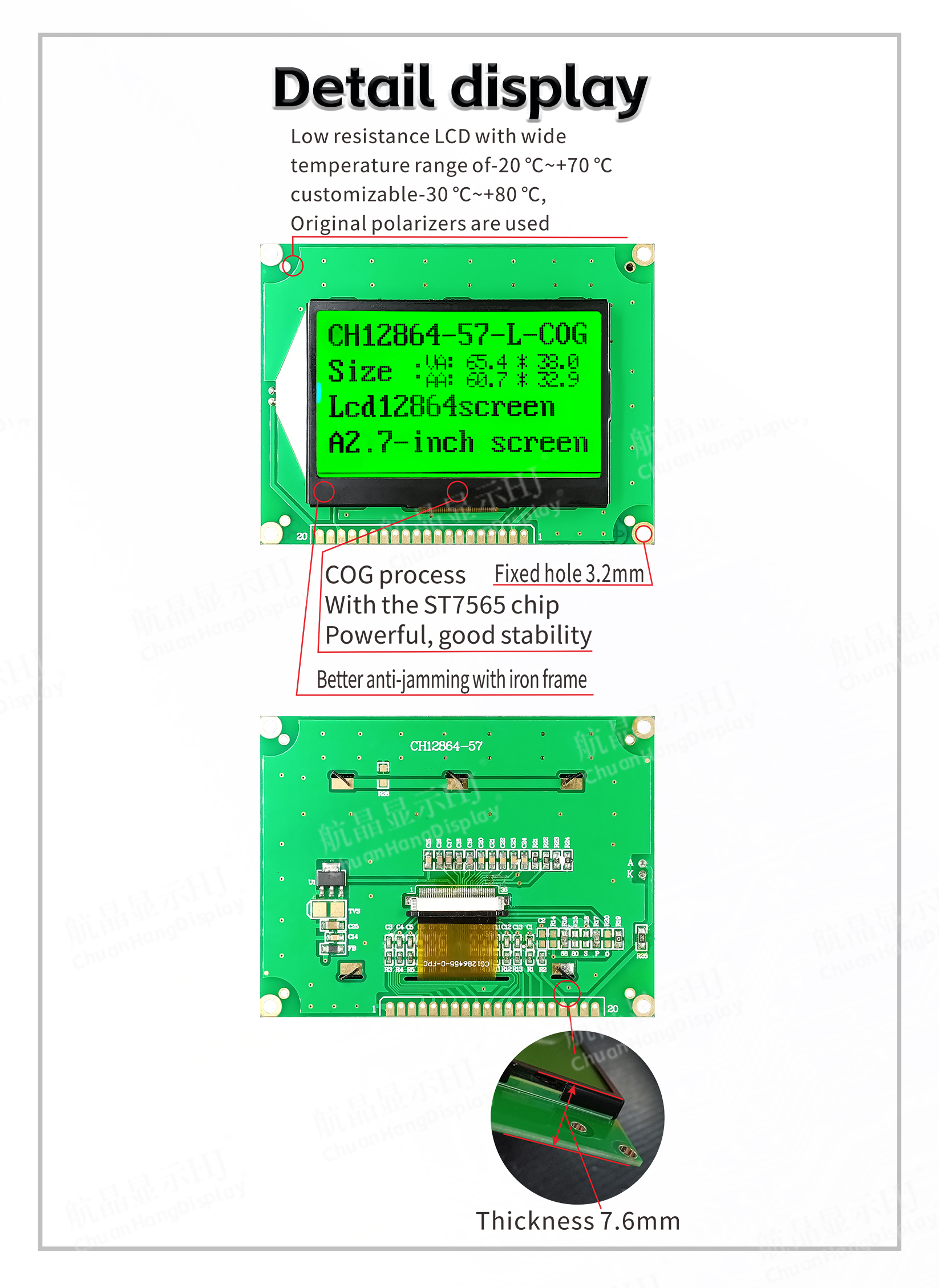

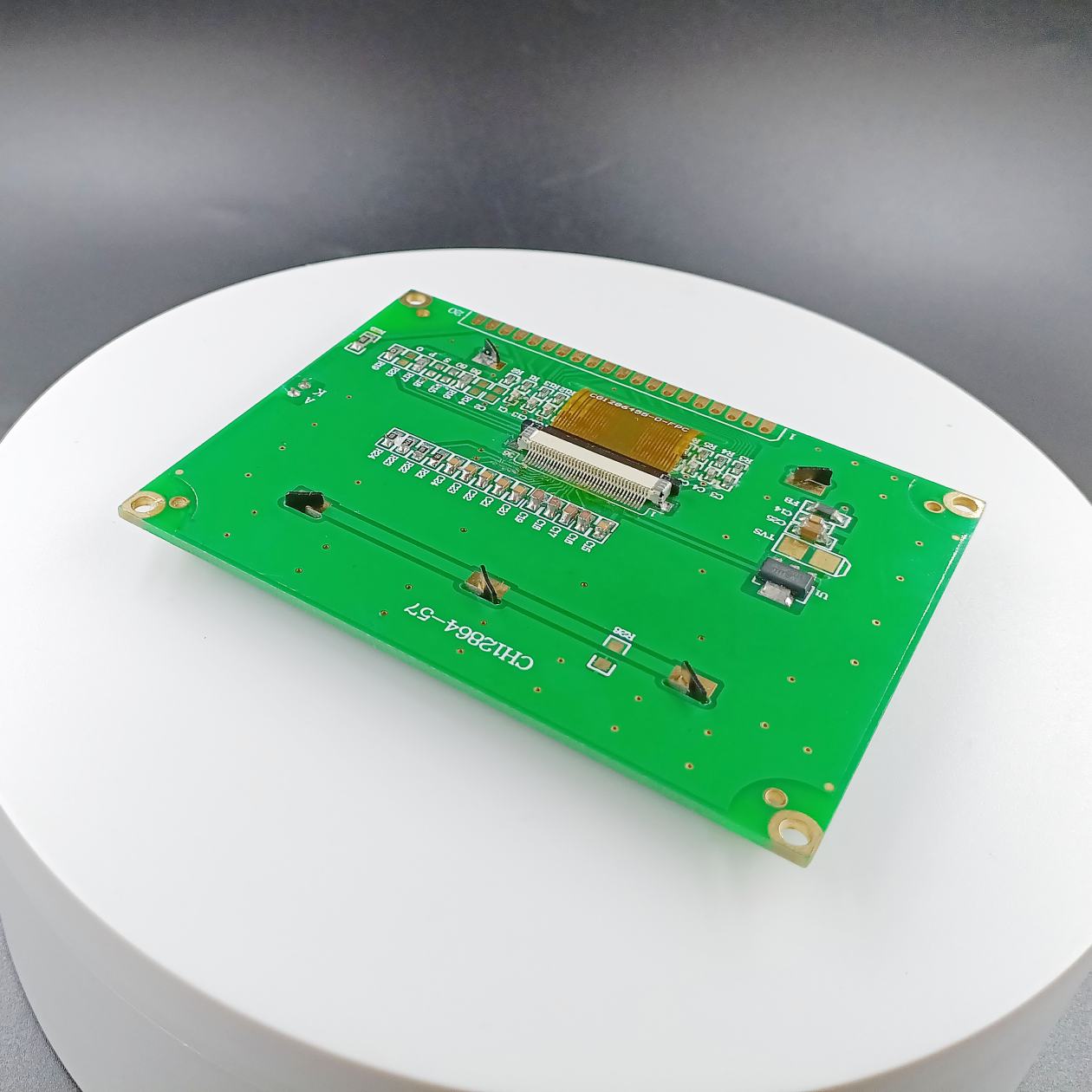

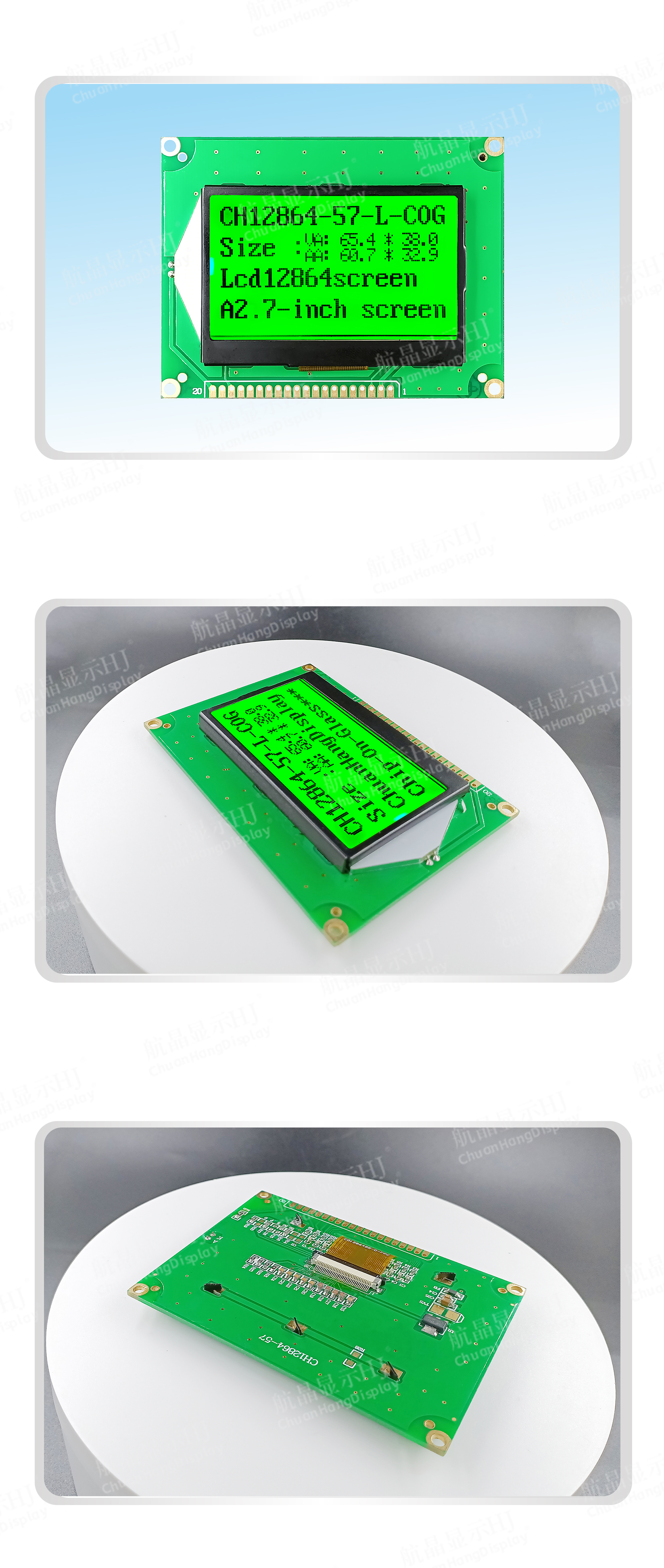

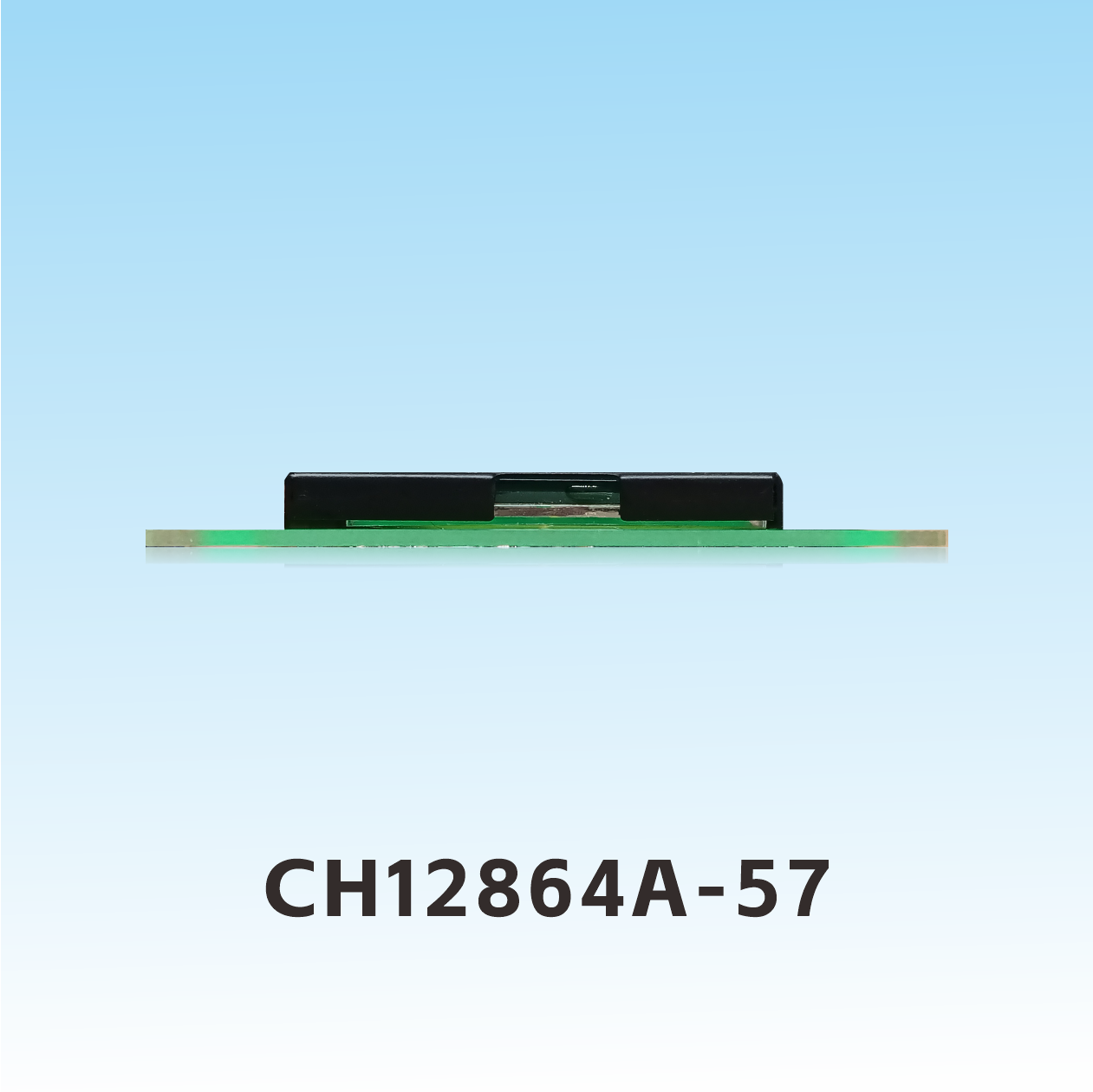

Product Display

Previous：

CH12864A-COG-4

Next：

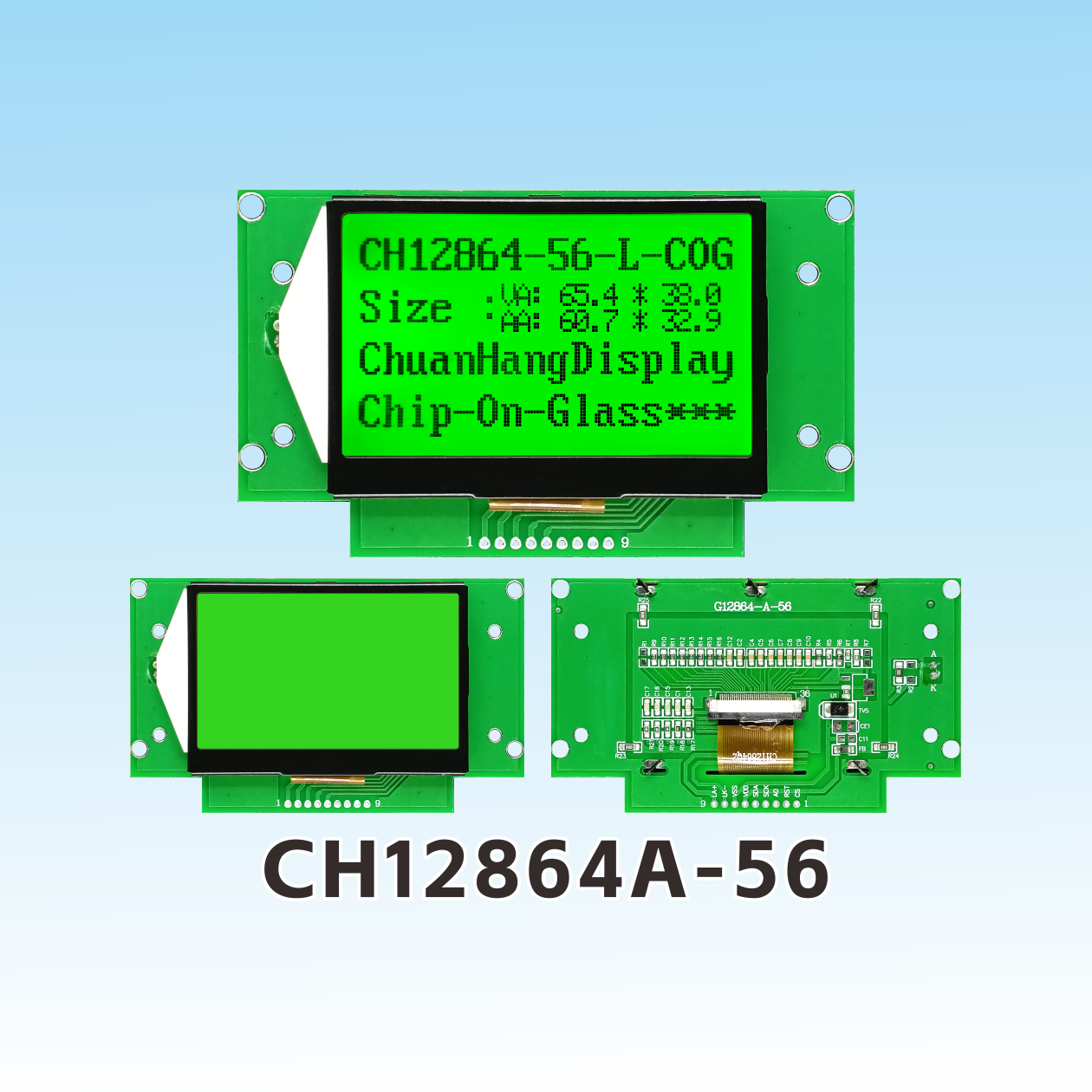

CH12864A-56
