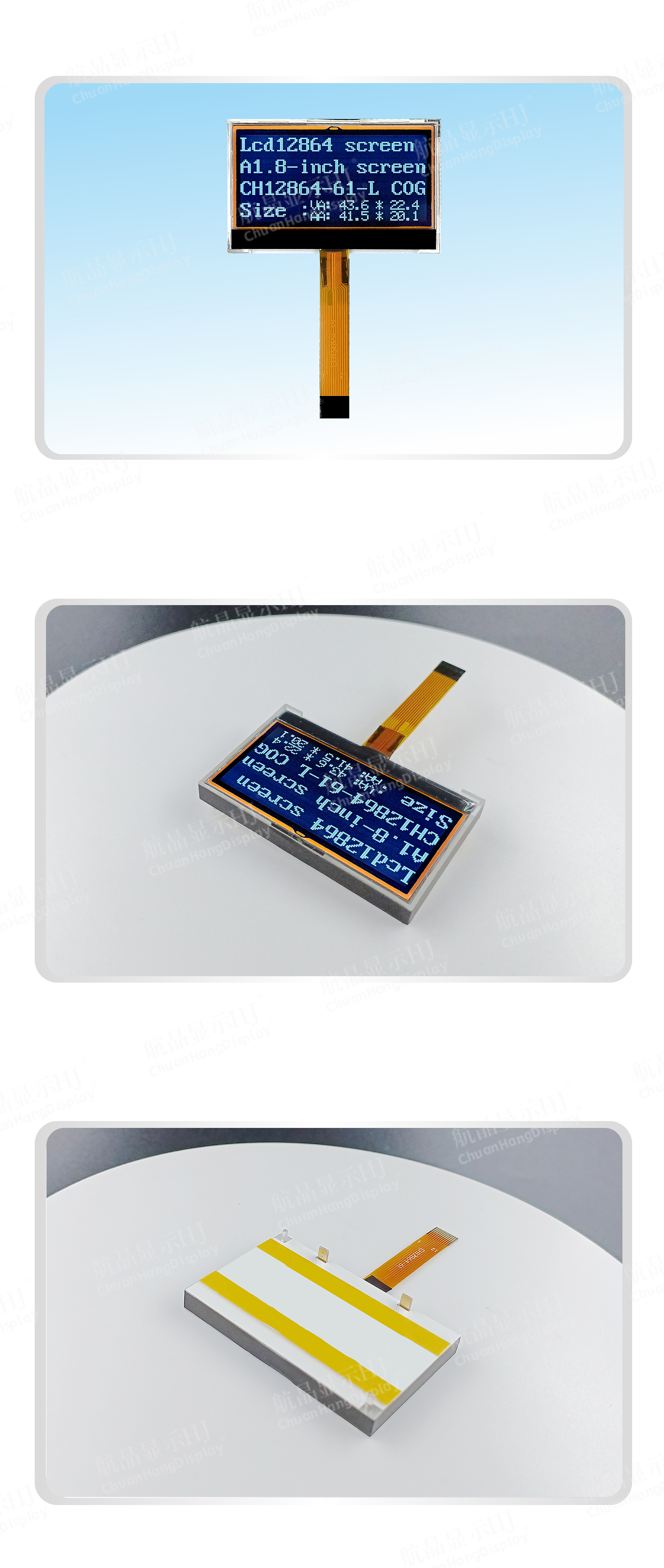

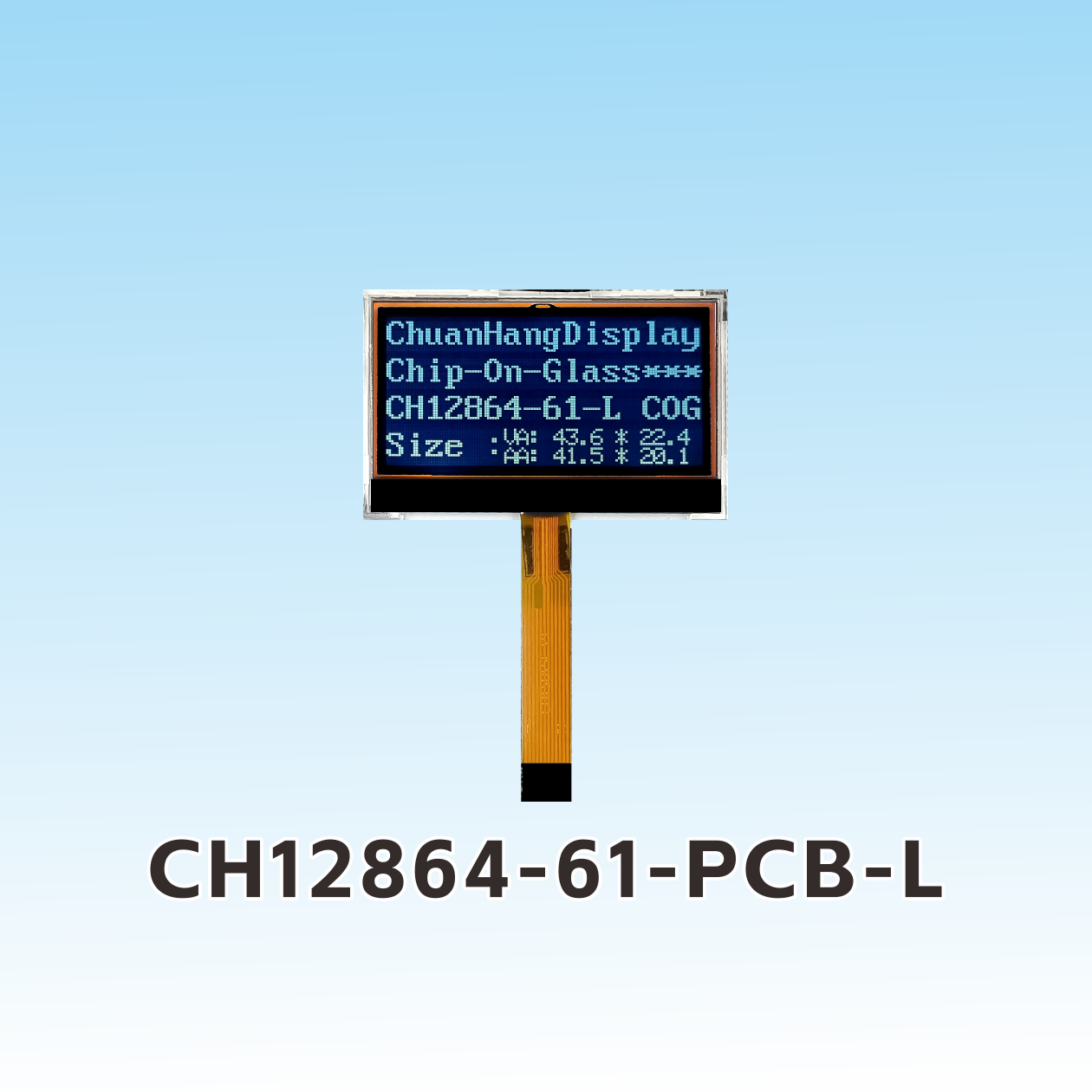

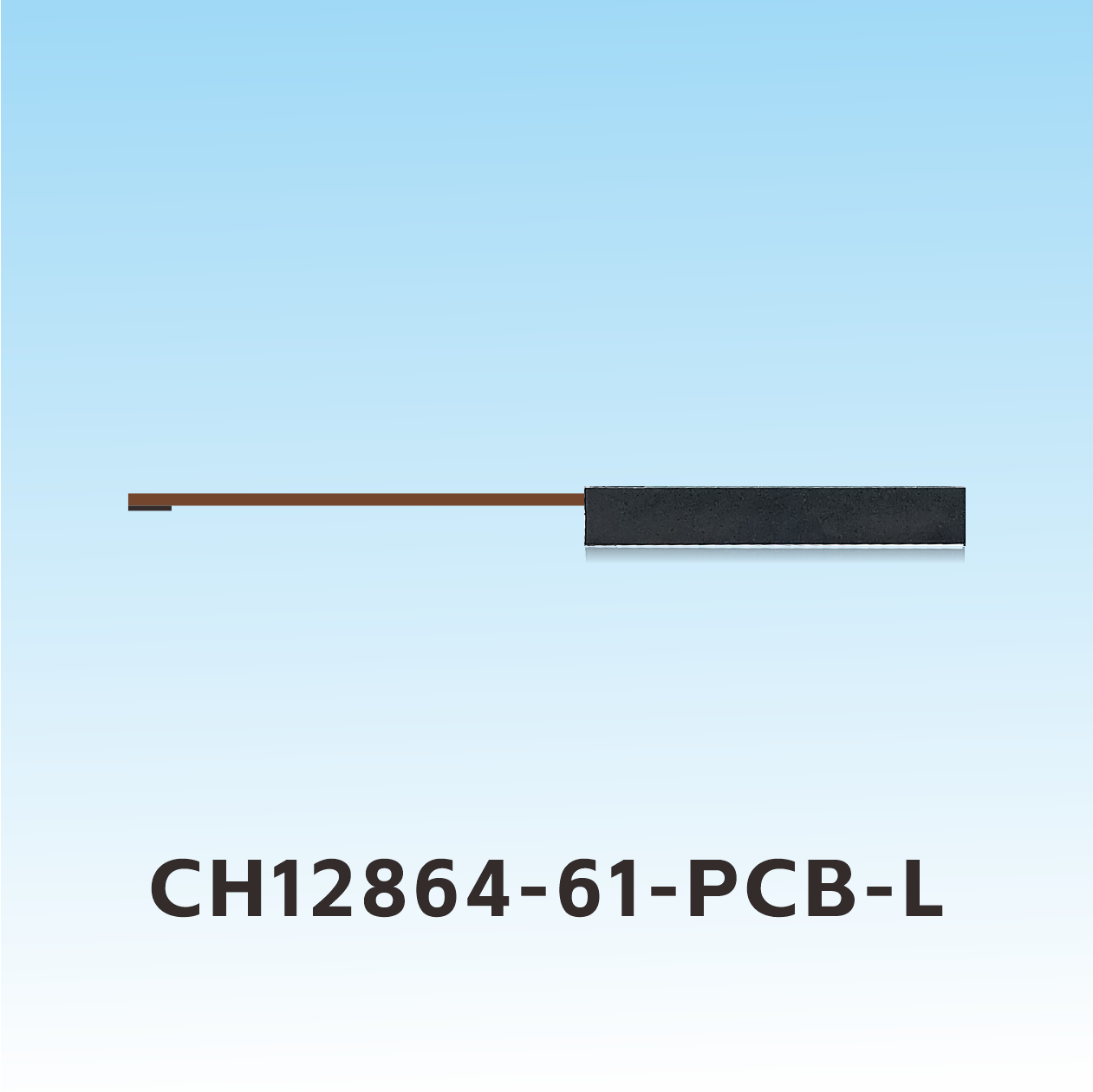

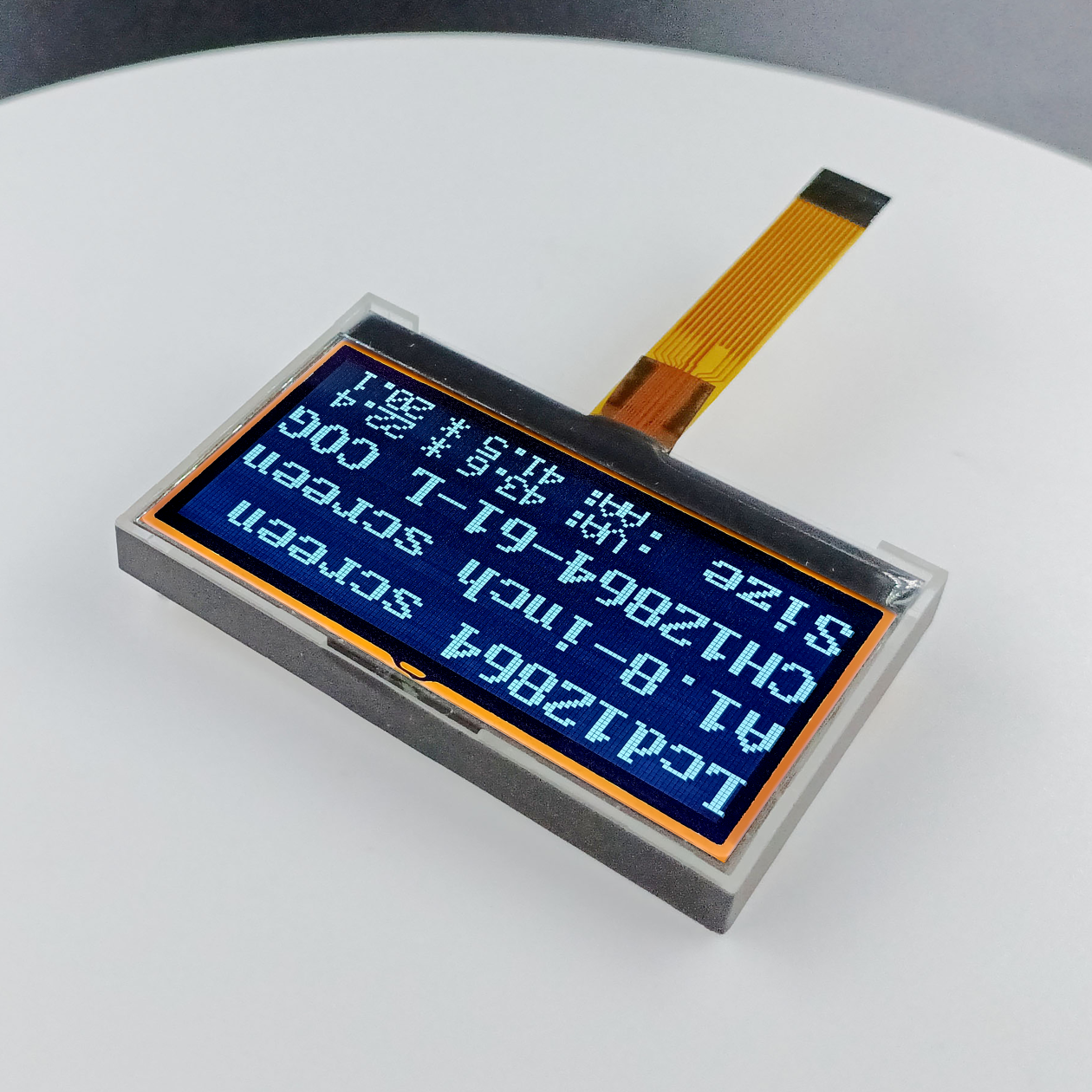

CH12864-61-PCB-L

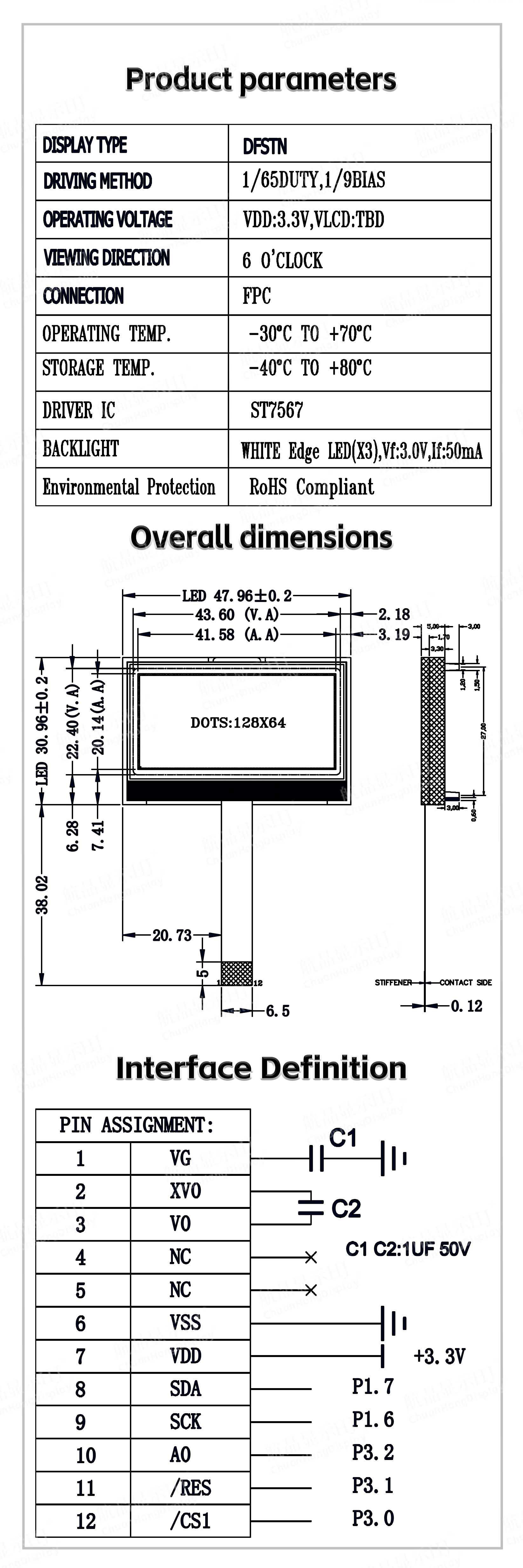

Product Description
| Product Brand | ChuanHangDisplay | Product Model | CH12864-61-PCB-L |
| Resolution | 128x64 | screen size | 1.81“ |
| Outline Dimension(L*W*H) | 47.96x30.96x8.00mm | Visible Area(L*W) | 43.60x22.40mm |
| Active Area(L*W) | 41.58x20.14mm | Dot Size (mm) | 0.30(L)x0.29(W) |
| Type | COG | Connection Method | FPC |
| Supply Voltage | 3.3V | Interface Type | SPI |
| Viewing Direction | 6 O'CLOCK | Driving Method | 1/16Duty,1/5Bias |
| Display Type | Driver IC | ST7567 | |
| Operating Temperature | -20℃~+70℃ | Storage Temperature | -30℃~+80℃ |
| Backlight parameters | 3.3V | production capacity | Self-produced |
| Character libraries | Whether to bring PCB | NO |
