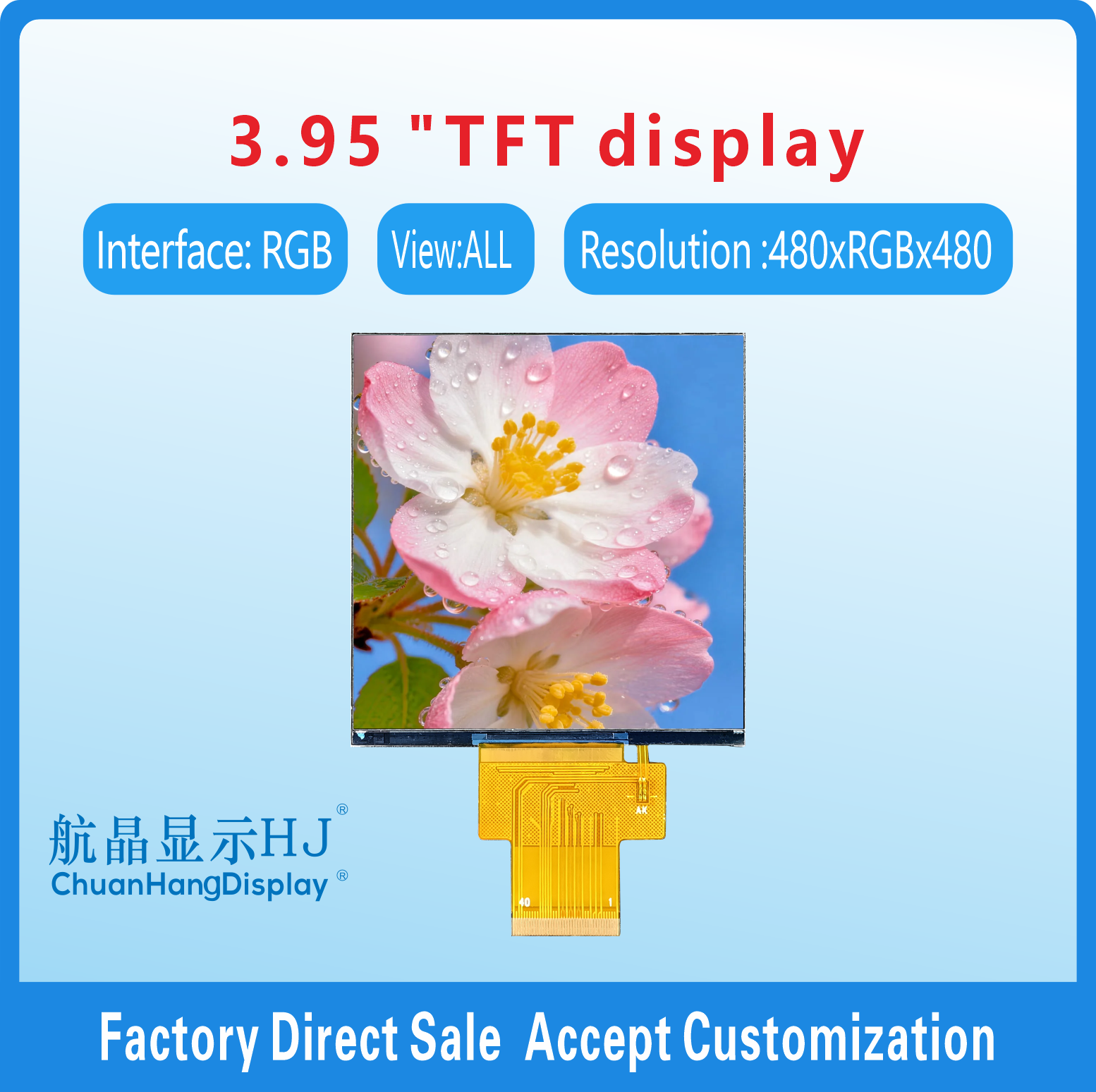

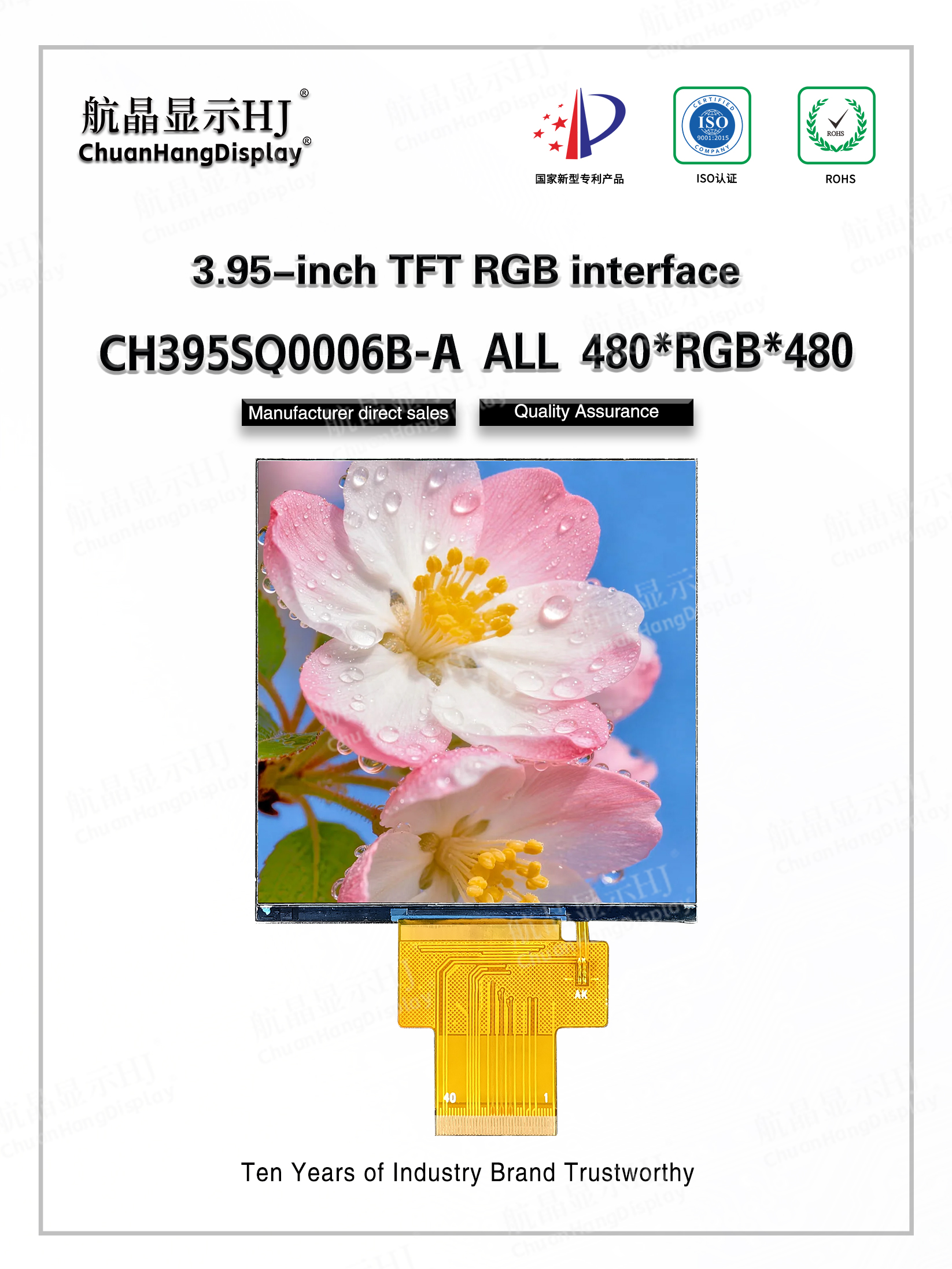

3.95"TFT display

Product Description

Product size: 3.95 inches
Resolution: 480xRGBx480
Viewing angle: IPS full viewing angle
Driver chip: ST7701SN
Interface type:RGB
Module size: 74.66x76.54x2.13 mm
Active area: 71.86x70.18mm
Cable interface: 40PIN
Operating voltage: 2.8V
Operating temperature: -20℃ -70℃
Display color: TFT

PDF Download Demo code

Video Presentation

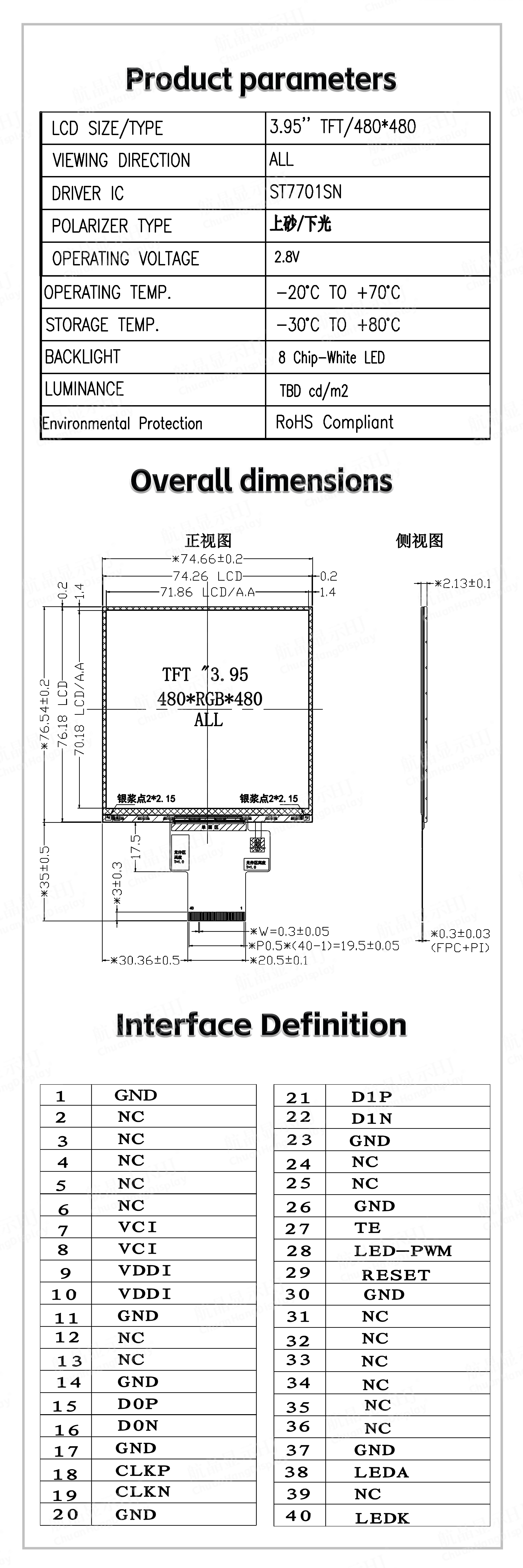

Product Parameters

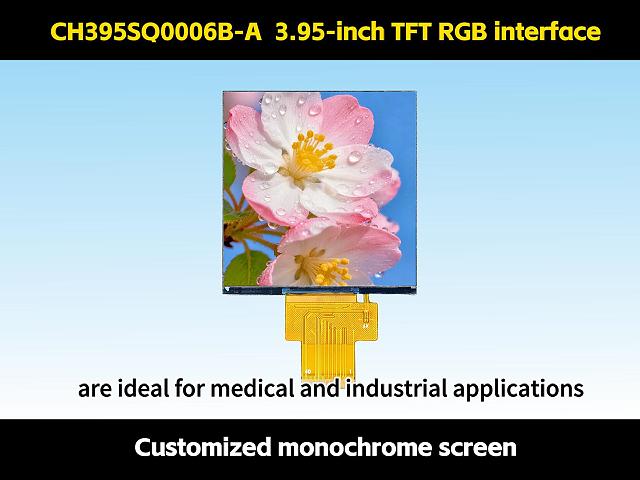

Product Brand	ChuanHangDisplay	Product Model	CH395SQ0006B-A
Resolution	480xRGBx480	Screen size	3.95”

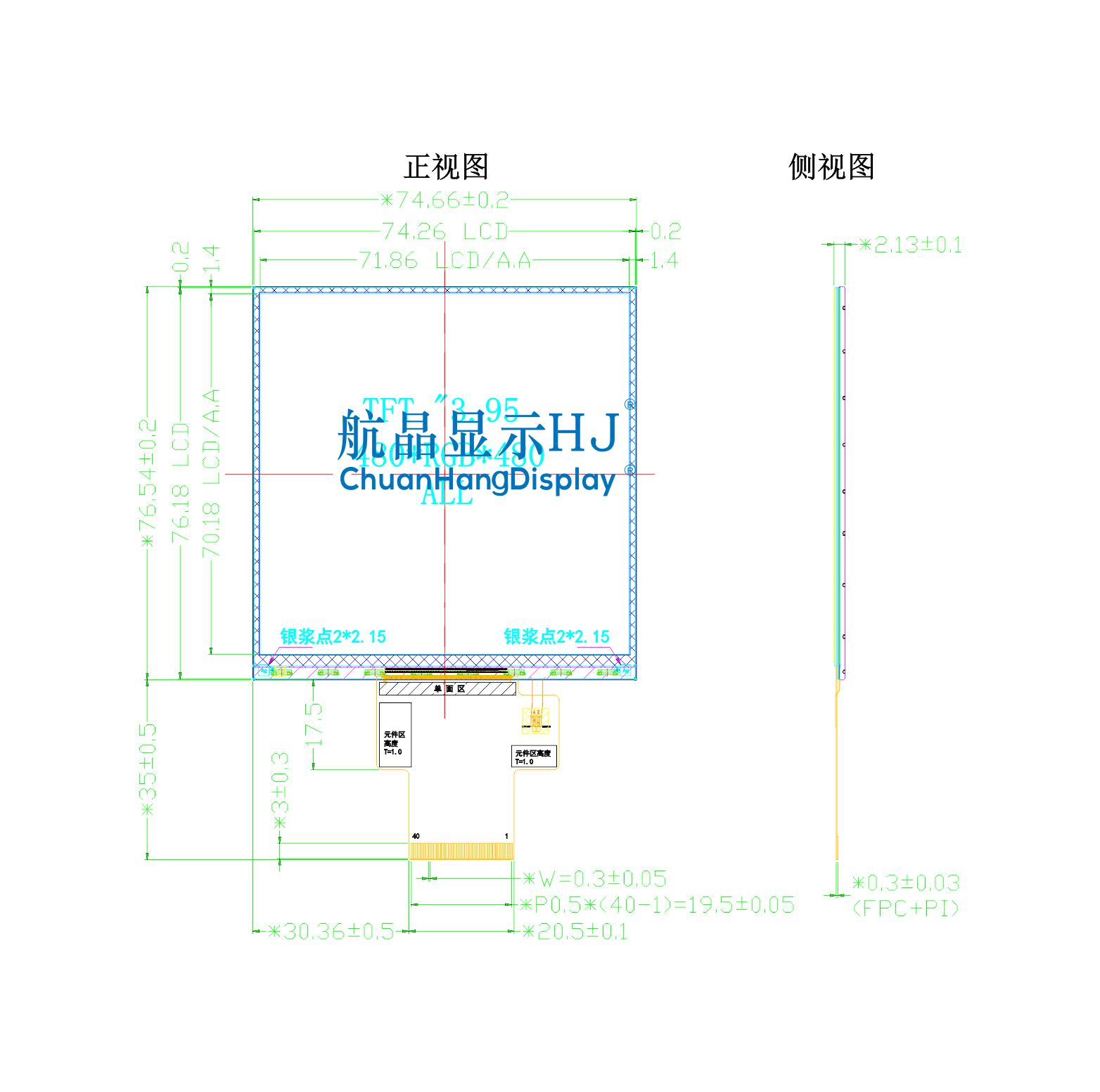

Outline Dimension(LWH)	74.66x76.54x2.13mm	Active Area(L*W)	71.86x70.18mm
Type	COG	Communication interface	RGB
Operating Voltage	2.8V	Interface Type	40PIN
Viewing Direction	IPS full viewing angle	Display Color	TFT
Driver IC	ST7701SN	Operating Temperature	-20℃ --70℃
Storage Temperature	-30℃ --80℃	Production capacity	Self-produced
Whether to bring PCB	NO	Connection Method	FPC

Product Datasheet

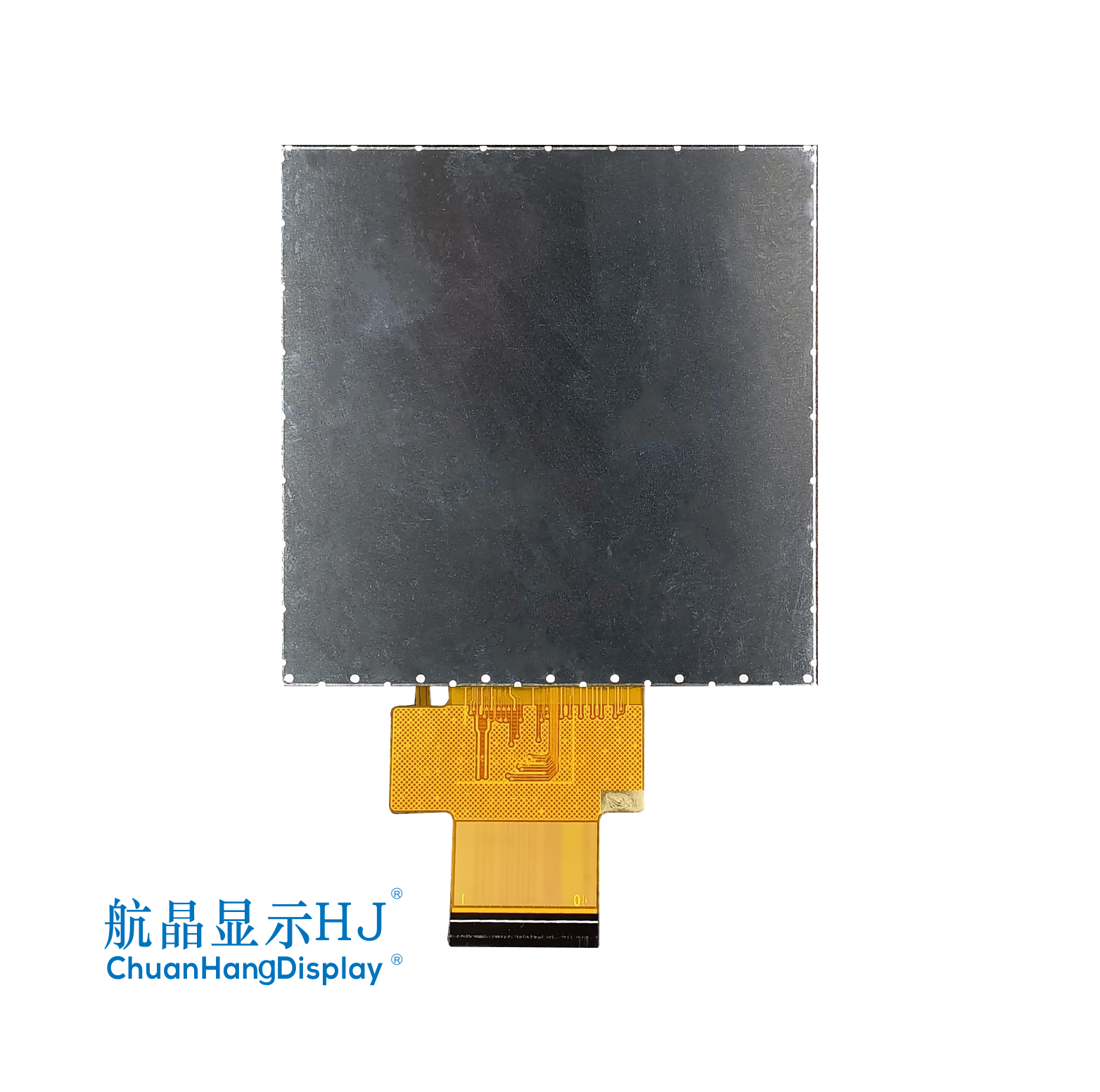

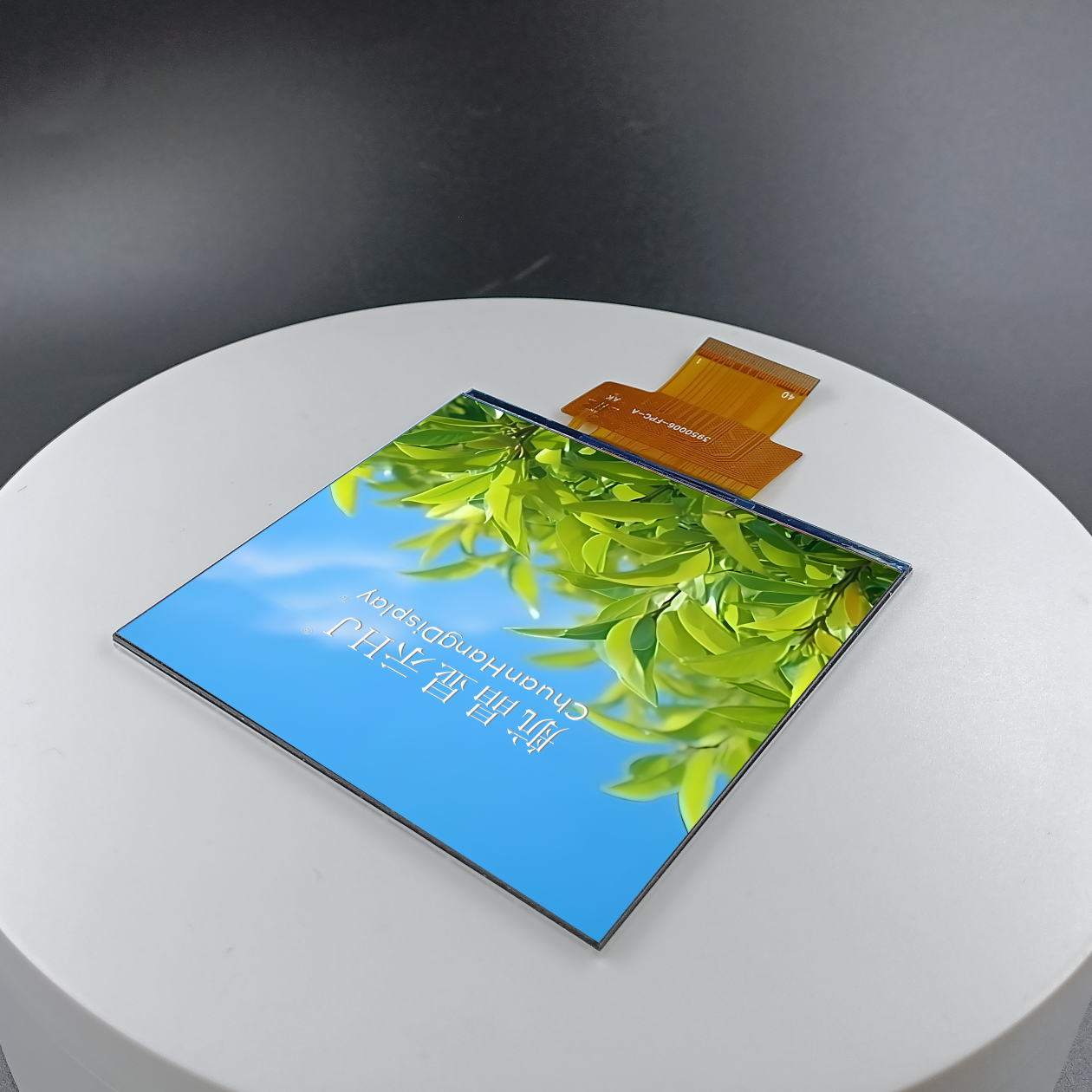

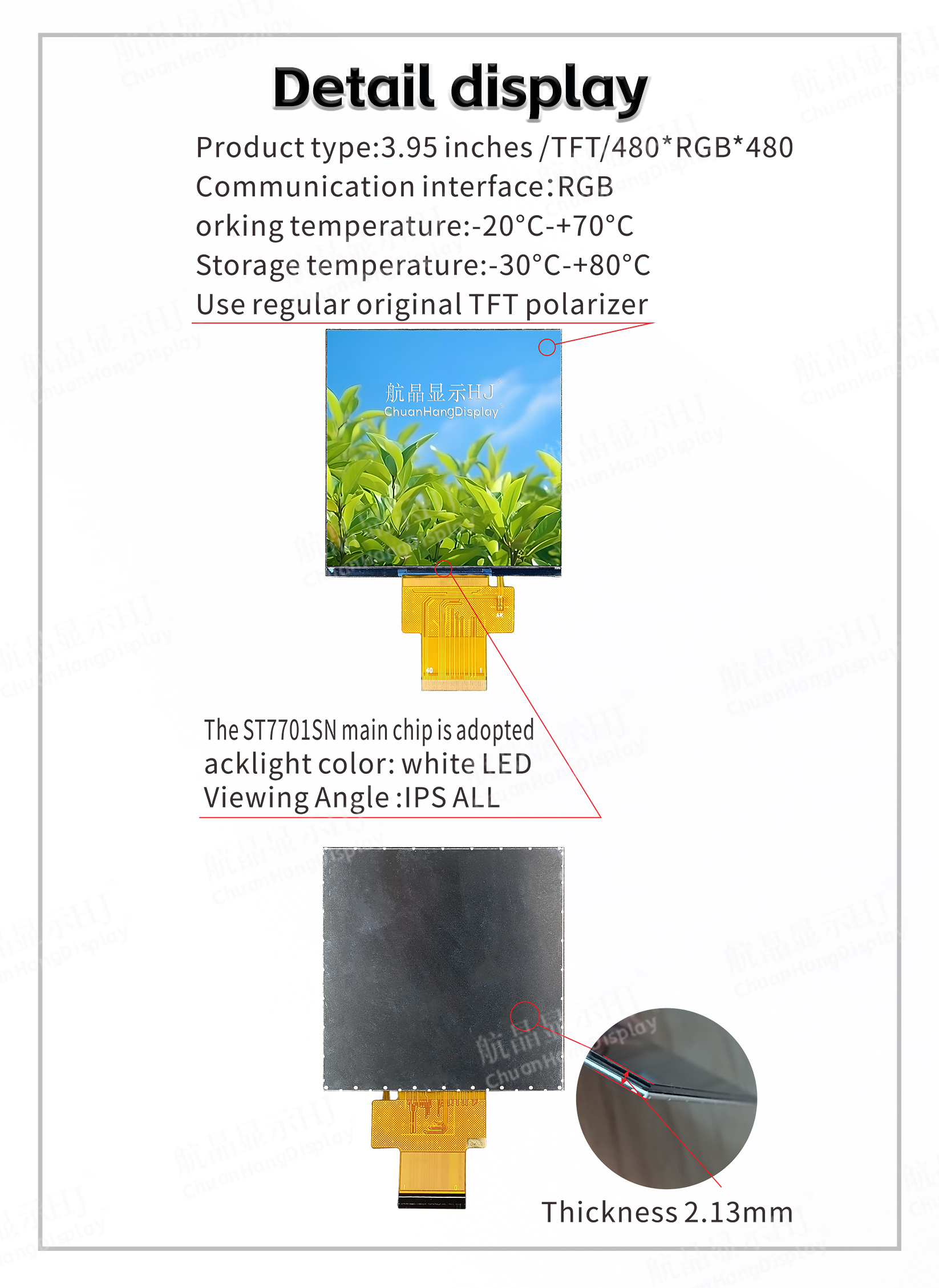

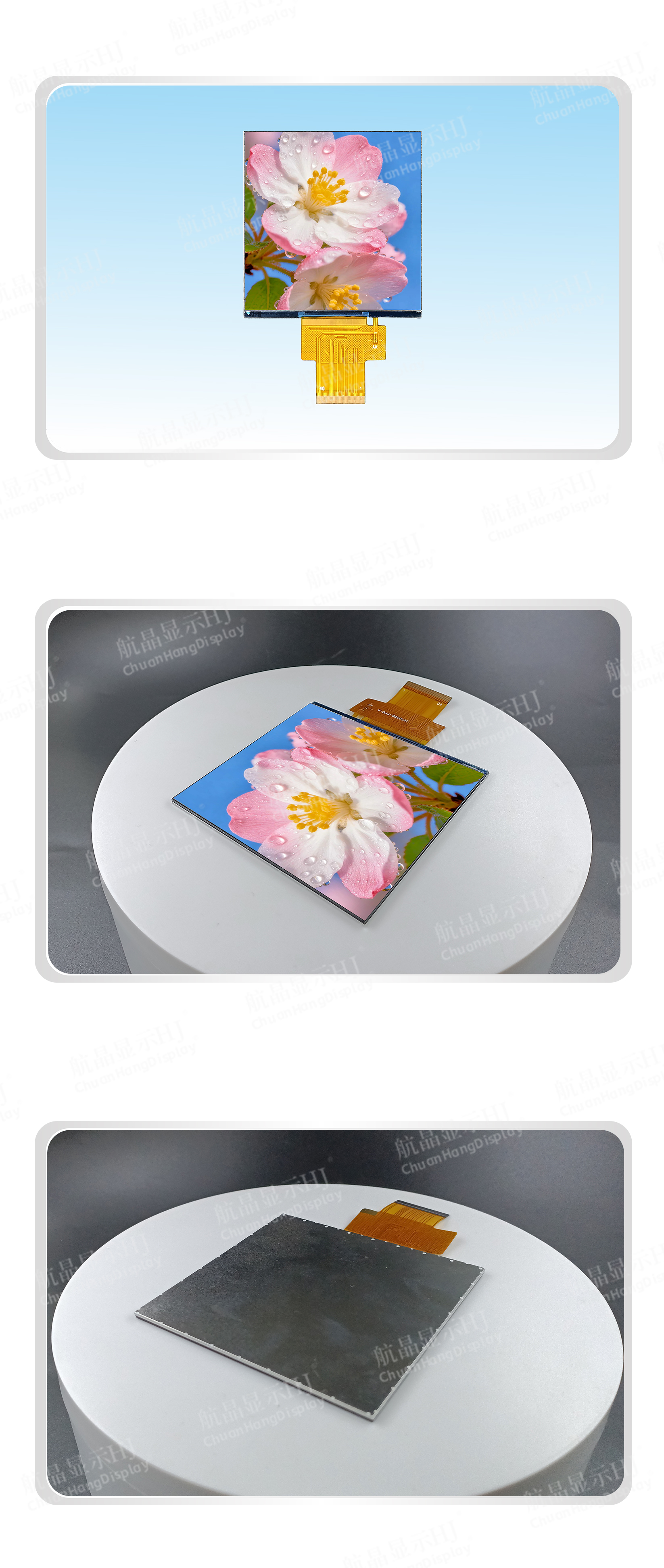

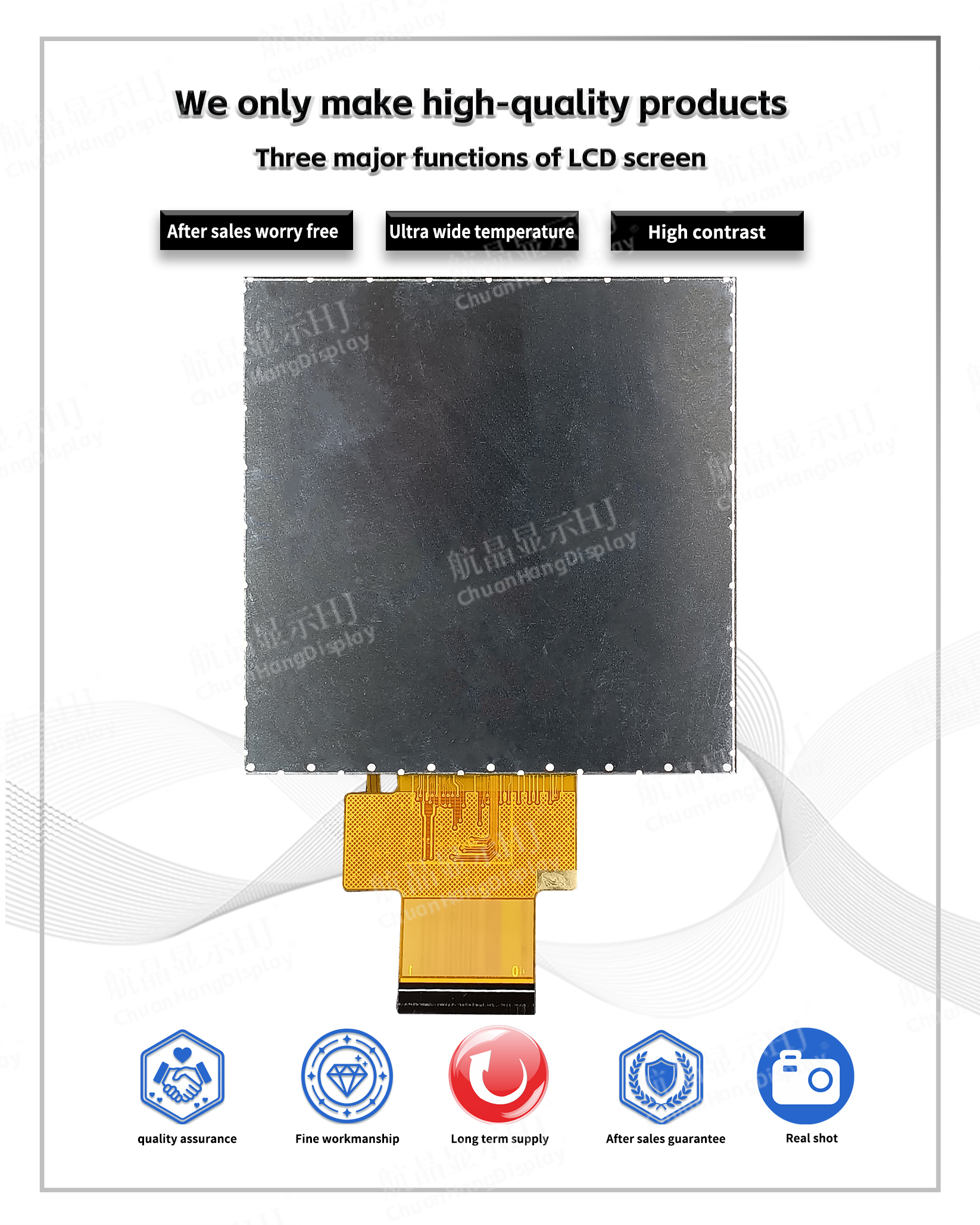

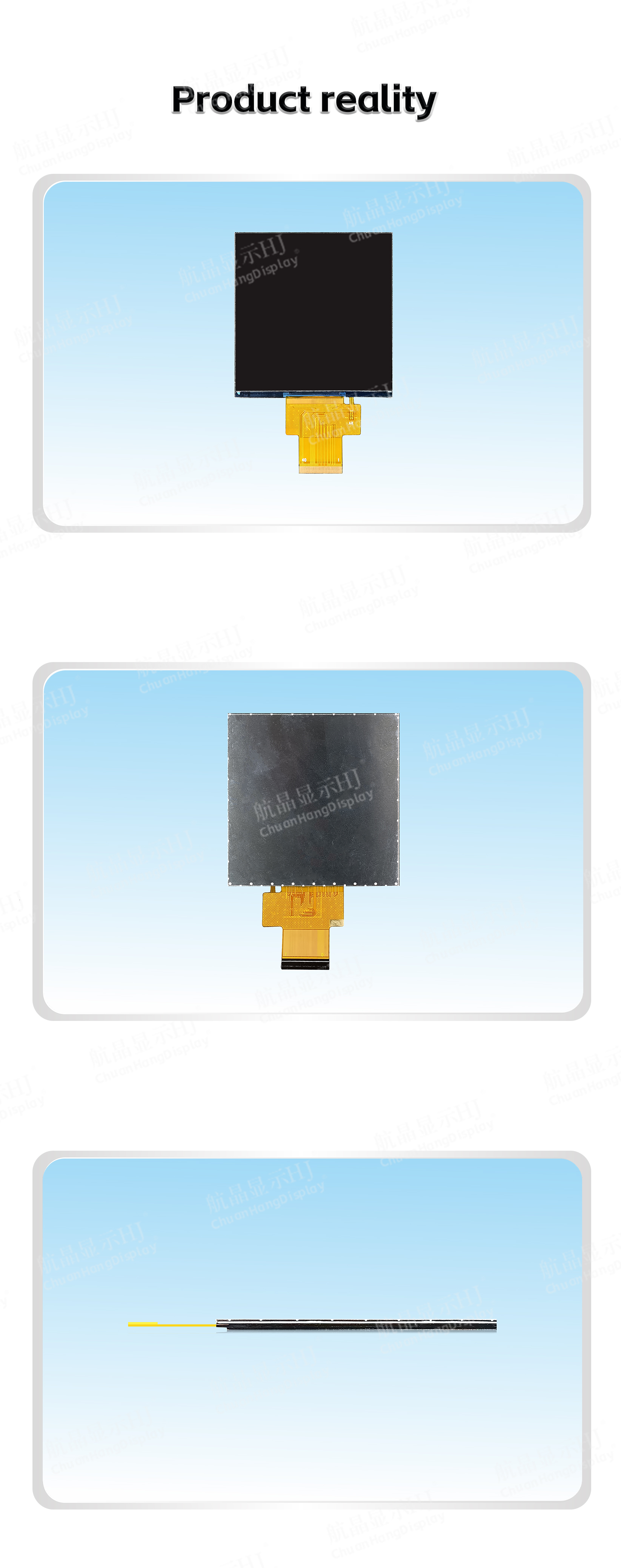

Product Display

Shenzhen ChuanHang Electronic Technology Co., Ltd.

PRODUCTS CENTER

3.95"TFT display

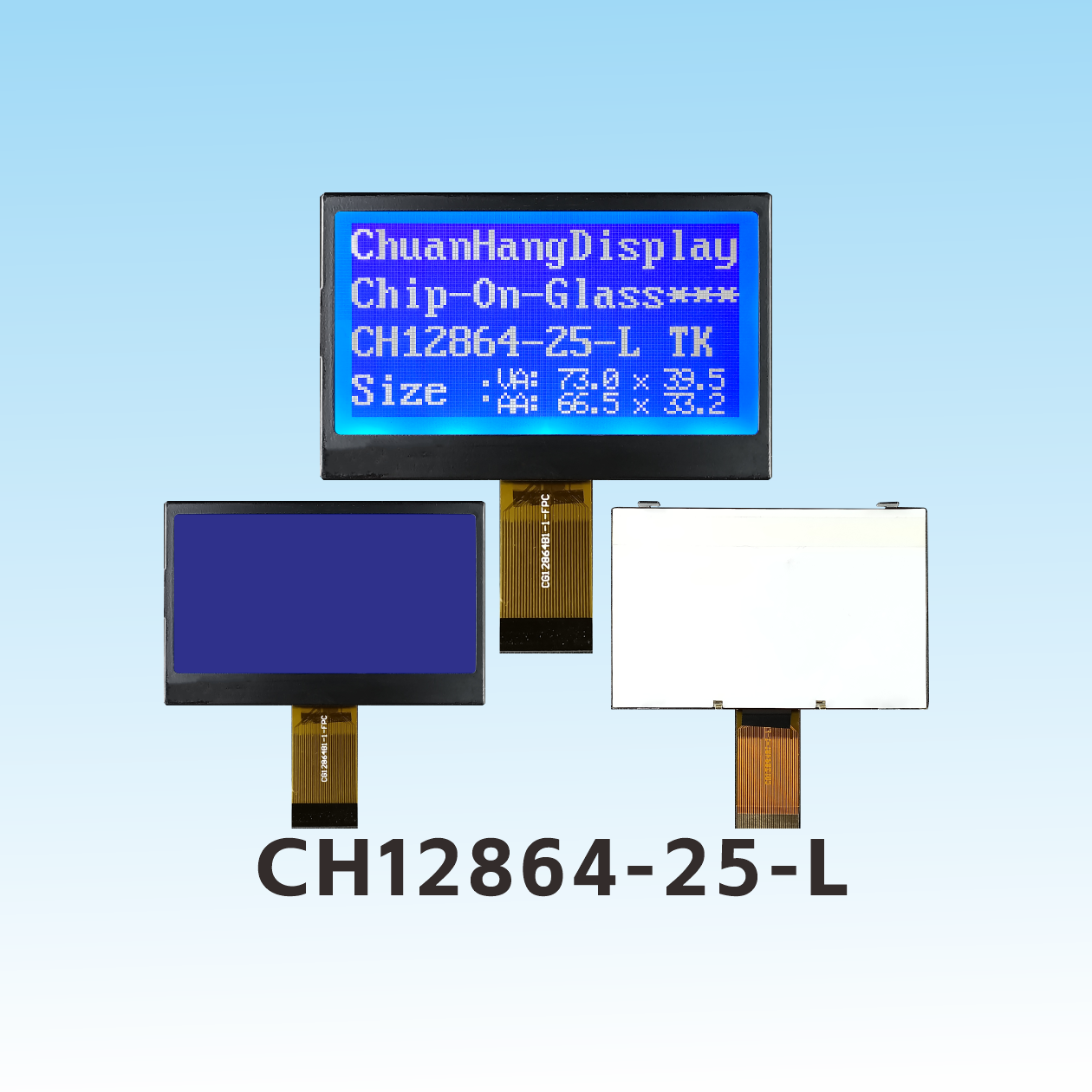

CH12864-25- L 12864 display price

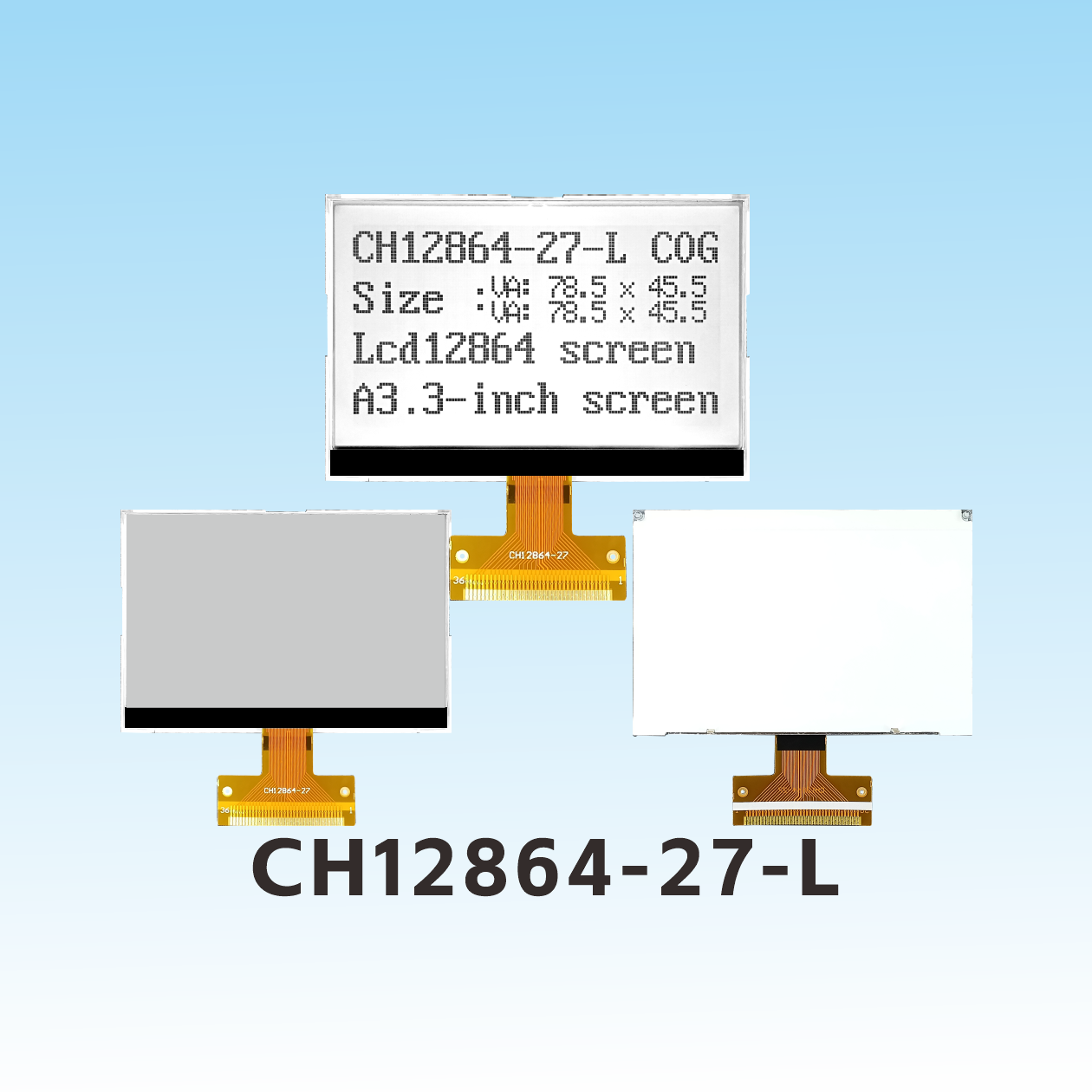

CH12864-27- L 12864 display price
