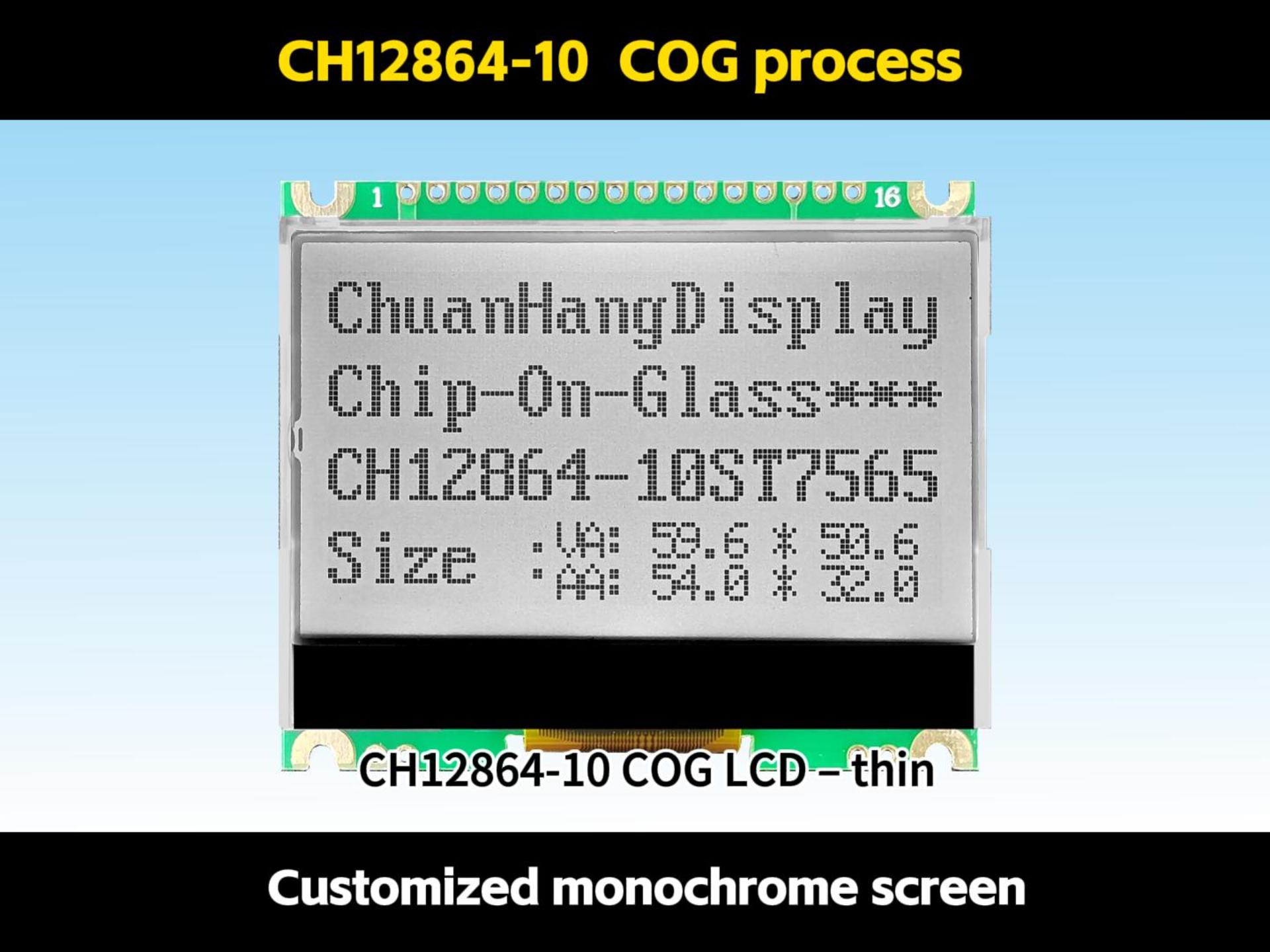

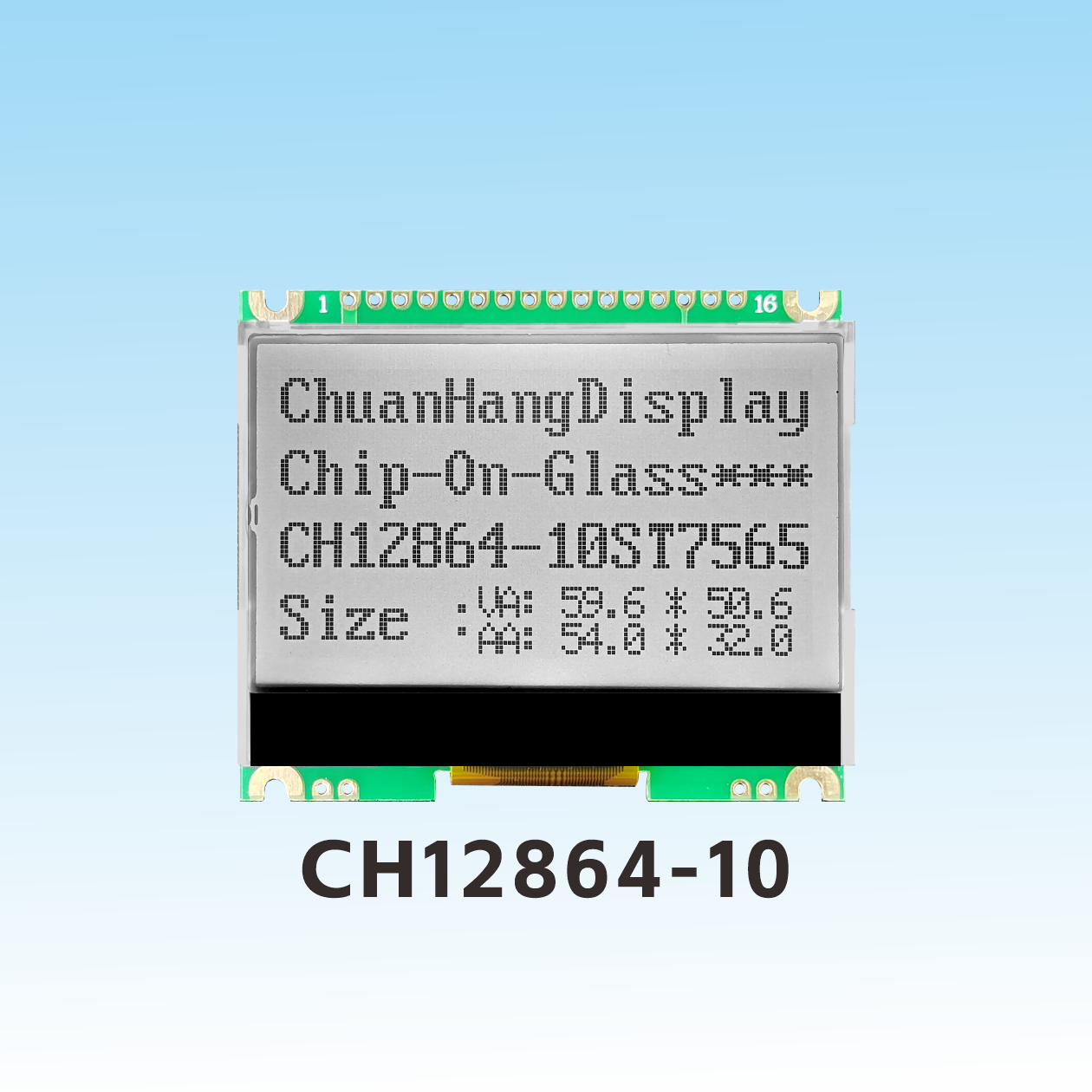

CH12864-10 12864 cog lcd
Product Description

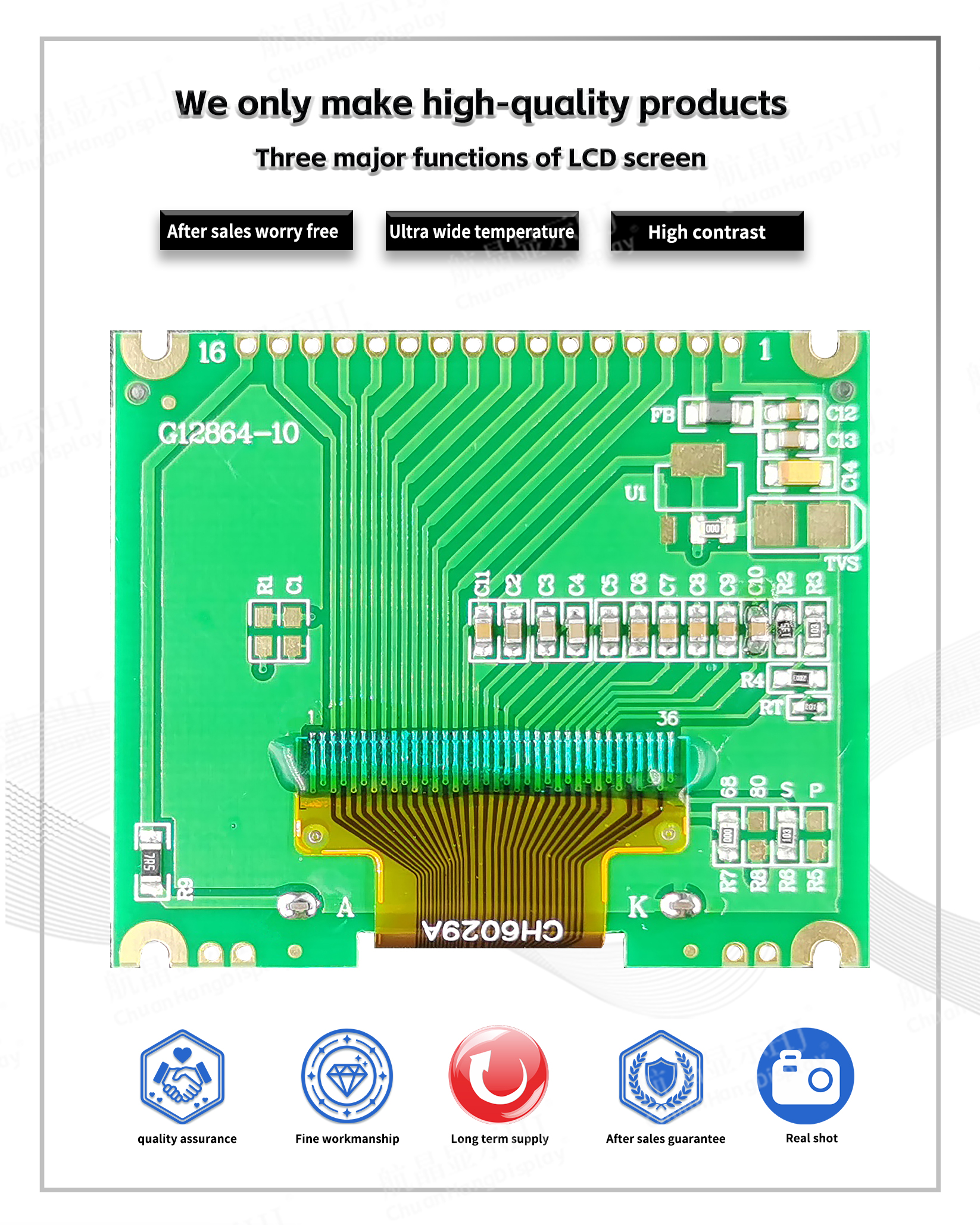

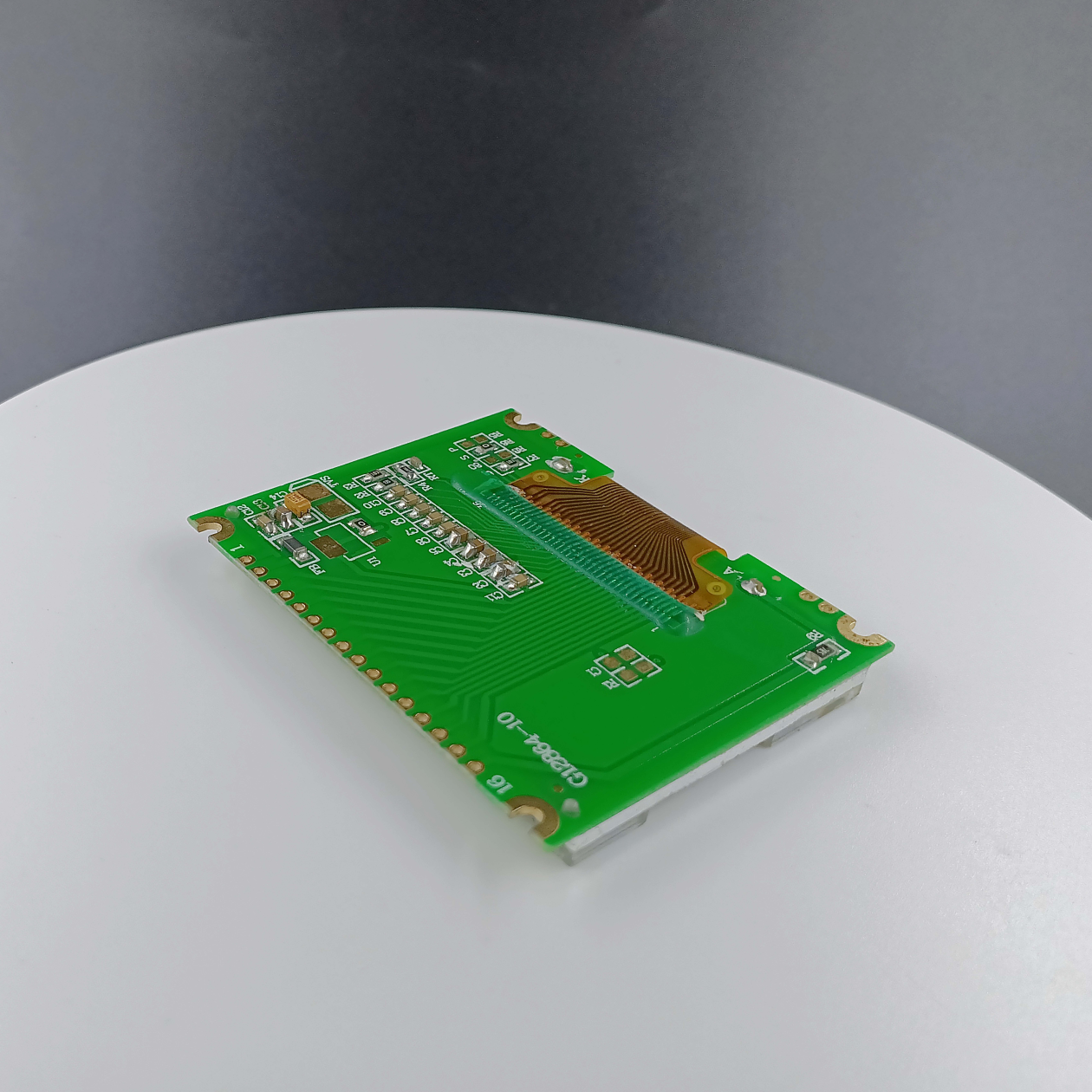

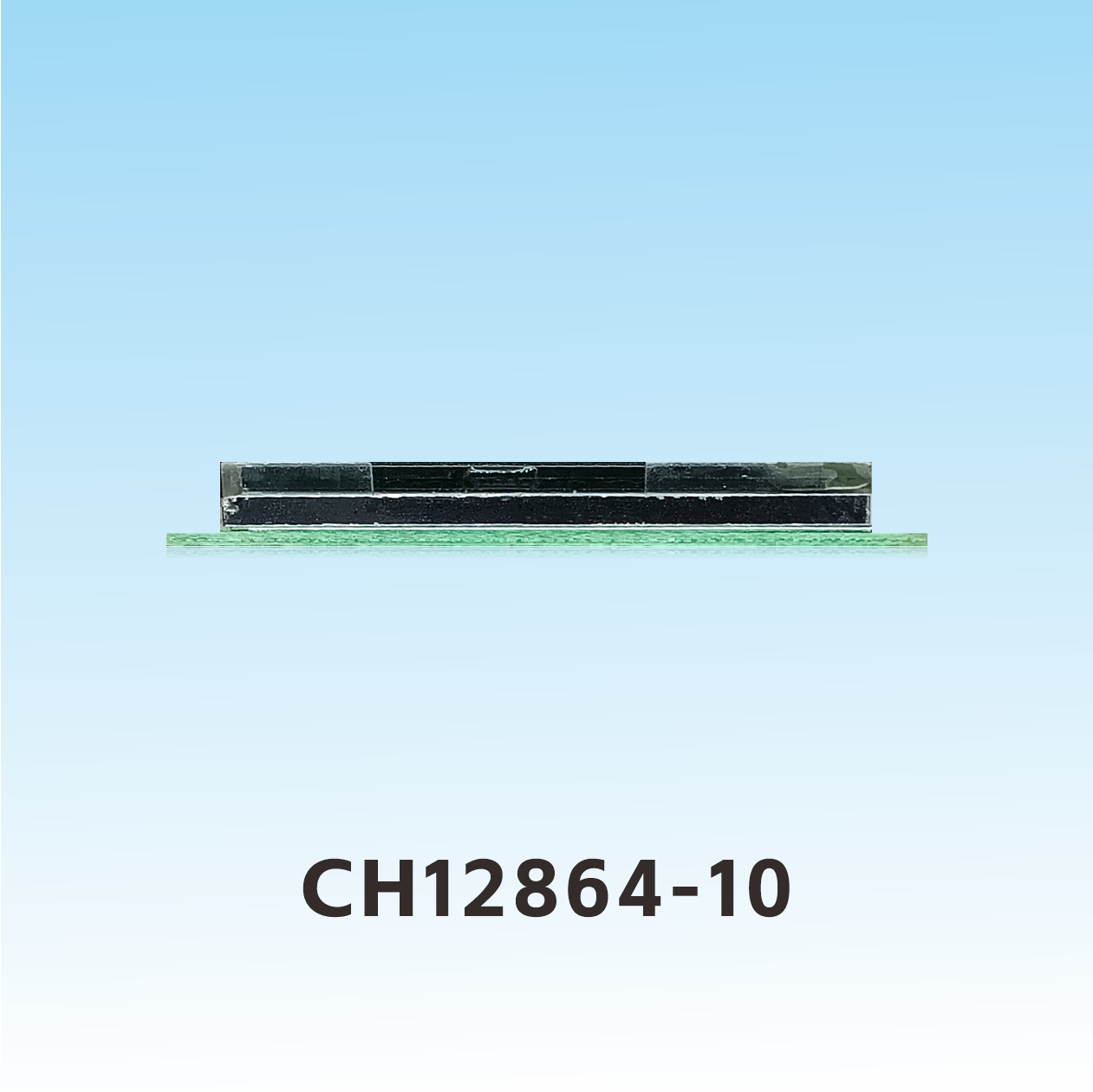

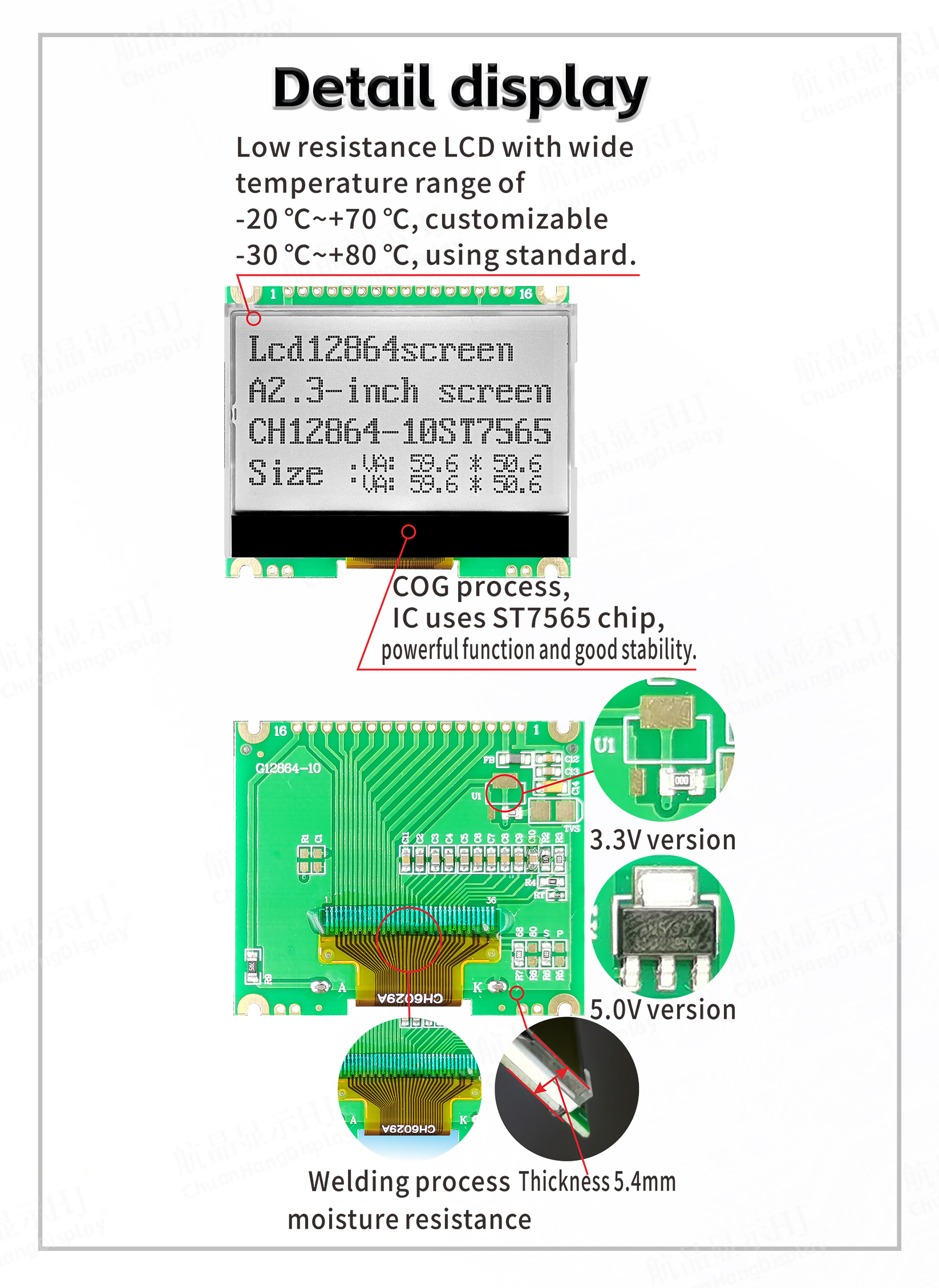

1.1COG process, FPC soft cable is a plug-in interface, the product has backlight, assembled, thin thickness, stable structure.
1.2IC uses ST7565R, there is no word library in the chip, and the programmer compiles his own word library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, and backlight current within 60mA.
1.4LED backlight A and K are red and white wires, and A and K need to be supplied separately from2.9V~3.0V.
1.5 Product features:
●The built-in display data RAM is 64x128 bits.
●The external capacitor generates a boost.
●The contrast is adjusted by the software.
●One screen shows 8 characters x4 lines (16x16 dot matrix) ·
●Single image ≤ 128x64 dot matrix. .8-bit parallel port or 4-wire SPI interface communication.
●Rich features: The interface shows on/off, positive/reverse.
