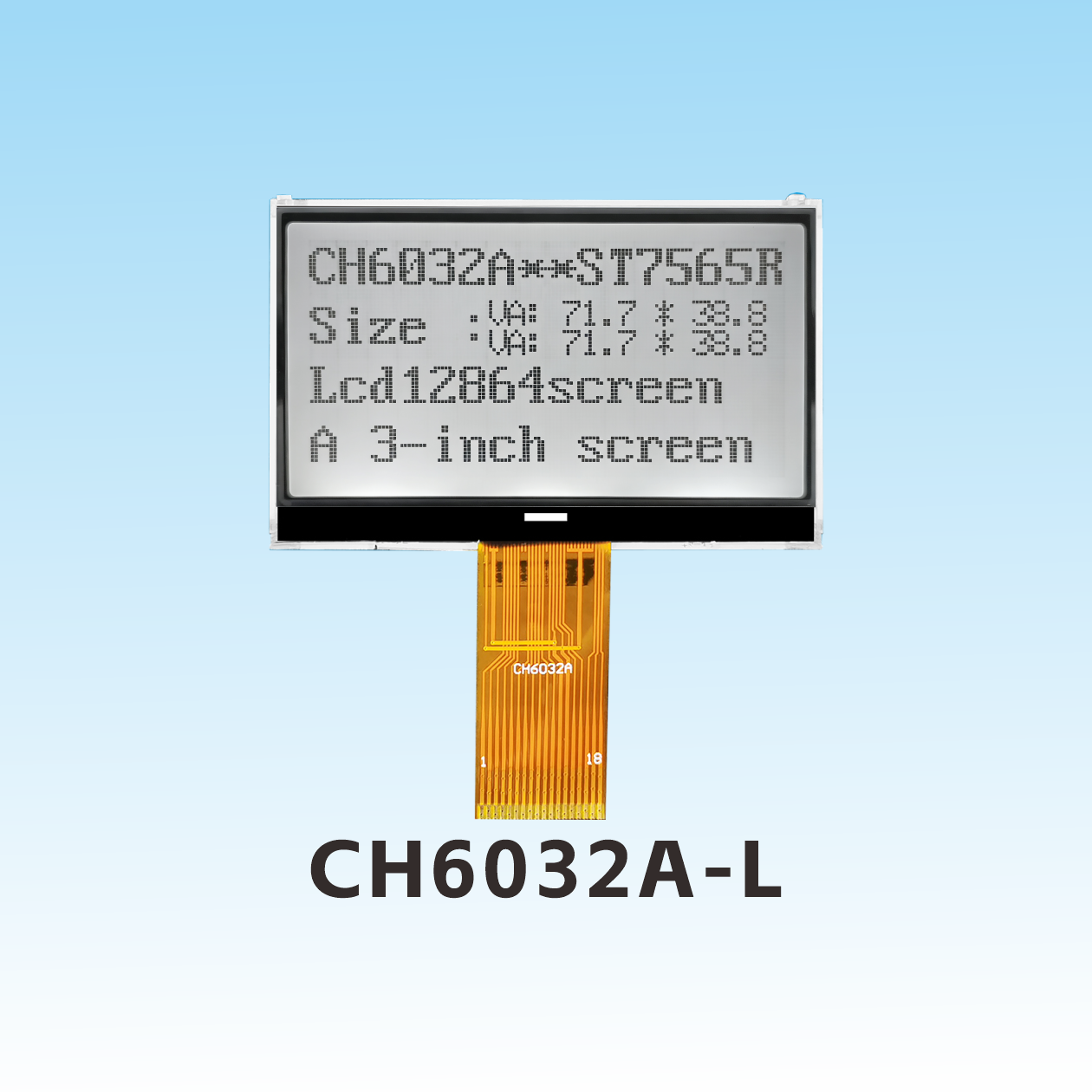

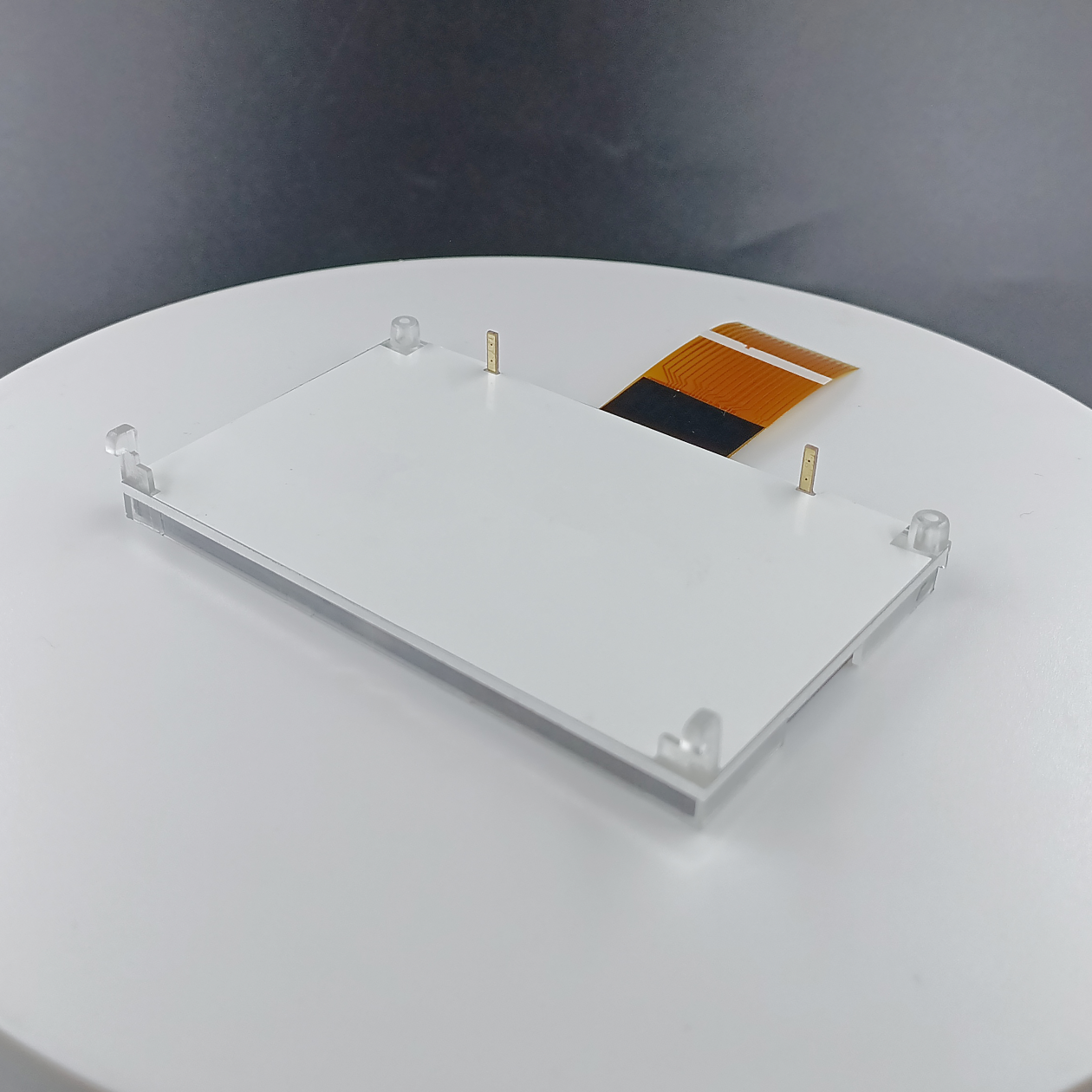

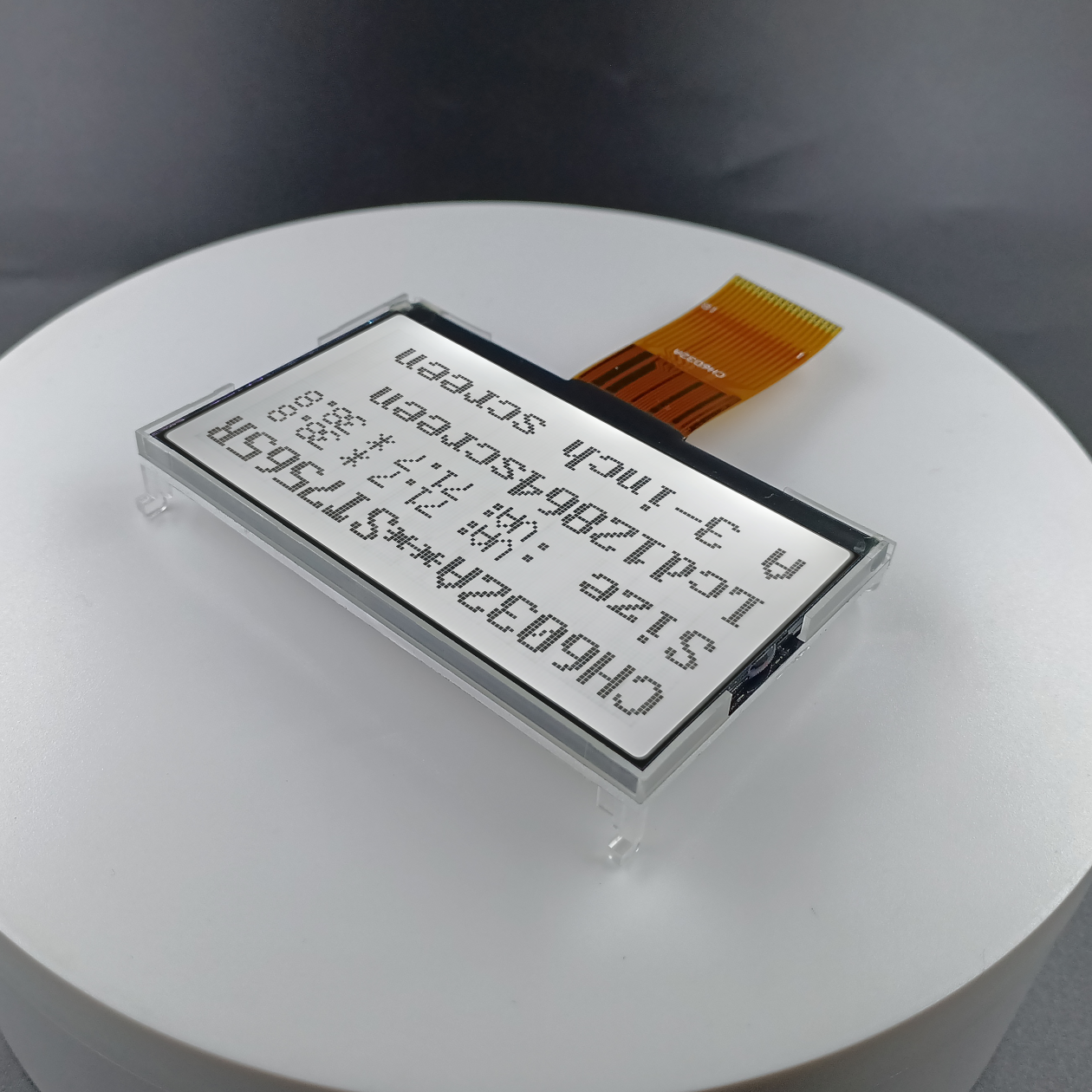

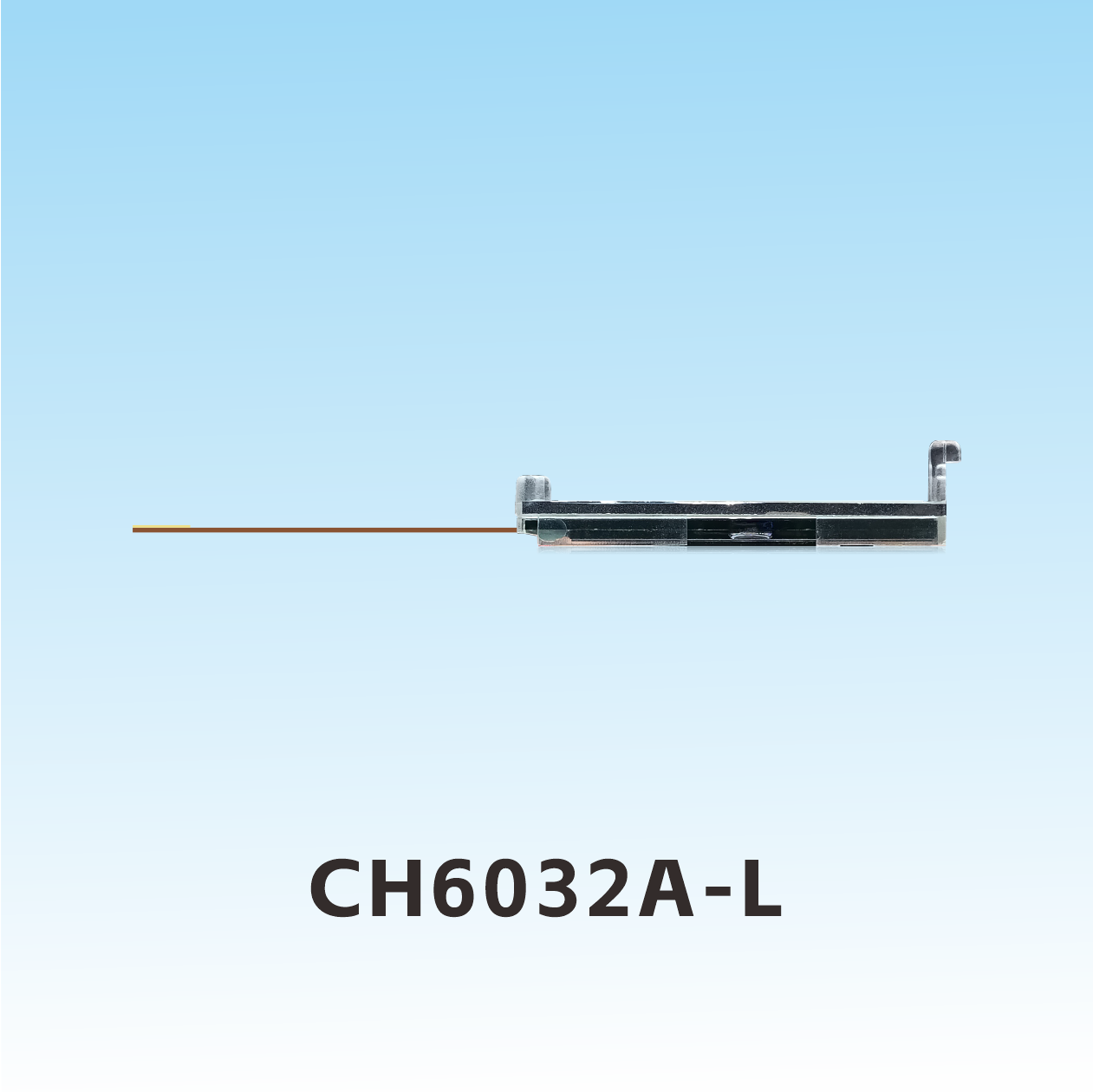

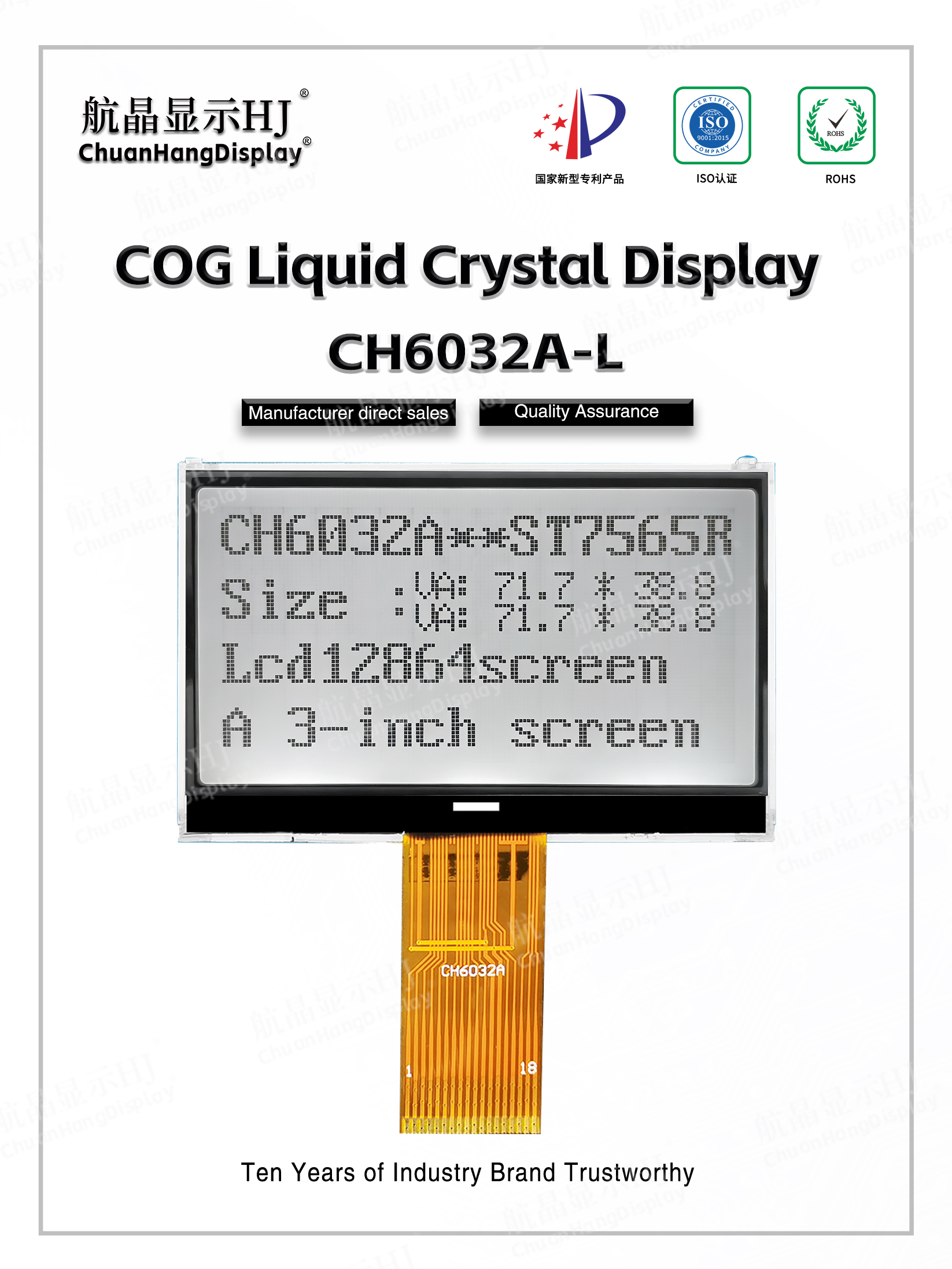

CH6032A-L cog lcd 12864

Product Description

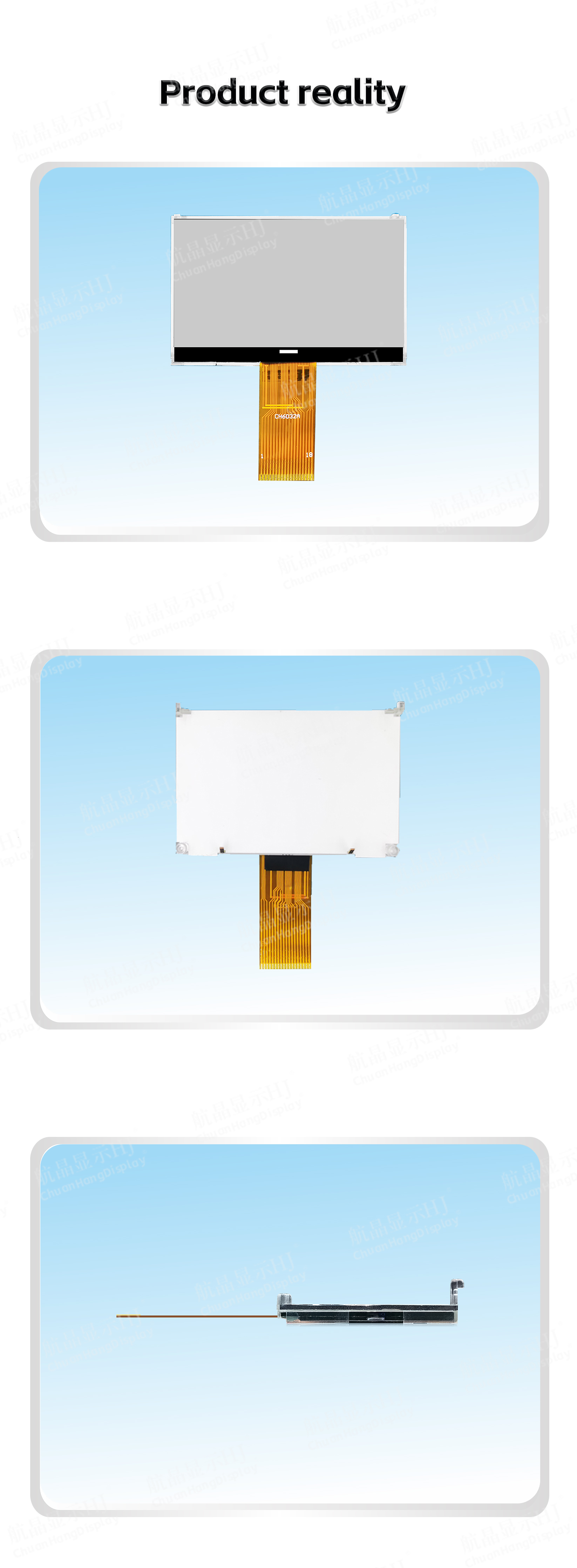

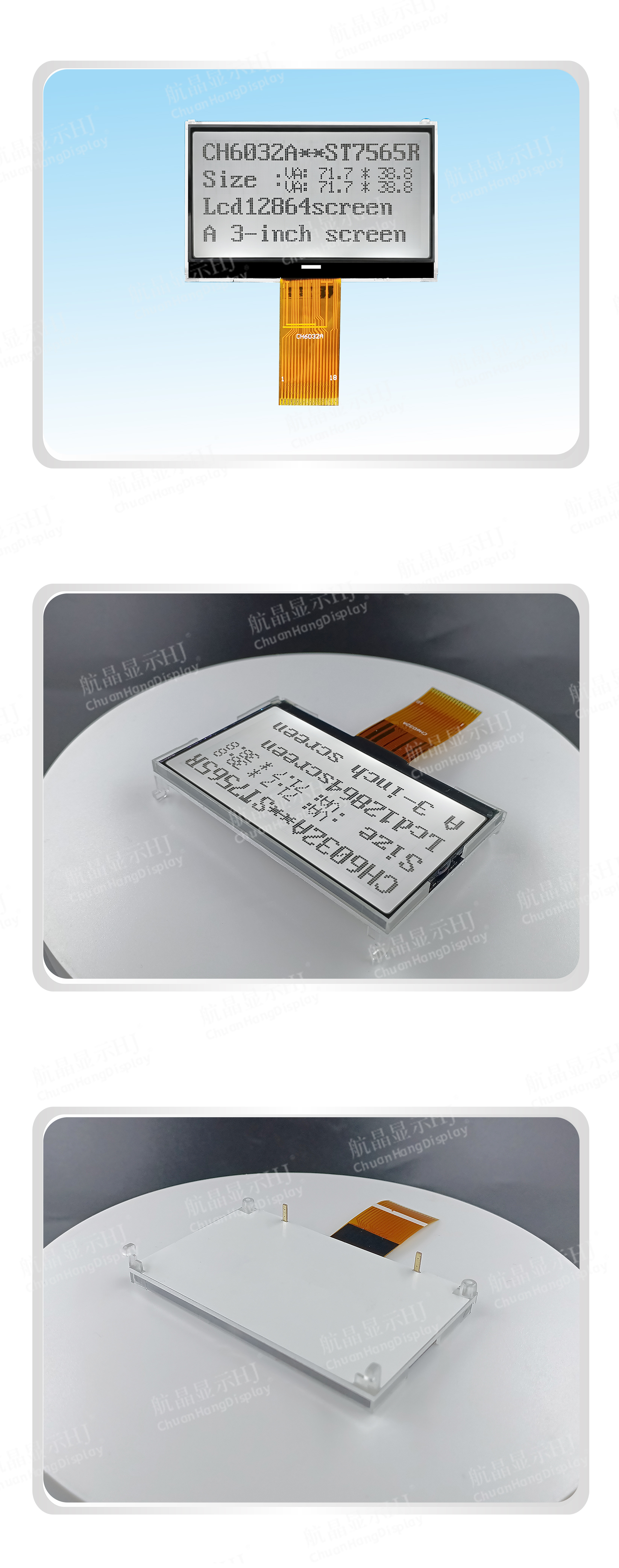

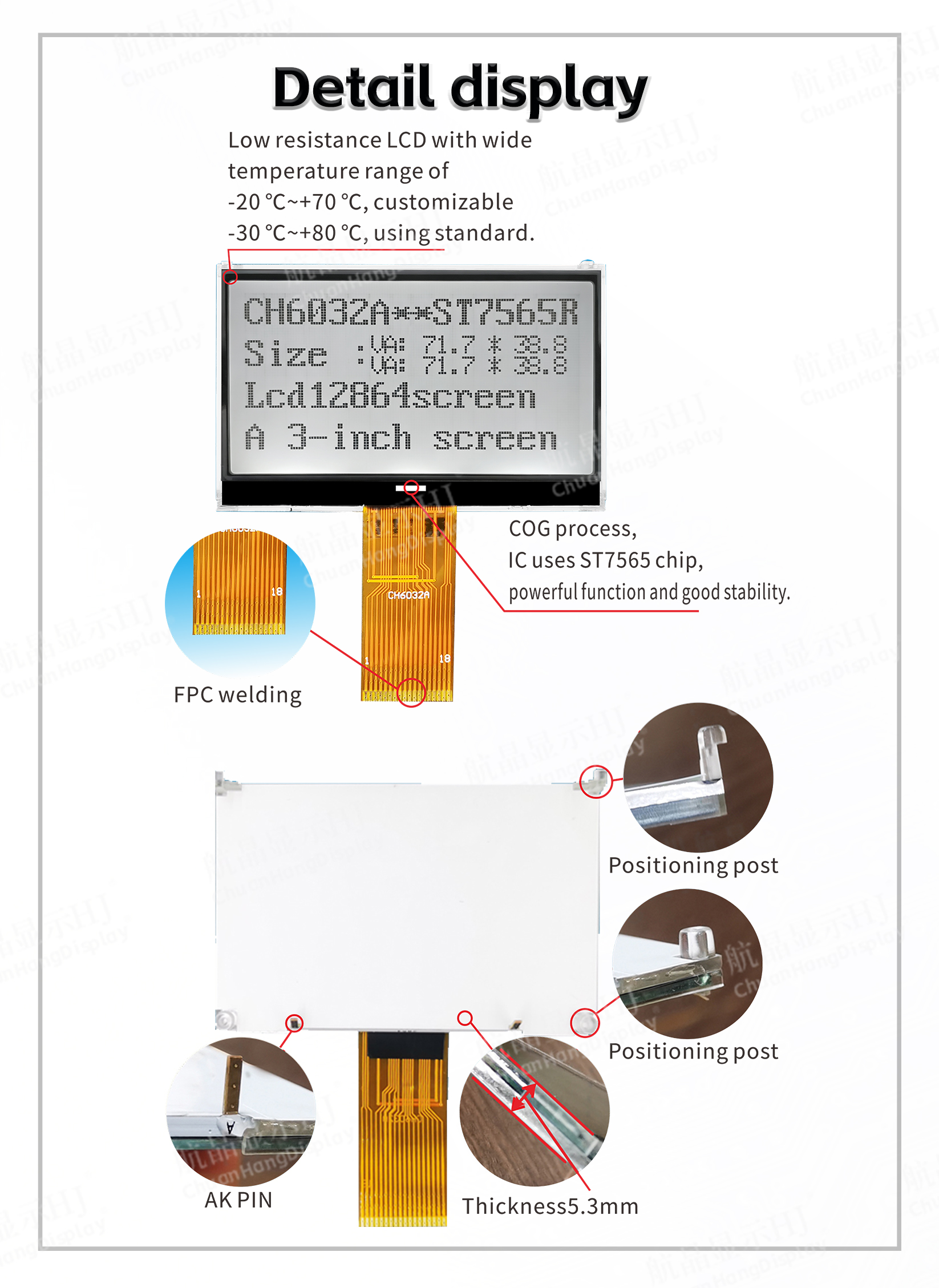

1.1cOG process, FPC soft line is a welding port, the product has a backlight, thin thickness and stable structure.
1.2IC uses ST7565R, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 low power consumption, 3.3V power supply mode, no backlight current within 1mA, with backlight current in 80mA
1.4 LED backlight A and K for PCB board. A and K need to be supplied separately by 2.9V~3.0V.
1.5 Product features:
The built-in display data RAM is 64x128 bits. Multiple external capacitors generate boosts.
The contrast is deepened and lightened by the software.
One screen displays 8 characters x 4 lines (16x16 dot matrix).
Single picture ≤128x64 dot matrix.
The 4-wire SPI interface is fast.
Rich functions: interface display on/off, positive display/reverse display.

PDF Download Demo code

Video Presentation

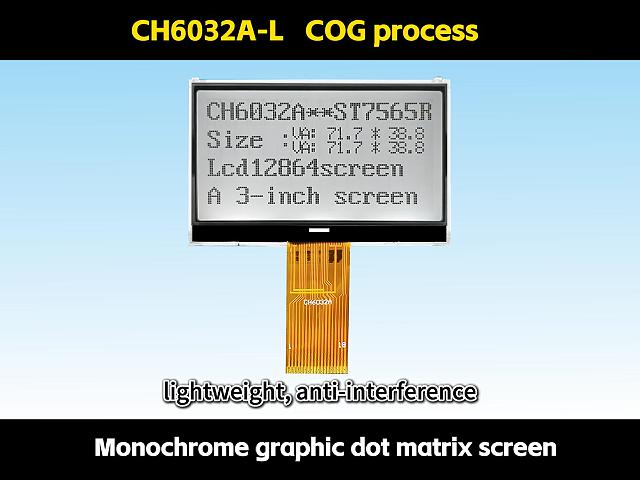

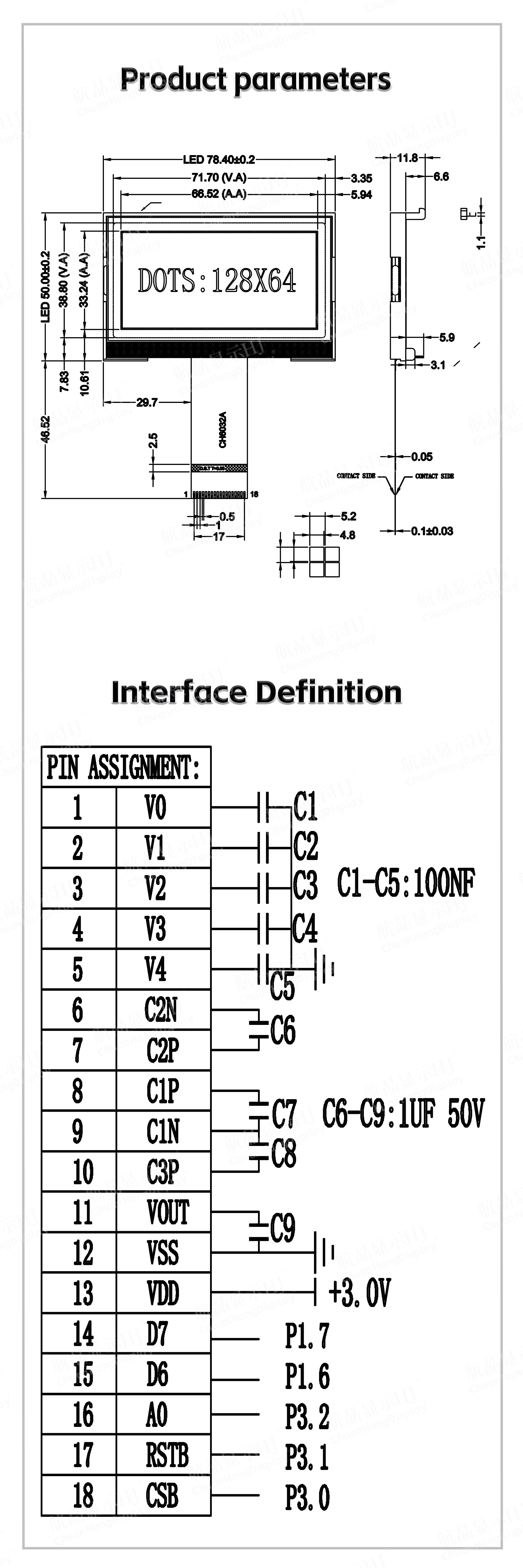

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH6032A-L
Resolution	128x64	screen size
Outline Dimension(LWH)	78.40x50.00x11.8mm	Visible Area(L*W)	71.70x38.80mm
Active Area(L*W)	66.52x33.24mm	Character Size(L*W)
Type	COG	Connection Method	FPC
Supply Voltage	3.3V	Interface Type	4-bit or 8-bit parallel port
Viewing Direction	6 O'CLOCK	Driving Method	1/64Duty
Display Type		Driver IC	ST7565R
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO
