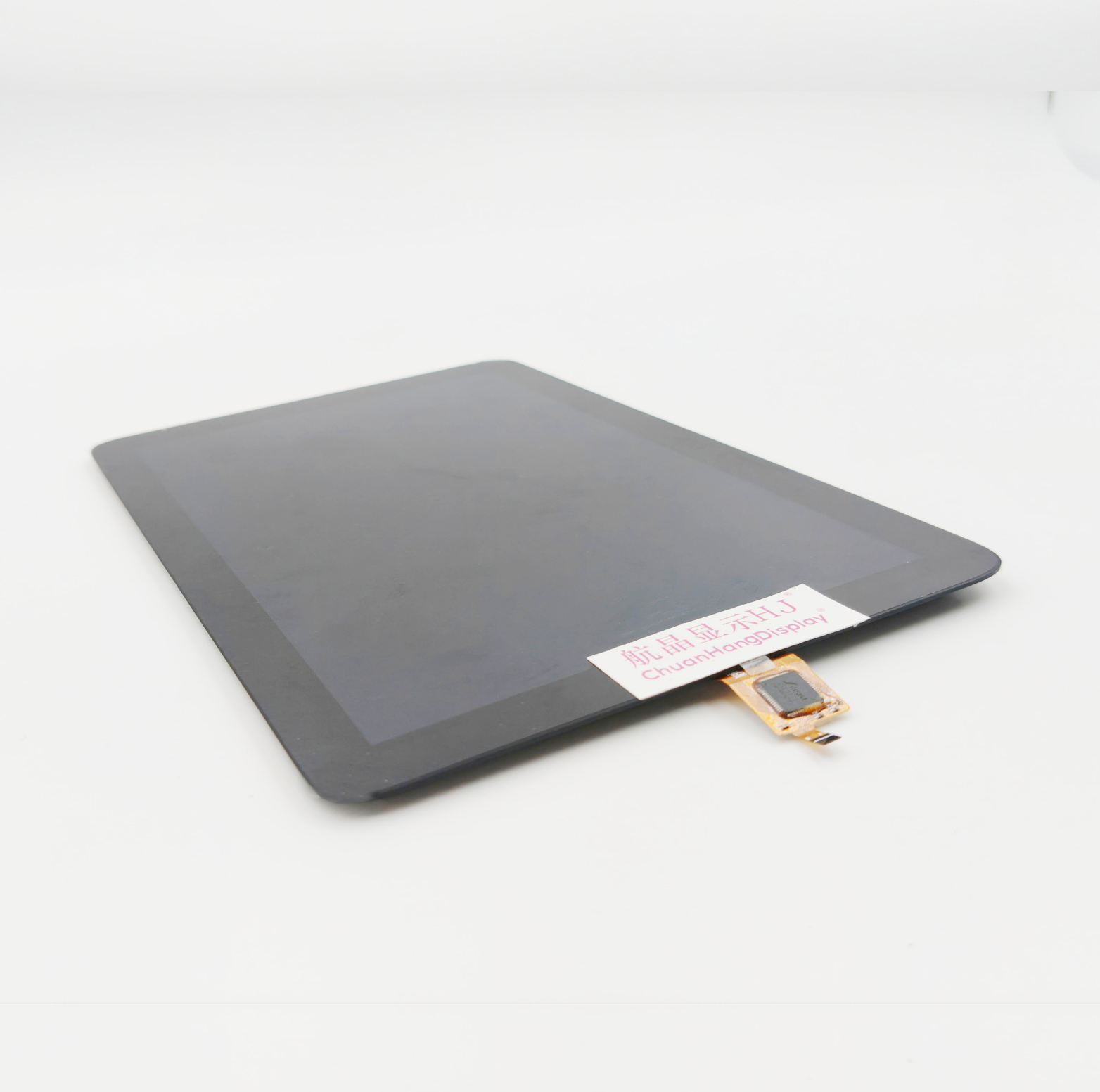

High Bright 8 Inch High Resolution 800*1280 MIPI IPS TFT LCD Screen with Capacitive Touch Panel Full Viewing Angle

PRODUCTS CENTER

COG LCD Screen

12033 dot matrix 12832 dot matrix 12864 dot matrix 13232 dot matrix 16032 dot matrix 160160 dot matrix 19264 dot matrix 19296 dot matrix 240160 dot matrix 256160 dot matrix
COG LCD Module

12832 dot matrix 12864 dot matrix 160160 dot matrix 19264 dot matrix 19296 dot matrix 24080 dot matrix 240160 dot matrix 256128 dot matrix 256160 dot matrix 320240 dot matrix
COB LCD Module

64x32 dot matrix 122x32 dot matrix 128x32 dot matrix 128x64 dot matrix 144x32 dot matrix 160x32 dot matrix 160x128 dot matrix 192x64 dot matrix 240x64 dot matrix 240x128 dot matrix 320x240 dot matrix
Character LCD Module

8x2 lcd display 14x1 lcd display 40x2 lcd display 40x4 lcd display 16x1 lcd display 16x2 Icd display 16x4 lcd display 20x2 lcd display 20x4 lcd display 24x2 lcd display
TFT LCD Screen

0.96 inches 2.4 inches 2.8 inches 3.2 inches 3.5 inches 3.97 inches 4.3 inches 5.0 inches 6 inches 7 inches 8 inches 9 inches 10.1 inches
TFT LCD Module

3.2 inches
7 Segment LCD

TN LCD display STN LCD screen VA LCD screen HTN LCD screen FSTN LCD screen
OLED

0.91 inches 0.96 inches 1.3 inches 1.54 inches 2.42 inches 2.8 inches

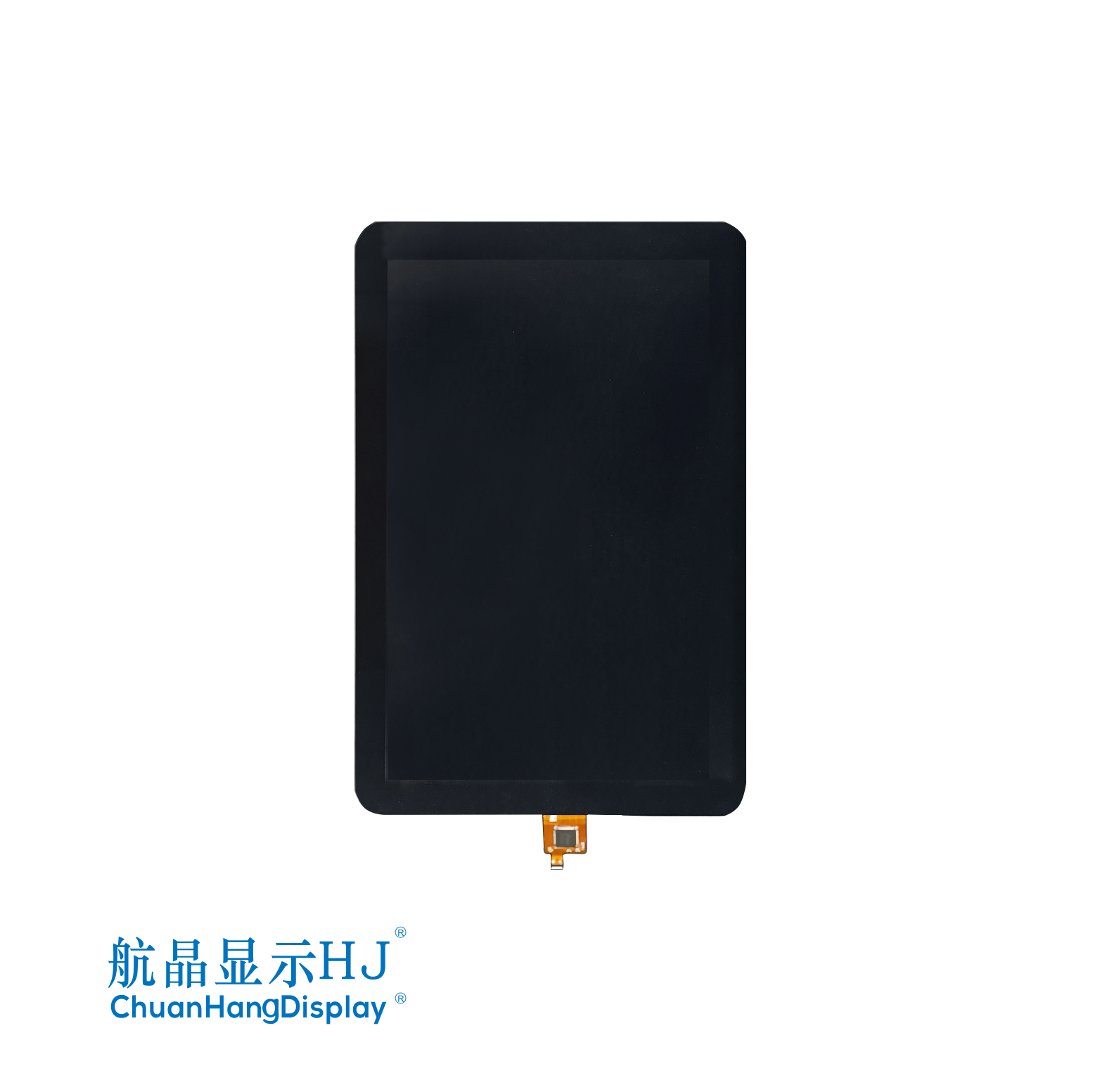

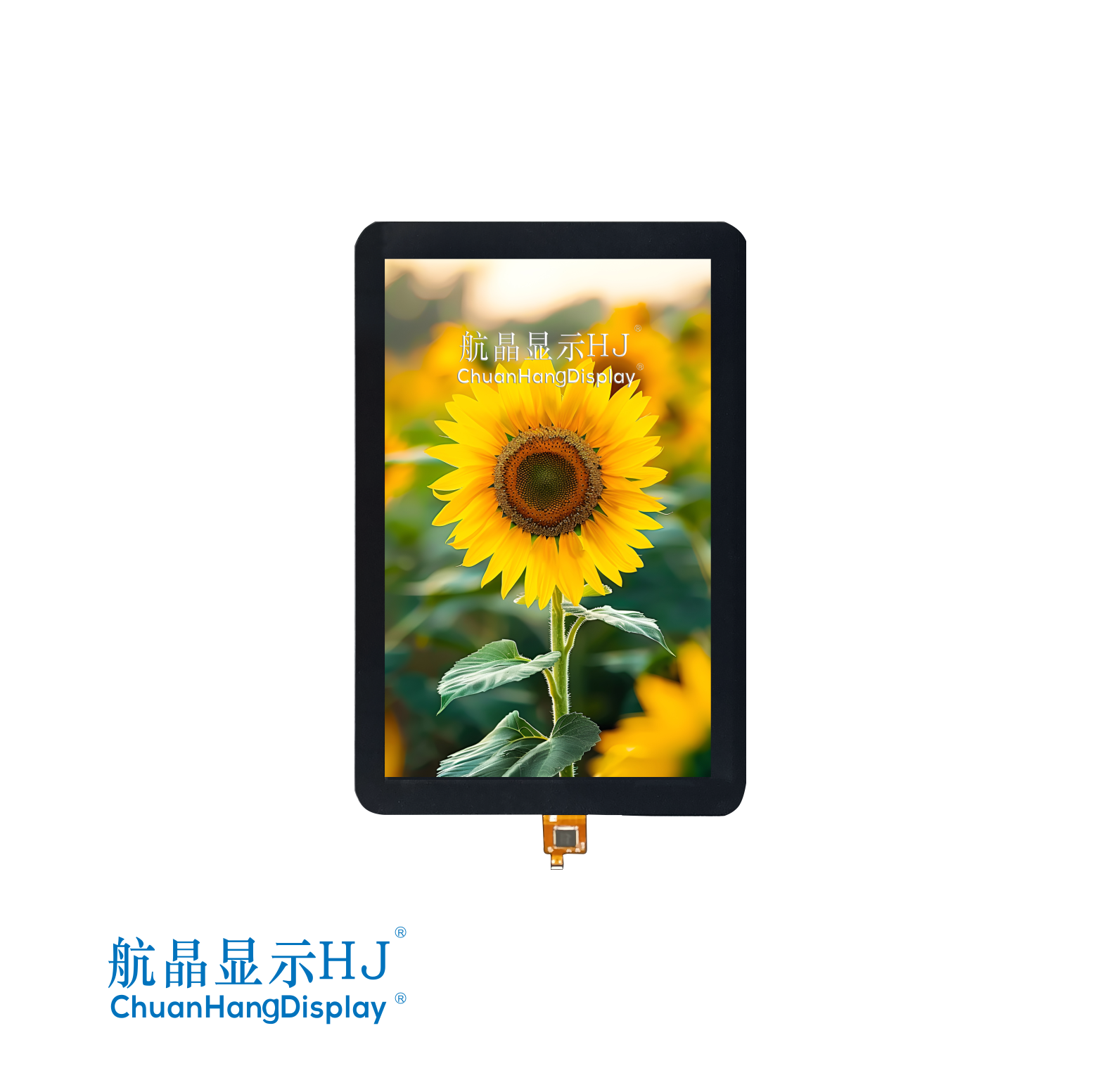

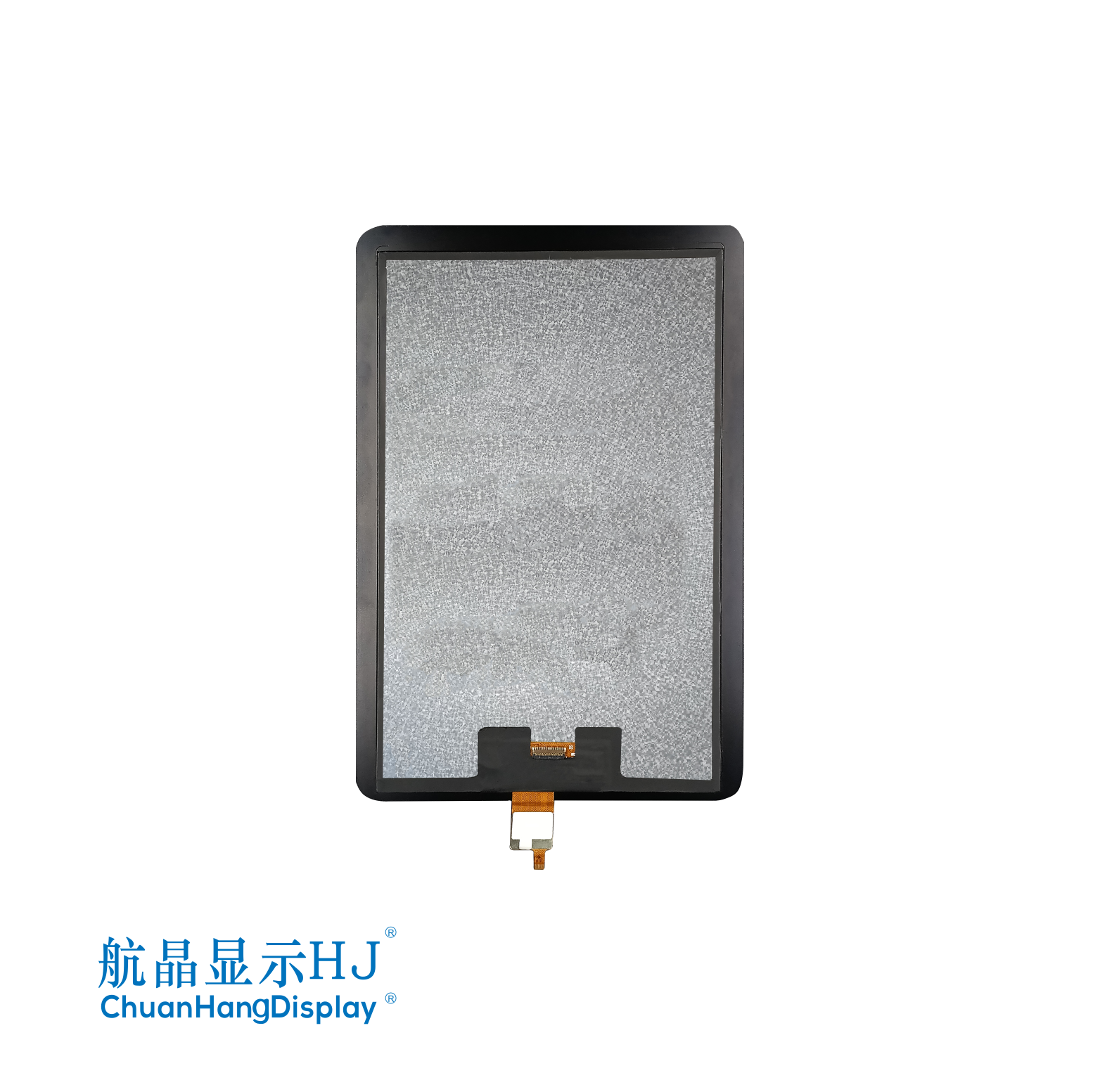

8"TFT display

Product Description

Product size: 8inches
Resolution: 800xRGBx1280
Viewing angle: IPS full viewing angle
Driver chip:ILI9881C
Touch chip: GSL3676
Touch type: Capacitive touch
Interface type:MIPI

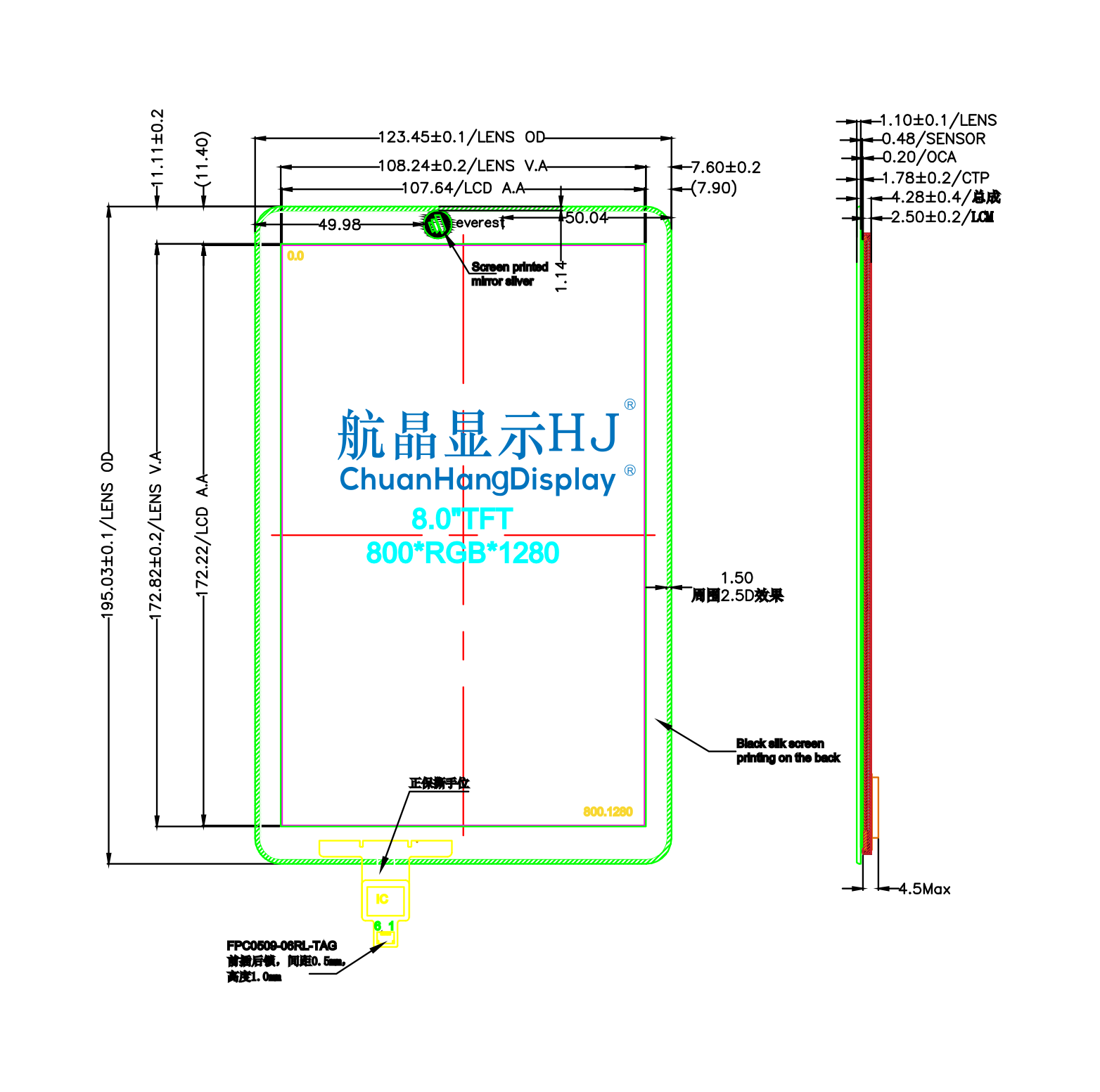

Module size: 123.45x195.03x4.28mm
Active area: 107.64x172.22mm
Cable interface: 31 PIN
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT

PDF Download Demo code

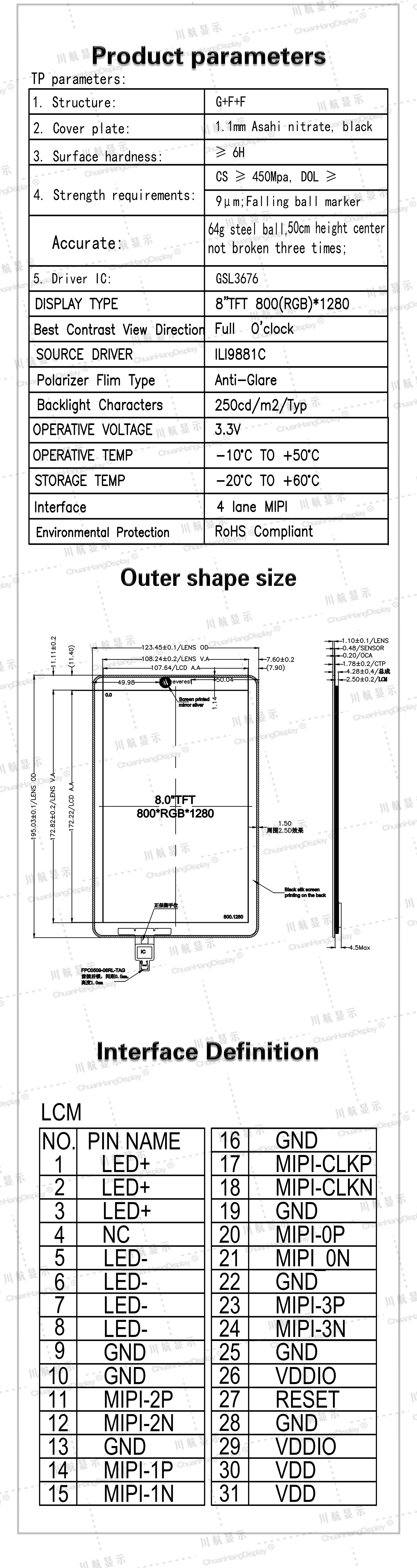

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH080B01
Resolution	800xRGBx1280	Screen size	8”
Outline Dimension(LWH)	123.45X195.03X4.28mm	Active Area(L*W)	107.64x172.22mm
Type	COG	Communication interface	RGB
Operating Voltage	3.3V	Interface Type	31PIN
Viewing Direction	IPS full viewing angle	Display Color	TFT
Driver IC	ILI9881C	Operating Temperature	-20℃ --70℃
Storage Temperature	-30℃ --780℃	Production capacity	Self-produced
Whether to bring PCB	NO	Connection Method	FPC
