CH-H62819H Flue-cured tobacco machine industry LCD

Product Description

LCD Material: HTN LCD
Display Mode: HTN
Polarizer Type:Grey film/fully permeable
Process Type: COB
View Direction: 6 O'CLOCK
Working Voltage: 5V
Operating Temperature: -20℃~+70℃
Connection Method: PIN
Backlight :White LED / RED LED
Application industry: Tobacco flue machine

PDF Download Demo code

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH-H62819H
Display Mode	HTN	Display Size	Customized
Outline Dimension(LWH)	190.0x123.0x12.0mm	Visible Area(L*W)	/
Active Area(L*W)	168.4x91.3mm	Character Size(L*W)	/
Type	COB	Connection Method	PIN
Supply Voltage	5V	Interface Type	SPI
Viewing Direction	6 O'CLOCK	Driving Method	/
Display Type	HTN	Driver IC	HT1621
Operating Temperature	-20℃~+70℃	Storage Temperature	-20℃~+70℃
Backlight	White LED / RED LED	Production Capacity	Self-produced
Character libraries	/	Whether to bring PCB	YES

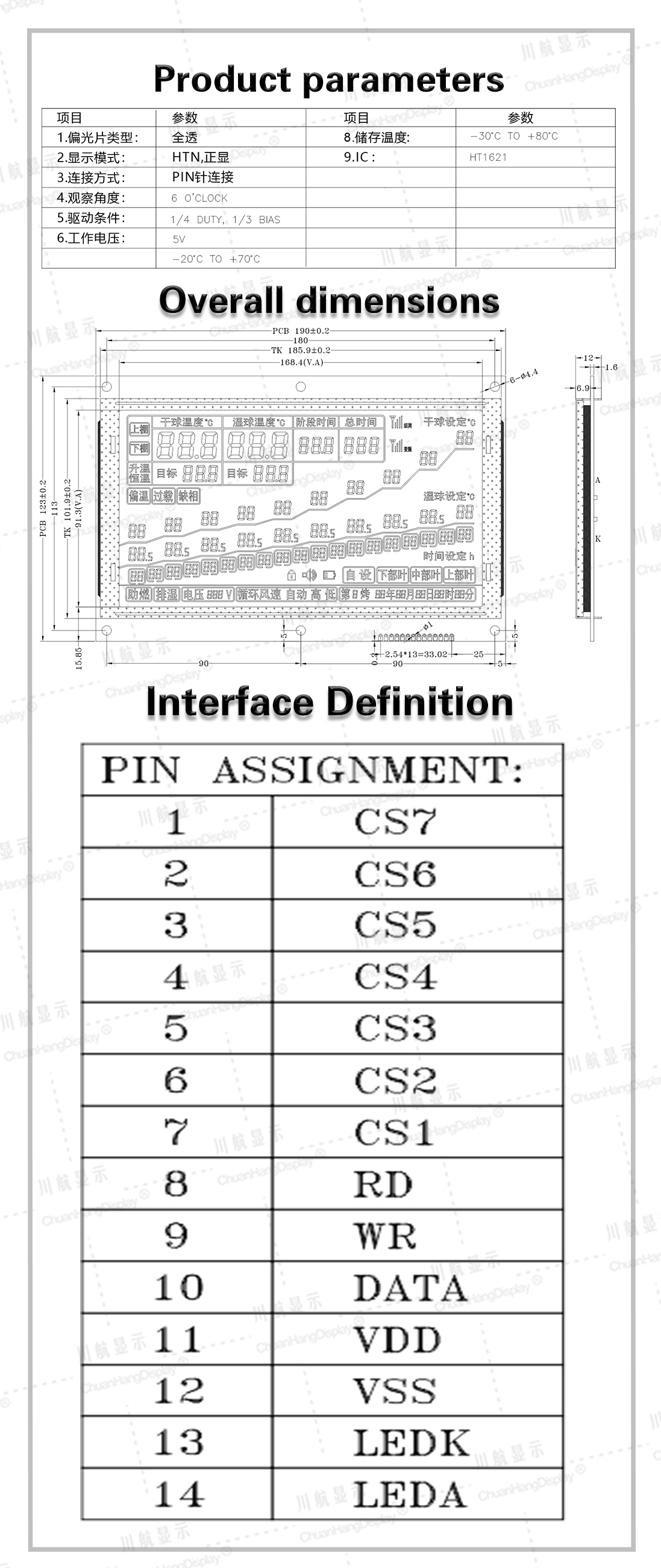

Product Datasheet

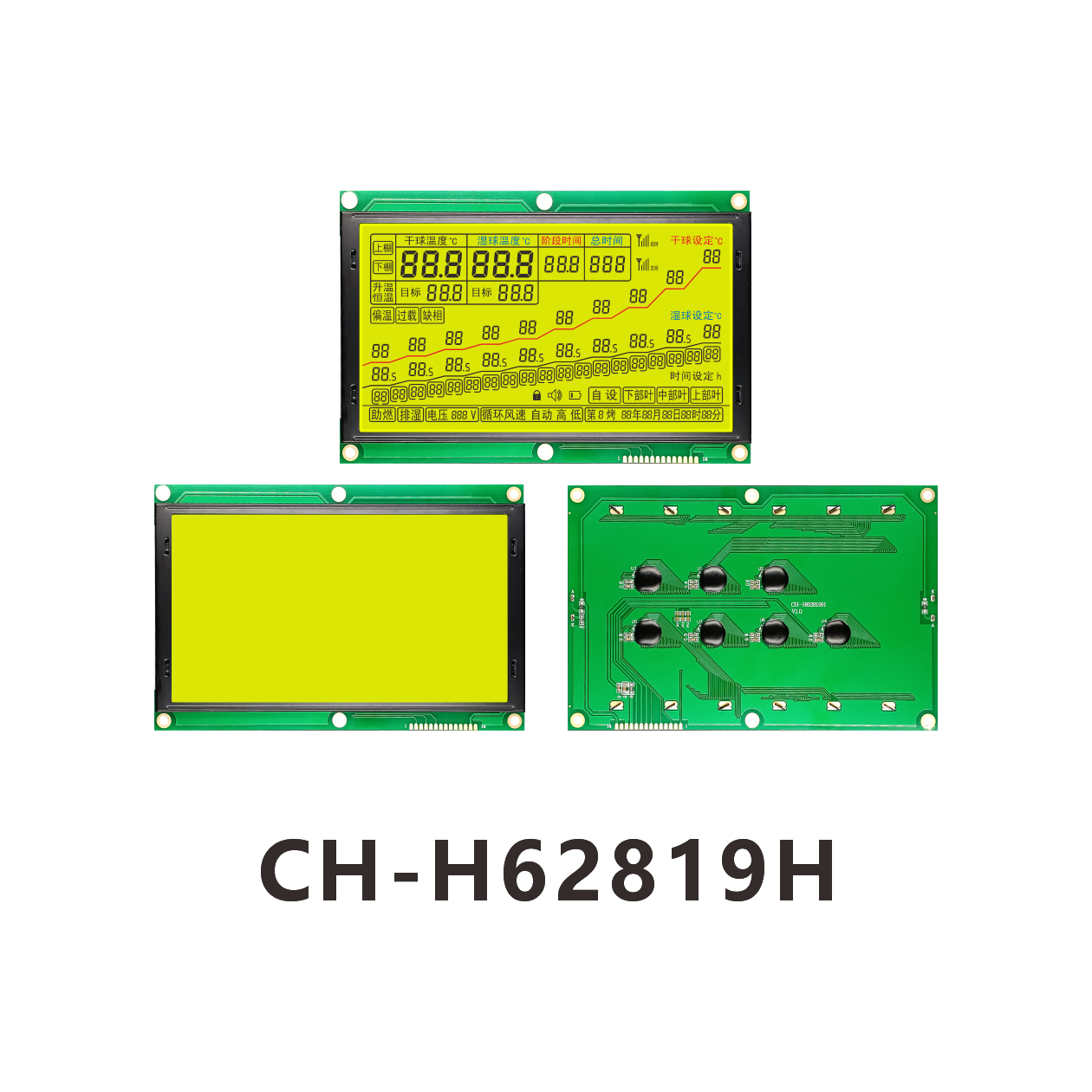

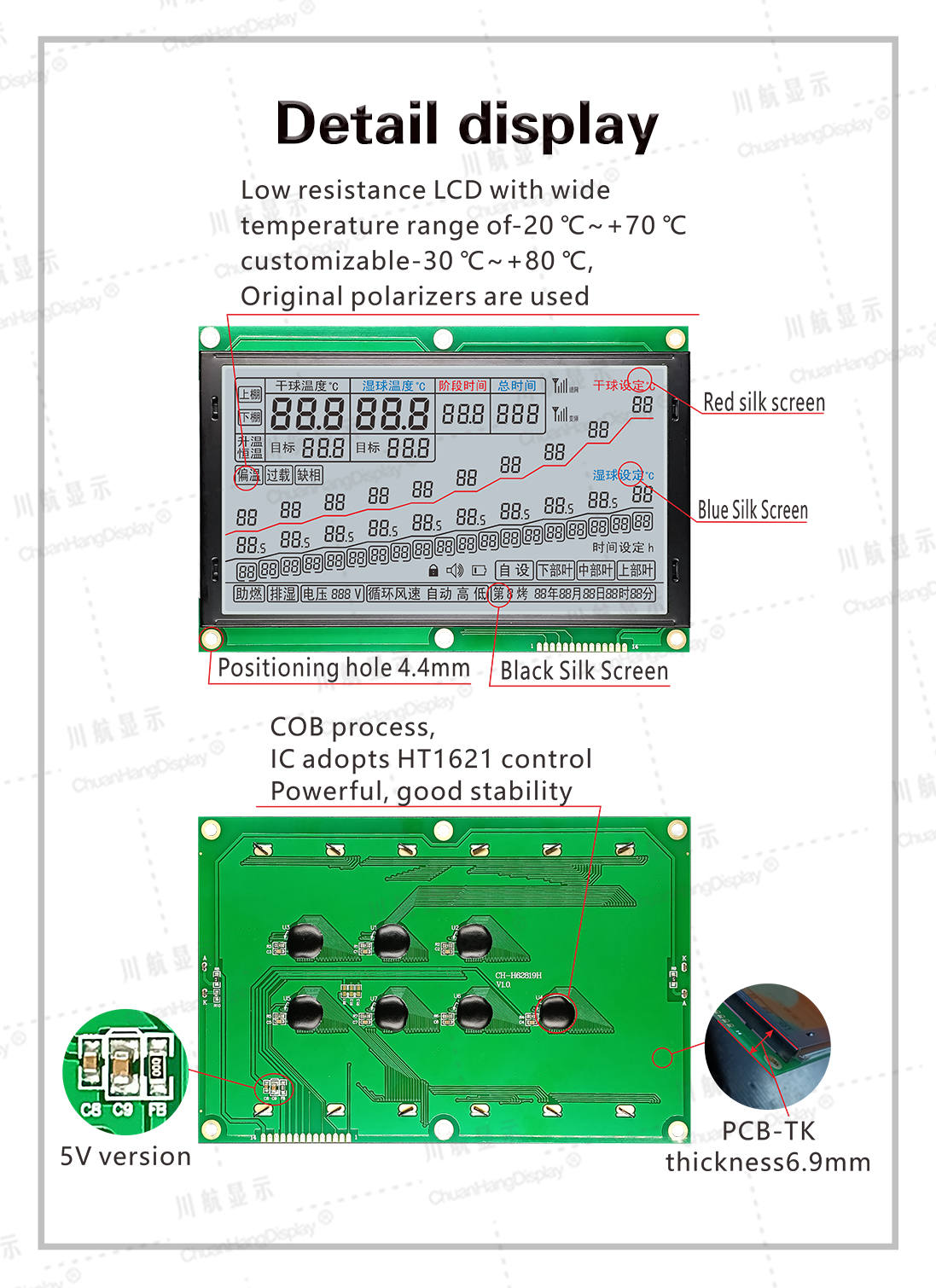

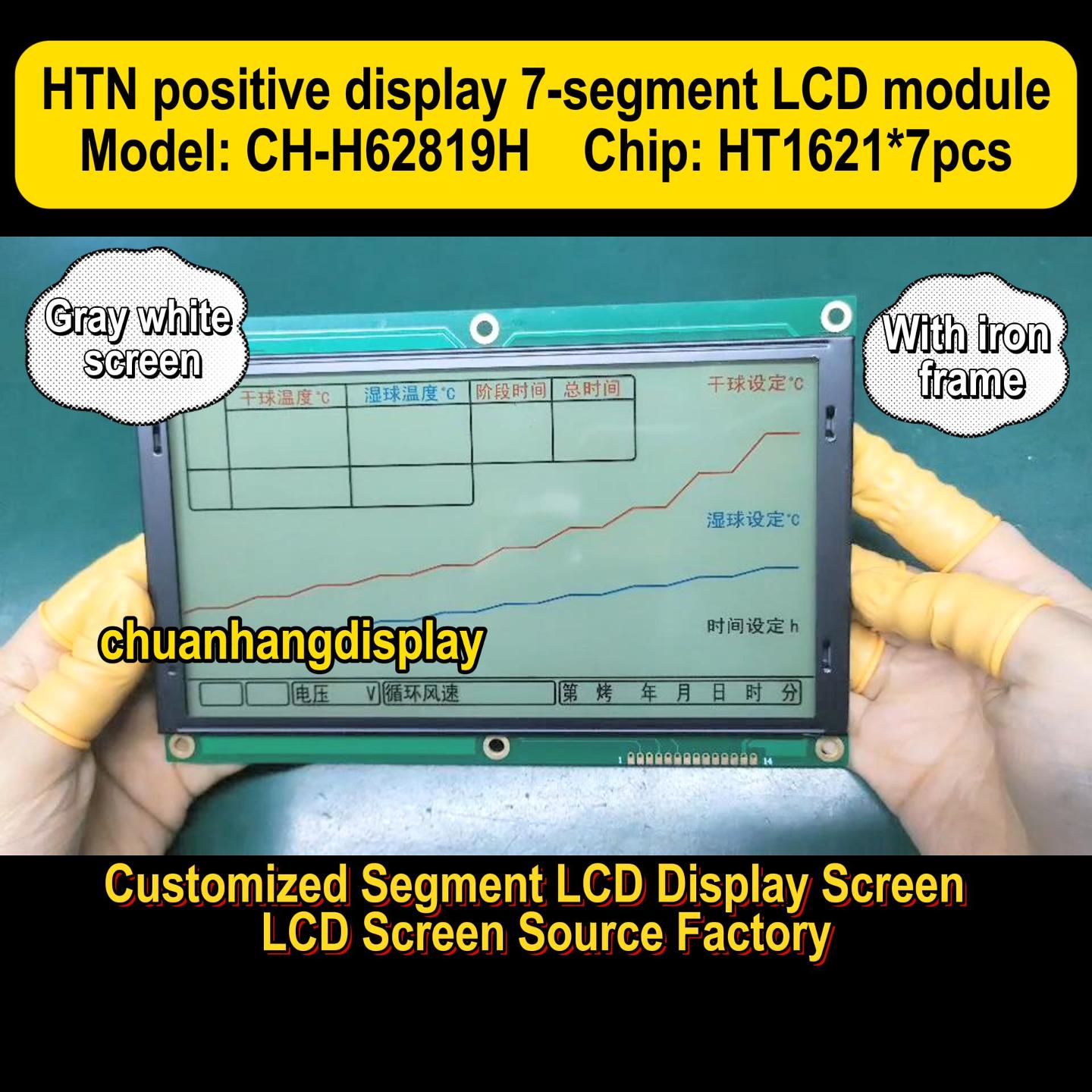

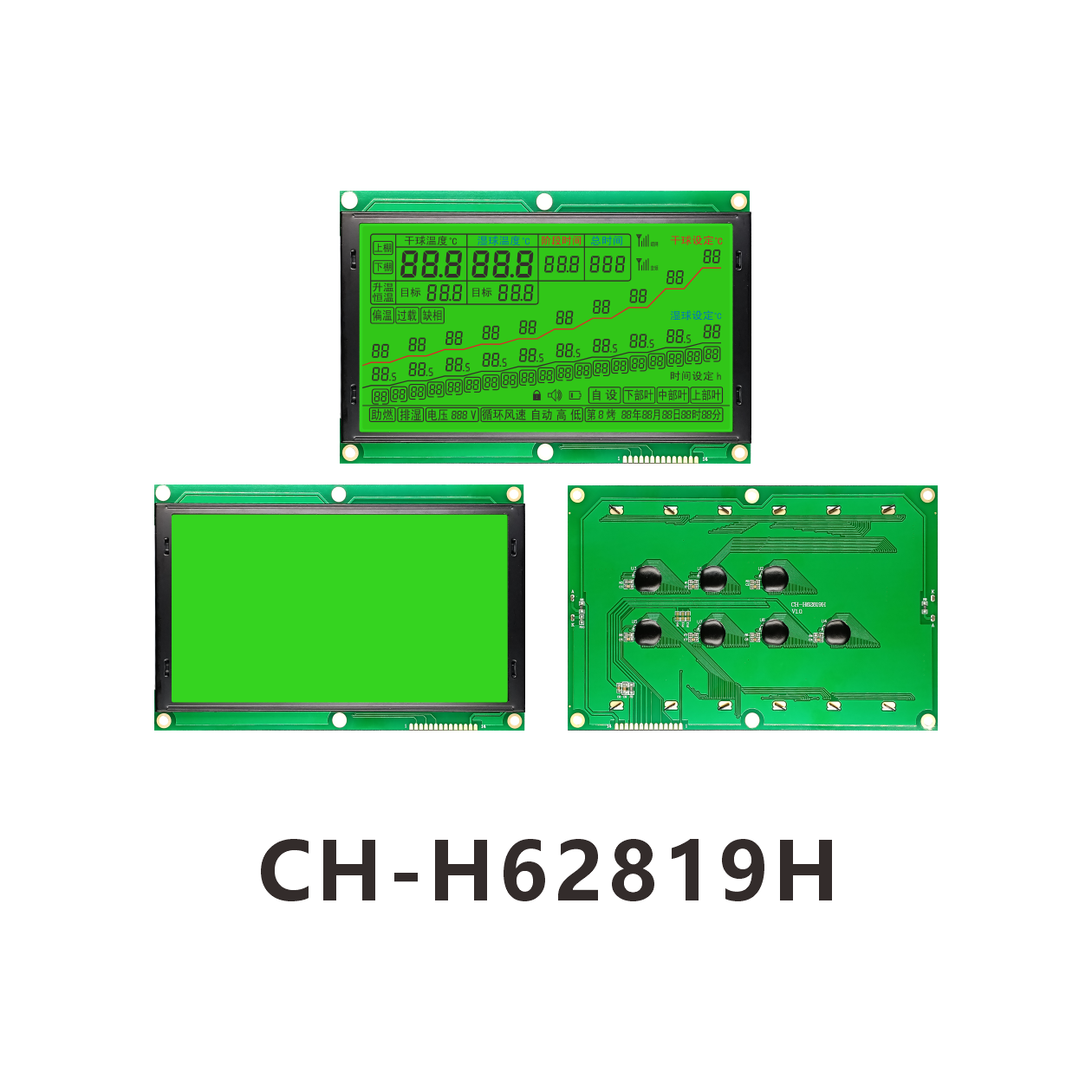

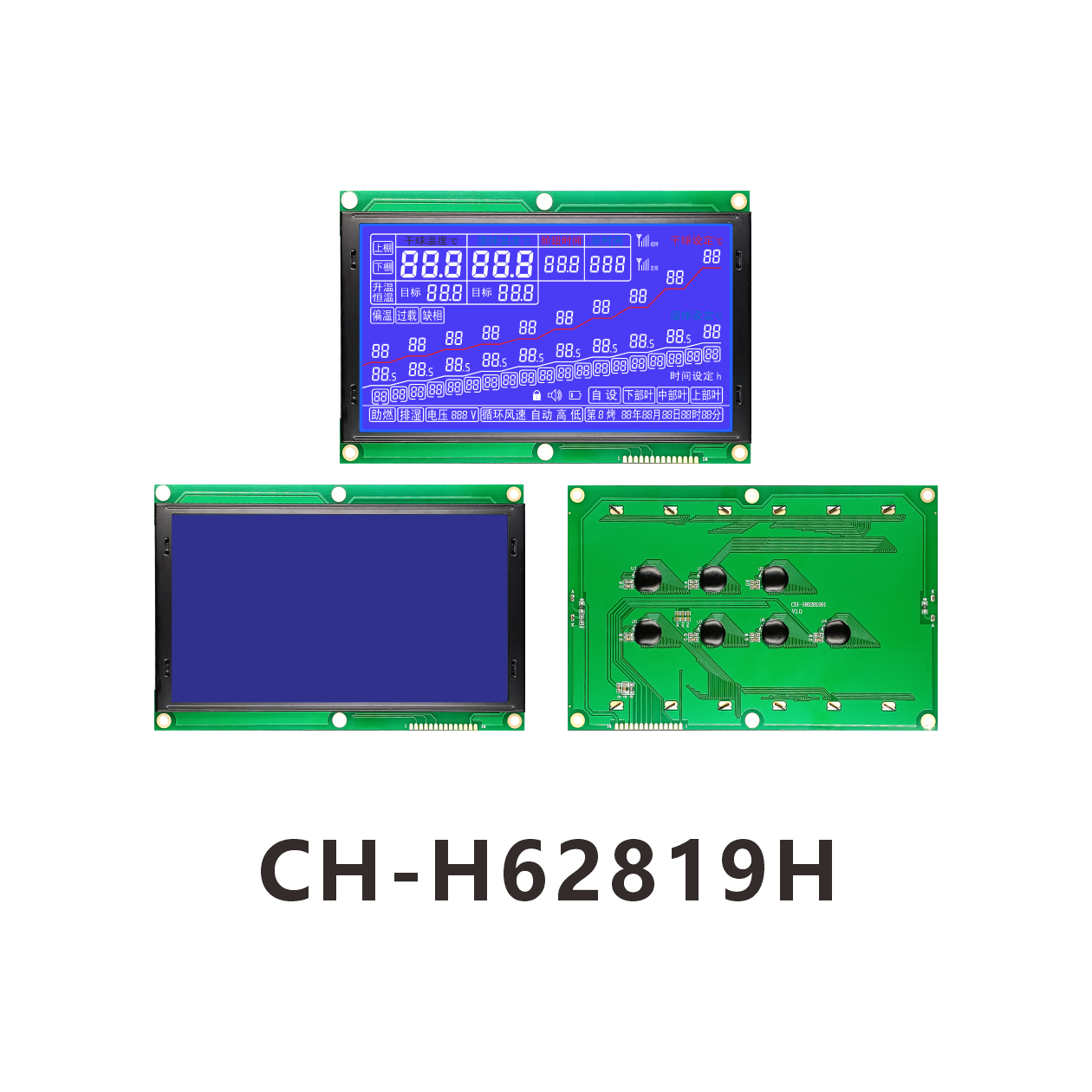

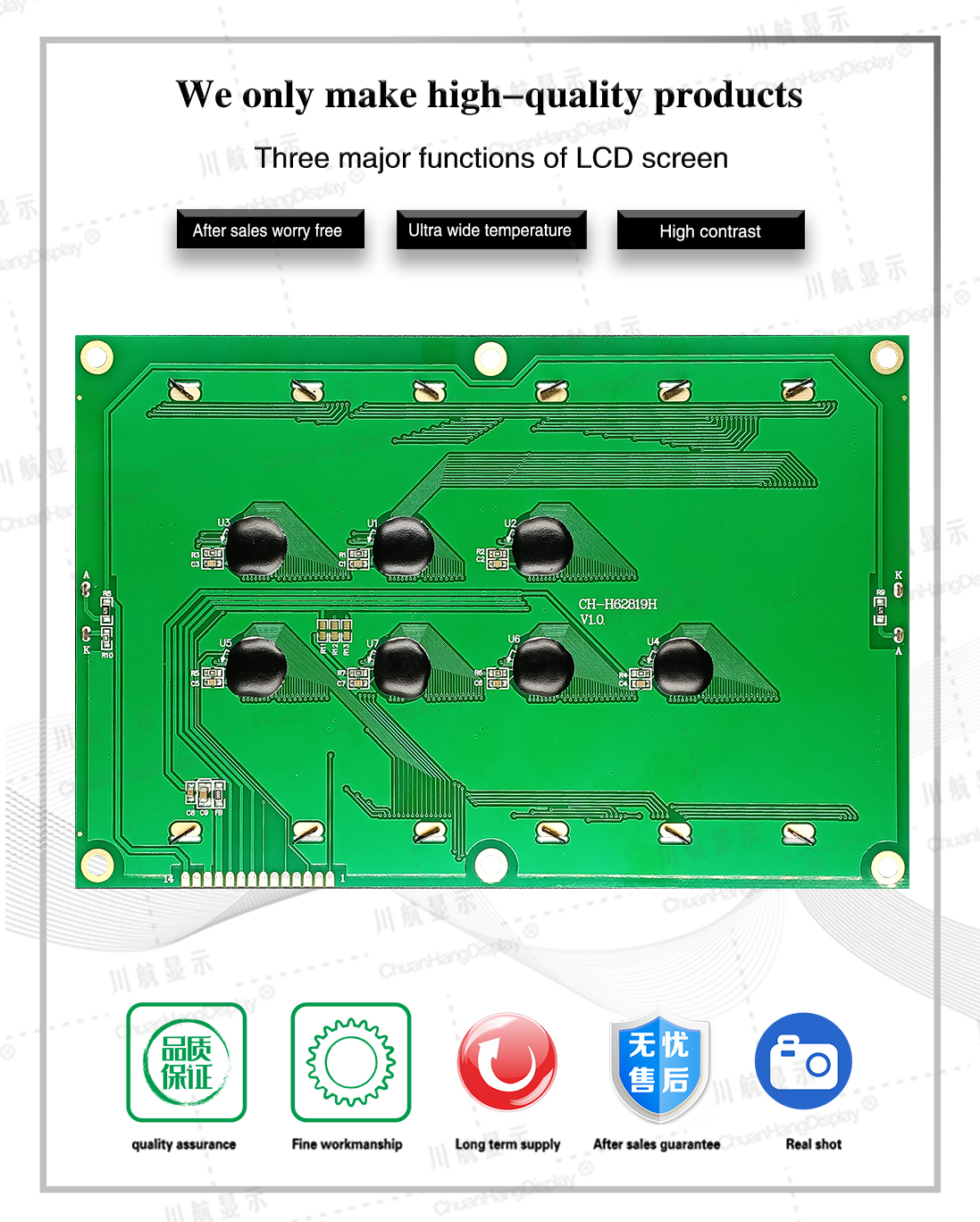

Product Display
