CHF68535H Electricity industry LCD

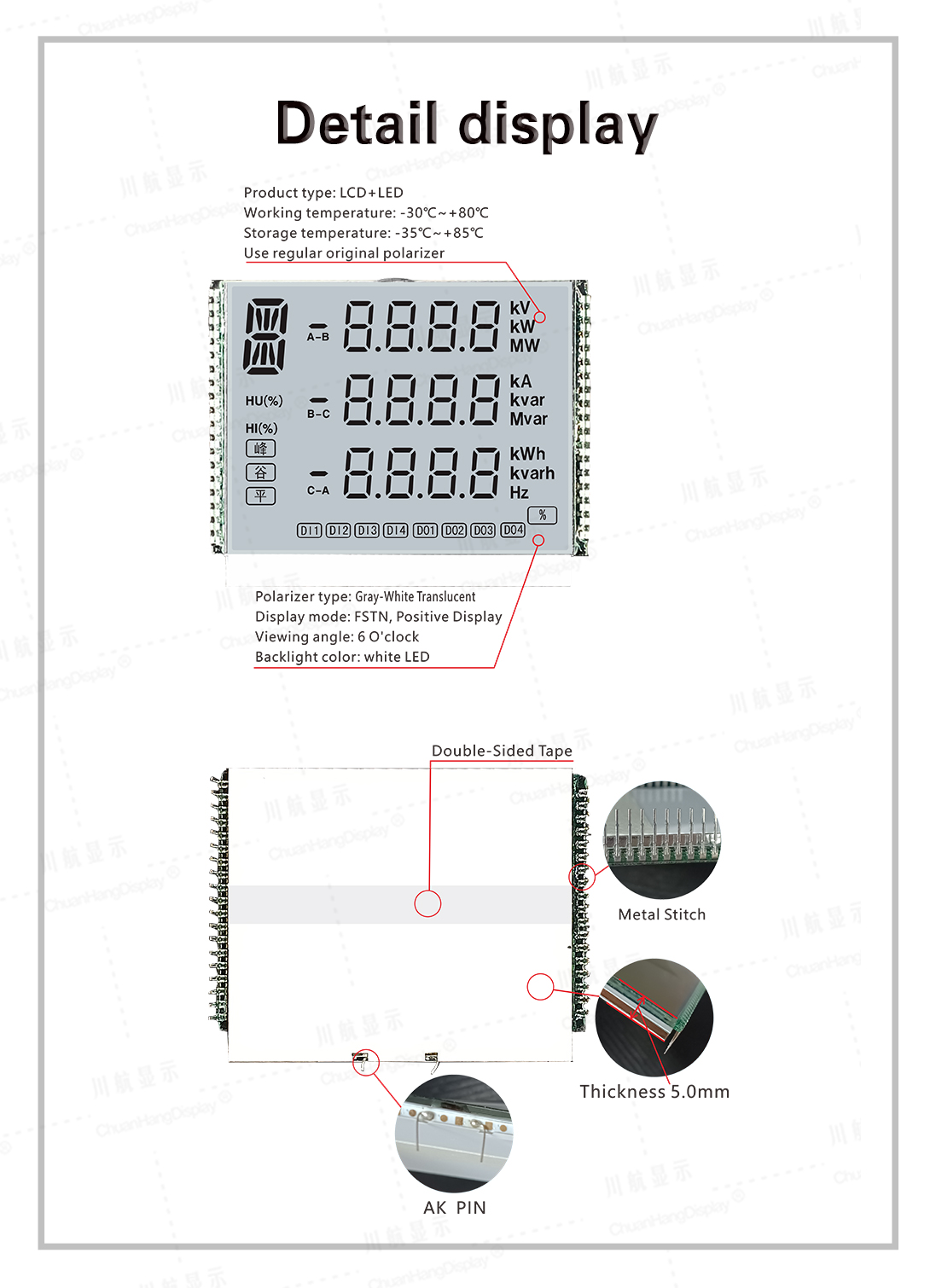

Product Description

LCD Material: FSTN LCD
Display Mode: FSTN
Polarizer Type:Grey film/semi-permeable
Process Type: COB
View Direction: 6 O'CLOCK
Working Voltage: 3.3V
Operating Temperature: -30℃~+80℃
Connection Method: PIN
Backlight :White LED
Application industry:Electricity industry

PDF Download Demo code

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CHF68535H
Display Mode	FSTN	Display Size	Customized

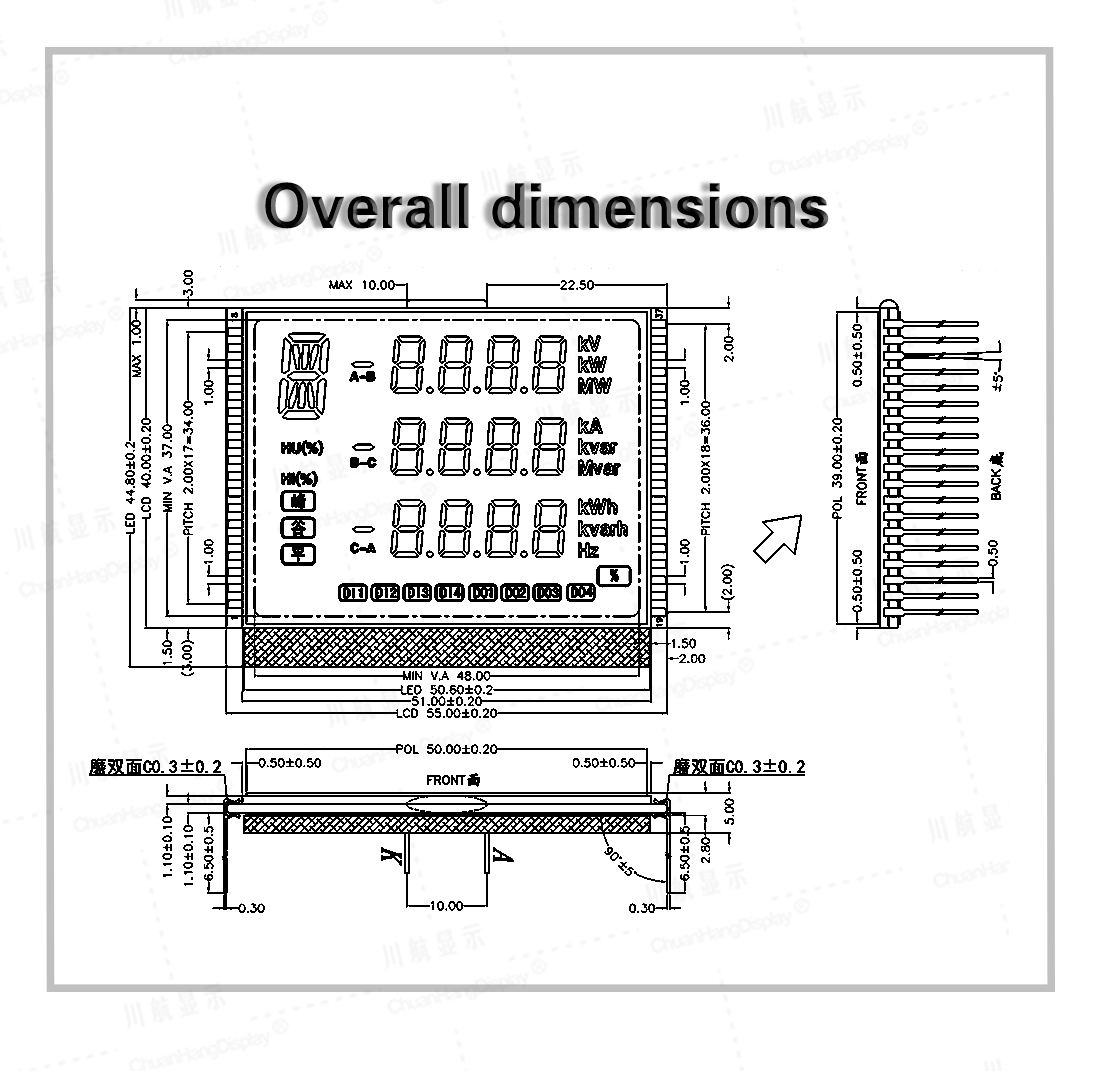

Outline Dimension(LWH)	55.0x44.8x2.8mm	Visible Area(L*W)	/
Active Area(L*W)	48.0x37.0mm	Character Size(L*W)	/
Type	COB	Connection Method	PIN
Supply Voltage	3.3V	Interface Type	SPI
Viewing Direction	6 O'CLOCK	Driving Method	/
Display Type	FSTN	Driver IC	/
Operating Temperature	-30℃~+80℃	Storage Temperature	-35℃~+85℃
Backlight	White LED	Production Capacity	Self-produced
Character libraries	/	Whether to bring PCB	NO

Product Datasheet

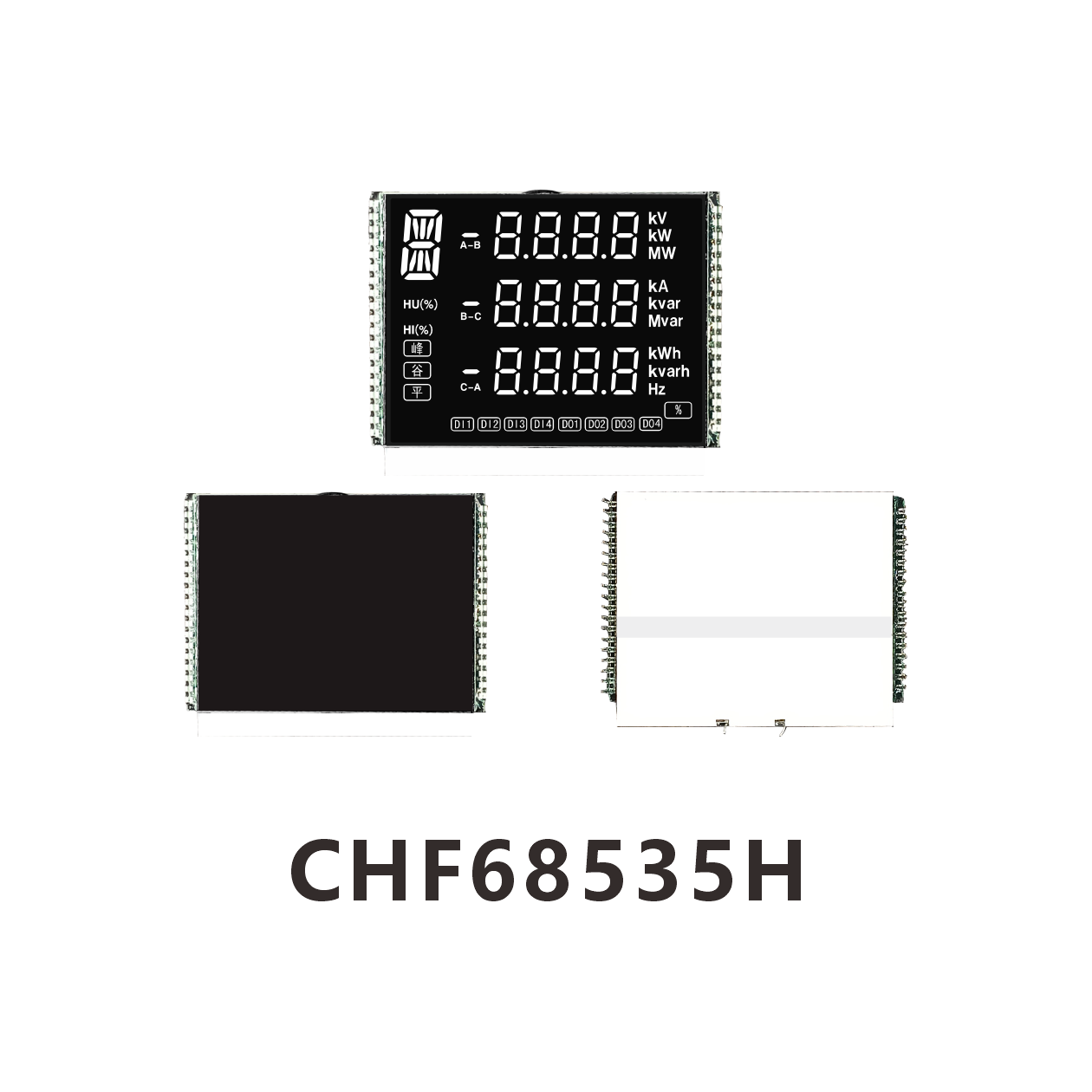

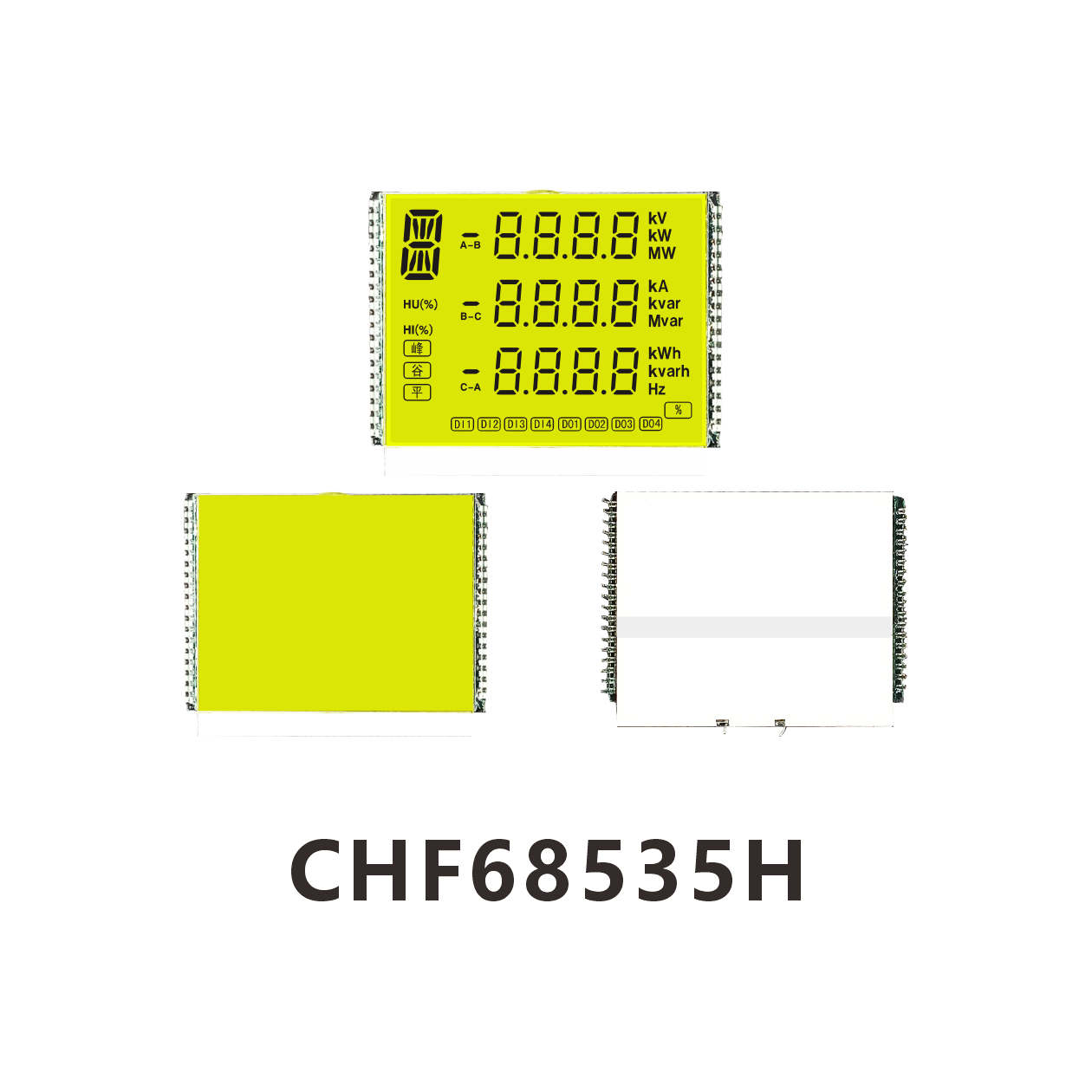

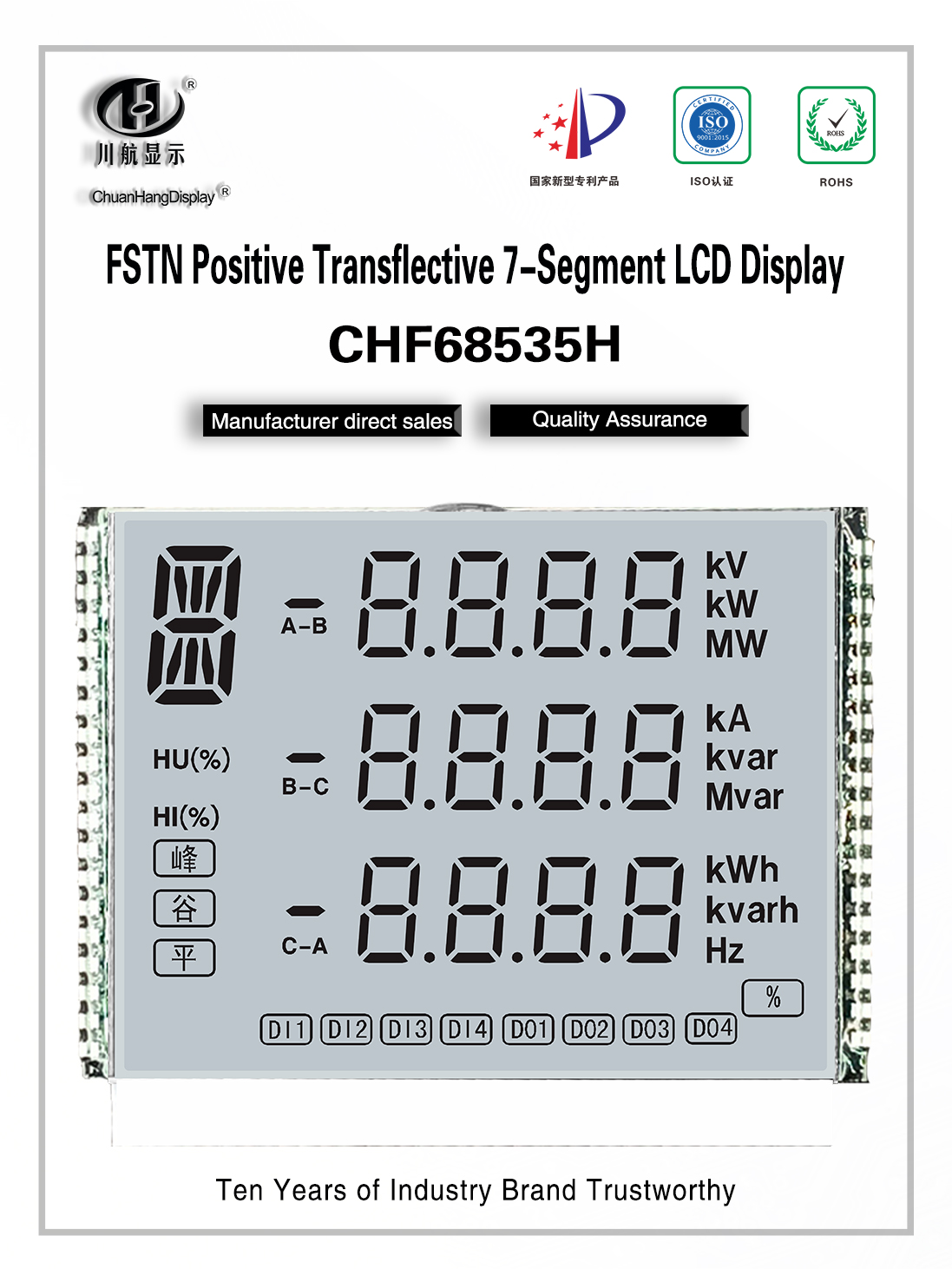

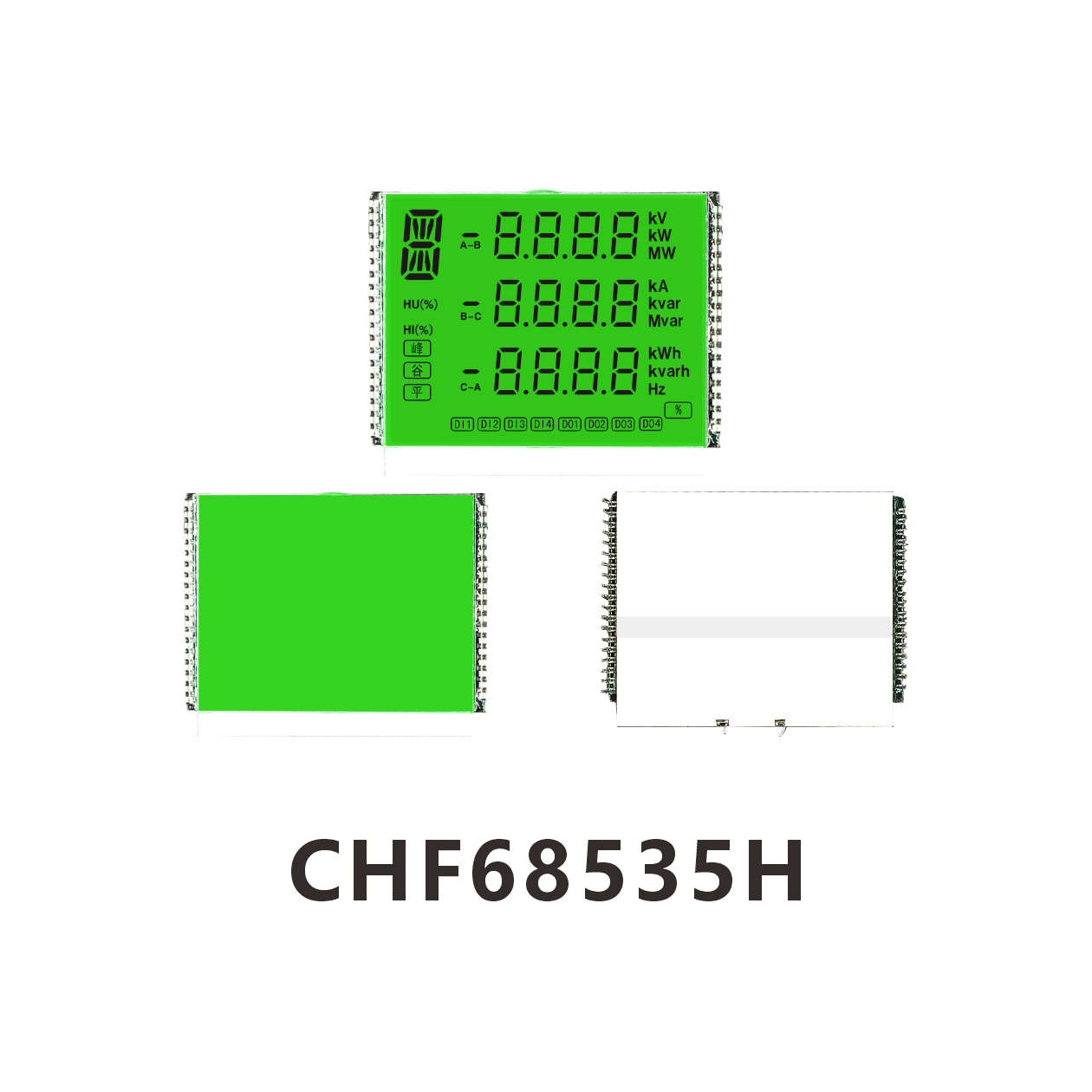

Product Display
