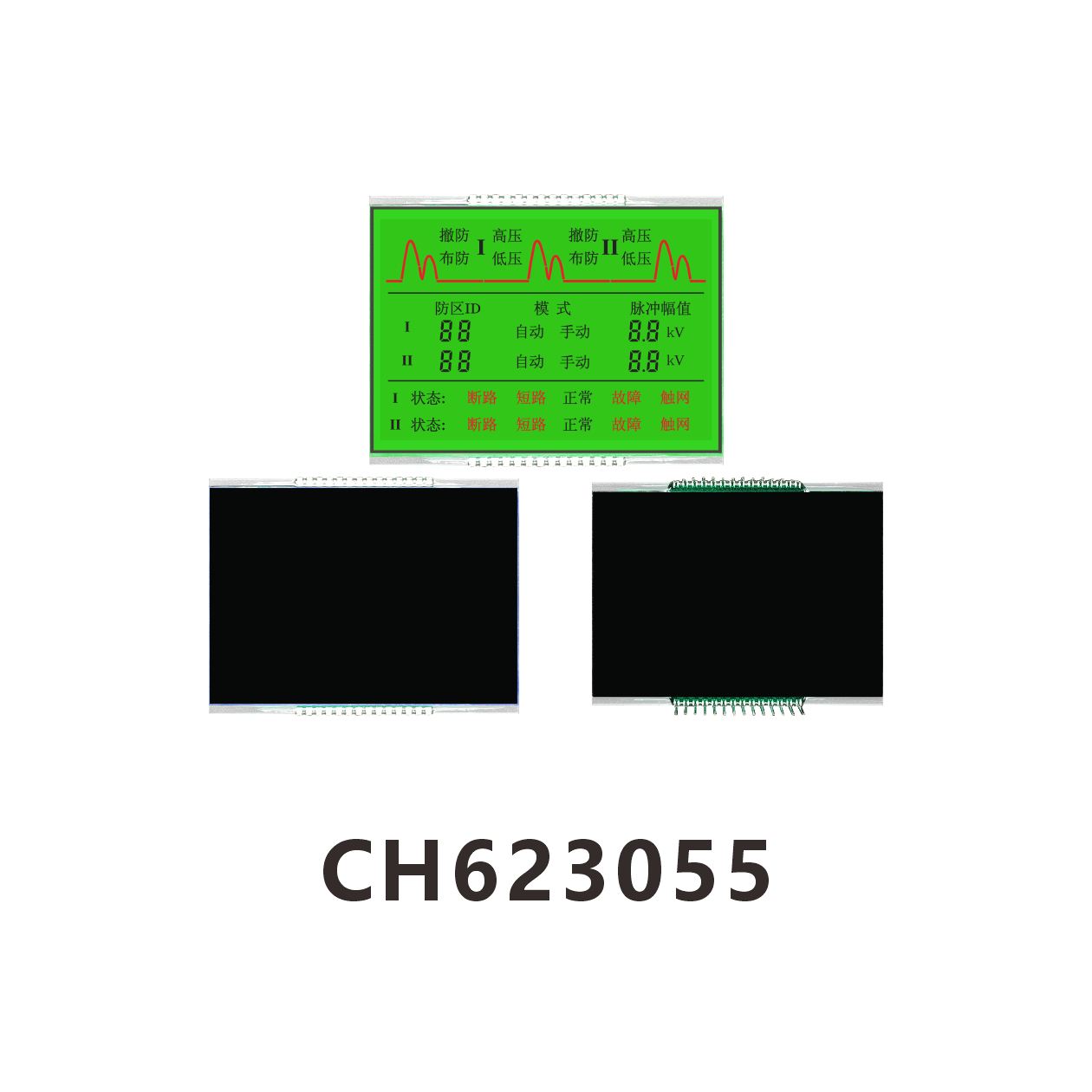

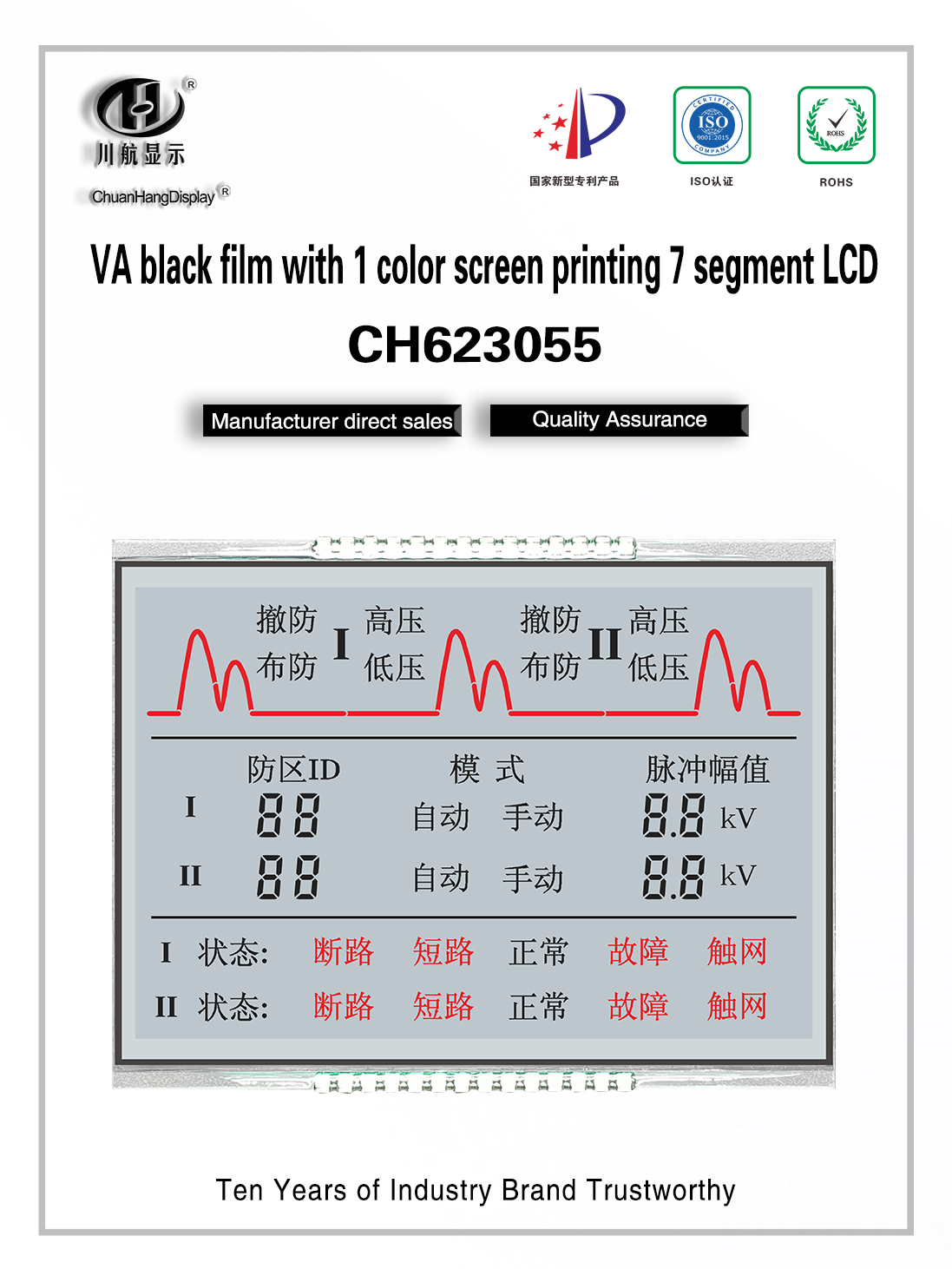

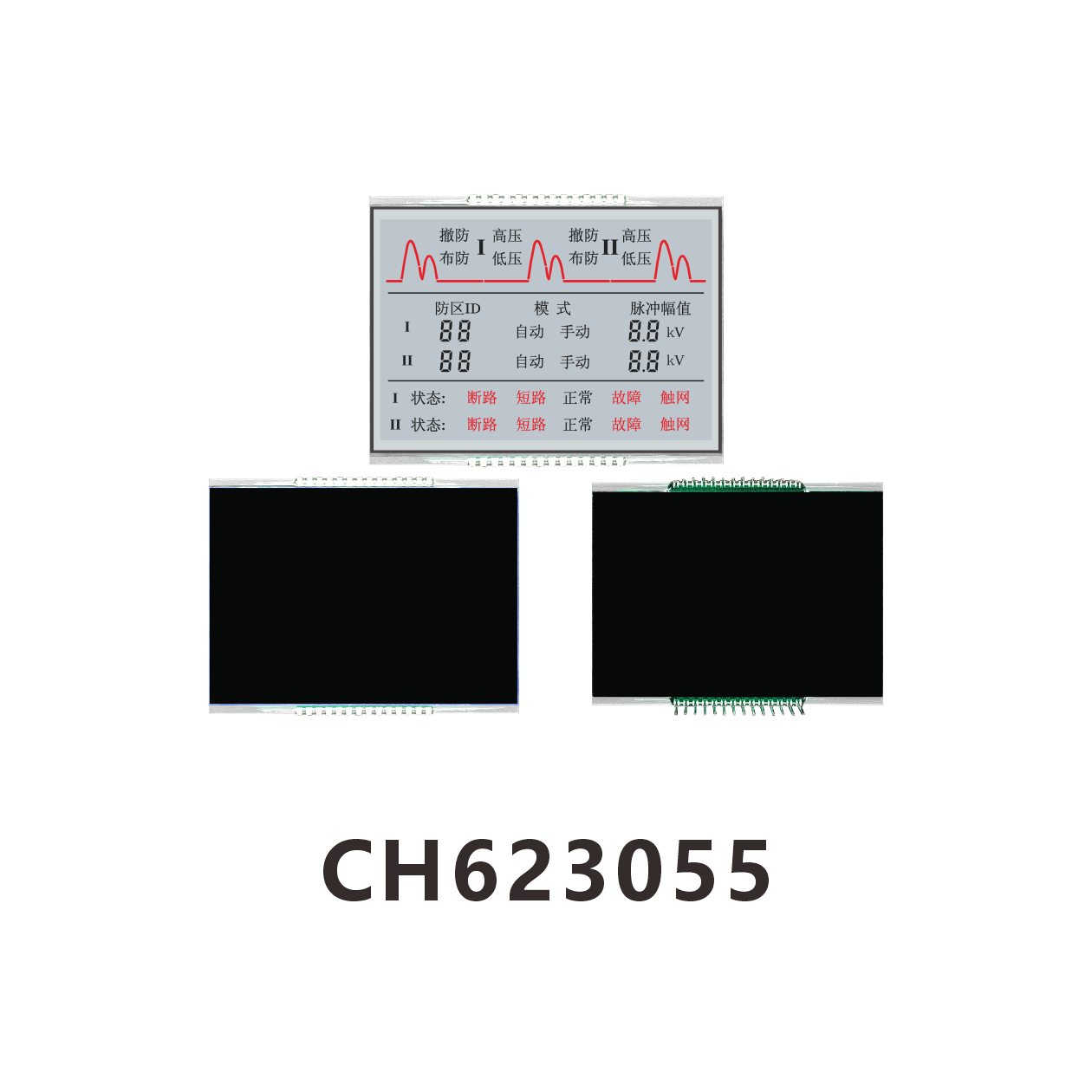

CH623055 VA negative display screen

Product Description

LCD Material: VA LCD
Display Mode: VA/Negative display
Polarizer Type: Black film/full transparency
Process Type: COB
View Direction: 6 O'CLOCK
Working Voltage: 3.2V
Operating Temperature: -20℃~+70℃
Connection Method: PIN
Backlight ：White LED
Application Industry: Power Electronic Fence Alarm System

PDF Download Demo code

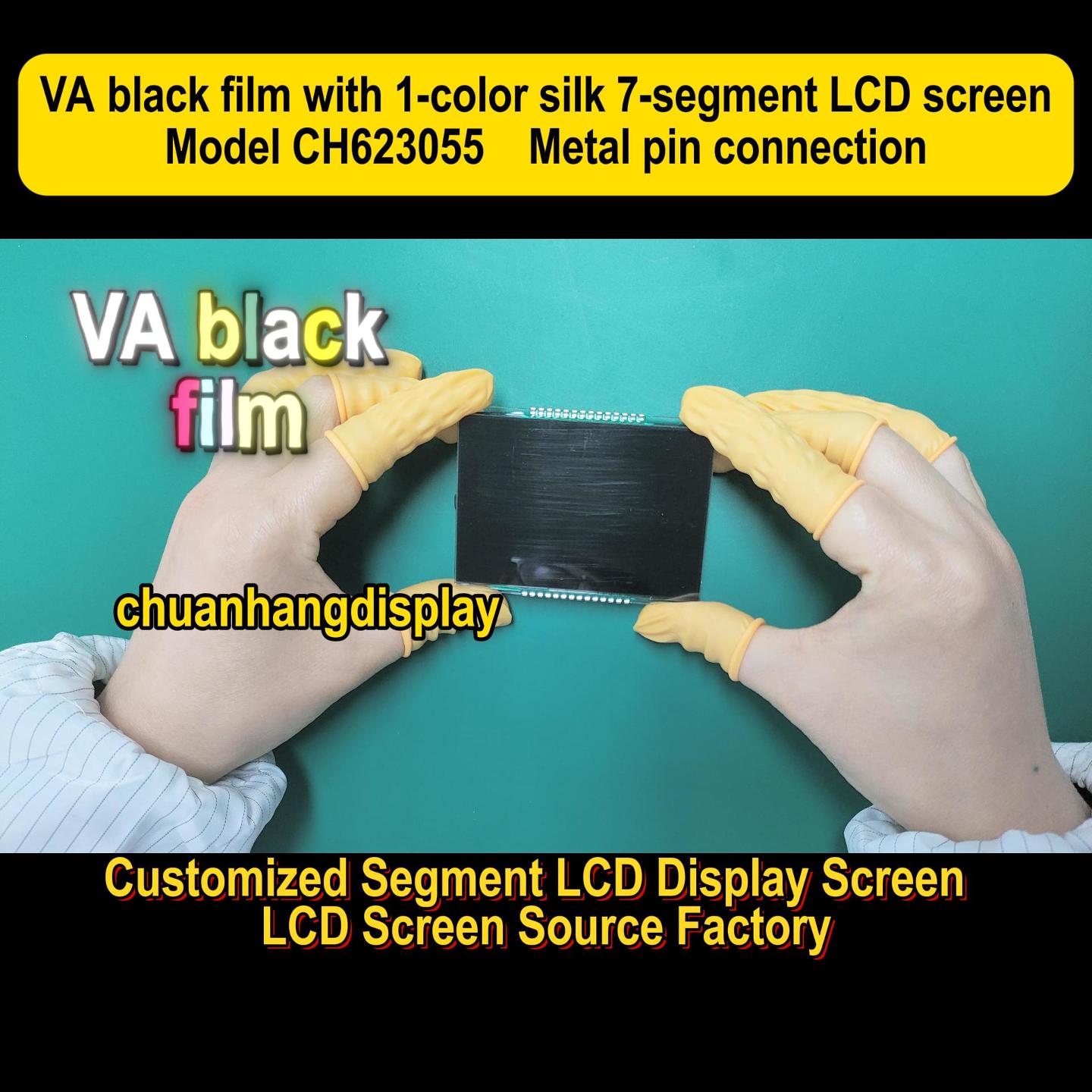

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH623055
Display Mode	VA/NEGATIVE/TRANSMISSIVE	Display Size	Customized

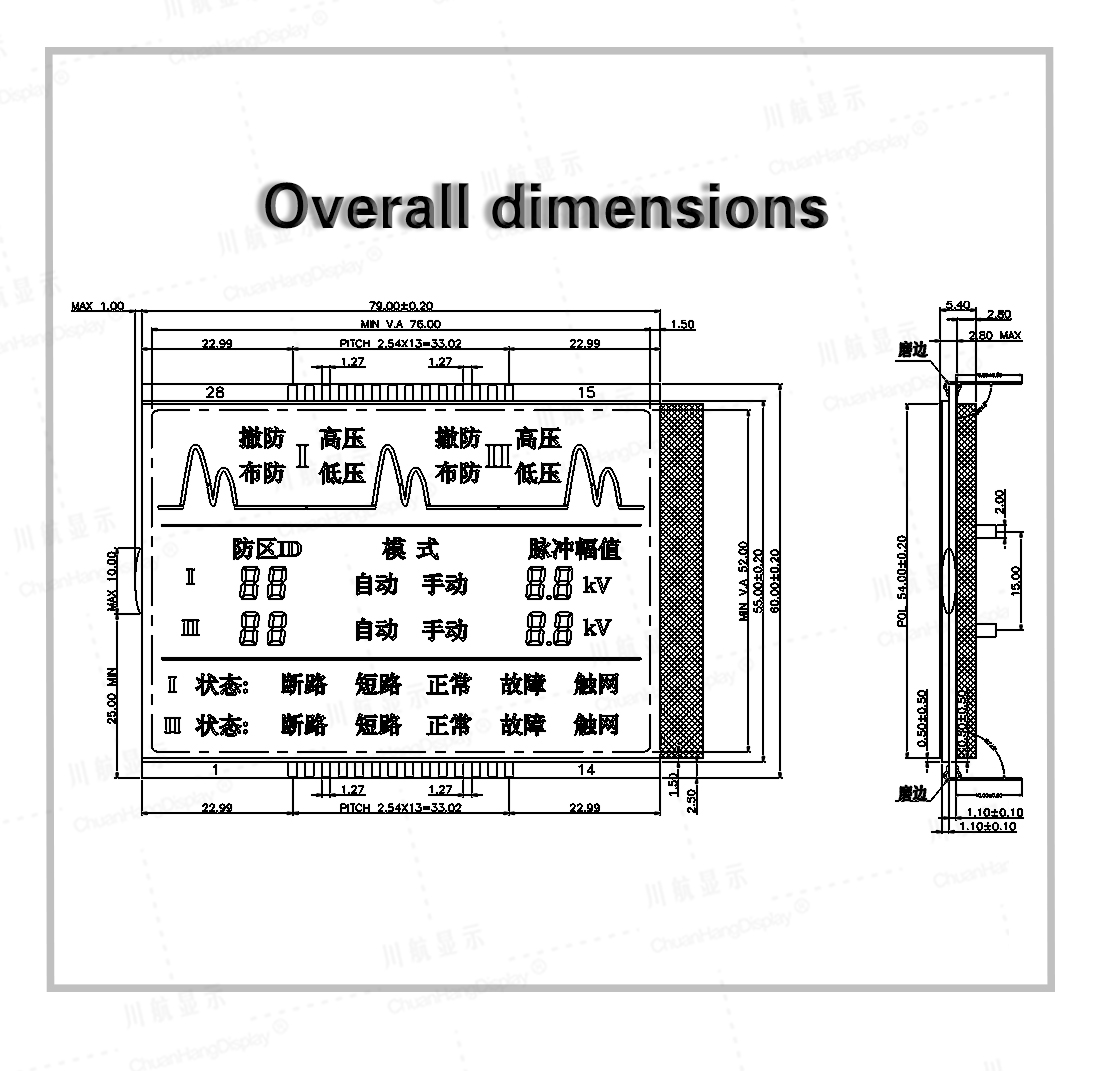

Outline Dimension(LWH)	79.0x10.0x 5.4mm	Visible Area(L*W)	/
Active Area(L*W)	76.00x52.00mm	Character Size(L*W)	/
Type	COB	Connection Method	PIN
Supply Voltage	3.2V	Interface Type	SPI
Viewing Direction	6 O'CLOCK	Driving Method	/
Display Type	VA	Driver IC	/
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight	White LED	Production Capacity	Self-produced
Character libraries	/	Whether to bring PCB	NO

Product Datasheet

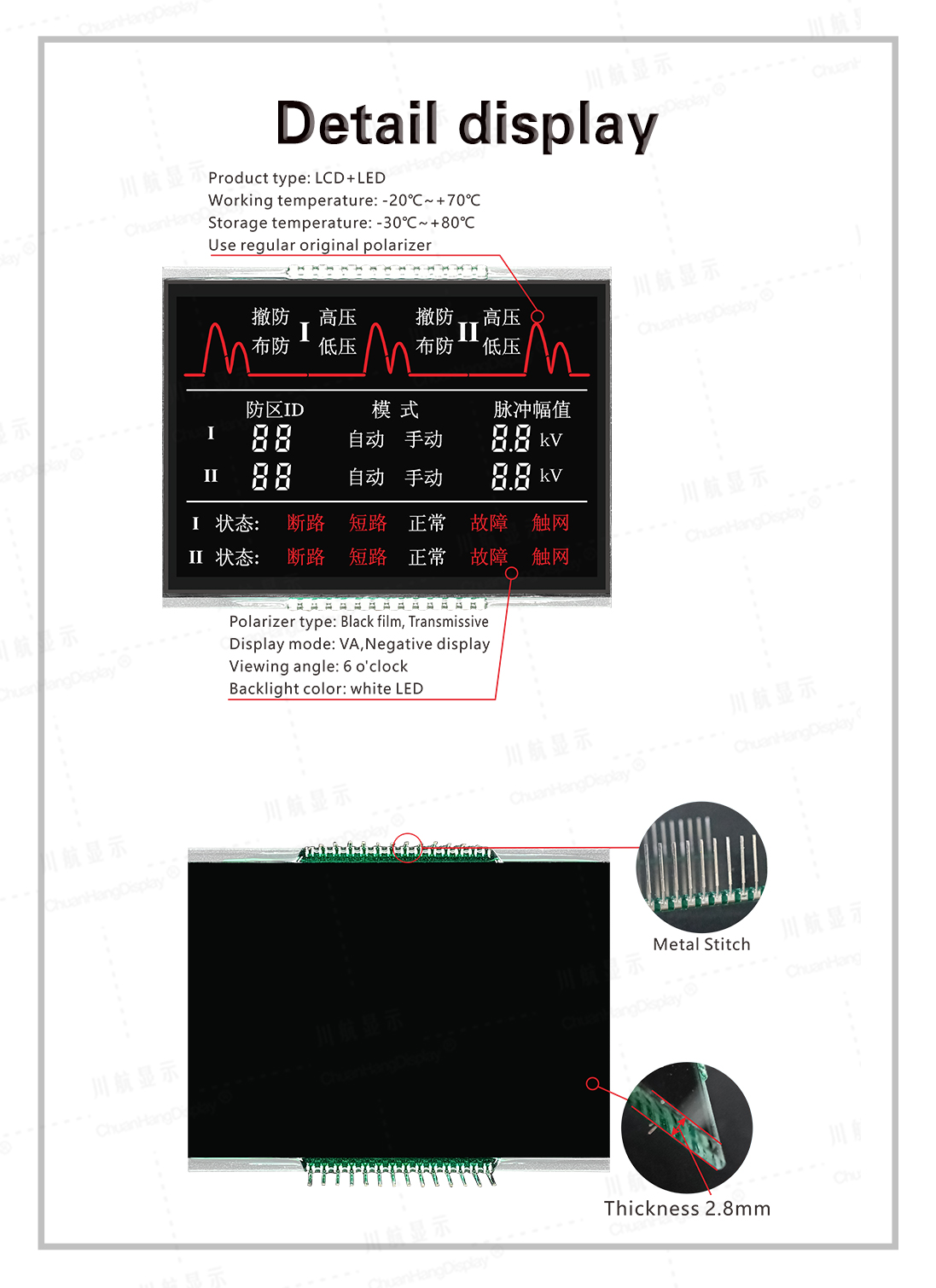

Product Display
