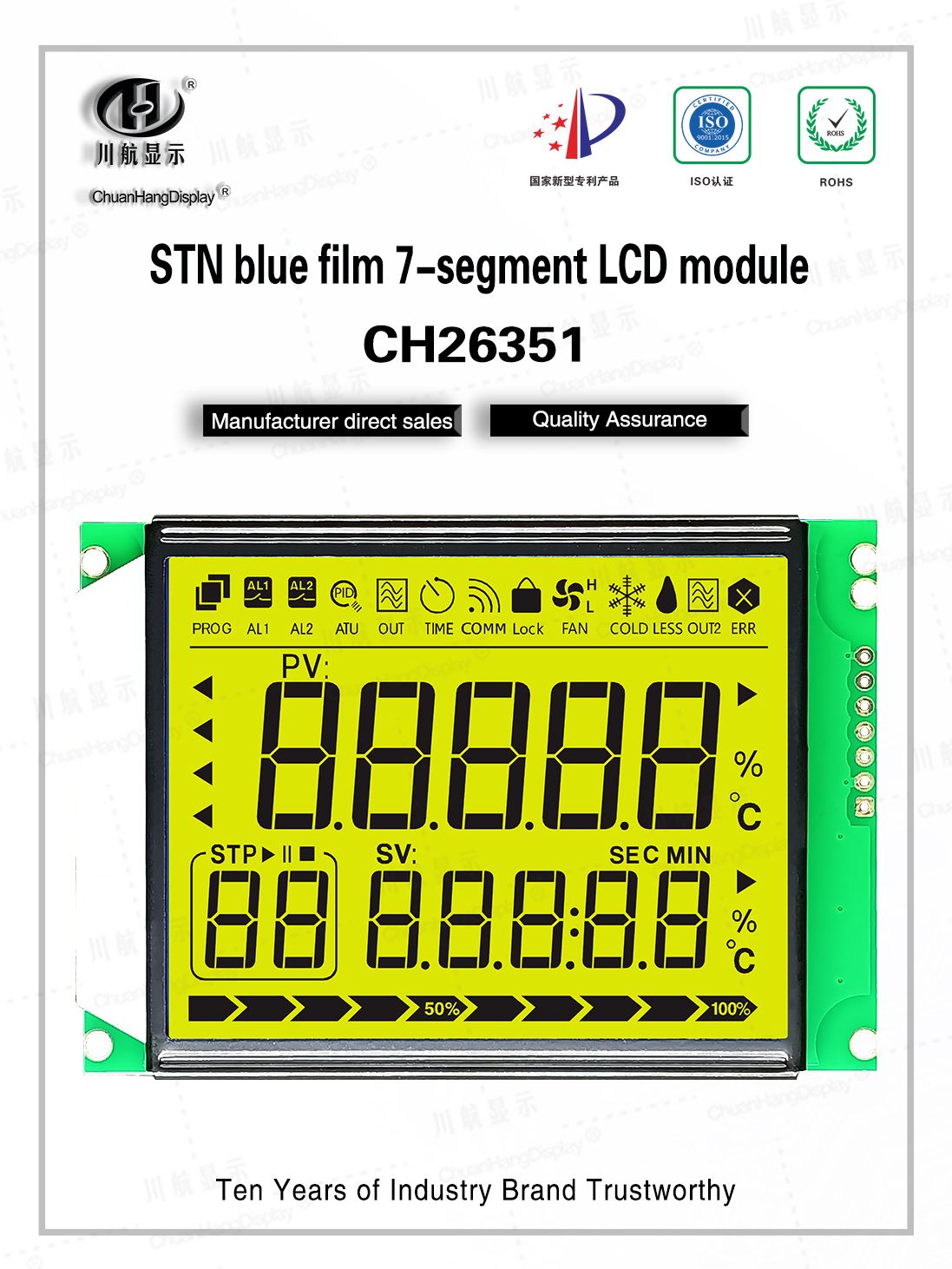

7 segment display

Product Description

LCD Material: STN LCD
Display Mode: negative display
Polarizer Type: blue film fully transparent
Process Type: COB
View Direction: 6 O'CLOCK
IC:HT1622
Working Voltage: 5.0V
Operating Temperature: -20~70℃
Connection Method: Conductive strip
Backlight ：White LED

PDF Download Demo code

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH26351
Display Mode	Negative display	Display Size	Customized
Outline Dimension(LWH)	82.0x56.100x9.7mm	Visible Area(L*W)	/
Active Area(L*W)	62.00x47.50 mm	Character Size(L*W)	/
Type	COB	Connection Method	Conductive strip
Supply Voltage	5V	Interface Type	SPI
Viewing Direction	6 O'CLOCK	Driving Method	/
Display Type	STN	Driver IC	HT1622
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight	White LED	Production Capacity	Self-produced
Character libraries	/	Whether to bring PCB	YES

Product Datasheet

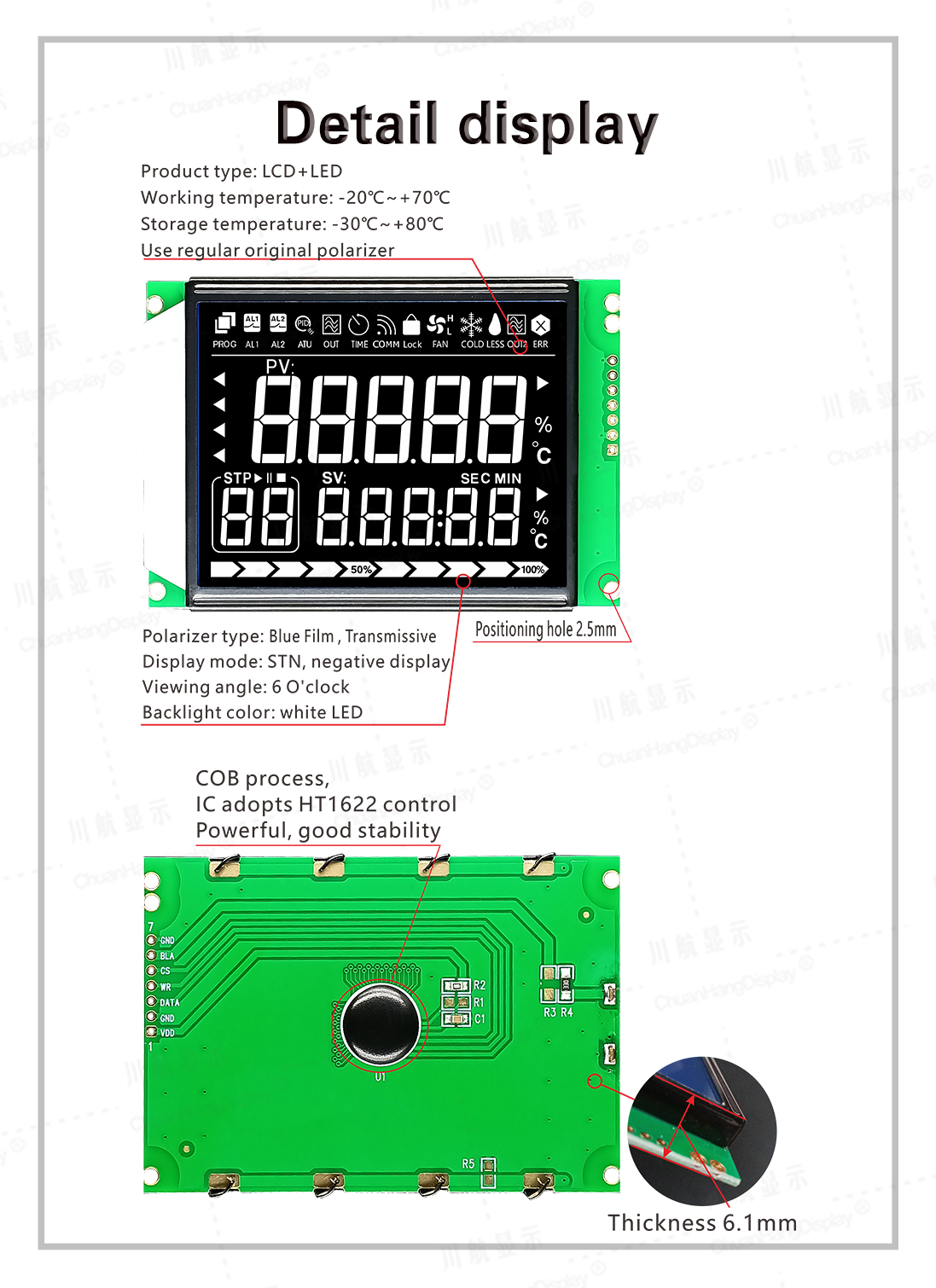

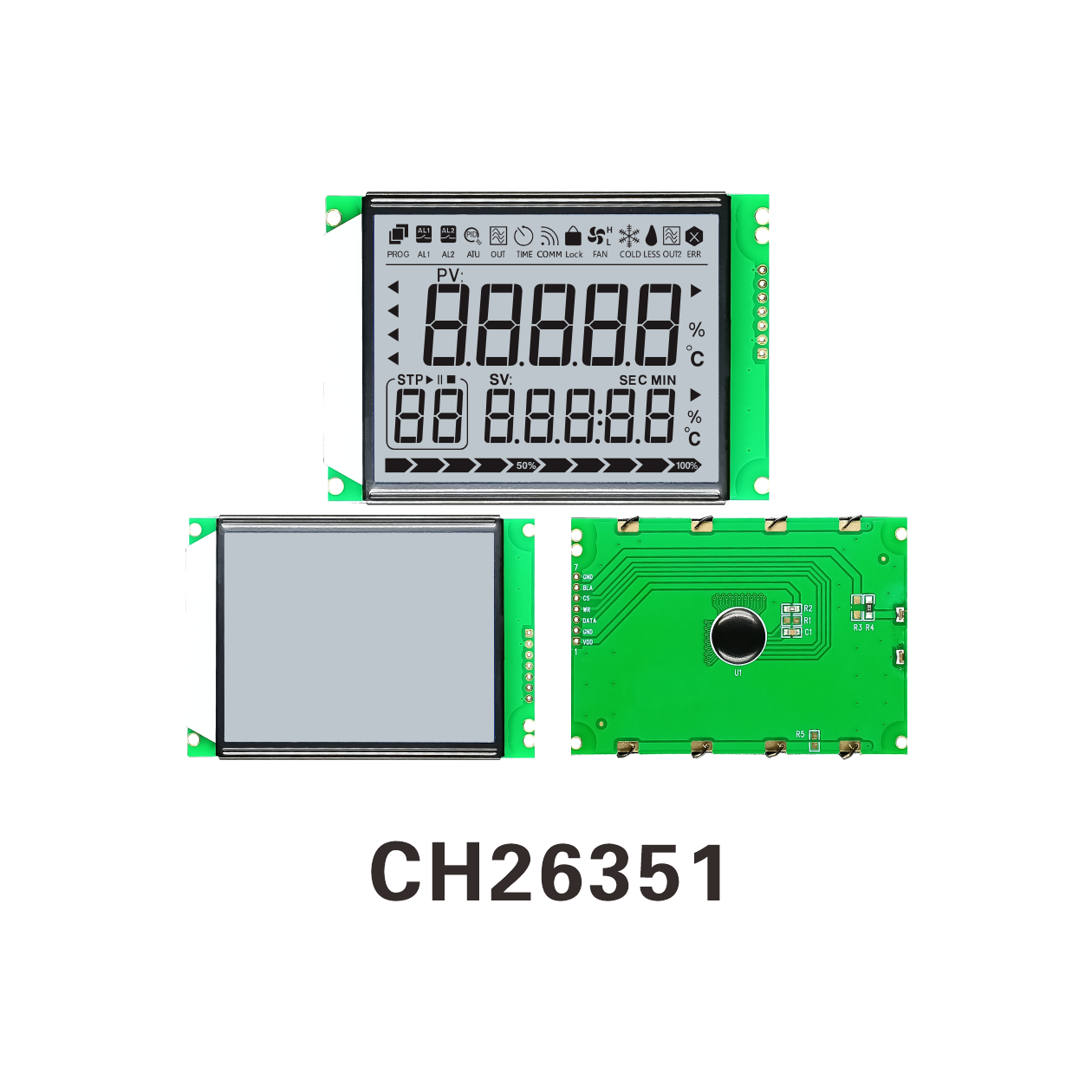

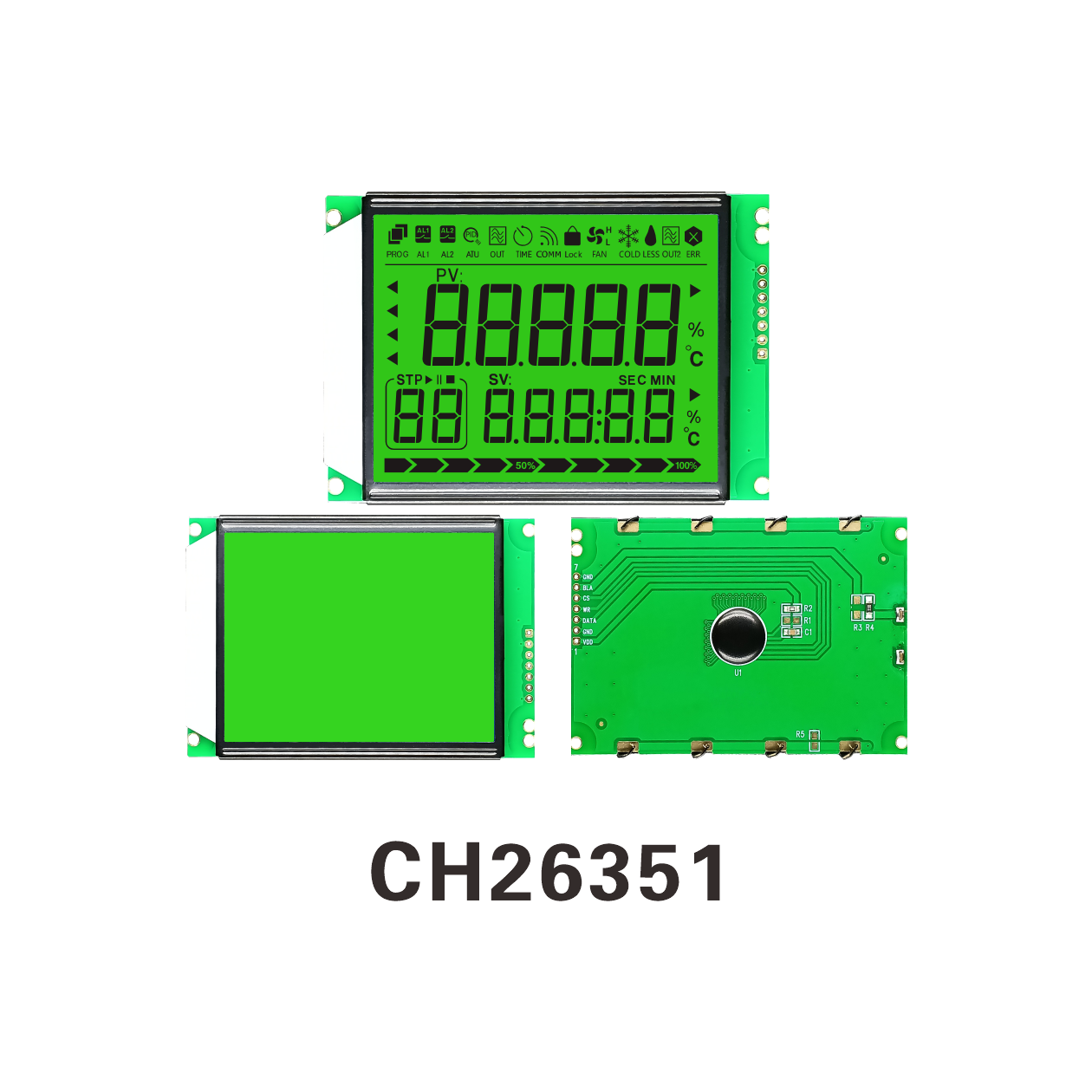

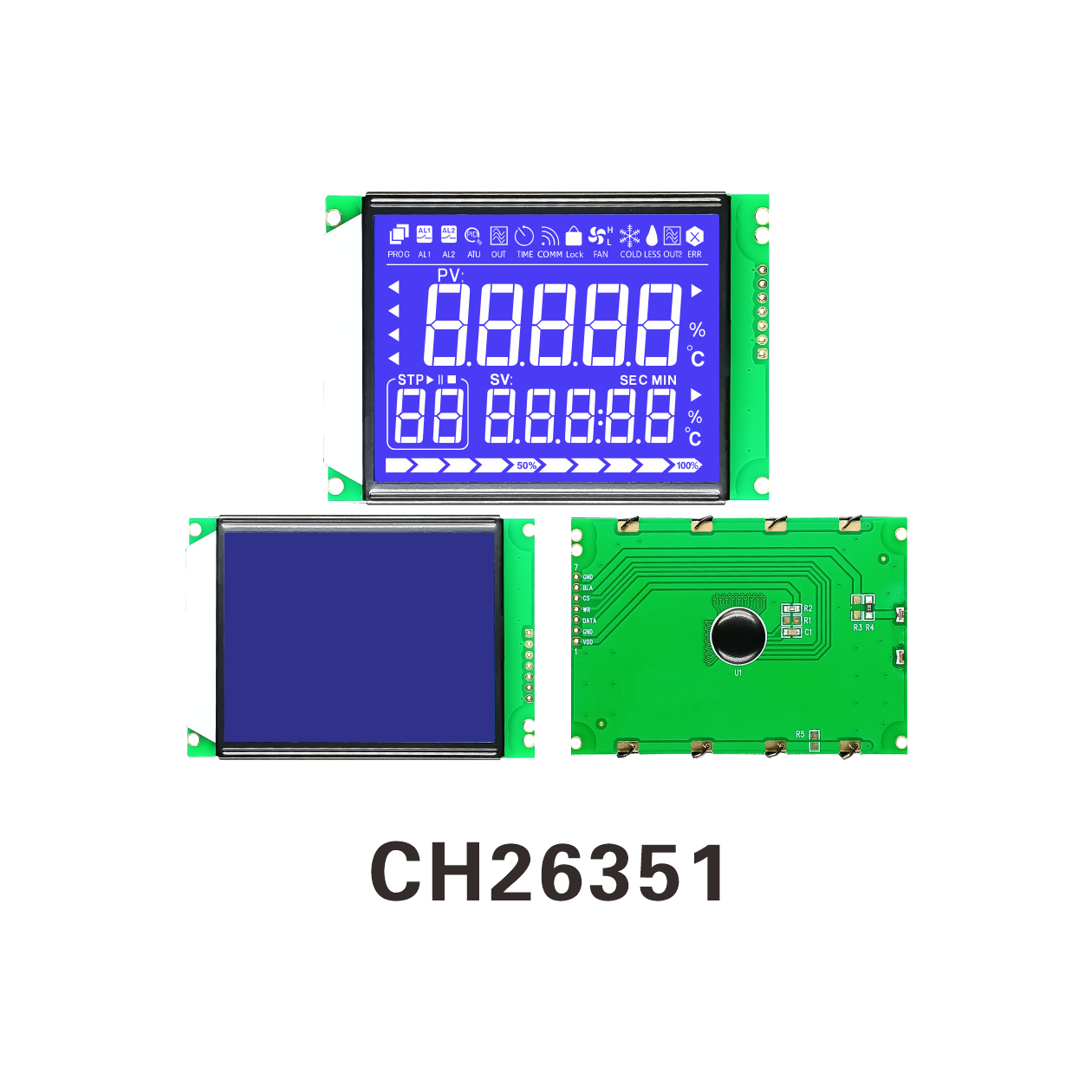

Product Display
