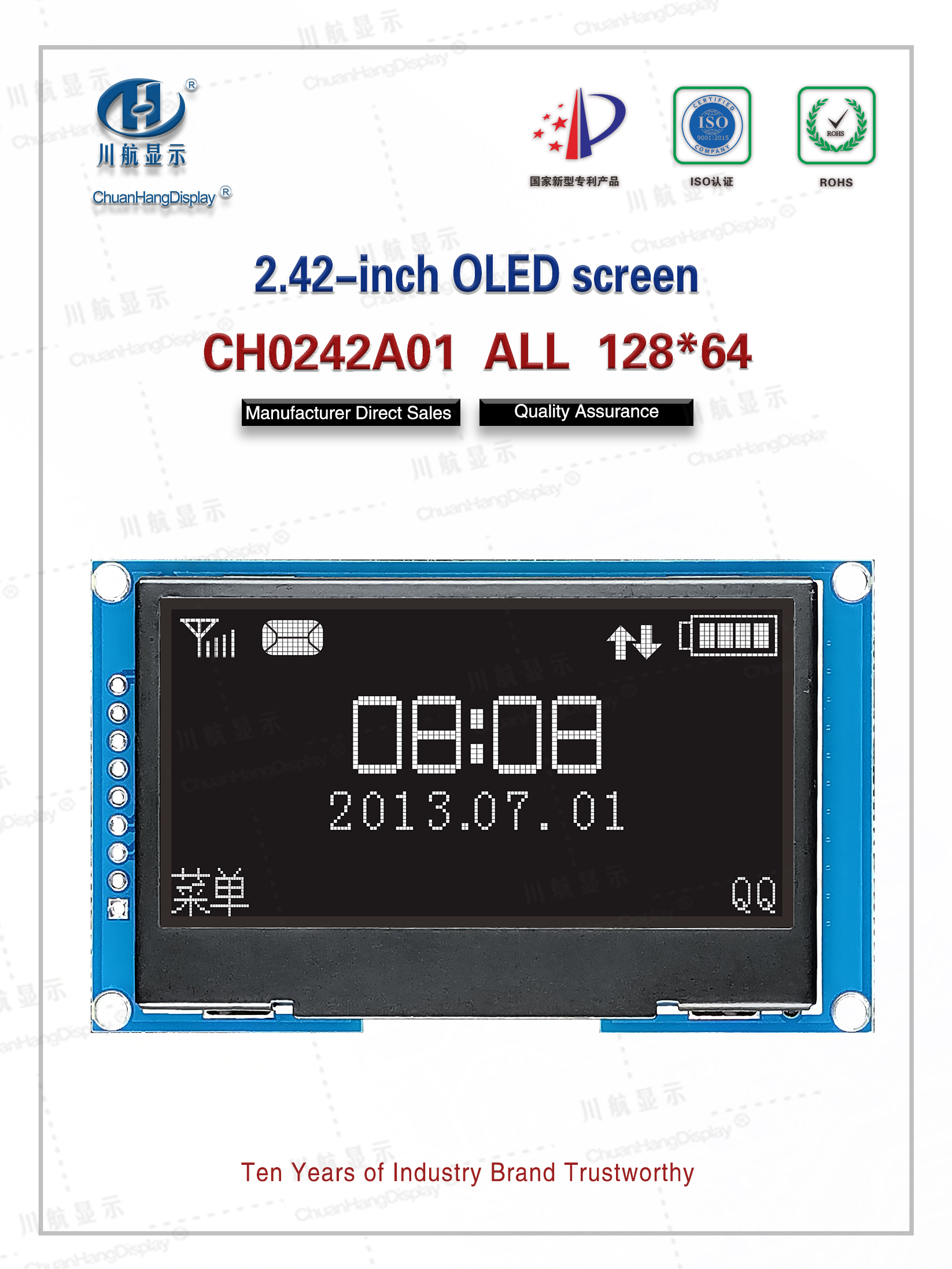

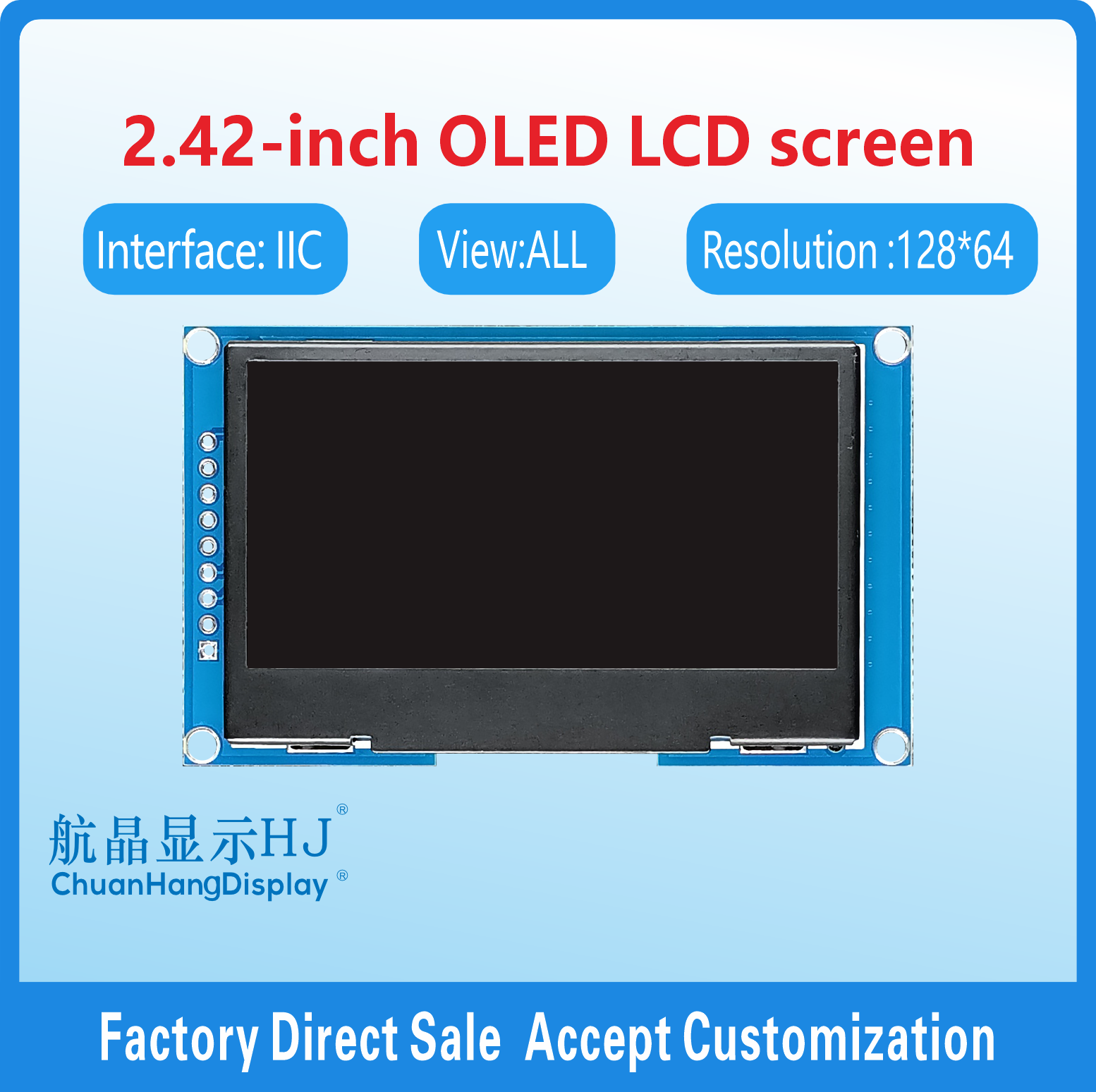

2.42 inch oled 128x64

Product Description

Product size: 2.42 inches OLED
Resolution: 128xRGBx64
Viewing direction:IPS full perspective
Driver chip: SSD1309
Interface type:SPI
Module size:72.00x43.00x4.20mmmm
Display area:55.01x27.49mm
Cable interface: 9 PIN
Operating voltage: 3.3V
Operating temperature: -40℃-70℃
Display color: OLED

PDF Download Demo code

Video Presentation

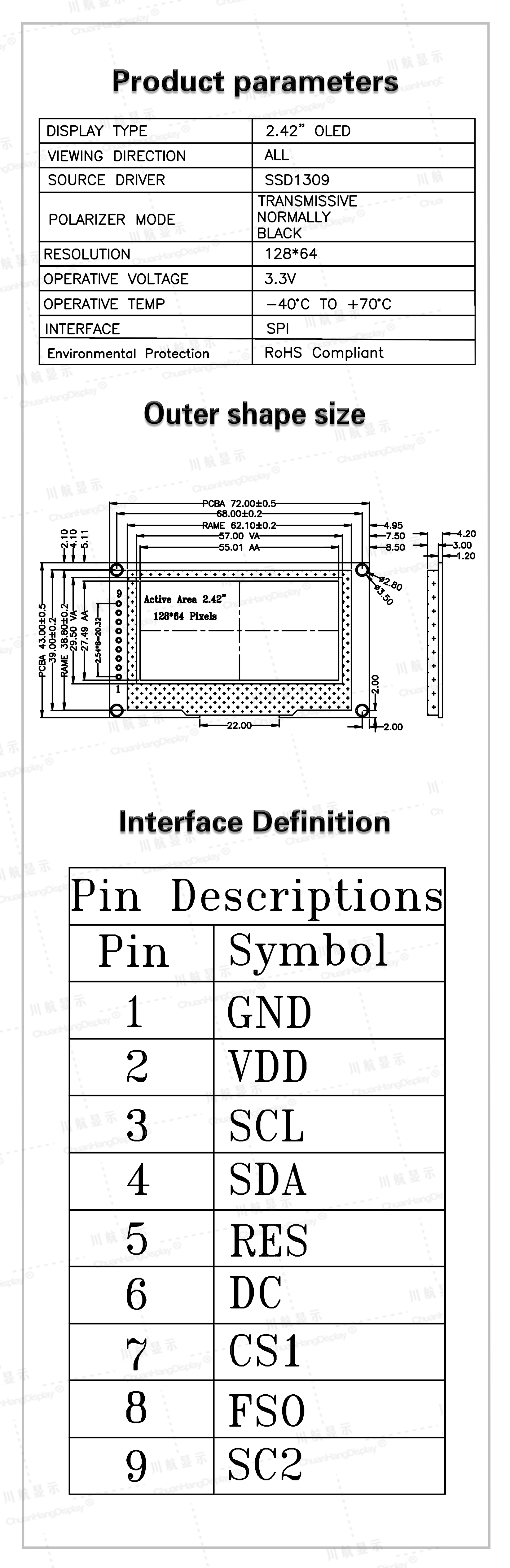

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH0242A01
Resolution	128xRGBx64	Screen size	2.42”

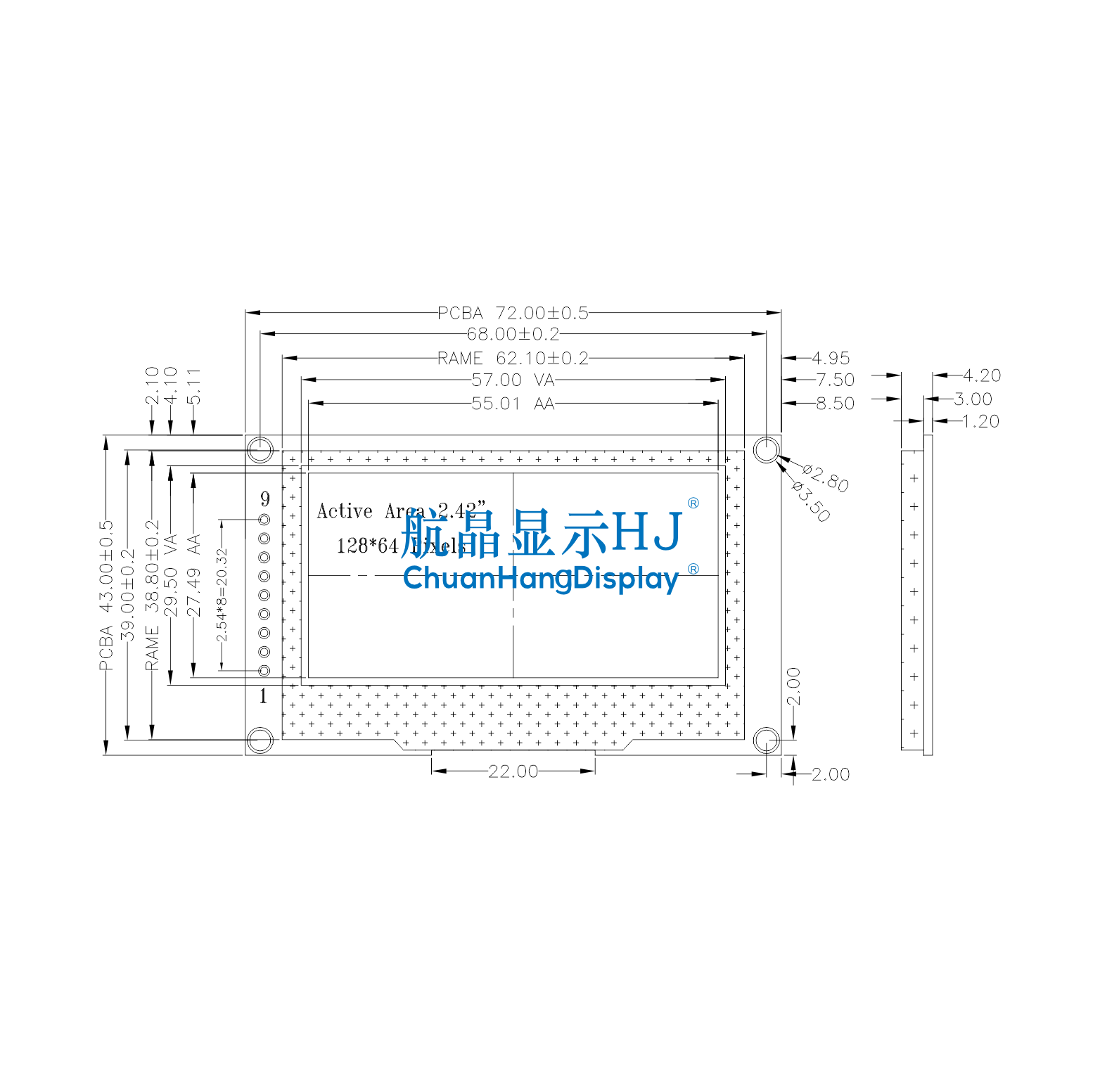

Outline Dimension(LWH)	72.00x43.00x4.20mm	Visible Area(L*W)	57.00x29.50mm
Active Area(L*W)	55.01x27.49mm	Type	COG
Connection Method	FPC	Operating voltage	3.3V
Communication interface	SPI	Viewing Direction	IPS full perspective
Interface Type	9PIN	Display color	OLED
Driver IC	SSD1309	Operating temperature	-40℃~70℃
Production capacity	Self-produced	Whether to bring PCB	YES

Product Datasheet

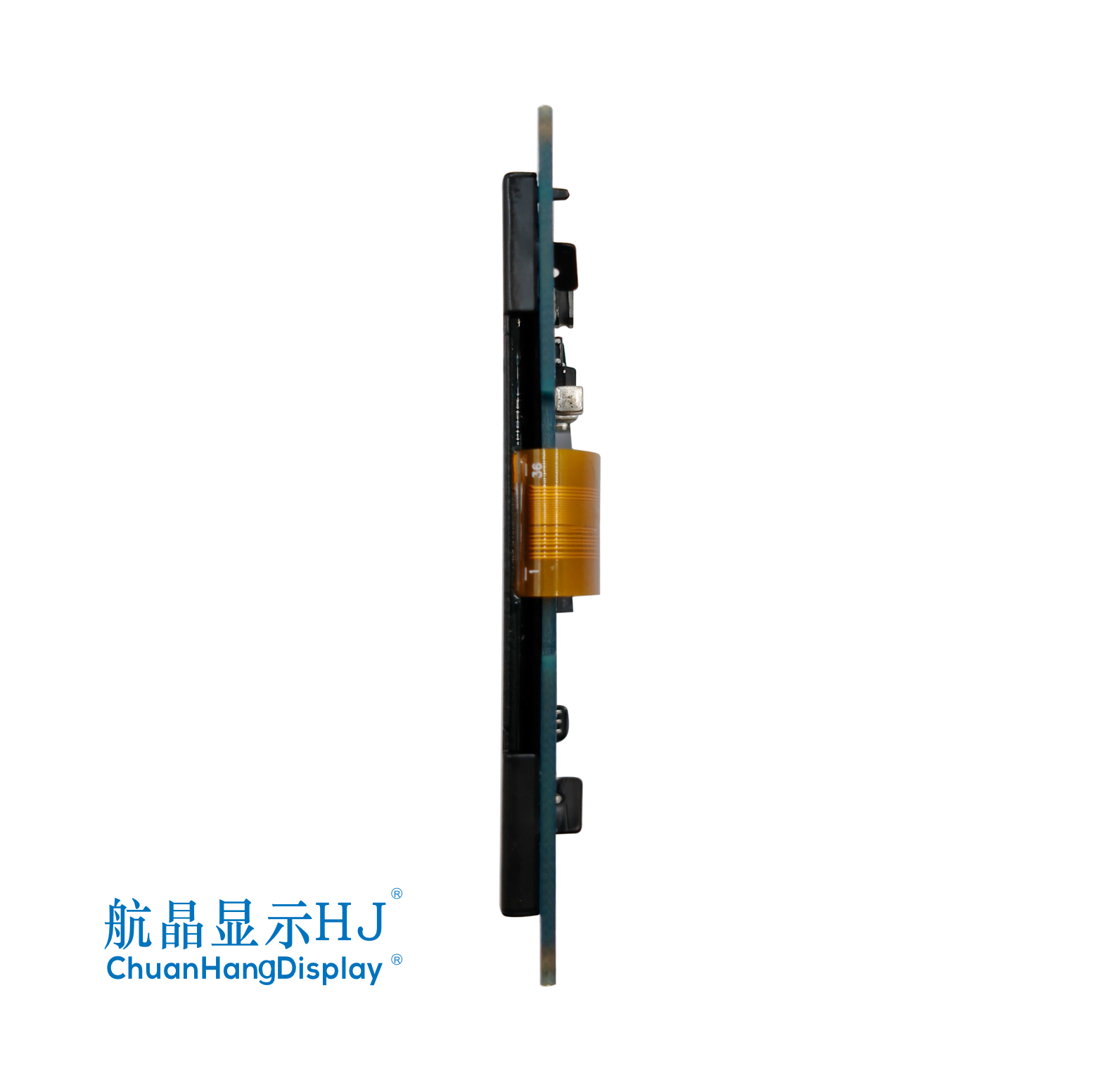

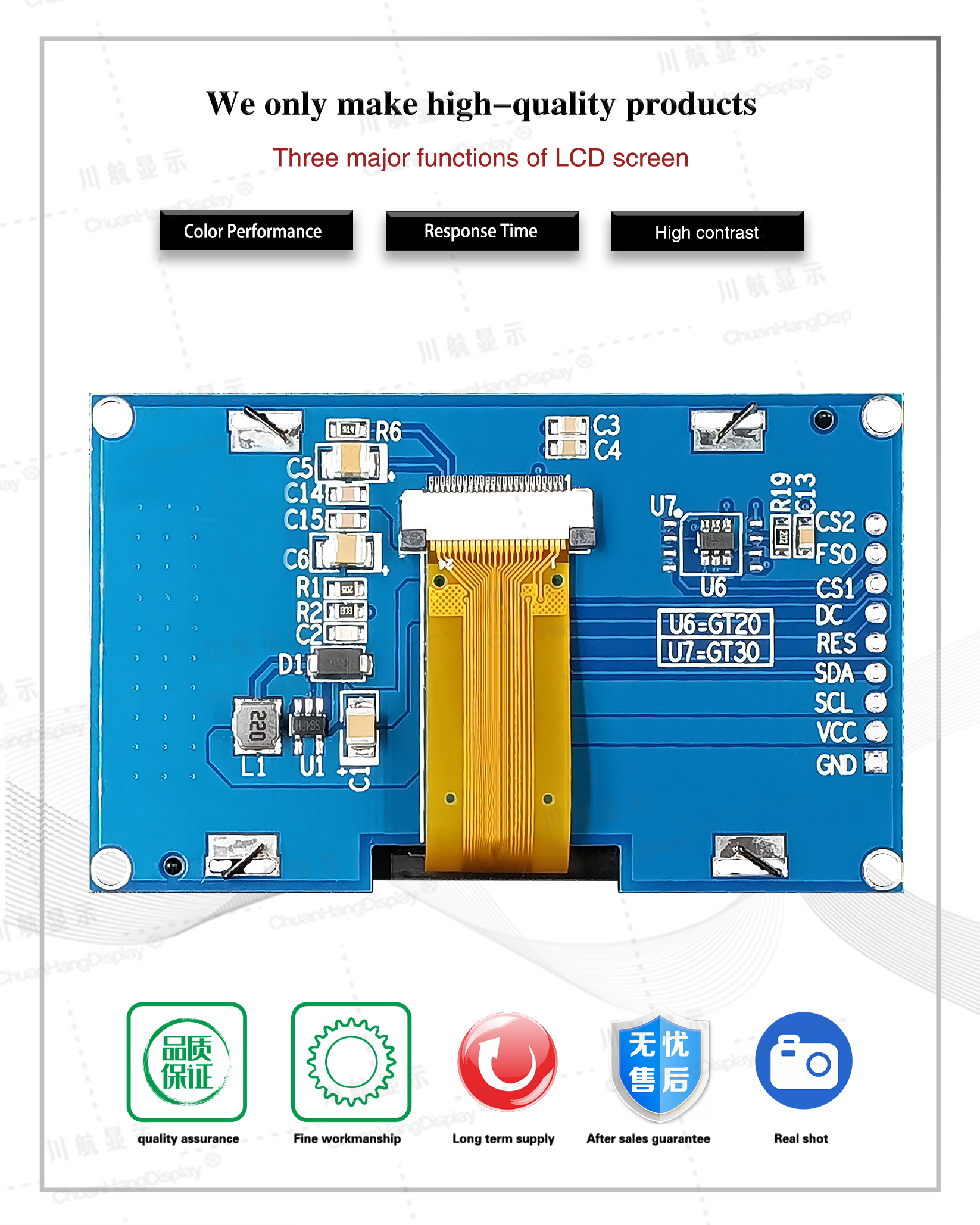

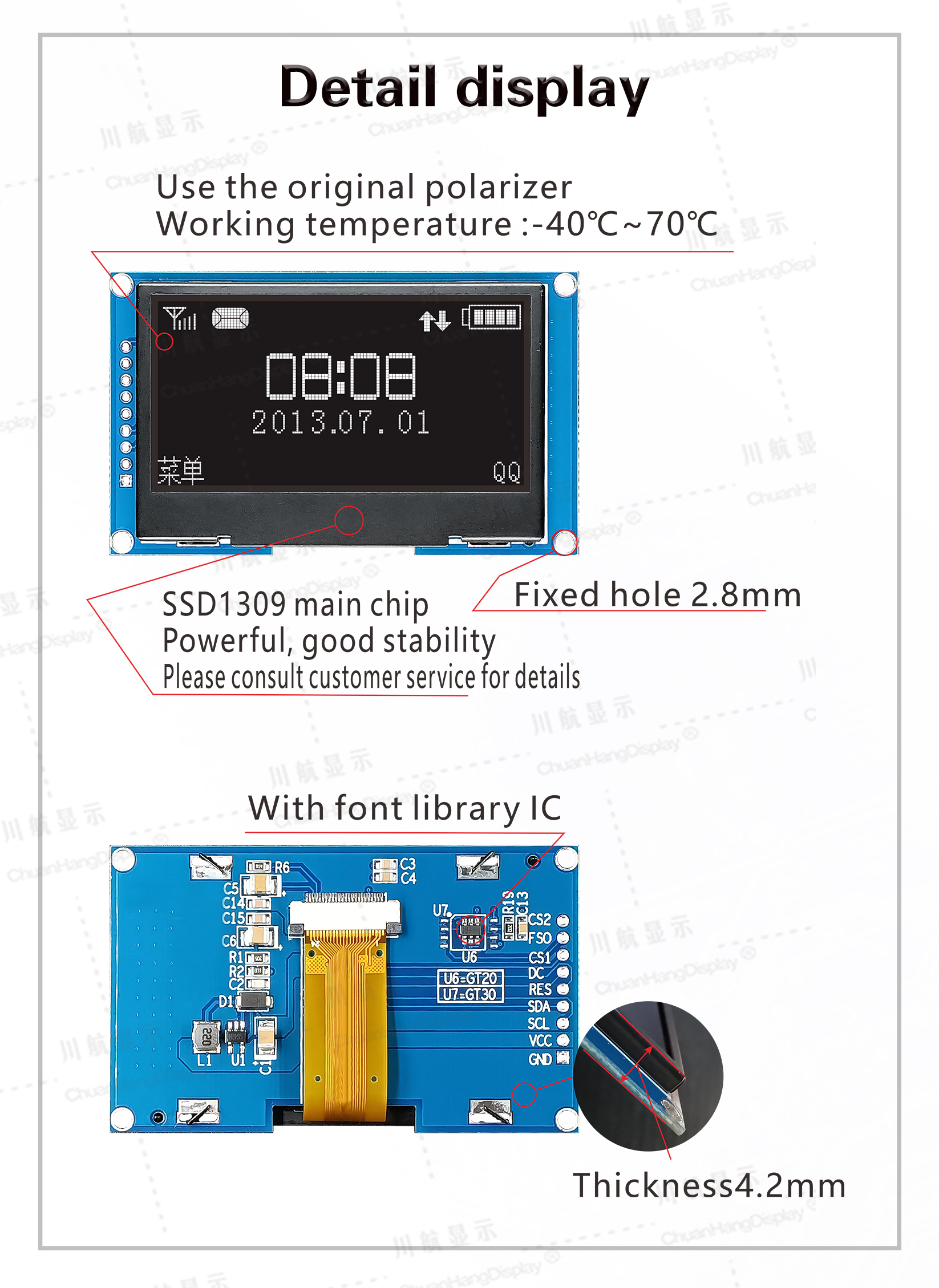

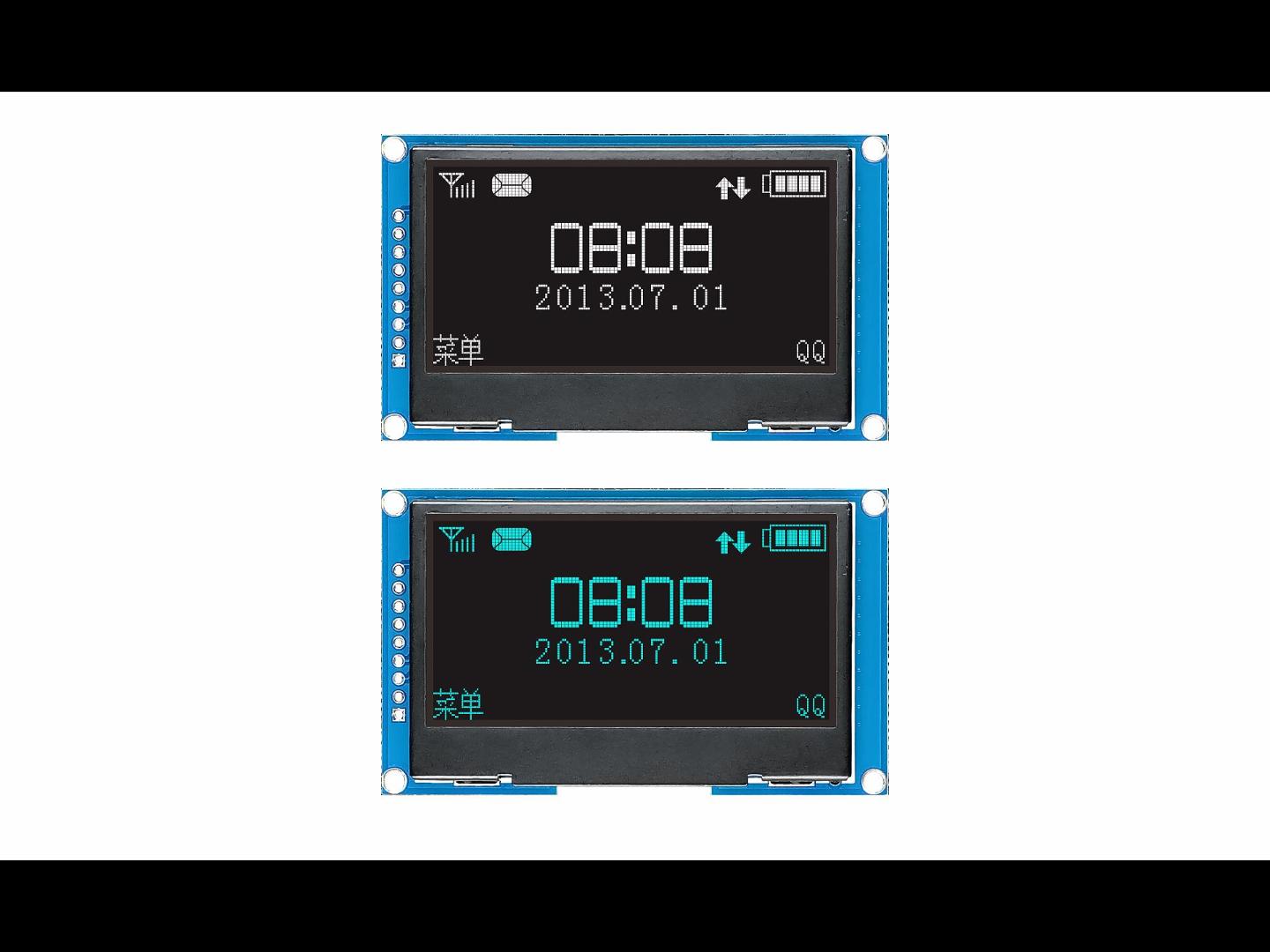

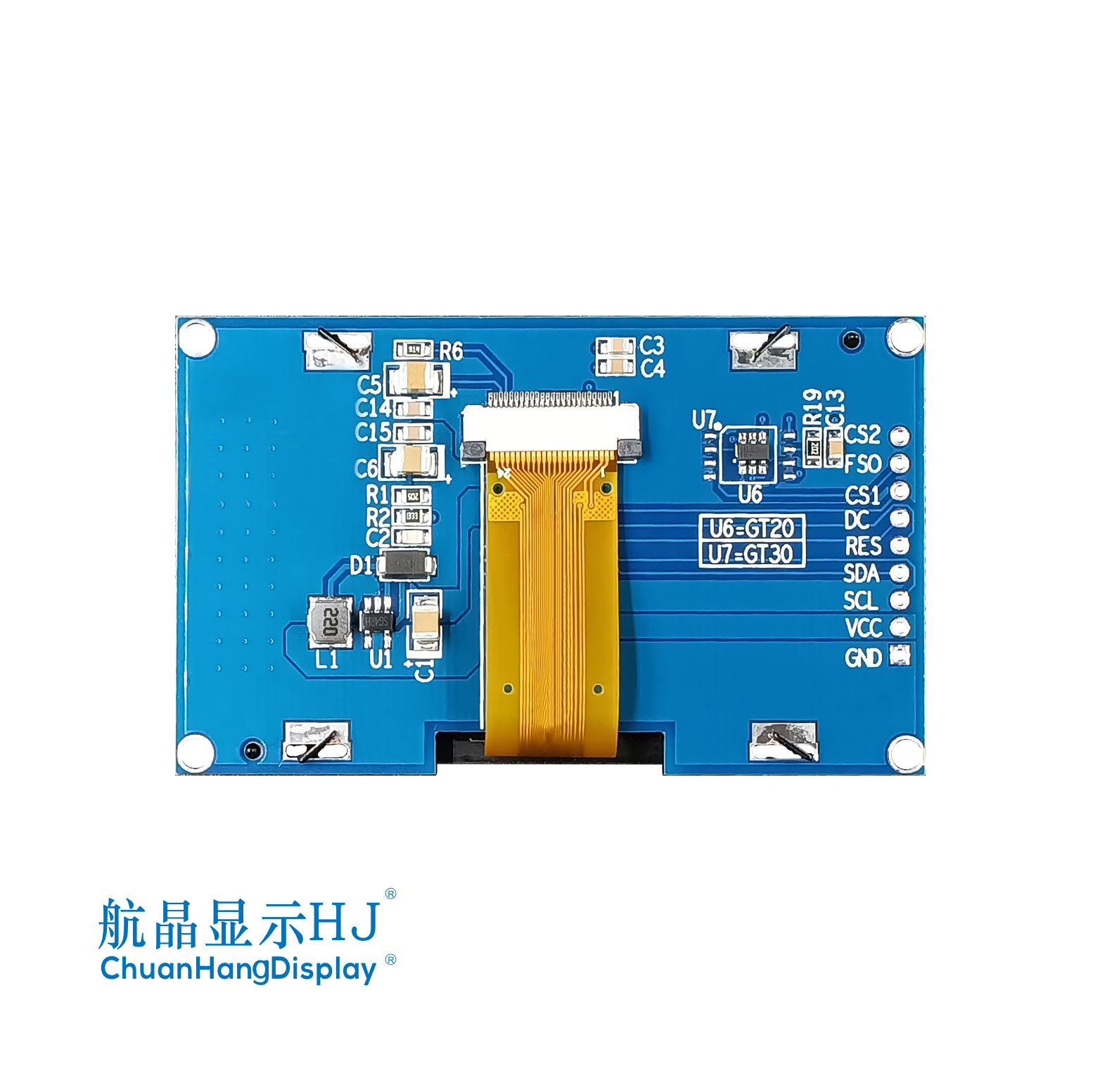

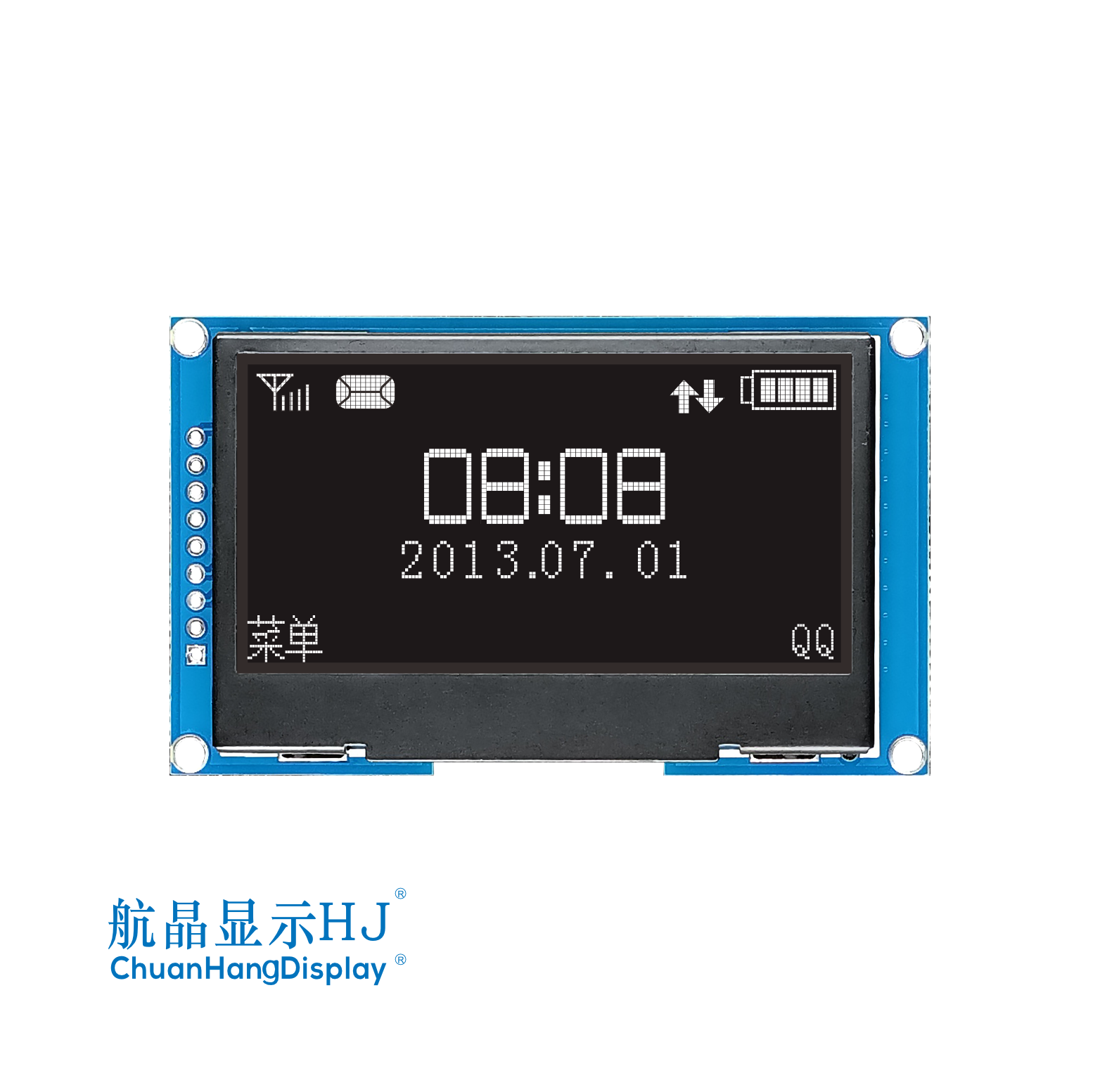

Product Display
