CH256128A 256x125 lcd

Product Description

Display format: 256*128
Product Model: CH256128B
Product structure: LCD + LED + PCB
Dimensions (mm): 104.92*72.83*9.30mm ，Visual area (mm): 100.16*53.57mm， Effective area (mm): 93.16*46.57mm ,Dot size (mm): 0.344*0.344mm
View direction: 6 O'CLOCK
Perspective Interface: Serial and parallel ports are optional
Drive chip: ST75256
Font library chip: GT20L16S1Y
Operating voltage: 3.3V, 5V optional
Operating temperature: -20+70
Display color: STN (blue film), FSTN (grey film)

PDF Download Demo code

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH256128A
Resolution	256x128	screen size
Outline Dimension(LWH)	71.20x57.20x8.05mm	Visible Area(L*W)	66.00x37.65mm
Active Area(L*W)	60.78x32.94mm	Character Size(L*W)
Type	COG	Connection Method	FPC
Supply Voltage	5/ 3.3V	Interface Type	4-bit or 8-bit parallel port
Viewing Direction	6 O'CLOCK	Driving Method	1/128Duty,1/10Bias
Display Type		Driver IC	ST75256
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	5/ 3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	YES

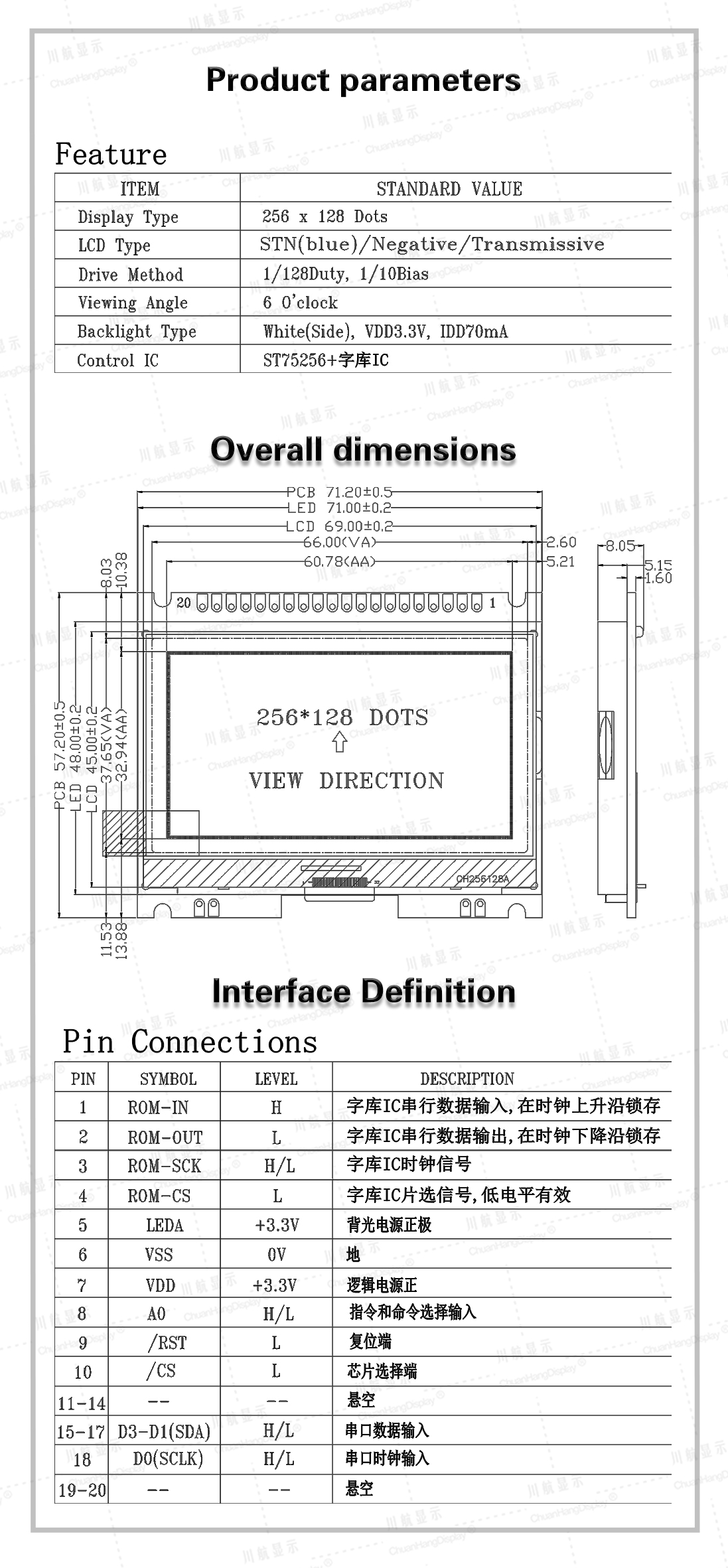

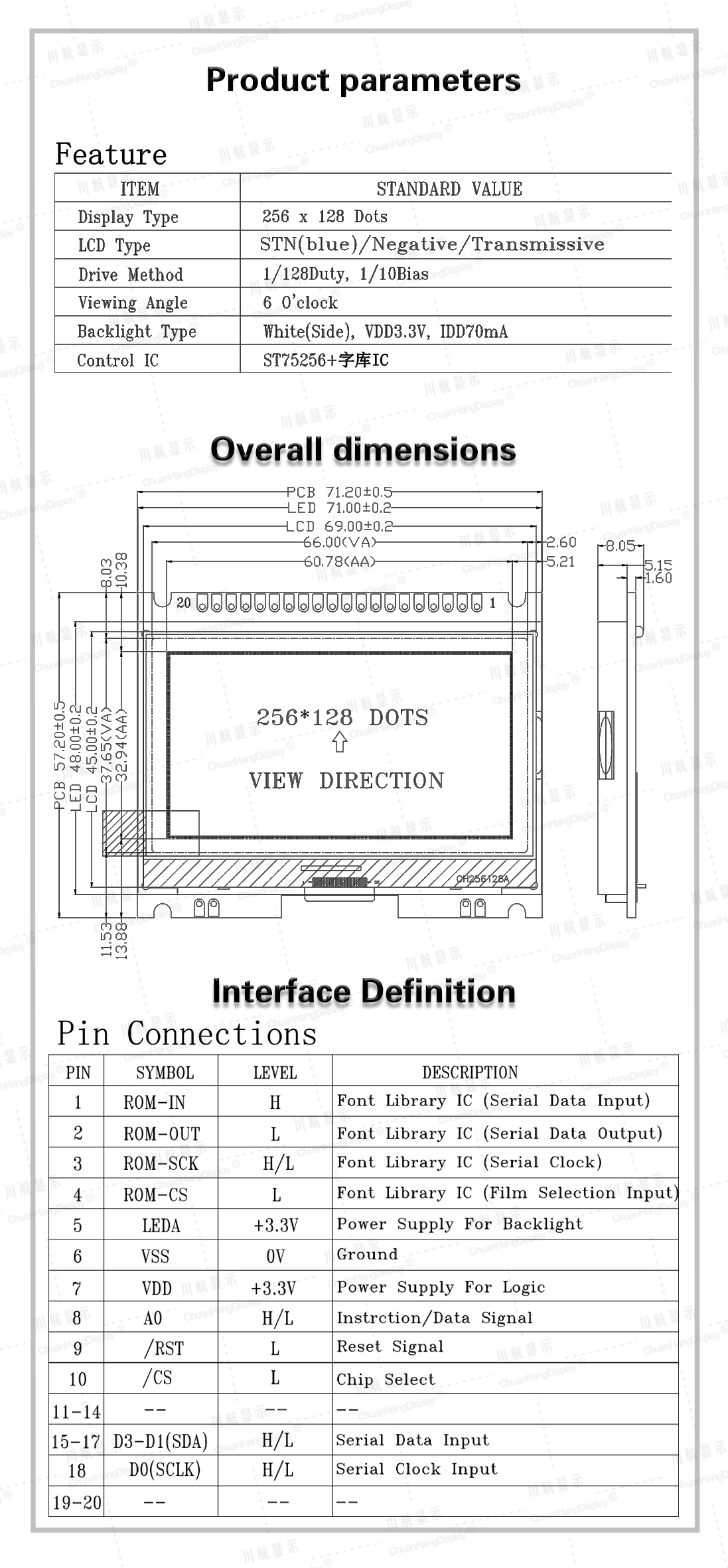

Product Datasheet

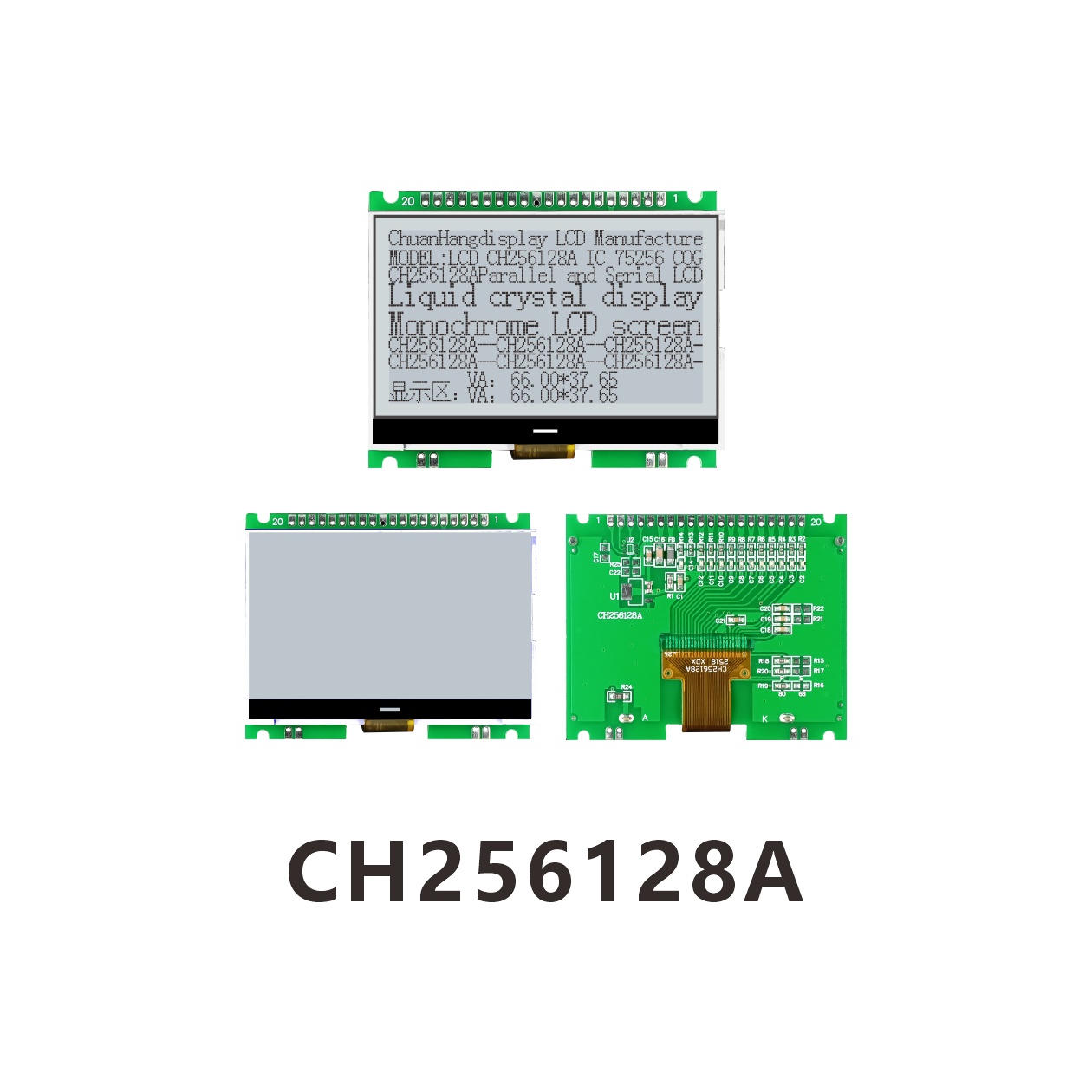

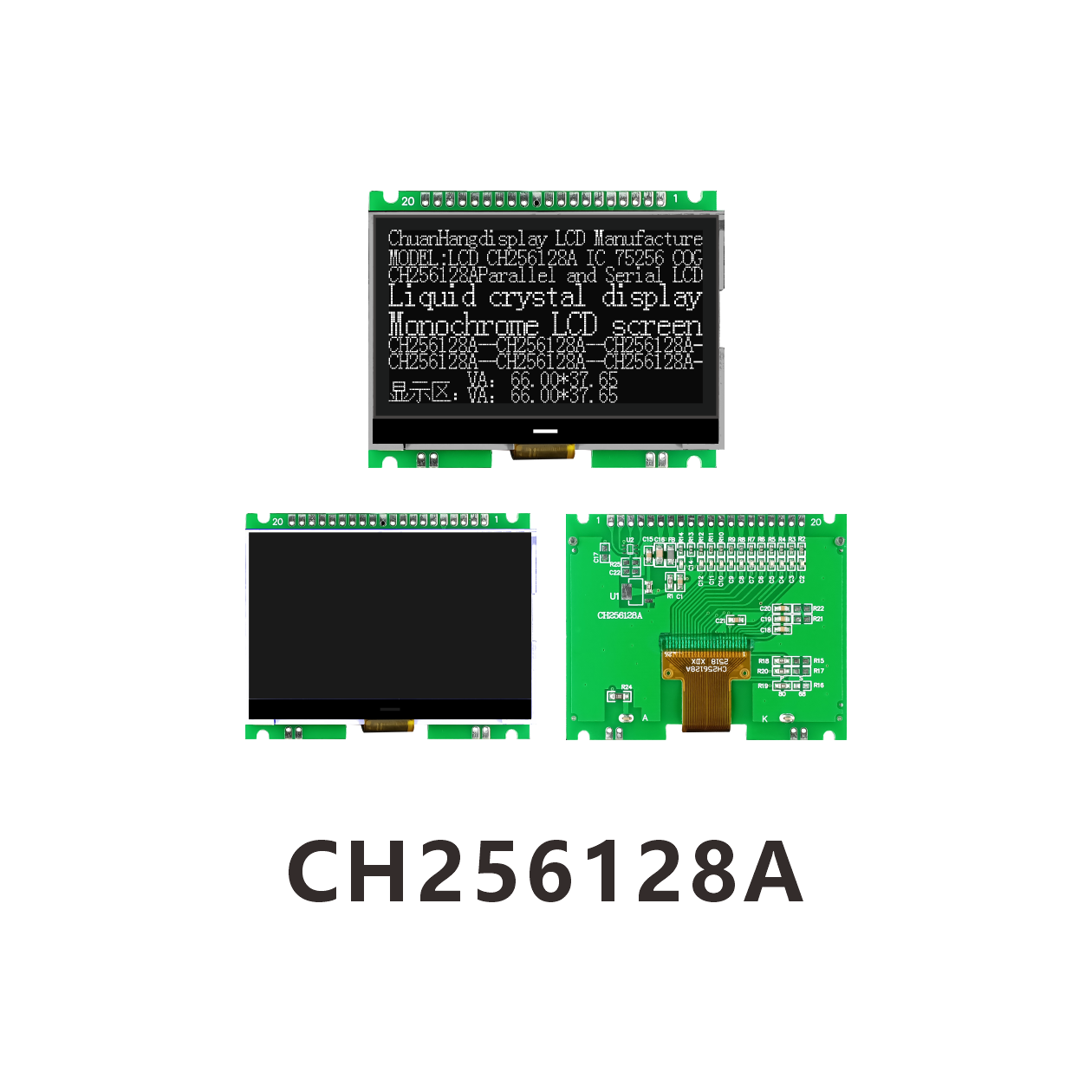

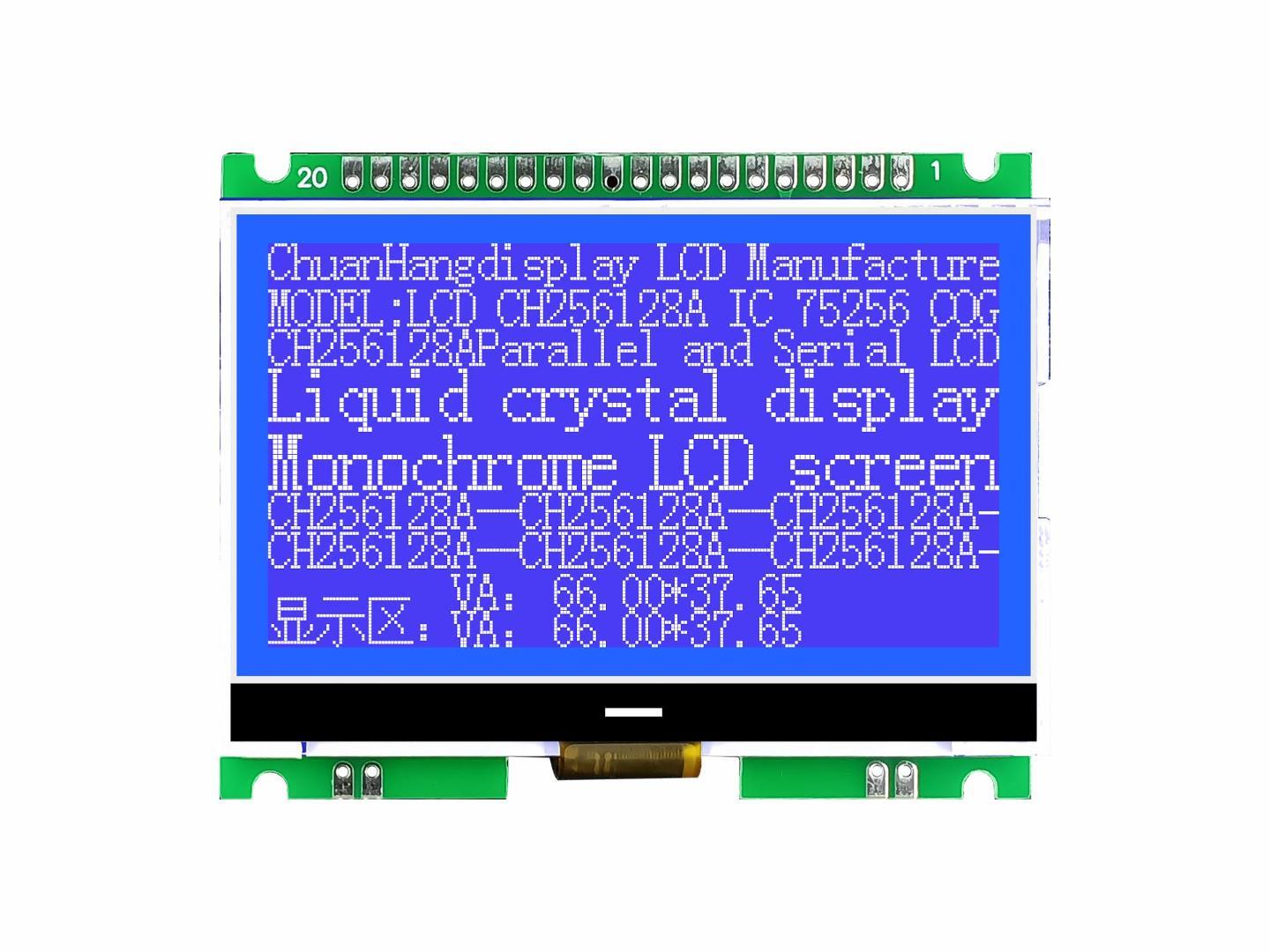

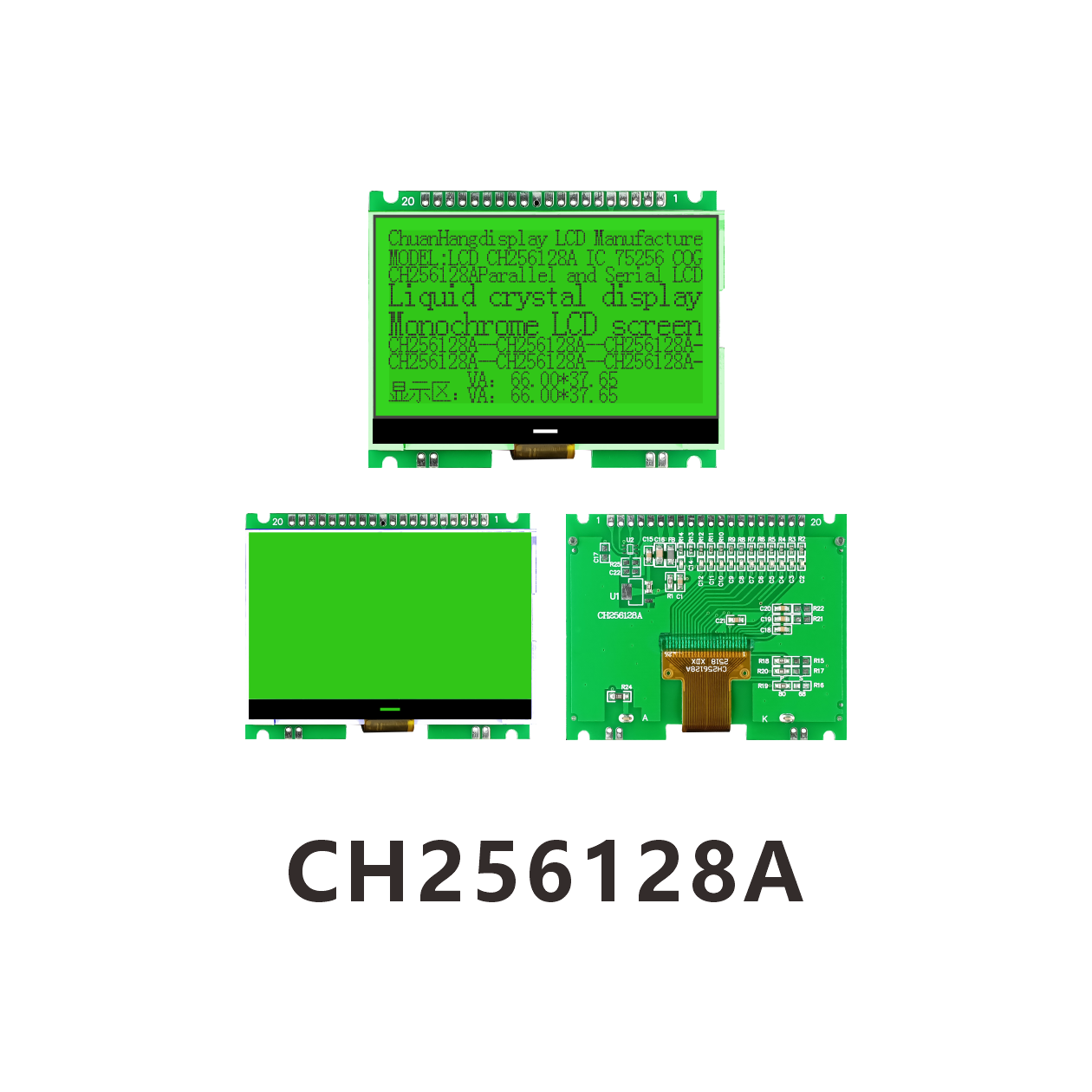

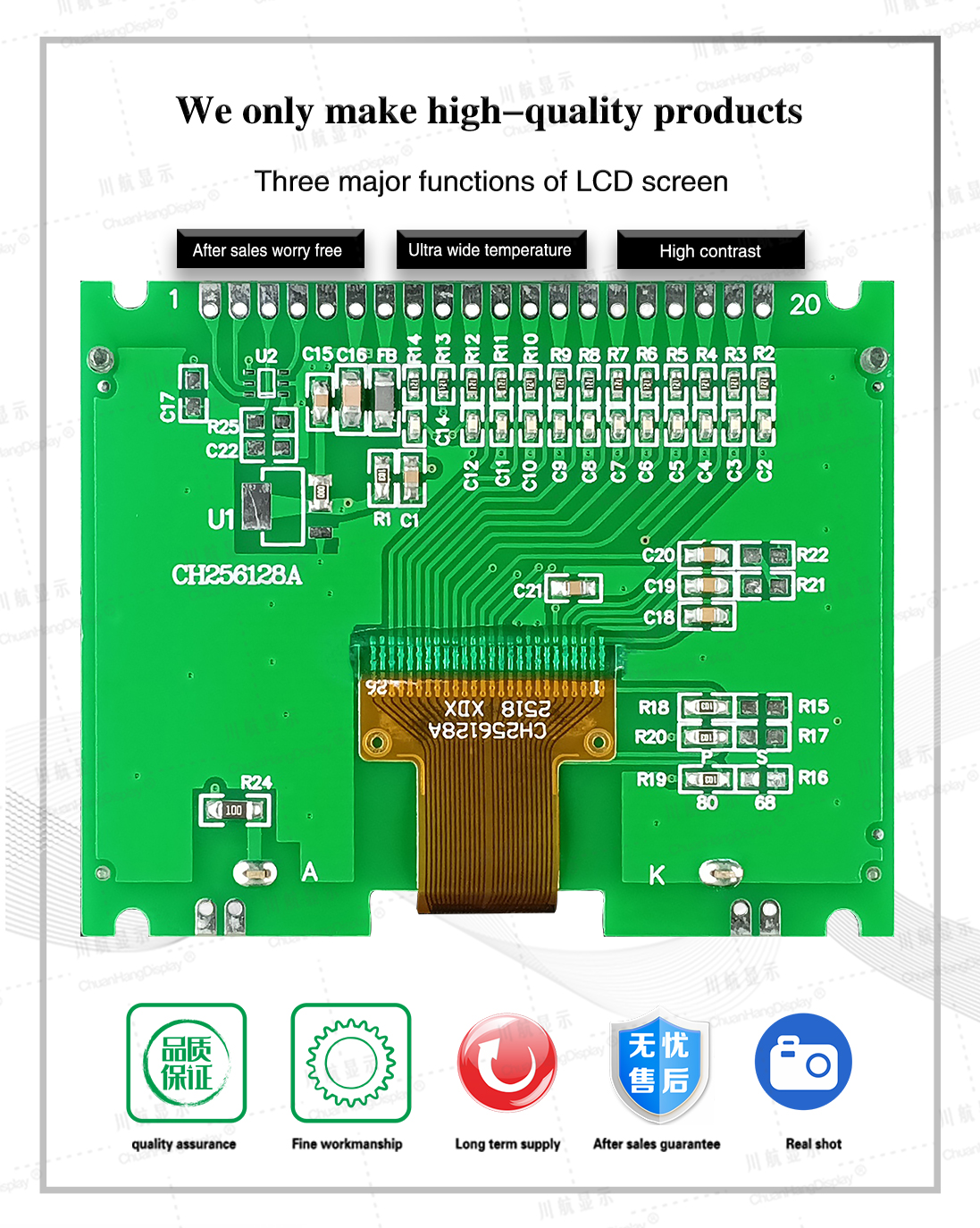

Product Display
