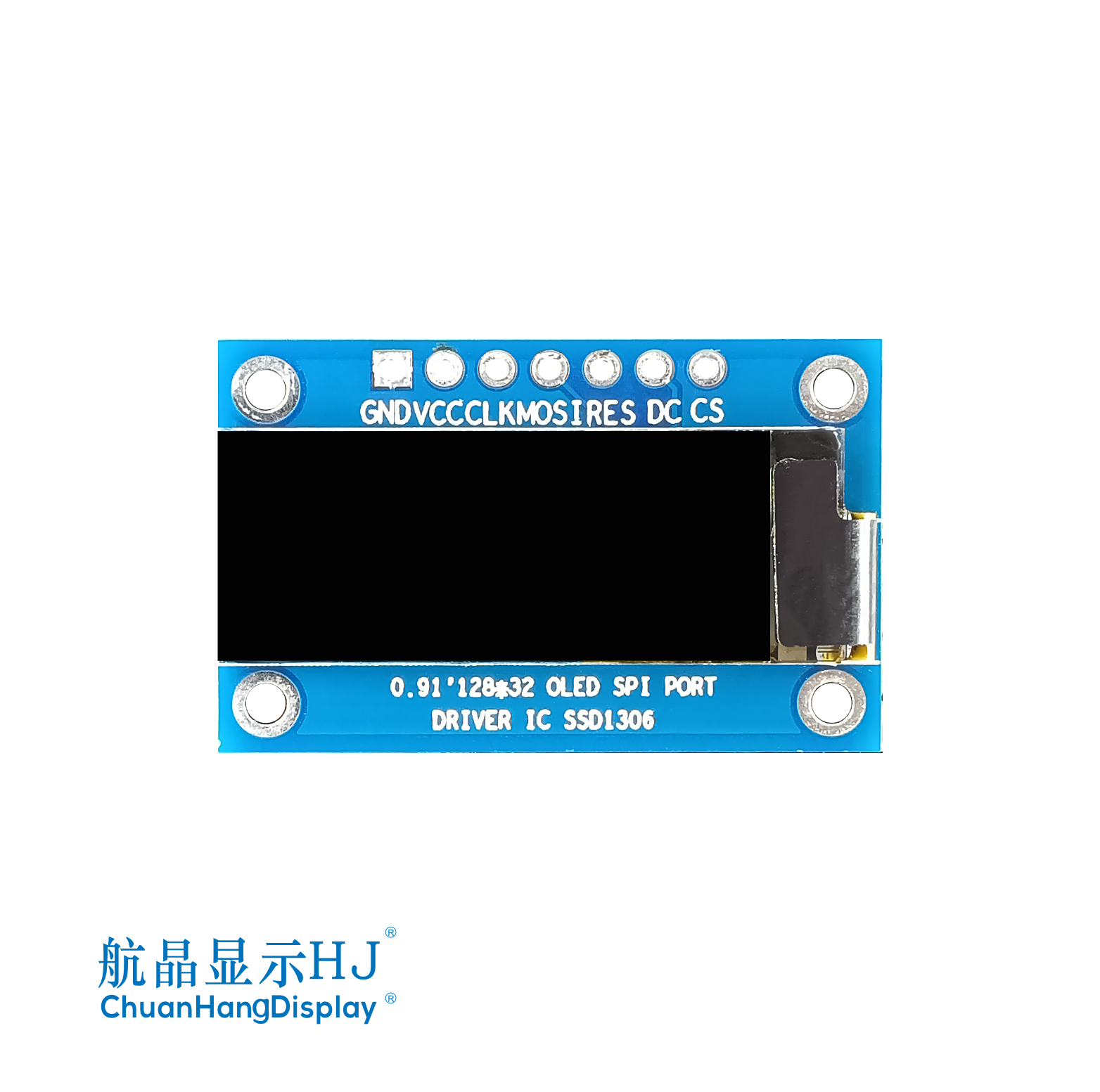

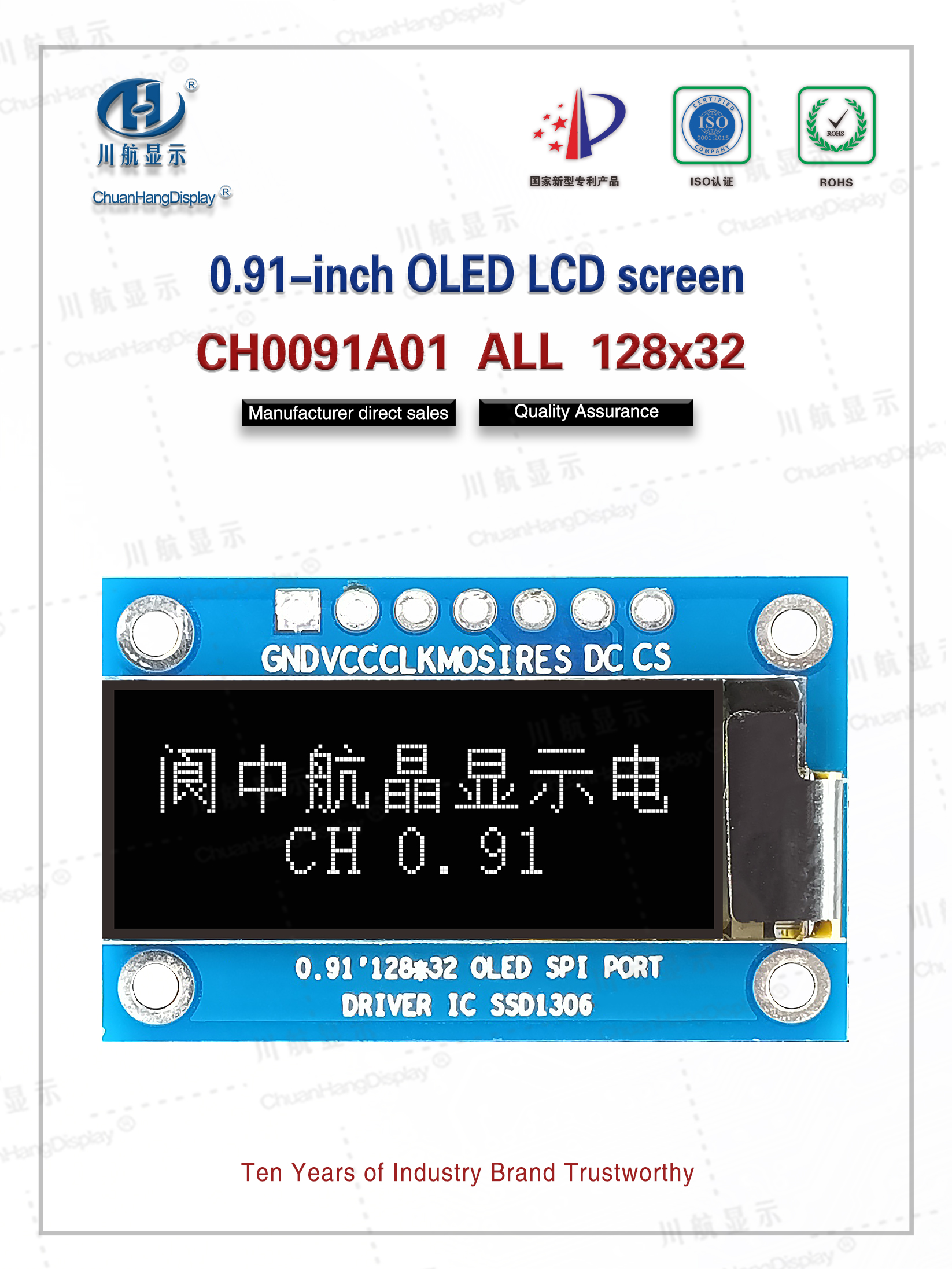

0.91 inch OLED Module

Product Description
Product size: 0.91 inches OLED
Resolution: 128xRGBx32
Viewing direction:IPS full perspective
Driver chip: SSD1306
Interface type:SPI
Module size:32.5x20.5x2.55mmmm
Display area:22.38x5.58mm
Cable interface: 7 PIN
Operating voltage: 3.3V
Operating temperature: -30℃-80℃
Display color: OLED
PDF Download Demo code
Video Presentation
Product Parameters
Product Brand ChuanHangDisplay Product Model CH0091A01
Resolution 128xRGBx32 Screen size 0.91”

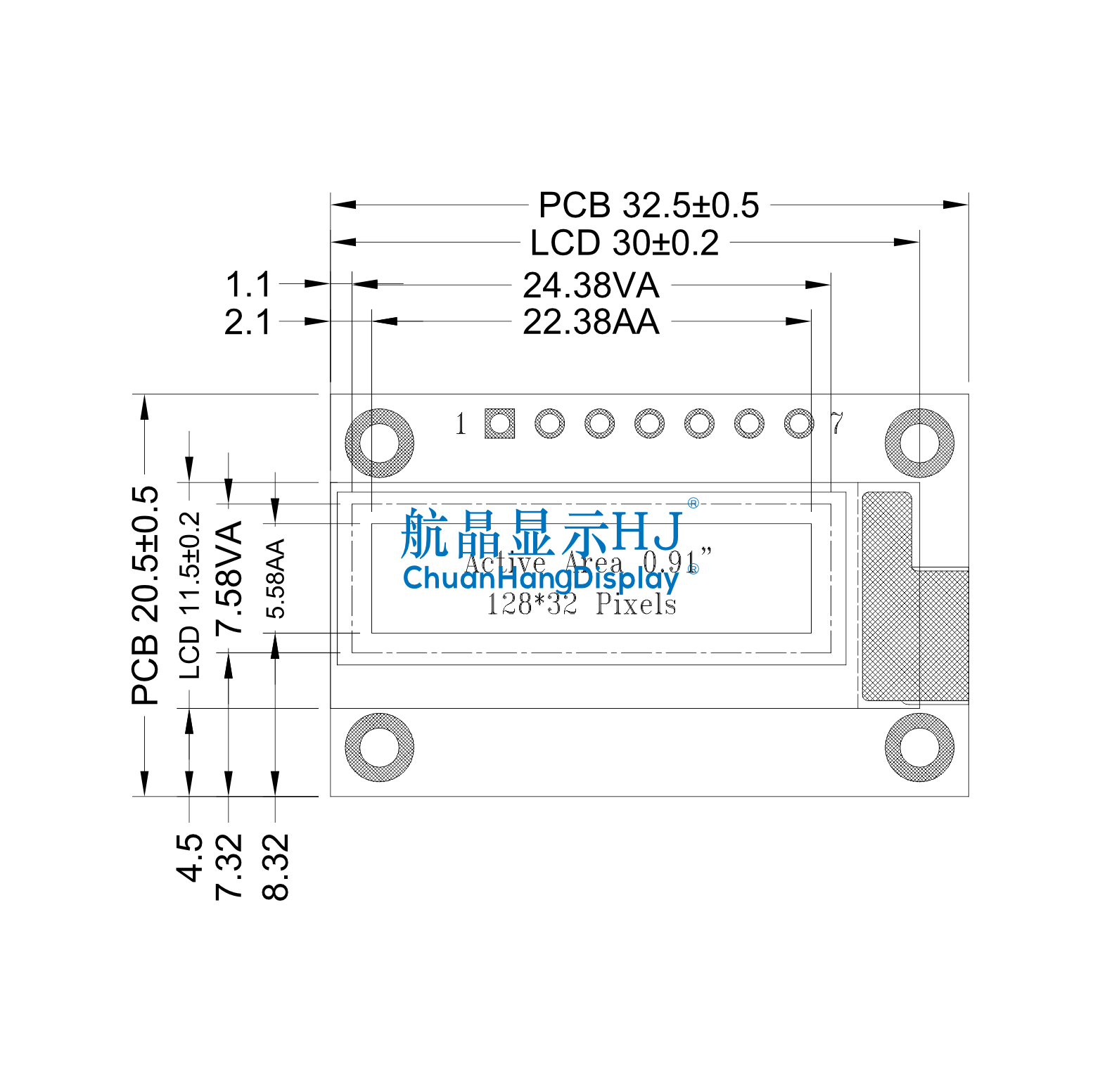

Outline Dimension(L*W*H) 32.5x20.5x2.55mm Visible Area(L*W) 24.38x7.58mm
Active Area(L*W) 22.38x5.58mm Type COG
Connection Method FPC Operating voltage 3.3V
Communication interface SPI Viewing Direction IPS full perspective
Interface Type 7PIN Display color OLED
Driver IC SSD1306 Operating temperature -30℃~80℃
Production capacity Self-produced Whether to bring PCB YES

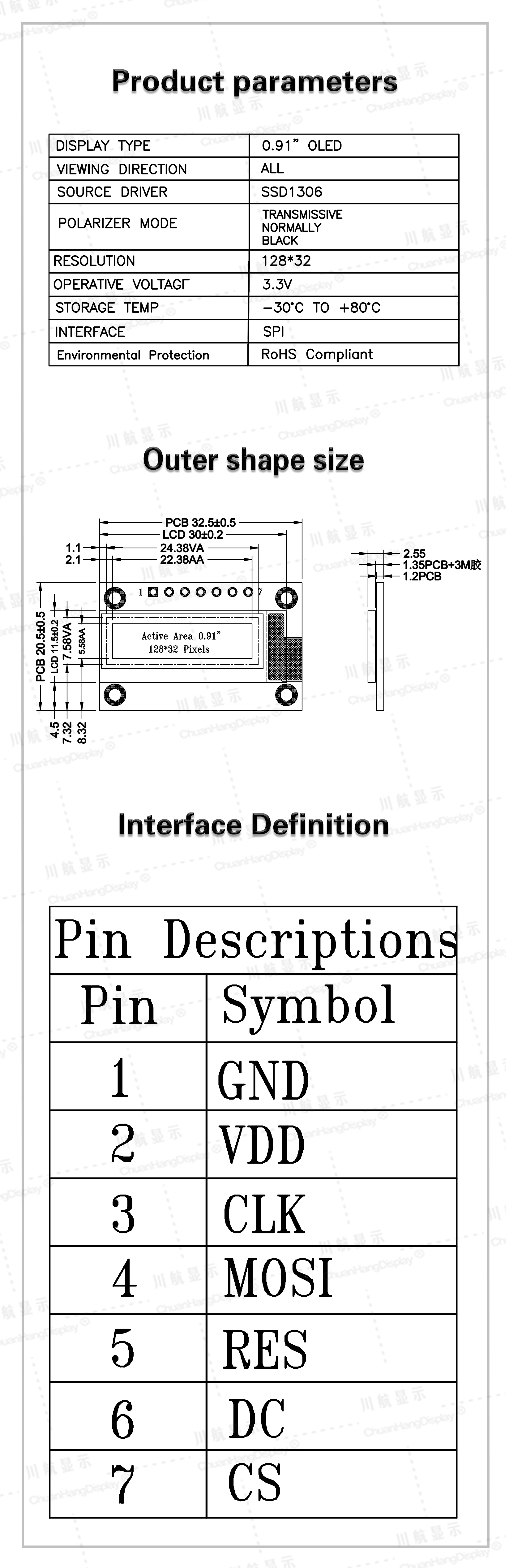

Product Datasheet

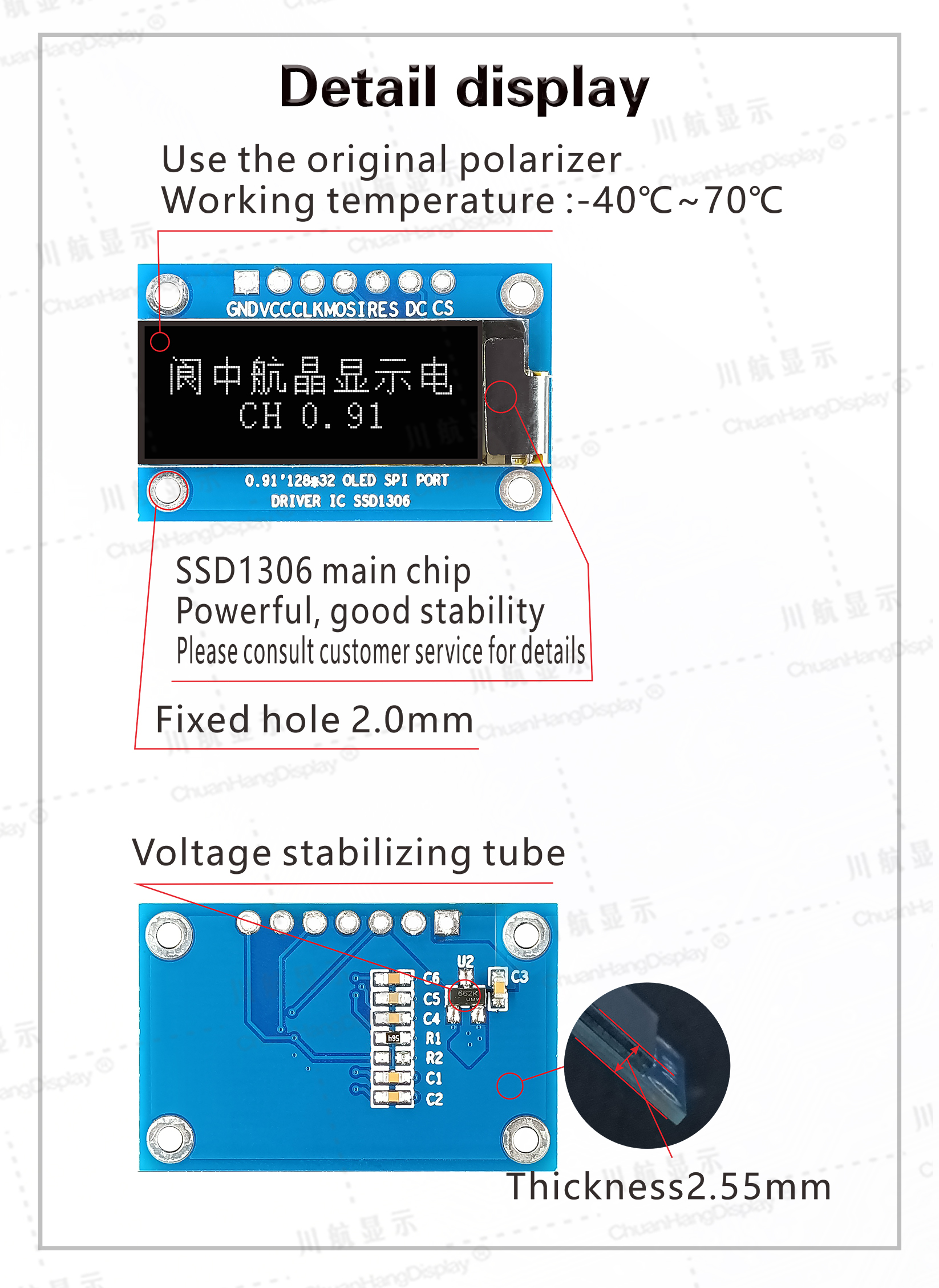

Product Display

There is nothing left. Previous：

There is nothing left.

Next：

2.4 inch 240xRGBx320 TFT

Product Label: 0.91 inch OLED Module 128*32 oled display screen 7 pin holes SPI white blue 128*32 oled 128x32 SSD1306 driver
