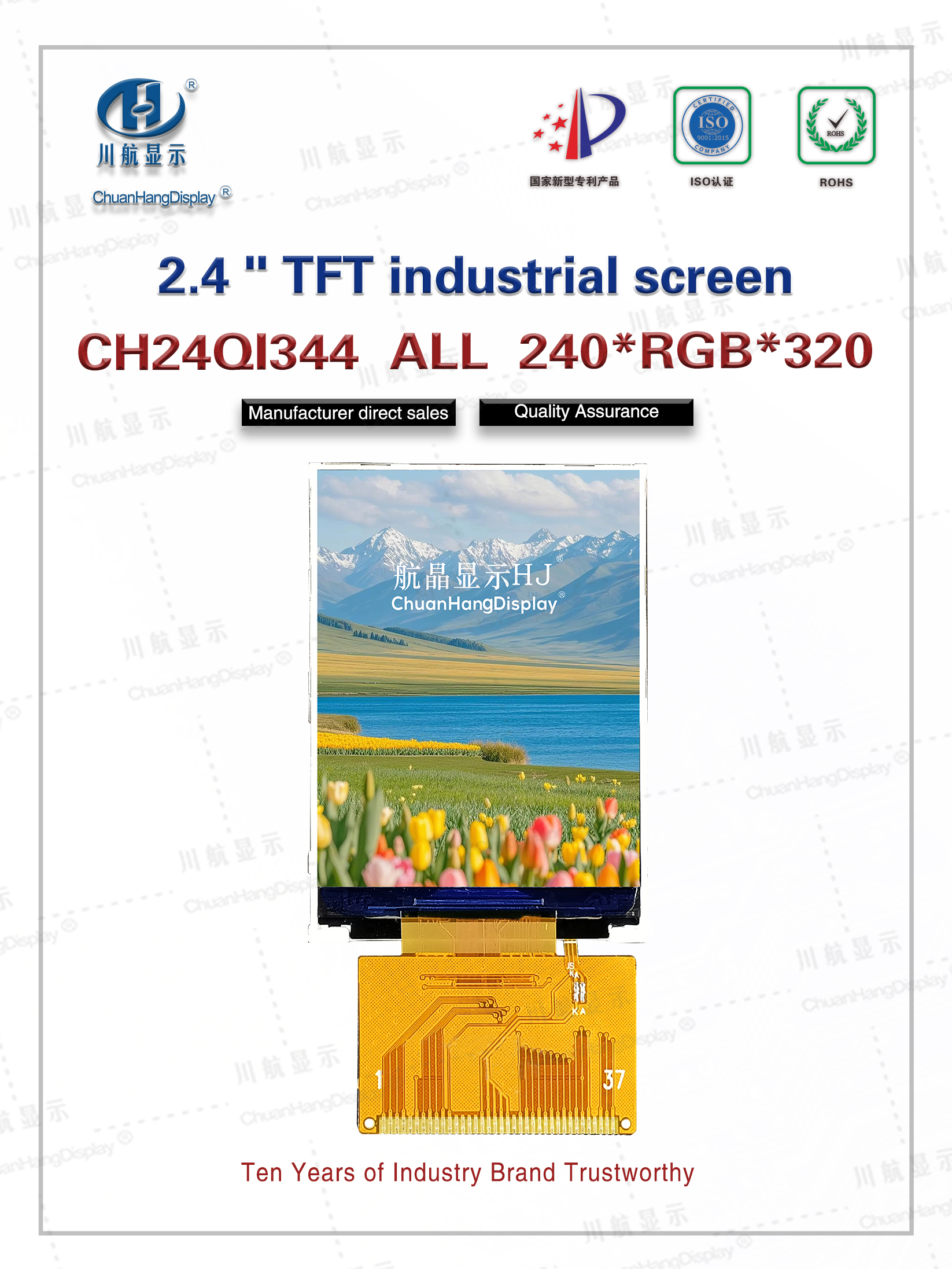

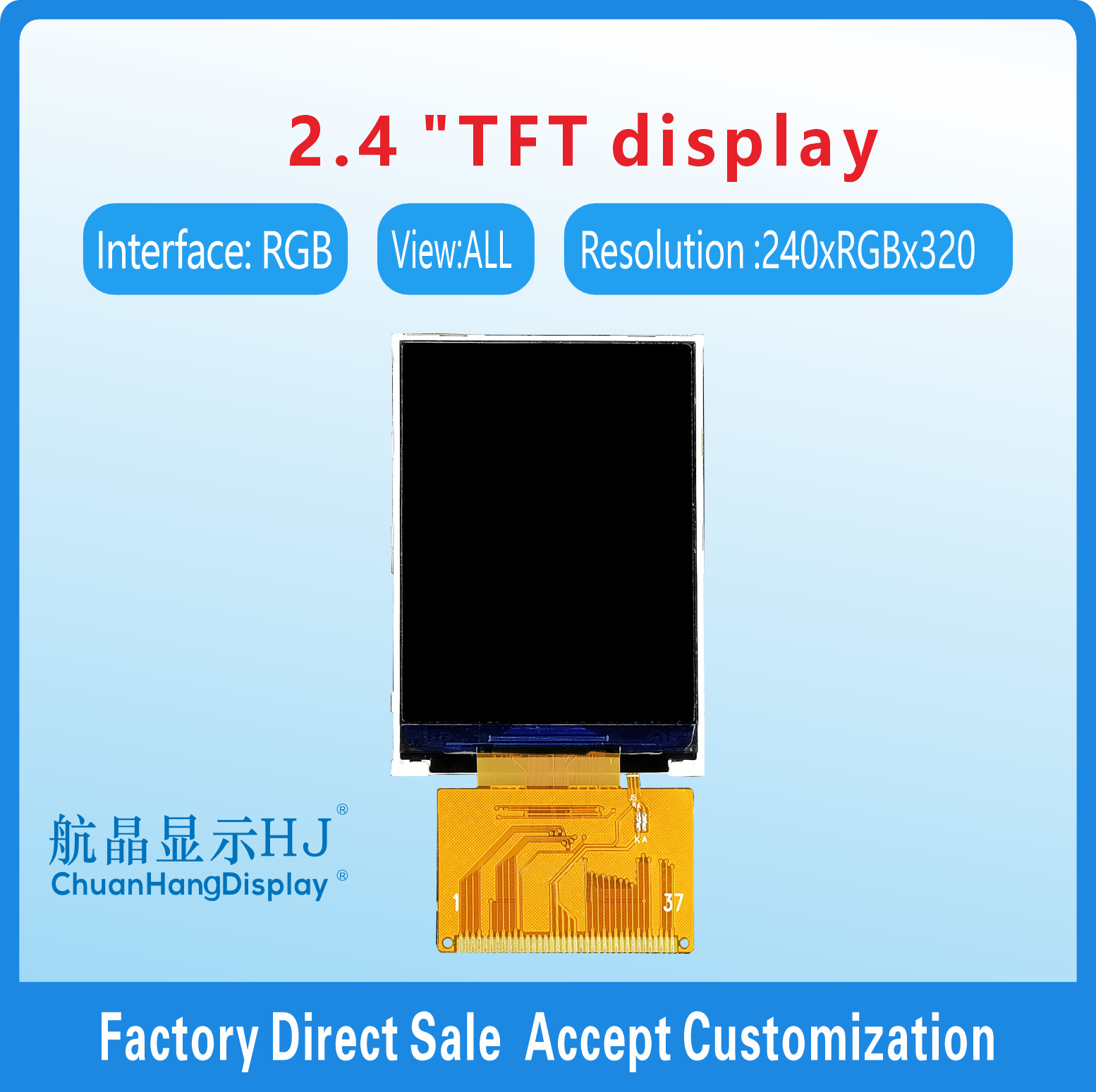

2.4 inch 240xRGBx320 TFT

Product Description

Product size: 2.4 inches
Resolution: 240xRGBx320
Viewing angle:12 o'clock
Interface type:RGB

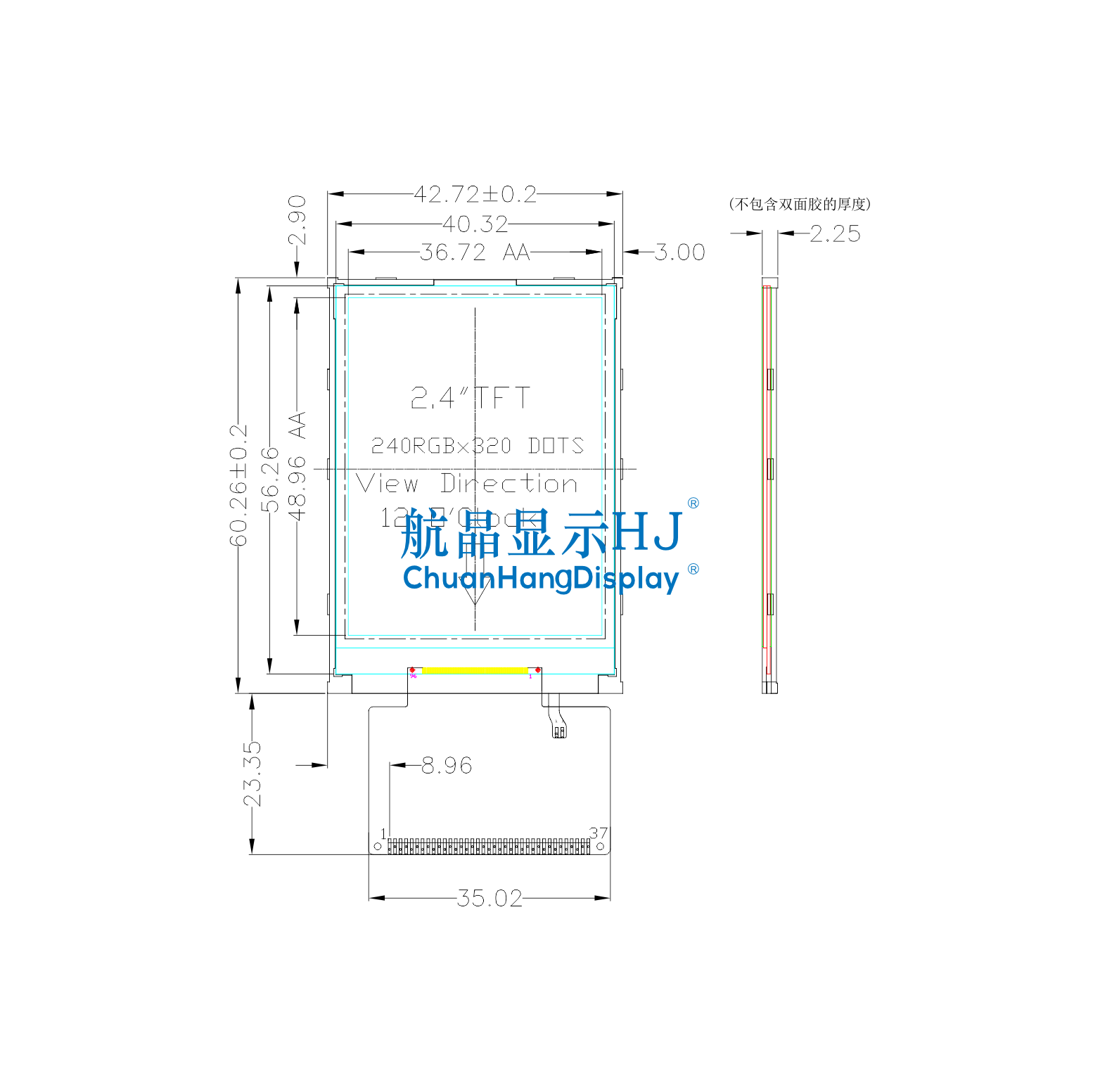

Module size: 42.72X60.26X2.25mm
Active area: 36.72X48.96mm
Cable interface: 37 PIN
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT

PDF Download Demo code

Video Presentation

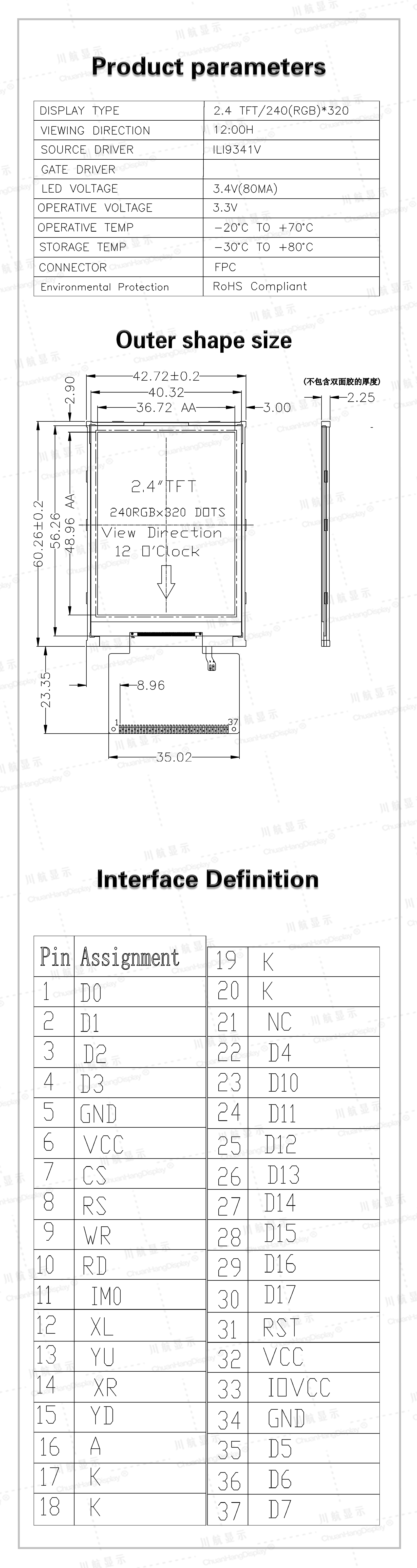

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH24QI344
Resolution	240xRGBx320	screen size	2.4"
Outline Dimension(LWH)	42.72X60.26X2.25mm	Visible Area(L*W)
Active Area(L*W)	36.72X48.96mm	Type	COG
Connection Method	FPC	Operating Voltage	3.3V
Interface Type	37PIN	Viewing Direction	12 o'clock
Communication interface	RGB	Display Color	TFT
Driver IC	ILI9341V	Operating Temperature	-20℃~+70℃
Storage Temperature	-30℃~+80℃	Backlight parameters
production capacity	Self-produced	Whether to bring PCB	NO

Product Datasheet

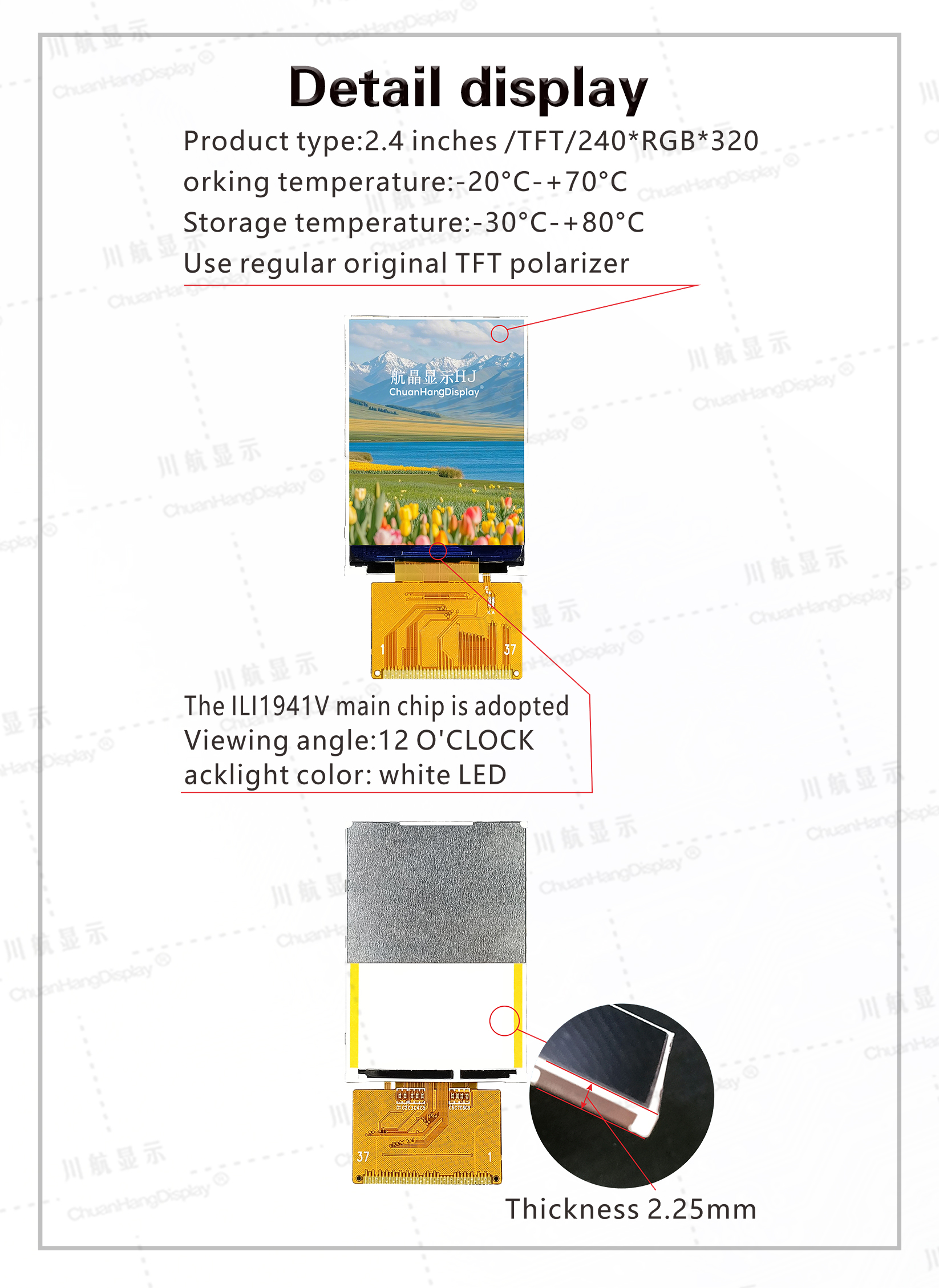

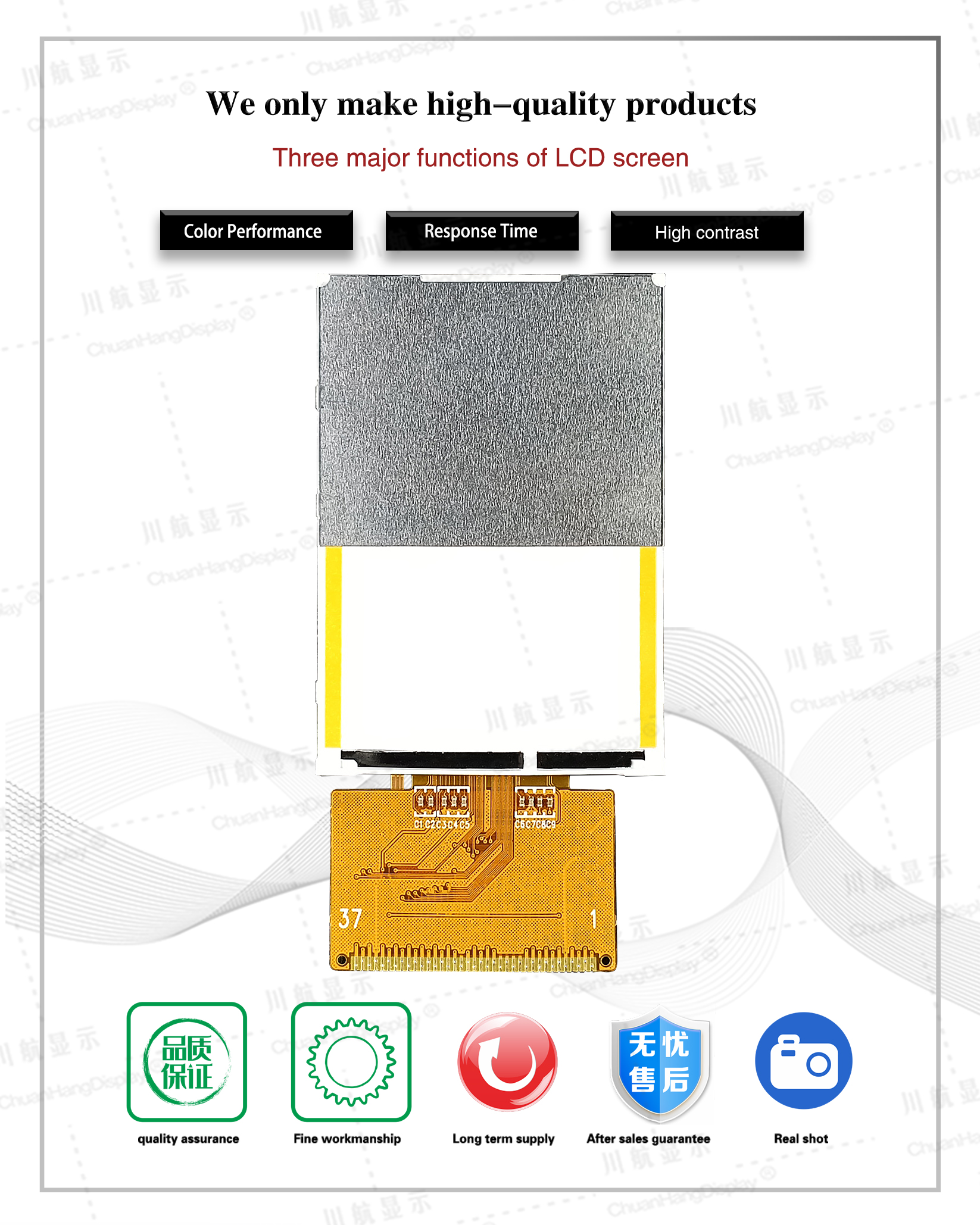

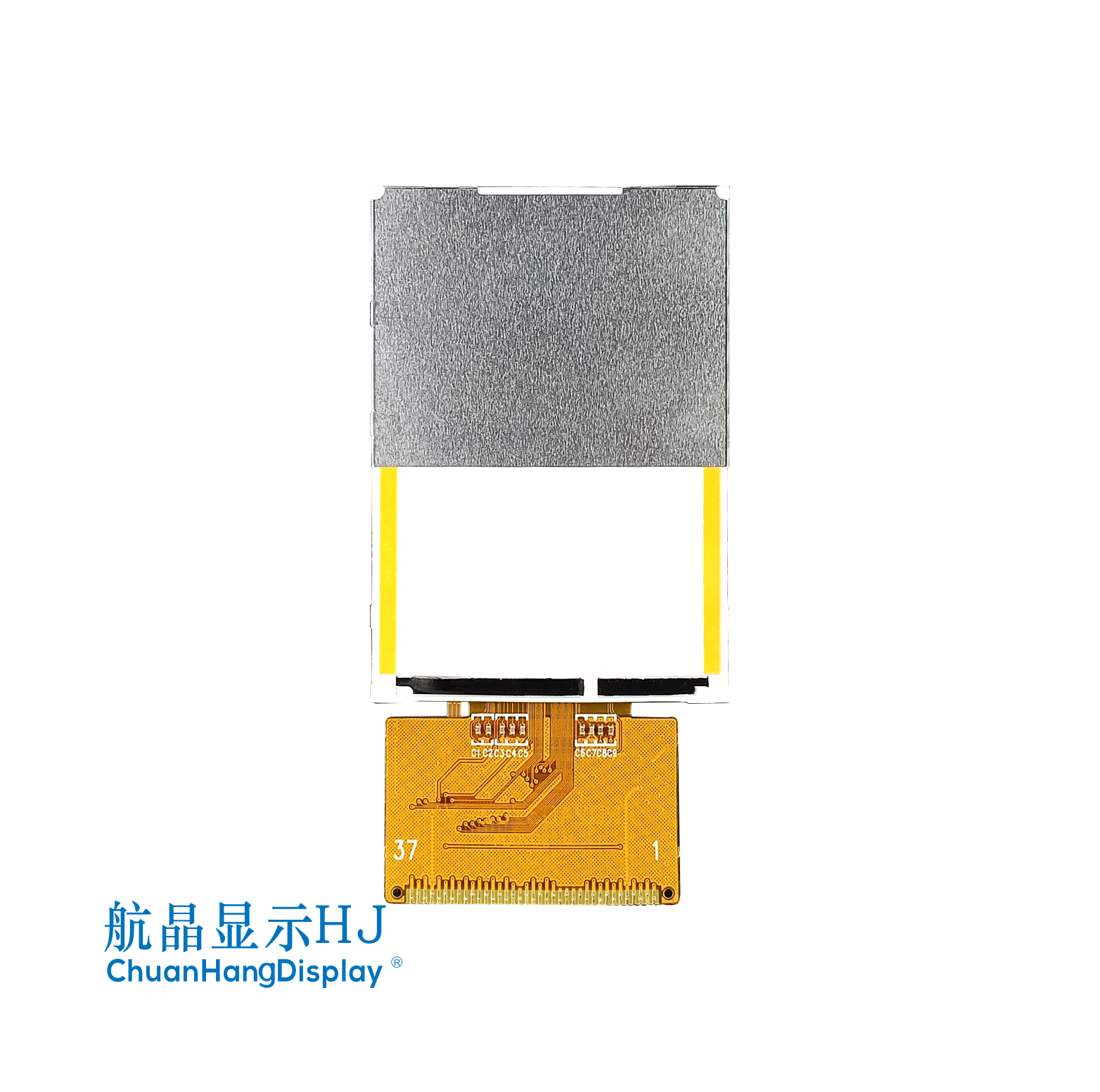

Product Display
