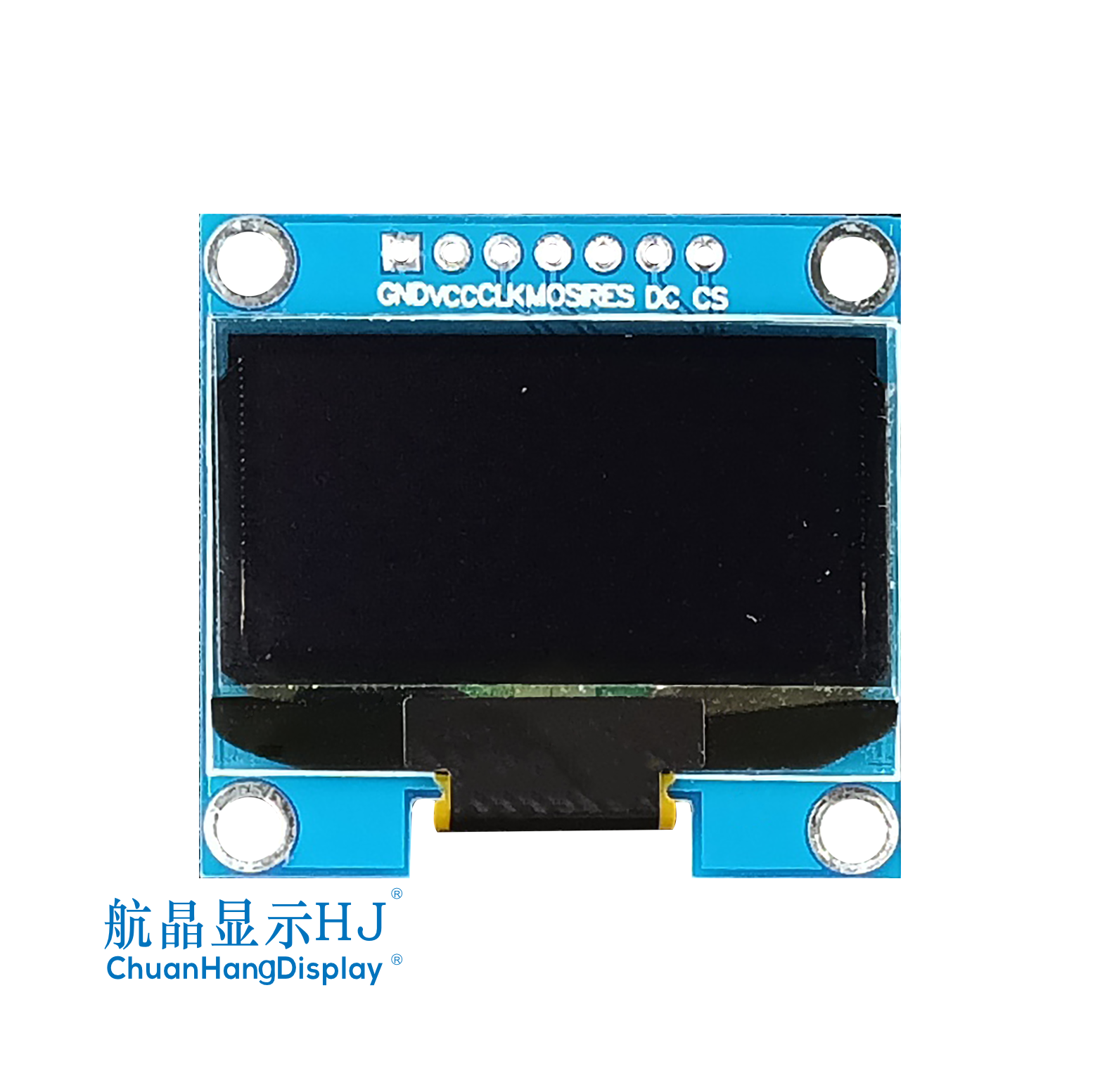

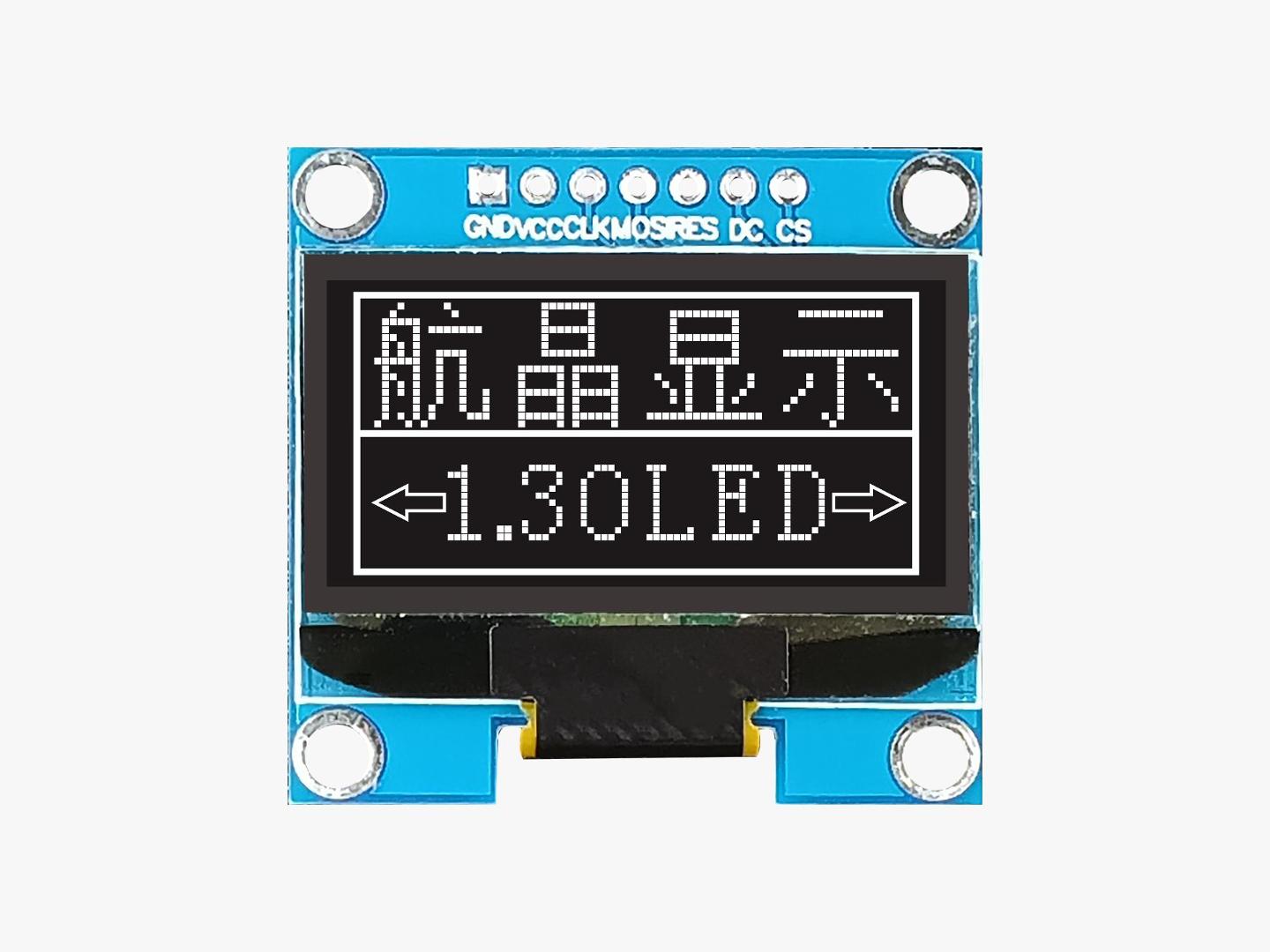

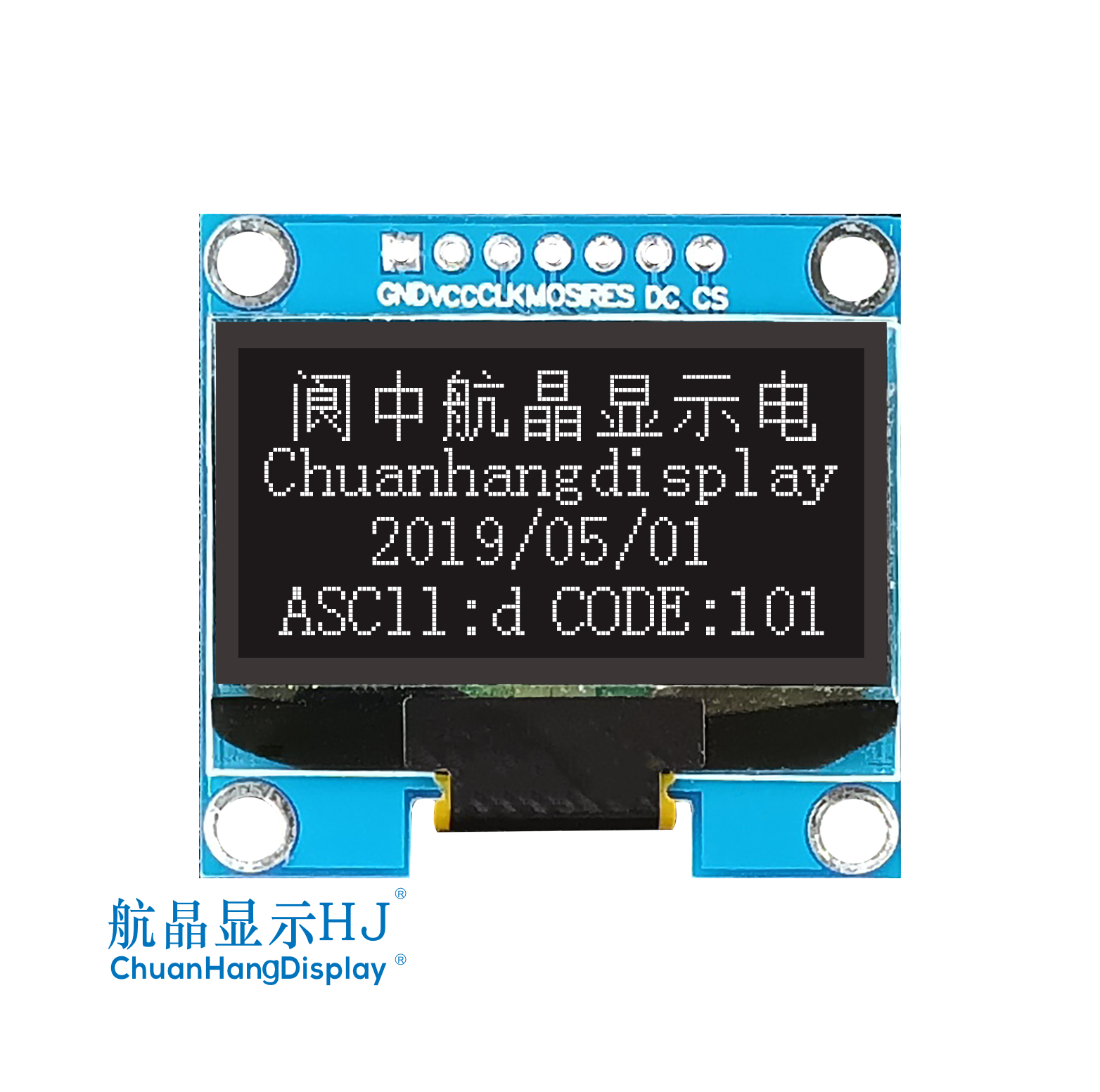

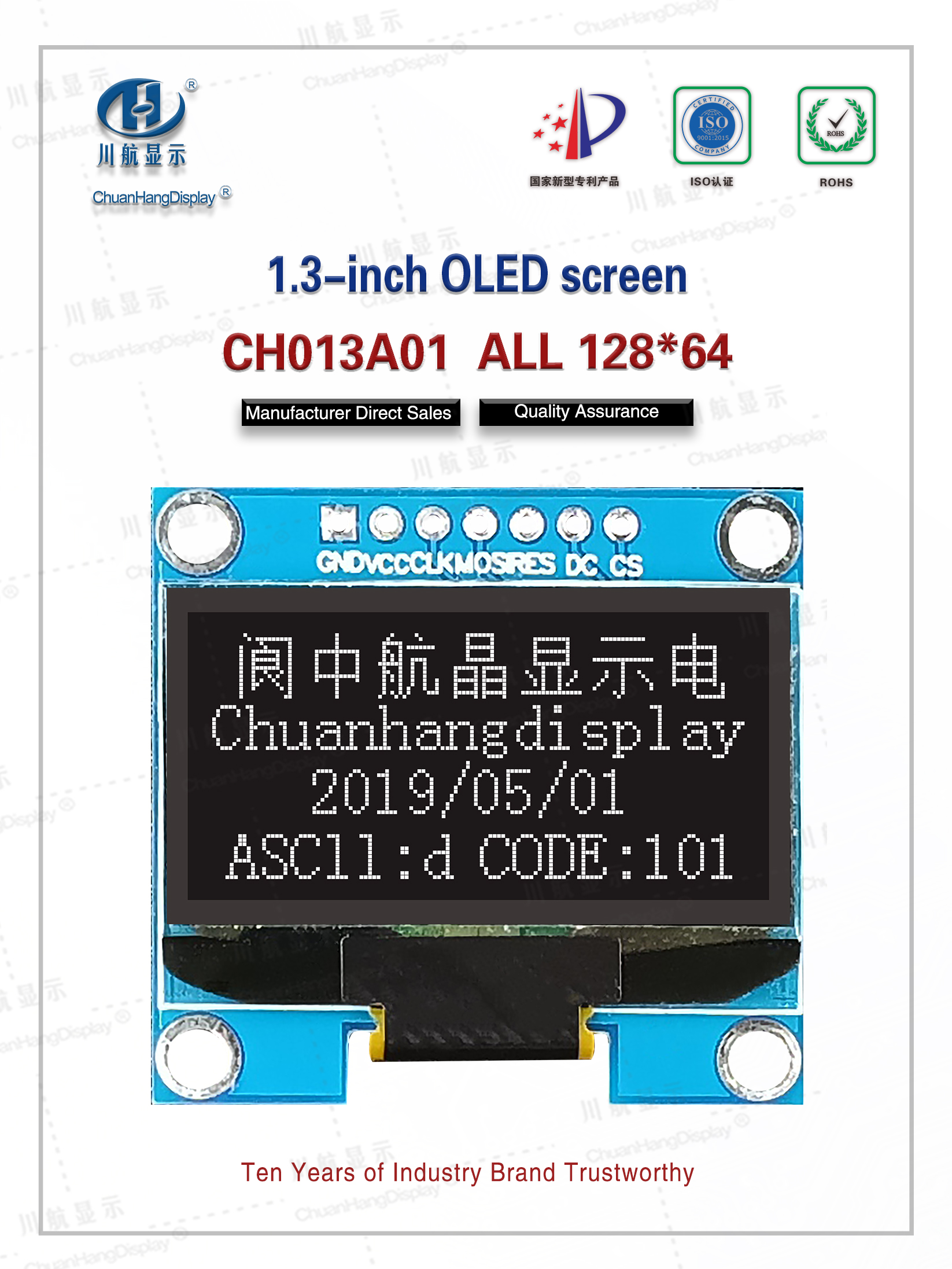

1.3 Inch OLED Display

Product Description

Product size: 1.3 inches OLED
Resolution: 128xRGBx64
Viewing direction:IPS full perspective
Driver chip: SH1106
Interface type:SPI/IIC

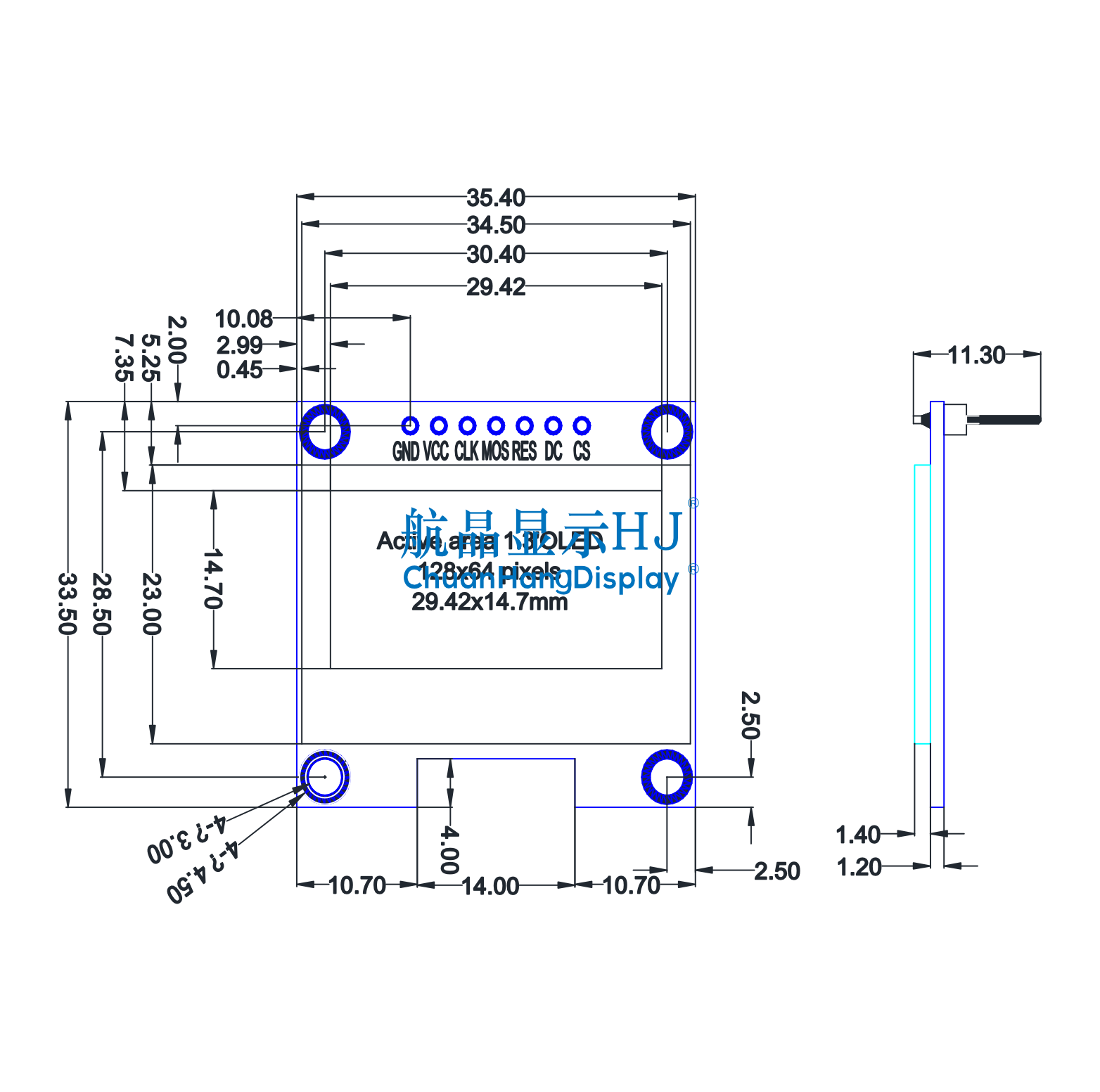

Module size:35.40x33.50x2.60mm
Display area: 29.42x14.70mm
Cable interface: 7 PIN
Operating voltage: 3.3V
Operating temperature: -40℃-70℃
Display color: OLED

PDF Download Demo code

Video Presentation

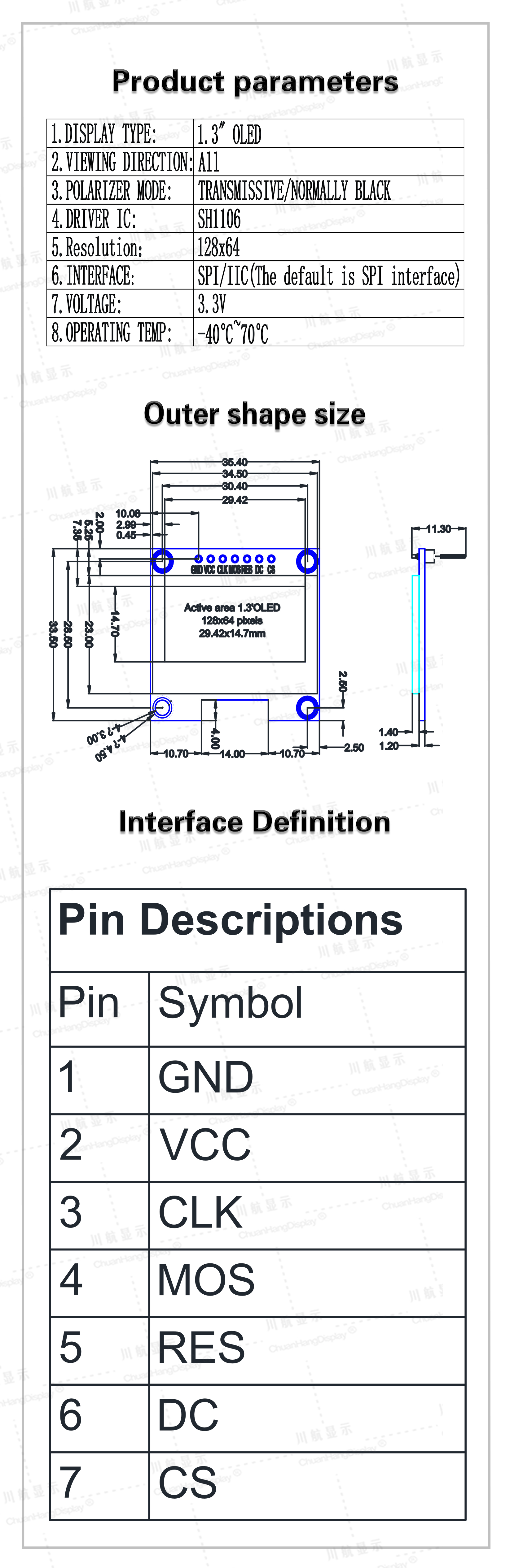

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH013A01
Resolution	128xRGBx64	Screen size	1.3”
Outline Dimension(LWH)	35.40x33.50x2.60mm	Visible Area(L*W)	30.40X23.00
Active Area(L*W)	29.42x14.70mm	Type	COG
Connection Method	FPC	Operating voltage	3.3V
Communication interface	SPI/IIC	Viewing Direction	IPS full perspective
Interface Type	7PIN	Display color	OLED
Driver IC	SH1106	Operating temperature	-40℃~70℃
Production capacity	Self-produced	Whether to bring PCB	YES
