PRODUCTS CENTER

OEM 10.1 Inch

Product Description
Product size: 10.1 inches
Resolution: 1024xRGBx600
Viewing angle:6 o'clock
Interface type:RGB
Module size: 235.00X143.00X3.50mm
Active area: 222.72X125.28mm
Cable interface: 50 PIN
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT
PDF Download Demo code
Video Presentation
Product Parameters
Product Brand ChuanHangDisplay Product Model 10.1” CH101A-P-B01
Resolution 1024xRGBx60 screen size 10.1"

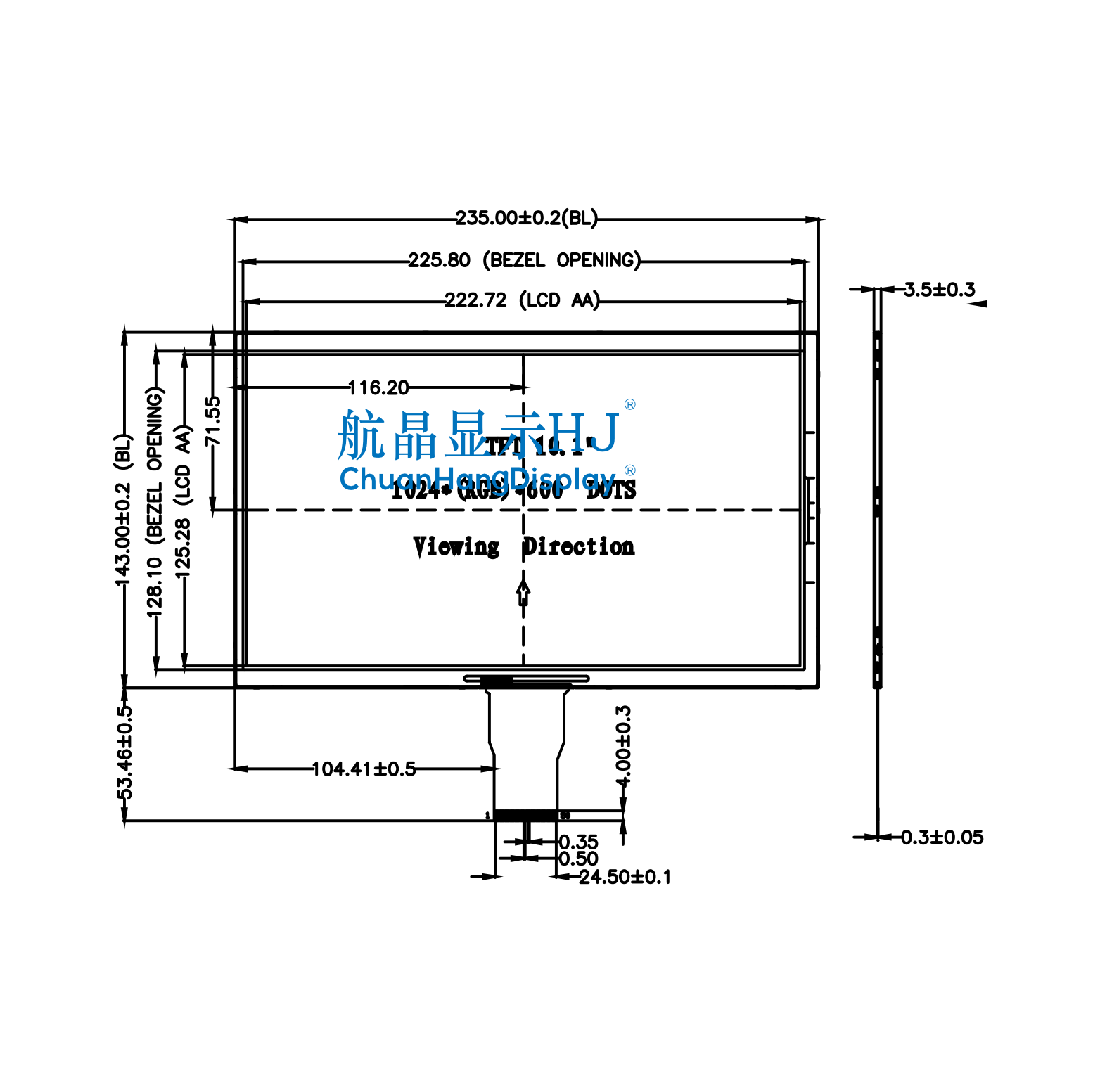

Outline Dimension(L*W*H) 235.00X143.00X3.50mm Visible Area(L*W)
Active Area(L*W) 222.72X125.28mm Type COG
Connection Method FPC Operating Voltage 3.3V
Interface Type 50PIN Viewing Direction 6 o'clock
Communication interface RGB Display Color TFT
Driver IC Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃ Backlight parameters
production capacity Self-produced Whether to bring PCB NO

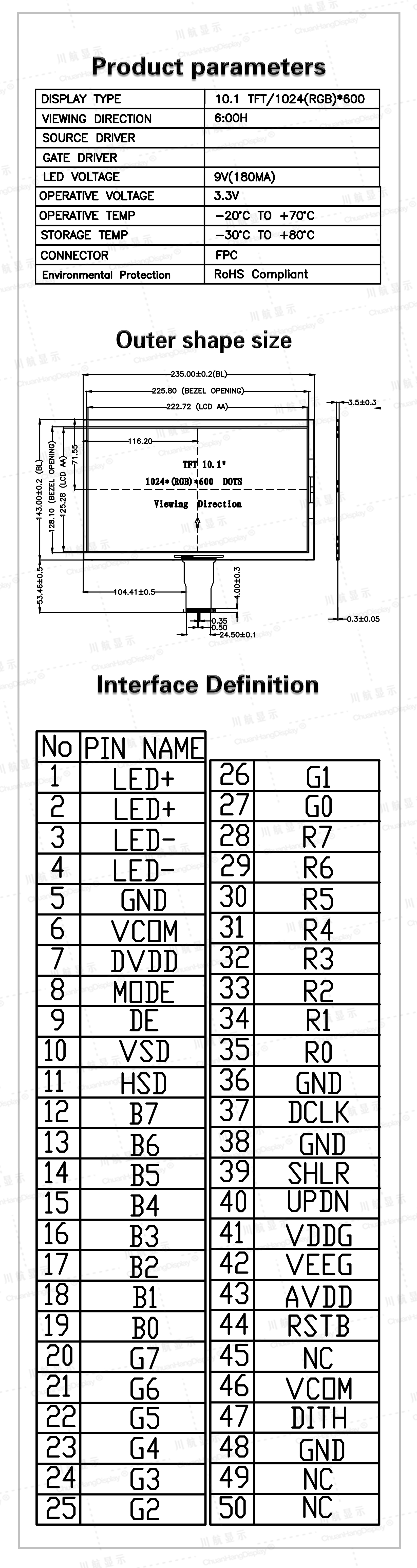

Product Datasheet

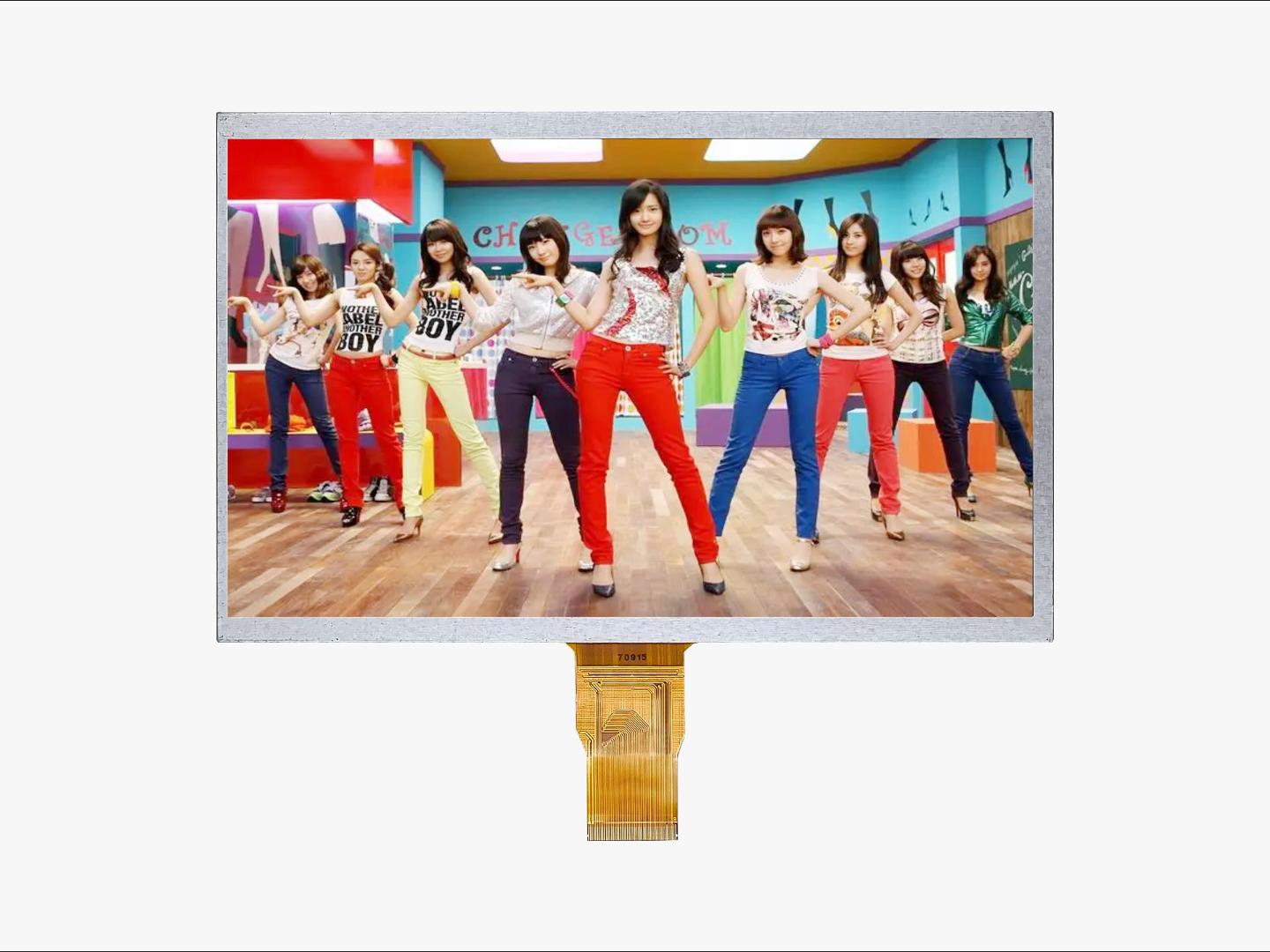

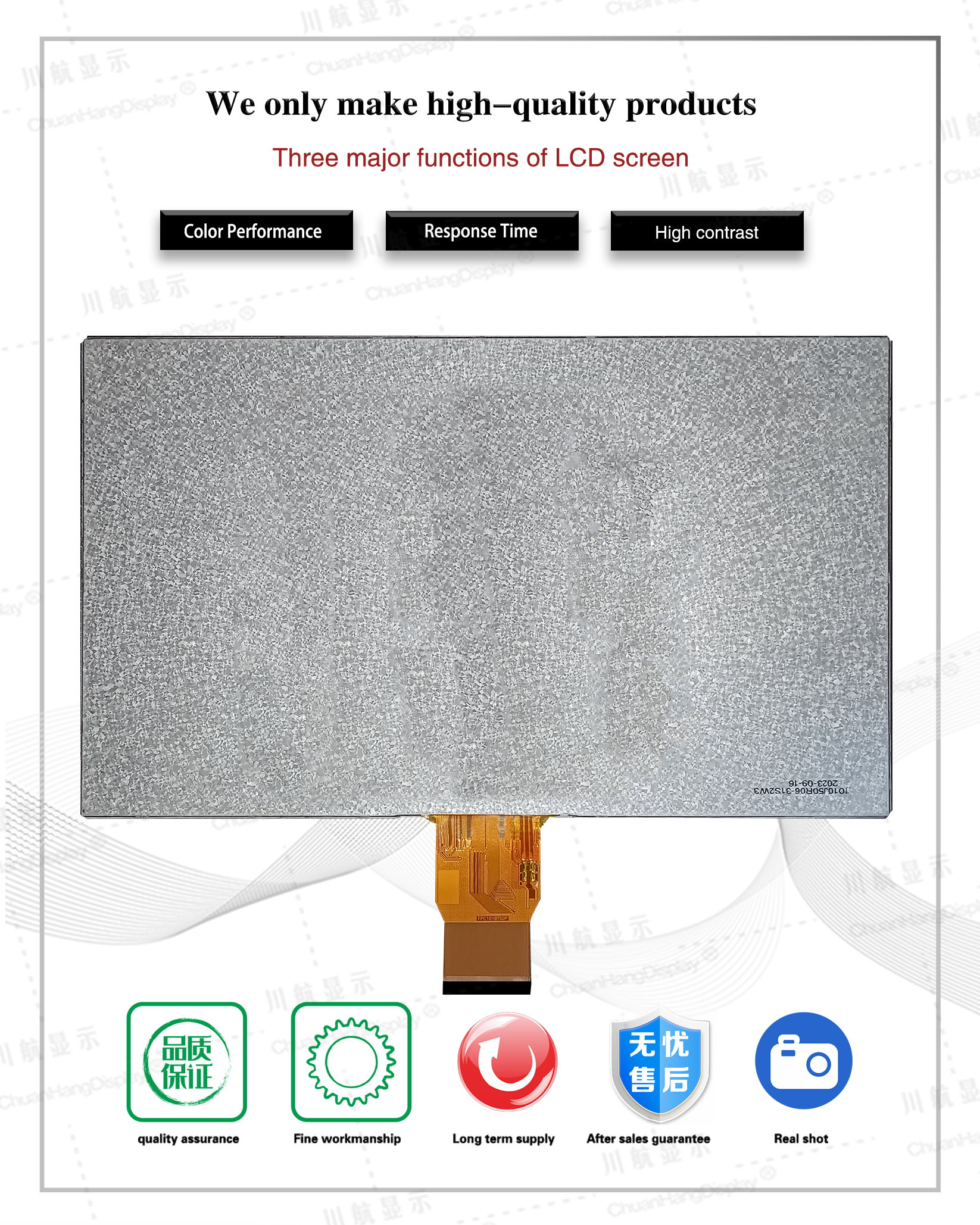

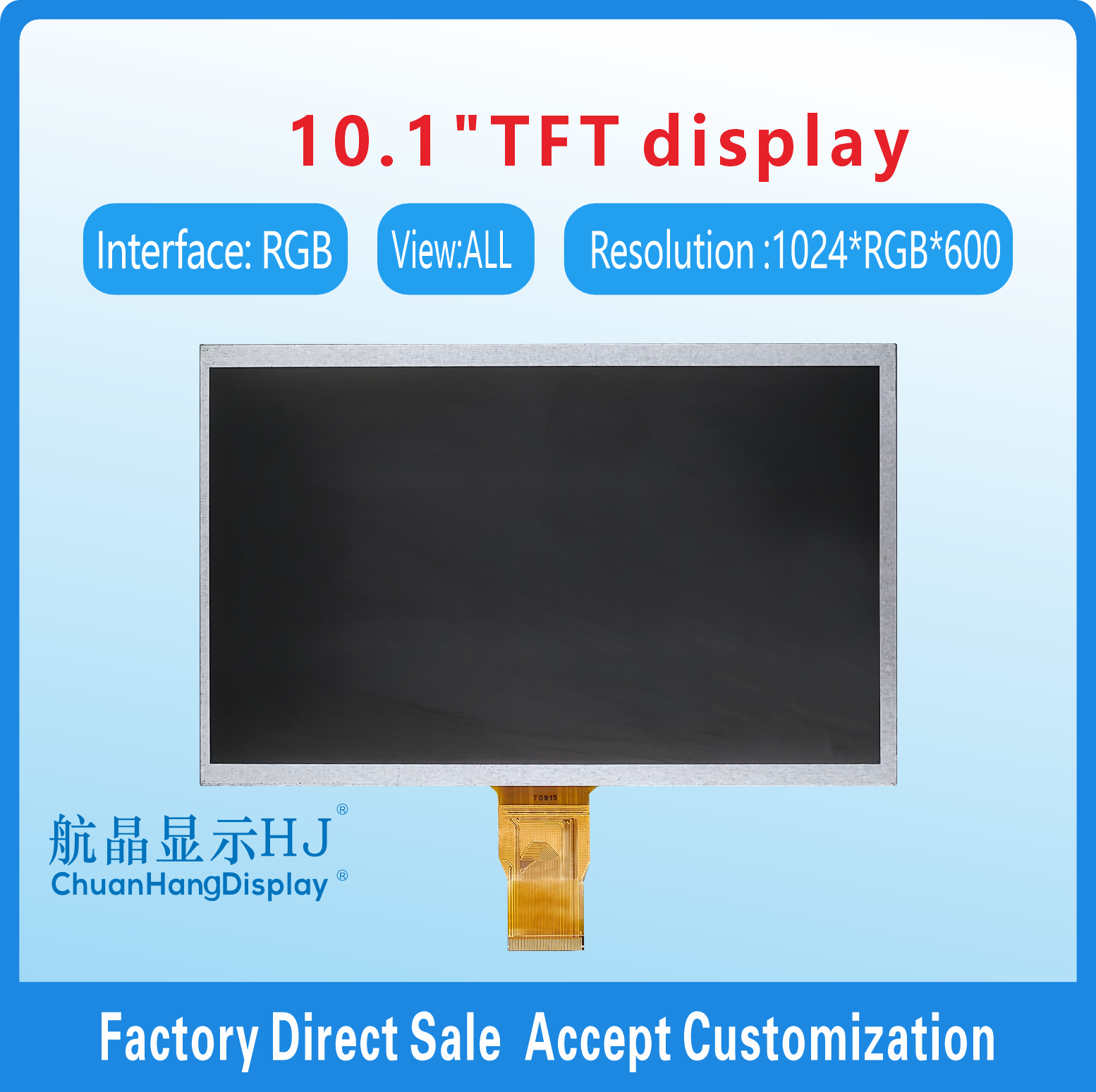

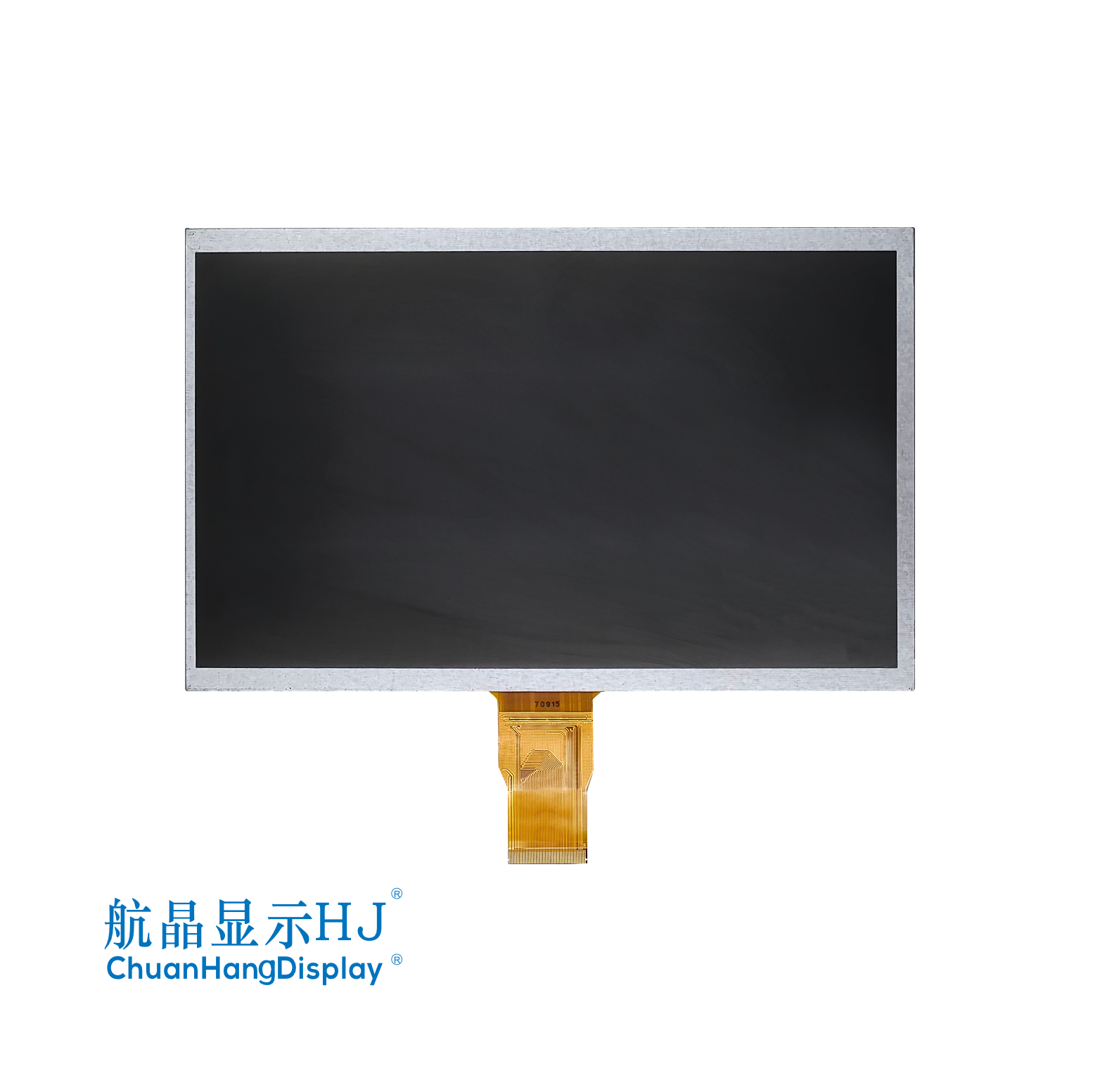

Product Display

Previous：

1.3 Inch OLED Display

Next：

3.2 Inch 240*320 SPI Interface Tft

Product Label: OEM 10.1 Inch 10.1 Inch 1024*600 HD RGB Interface TFT LCD 10.1'' TFT LCD TFT LCD 1024 * 600 Resolution IPS Full View
