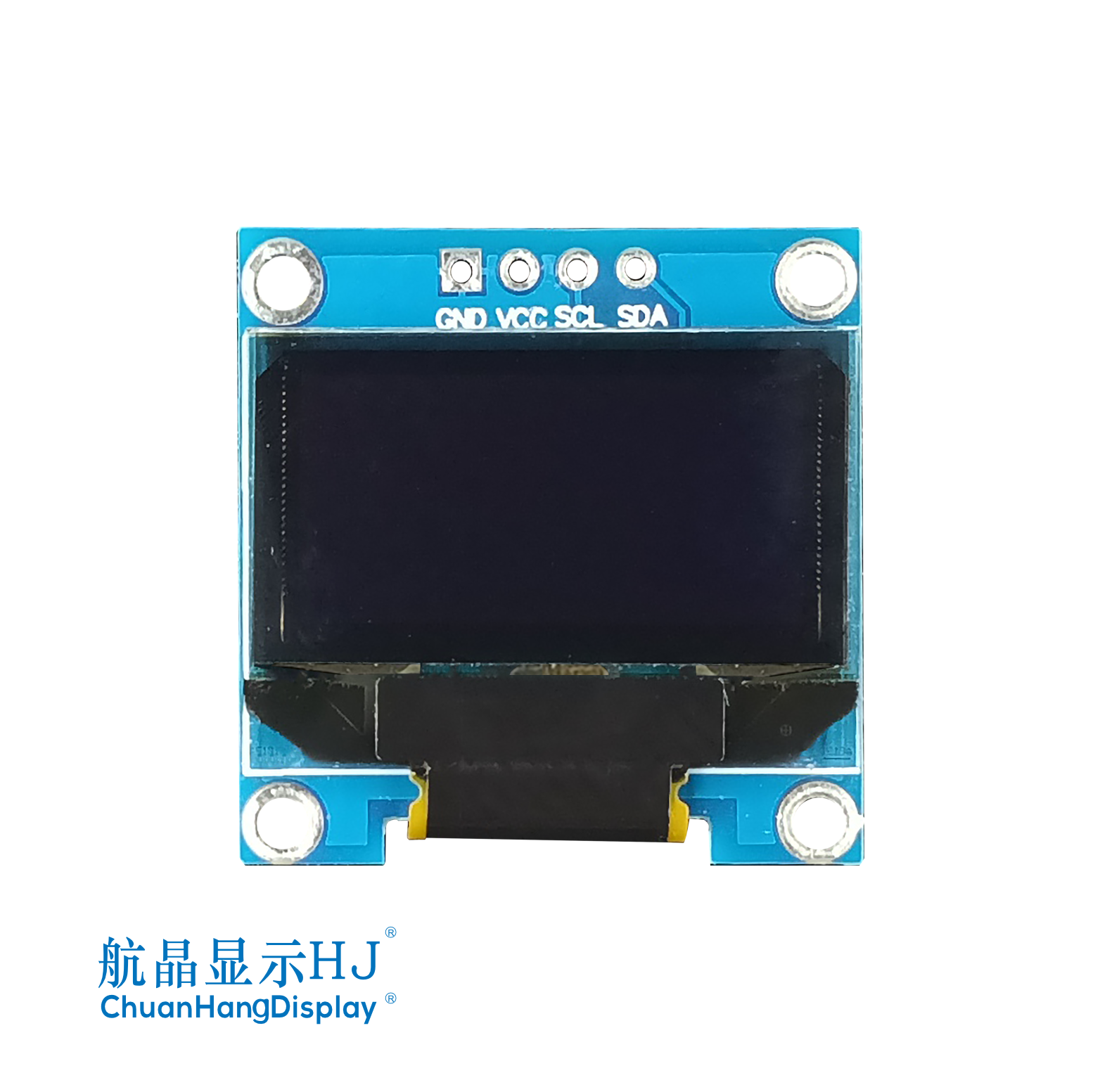

0.96 Inch OLED Display

Product Description

Product size: 0.96 inches OLED
Resolution: 128xRGBx64
Viewing direction:IPS full perspective
Driver chip: SSD1306
Interface type:IIC

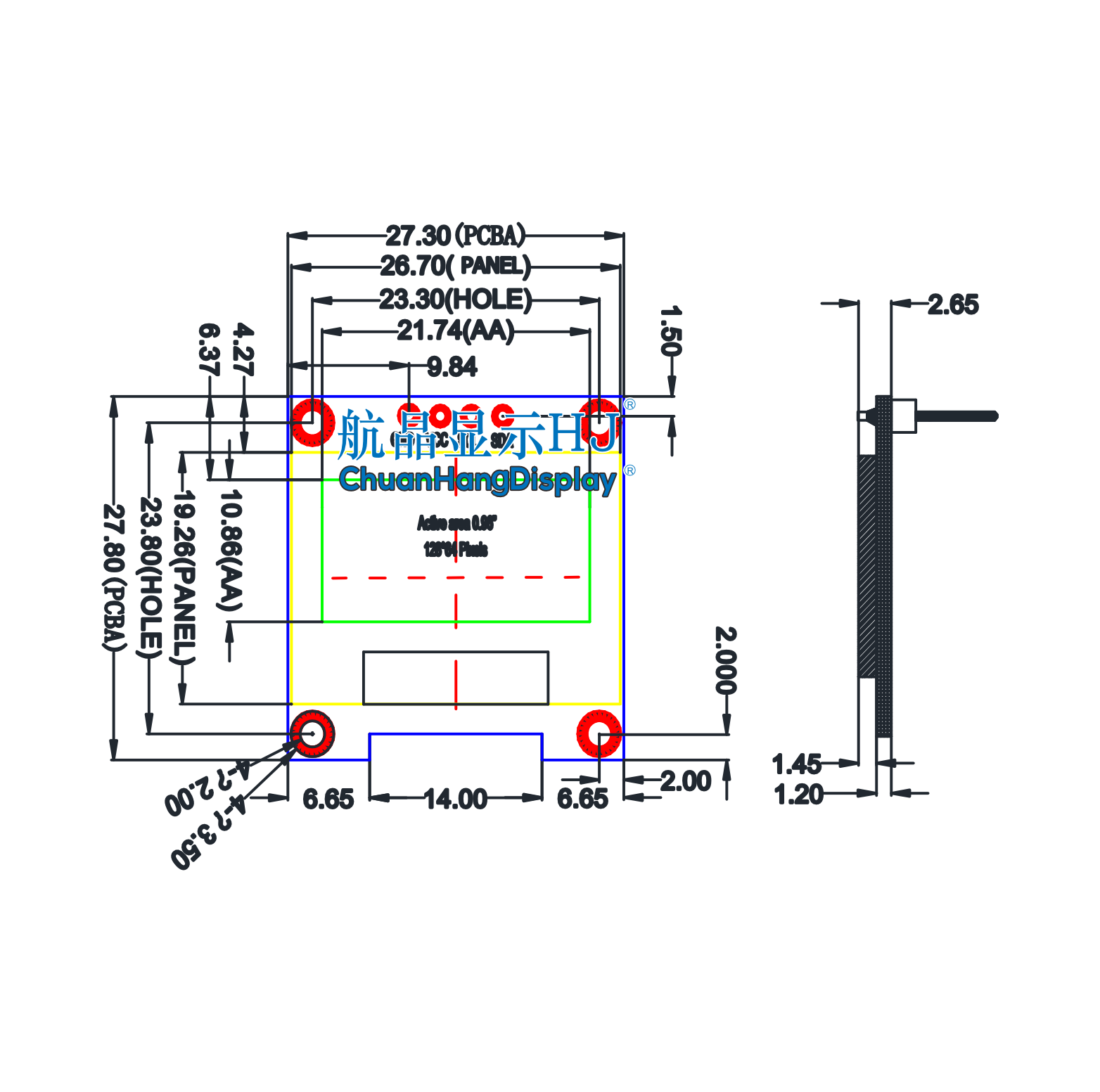

Module size:27.30x27.80x2.65mm
Display area: 21.74x10.86mm
Cable interface: 4 PIN
Operating voltage: 3.3V
Operating temperature: -40℃-70℃
Display color: OLED

PDF Download Demo code

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH0096A01
Resolution	128xRGBx64	Screen size	0.96”
Outline Dimension(LWH)	27.30x27.80x2.65mm	Visible Area(L*W)
Active Area(L*W)	21.74x10.86mm	Type	COG
Connection Method	FPC	Operating voltage	3.3V
Communication interface	IIC	Viewing Direction	IPS full perspective
Interface Type	4PIN	Display color	OLED
Driver IC	SSD1306	Operating temperature	-40℃~70℃

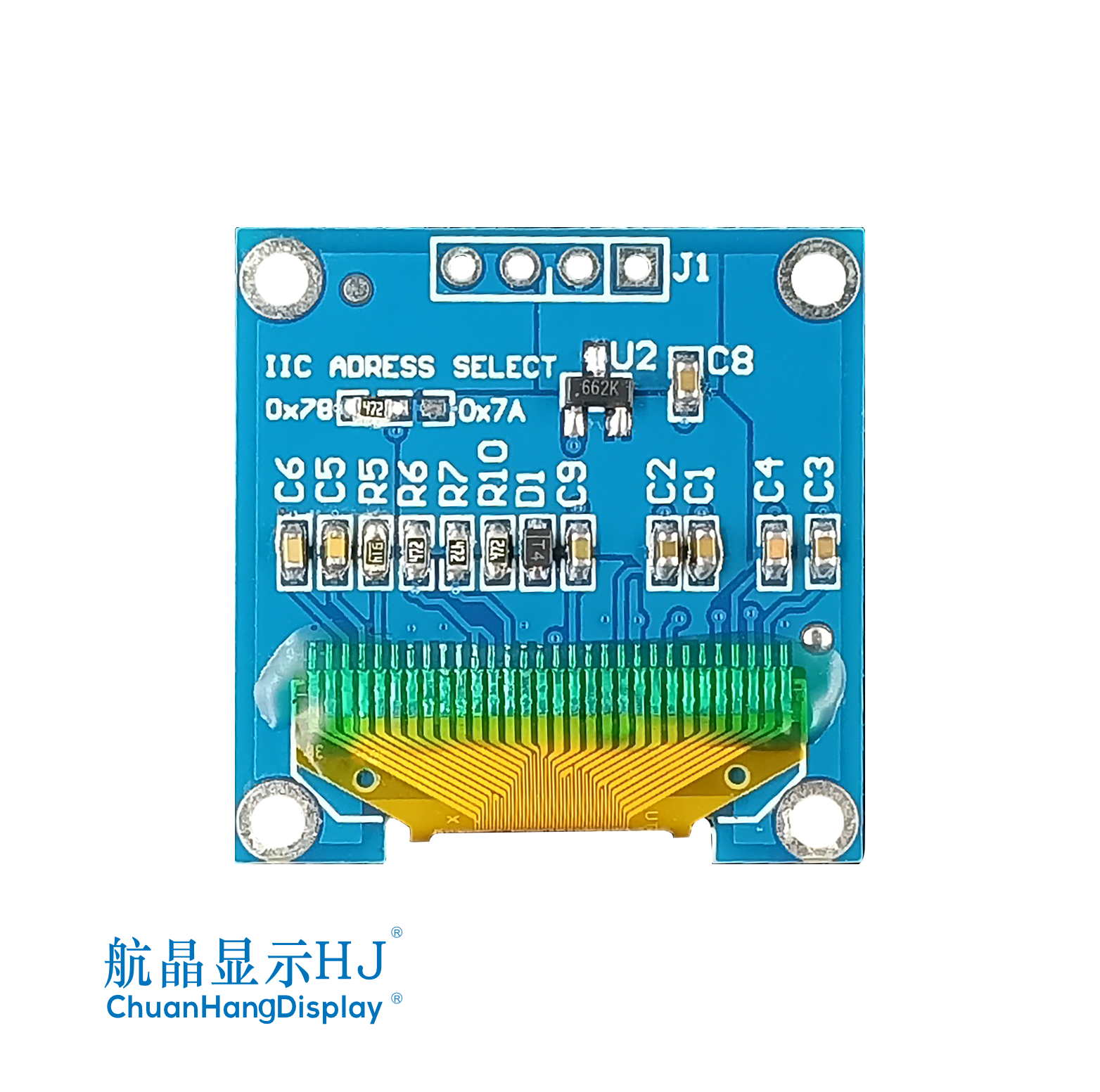

Production capacity	Self-produced	Whether to bring PCB	YES

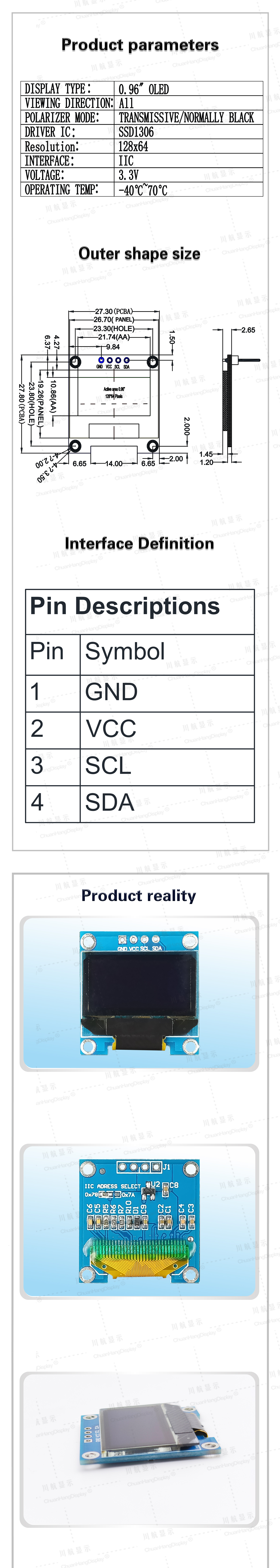

Product Datasheet

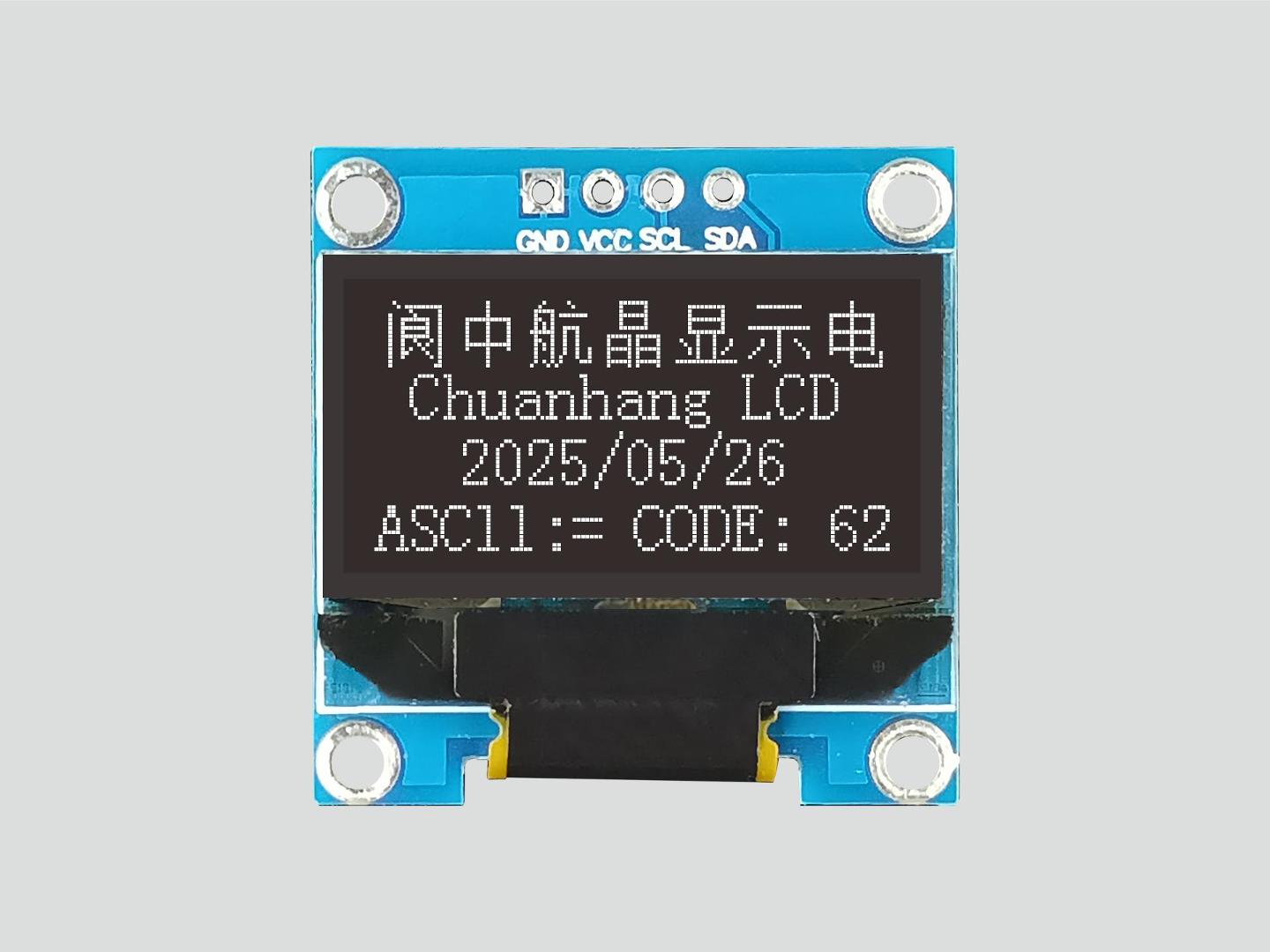

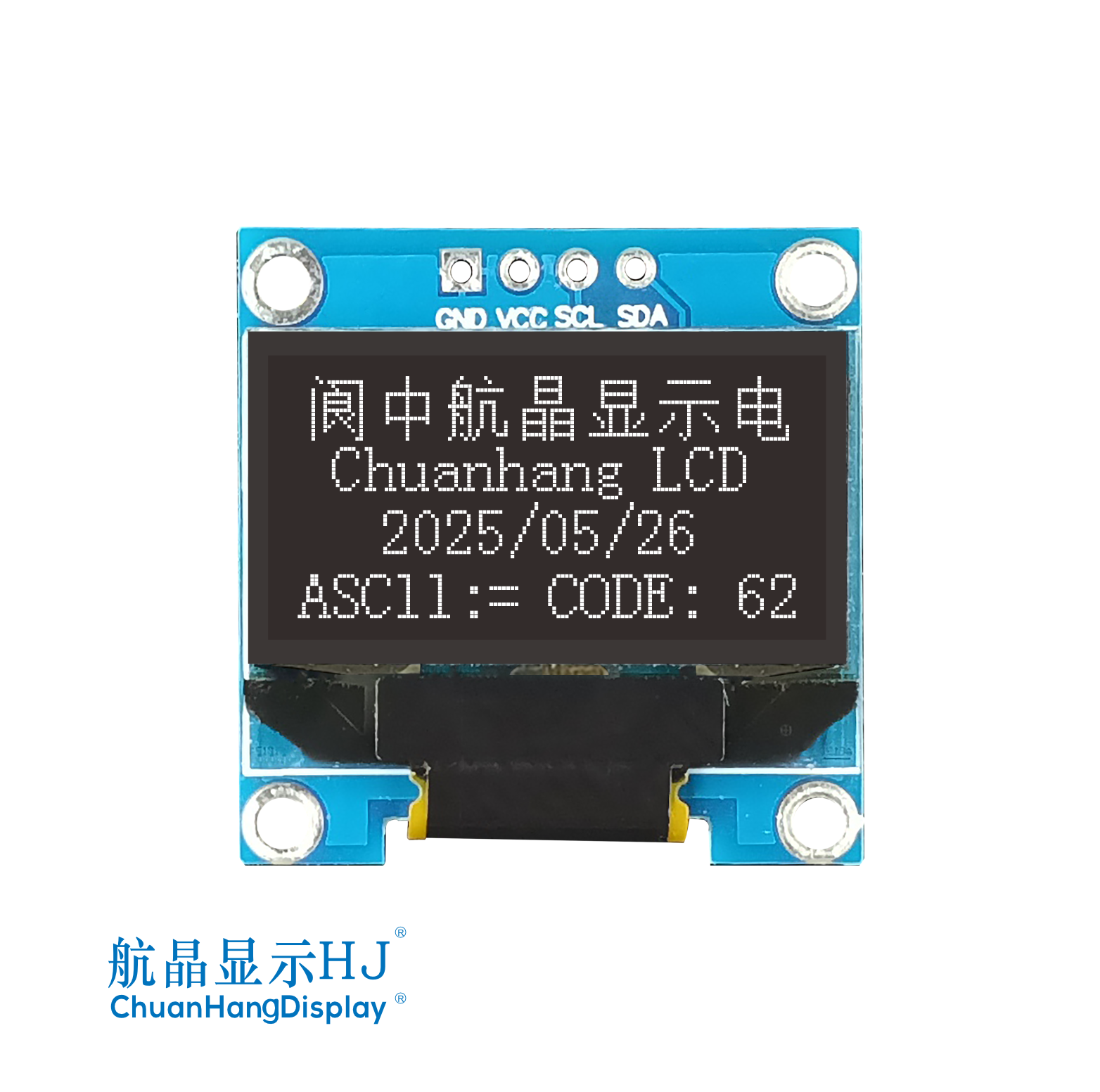

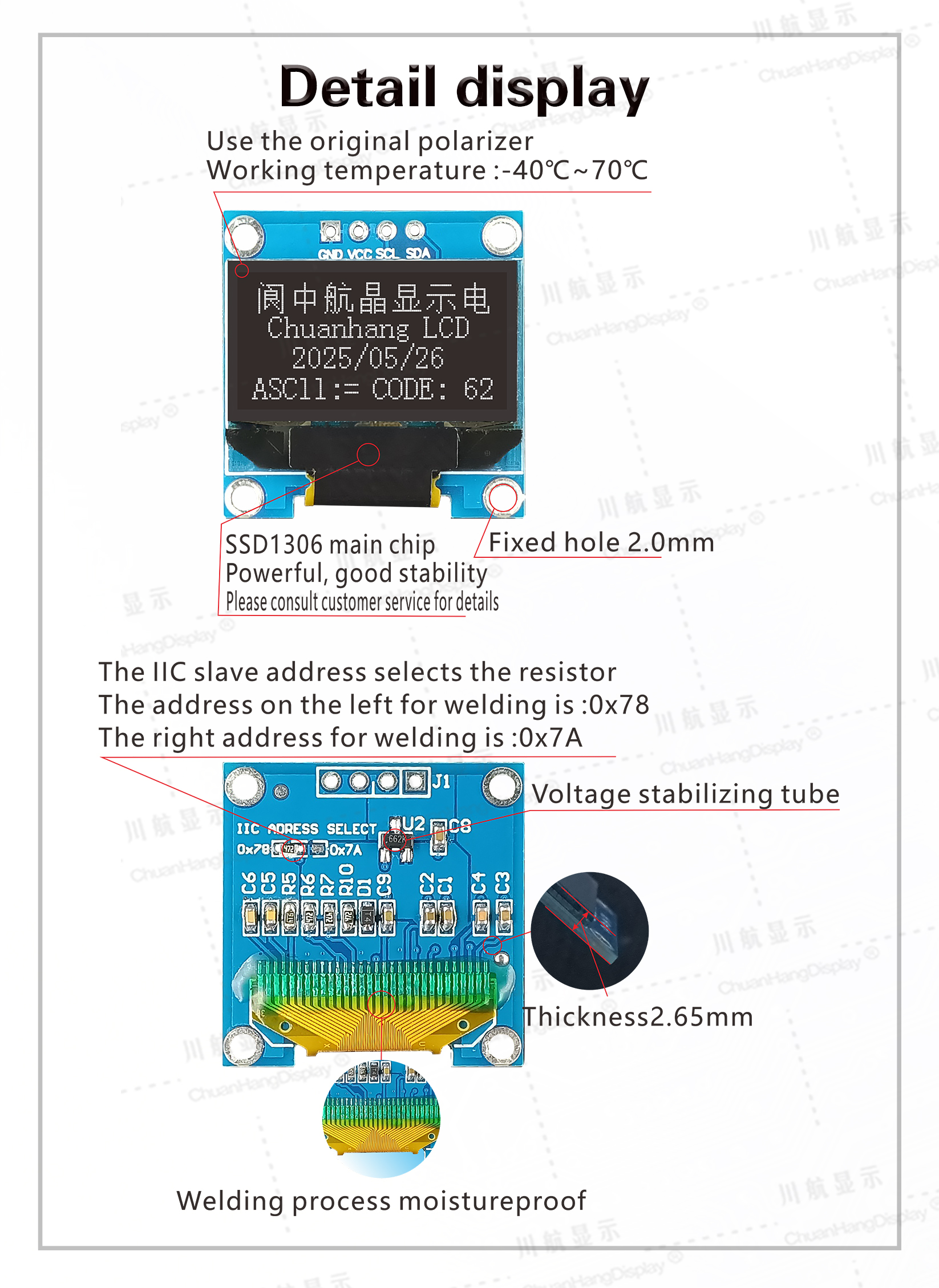

Product Display
