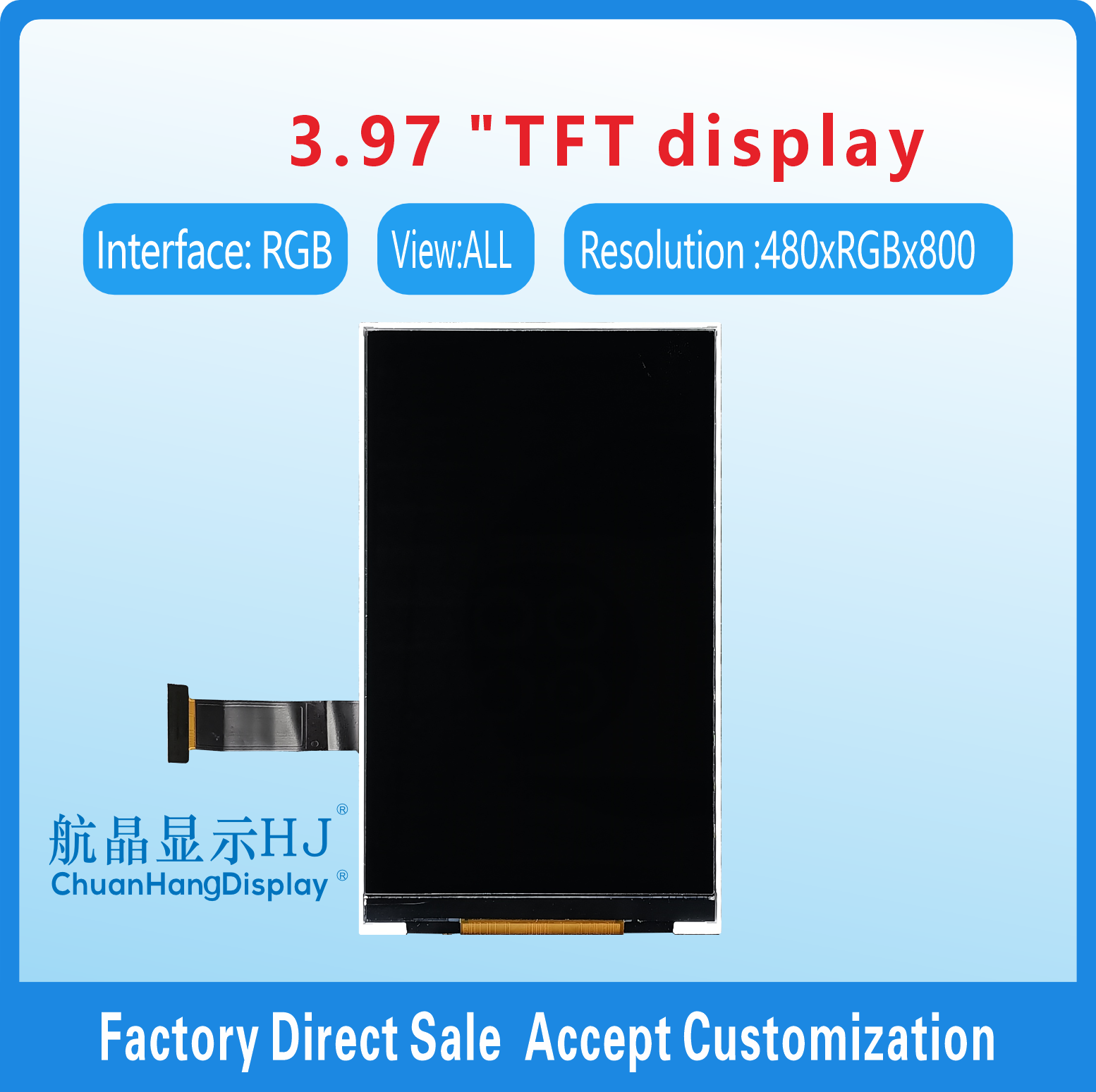

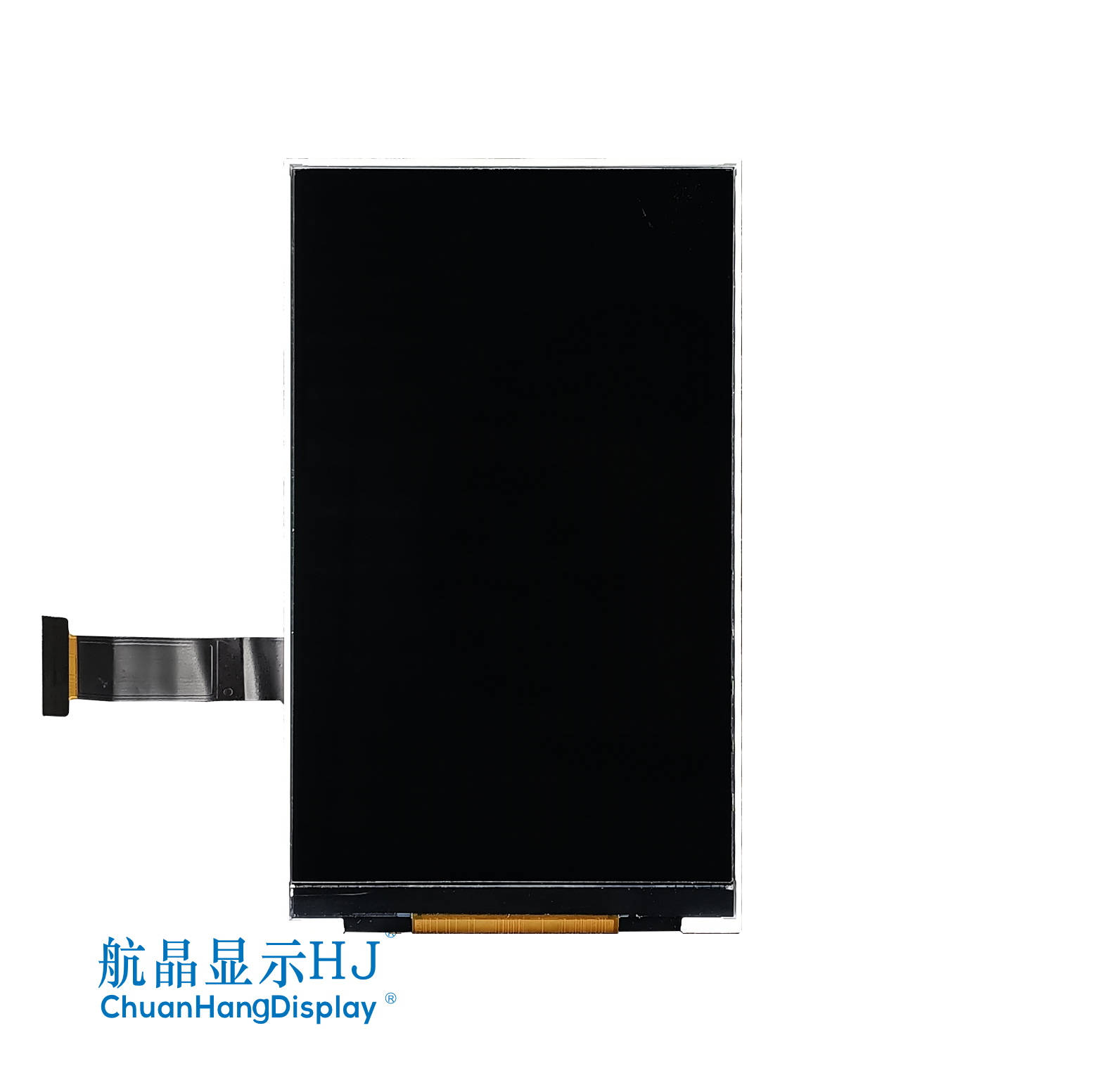

IPS 3.97 inch TFT

Product Description
Product size: 3.97 inches
Resolution: 480xRGBx800
Viewing direction:IPS full perspective
Driver chip: ST7701S-G5
Interface type:MIPI
Module size: 57.14x96.85x2.12mm
Display area: 51.84x86.40mm
Cable interface: 24 PIN
Operating voltage: 2.8V-3.3V
Operating temperature: -20℃-70℃
Display color: TFT
PDF Download Demo code
Video Presentation
Product Parameters
Product Brand ChuanHangDisplay Product Model 3.97”CH0397A01-MIPI
Resolution 480xRGBx800 Screen size 3.97”

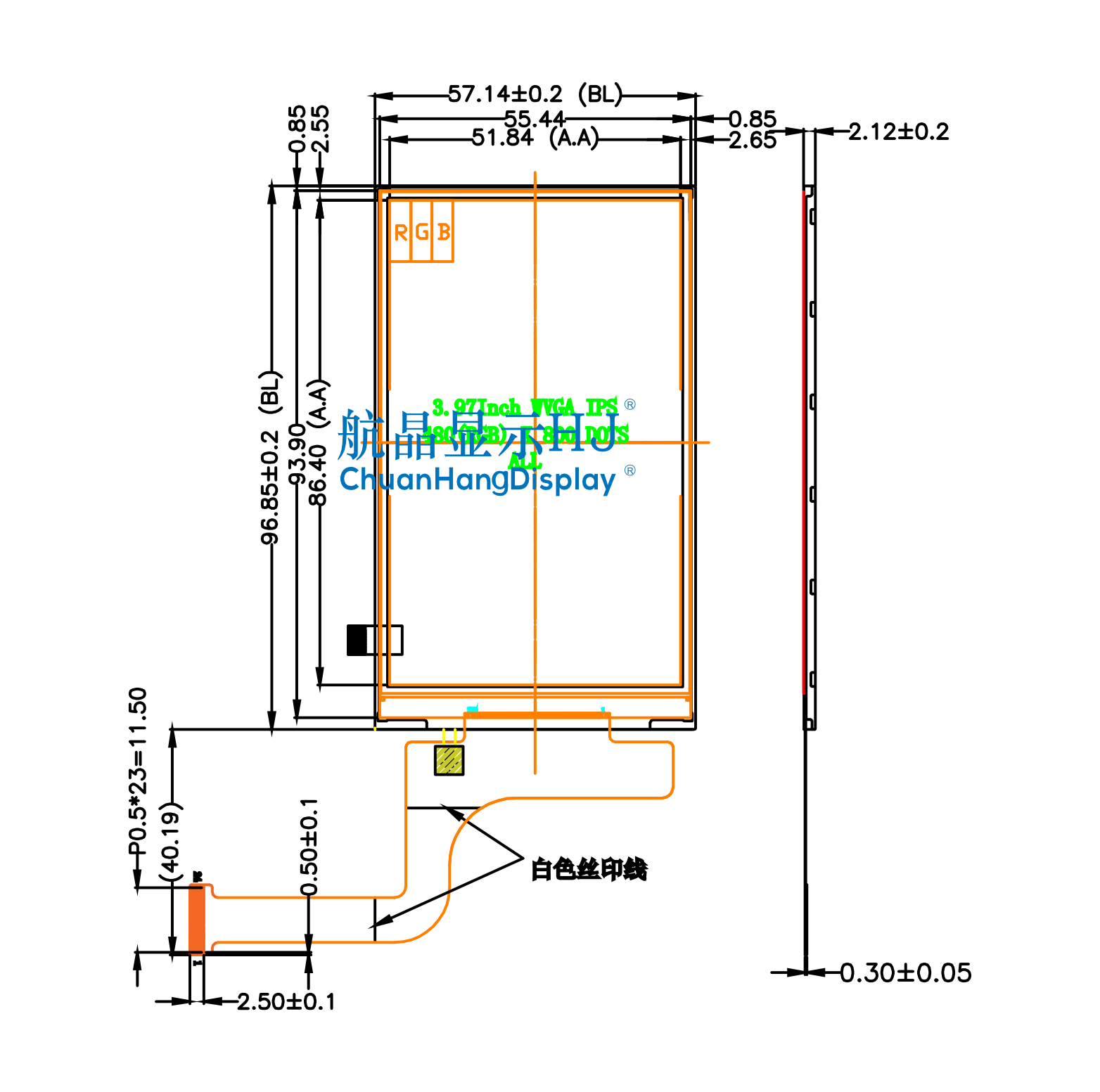

Outline Dimension(L*W*H) 57.14x96.85x2.12mm Visible Area(L*W)
Active Area(L*W) 51.84x86.40mm Type COG
Connection Method FPC Operating voltage 3.3V
Communication interface MIPI Viewing Direction IPS full perspective
Interface Type 24PIN Display color TFT
Driver IC ST7701S-G5 Operating temperature -20℃~70℃
Production capacity Self-produced Whether to bring PCB NO
Product Datasheet

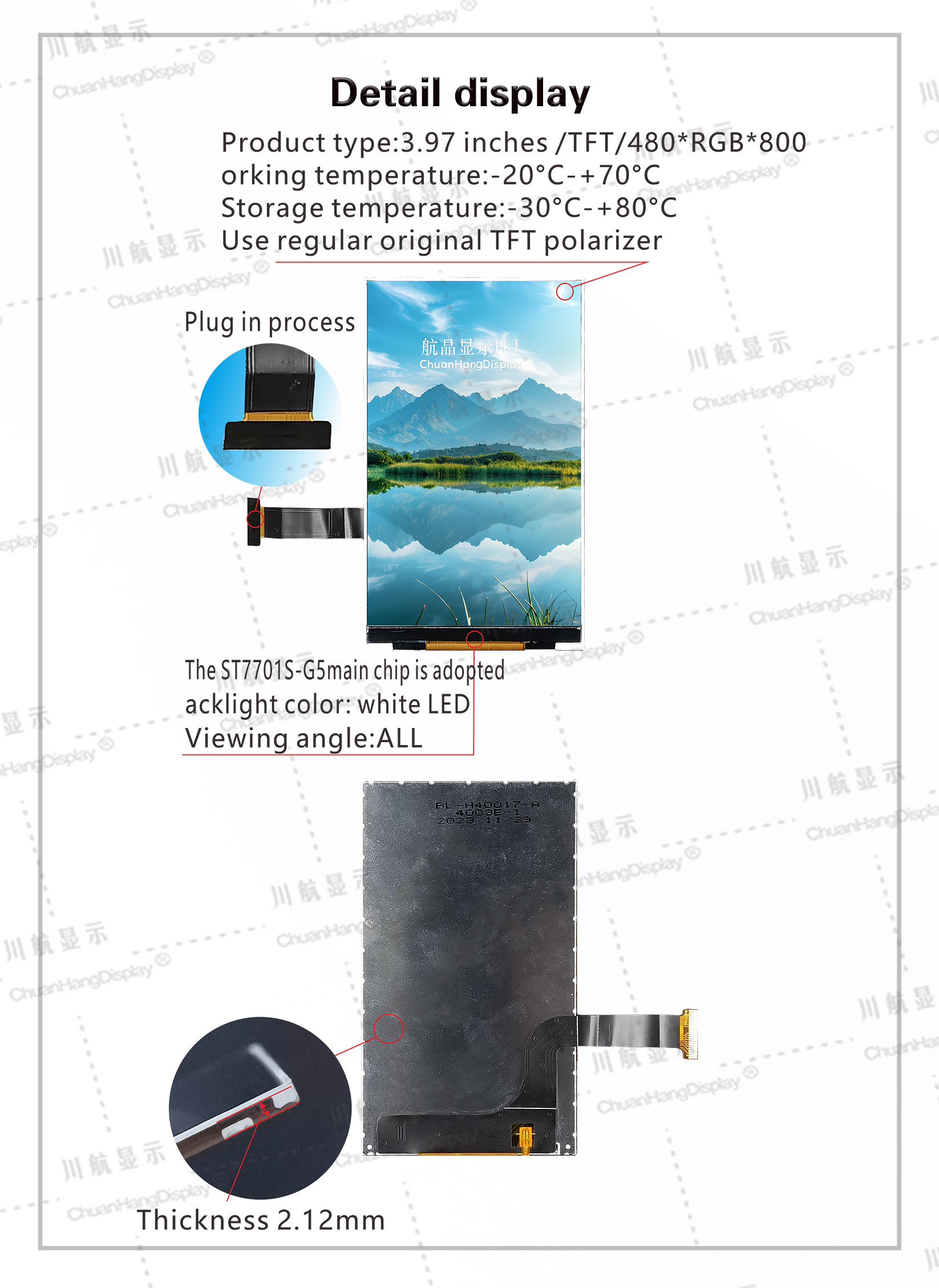

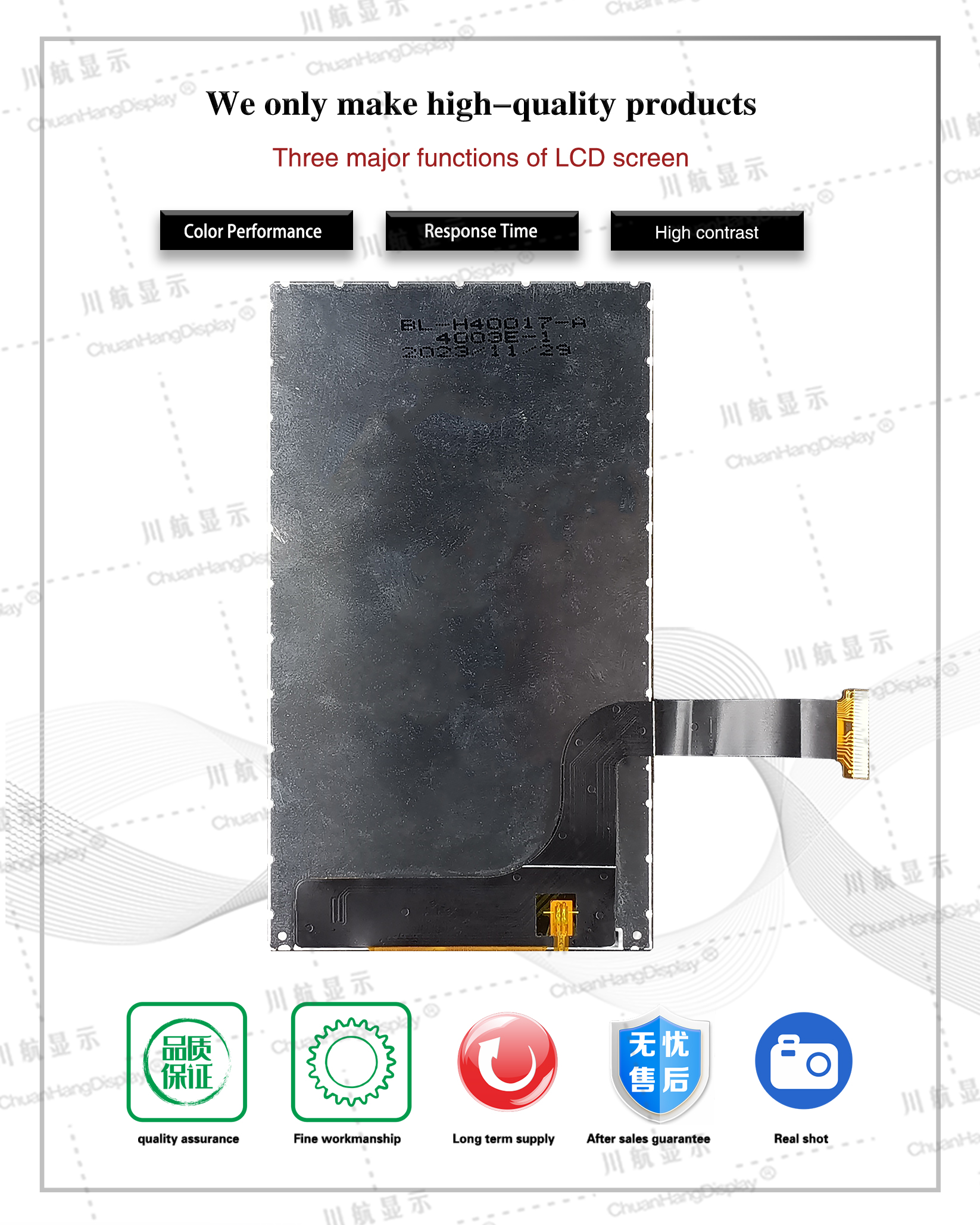

Product Display

Previous：

0.96 Inch OLED Display

Next：

2.8"TFT display

Product Label: IPS 3.97 inch TFT LCD 480(RGB)*80 LCM Color Screen with MIPI Interface ST7701S-G5 Drive IC IPS 3.97 inch TFT LCD 480(RGB)*800
