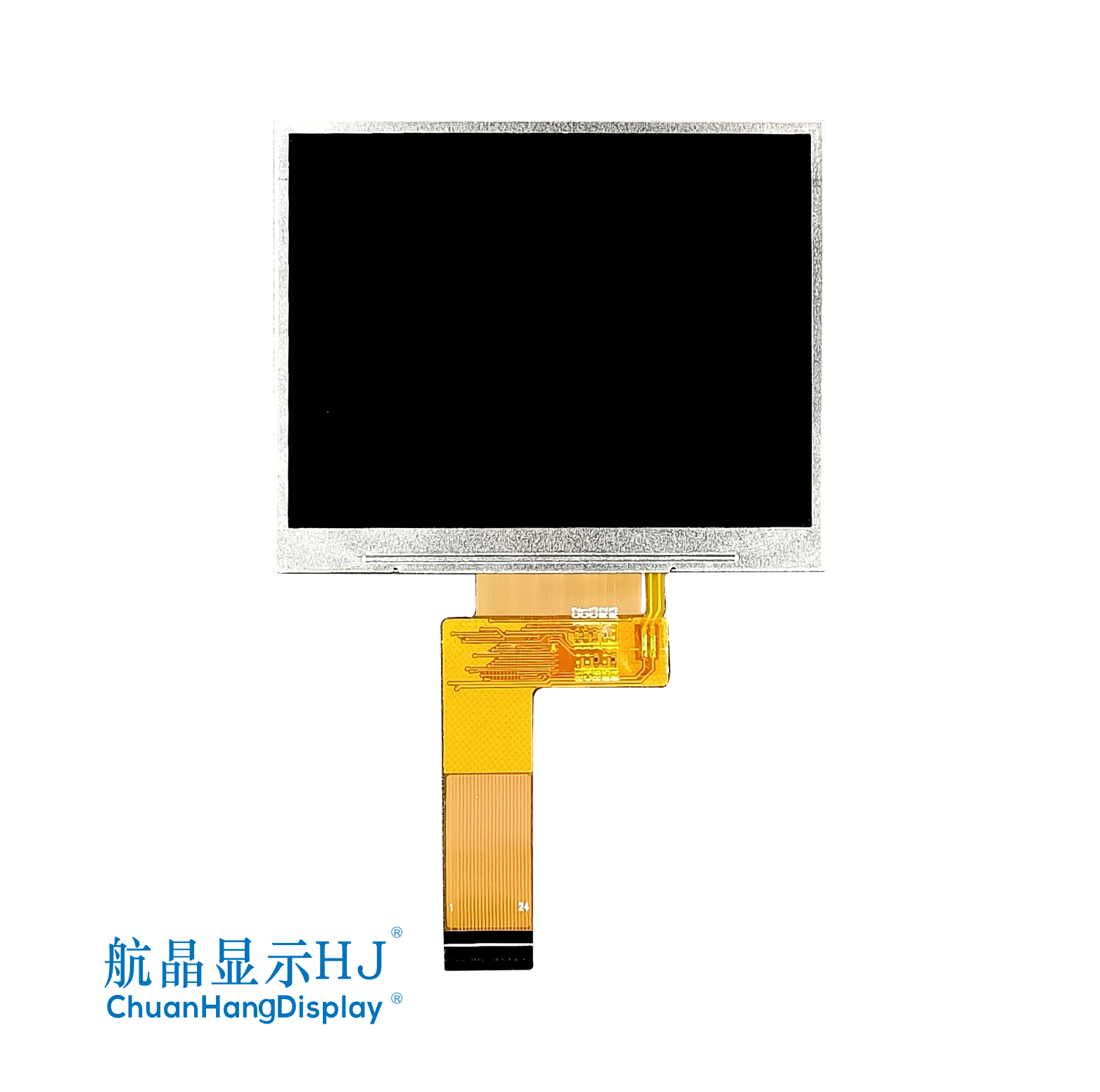

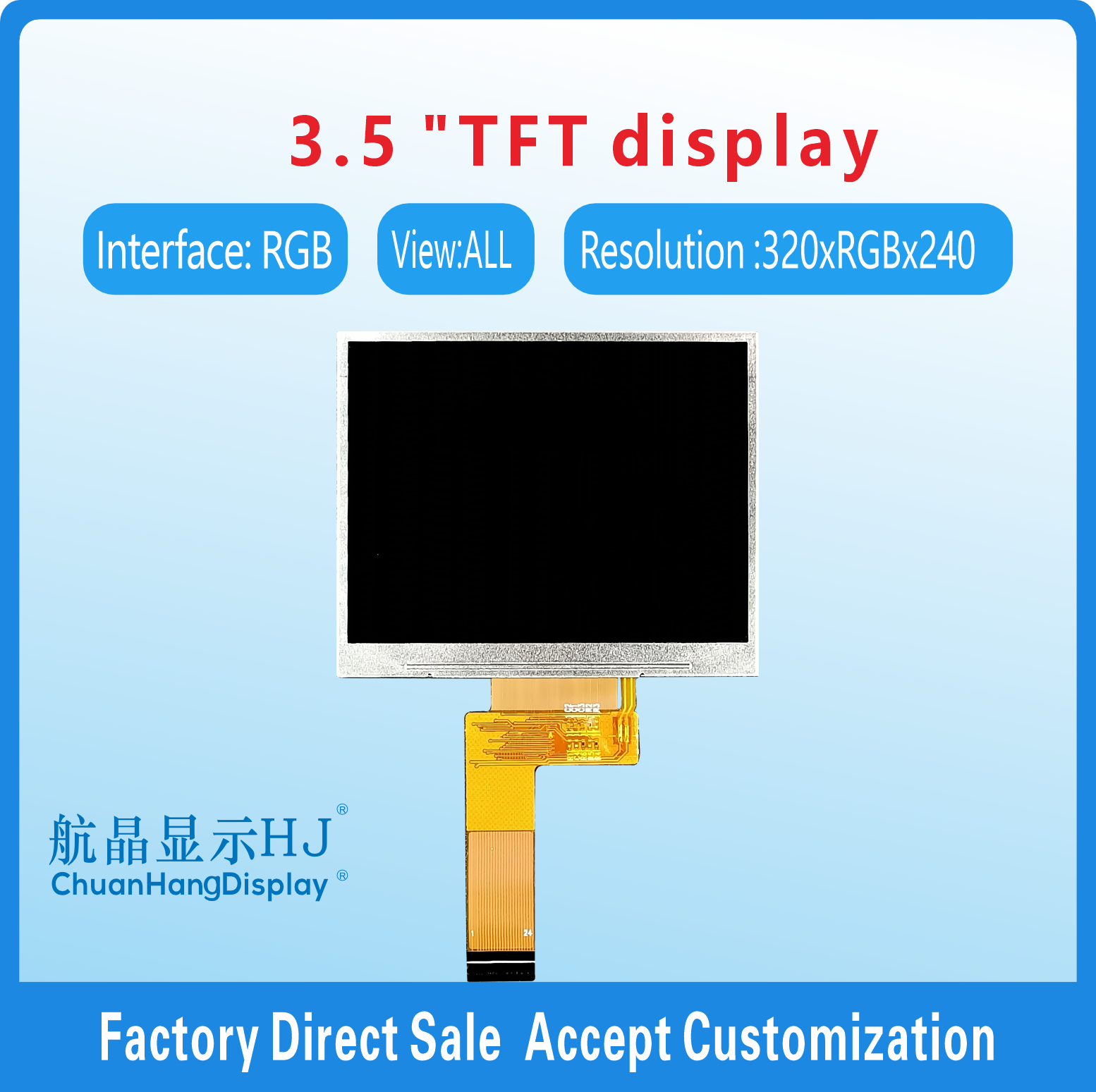

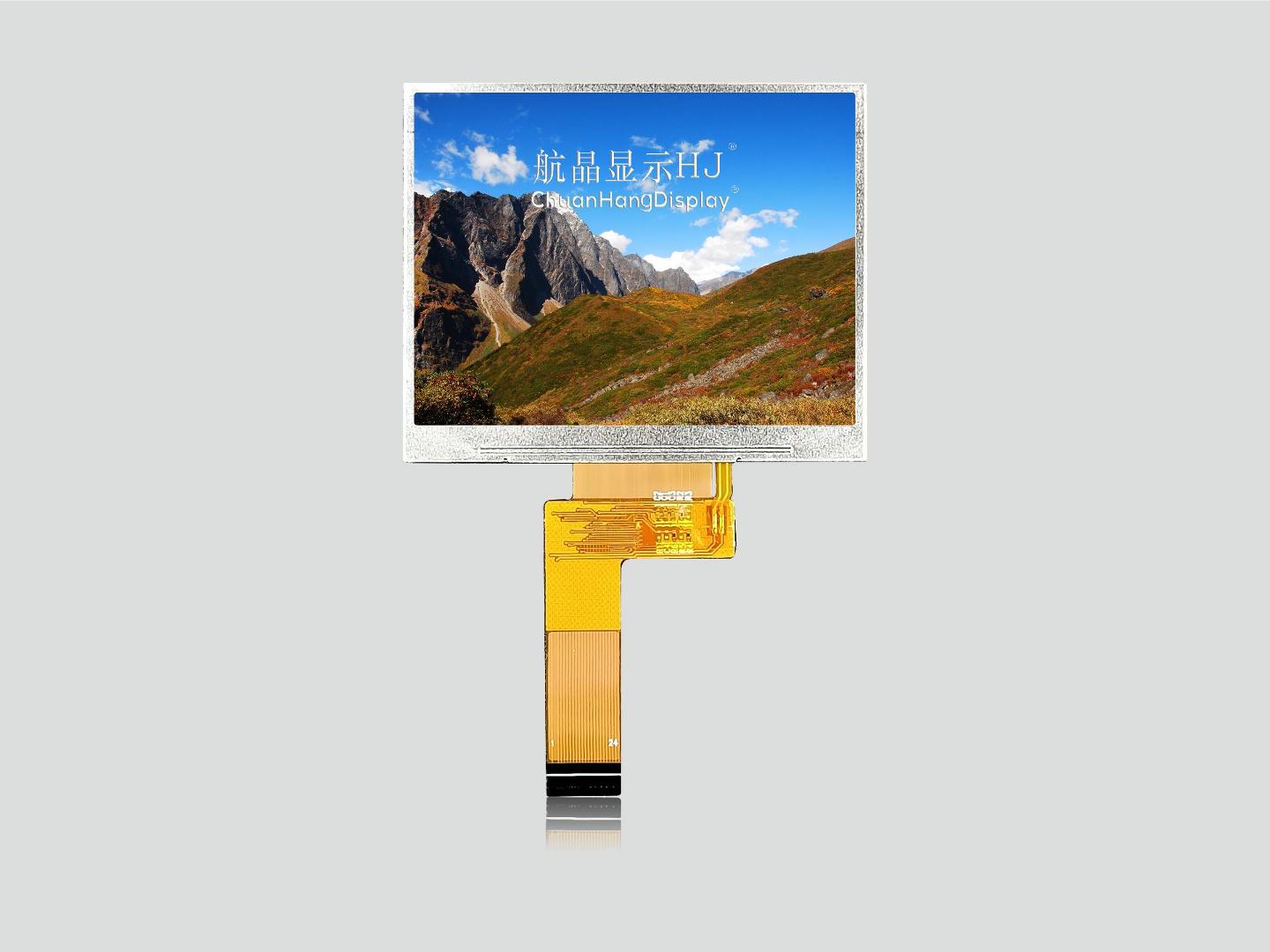

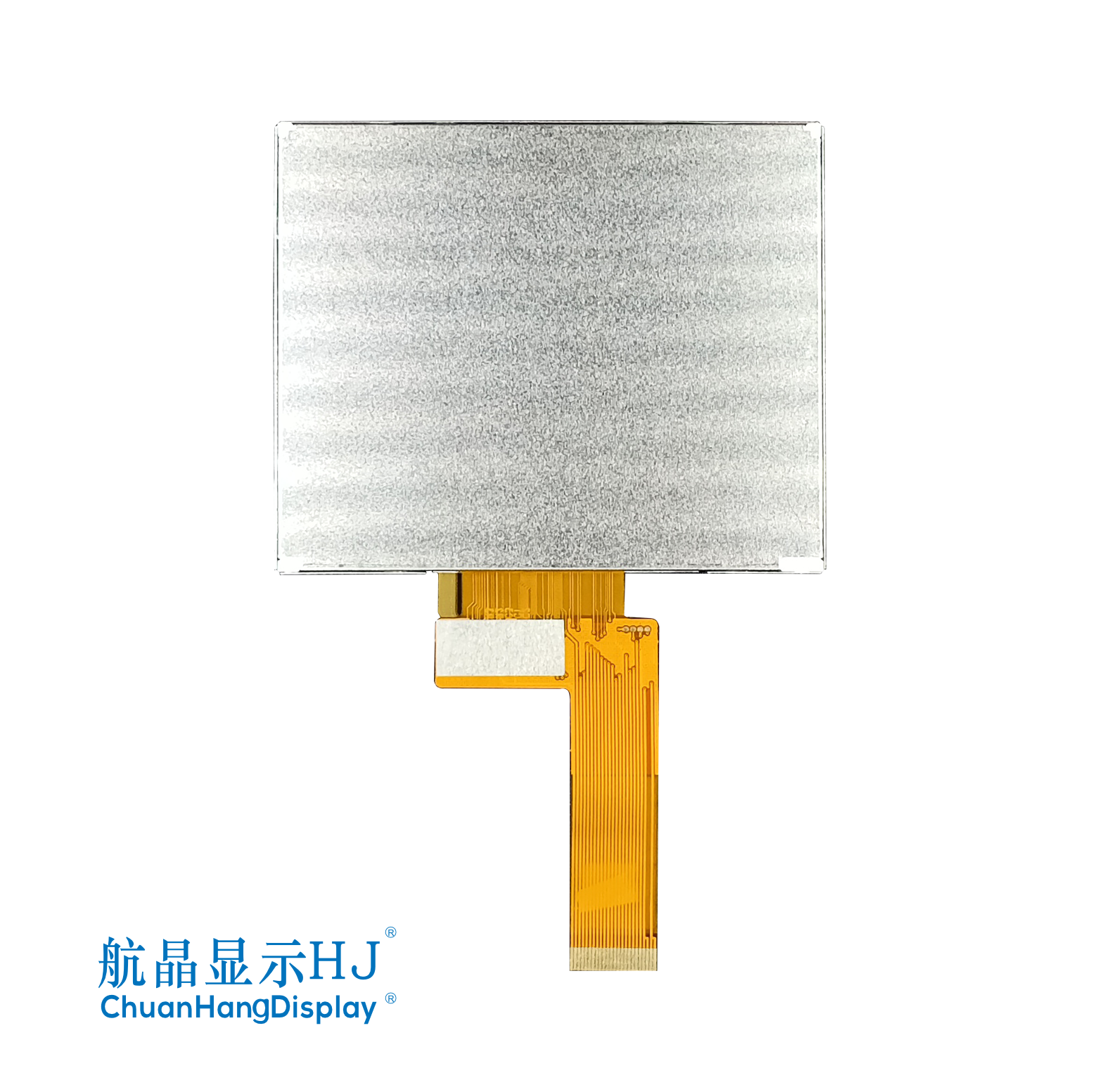

3.5 Inch TFT LCD Display

Product Description

Product size: 3.5-inch
Resolution: 320xRGBx240
Viewing angle:IPS full viewing angle
Interface type:RGB

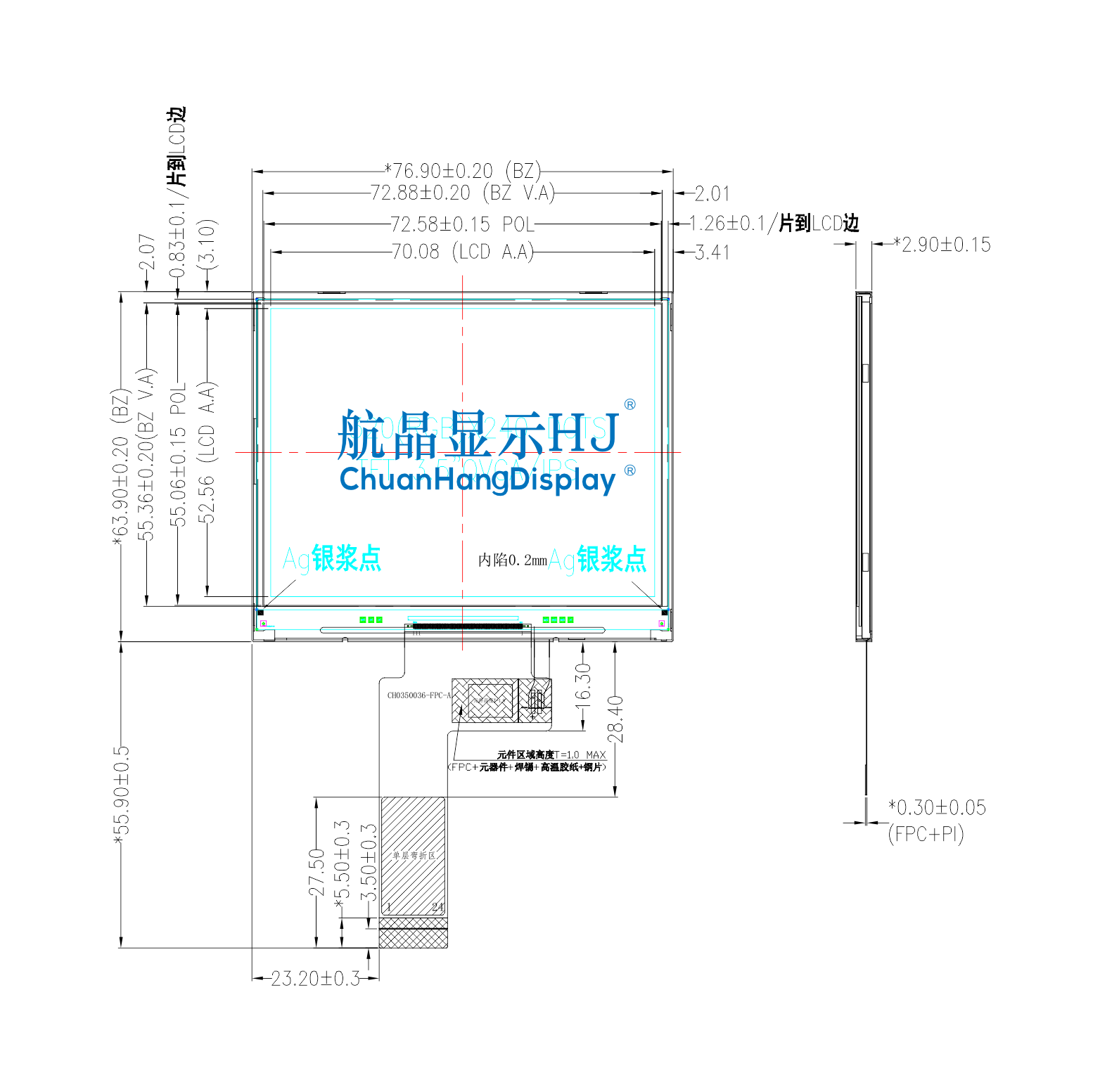

Module size: 76.90X63.90X2.90mm
Active area: 70.08X52.56mm
Cable interface: 24 PIN
Type of iron frame: SUS201 stainless steel
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT

PDF Download Demo code

Video Presentation

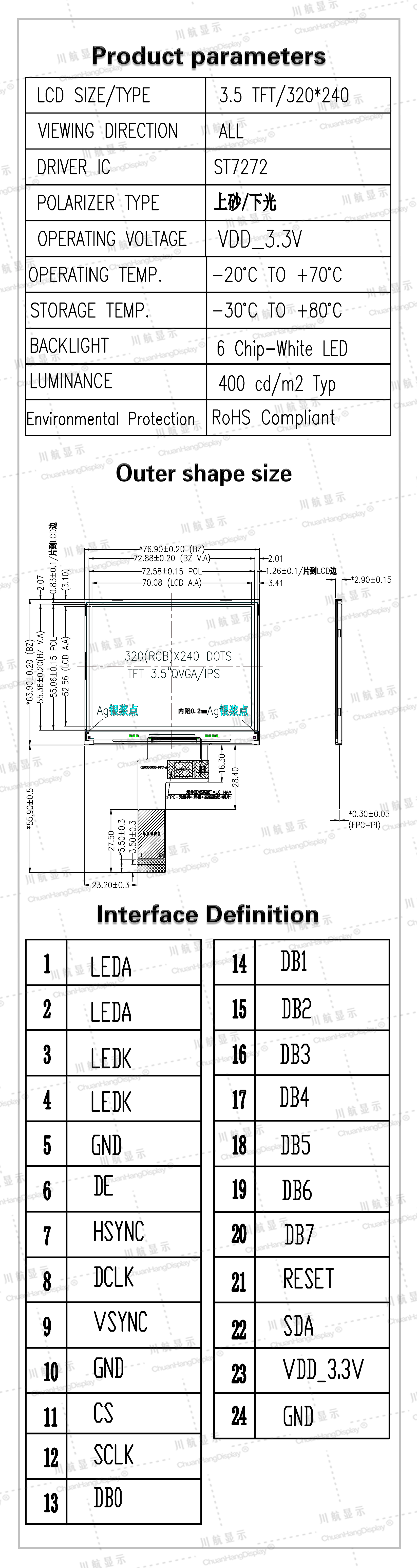

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	3.5“CH035QV0036B-A-320x240
Resolution	320xRGBx240	Screen size	3.5”
Outline Dimension(LWH)	76.90X63.90X2.90mm	Active Area(L*W)	70.08X52.56mm
Type	COG	Communication interface	RGB
Operating Voltage	3.3V	Interface Type	24PIN
Viewing Direction	IPS full viewing angle	Display Color	TFT
Driver IC	ST7272	Operating Temperature	-20℃ --70℃
Storage Temperature	-30℃ --80℃	Production capacity	Self-produced
Whether to bring PCB	NO	Connection Method	FPC
