800x480 High Resolution

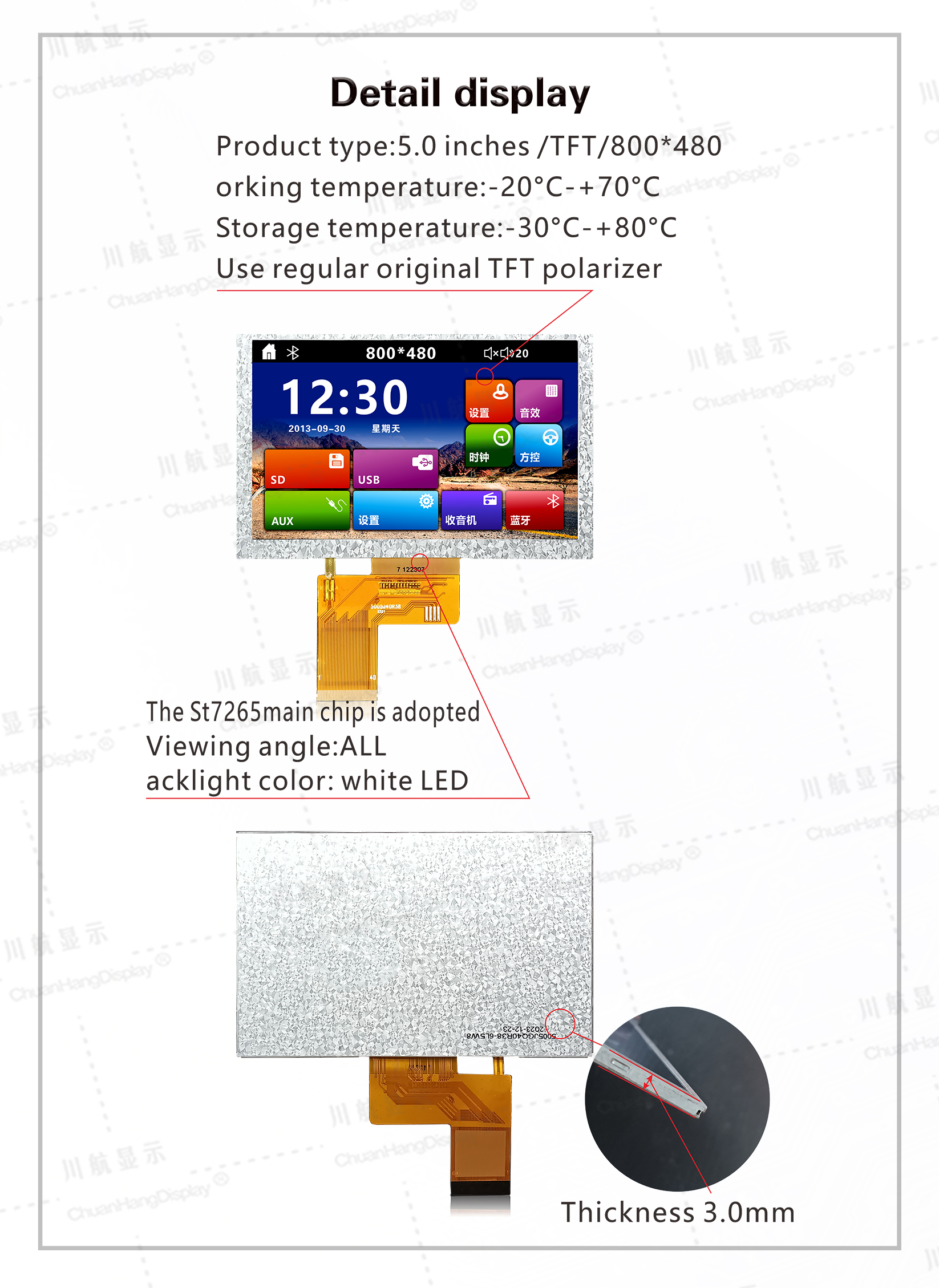

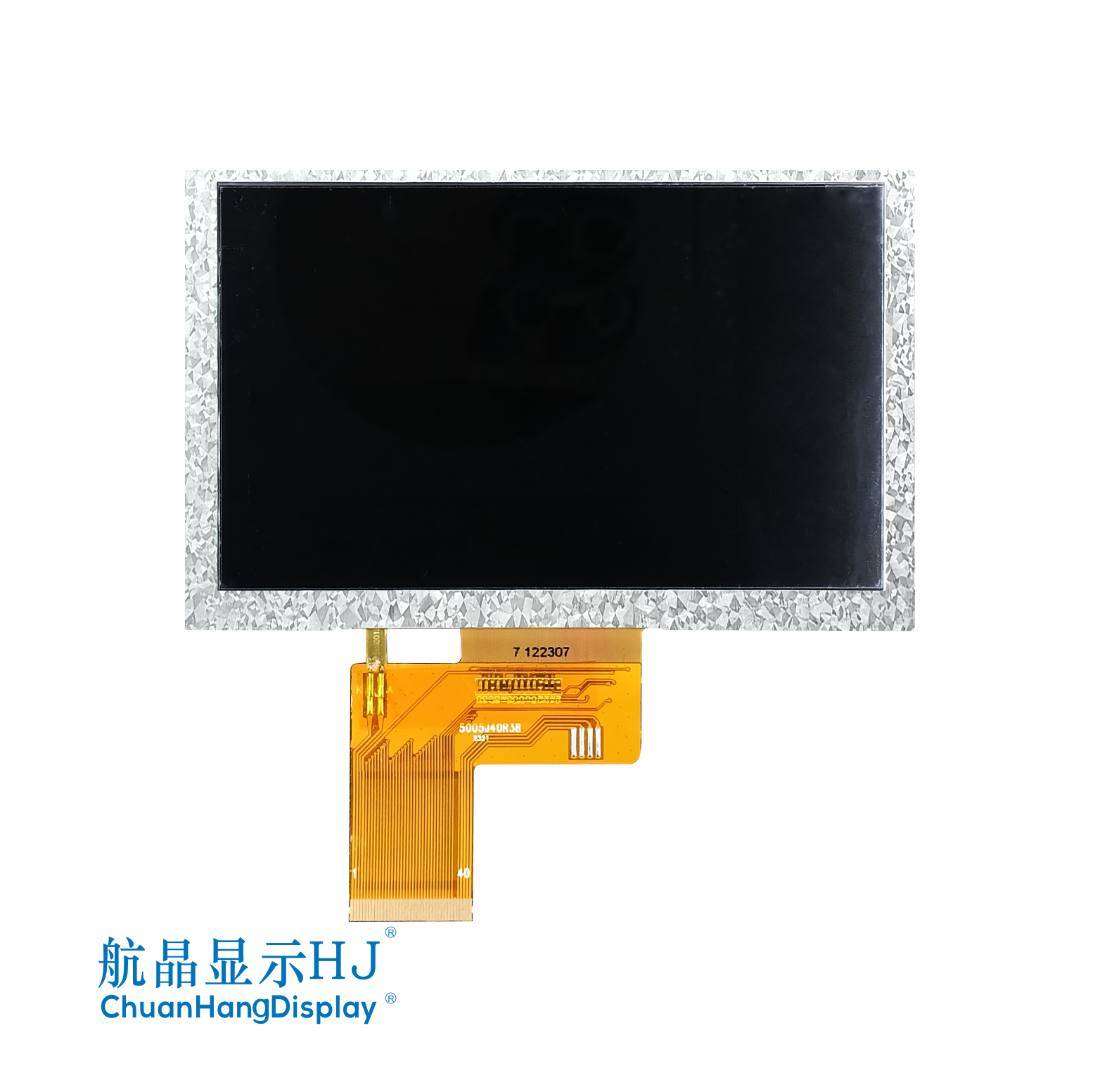

Product Description

Product size: 5.0 inches
Resolution: 800xRGBx480
Viewing angle: IPS full viewing angle
Driver chip: ST7265
Interface type: Parallel port 8-bit/16-bit

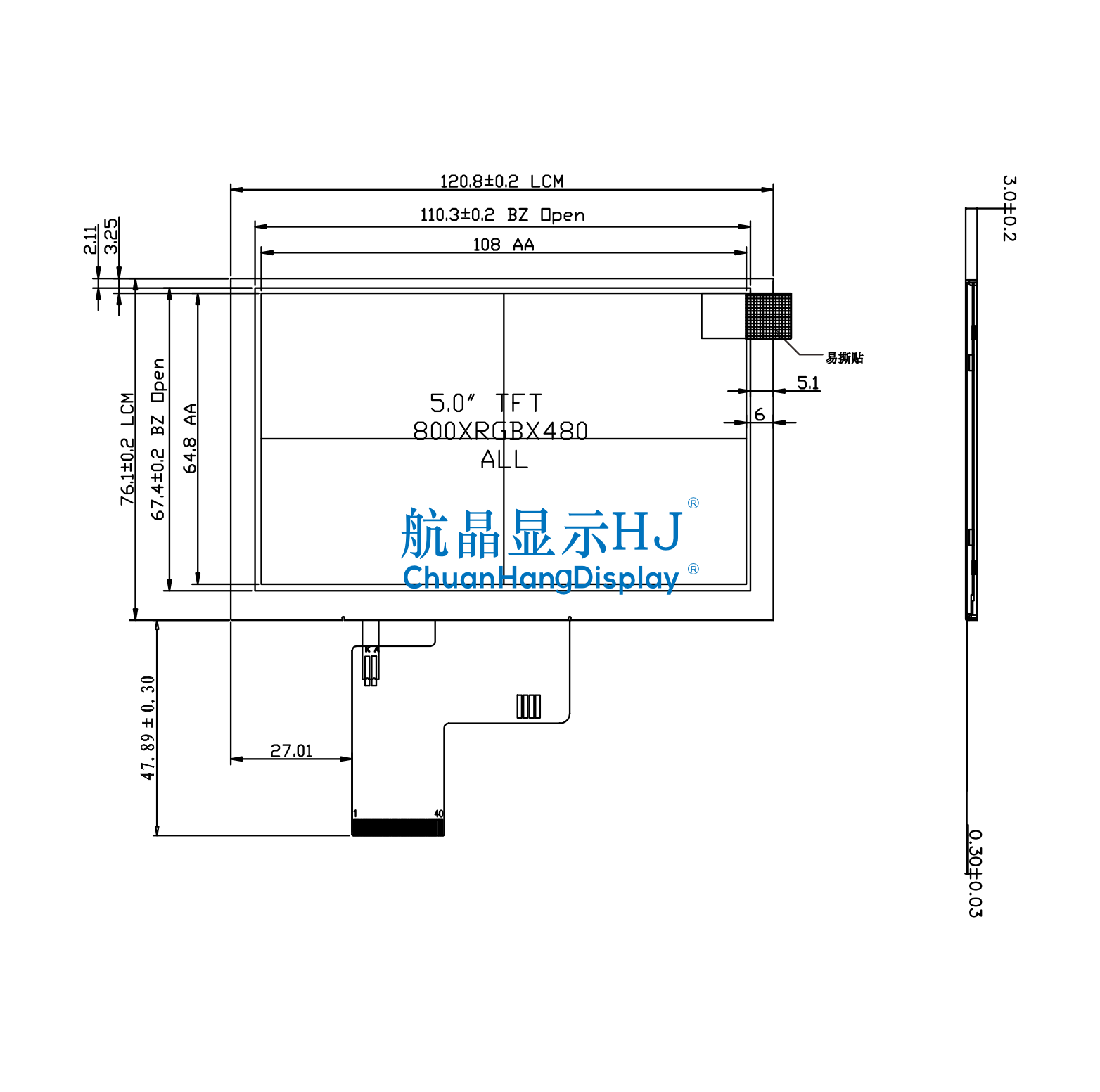

Module size: 120.8X76.10X3.0mm
Active area: 108.00X64.80mm
Cable interface: 40 PIN
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT

PDF Download Demo code

Video Presentation

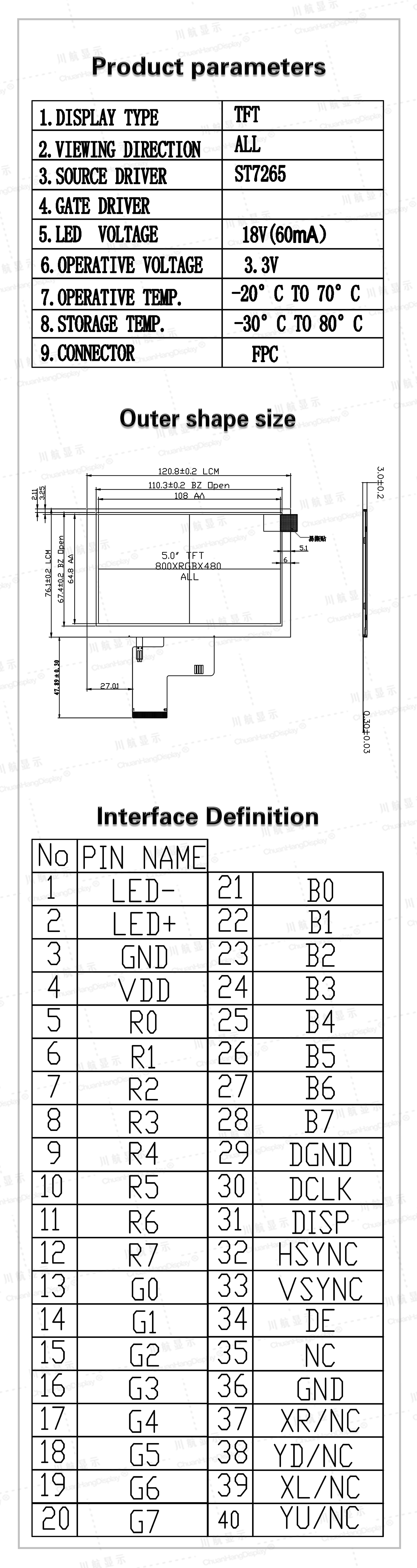

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH0500B-P
Resolution	800xRGBx480	Screen size	5.0”
Outline Dimension(LWH)	120.8X76.10X3.0mm	Active Area(L*W)	108.00X64.80mm
Type	COG	Communication interface	Parallel port 8-bit/16-bit
Operating Voltage	3.3V	Interface Type	40PIN
Viewing Direction	IPS full viewing angle	Display Color	TFT
Driver IC	ST7265	Operating Temperature	-20℃ --70℃
Storage Temperature	-30℃ --80℃	Production capacity	Self-produced
Whether to bring PCB	NO	Connection Method	FPC
