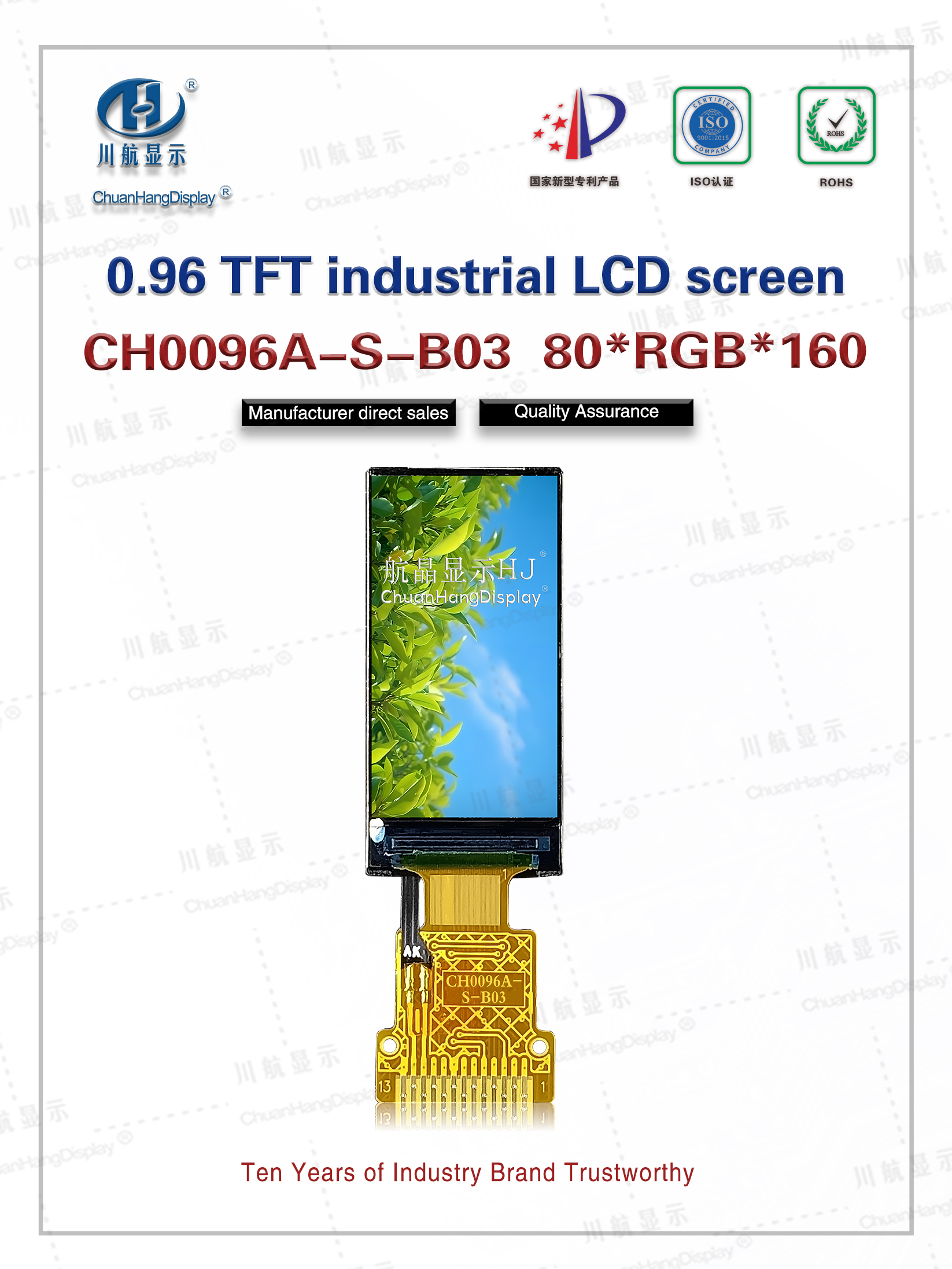

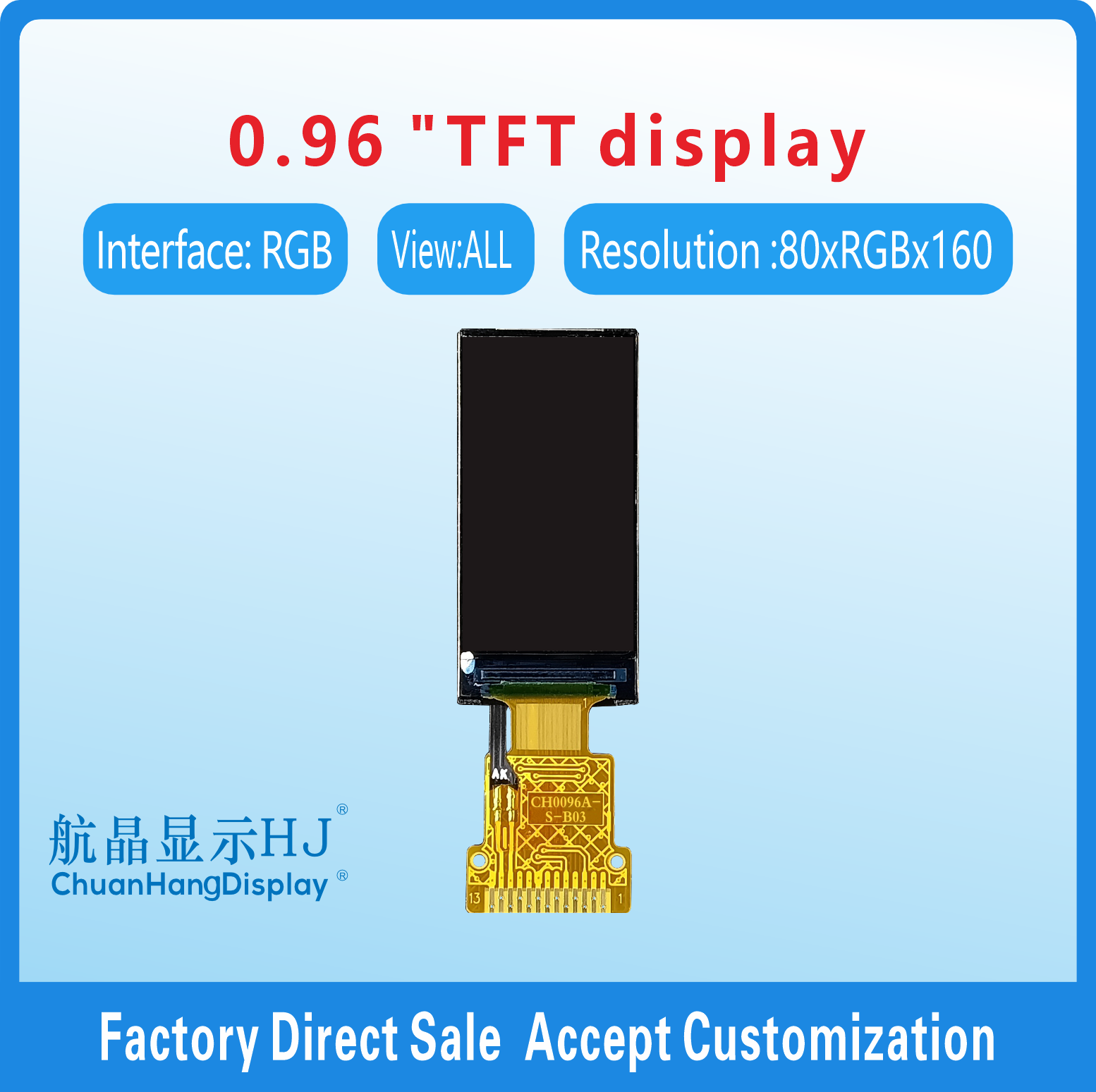

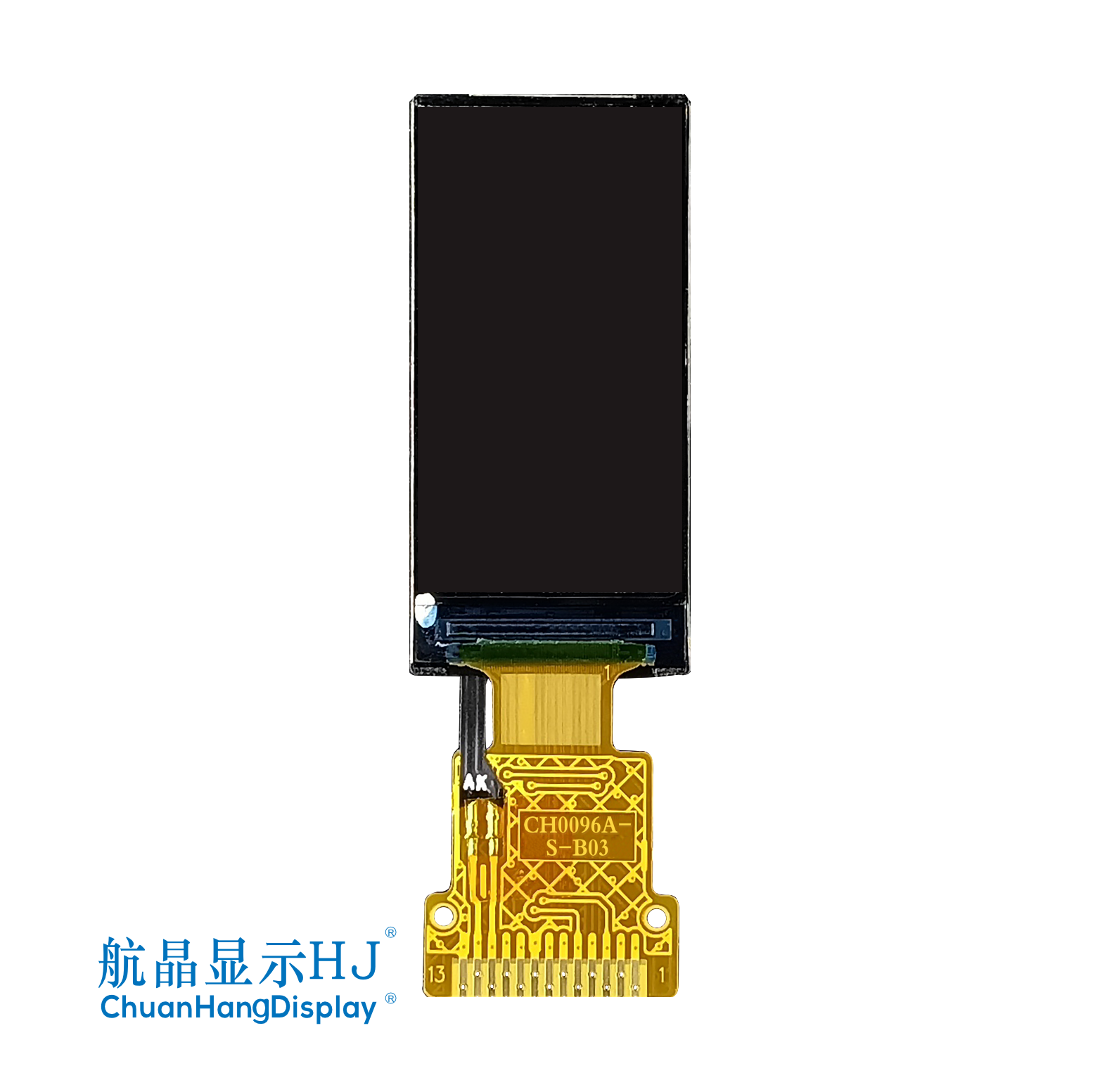

0.96"TFT display

Product Description

Product size: 0.96 inches
Resolution: 80xRGBx160
Viewing angle: IPS full viewing angle
Driver chip: ST7735S
Interface type: Parallel port 8-bit/16-bit
Module size: 13.5*27.95*1.5 mm
Active area: 10.8*21.7mm
Cable interface: 13 PIN
Operating voltage: 2.8V-3.3V
Operating temperature: -10℃ -60℃
Display color: TFT

PDF Download Demo code

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH0096A-S-B03
Resolution	80xRGBx160	Screen size	0.96”

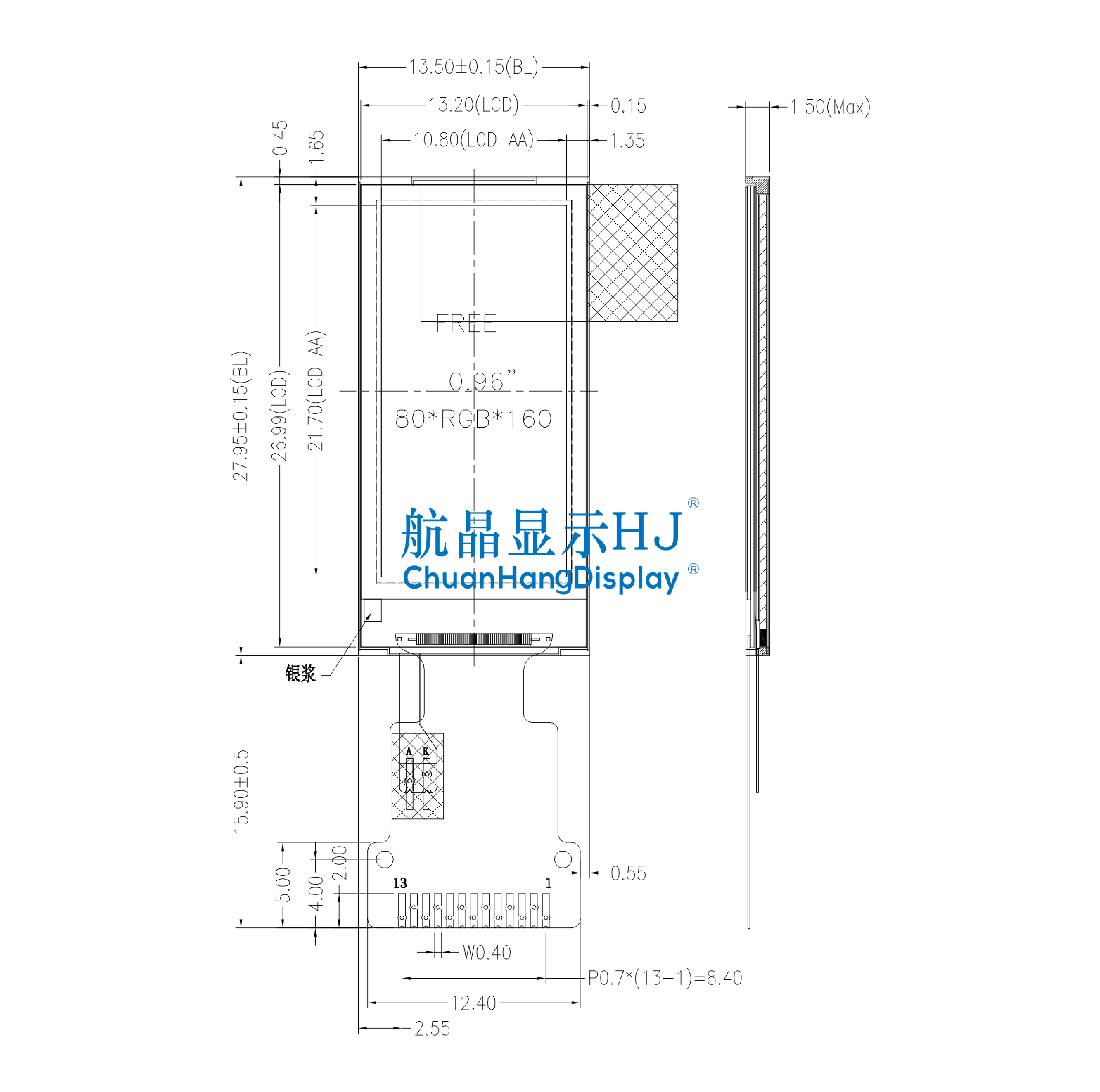

Outline Dimension(LWH)	13.50X27.95X1.5mm	Active Area(L*W)	10.80X21.70mm
Type	COG	Communication interface	Parallel port 8-bit/16-bit
Operating Voltage	2.8V-3.3V	Interface Type	13PIN
Viewing Direction	IPS full viewing angle	Display Color	TFT
Driver IC	ST7735S	Operating Temperature	-10℃ --60℃
Storage Temperature	-20℃ --70℃	Production capacity	Self-produced
Whether to bring PCB	NO	Connection Method	FPC

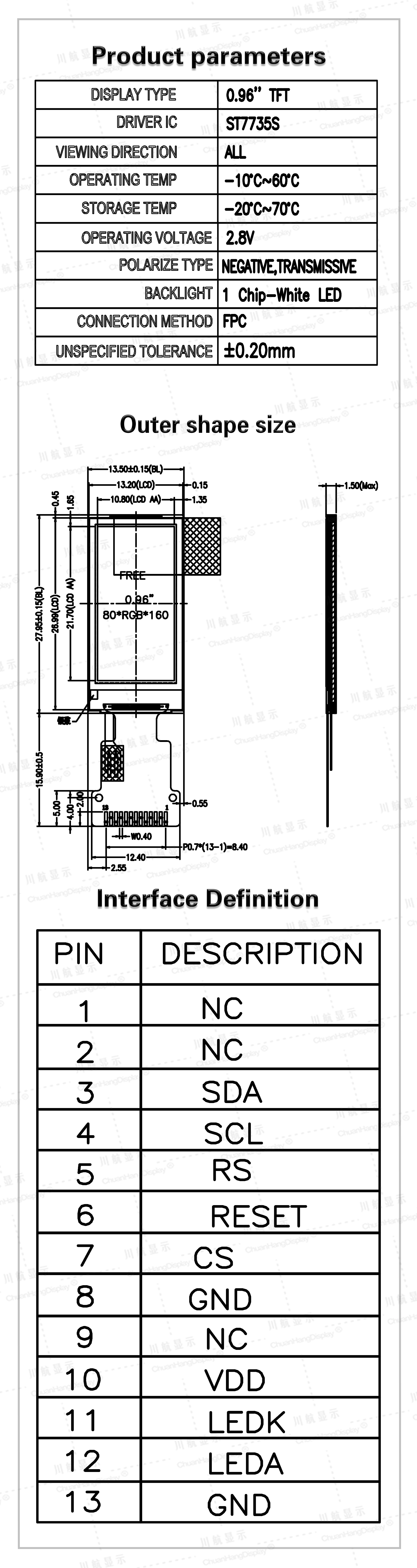

Product Datasheet

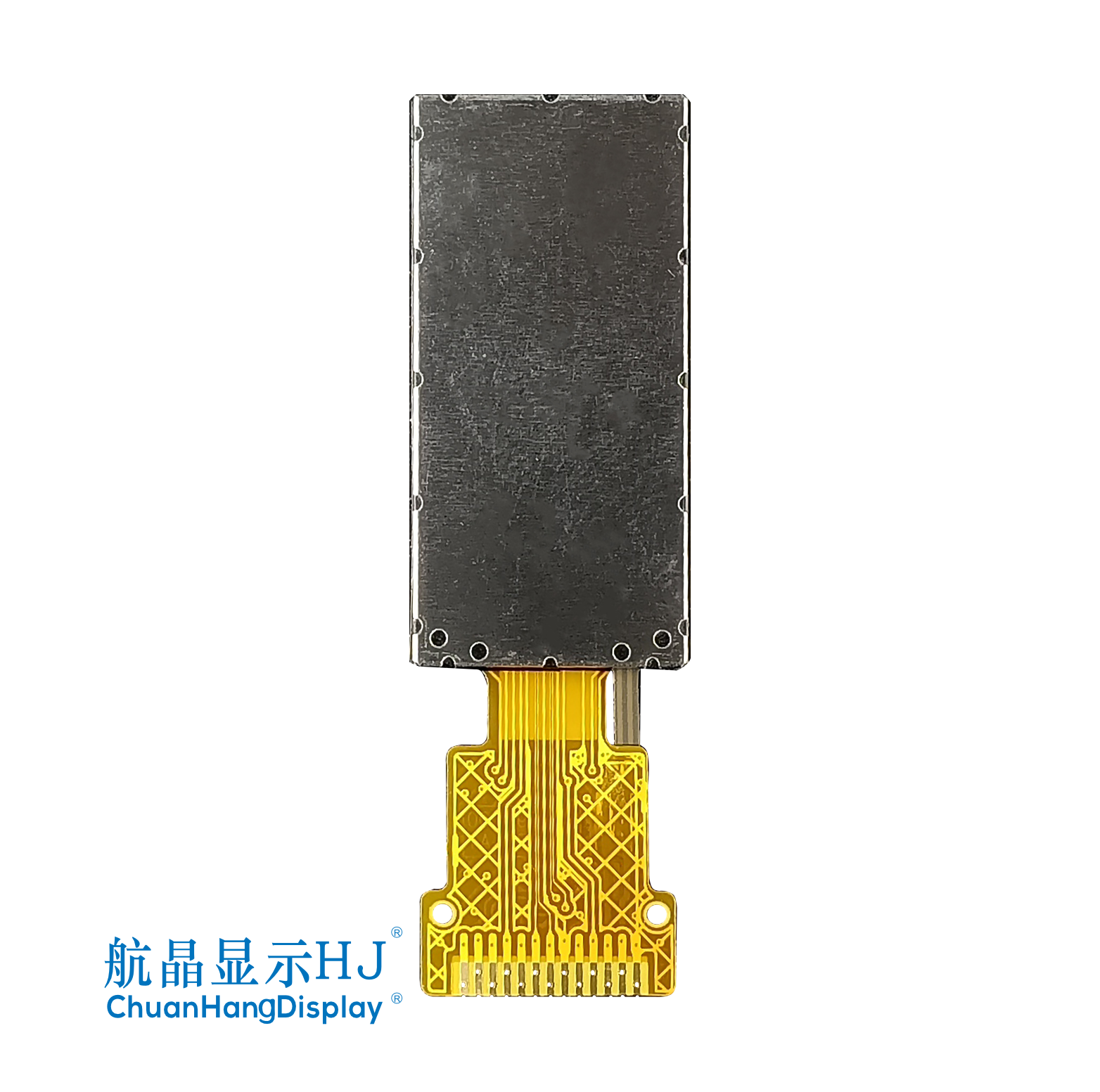

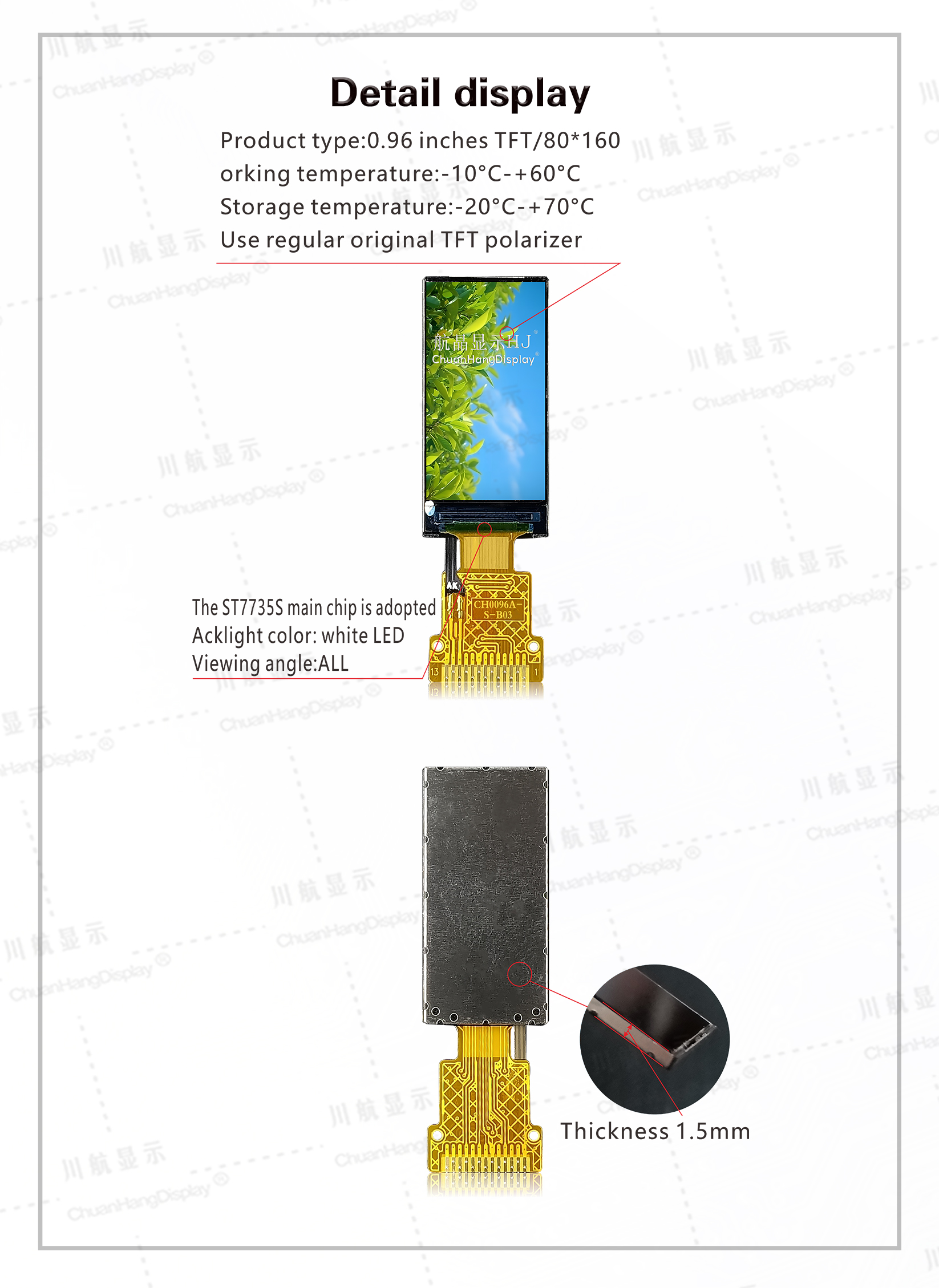

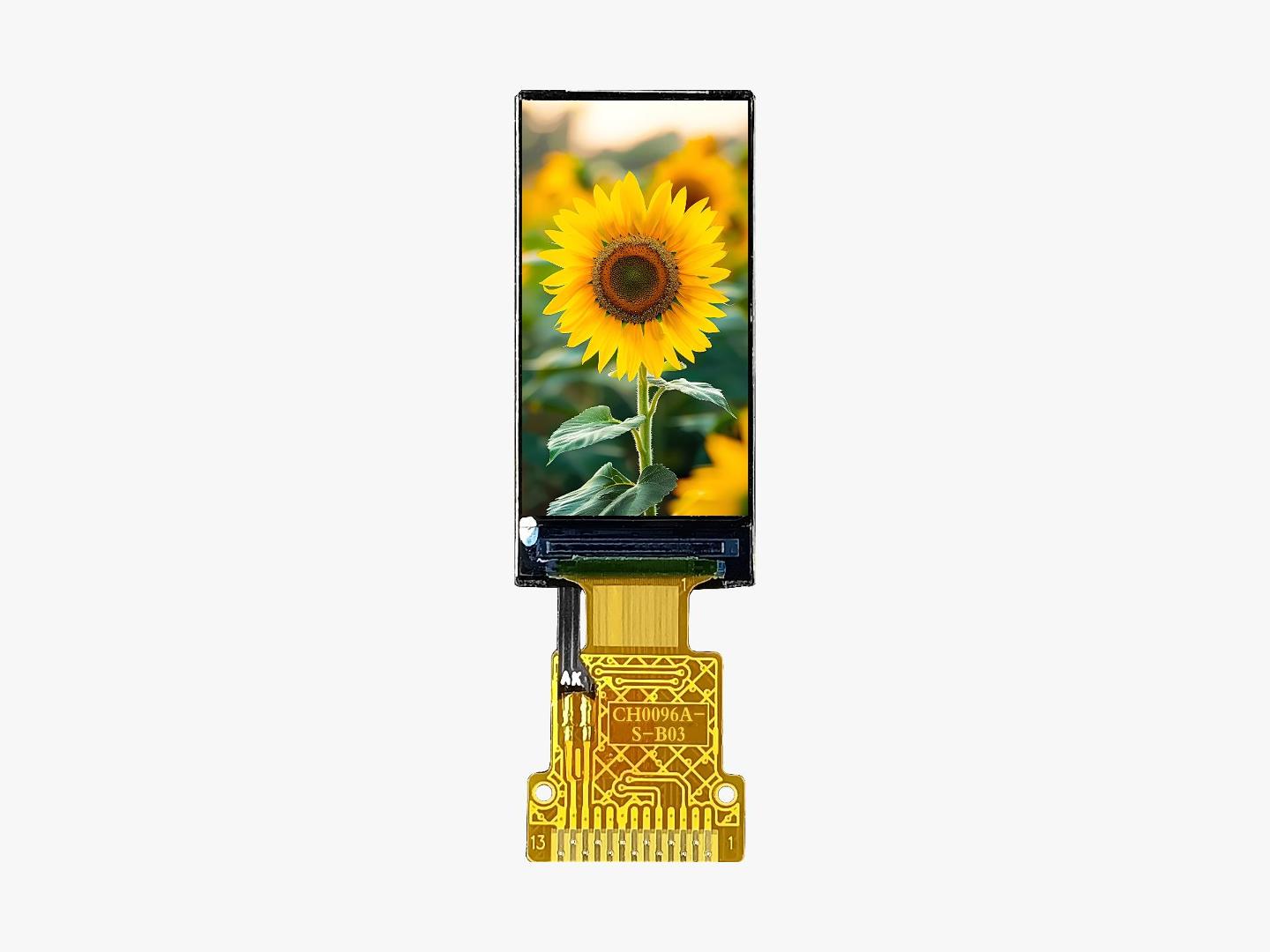

Product Display

Shenzhen ChuanHang Electronic Technology Co., Ltd.

PRODUCTS CENTER

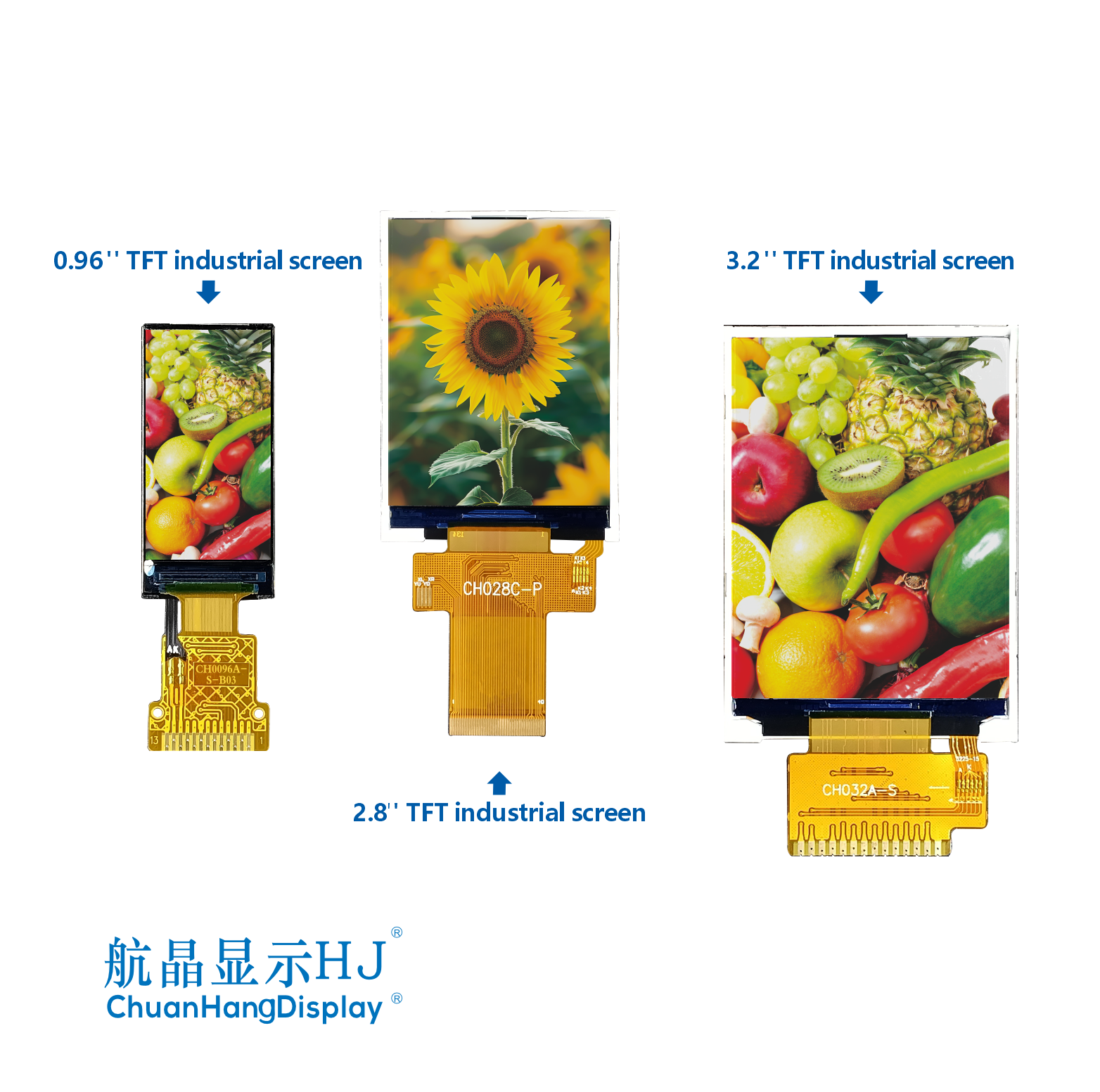

0.96"TFT display

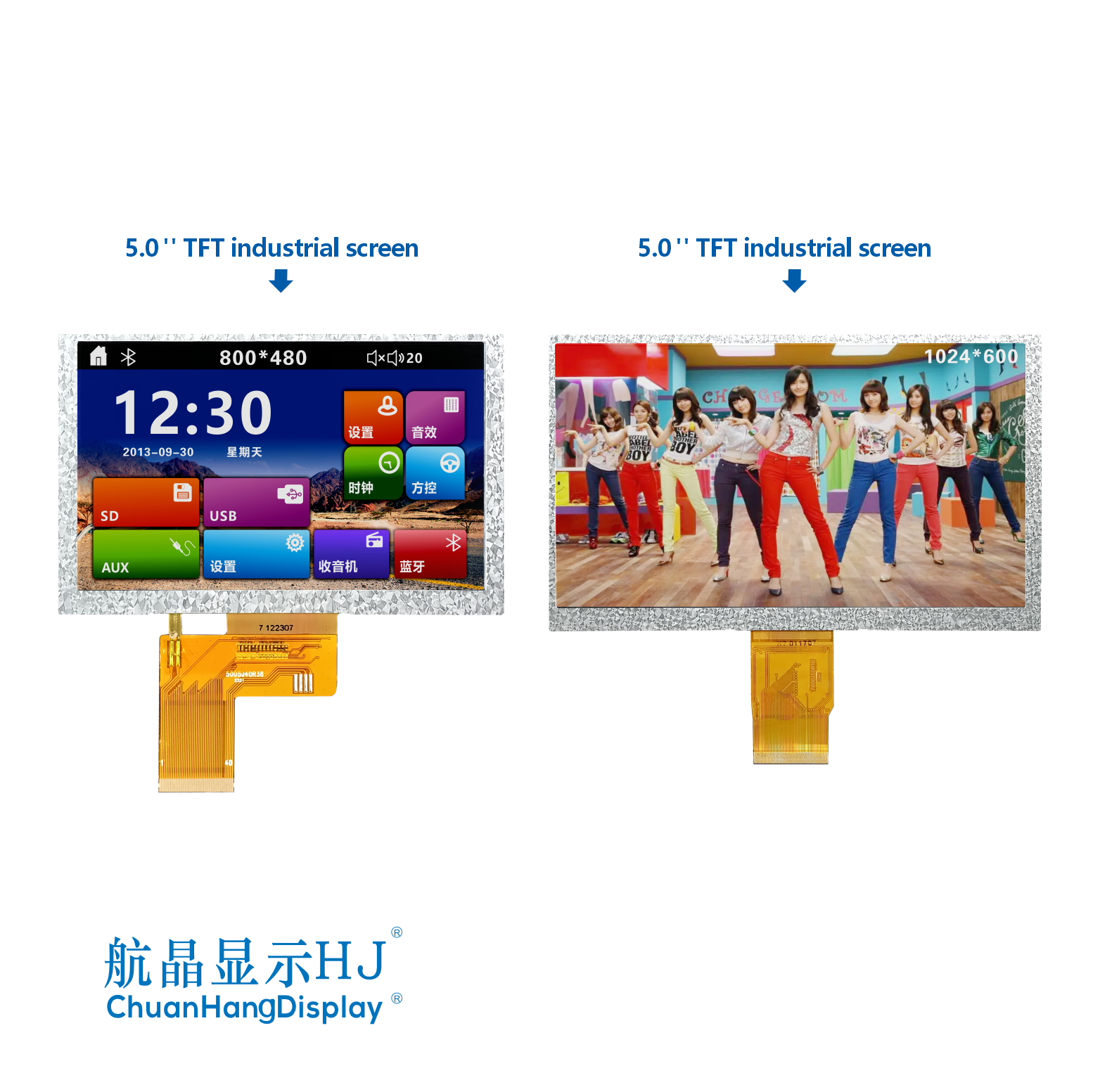

5.0"TFT display
