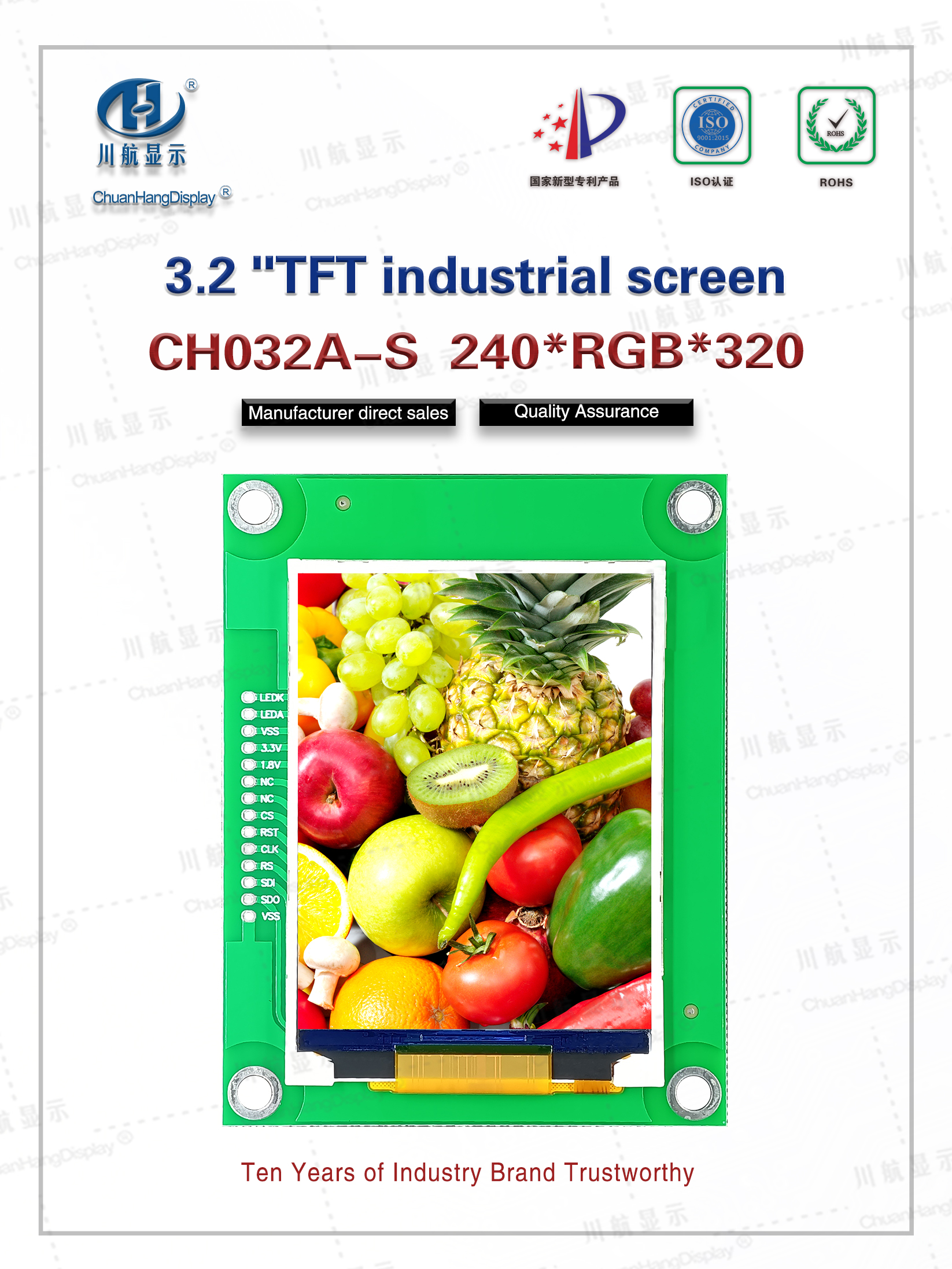

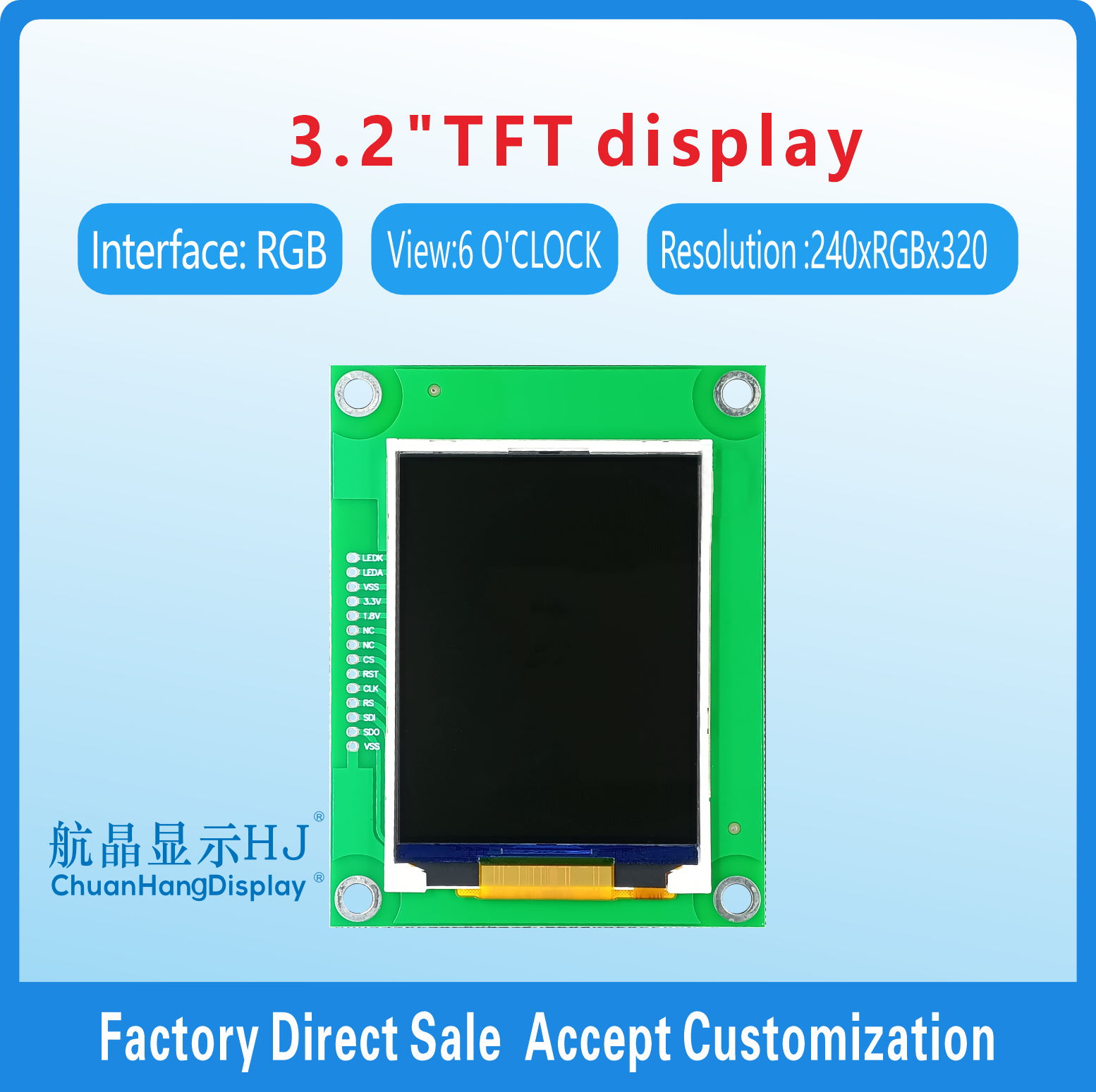

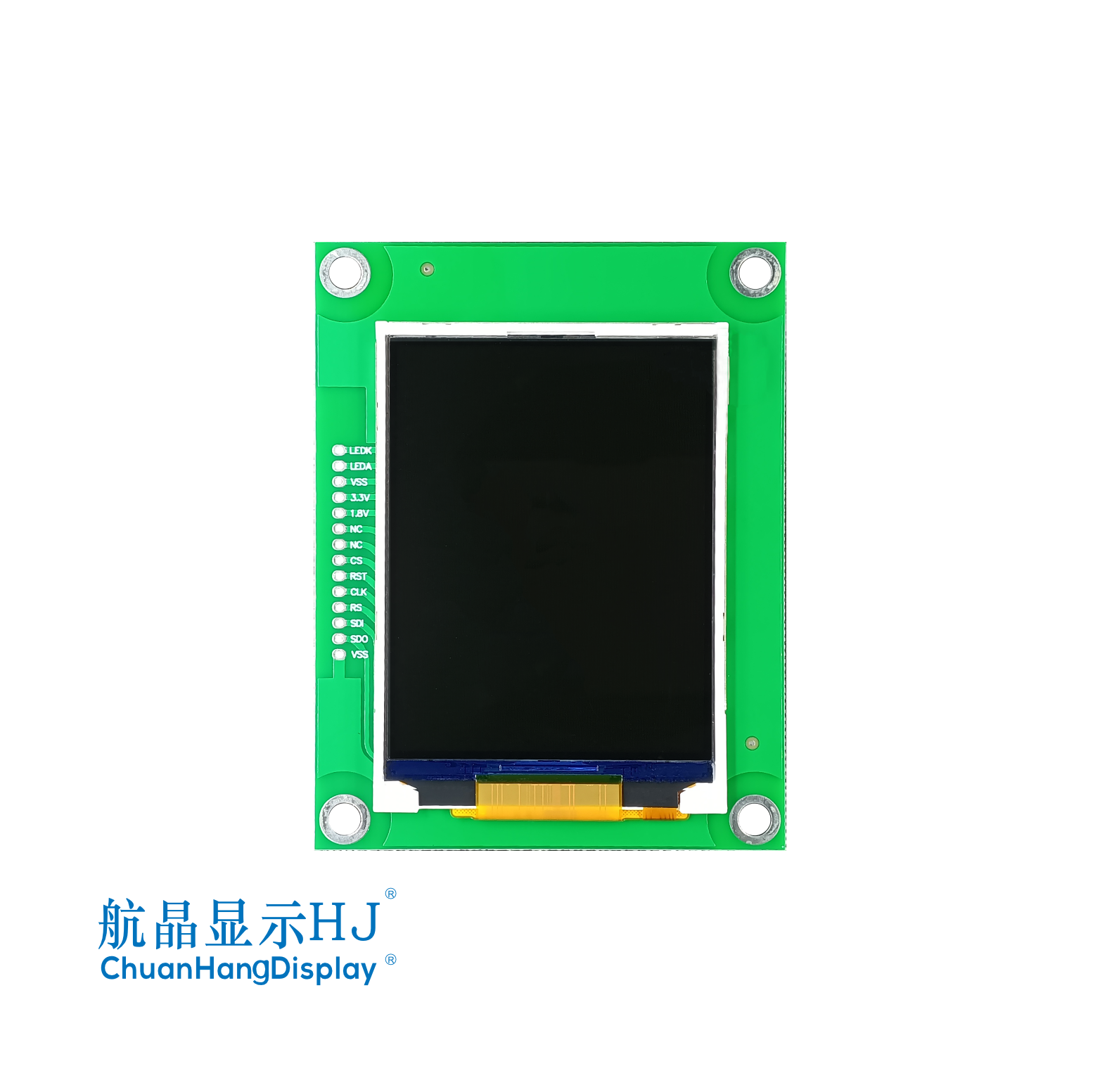

3.2"CH032A-S with PCB board

Product Description

1.1 Product size: 3.2 inches
1.2 Resolution: 240xRGBx320
1.3 Viewing angle: 6 o'clock viewing angle
1.4 Driver chip: ST7789T3
1.5 Interface type: Parallel port 8-bit/16-bit

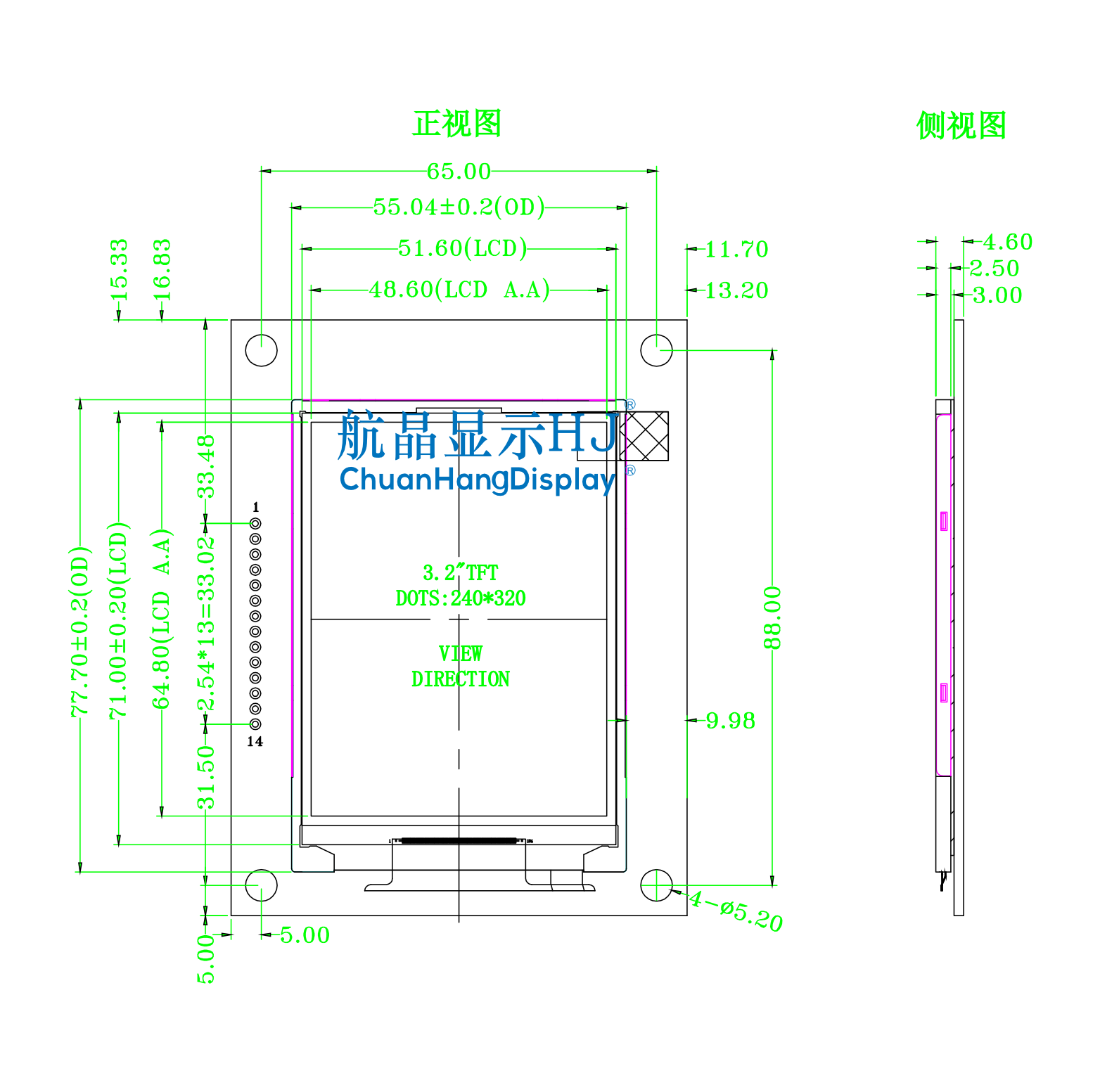

1.6 Module size: 65x77.07x4.6mm
1.7 Display area: 48.6x64.8 mm
1.8 Cable interface: 14 interface positions
1.9 Operating voltage: 3.3V
2.0 Operating temperature: -20℃~+70℃
2.1 Display color: TFT

PDF Download Demo code

Video Presentation

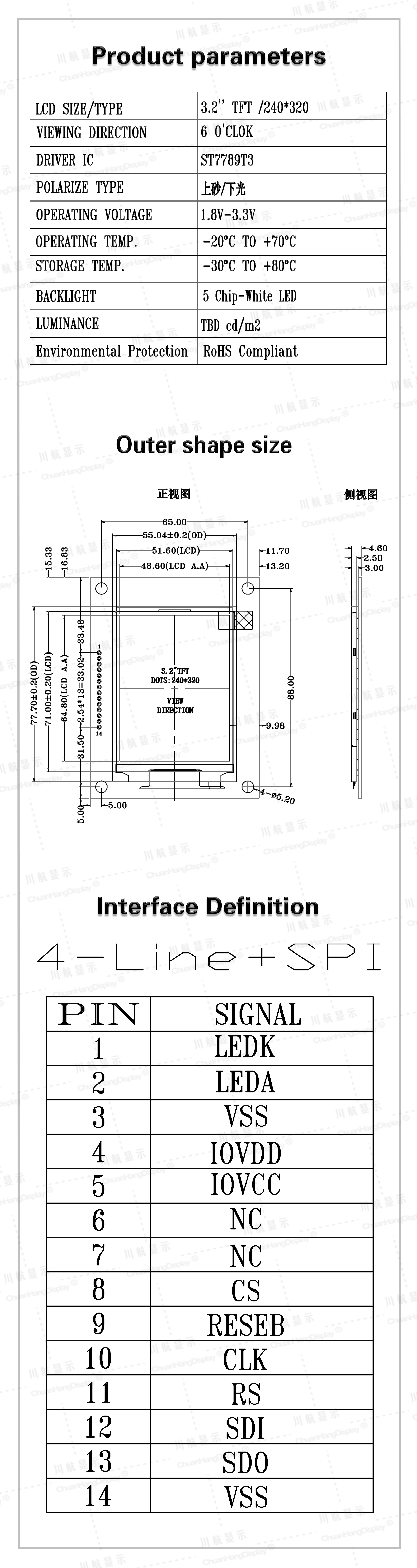

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH032A-S with PCB board
Resolution	240xRGBx320	screen size	3.2"
Outline Dimension(LWH)	65.00x77.70x4.60mm	Visible Area(L*W)
Active Area(L*W)	48.60x64.80mm	Process type	COG
Interface Type	14PIN	Operating Voltage	3.3V
Communication interface	Parallel port 8-bit/16-bit	Viewing Direction	6 O'CLOCK
Display color	TFT	Driver IC	ST7789T3
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
production capacity	Self-produced	Whether to bring PCB	YES

Product Datasheet

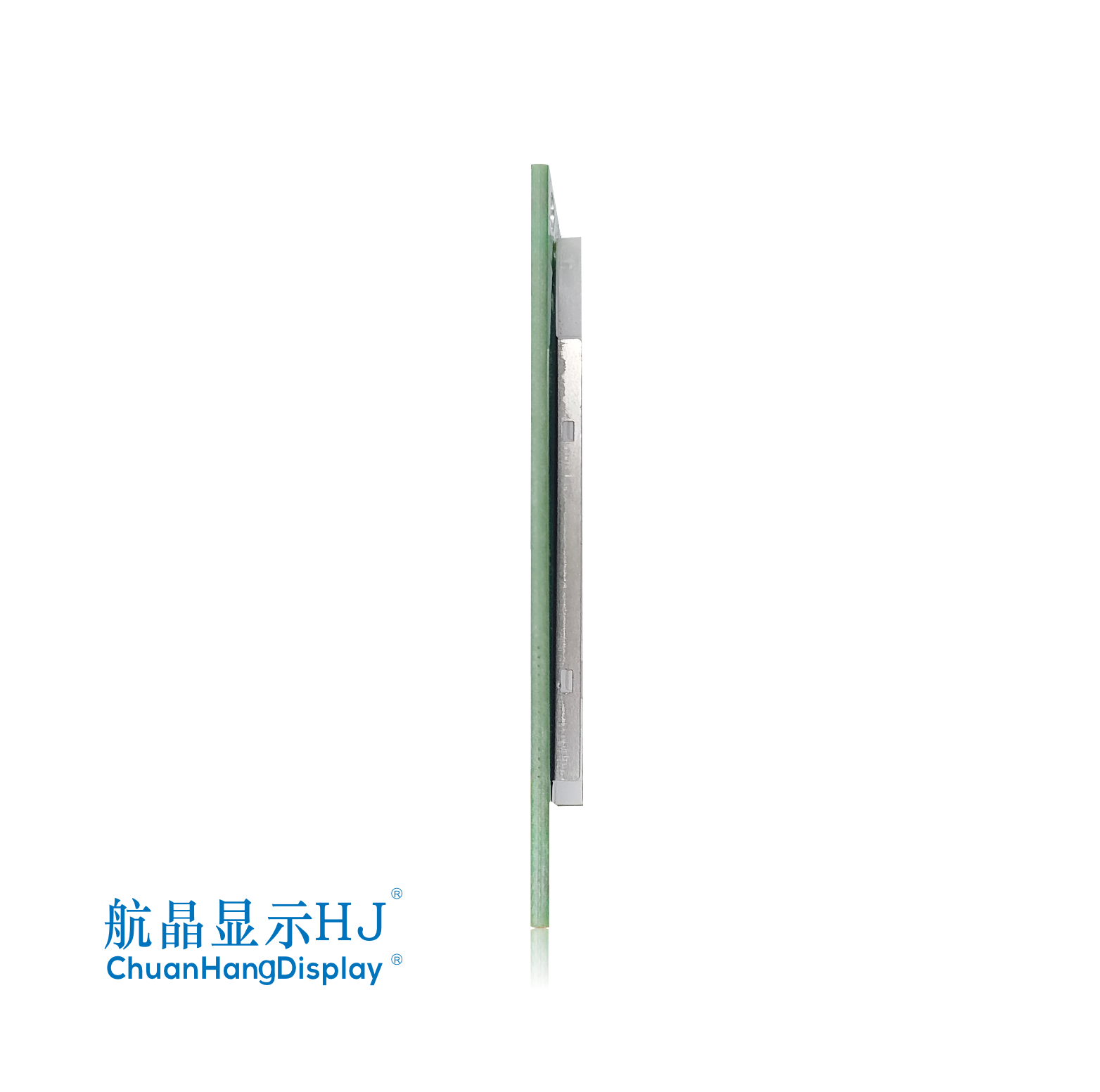

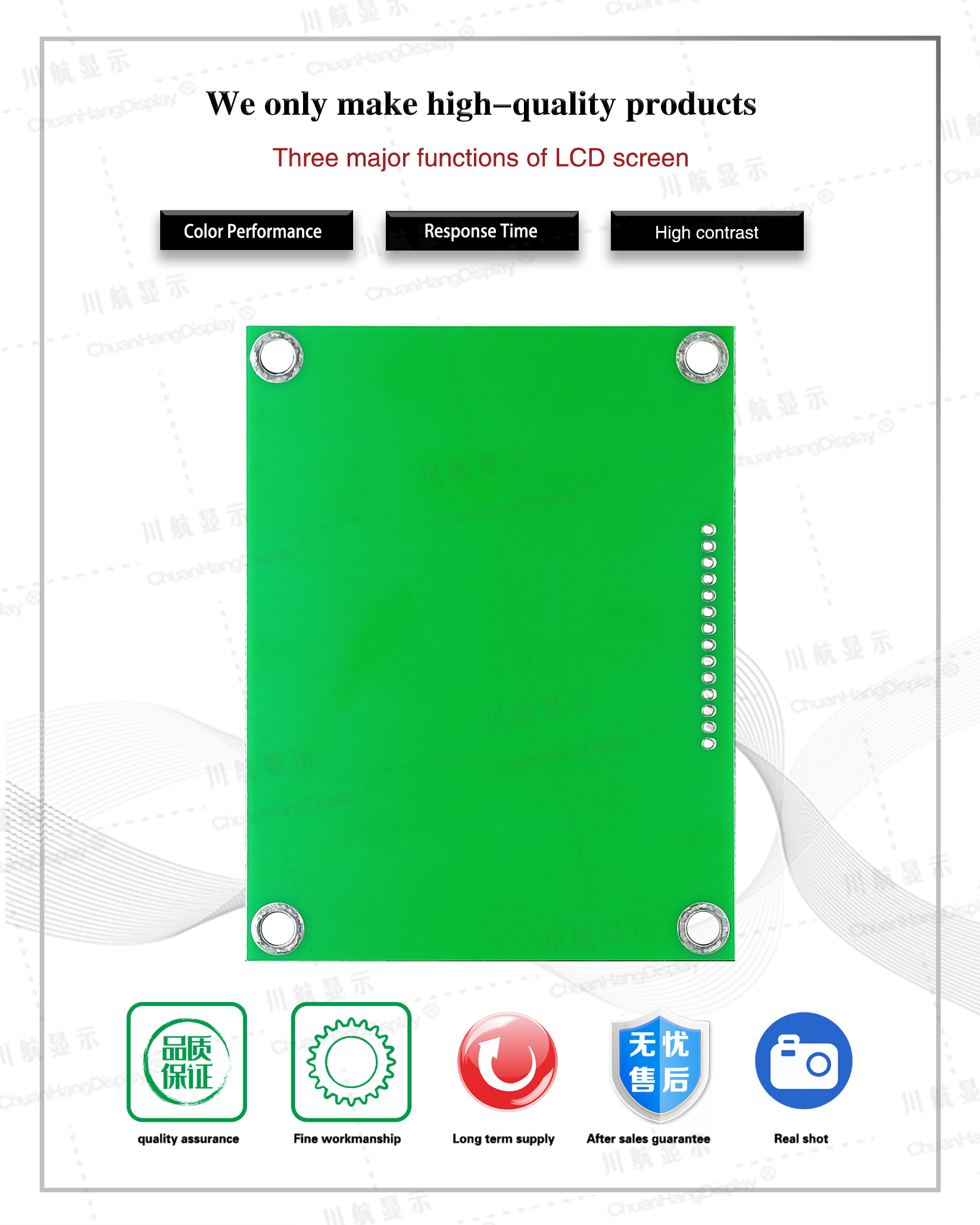

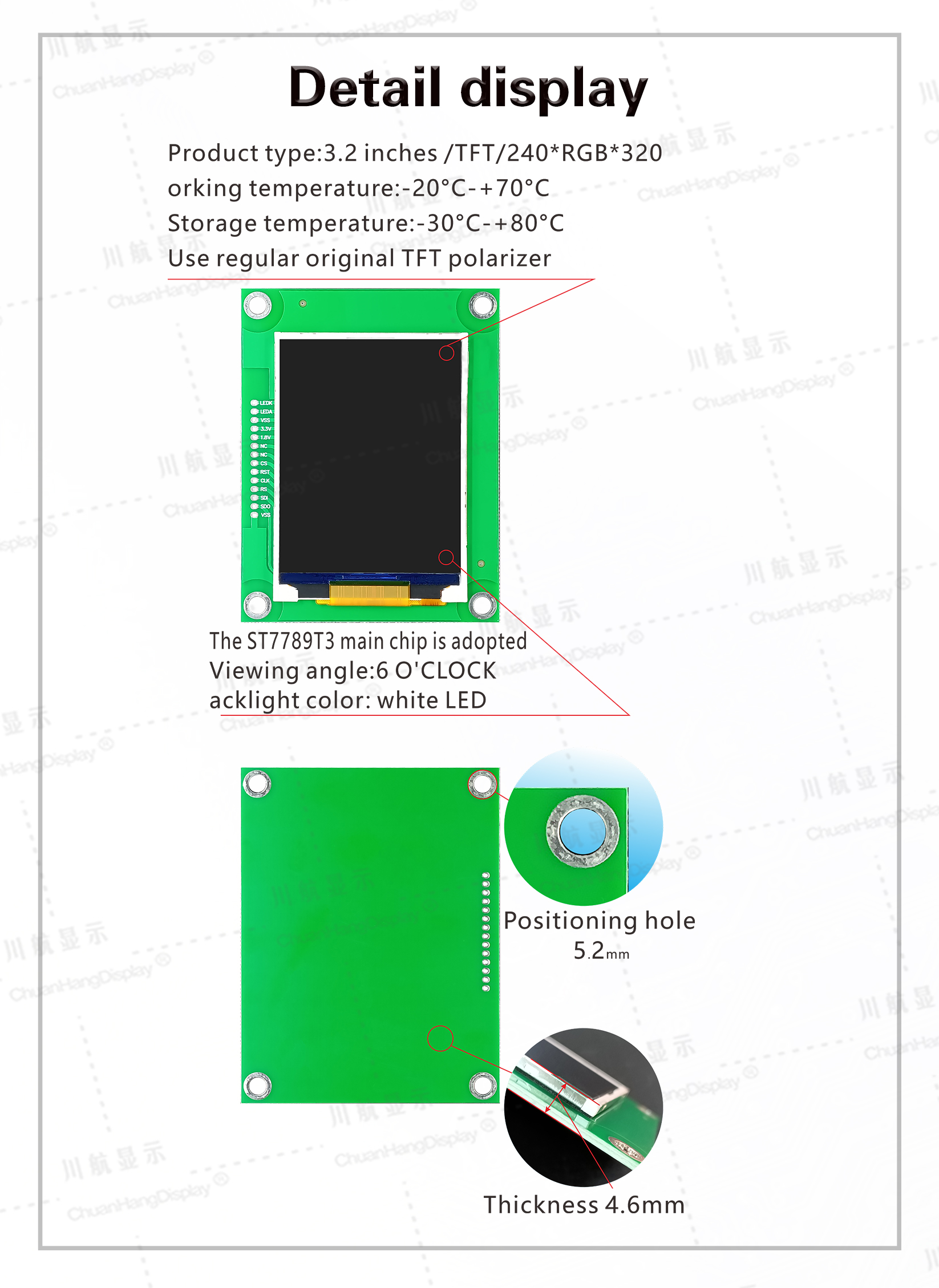

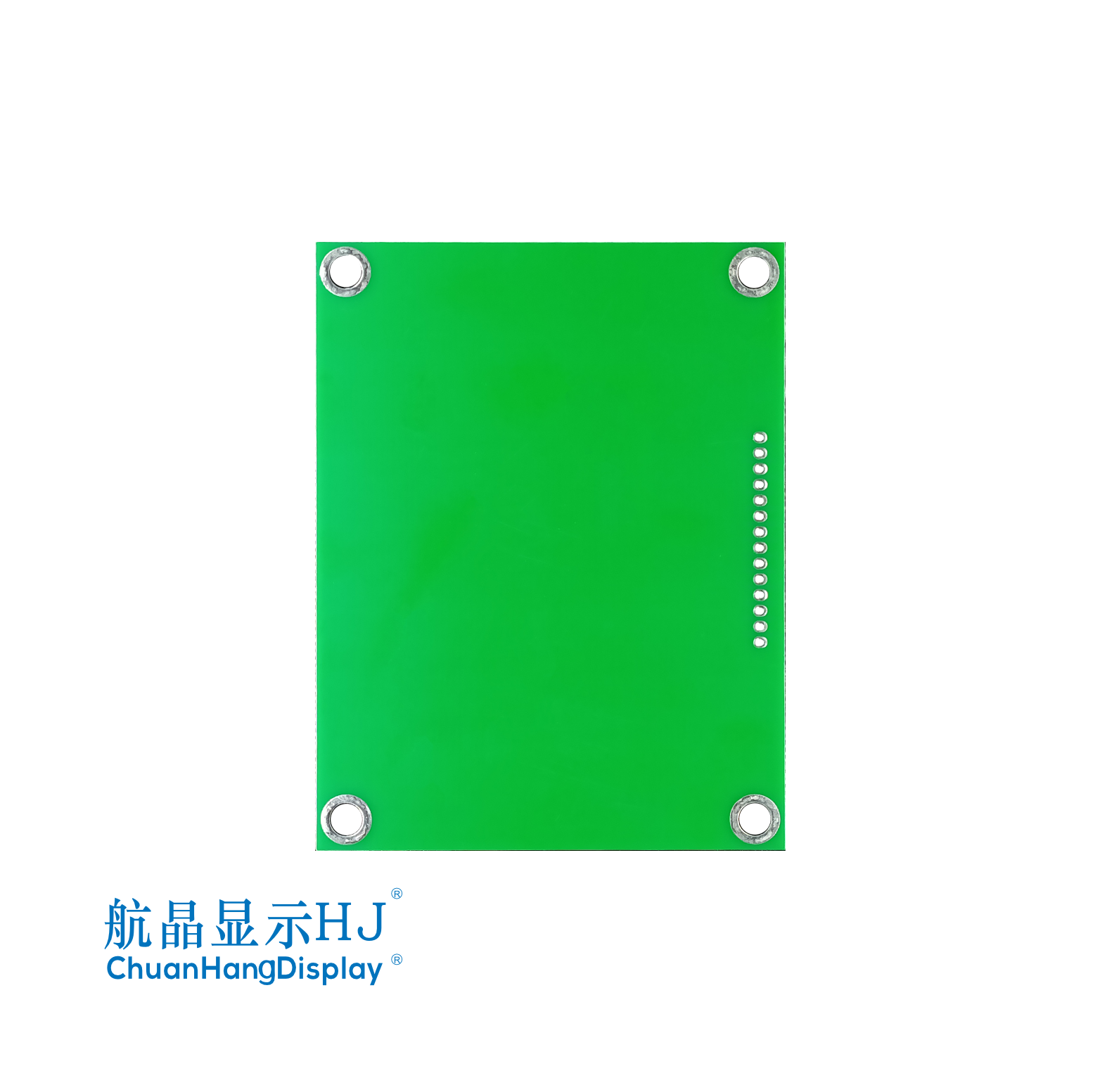

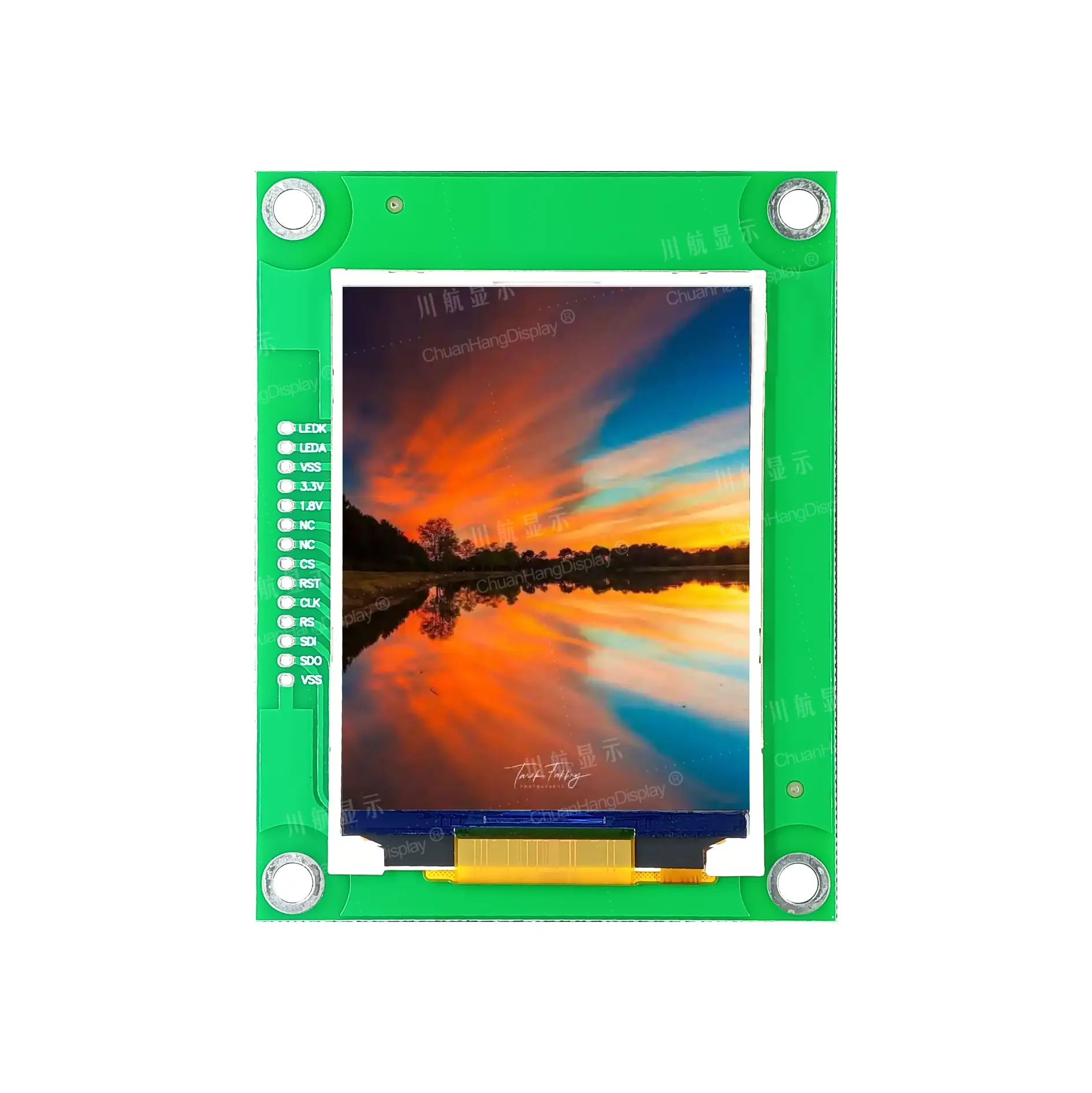

Product Display

Shenzhen ChuanHang Electronic Technology Co., Ltd.

PRODUCTS CENTER

3.2"CH032A-S with PCB board

3.2“Single glass CH032A-S

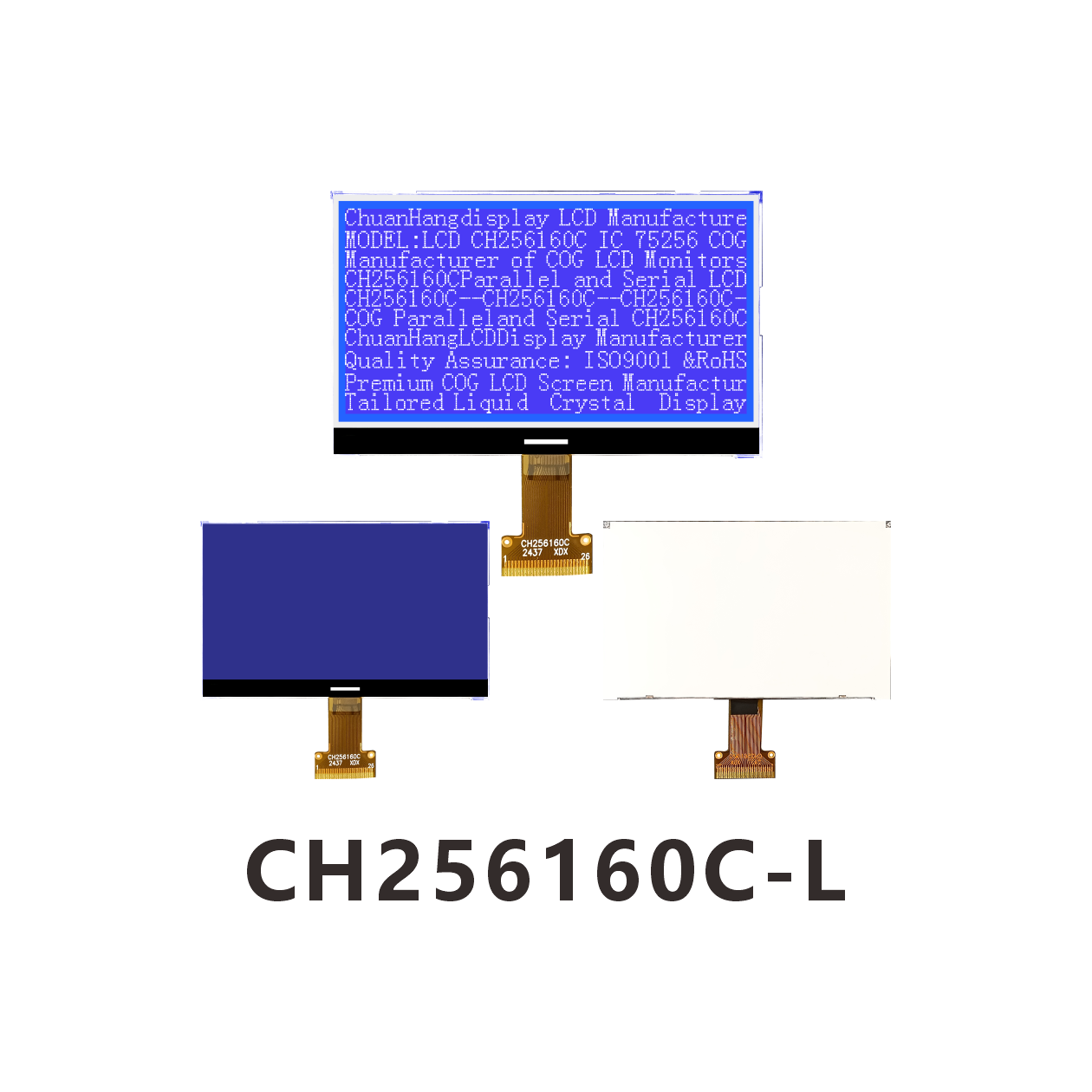

CH256160C-L Weld
