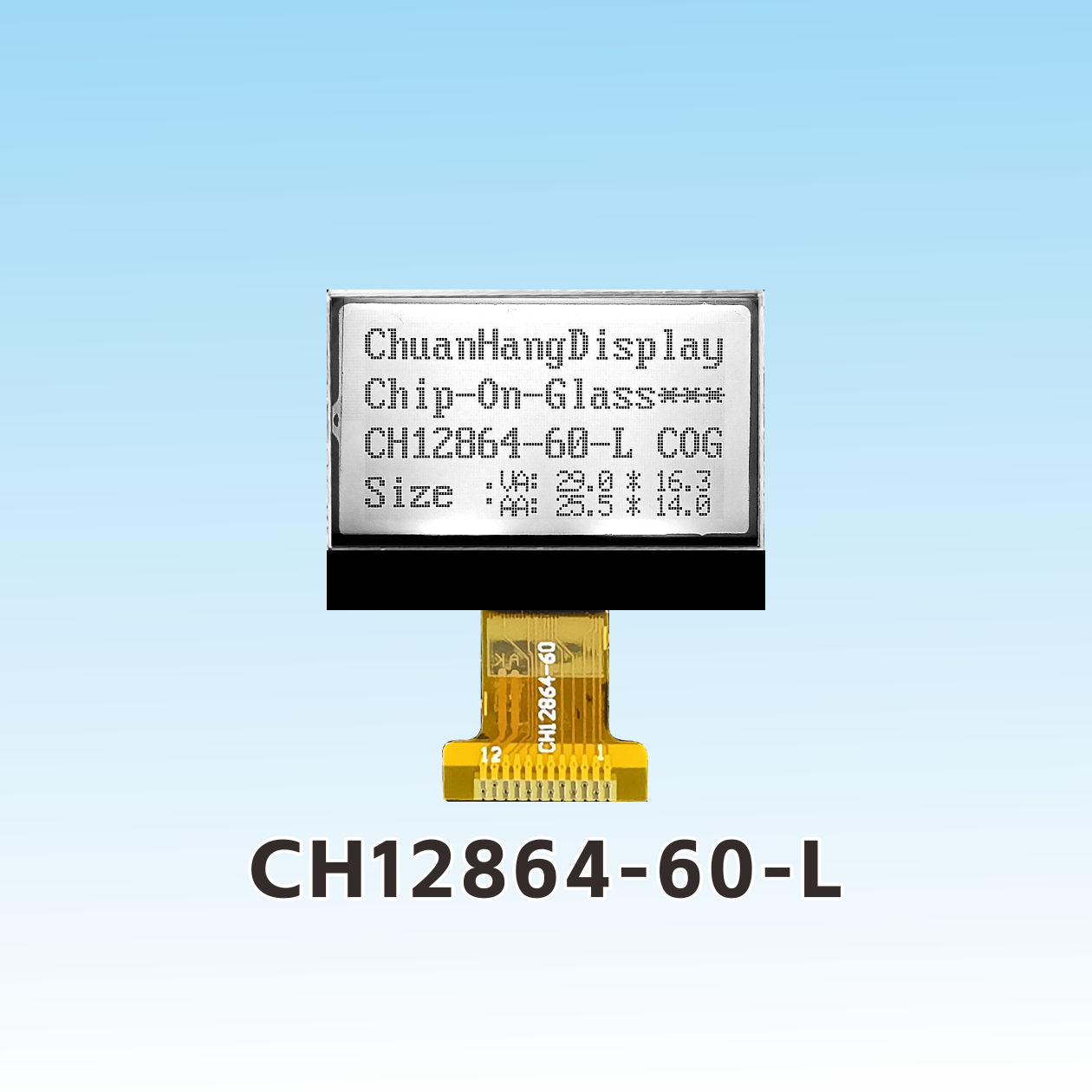

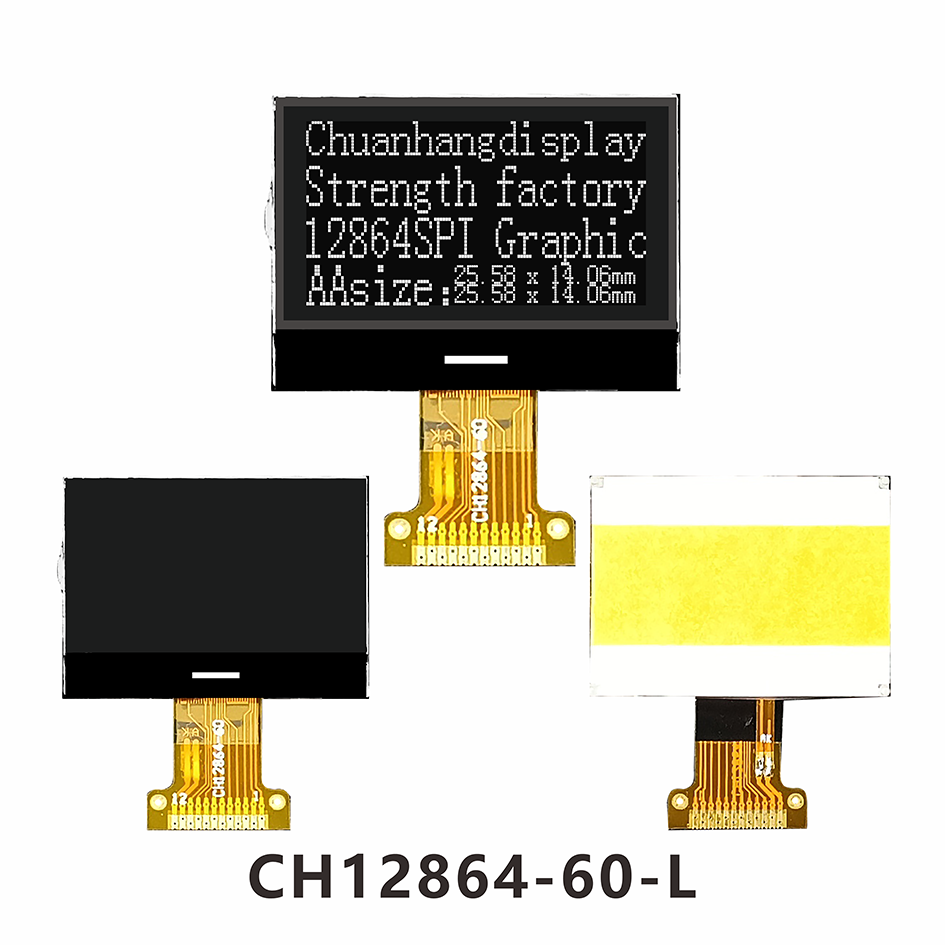

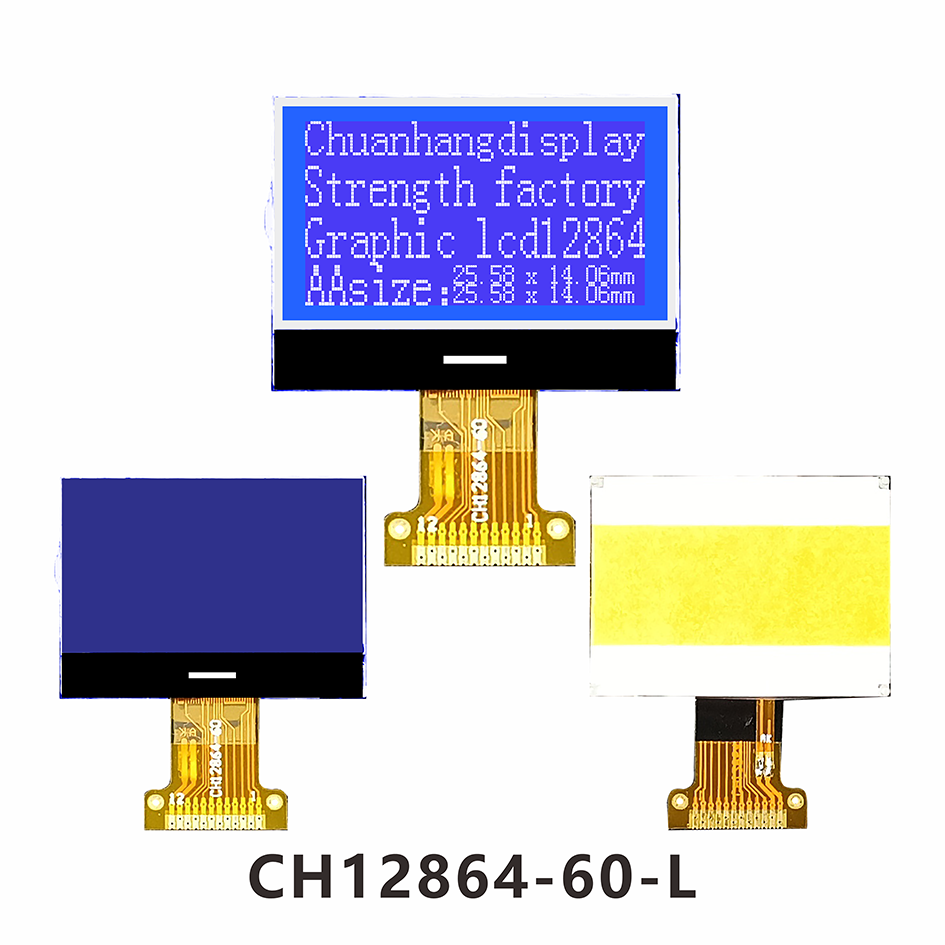

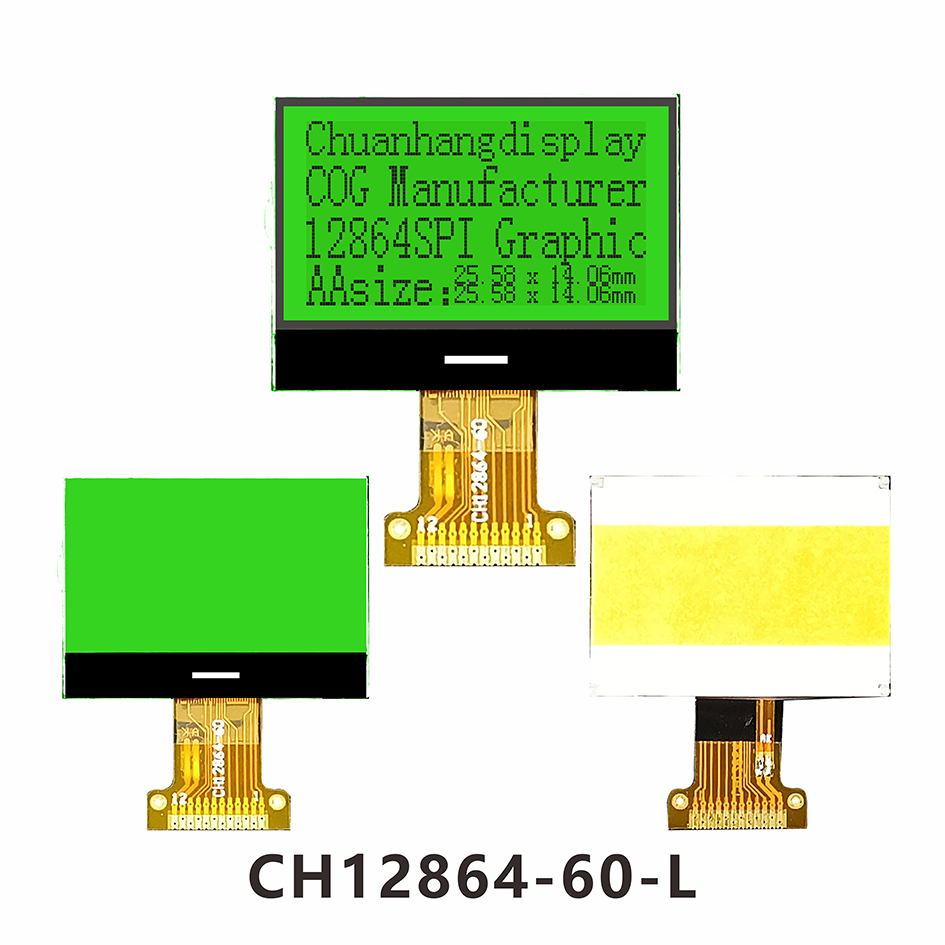

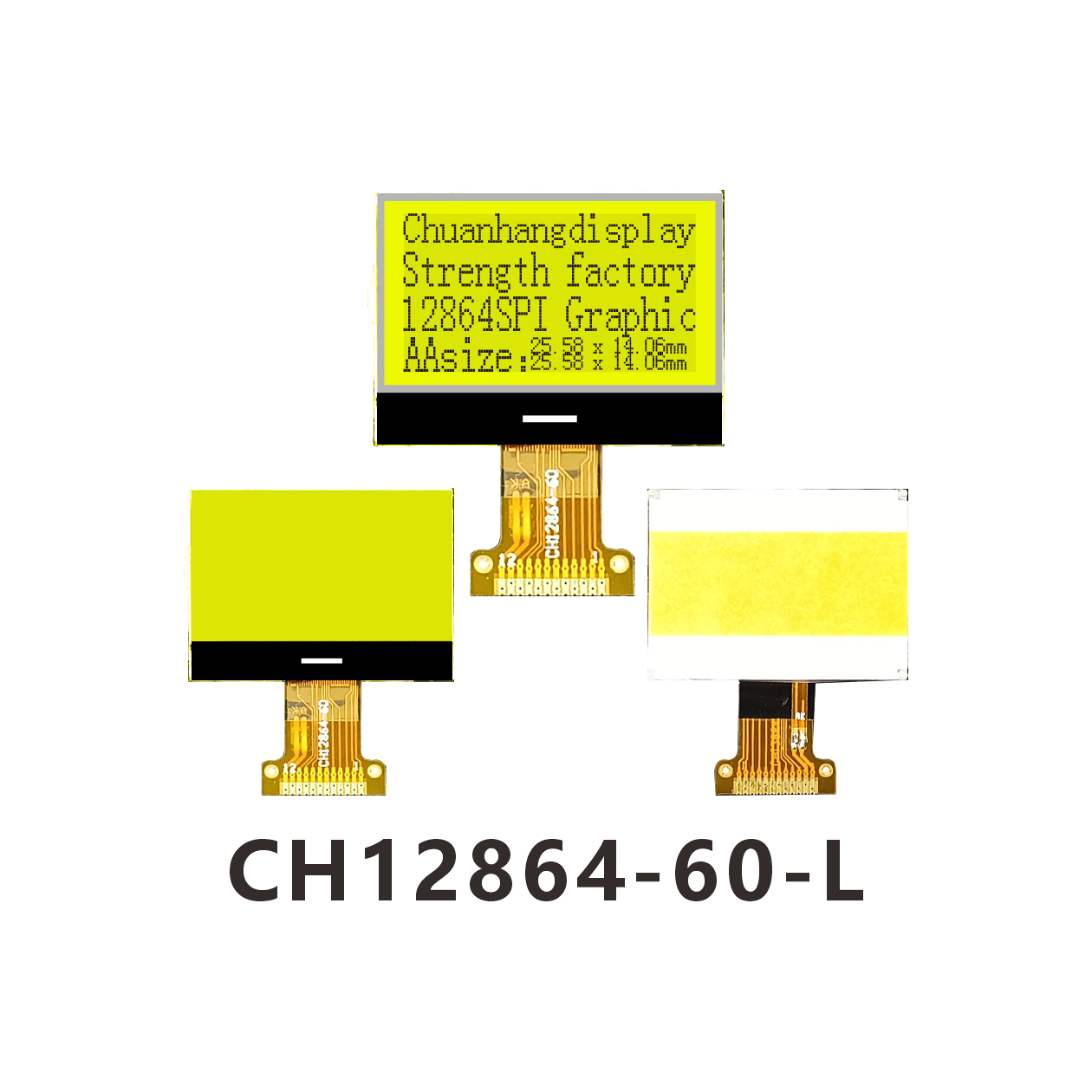

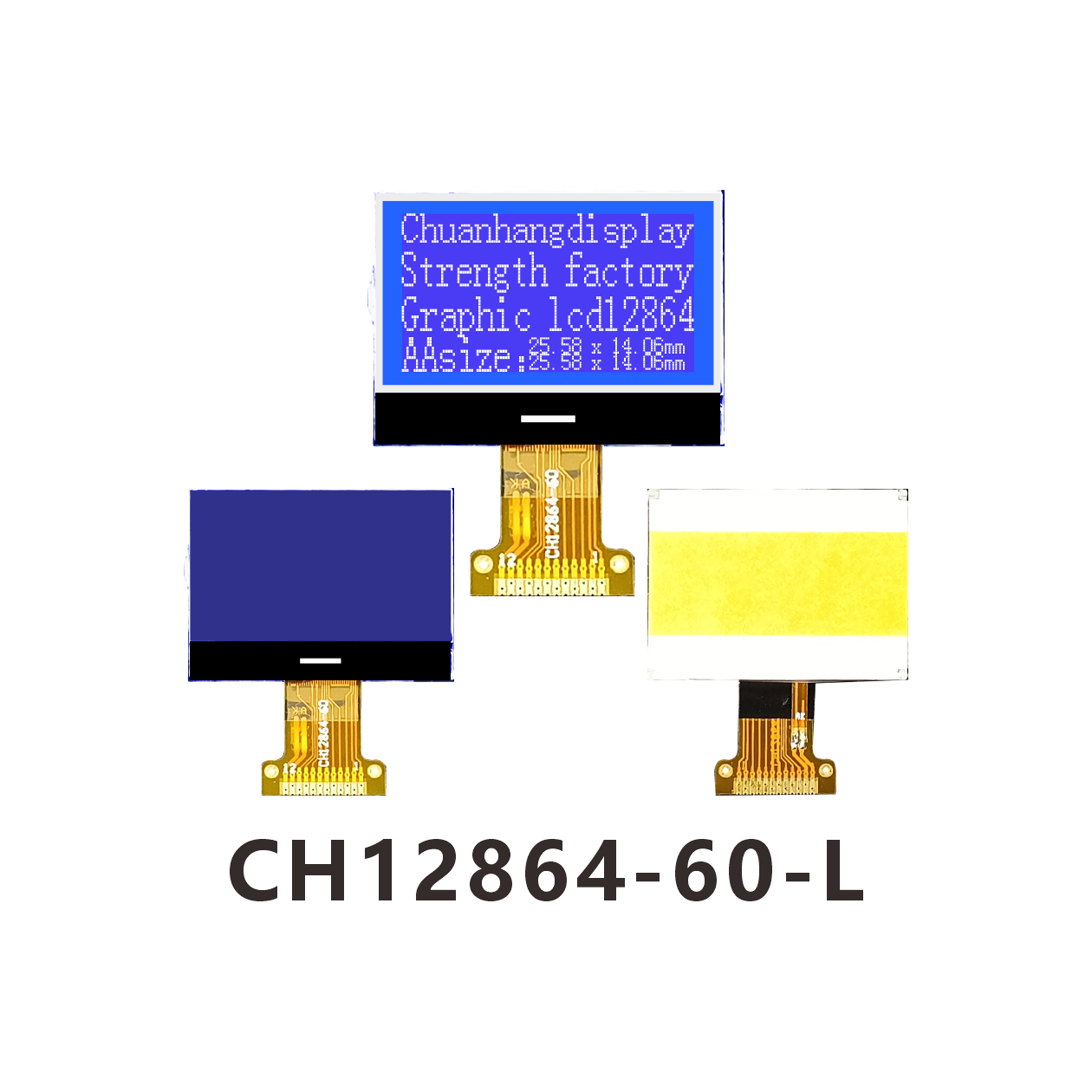

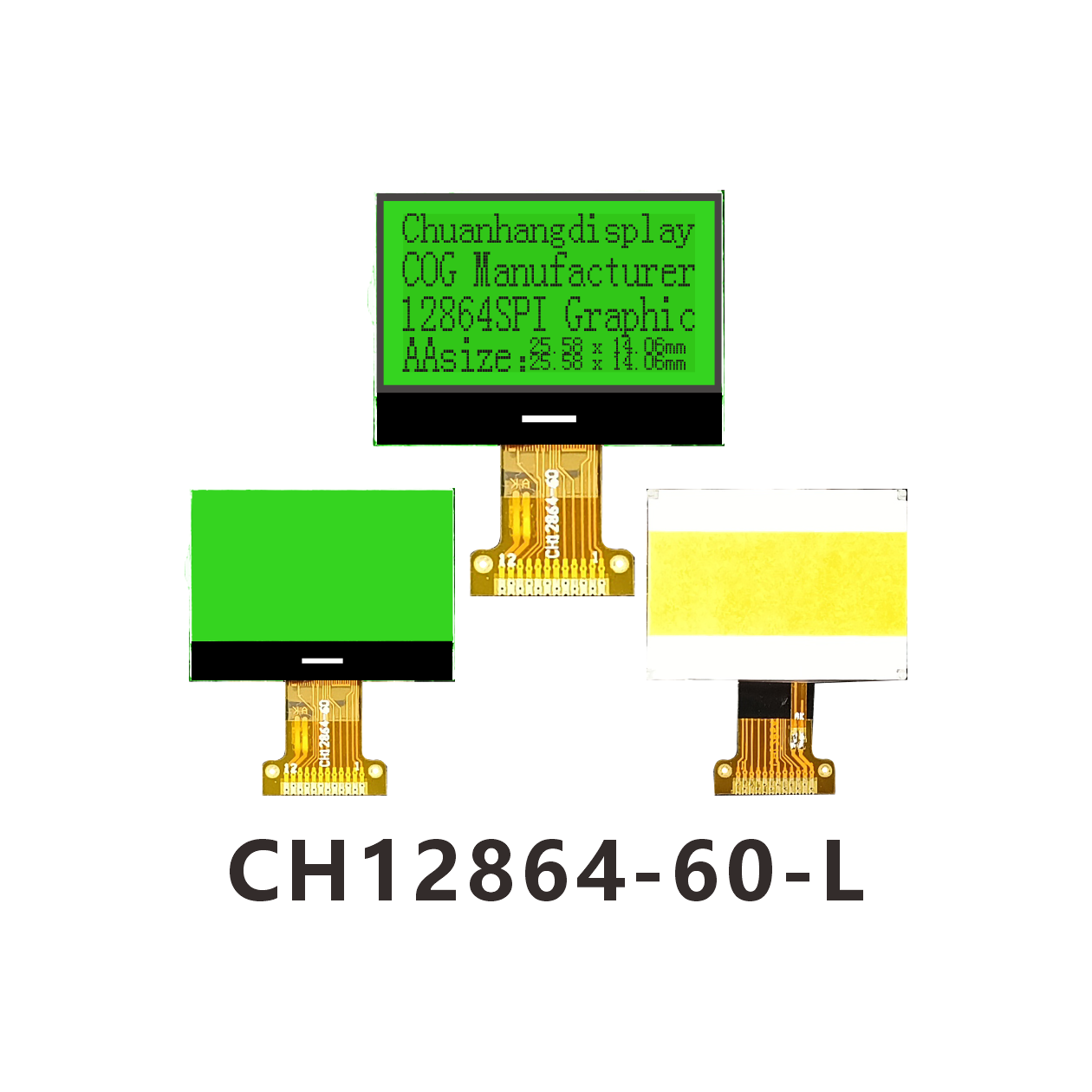

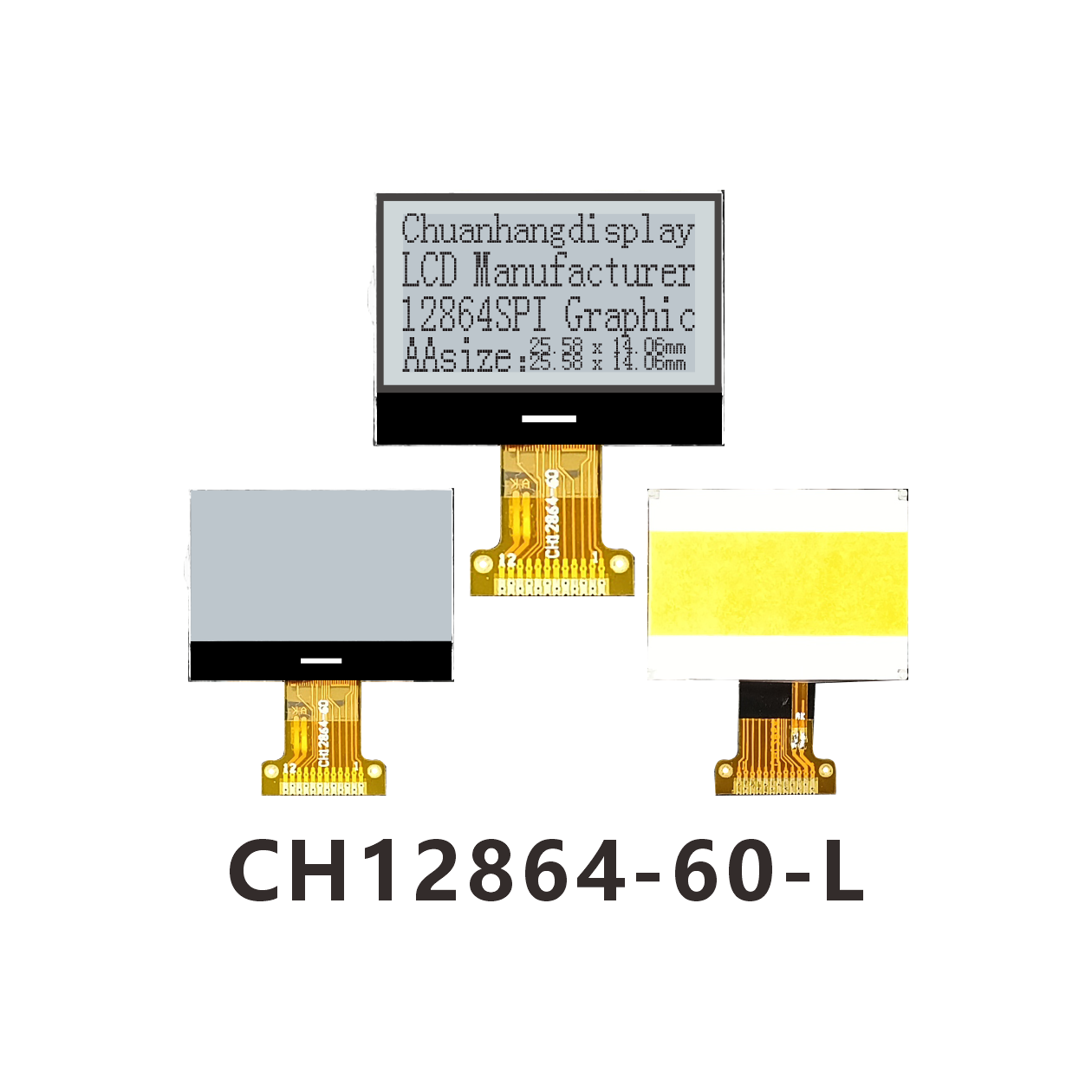

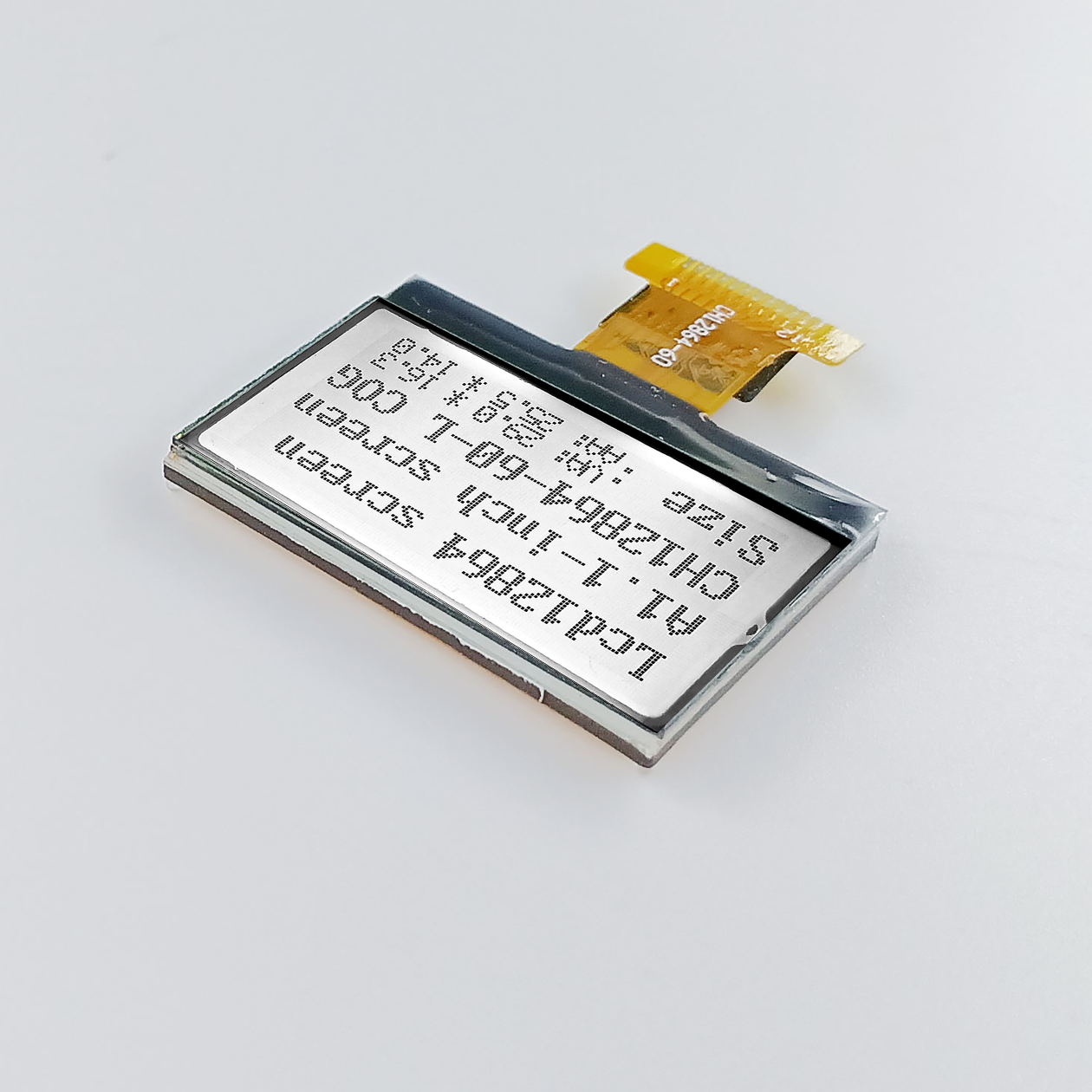

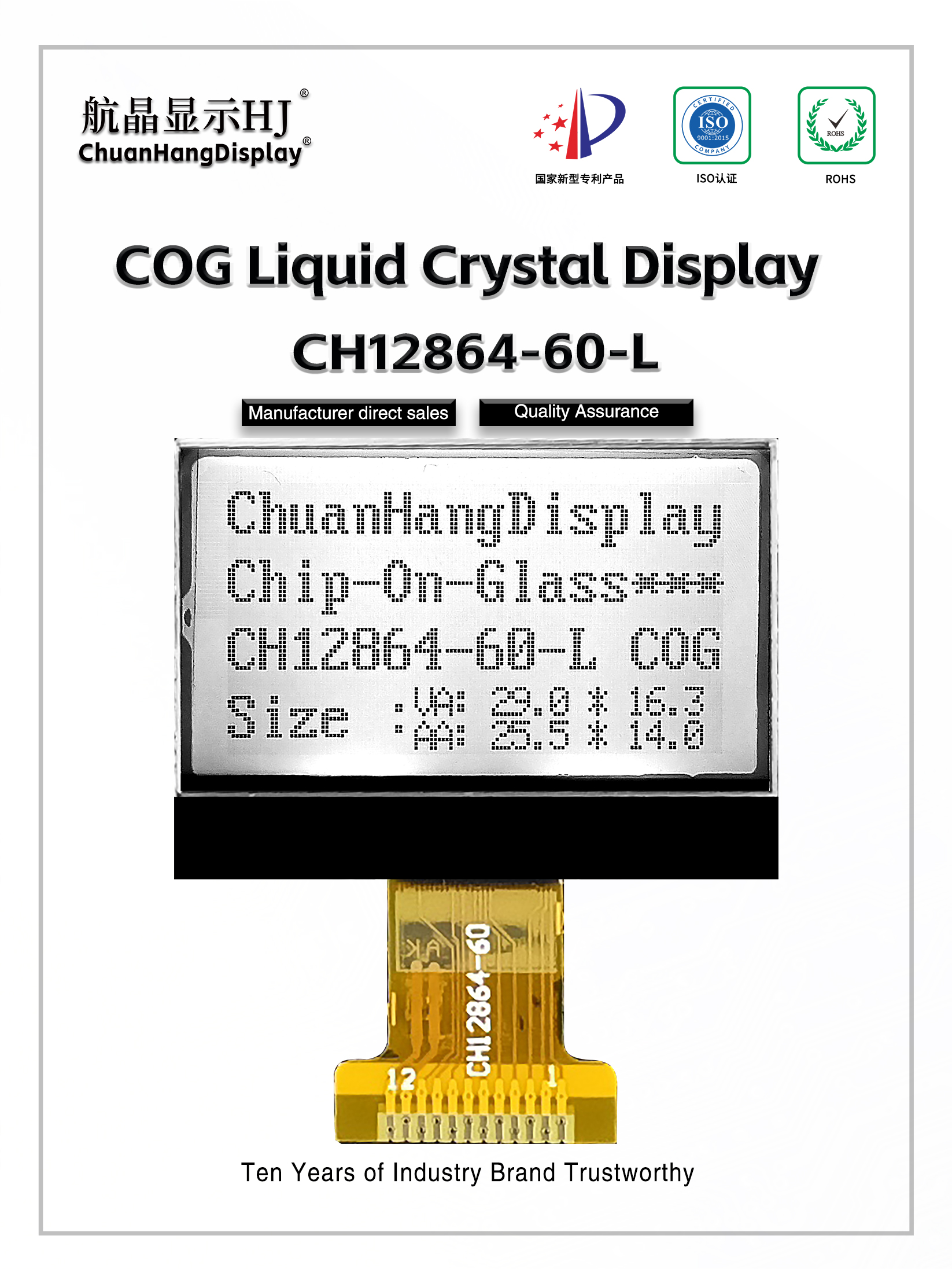

CH12864-60- L焊接china 12864 lcd cog module

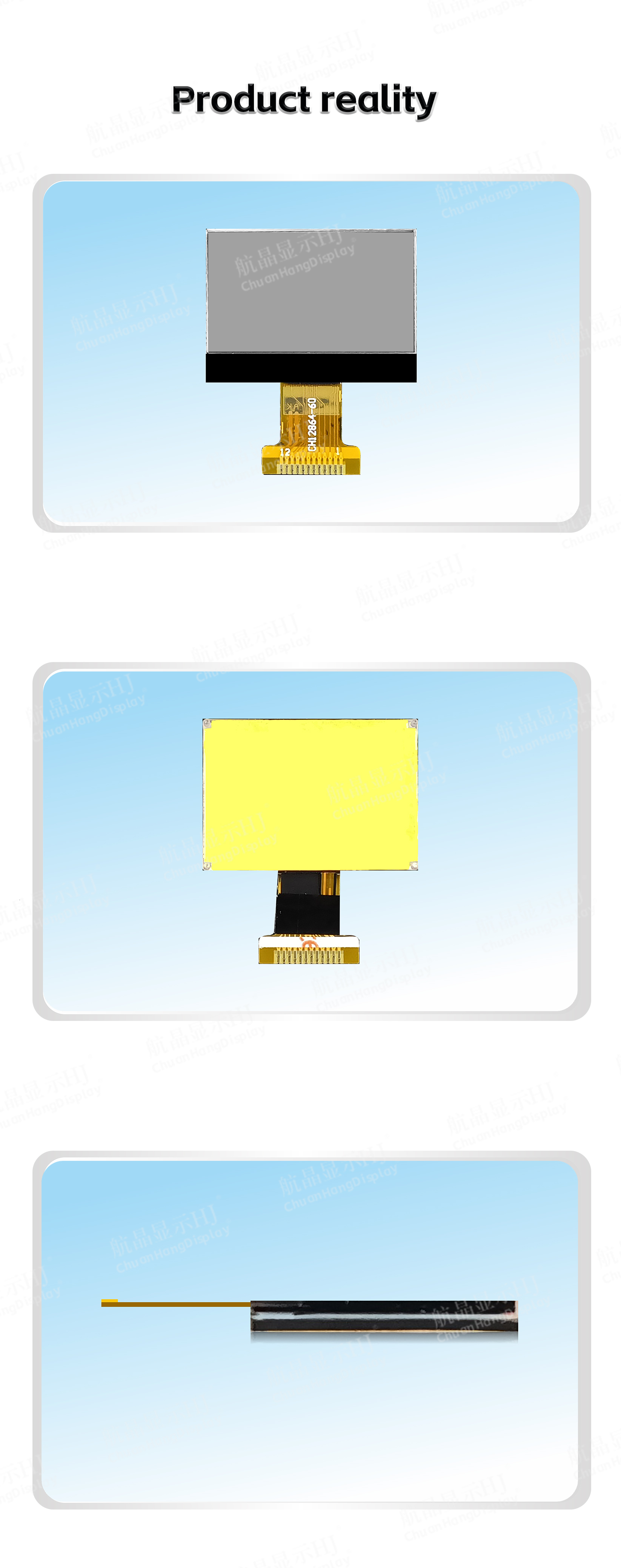

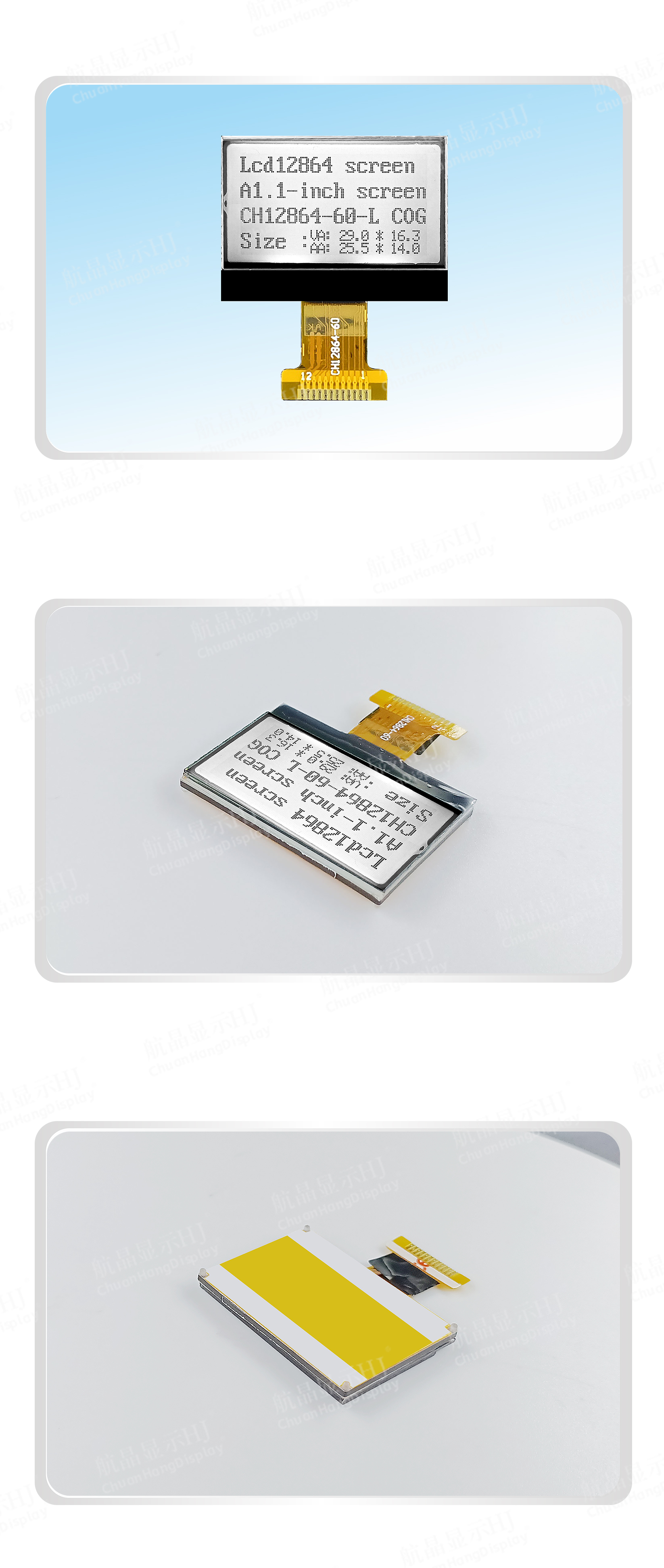

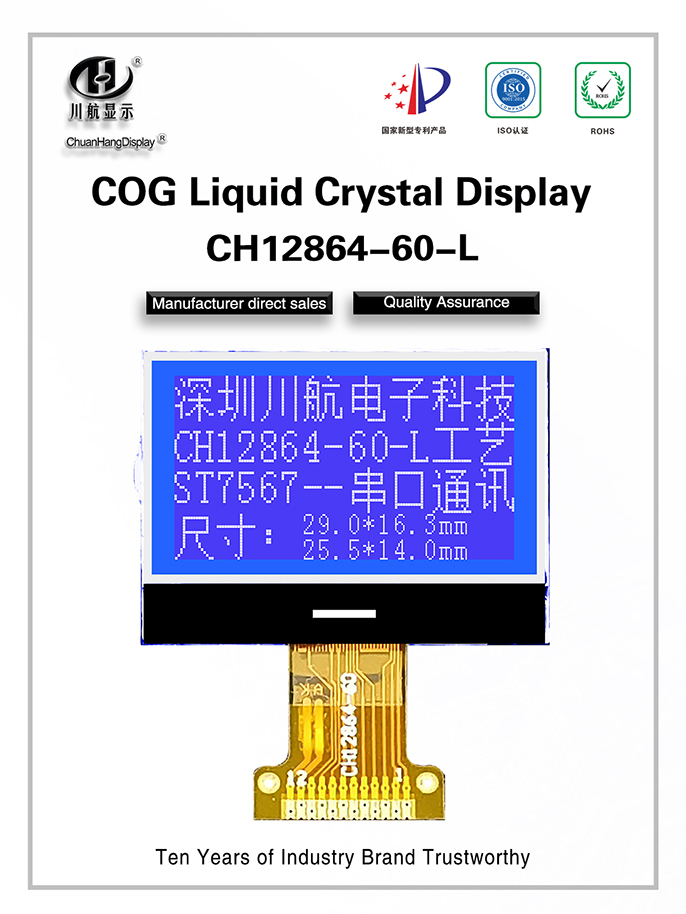

Product Description

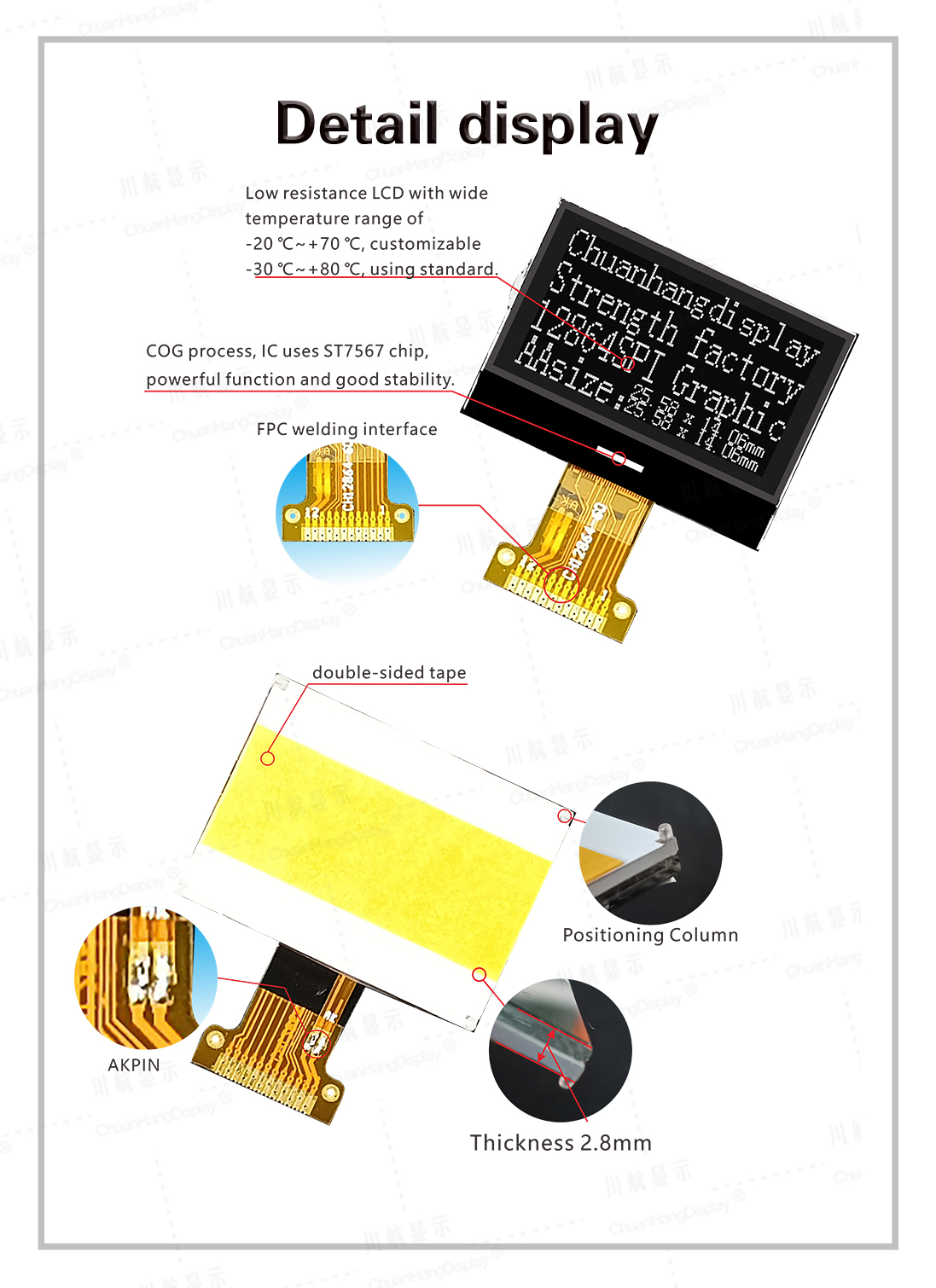

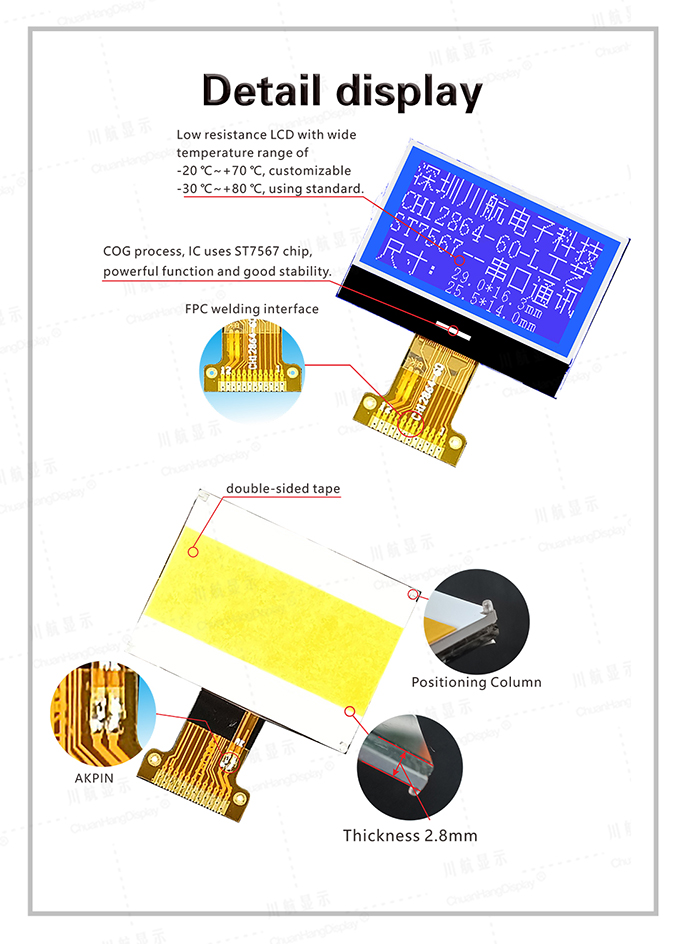

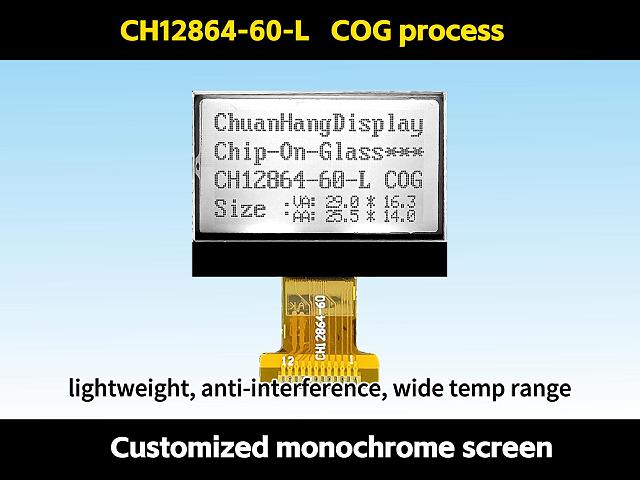

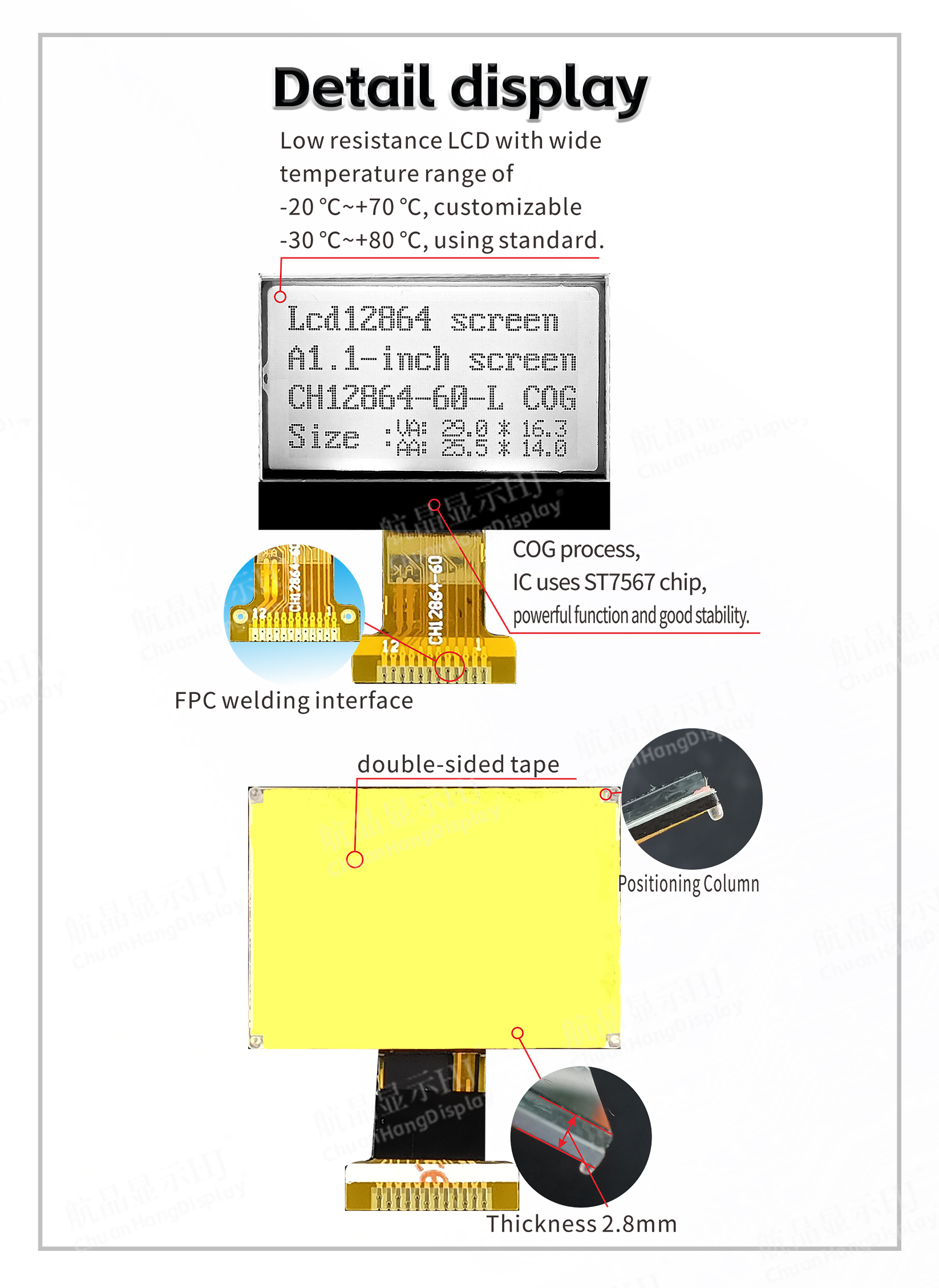

1.1 COG process, FPC soft wiring is a welding port, the product has backlight, has been assembled, thin thickness and stable structure.
1.2 IC uses ST7567, there is no font library in the chip, and the programmer compiles its own font library.
1.3 Low power consumption, 3.3V power mode, no backlight current within 1mA, backlight current within 50mA.

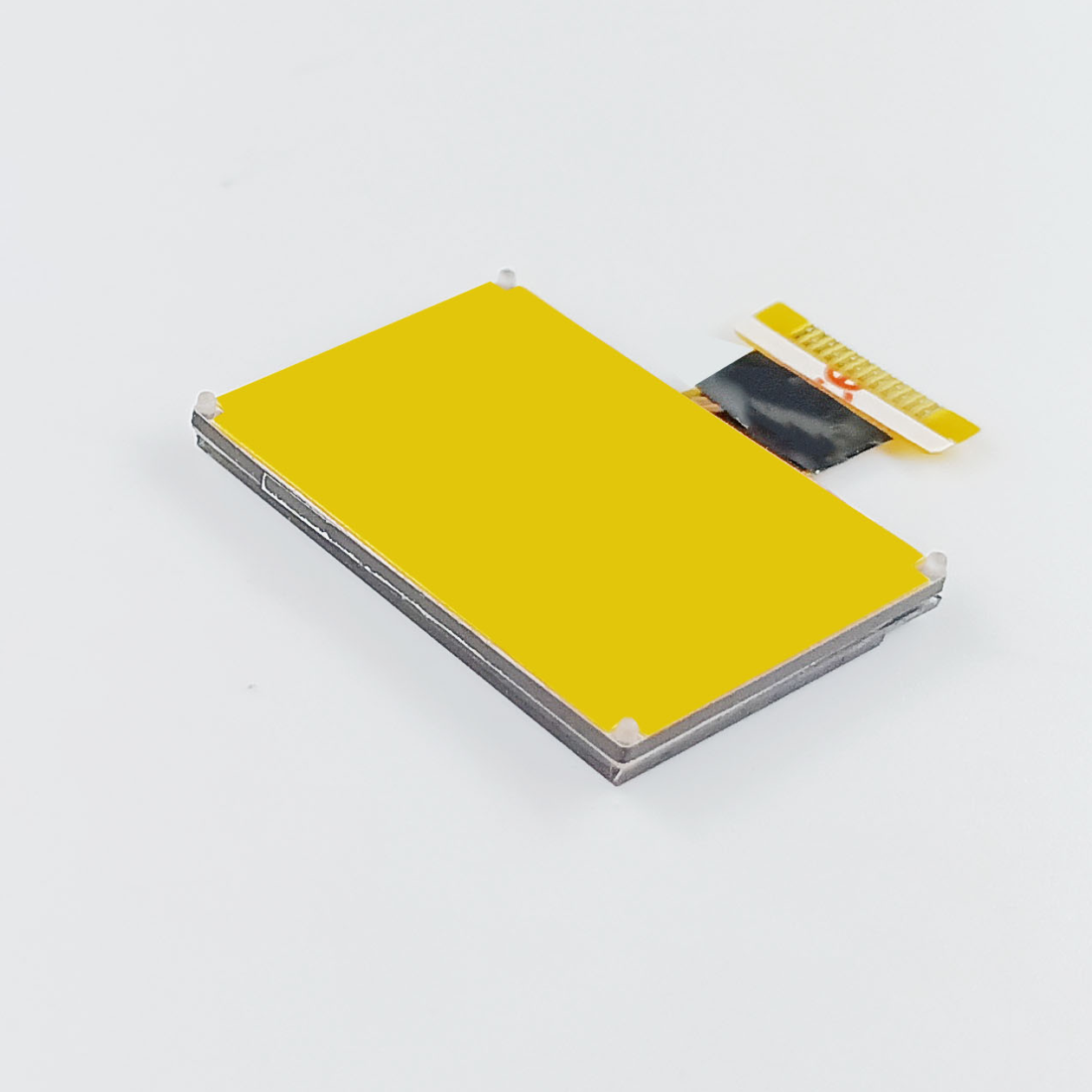

1.4 LED backlight A and K are FPC wiring, and A and K need to supply 2.9V~3.0V separately.
1.5 Product features:
The built-in display data RAM is 64x128 bits.
The external capacitor generates a boost.
The contrast ratio is adjusted by the software.
One screen shows 8 characters x 4 lines (16x16 dots).
Single picture ≦128x64 dot matrix. 4-wire SPI interface communication.
Rich functions: interface display on/off, positive/reverse display.

PDF Download Demo code

Video Presentation

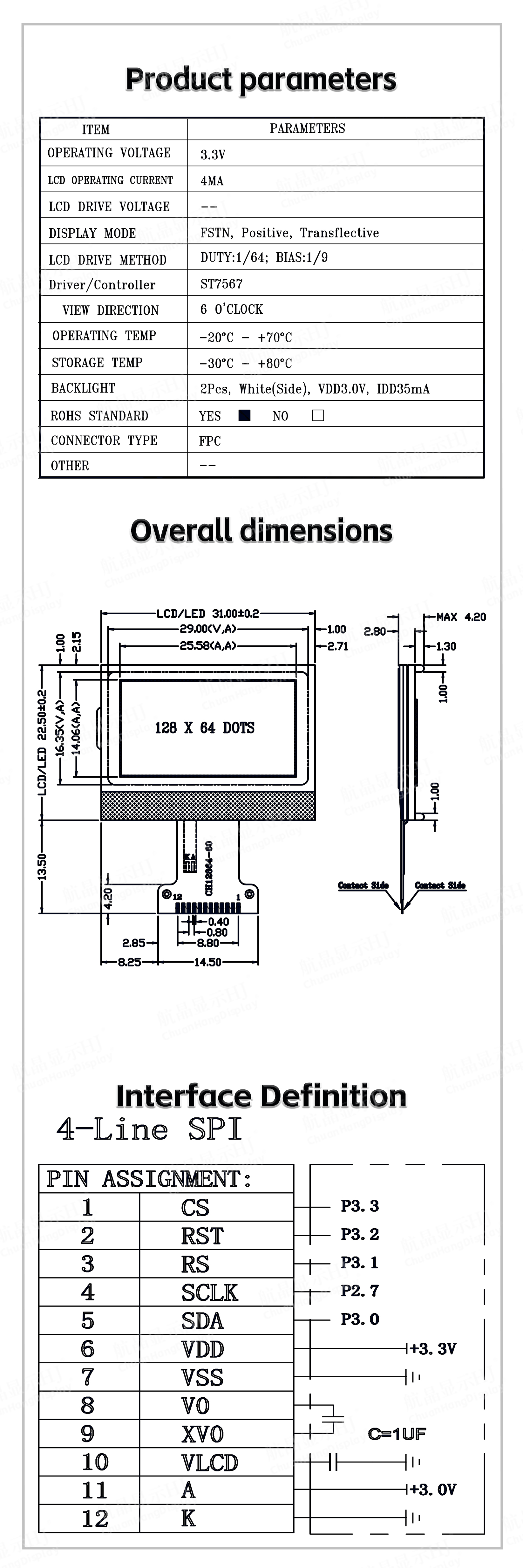

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH12864-60- L焊接
Resolution	128x64	screen size

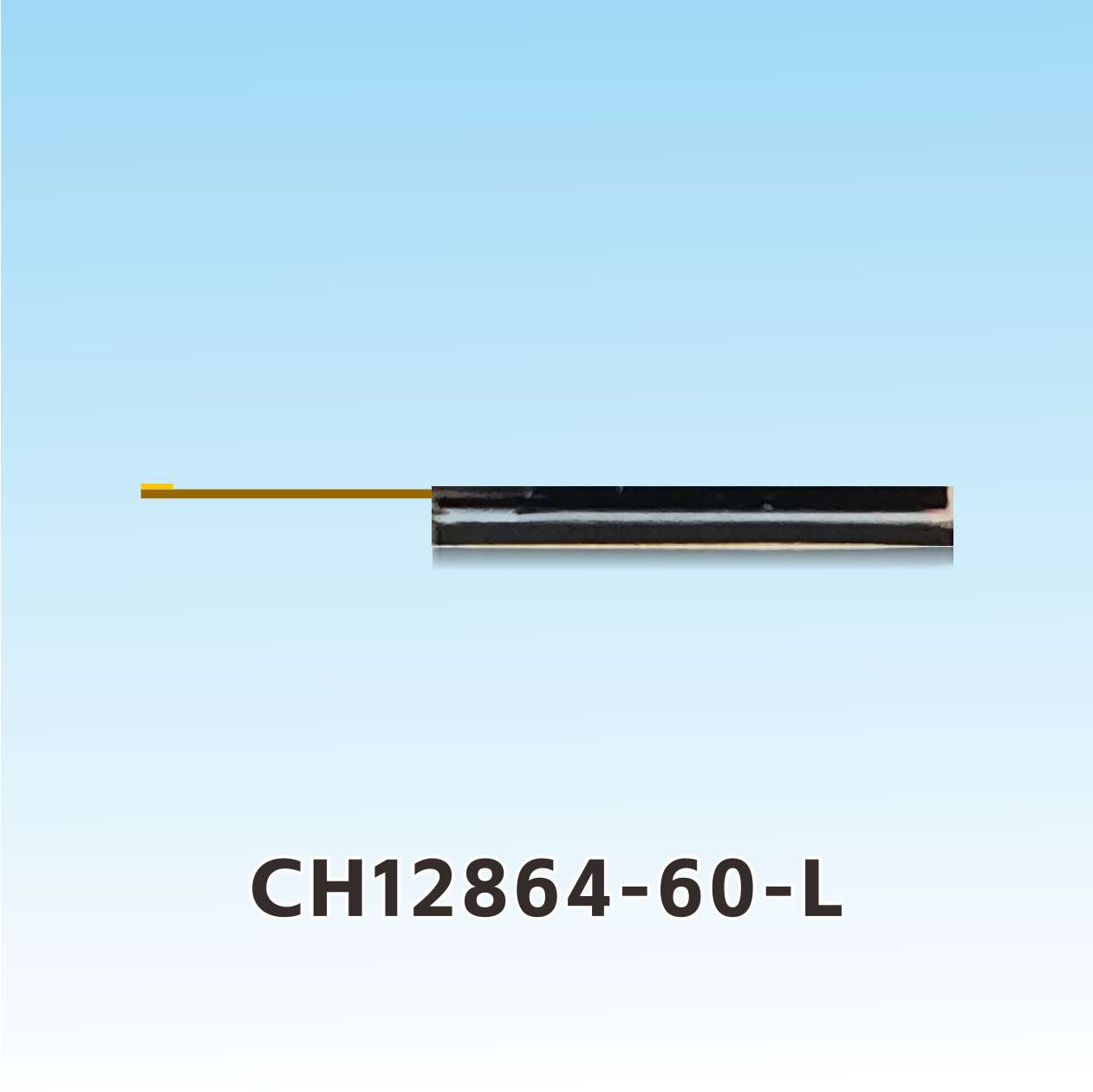

Outline Dimension(LWH)	31.00x22.50x4.20mm	Visible Area(L*W)	29.00x16.35mm
Active Area(L*W)	25.58x14.06mm	Character Size(L*W)
Type	COG	Connection Method	FPC
Supply Voltage	DC 5V/3.3V	Interface Type	4-bit or 8-bit parallel port
Viewing Direction	6 O'CLOCK	Driving Method	1/16Duty,1/5Bias
Display Type		Driver IC	AIP31066
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	DC 5V/3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO
