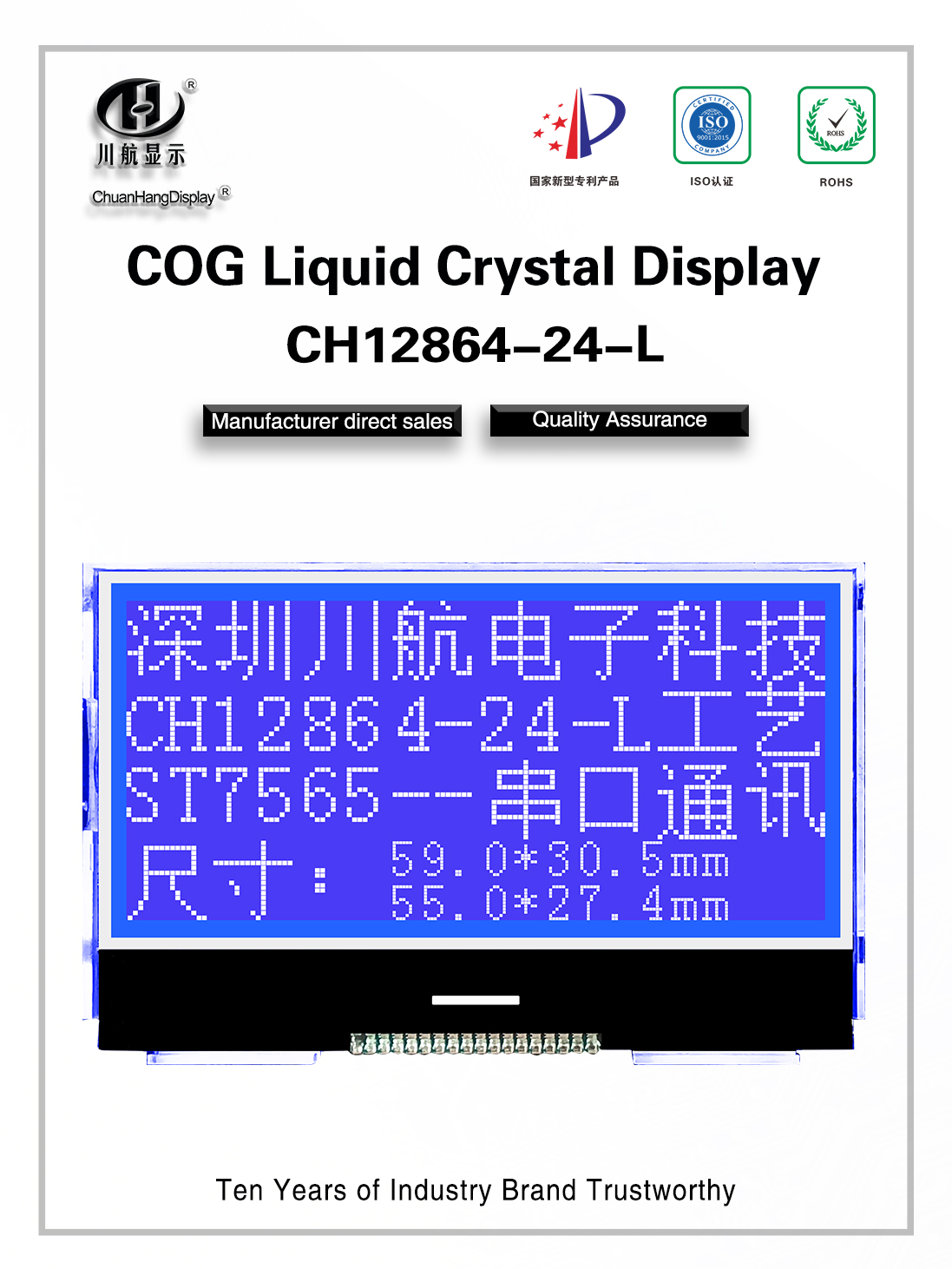

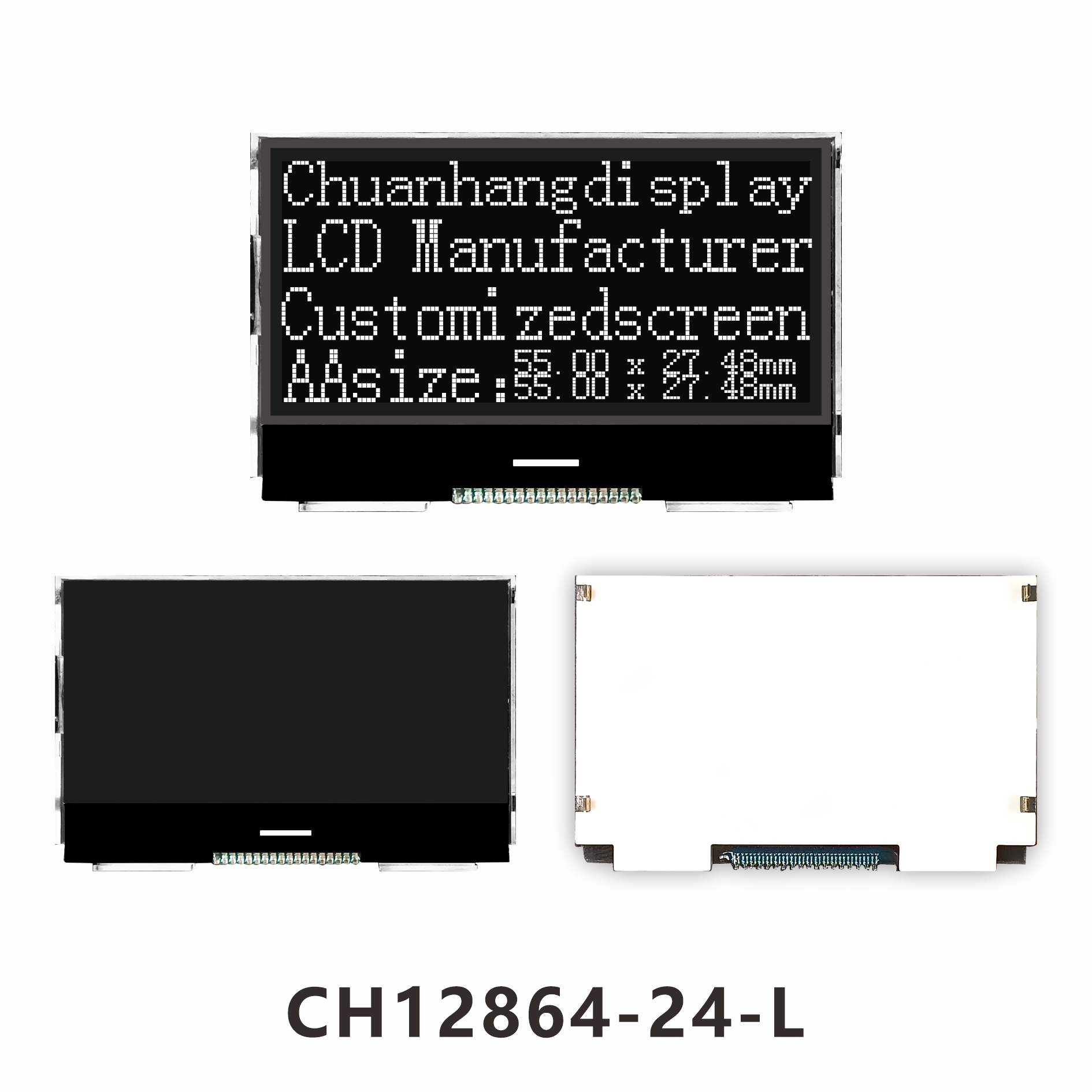

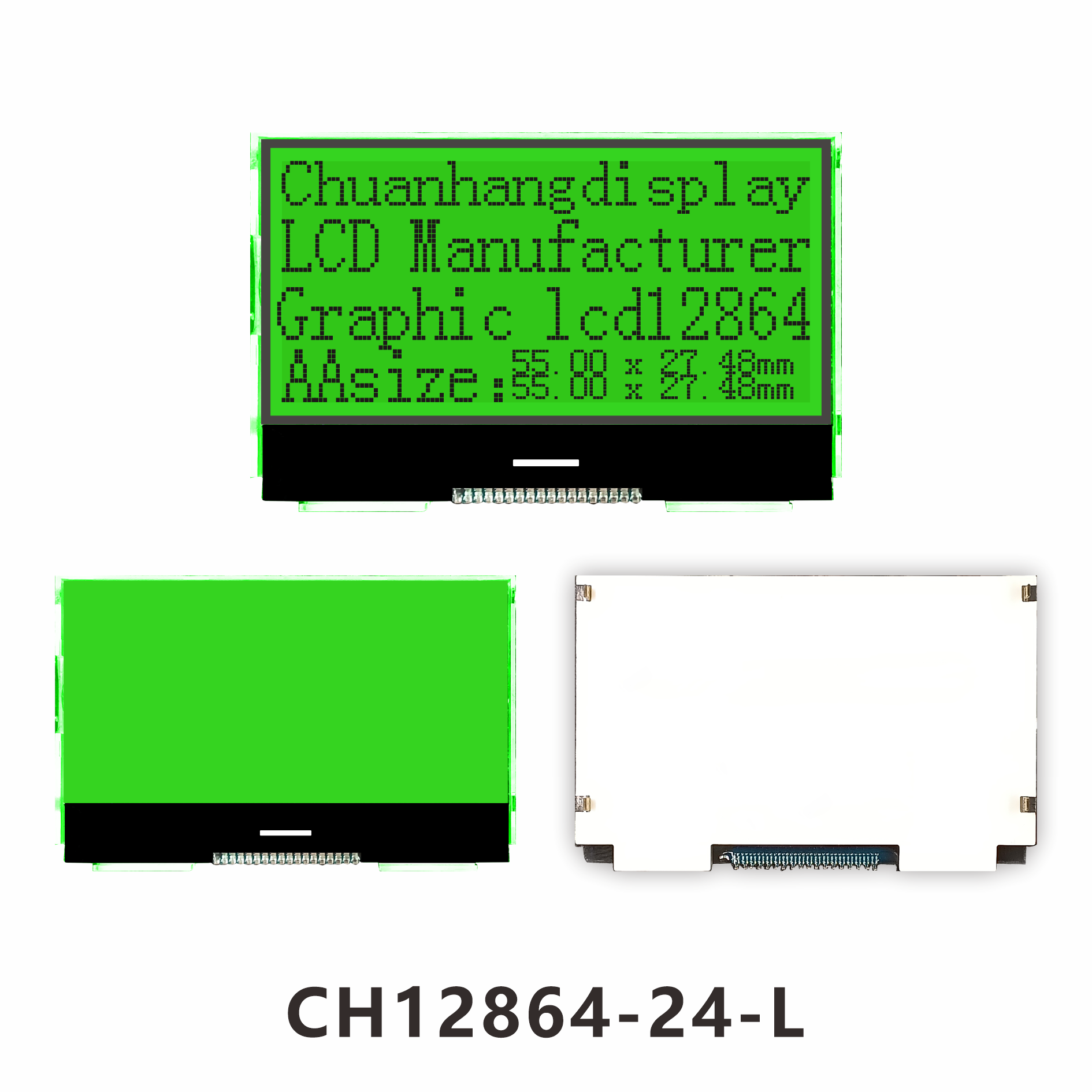

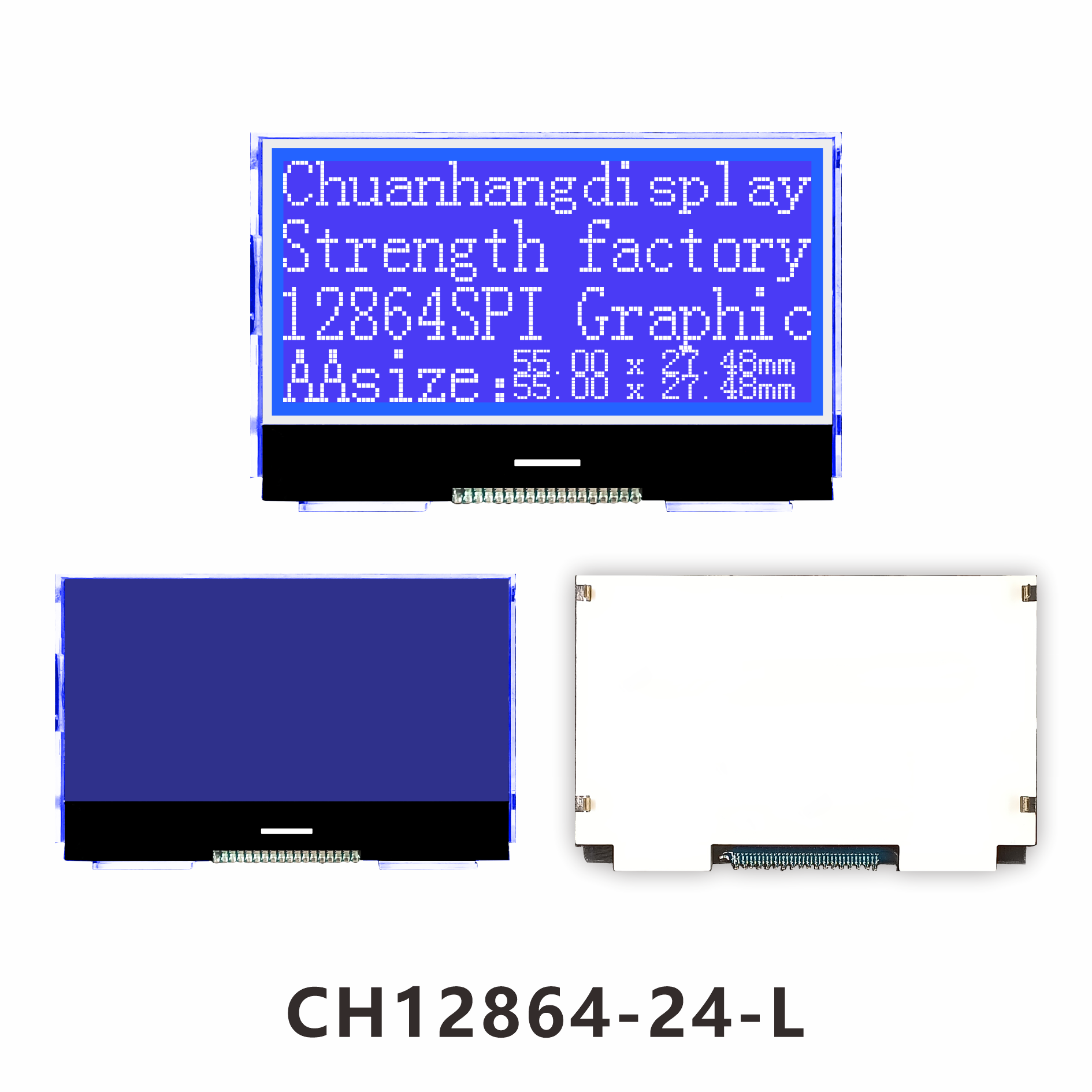

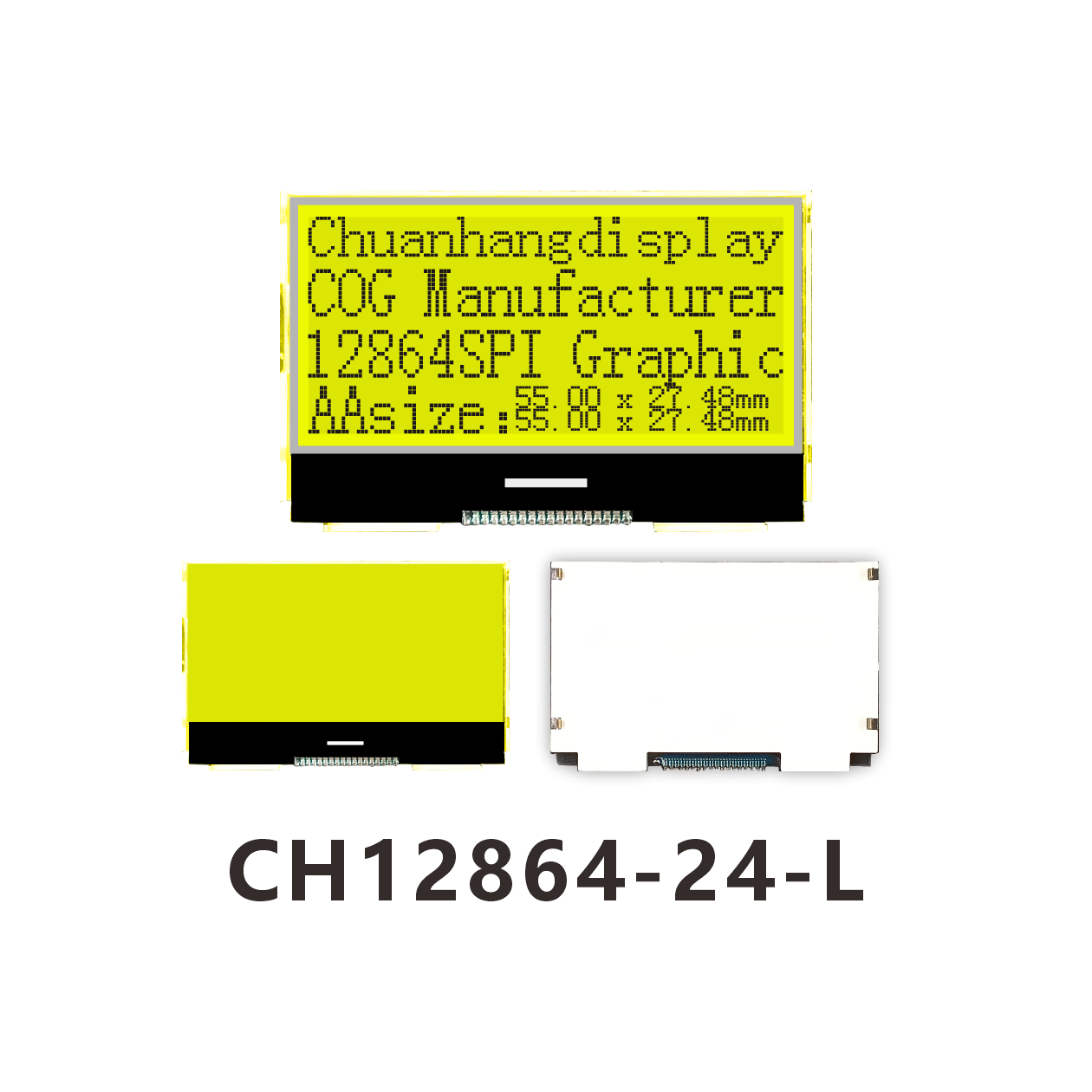

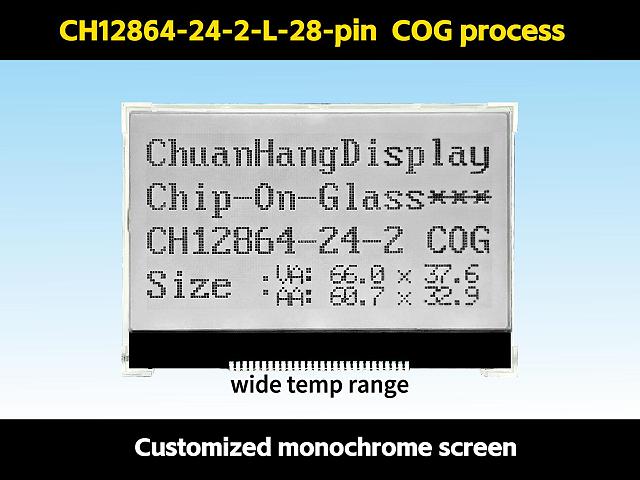

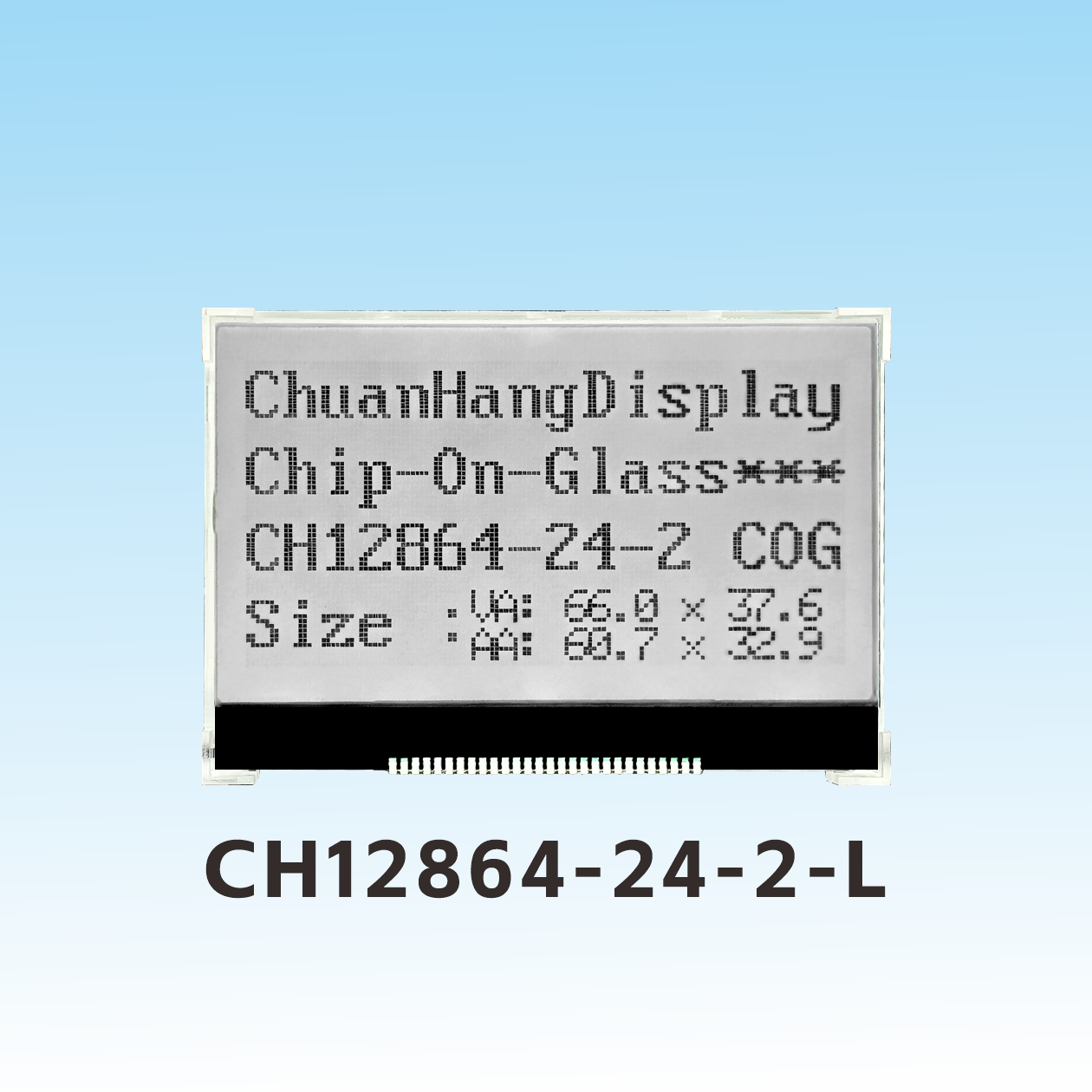

CH12864-24-2- L Welding pin 128x64 lcd mono cog

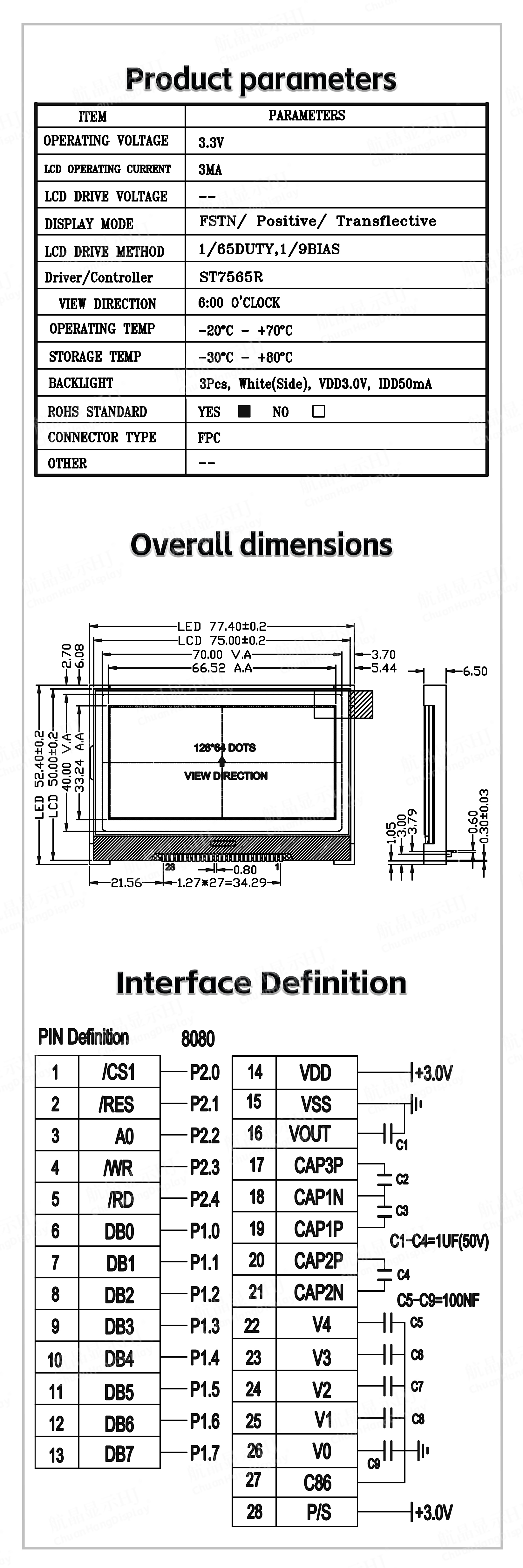

Product Description

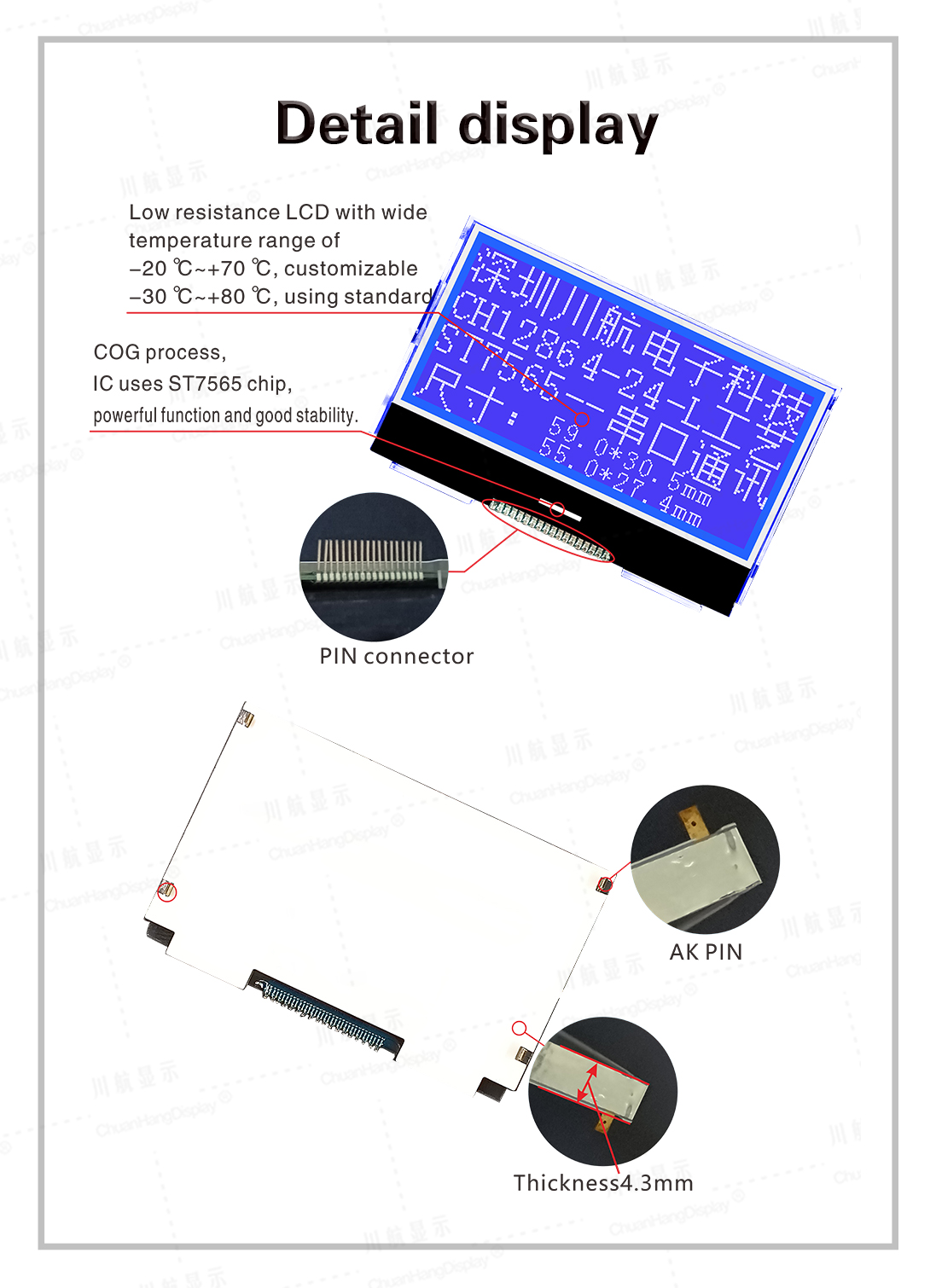

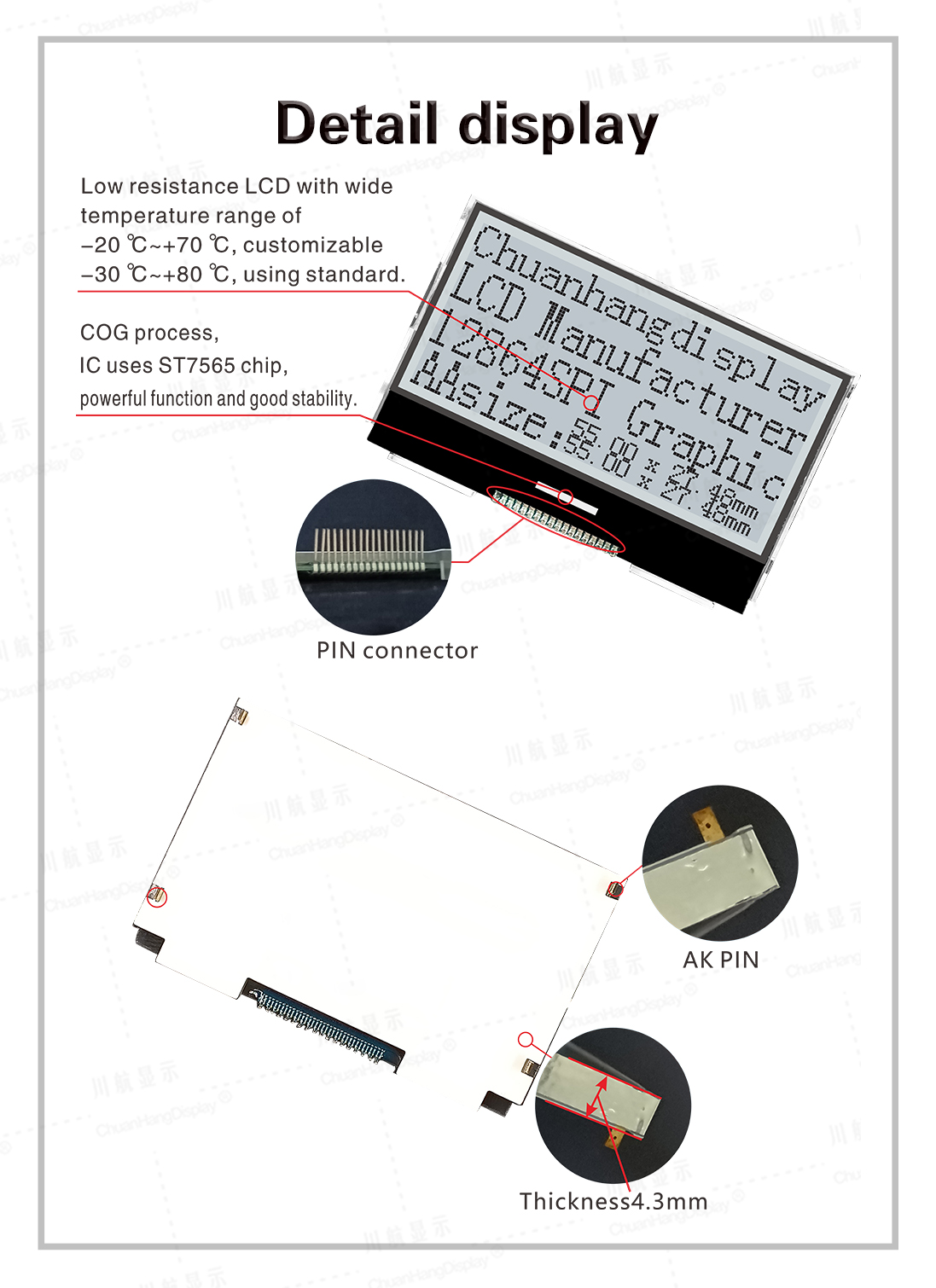

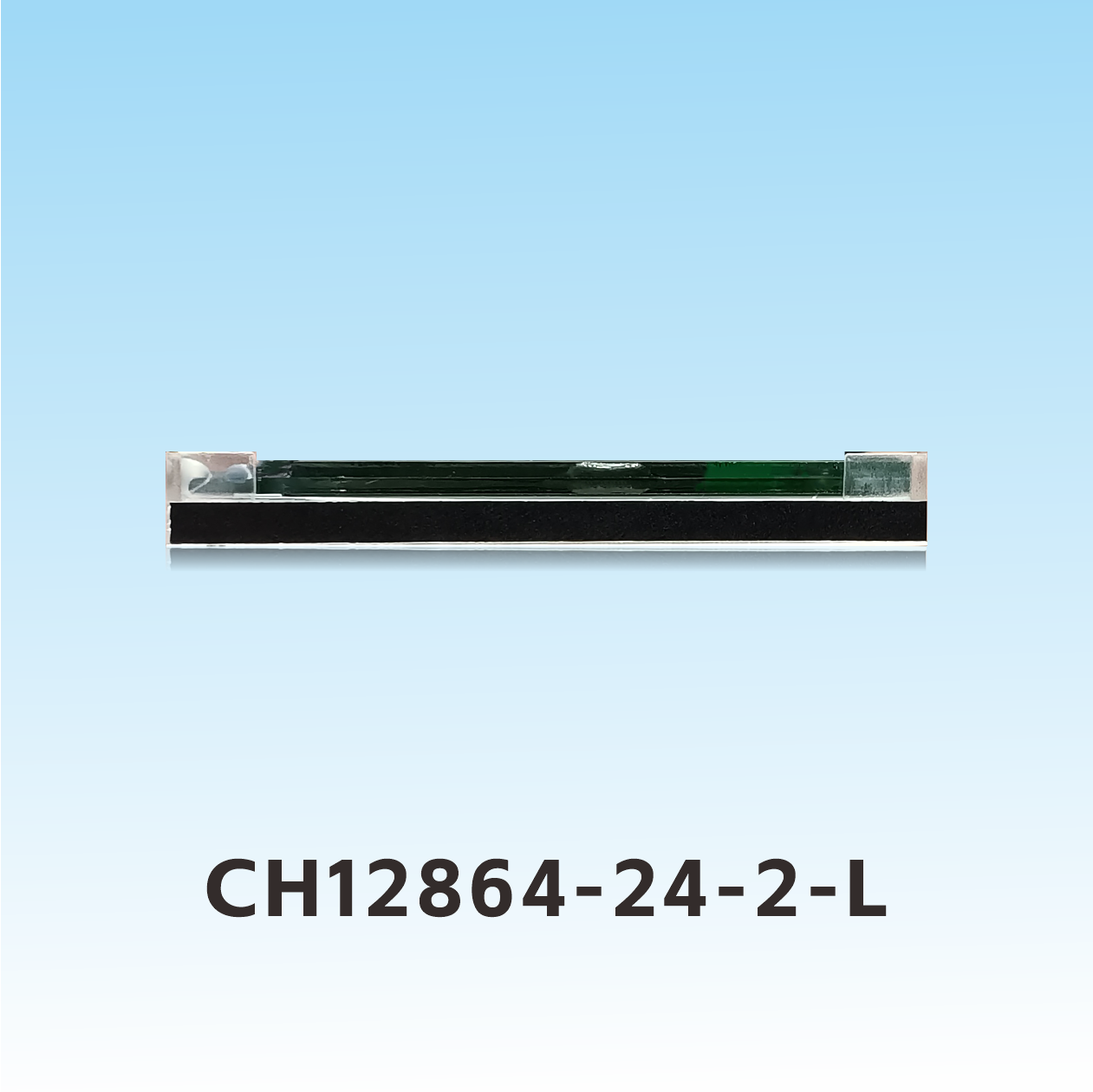

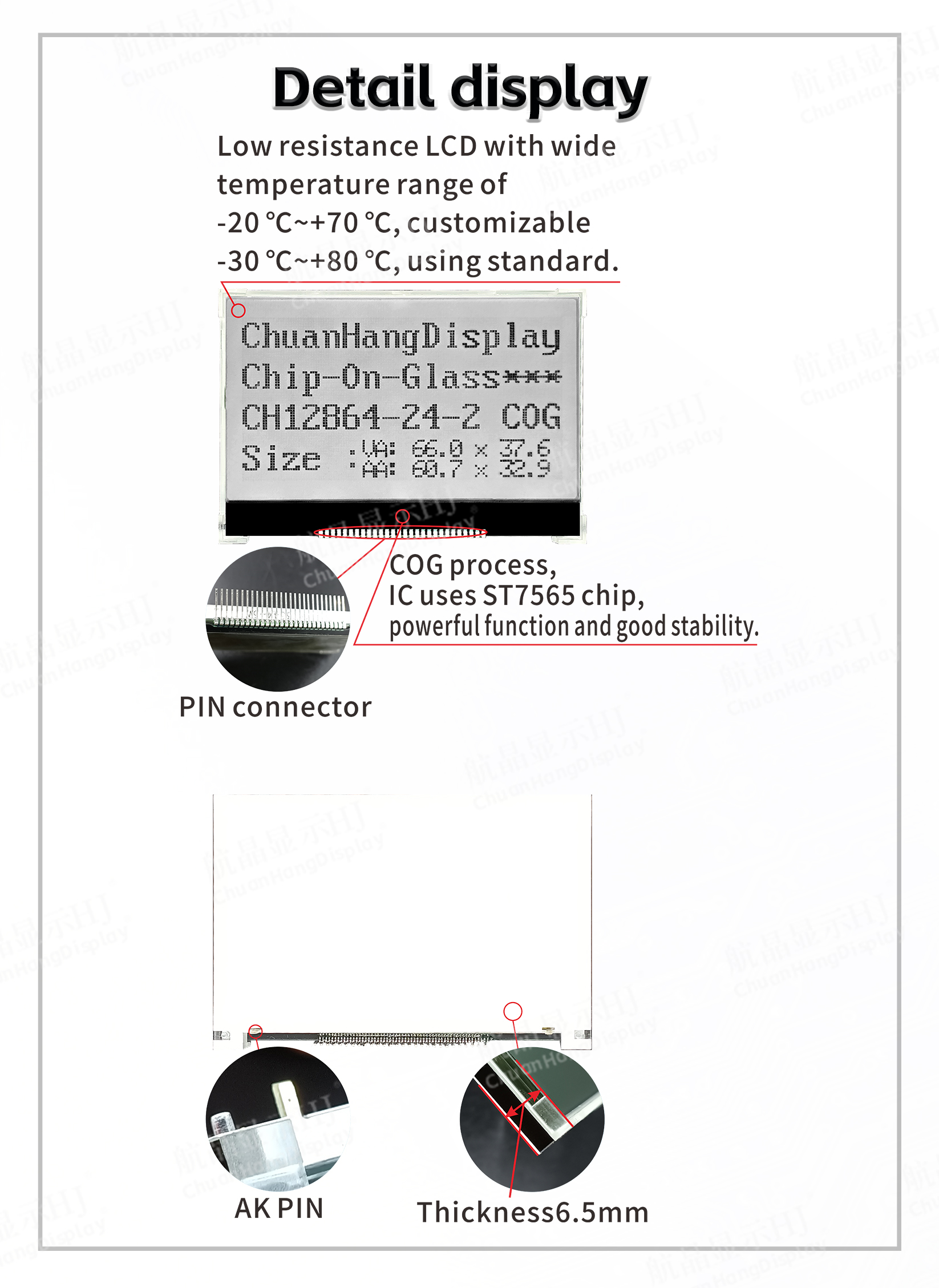

1.1COG process, metal needle insertion interface, product with backlight, thin thickness, stable structure.
1.2IC uses ST7565R, there is no font library in the chip, and the programmer compiles its own font library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, backlight current within 80mA.

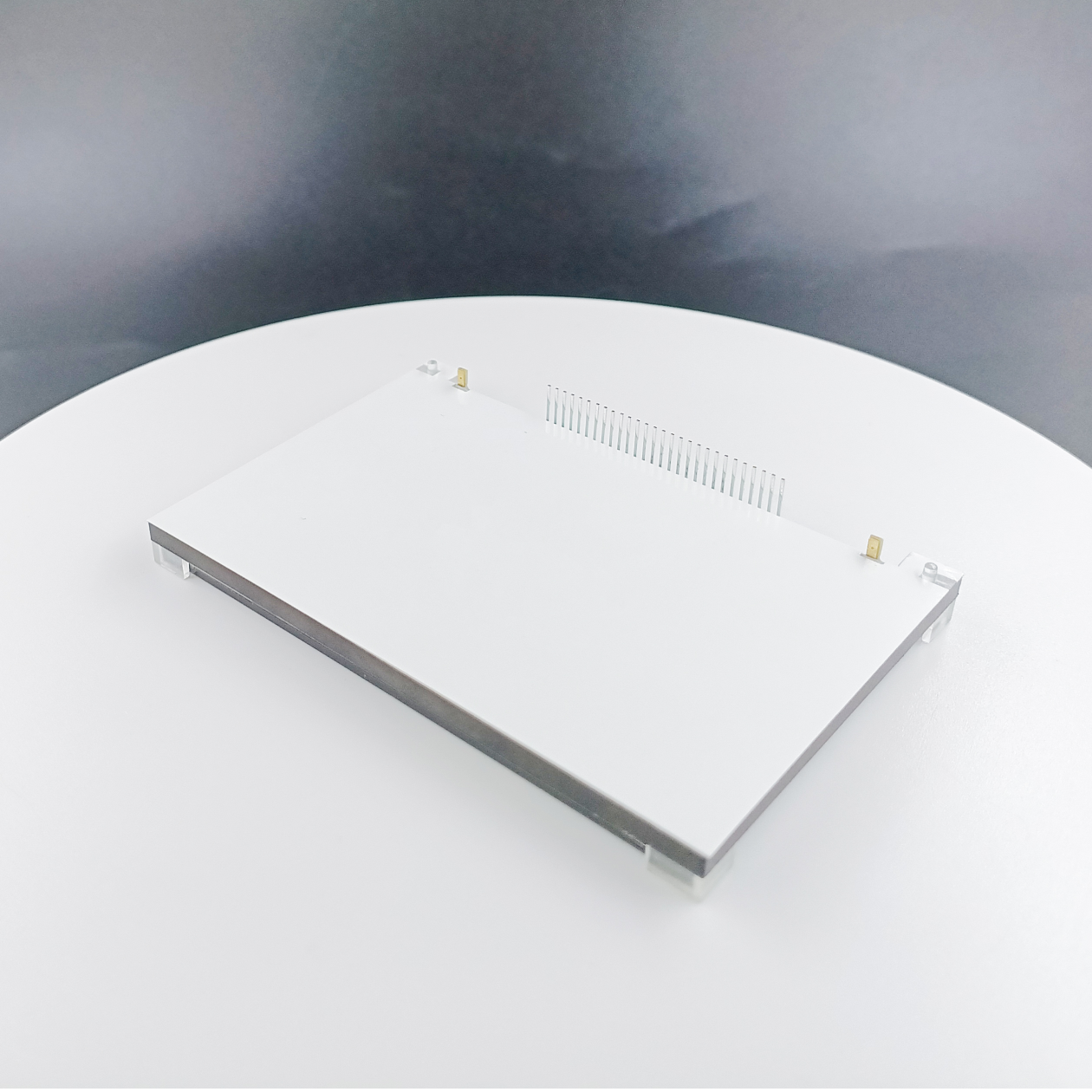

1.4 LED backlight A and K are PCB boards. A and K need a separate power supply of 2.9V~3.0V.
1.5 Product features:
The built-in display data RAM is 64x128 bits.
The external capacitor generates a boost.
The contrast ratio is adjusted by the software.
One screen shows 8 characters x 4 lines (16x16 dots).

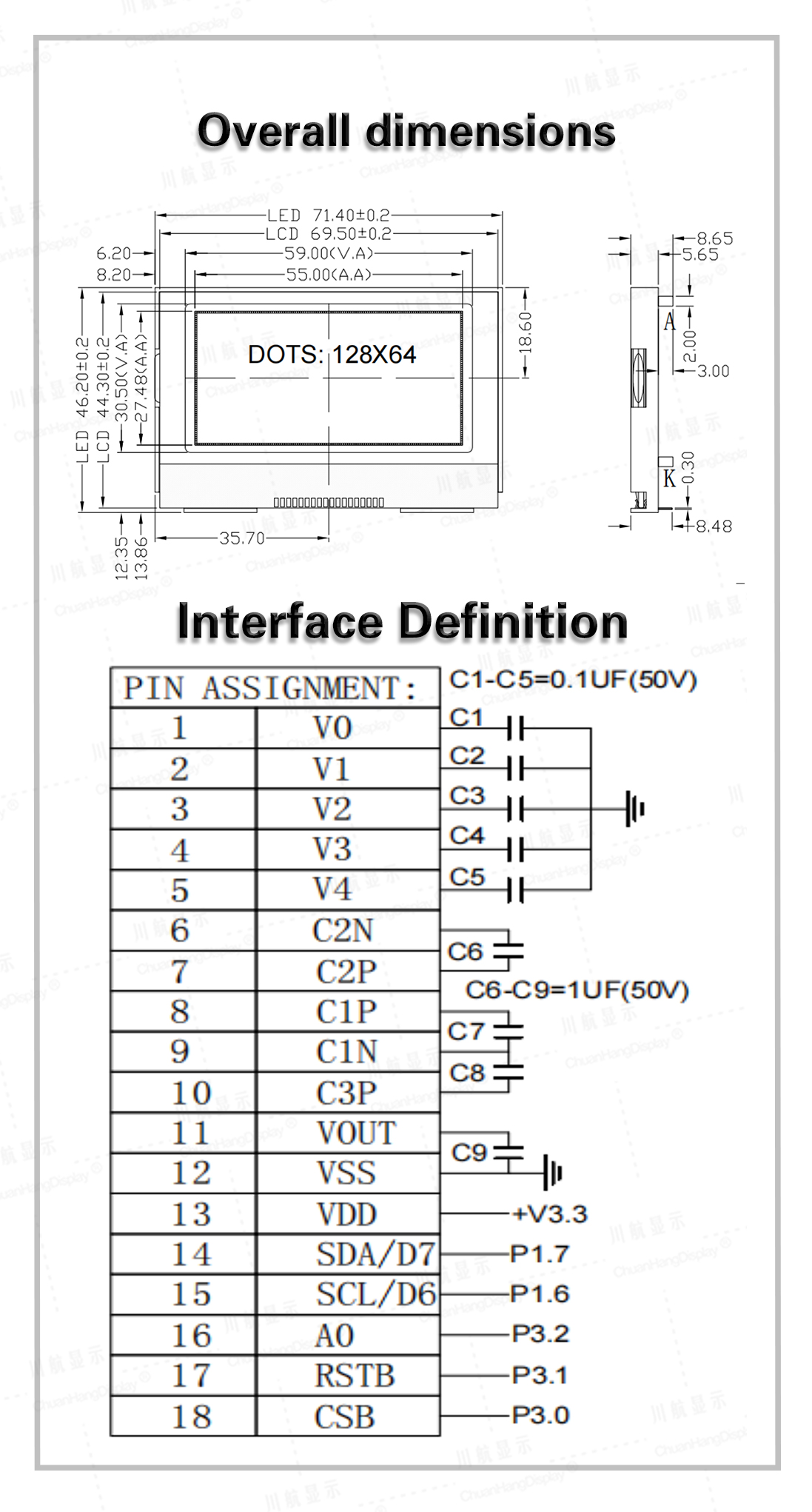

A single picture ≤128x64 dot matrix. 8-bit parallel 80 or 68 timing and 4-line SPI communication.
Rich functions: interface display on/off, positive/reverse display, read/modify/write.
1.2IC uses ST7565R, there is no font library in the chip, and the programmer compiles its own font library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, backlight current within 80mA.
1.4 LED backlight A and K are PCB boards. A and K need a separate power supply of 2.9V~3.0V.
1.5 Product features:
The built-in display data RAM is 64x128 bits.
The external capacitor generates a boost.
The contrast ratio is adjusted by the software.
One screen shows 8 characters x 4 lines (16x16 dots).
A single picture ≤128x64 dot matrix. 8-bit parallel 80 or 68 timing and 4-line SPI communication.
Rich functions: interface display on/off, positive/reverse display, read/modify/write.
