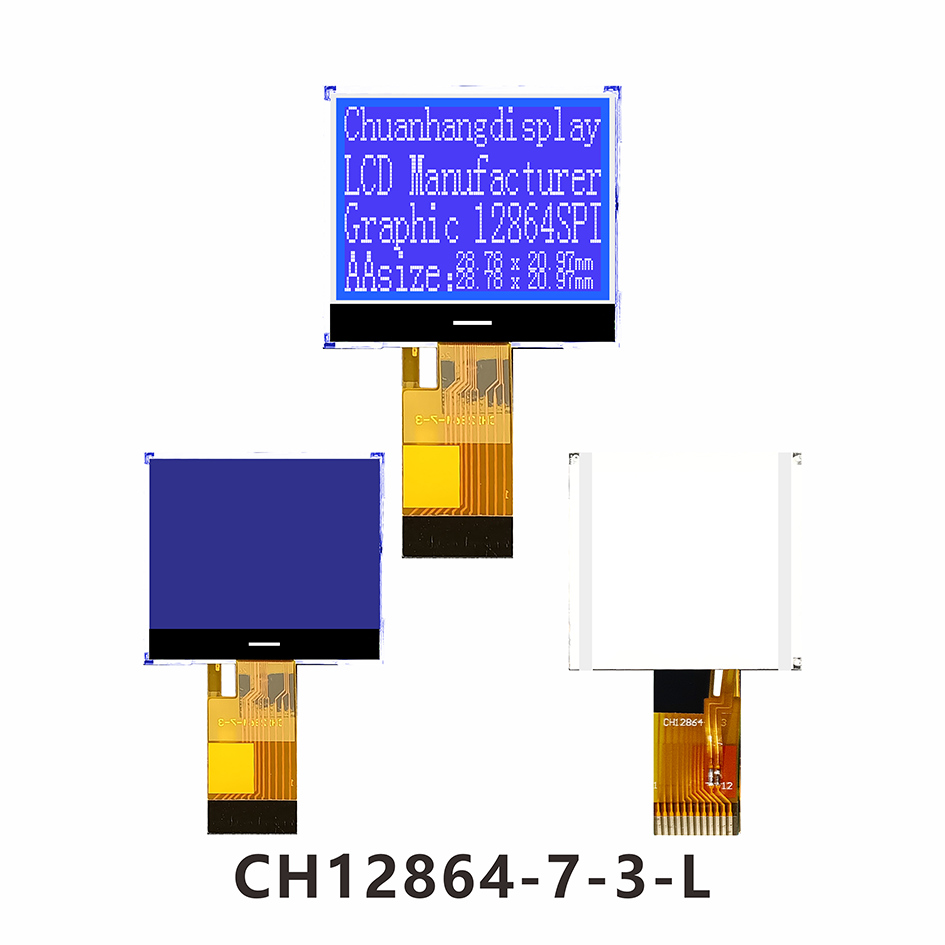

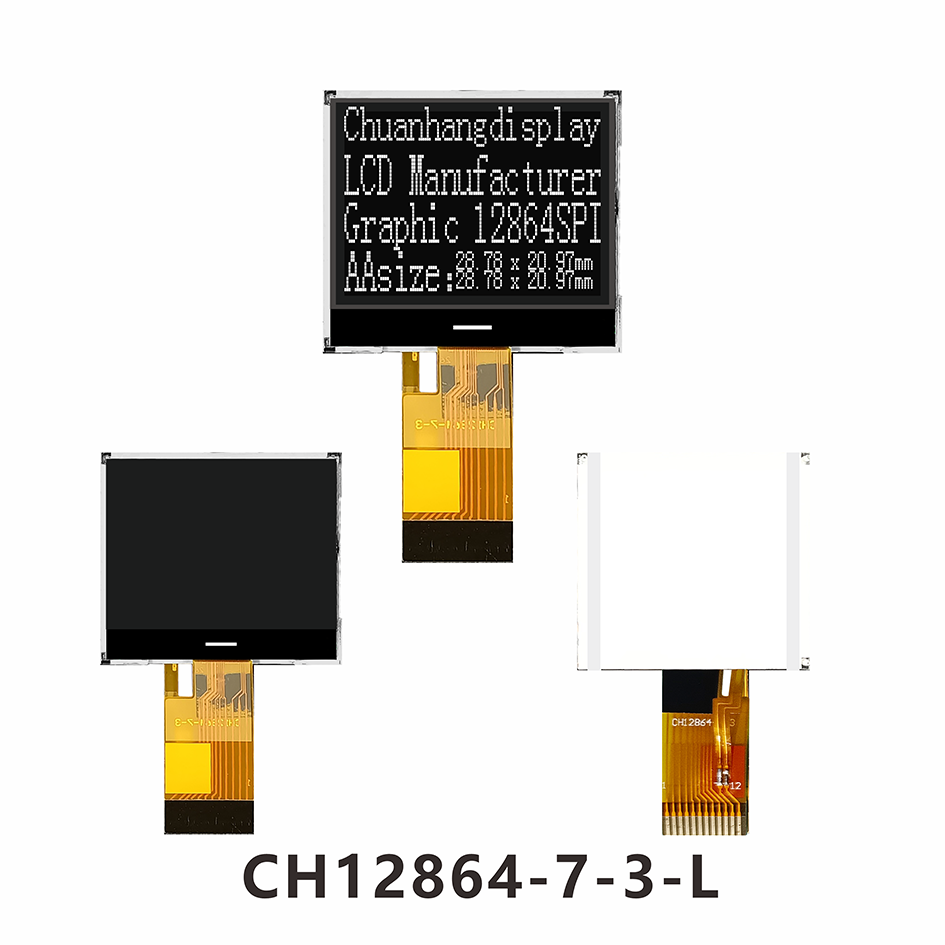

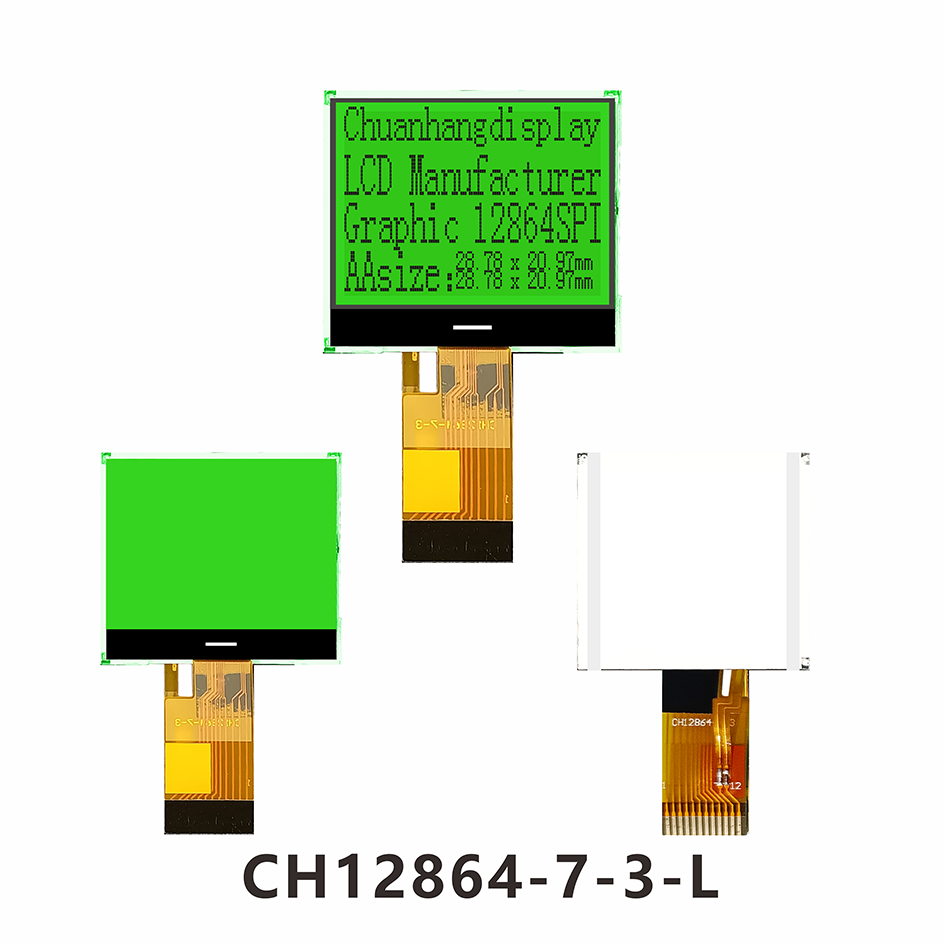

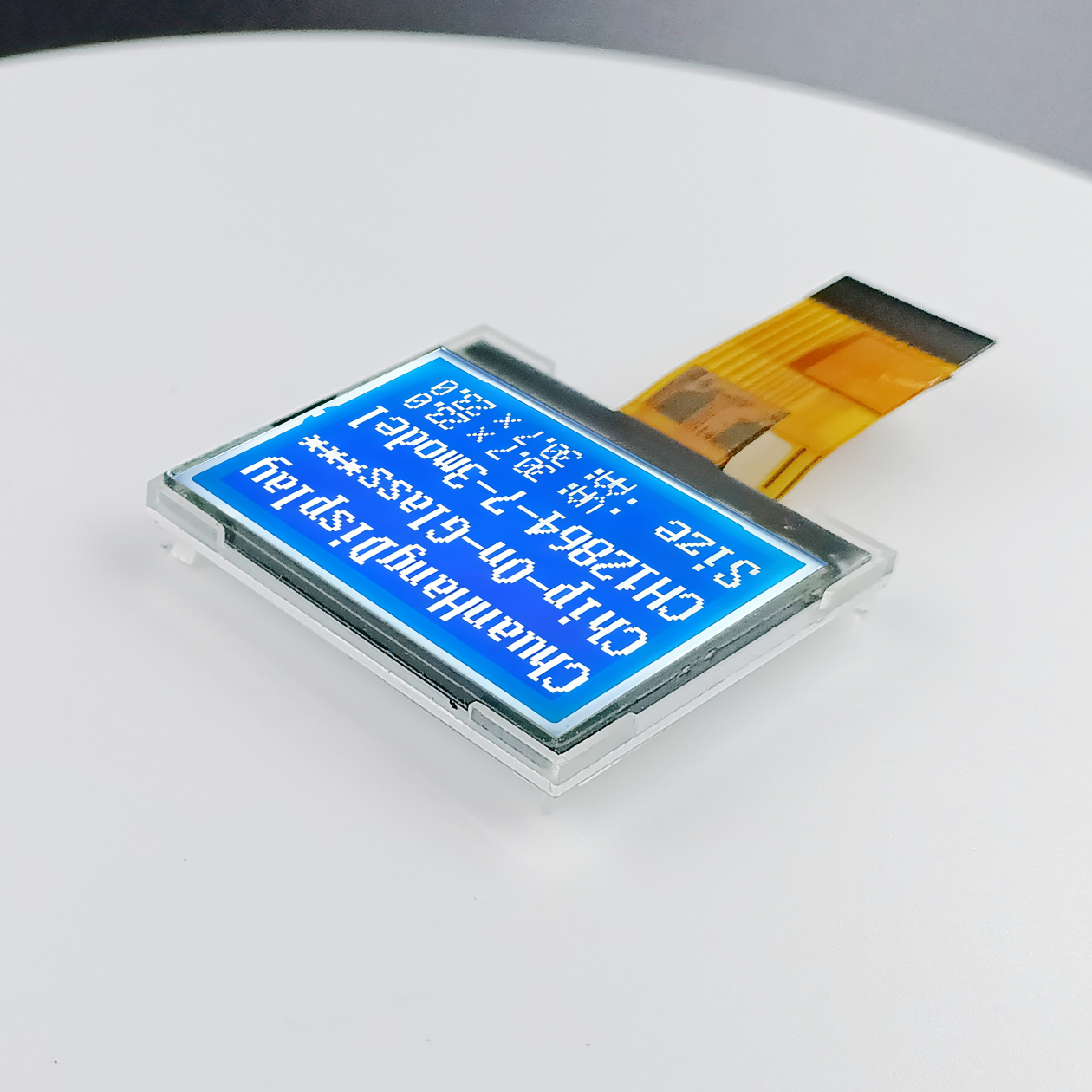

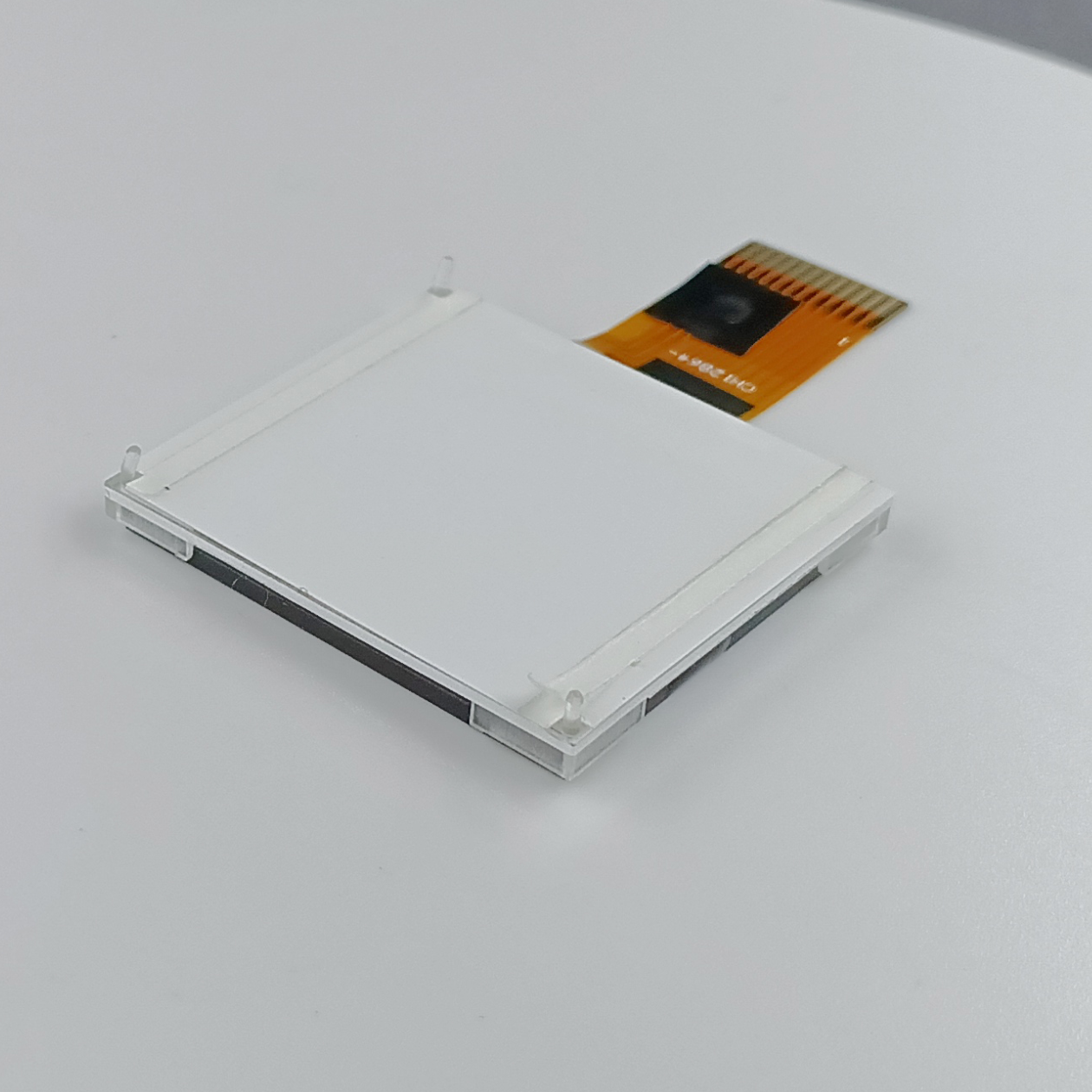

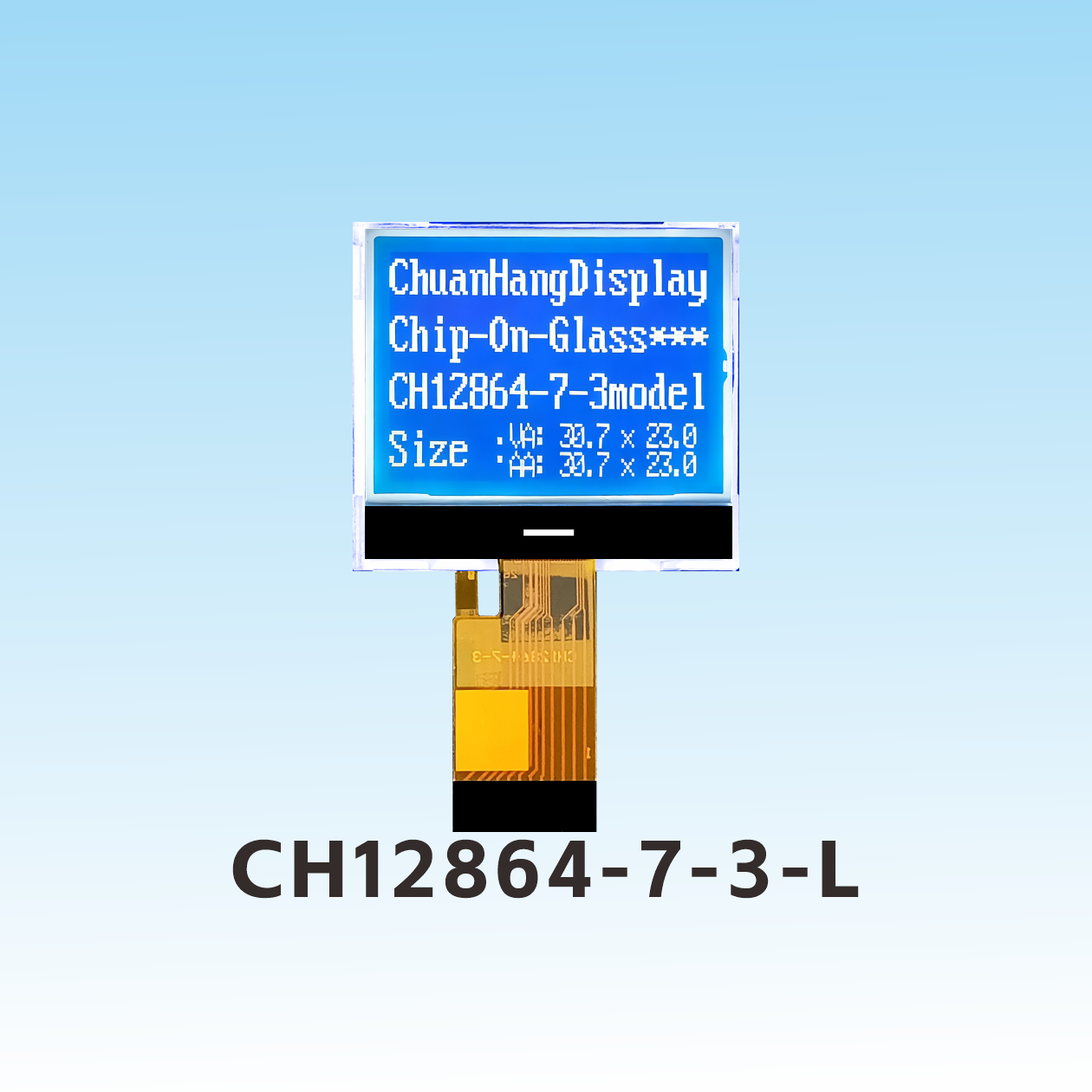

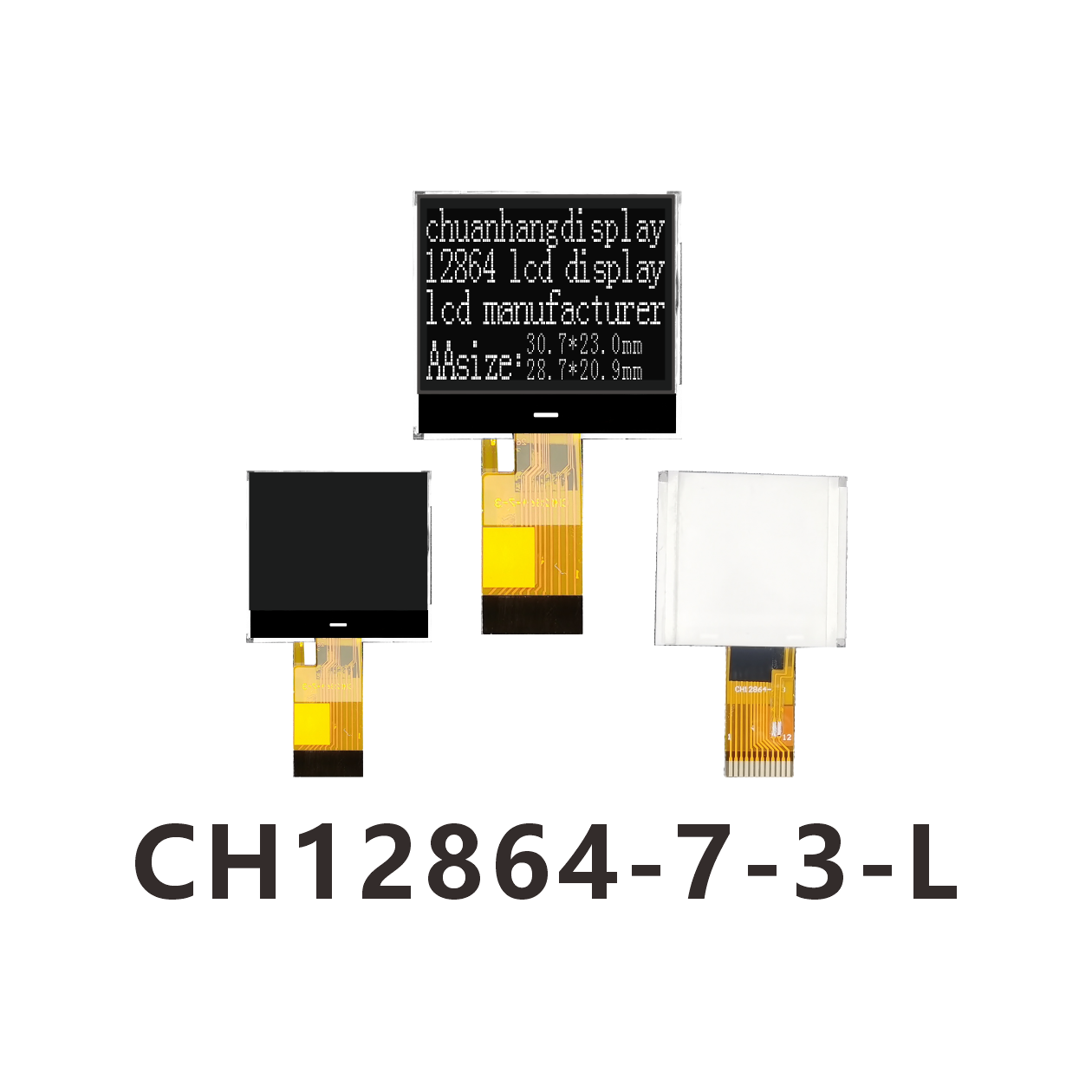

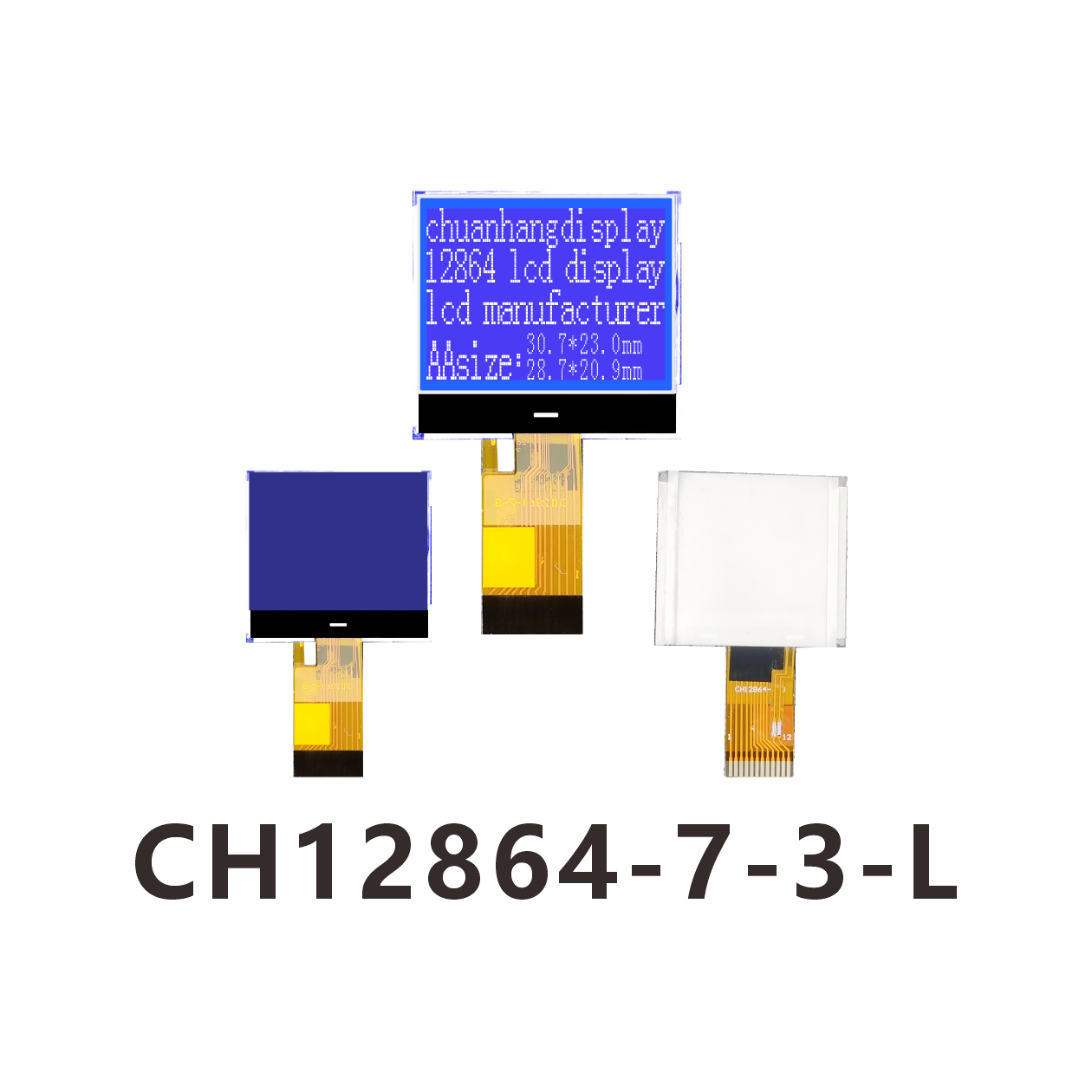

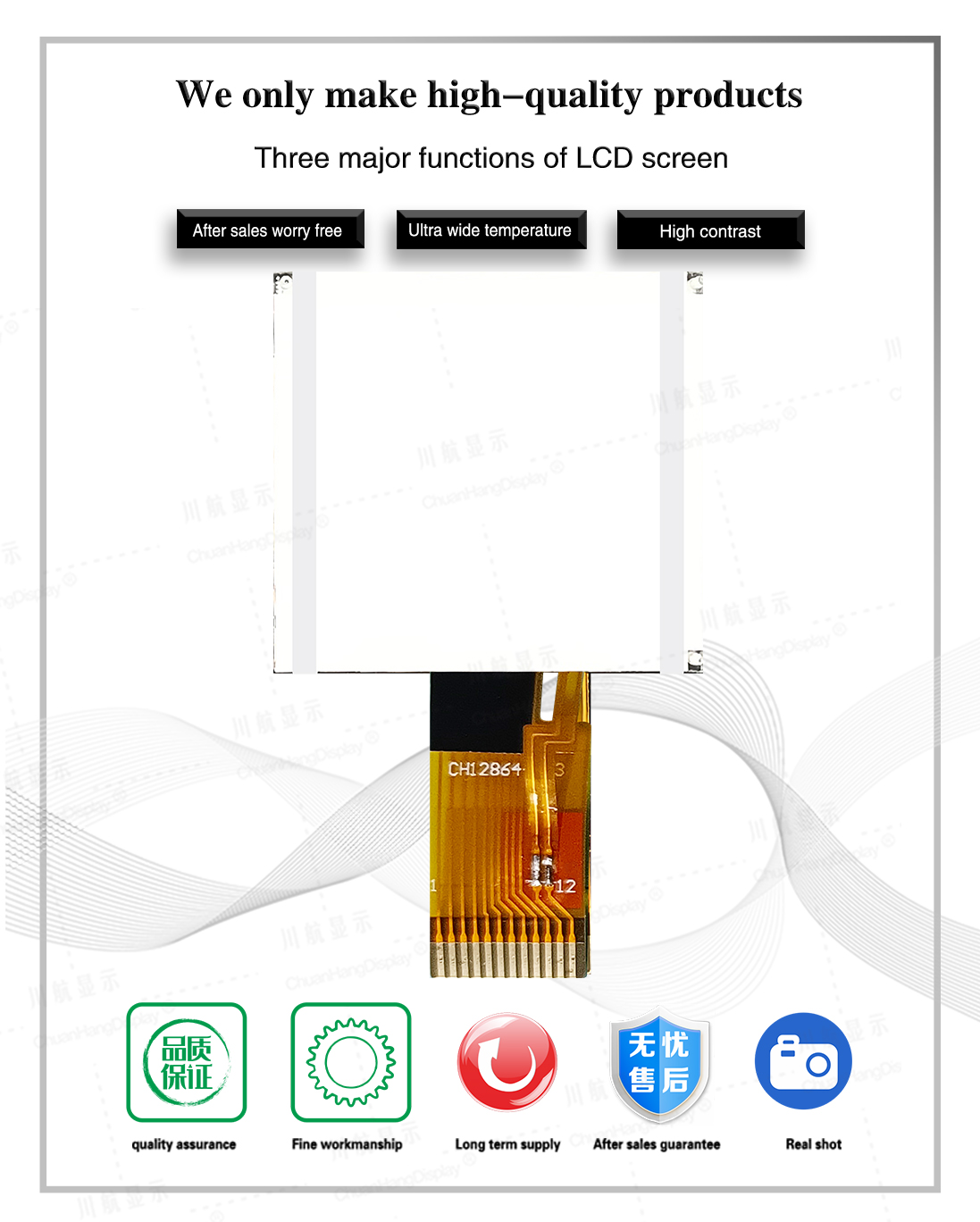

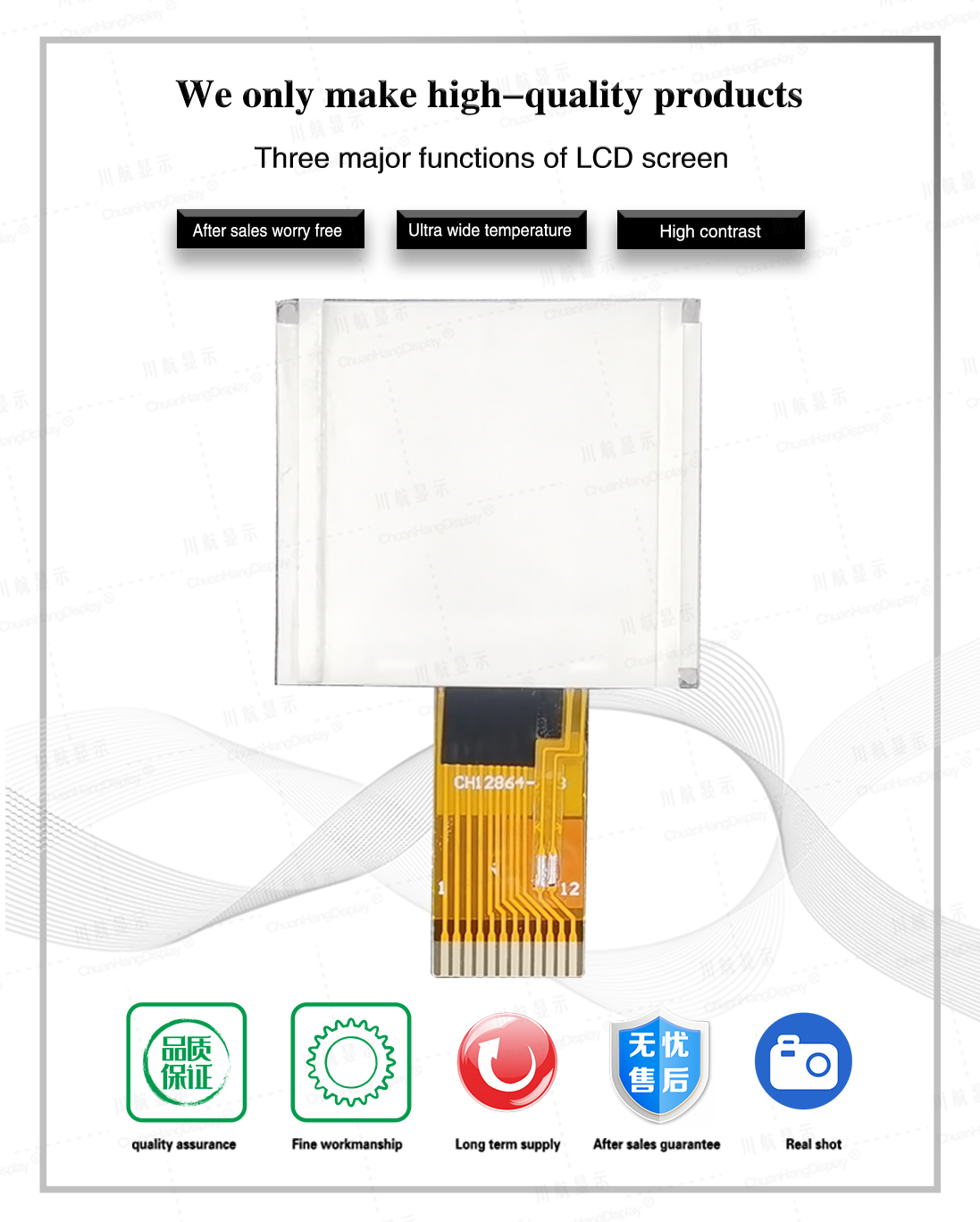

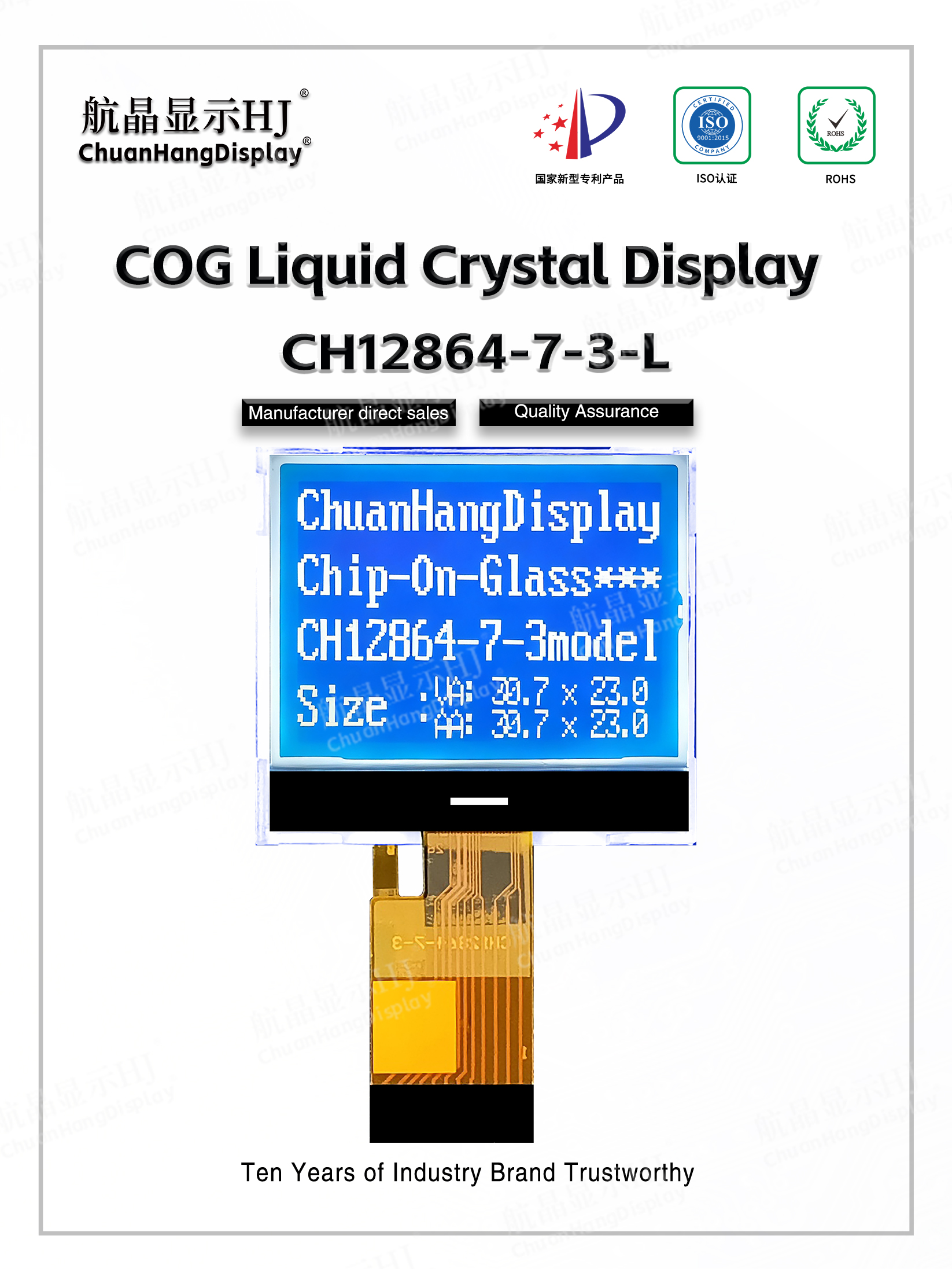

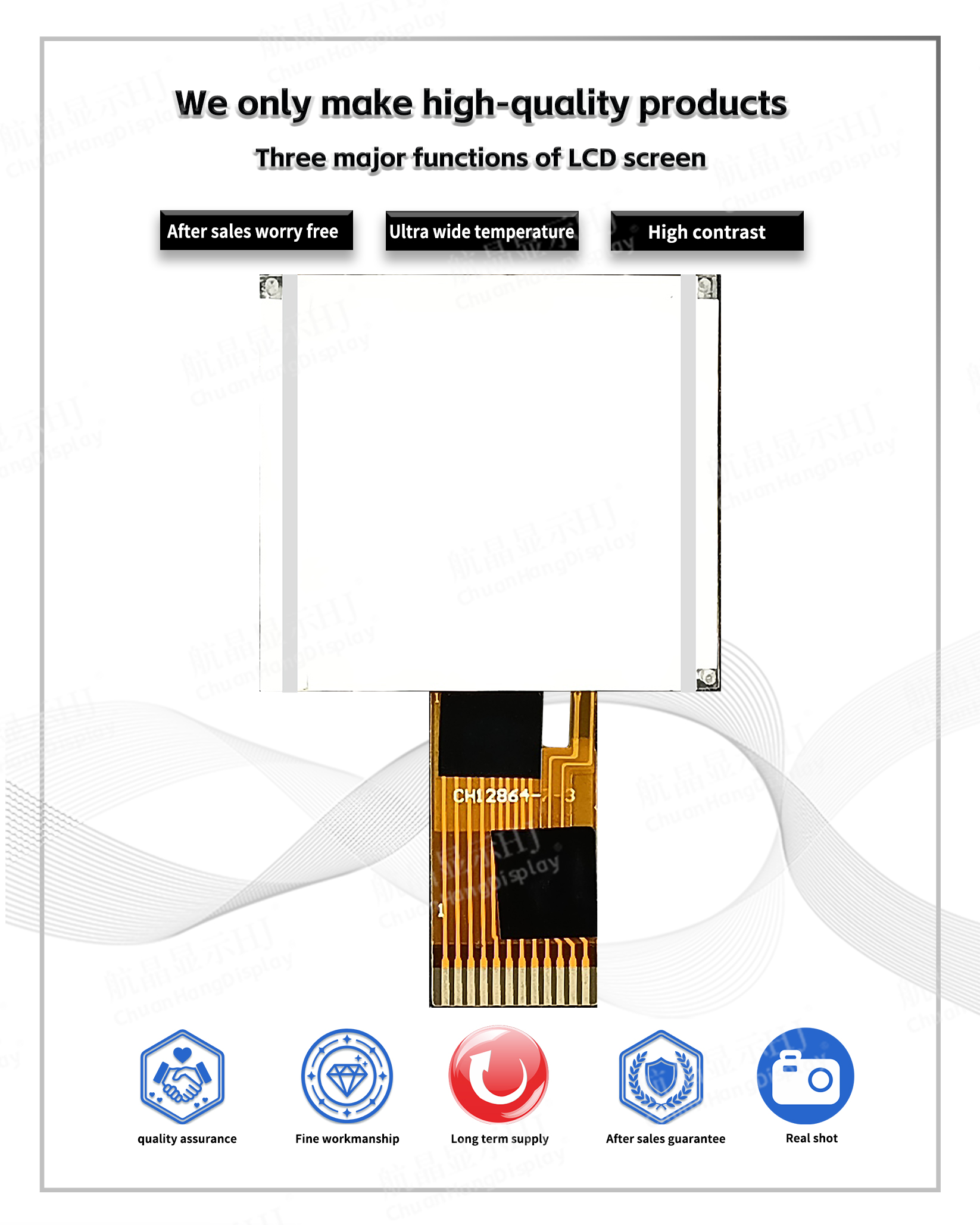

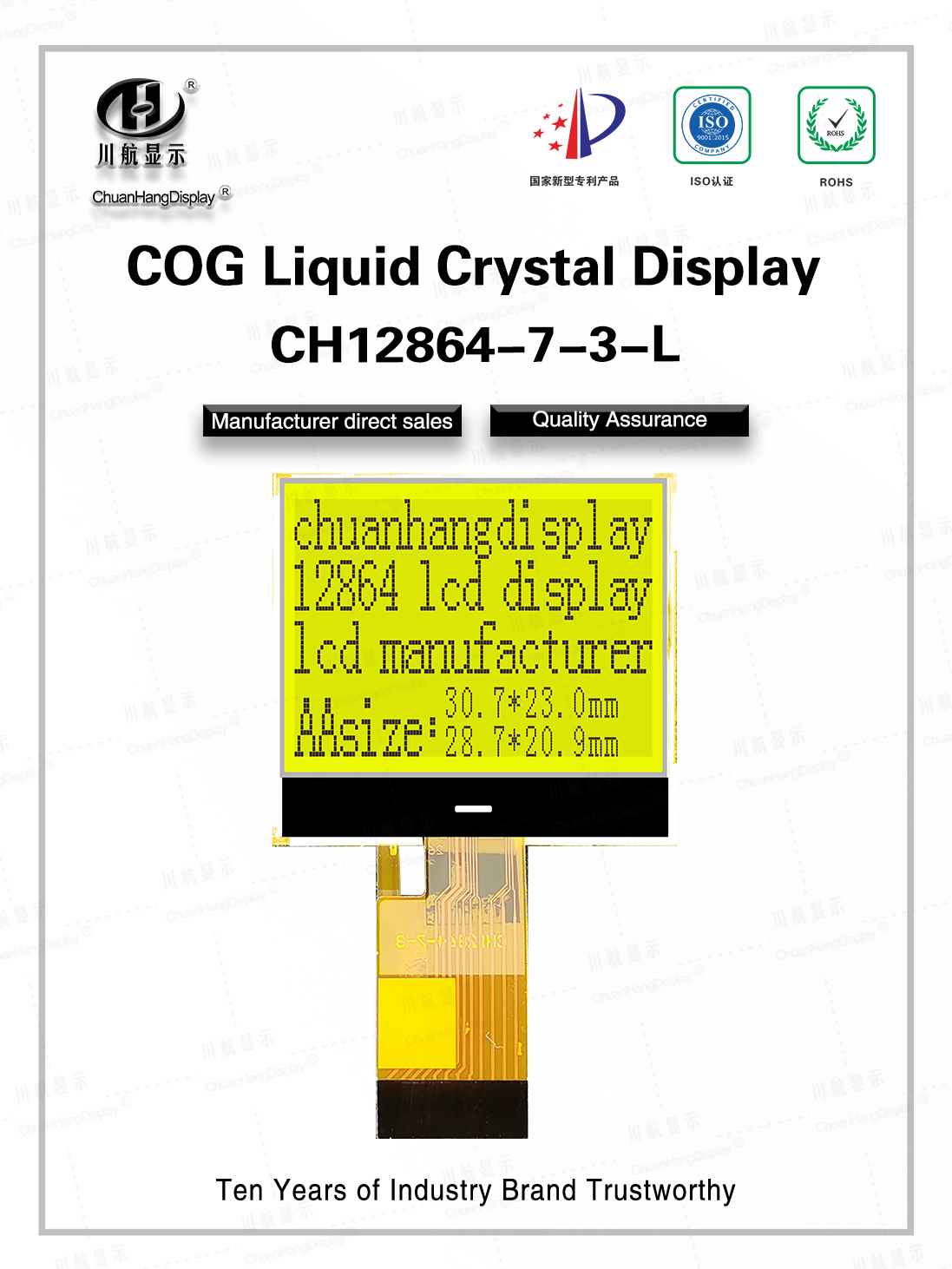

CH12864-7-3-L china 12864 cog lcd

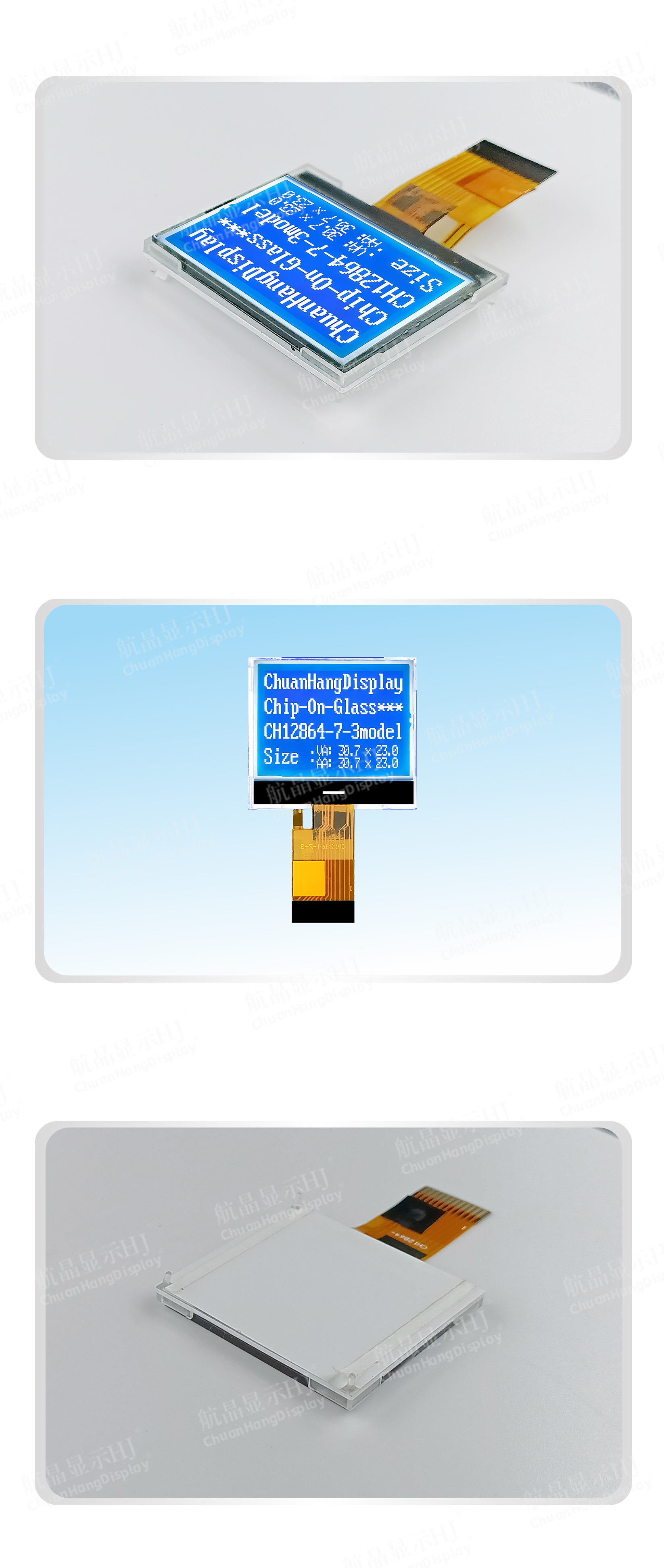

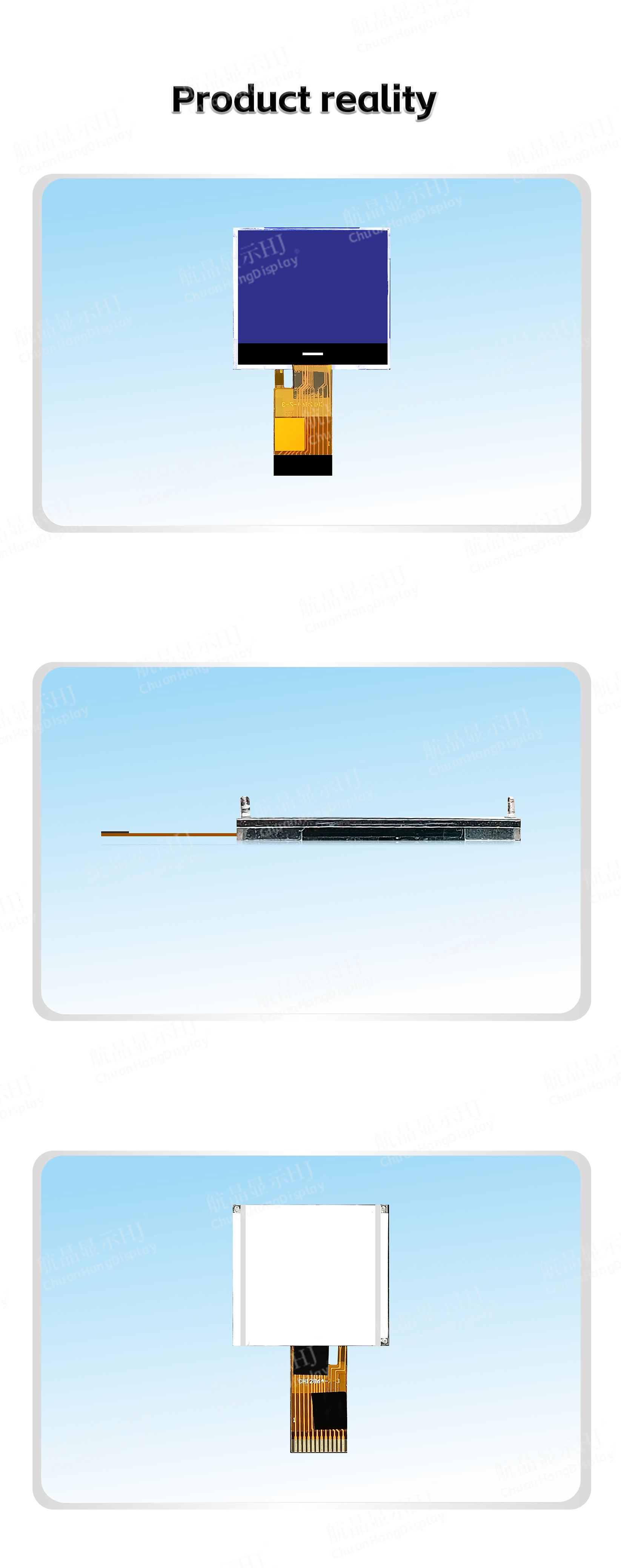

Product Description

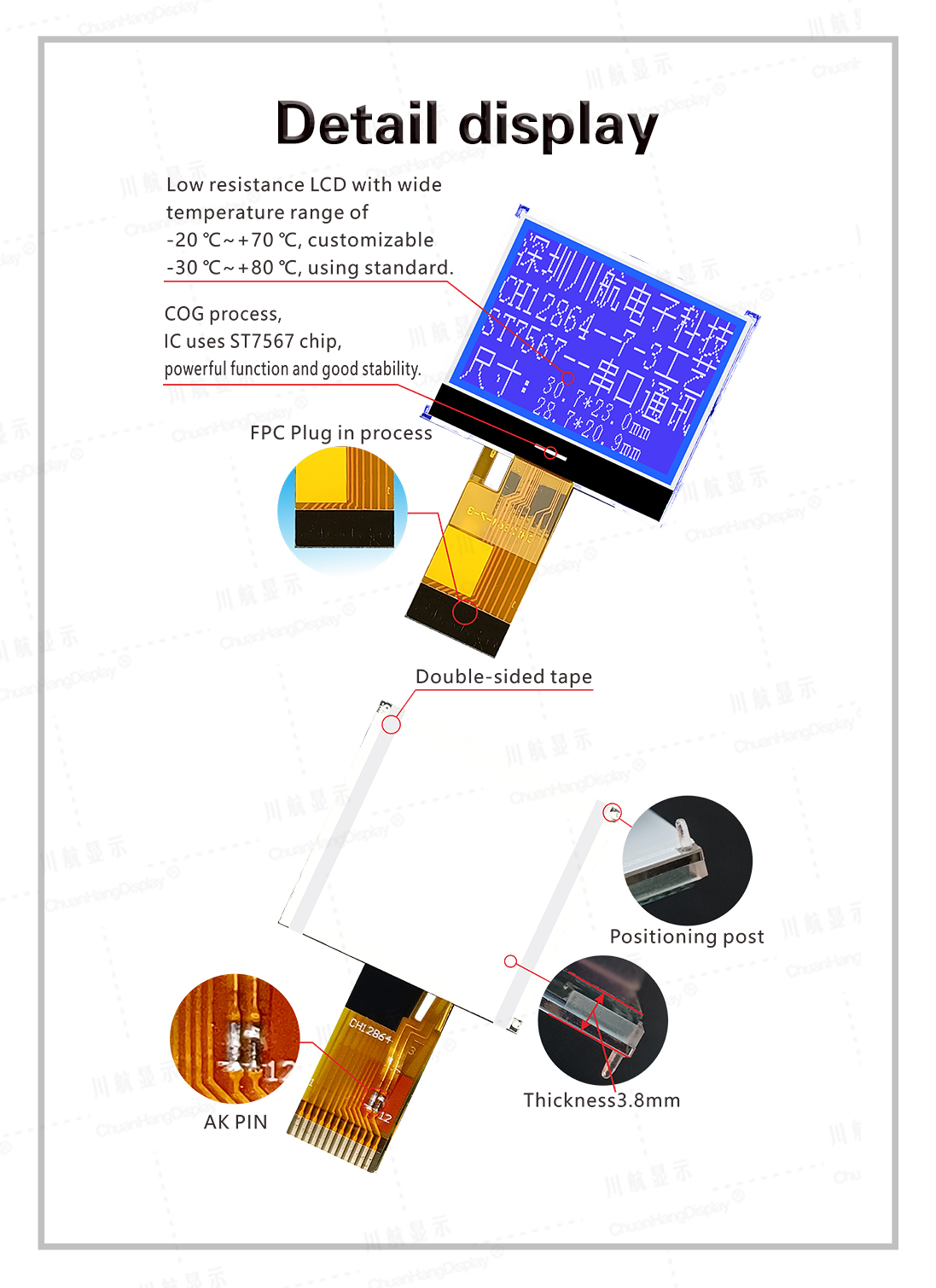

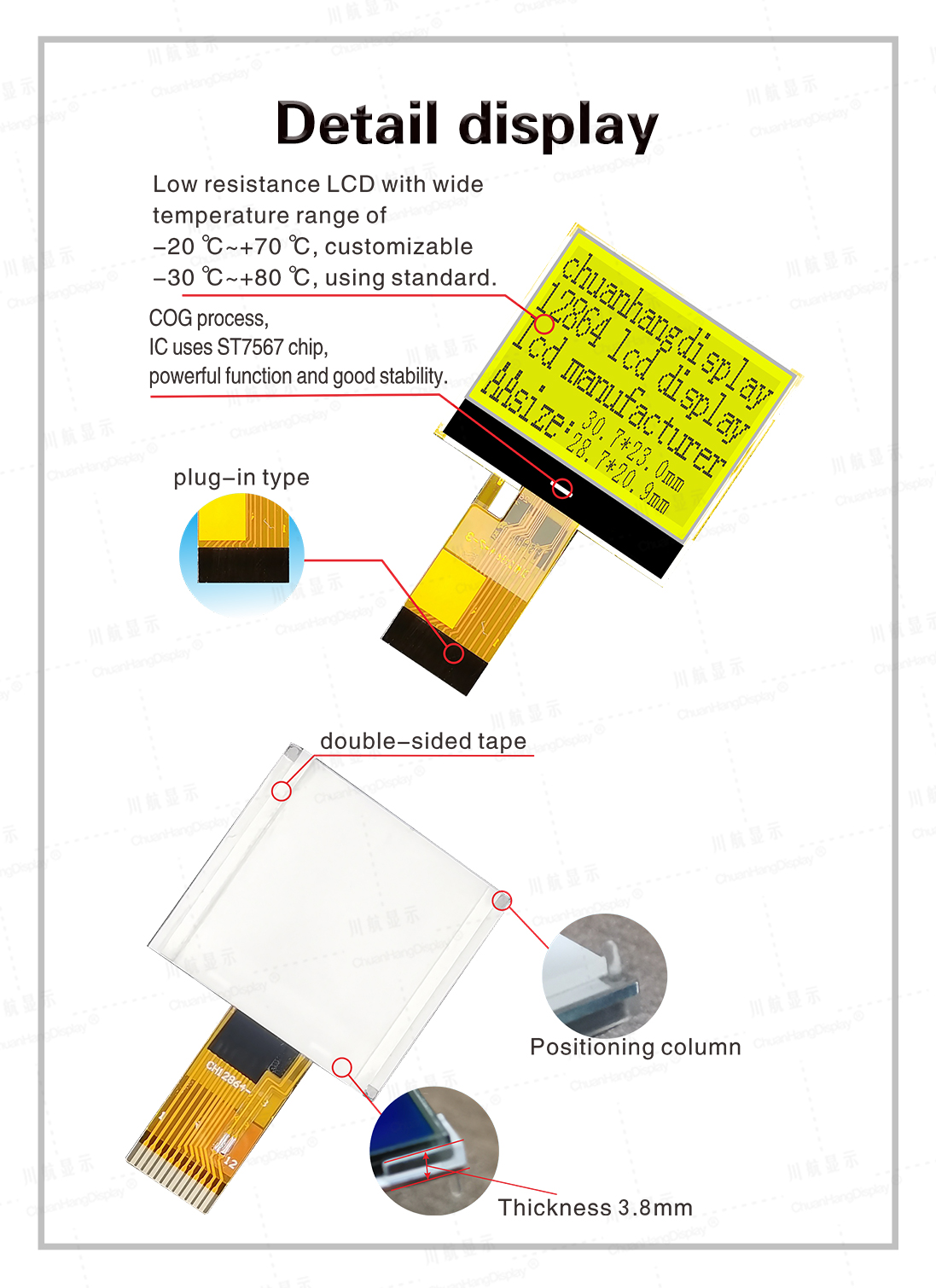

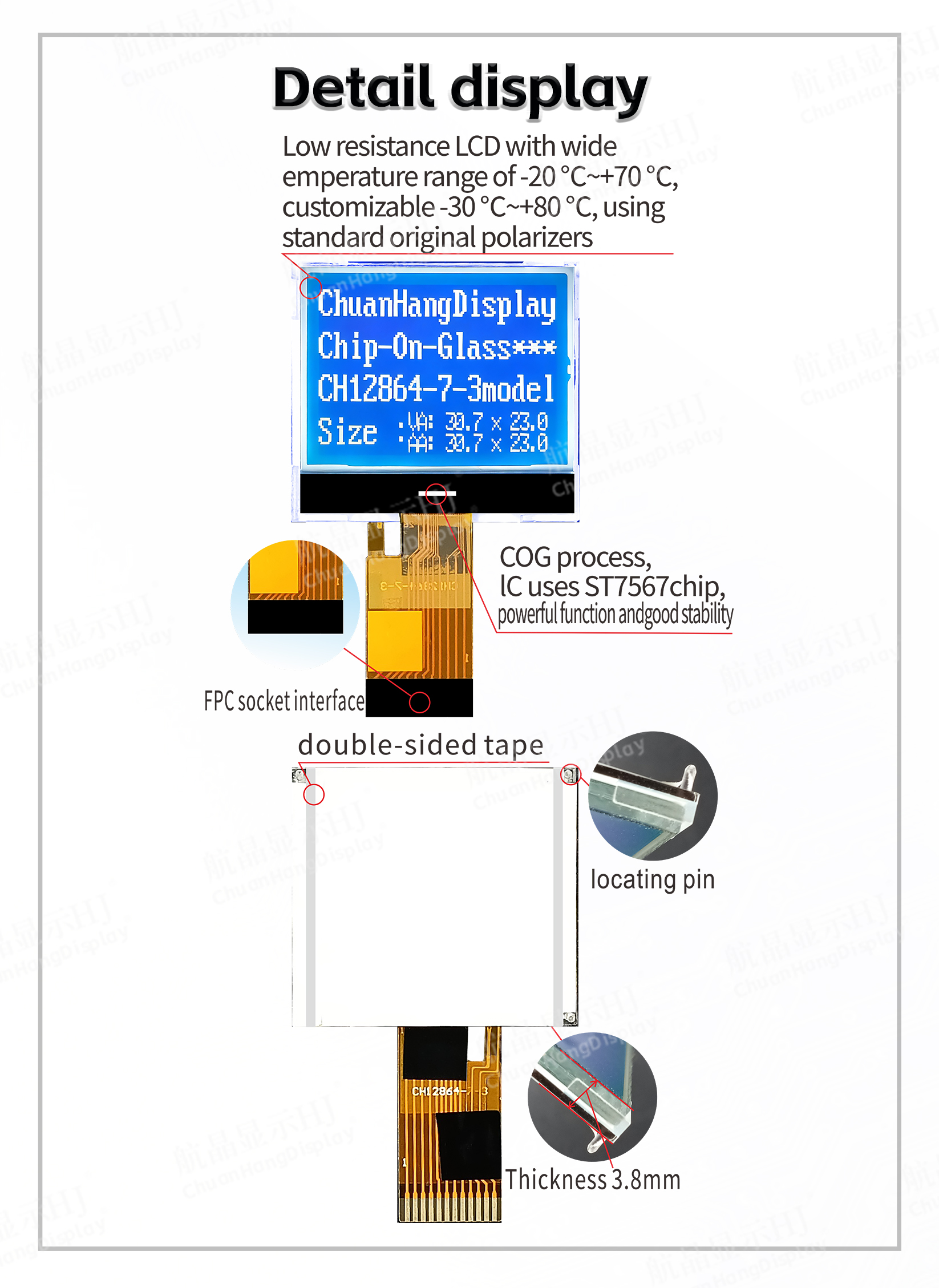

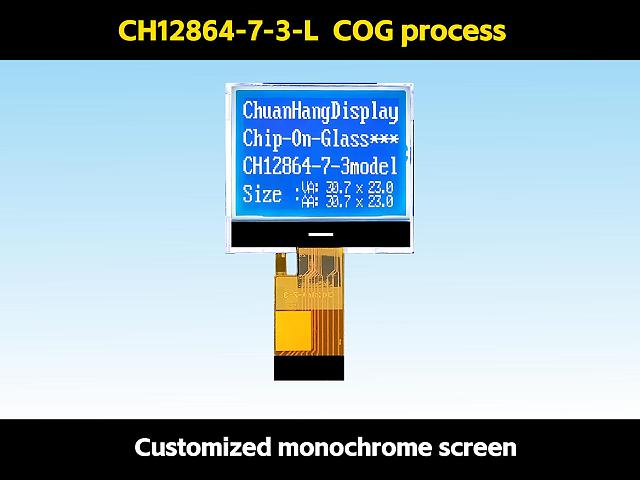

1.1 COG process, FPC soft line is the plug-in interface, the product has backlight, has been assembled, thin thickness, and stable structure.
1.2 IC uses ST7567, there is no word library in the chip, and the programmer compiles his own word library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, backlight current within 60mA.
1.4 LED backlights A and K are FPC wiring, and A and K need to be powered separately by 2.9V~3.0V.
1.5 Product features:

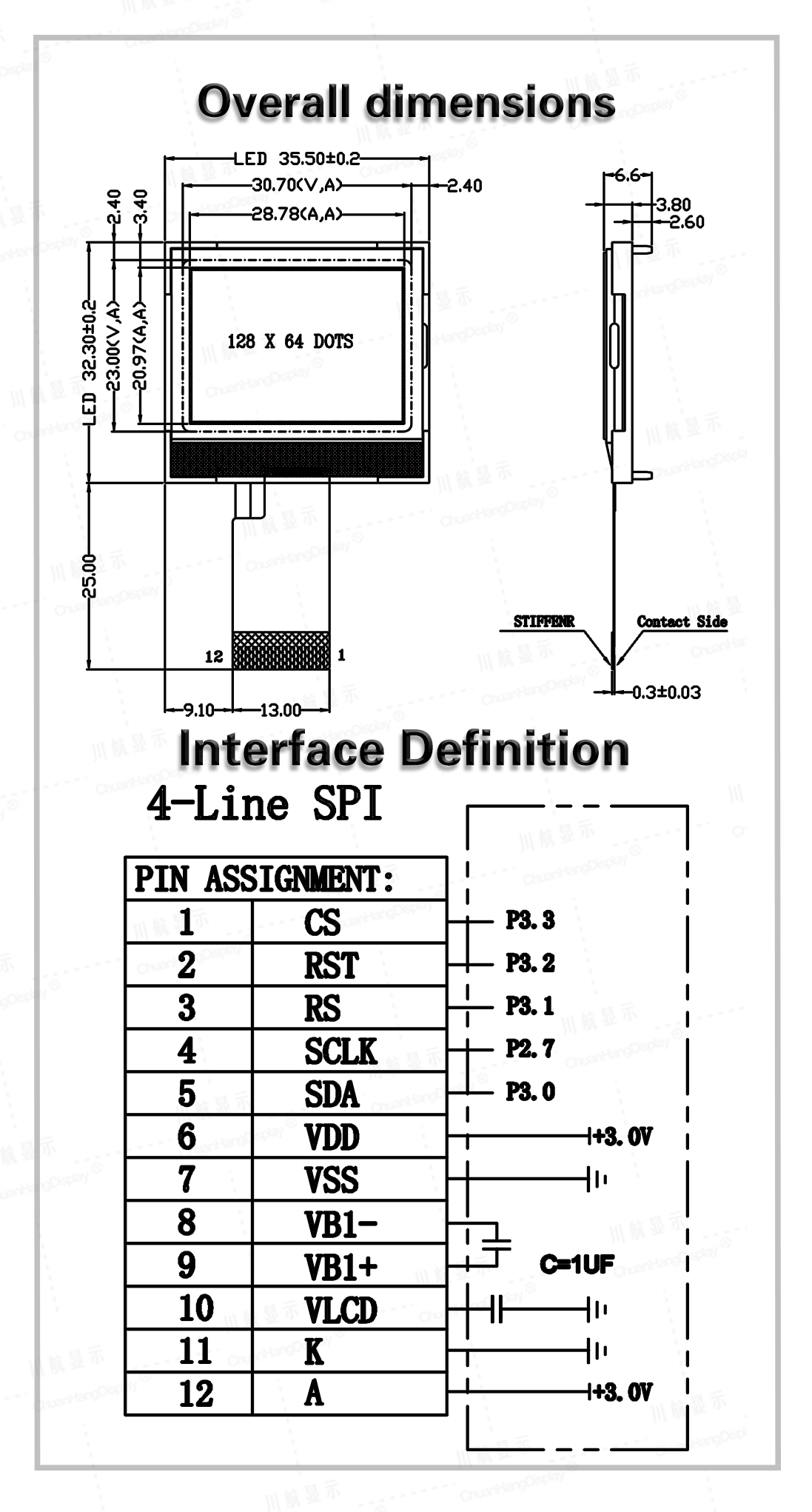

The built-in display data RAM is 64x128 bits. The external capacitor generates a boost. The contrast is adjusted by the software. One screen displays 8 characters x 4 lines (16x16 dot matrix). Single picture ≤128x64 dot matrix. 4-wire SPI interface communication. Rich functions: The interface display is on/off, positive/reverse display.

PDF Download Demo code

Video Presentation

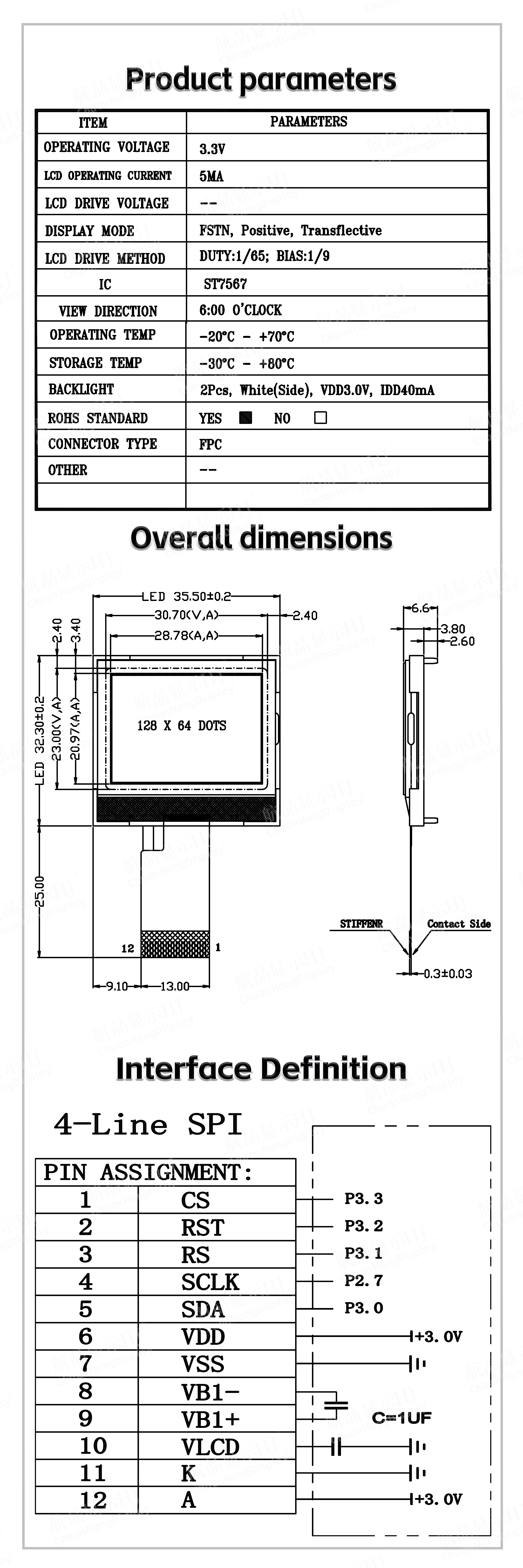

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH12864-7-3-L
Resolution	128x64	screen size

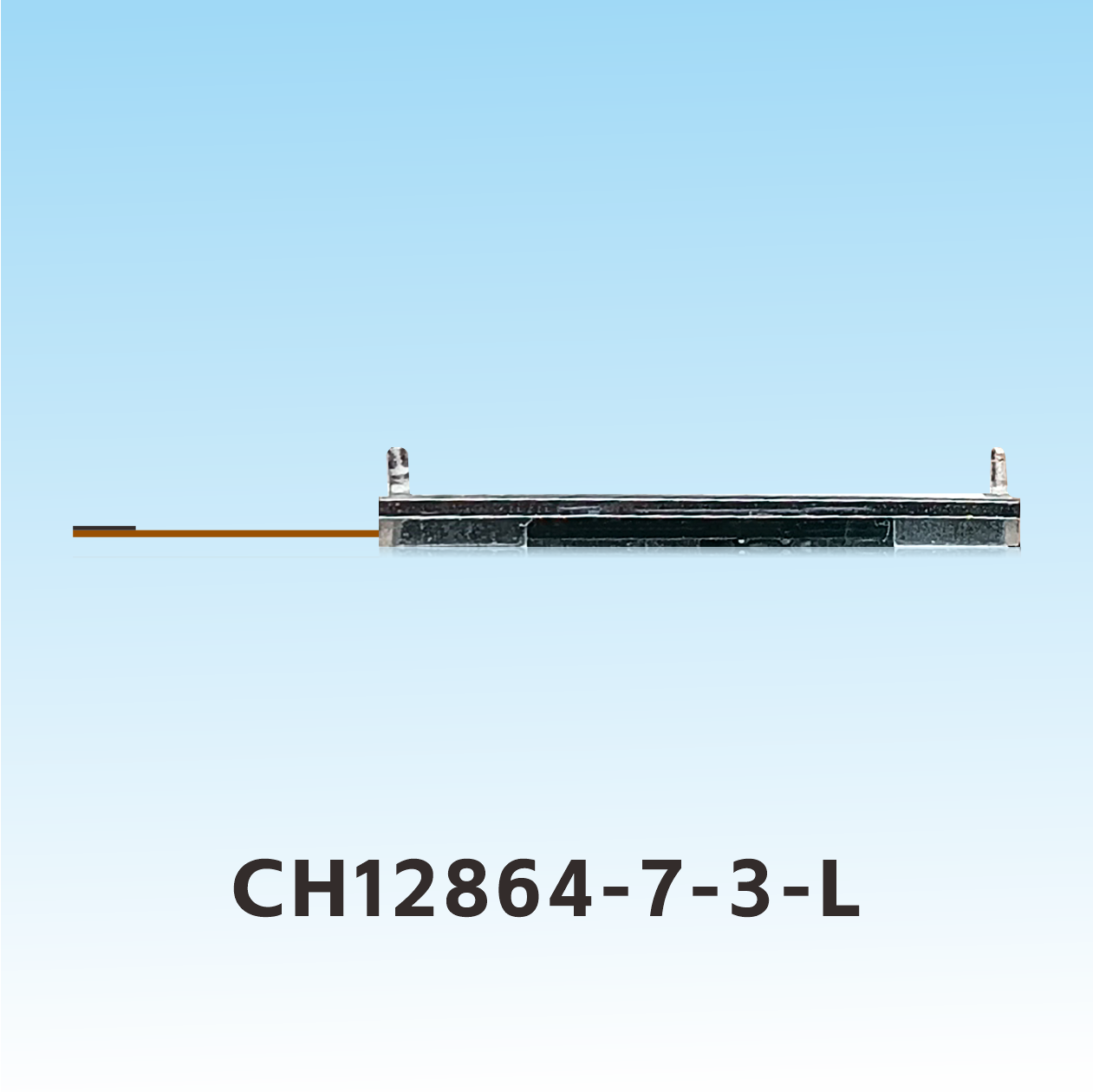

Outline Dimension(LWH)	35.50x32.30x6.6mm	Visible Area(L*W)	30.70x23.00mm
Active Area(L*W)	28.78x20.97mm	Character Size(L*W)
Type	COG	Connection Method	FPC
Supply Voltage	DC 5V/3.3V	Interface Type	4-bit or 8-bit parallel port
Viewing Direction	6 O'CLOCK	Driving Method	1/16Duty,1/5Bias
Display Type		Driver IC	AIP31066
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	DC 5V/3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO
