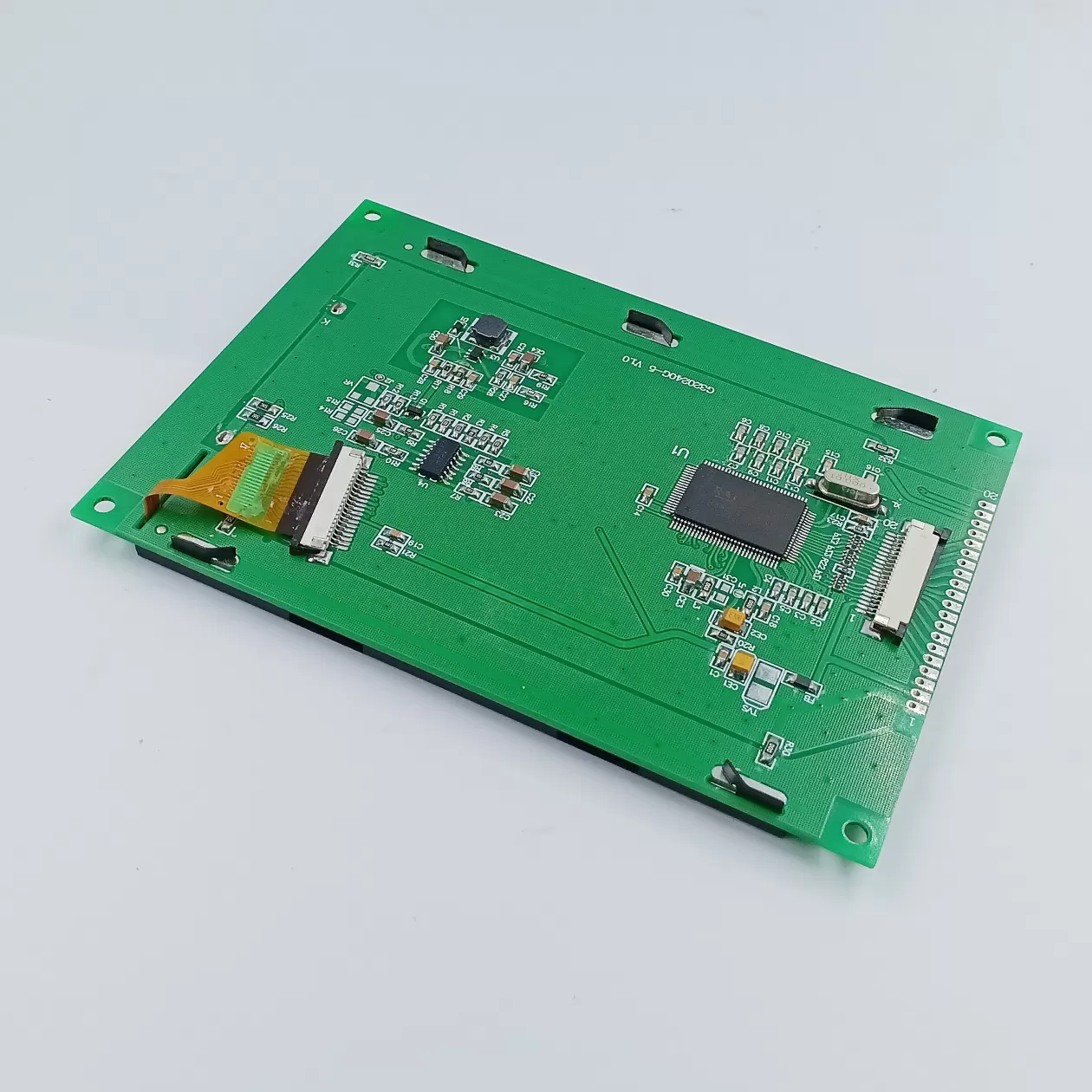

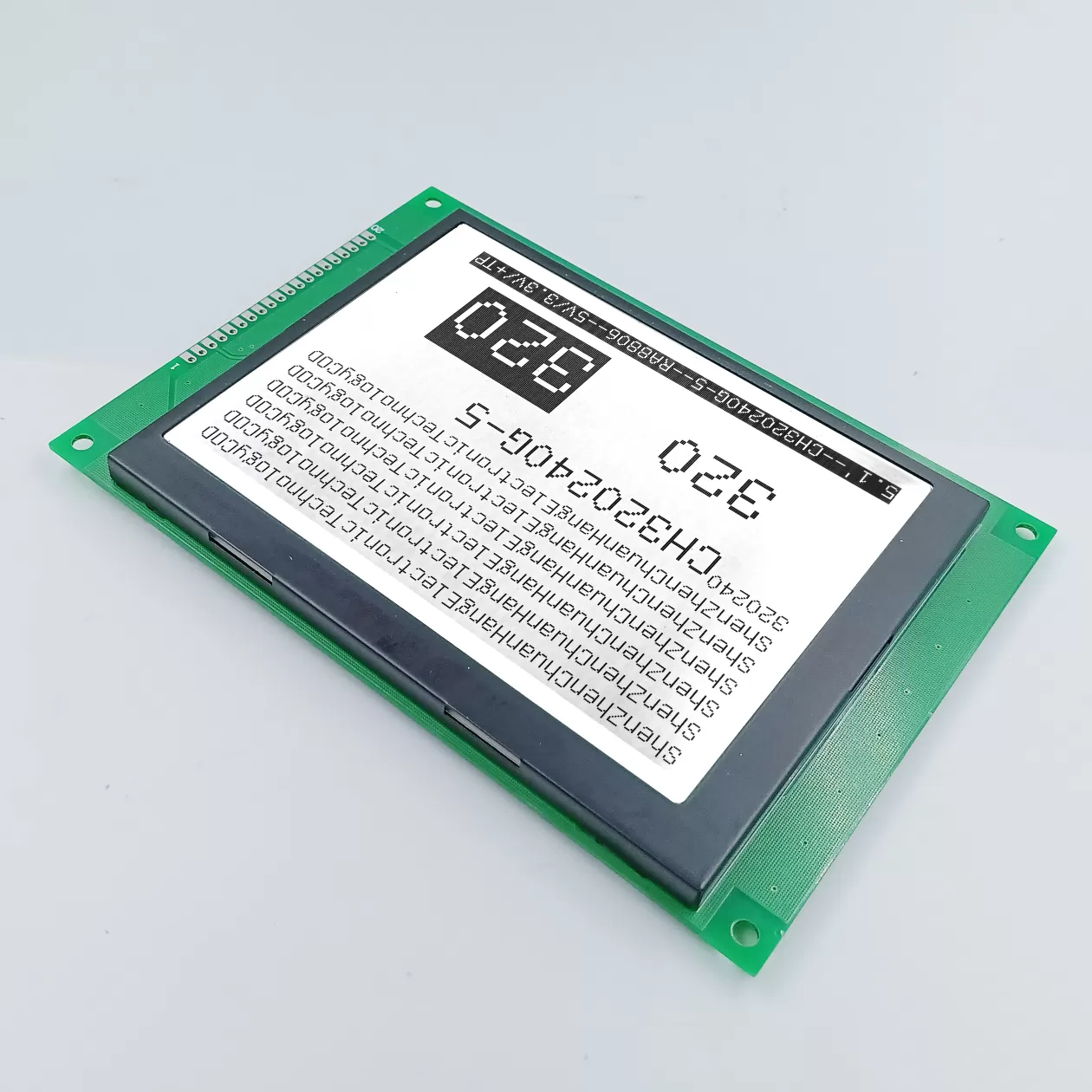

CH320240G-5

Product Description

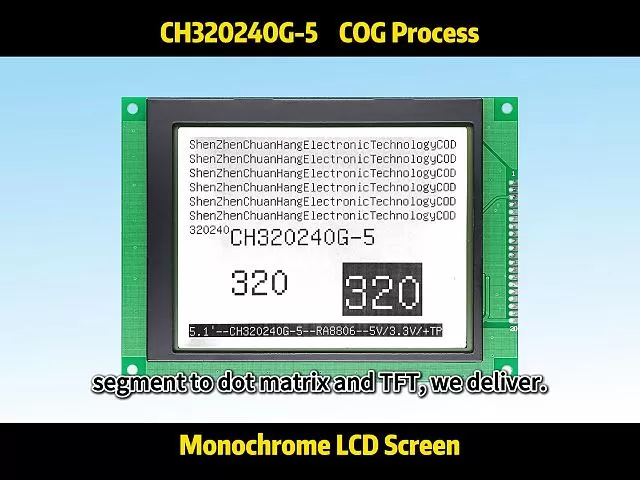

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH320240G-5
Resolution	320X240	screen size	5.1"
Outline Dimension(LWH)	139.00x100.00x 12.20mm	Visible Area(L*W)	103.0X79.0 mm
Active Area(L*W)	95.97X71.97 mm	Dot Size (mm)	0.27(L)X0.27(W)
Type	COB	Connection Method	Conductive strip
Supply Voltage	5V/3.3V	Interface Type	MCU
Viewing Direction	6 O'CLOCK	Driving Method	1/240Duty,1/16Bias
Display Type	FSTN	Driver IC	RA8806
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	5V/3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	Yes

Product Datasheet

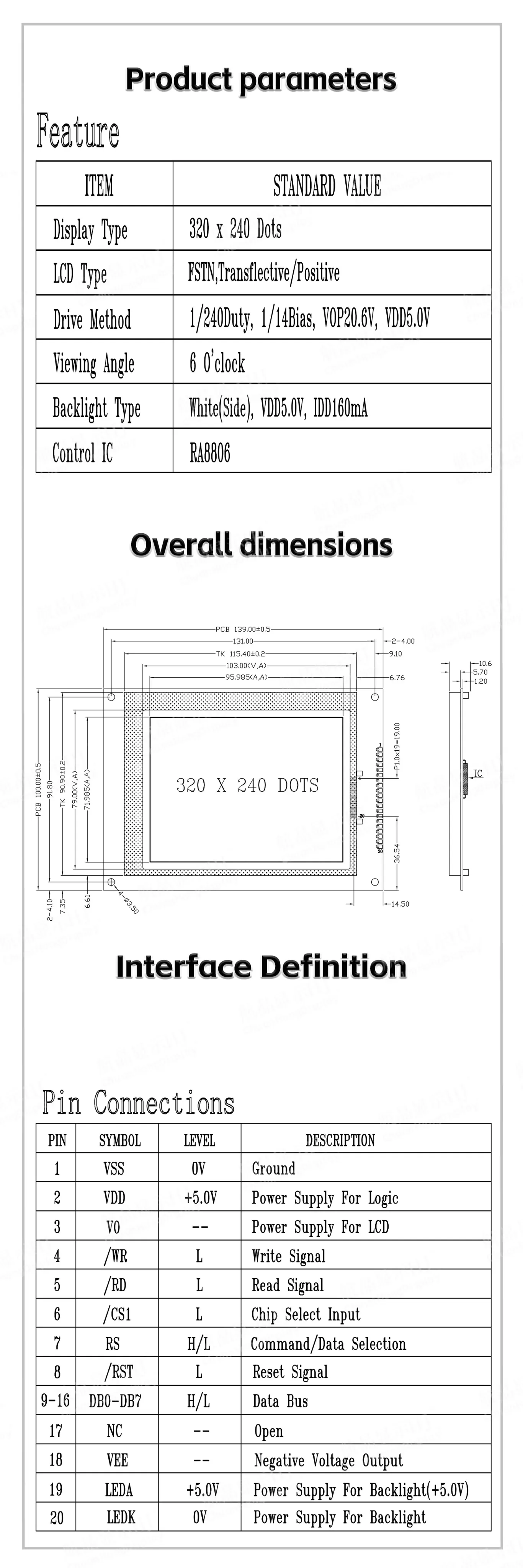

CH320240G-5-英文版-详情页_04

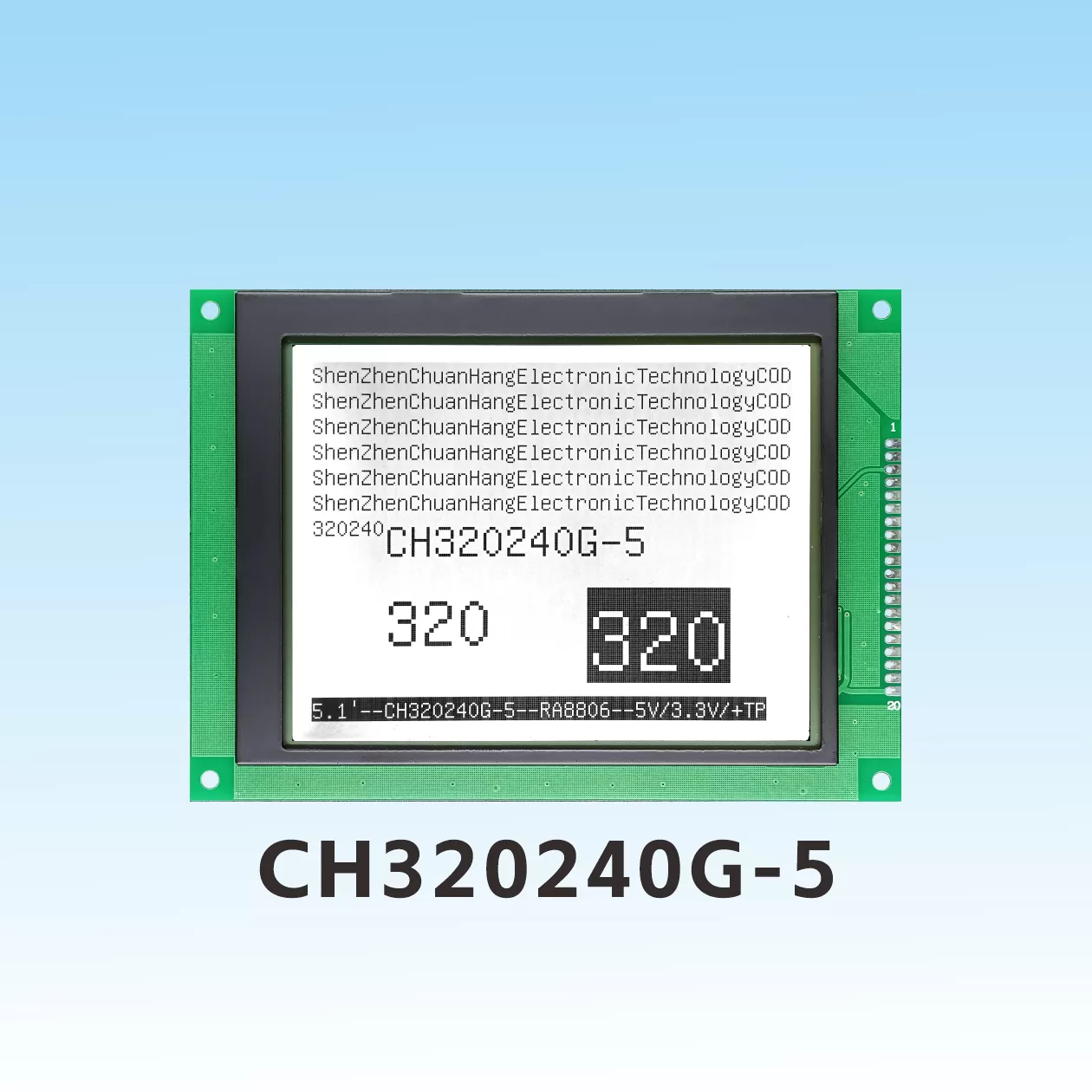

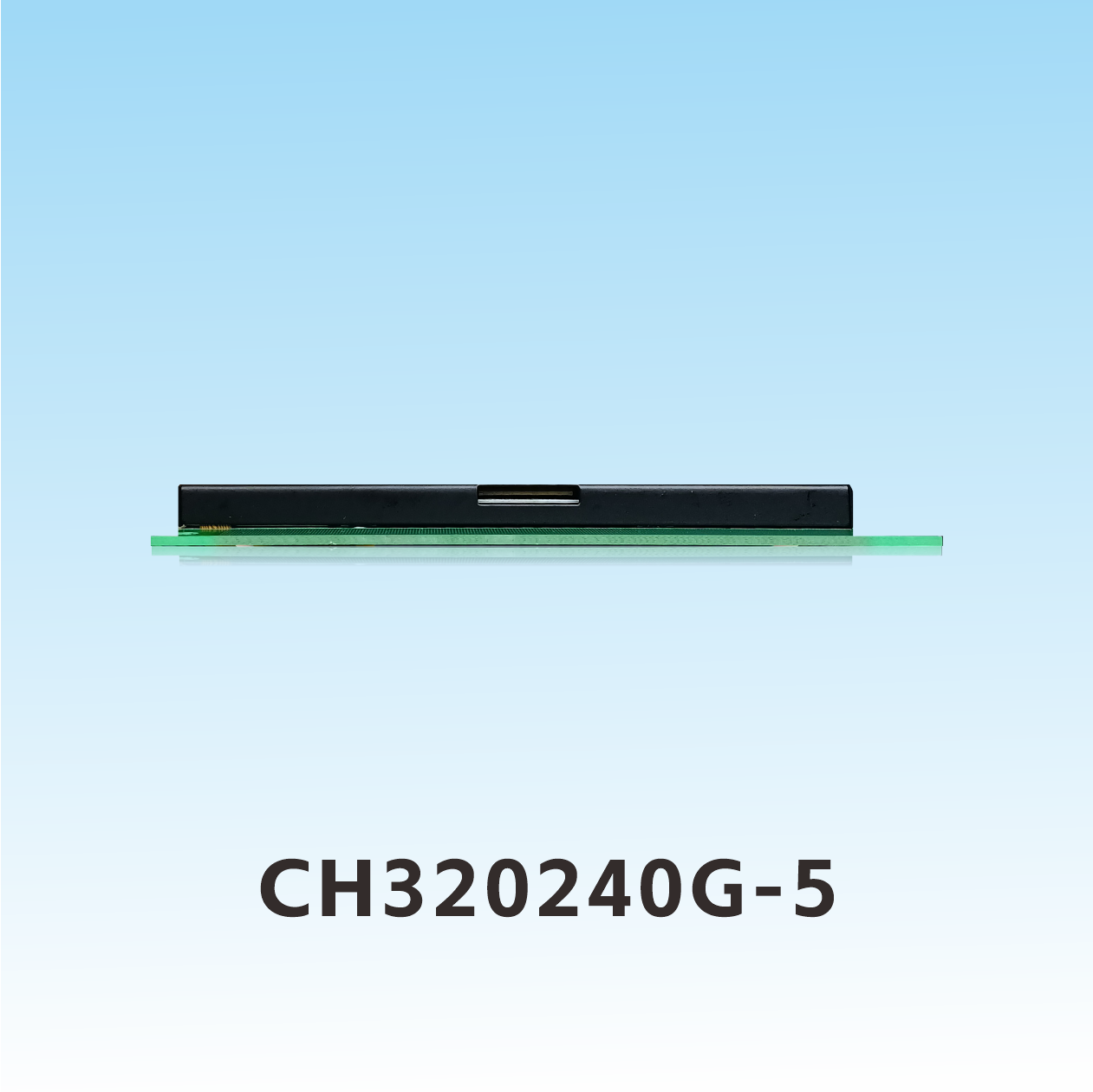

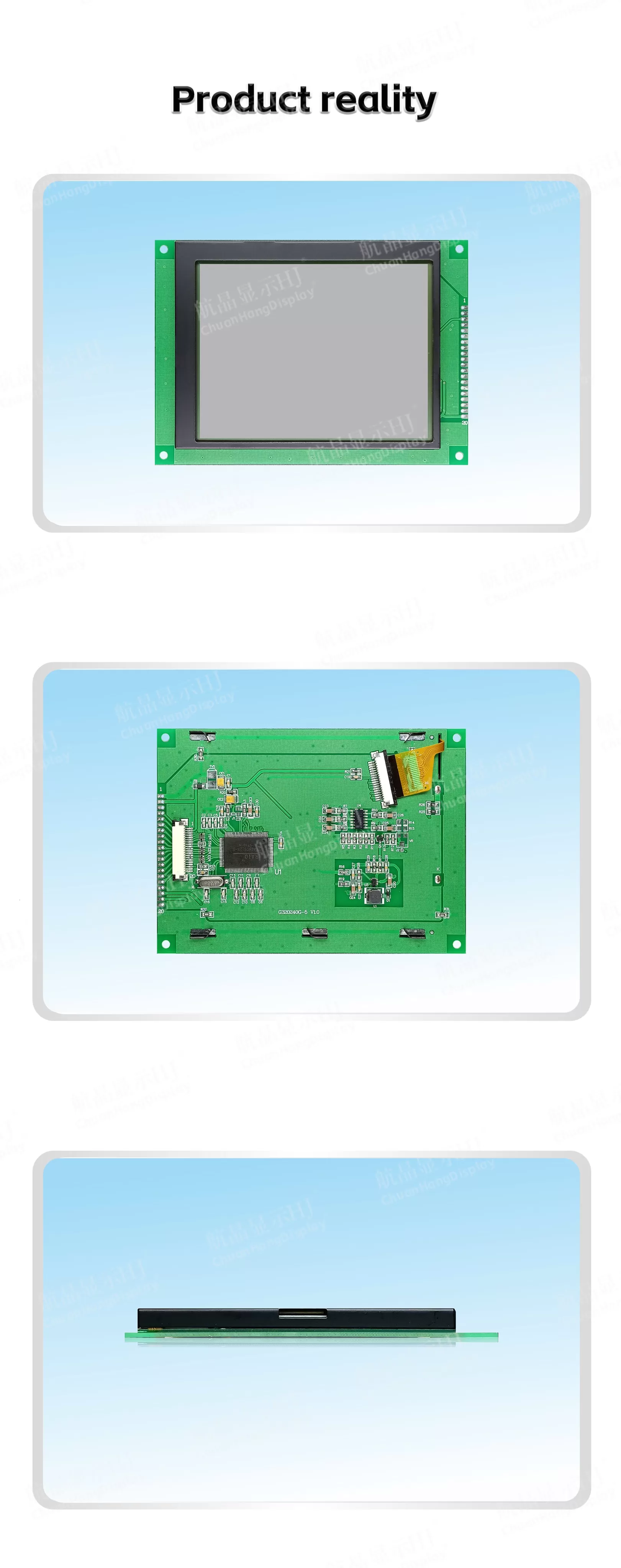

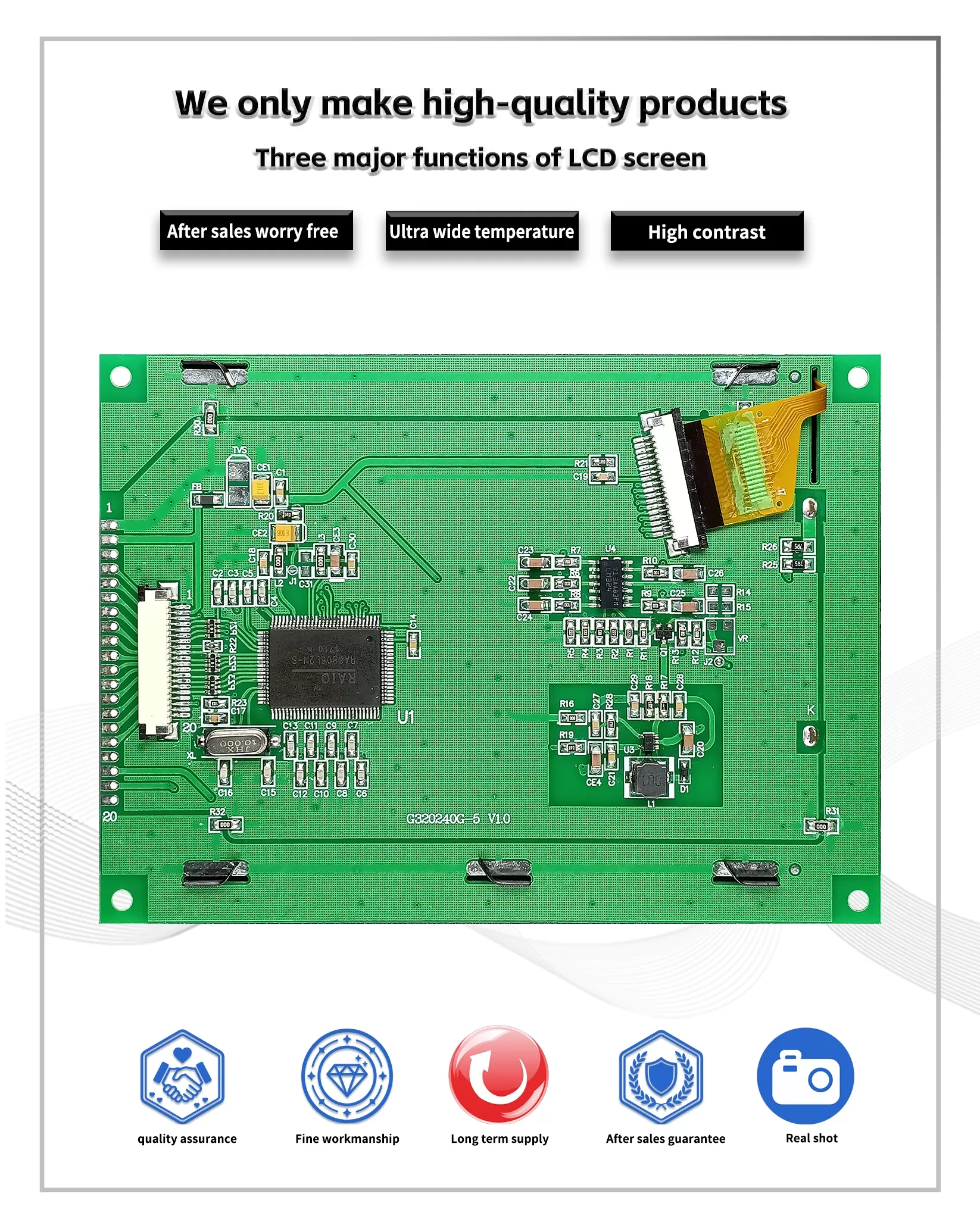

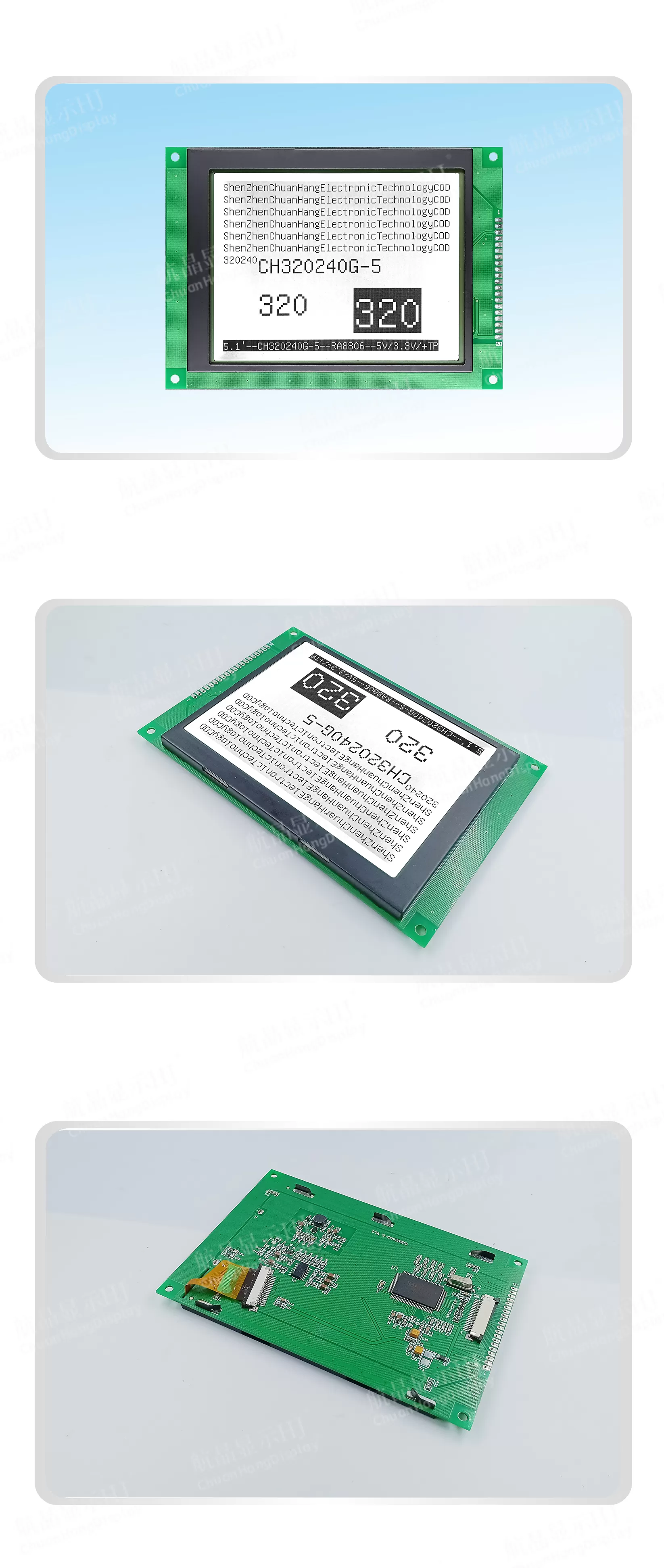

Product Display

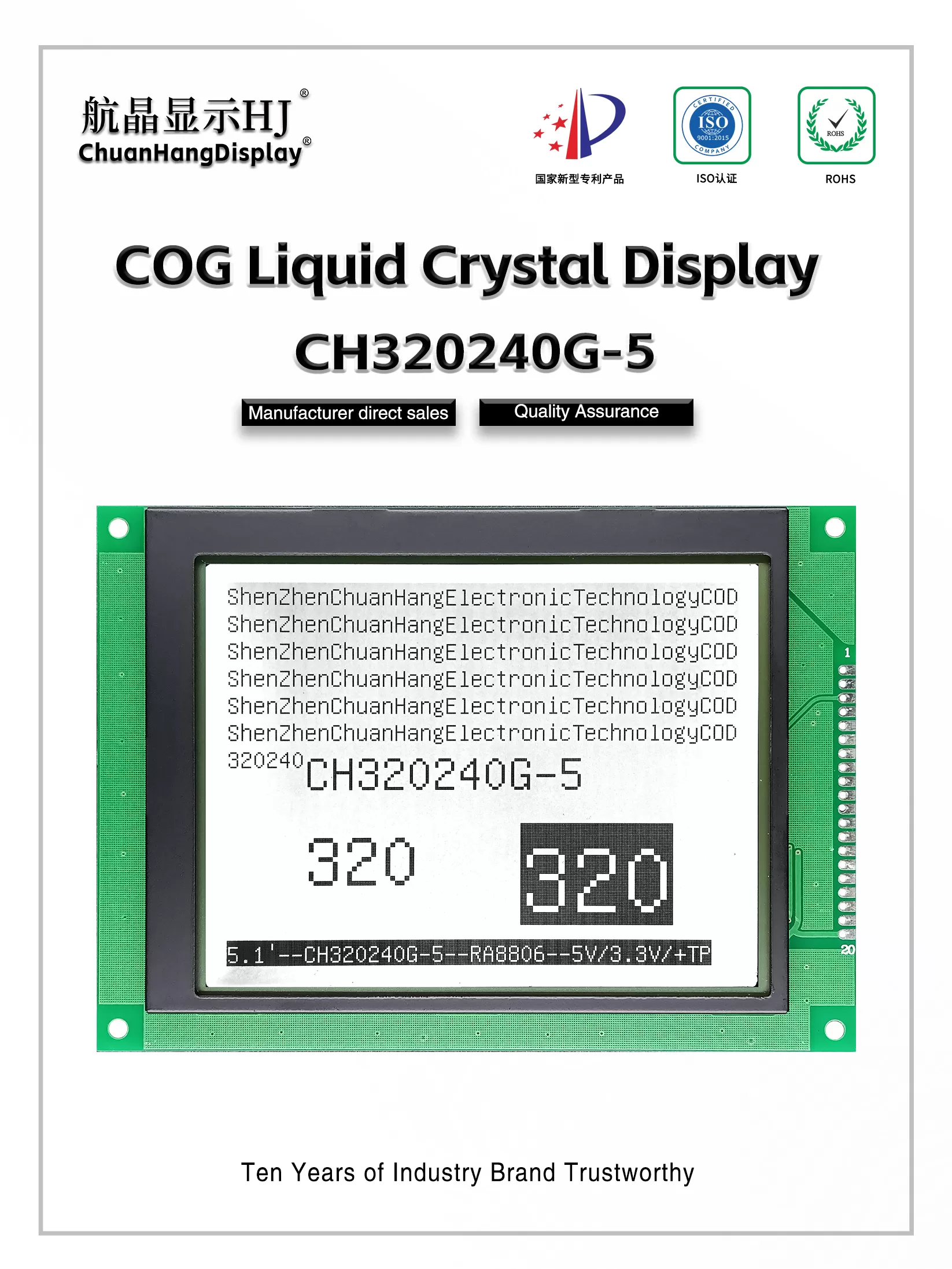

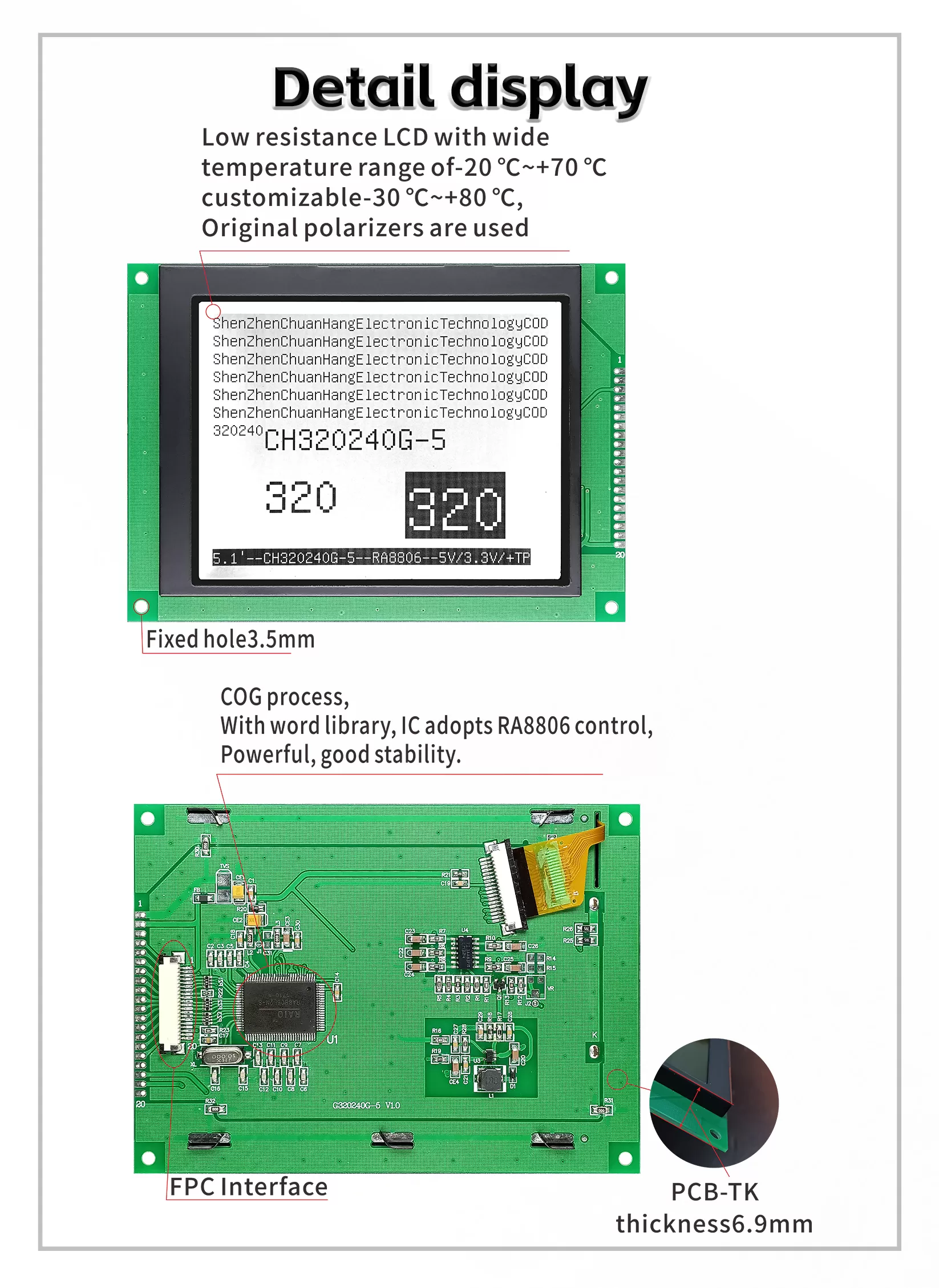

CH320240G-5-英文版-详情页_01

CH320240G-5-英文版-详情页_01

CH320240G-5-英文版-详情页_01

CH320240G-5-英文版-详情页_01

CH320240G-5-英文版-详情页_01
