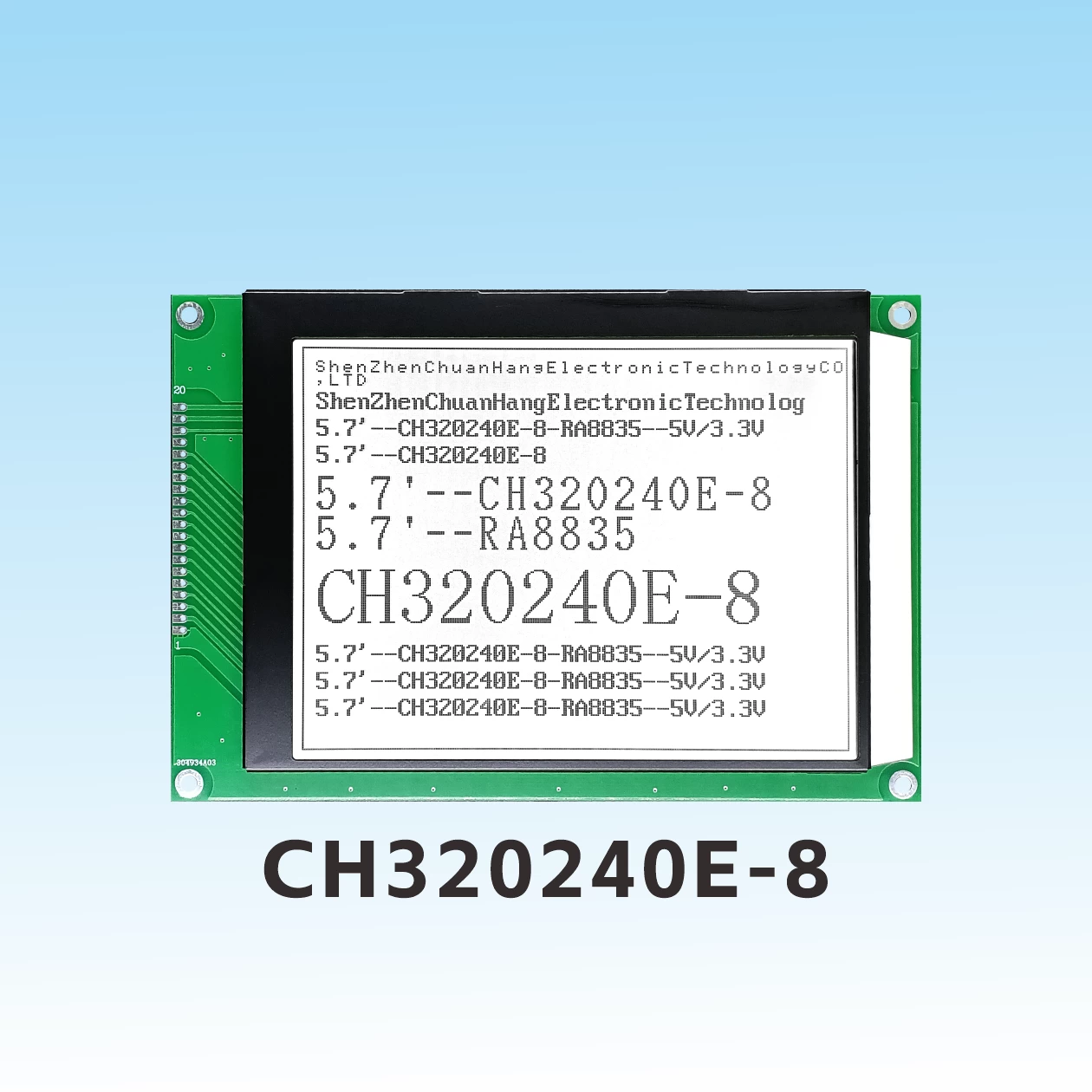

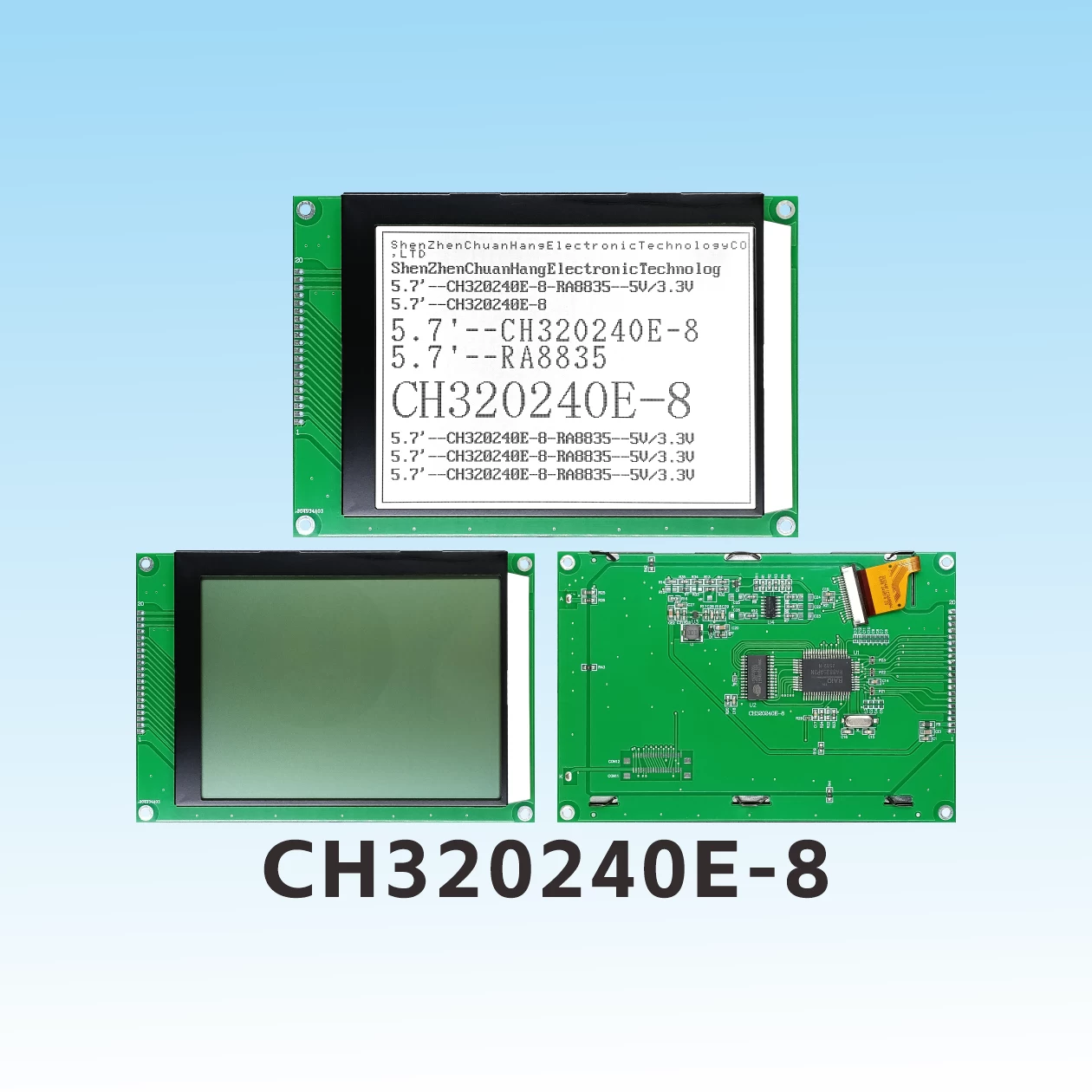

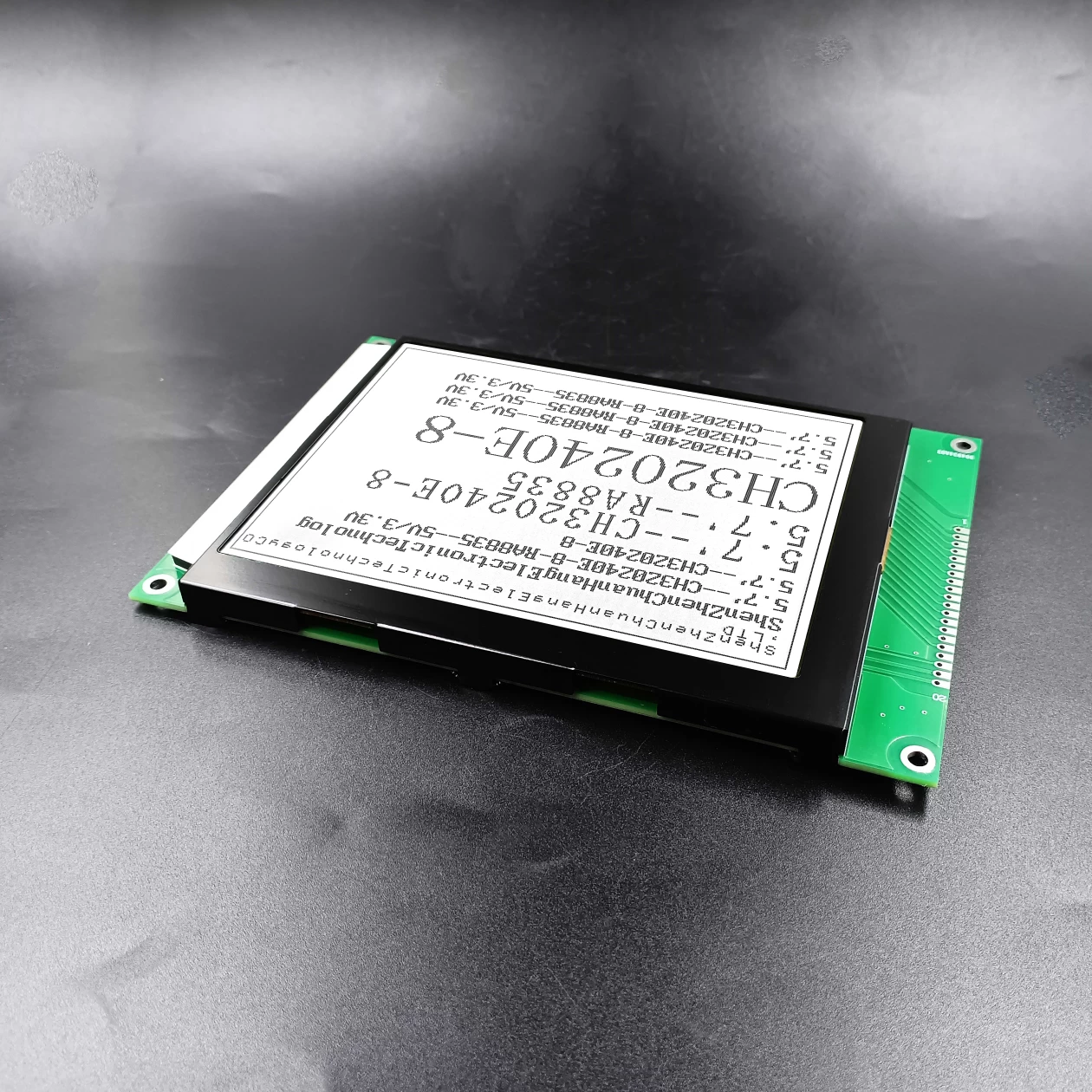

CH320240E-8 COG Graphic LCD Module

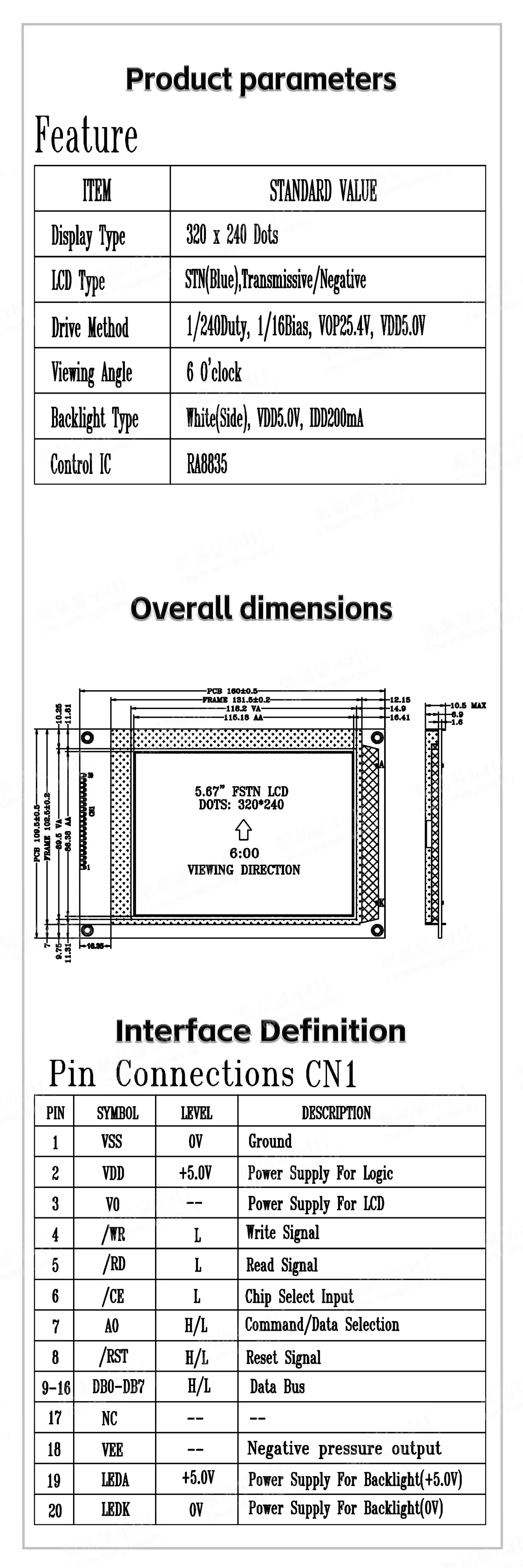

Product Description
| Product Brand | ChuanHangDisplay | Product Model | CH320240E-8 |
| Resolution | 320x240 | screen size | 5.7" |
| Outline Dimension(L*W*H) | 160x109.5x10.5mm | Visible Area(L*W) | 118.2x89.5 mm |
| Active Area(L*W) | 115.18x86.38mm | Dot Size (mm) | 0.408(L)x0.408(W) |
| Type | COG | Connection Method | FPC |
| Supply Voltage | 5.0/3.3V | Interface Type | MCU |
| Viewing Direction | 6 O'CLOCK | Driving Method | 1/240Duty,1/14Bias |
| Display Type | STN | Driver IC | RA8835 |
| Operating Temperature | -20℃~+70℃ | Storage Temperature | -30℃~+80℃ |
| Backlight parameters | 5.0/3.3V | production capacity | Self-produced |
| Character libraries | Whether to bring PCB | Yes |
