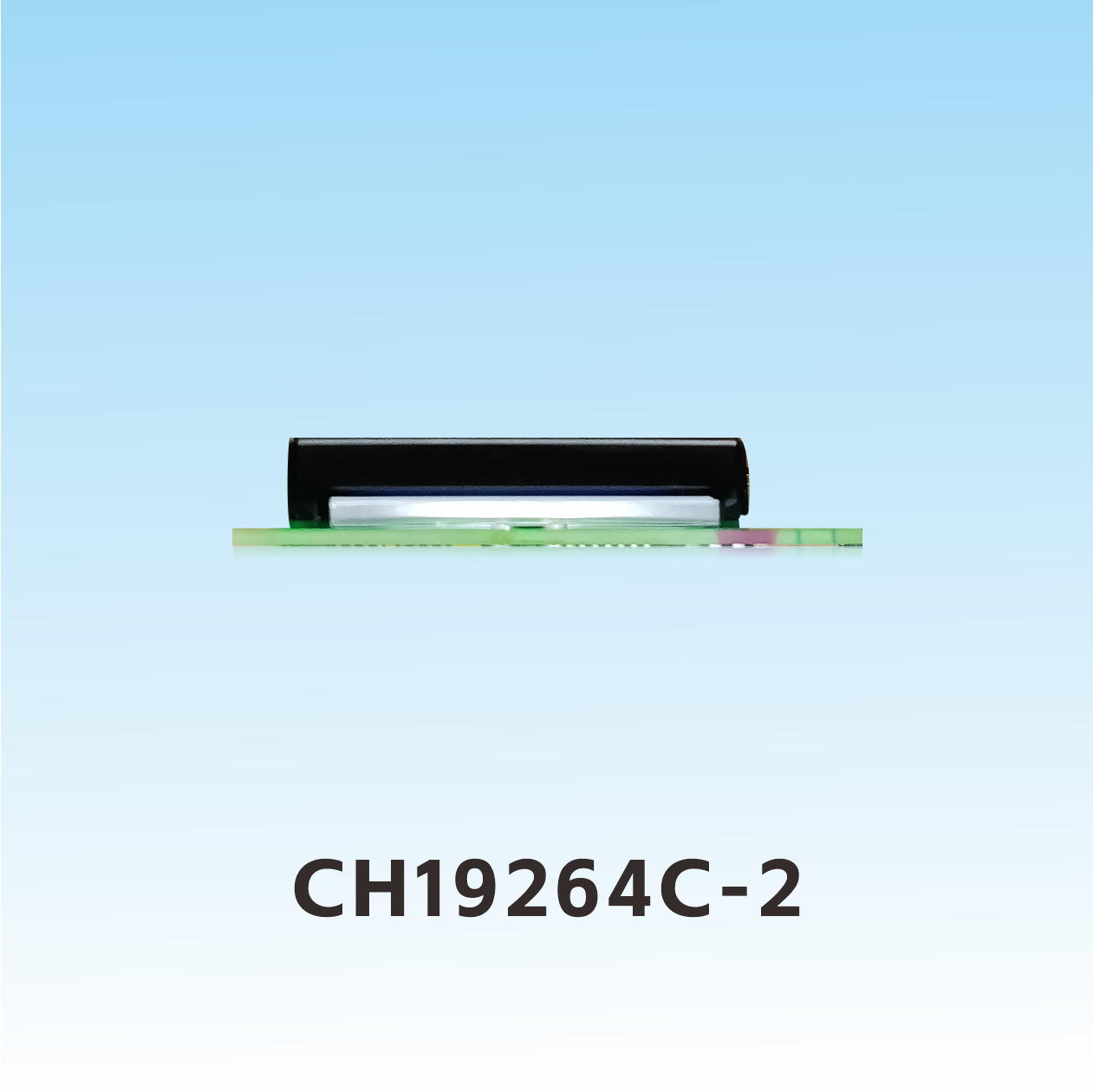

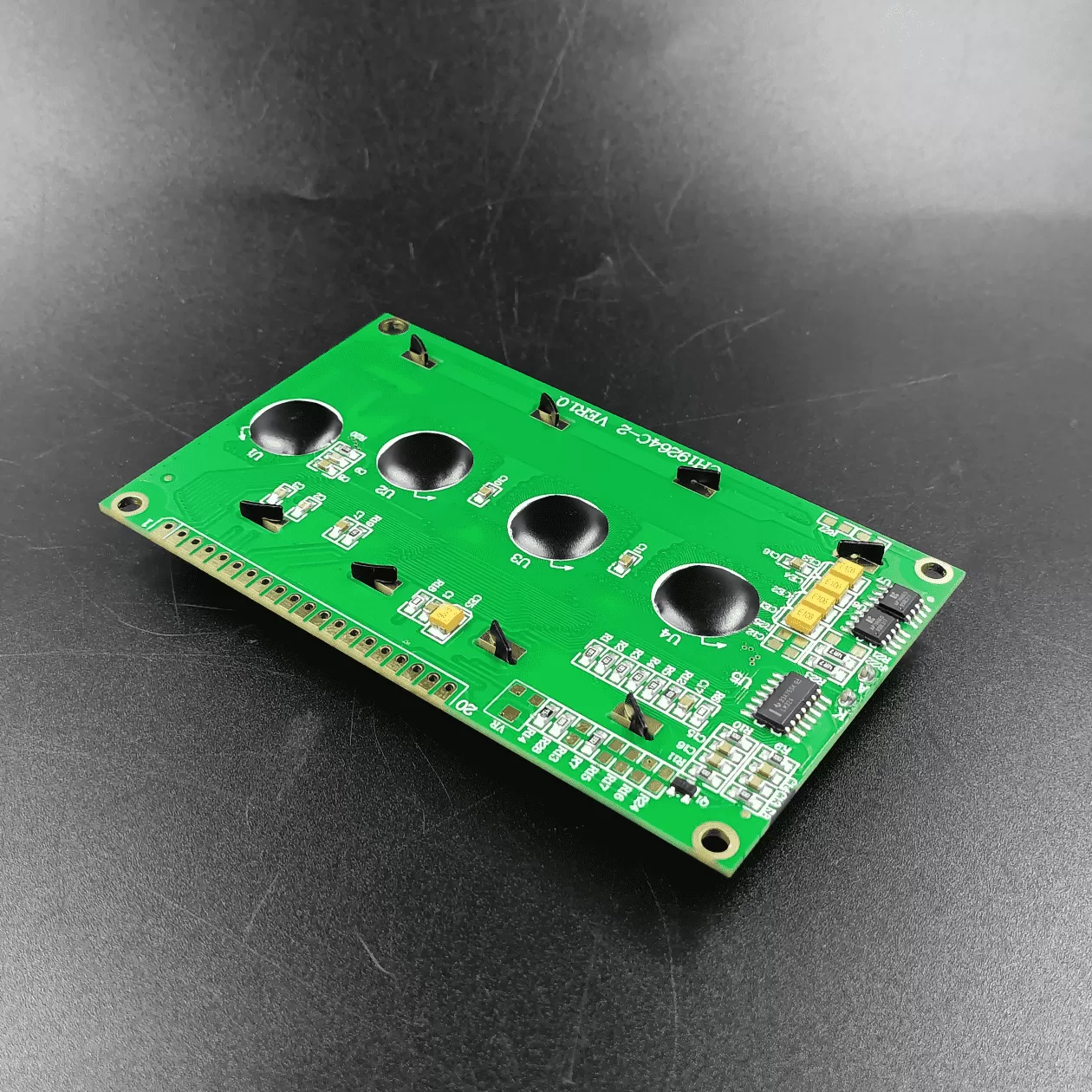

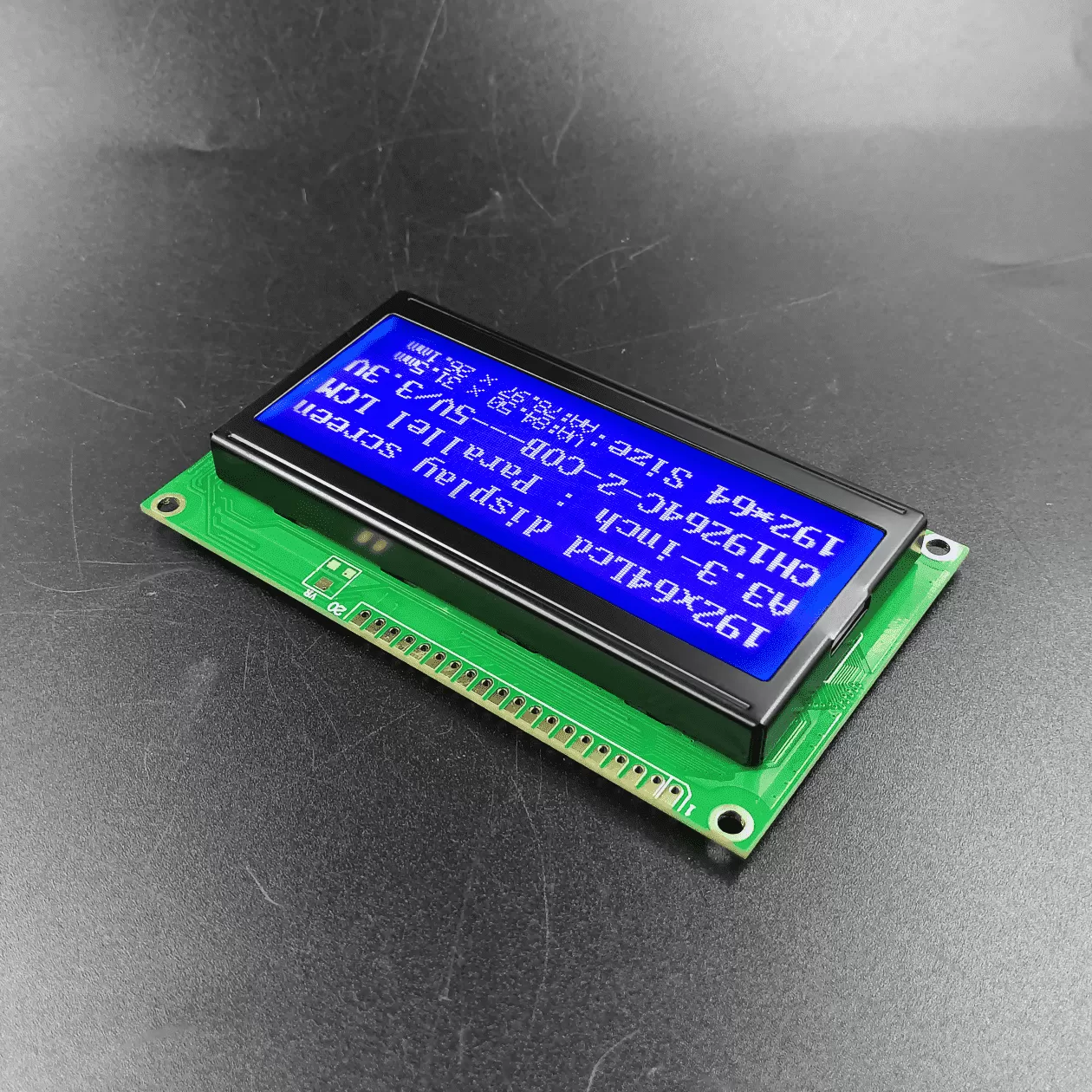

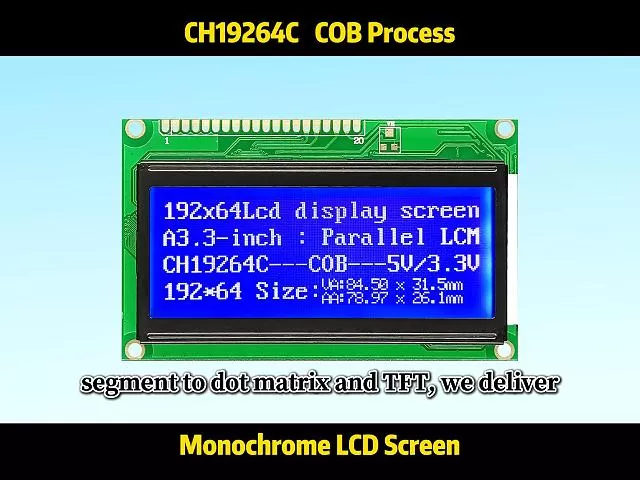

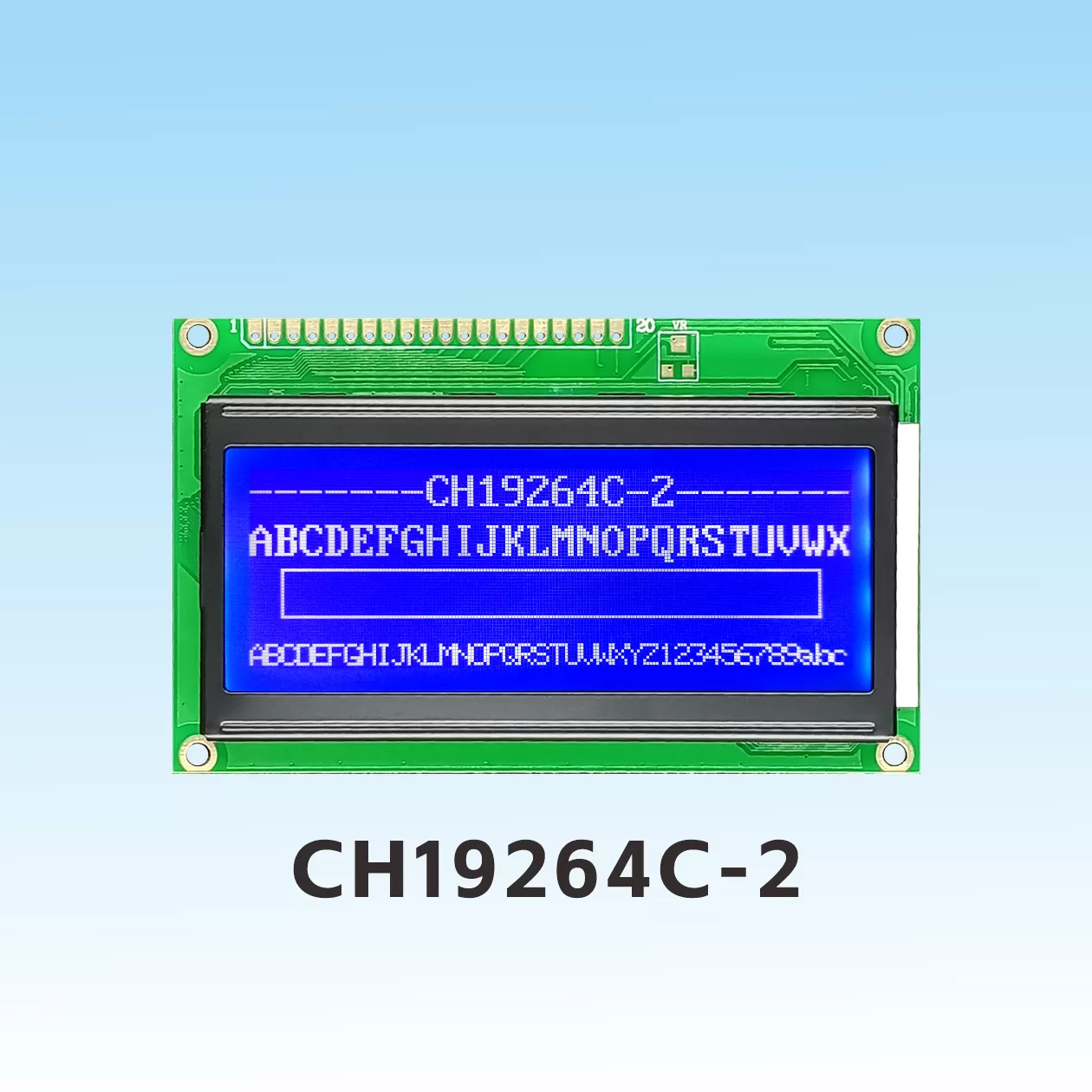

CH19264C-2 192x64 LCD Graphic Displays
Product Description
| Product Brand | ChuanHangDisplay | Product Model | CH19264C-2 |
| Resolution | 192X64 | screen size | 3.3" |
| Outline Dimension(L*W*H) | 100.0X60.0X12.0 mm | Visible Area(L*W) | 84.5X31.5 mm |
| Active Area(L*W) | 78.67X26.19 mm | Dot Size (mm) | 0.37(L)x0.37(W) |
| Type | COB | Connection Method | Conductive strip |
| Supply Voltage | 5V/3.3V | Interface Type | MCU |
| Viewing Direction | 6 O'CLOCK | Driving Method | 1/64Duty,1/9Bias |
| Display Type | STN | Driver IC | ST7920 |
| Operating Temperature | -20℃~+70℃ | Storage Temperature | -30℃~+80℃ |
| Backlight parameters | 5V/3.3V | production capacity | Self-produced |
| Character libraries | Whether to bring PCB | Yes |
