In a world dominated by high-resolution, full-color displays, a simpler technology continues to hold a critical and ubiquitous role. From your digital alarm clock and kitchen scale to complex industrial instruments and medical devices, the 7 Segment LCD is a workhorse of clear, low-power data presentation. Its straightforward design and reliability have made it a go-to choice for decades. But what exactly is this technology, and when should you choose it over more complex alternatives? This article provides a deep dive into the 7 Segment LCD, its advantages, ideal applications, and key considerations for sourcing, with expert insight from Chuanhang Display.
A 7 Segment LCD is a type of electronic display device used for showing numerical digits and a limited set of letters and symbols. As the name implies, it is composed of seven individual segments, arranged in a figure-eight pattern. Each segment is a separate electrode that can be independently turned on (dark) or off (clear). By energizing different combinations of these seven segments, the display can form all ten Arabic numerals (0-9).
Most modules also include an additional segment for a decimal point (often called an "eighth segment"), and sometimes a set of colon segments for clock displays. The core technology is standard Liquid Crystal Display, where an electric field applied to a segment twists the liquid crystals to block light, creating a visible contrast against the background.
The enduring popularity of the 7 Segment LCD is not an accident. It offers a compelling set of benefits for specific applications:
Excellent Readability: The simple, bold numeric characters are extremely easy to read, even at a glance and from various angles. This is crucial for applications where quick and error-free reading is essential.
Extremely Low Power Consumption: 7 Segment LCDs are renowned for their energy efficiency. They are reflective or transflective by nature, meaning they use ambient light for visibility, requiring minimal electrical power to switch the segments. This makes them ideal for battery-powered devices that must run for years.
Cost-Effectiveness: The simplicity of the design and the low pin count for driving the display translate into a very low cost for both the display itself and the associated driver electronics.
High Reliability and Long Lifespan: With no fragile filaments or organic materials to degrade, 7 Segment LCDs are incredibly robust and have an exceptionally long operational life. They are resistant to shock, vibration, and have a wide operating temperature range.
However, they are not without limitations. Their primary drawback is the limited character set, making them unsuitable for displaying full text or complex graphics.
A common point of comparison is the dot matrix LCD. Understanding the differences is key to selecting the right technology.

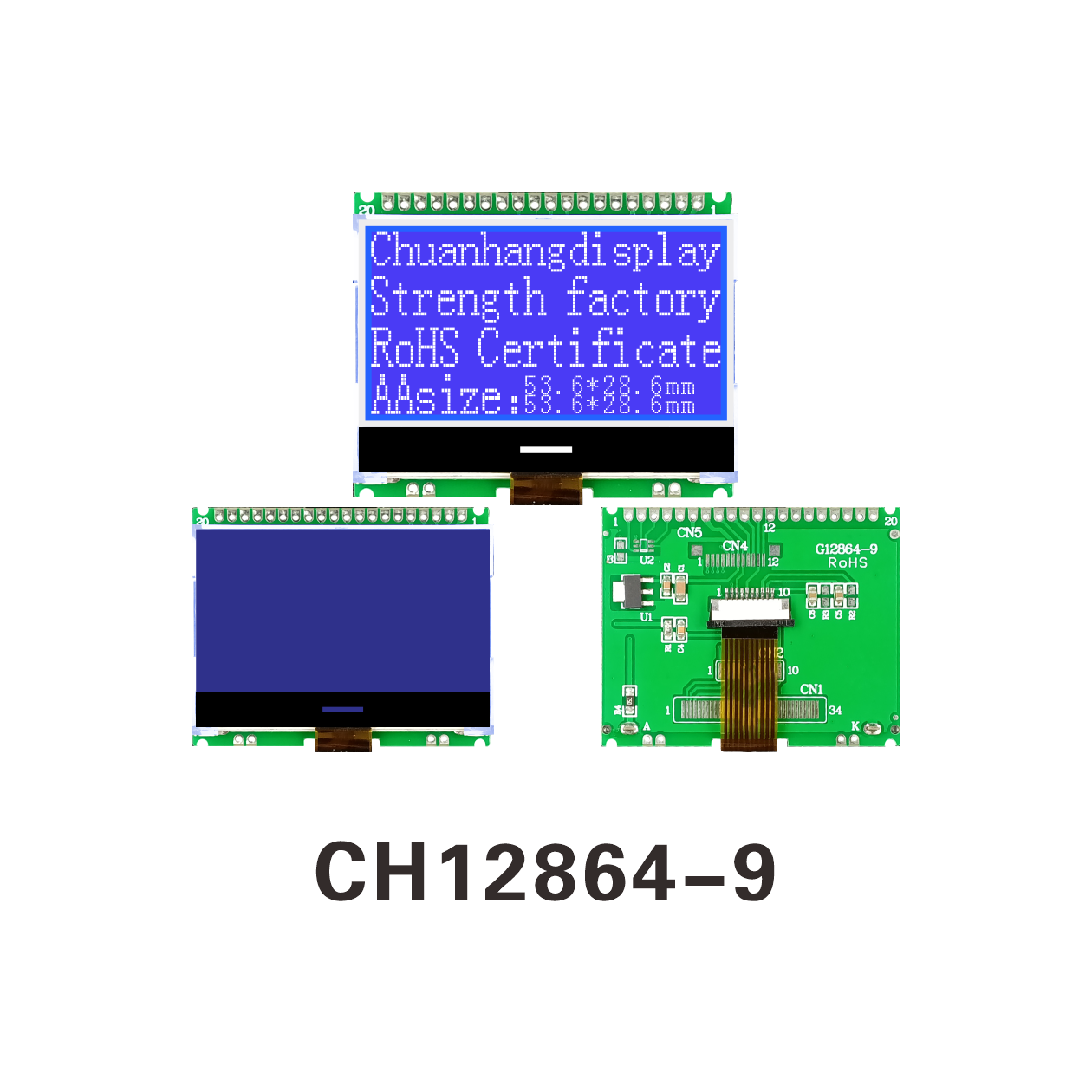

Display Capability: This is the fundamental difference. A 7 Segment LCD can only show numbers and a few symbols. A dot matrix LCD, composed of a grid of pixels, can display any character, font, or simple bitmap graphic.
Flexibility vs. Simplicity: Dot matrix displays offer full flexibility but require a more complex controller (and often more programming) to manage. A 7 Segment LCD is simple to interface with a microcontroller using a basic driver IC or even direct GPIO pins.
Power and Cost: For purely numeric output, the 7 Segment LCD will almost always be more power-efficient and less expensive than a dot matrix module of a comparable viewing area.
Readability: For dedicated numeric readouts, the large, distinct segments of a 7 Segment LCD are often clearer than numeric characters rendered on a dot matrix.
The Rule of Thumb: If your application only needs to display numbers, choose a 7 Segment LCD. If it needs to display words, menus, or dynamic graphics, you need a dot matrix display.
The practical advantages of 7 Segment LCD technology ensure its use in a vast array of fields:
Consumer Electronics: Digital clocks, thermometers, calculators, and appliance timers.
Industrial Equipment: Panel meters, process counters, timers, and readouts for pressure, temperature, and flow. Their robustness is key here.
Medical Devices: Patient thermometers, blood pressure monitors, and medical pump displays where clarity and reliability are non-negotiable.
Automotive: Digital odometers, trip meters, and climate control readouts.
Test and Measurement Equipment: Multimeters, oscilloscopes, and power supplies.
When integrating a 7 Segment LCD into your product, several technical specifications are critical:
Digit Count: The number of digits in the display, which can range from 1 to 8 or more in a single module.
Segment Size and Viewing Area: The physical height of the digits, which determines visibility distance.
Viewing Mode: This defines how the display is illuminated.
Reflective: Relies on ambient light from the front. Most power-efficient but requires good lighting.
Transflective: A compromise, using both ambient light and a backlight.
Transmissive: Requires a constant backlight from behind; best for low-light conditions but uses more power.
Backlighting: While not always needed, LED or EL (Electroluminescent) backlights can be added for viewing in the dark. Chuanhang Display offers various backlighting options to suit application needs.
Operating Temperature Range: Standard commercial grades (0°C to +50°C) or extended industrial/automotive grades (-30°C to +80°C or wider).
Drive Method: Static drive (each segment has a dedicated pin) or multiplexed (time-sharing pins to reduce connection count). Multiplexed is more common for multi-digit displays.
While standard 7 Segment LCD modules are widely available, many products benefit from a custom 7 segment LCD design. Off-the-shelf displays may not fit the unique aesthetic, mechanical, or functional requirements of your device. Partnering with a manufacturer like Chuanhang Display for a custom solution allows for:
Unique Layouts and Sizes: Digits can be arranged in any configuration, with custom segment shapes and sizes.
Integrated Icons and Symbols: Frequently used symbols (e.g., battery icons, unit indicators, warning signs) can be permanently etched into the glass alongside the digits, creating a seamless user interface.
Specialized Viewing Modes: Optimizing the glass and fluid for specific viewing angles or temperature extremes.
Brand-Specific Aesthetics: Tailoring the segment style and overall look to match your product's branding.
Investing in a custom 7 segment LCD can significantly enhance the professionalism and integrated feel of your final product.
Choosing the right supplier for your 7 Segment LCD needs is as important as selecting the technology itself. A reliable partner like Chuanhang Display provides more than just components; they offer engineering support, consistent quality, and manufacturing expertise. When evaluating a supplier, consider their experience in your industry, their capability to handle both standard and custom 7 segment LCD projects, and their commitment to quality control throughout the production process. A strong supplier will help you navigate the trade-offs between cost, performance, and lead time, ensuring a smooth integration into your manufacturing pipeline.
Q1: What is the typical lifespan of a 7 Segment LCD?
A1: The operational lifespan of a 7 Segment LCD is exceptionally long, often rated at 100,000 hours or more. Since the liquid crystal material does not "burn out" like an LED or organic material in an OLED, failure is rare and is typically due to physical damage, connector failure, or extreme environmental conditions outside the specified range.
Q2: Can a 7 Segment LCD display letters?
A2: Yes, but in a very limited capacity. By activating specific segments, it is possible to represent some uppercase letters, such as A, B, C, D, E, F, H, L, O, P, S, U, and Y. However, many letters are unreadable or ambiguous. If your application requires clear alphabetic representation, a dot matrix LCD is the appropriate choice.
Q3: How is a 7 Segment LCD connected and controlled?
A3: They are typically controlled by a microcontroller. For simpler displays, a dedicated driver IC (like the MAX7219 or HT1621) is used to handle the multiplexing signals. The driver communicates with the MCU via a serial interface (SPI or I2C), which greatly reduces the number of required GPIO pins.
Q4: Are custom 7 Segment LCD designs expensive?
A4: The initial cost for a custom 7 segment LCD involves Non-Recurring Engineering (NRE) charges for creating the photomasks and tooling. However, for medium to high-volume production runs, this NRE cost is amortized across many units, making the per-unit price very competitive. The value of a perfect mechanical and aesthetic fit often outweighs the initial investment.
Q5: What are the main factors that affect the price of a standard 7 Segment LCD module?
A5: The primary cost drivers are the digit count and size, the viewing mode (transmissive with a backlight is more expensive), the operating temperature range (industrial-grade costs more), and the inclusion of a driver IC. Order volume is also a significant factor, with unit prices dropping substantially for larger purchase quantities.
